800W LED Profile Moving Head with 8-Blade Framing, CMY + CTO
LED Profile Moving Head
A full-function 800W LED profile moving head with an 8-blade framing system that rotates 150°, for large theatres, arenas, TV and touring. The 3-40° zoom, independent CMY and CTO, a 5-colour wheel with a CRI filter and a flow effect cover every look from sharp shutter cuts to soft washes.
Six fixed gobos, seven replaceable rotating gobos, a stackable 8-facet prism, frost and a 5-100% iris. Touch-screen display, RDM, 35 DMX512 channels and an energy-saving LED-off mode at zero dimmer. Two-in-one flight case available.
Specification
| Light source | 800W white LED |
|---|---|
| Lamp life | 20,000 hours |
| Rated power | 1200W |
| Input voltage | AC100-240V, 50/60Hz |
| Zoom | 3-40° linear zoom |
| Spot uniformity | 90% |
| Framing system | 8 blades, whole system rotates 150° |
| Color mixing | Independent CMY + CTO |
| Color wheel | 5 colours + white, CRI filter, flow effect |
| Fixed gobos | 6 gobos; gobo shake |

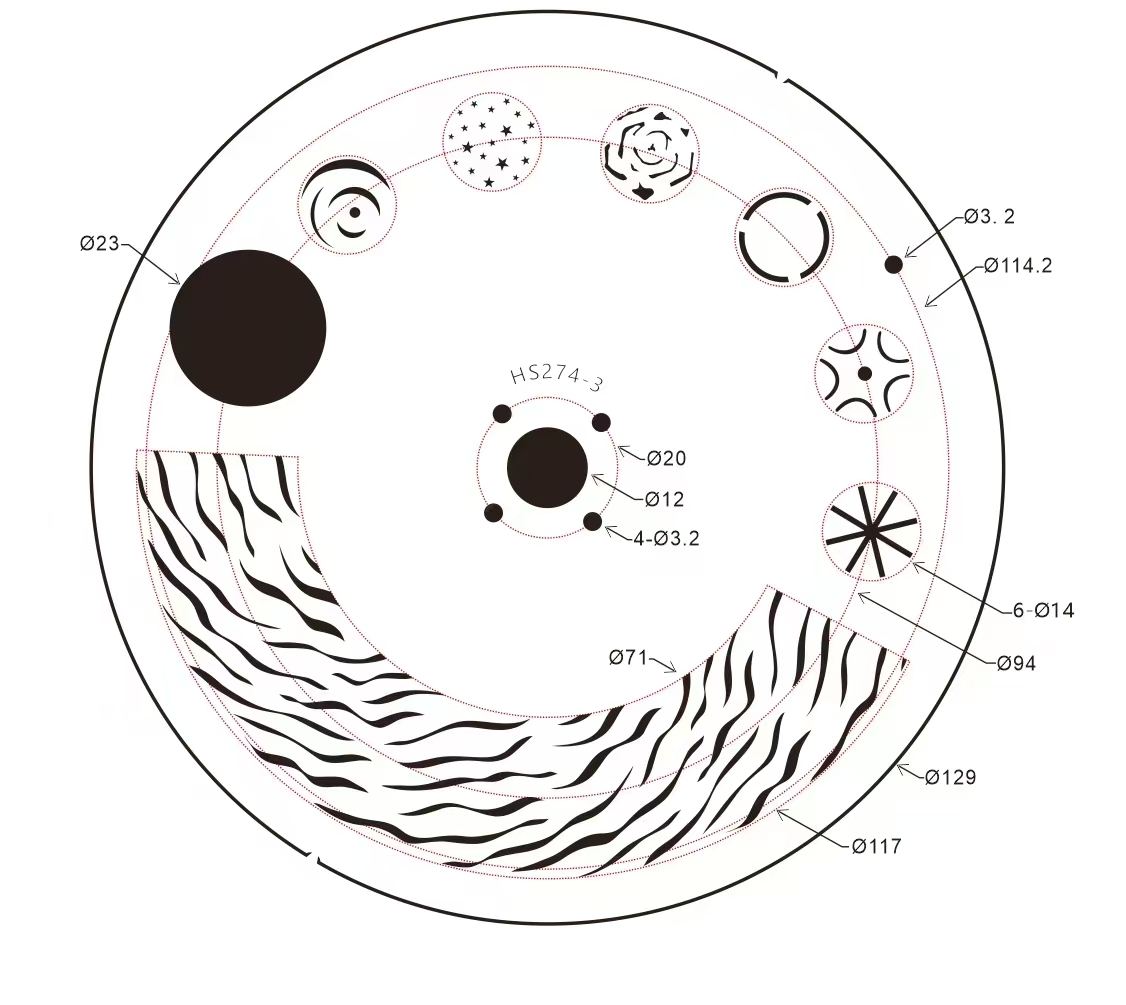

| Rotating gobos | 7 replaceable gobos; shake and indexing (outer diameter 22.8 mm, image 14 mm) |
| Prism | 8-facet, bidirectional, stackable, variable speed |
| Focus | DMX linear HD focus, 2 m to infinity |
| Frost | Built-in frost |
| Iris | 5-100% |
| Strobe | 1-25 flashes per second; random and pulse strobe |
| Dimming | 0-100% linear |
| Pan / Tilt | 540° / 270°, 16-bit, auto position correction |
| Control modes | DMX512 with RDM; sound-active, auto, master-slave |
| DMX channels | 35CH |
| Display | LCD touch screen |
| Product size | 77.5 x 40.5 x 28.5 cm |
| Net weight | 25.1 kg |
| Packing size | 79.5 x 36.5 x 50.5 cm |
| Gross weight | 28 kg |
| Flight case | 2-in-1: 95 x 50 x 88 cm with wheels; 85 kg loaded |
