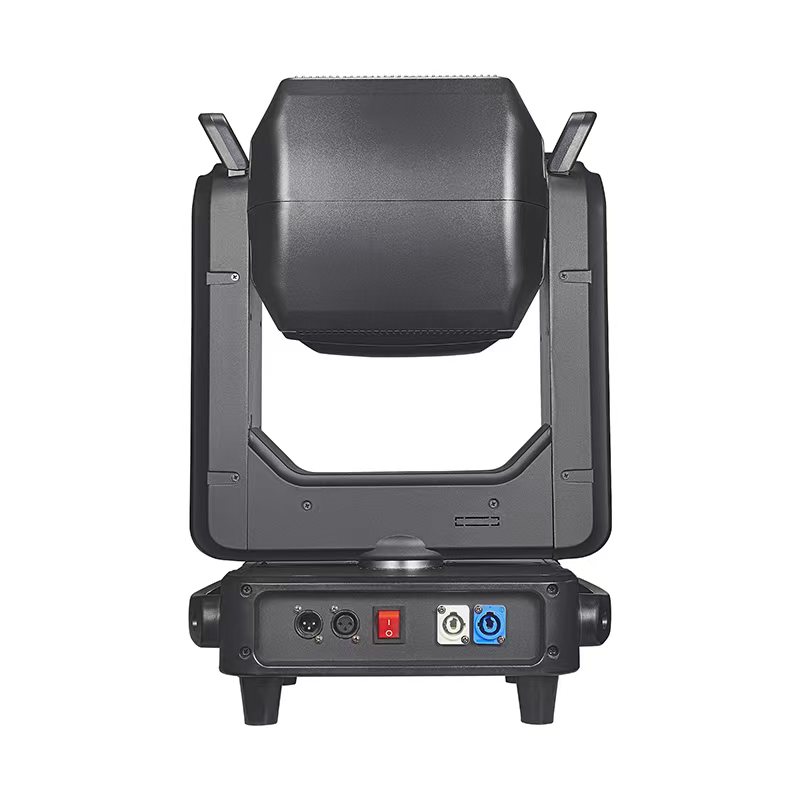

600W LED Profile Moving Head with CMY, CTO and Framing
LED Profile Moving Head
A 600W LED profile moving head with a 3-40° zoom, CMY mixing and linear CTO from 3000K to 6500K, for theatre, broadcast and live events. The framing module uses four blades and rotates 150°, so it can shape the beam to any edge.
Two colour wheels with half-colour effects, 11 fixed gobos with a flame effect, 6 replaceable rotating gobos with a water effect, a stackable 8-facet prism, frost and a 5-100% iris. 90% spot uniformity, 1-25 Hz strobe, RDM and 35 DMX512 channels.
Specification
| Light source | 600W white LED |
|---|---|
| Lamp life | 20,000 hours |
| Rated power | 700W |
| Input voltage | AC100-240V, 50/60Hz |
| Zoom | 3-40° linear zoom |
| Spot uniformity | 90% |
| Framing system | 4 blades, whole system rotates 150° |
| Color mixing | CMY + linear CTO 3000-6500K |
| Color wheel | 2 wheels, 4 colours + white each, half-colour and rainbow effects |
| Fixed gobos | 11 gobos + flame effect + open; gobo shake |
| Rotating gobos | 6 replaceable gobos + water effect + open; shake and indexing |
| Prism | 8-facet, bidirectional, stackable, variable speed |
| Focus | DMX linear HD focus, 2 m to infinity |
| Frost | Built-in frost |
| Iris | 5-100% |
| Strobe | 1-25 flashes per second; random and pulse strobe |
| Dimming | 0-100% linear |
| Pan / Tilt | 540° / 270°, 16-bit, auto position correction |
| Control modes | DMX512 with RDM; sound-active, auto, master-slave |
| DMX channels | 35CH |
| Display | LCD |
| Product size | 385 x 280 x 700 mm |
| Net weight | 25.5 kg |
