400W LED Profile Moving Head with 8-Blade Framing

LED Profile Moving Head

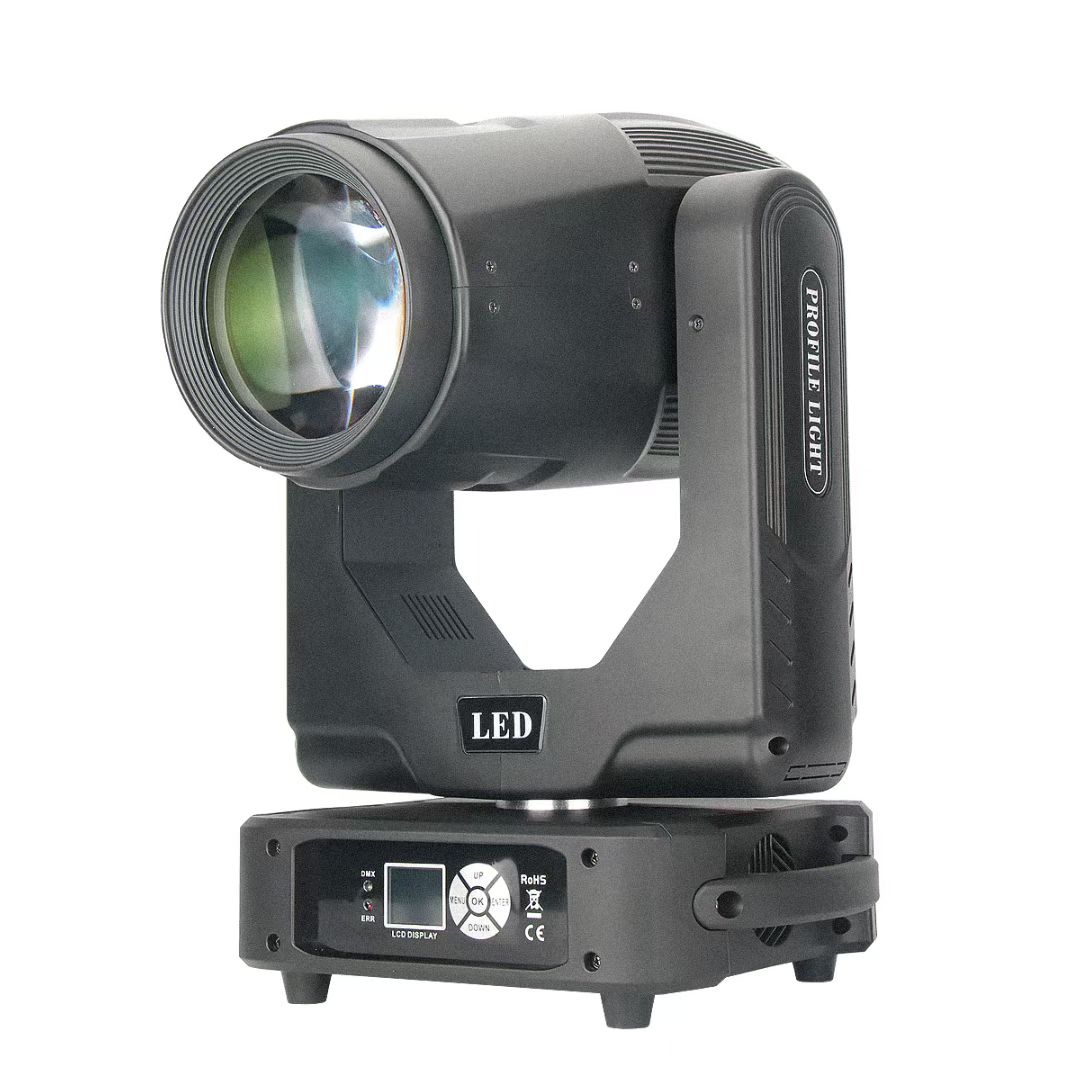

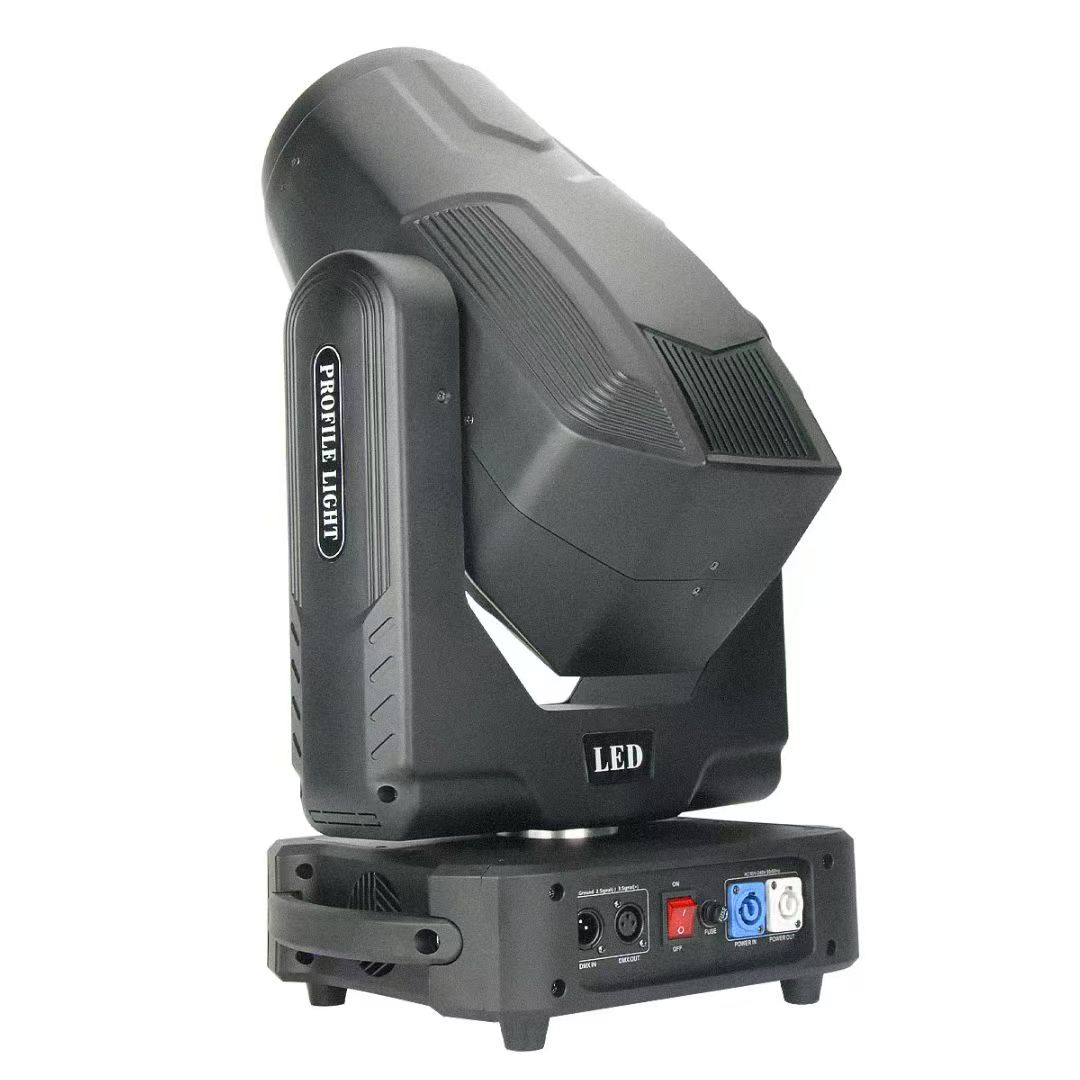

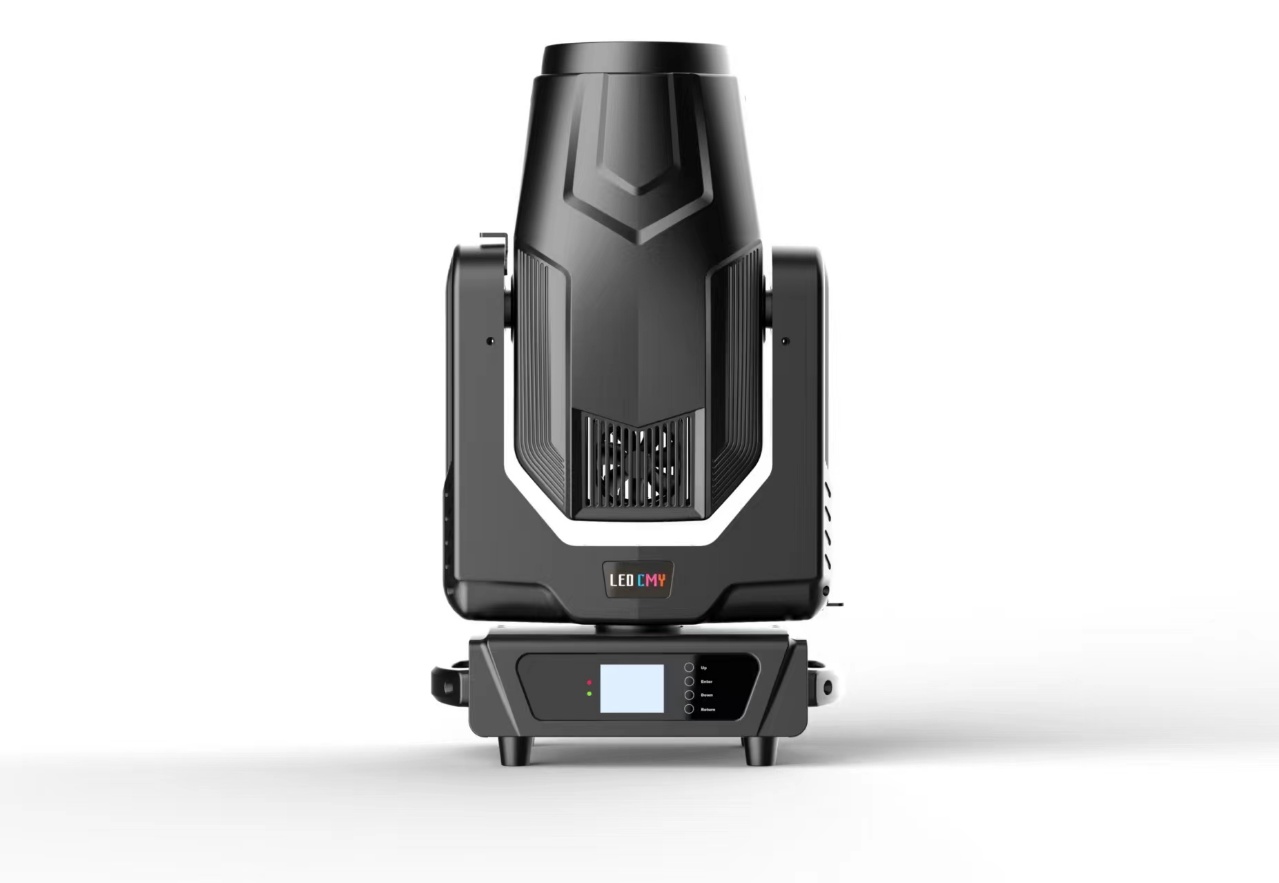

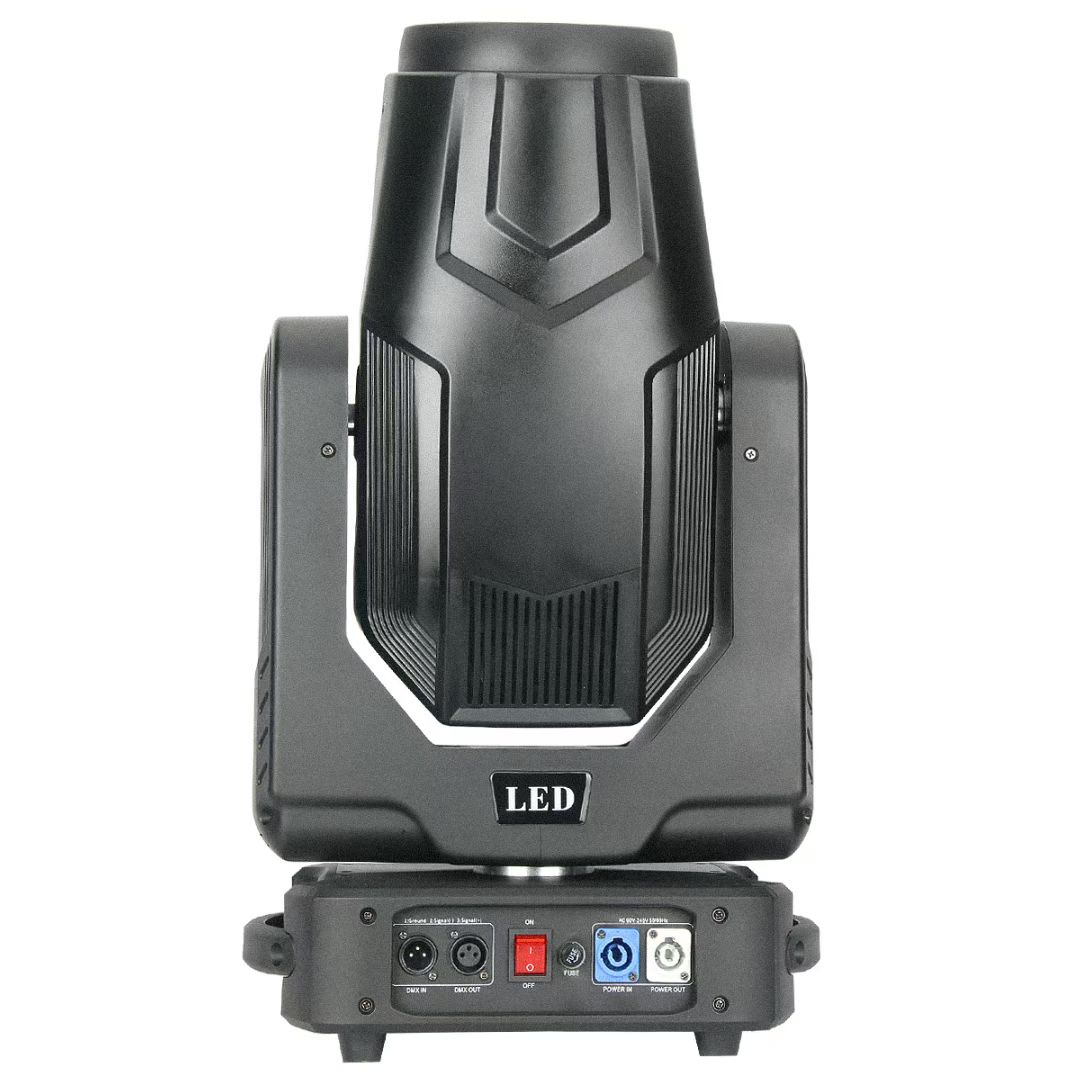

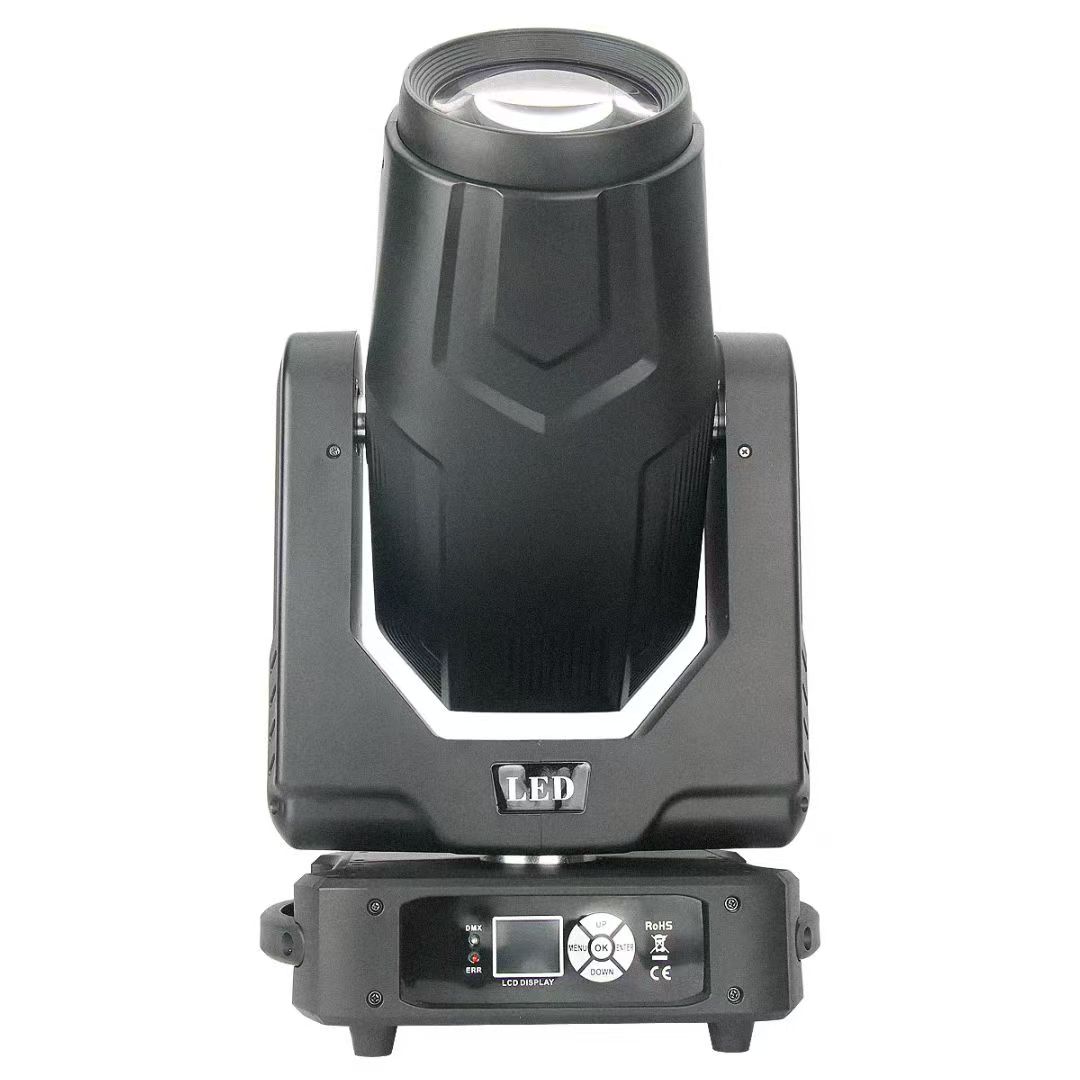

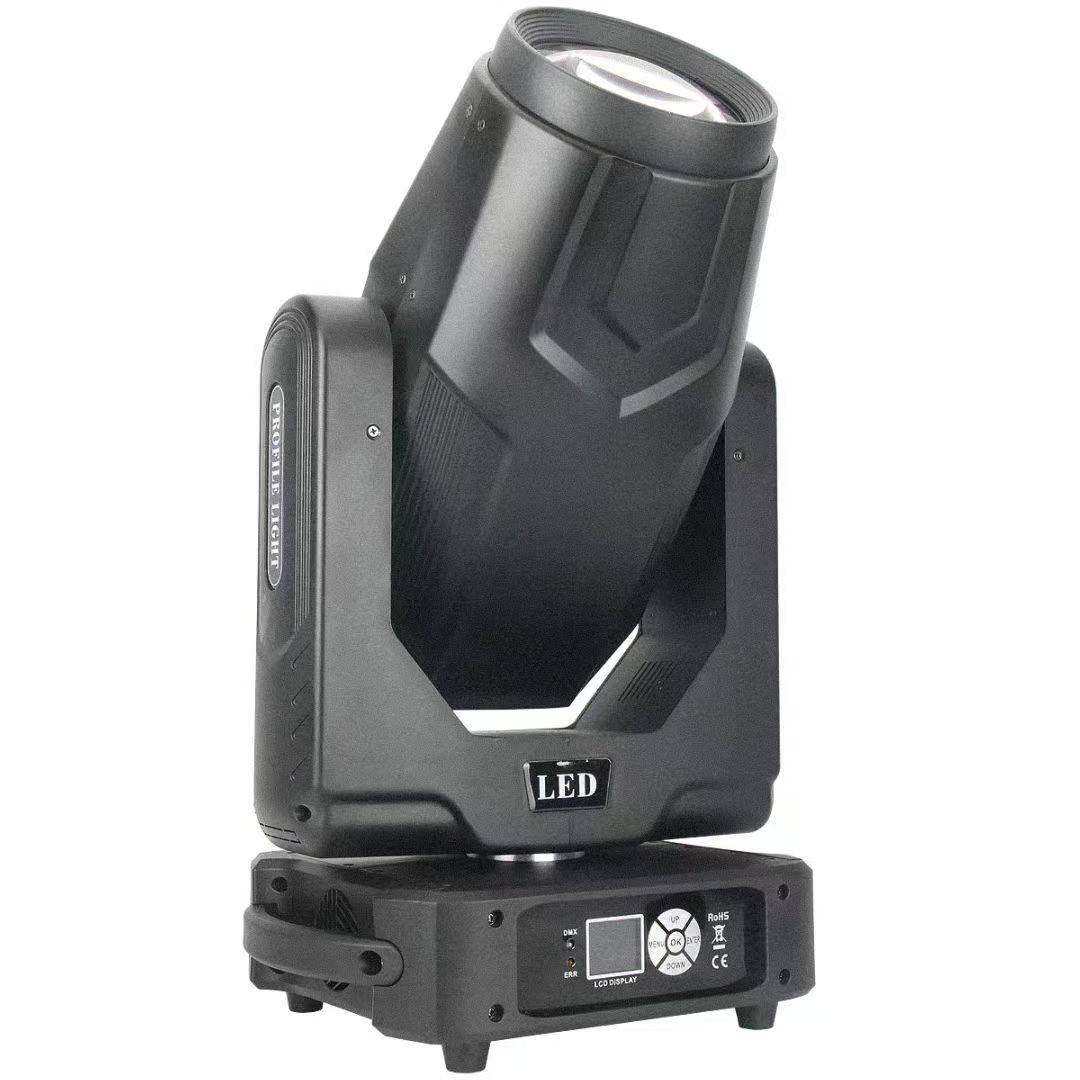

A 400W LED profile moving head (500W rated) with an 8-blade framing system for shaping light to stages, screens and scenery. The 3.8-35° zoom runs on a guide-rail slide for smooth, linear focus and zoom without jitter.

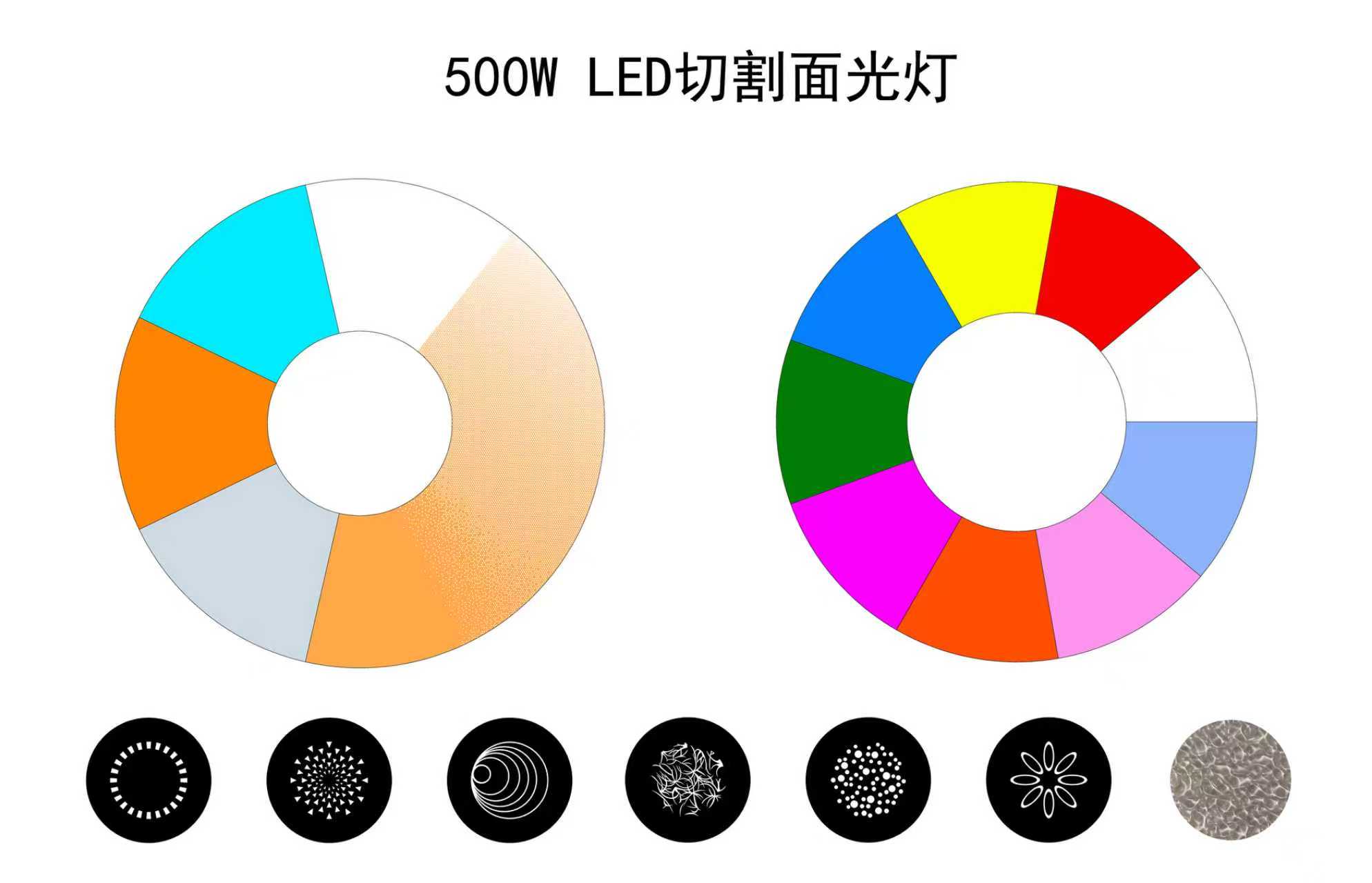

Two colour wheels (13 colours plus a colour-temperature wheel with partial CMY effects) and 8 heat-resistant glass gobos with fine rotation. DMX512 with RDM in 23 or 27 channels, plus auto, sound and master-slave modes; 8 or 16-bit movement. For theatres, churches, schools and corporate events.

DOWNLOAD FILE
WHATSAPPRequest a QuoteSpot Moving Light

Specification

400W LED Profile Moving Head with 8-Blade Framing — Specification
Light source400W LED module, 8500K
Rated power500W
Input voltageAC100-240V, 50/60Hz
Zoom3.8-35°, guide-rail zoom and focus
Framing system8 heat-resistant shutter blades
Color wheel13 colours + white; colour-temperature wheel with partial CMY effects
Fixed gobos8 glass gobos + open, rotatable fine adjustment
Pan / Tilt540° / 270°, 8-bit or 16-bit
Control modesDMX512, RDM, auto, master-slave, sound-active
DMX channels23CH / 27CH

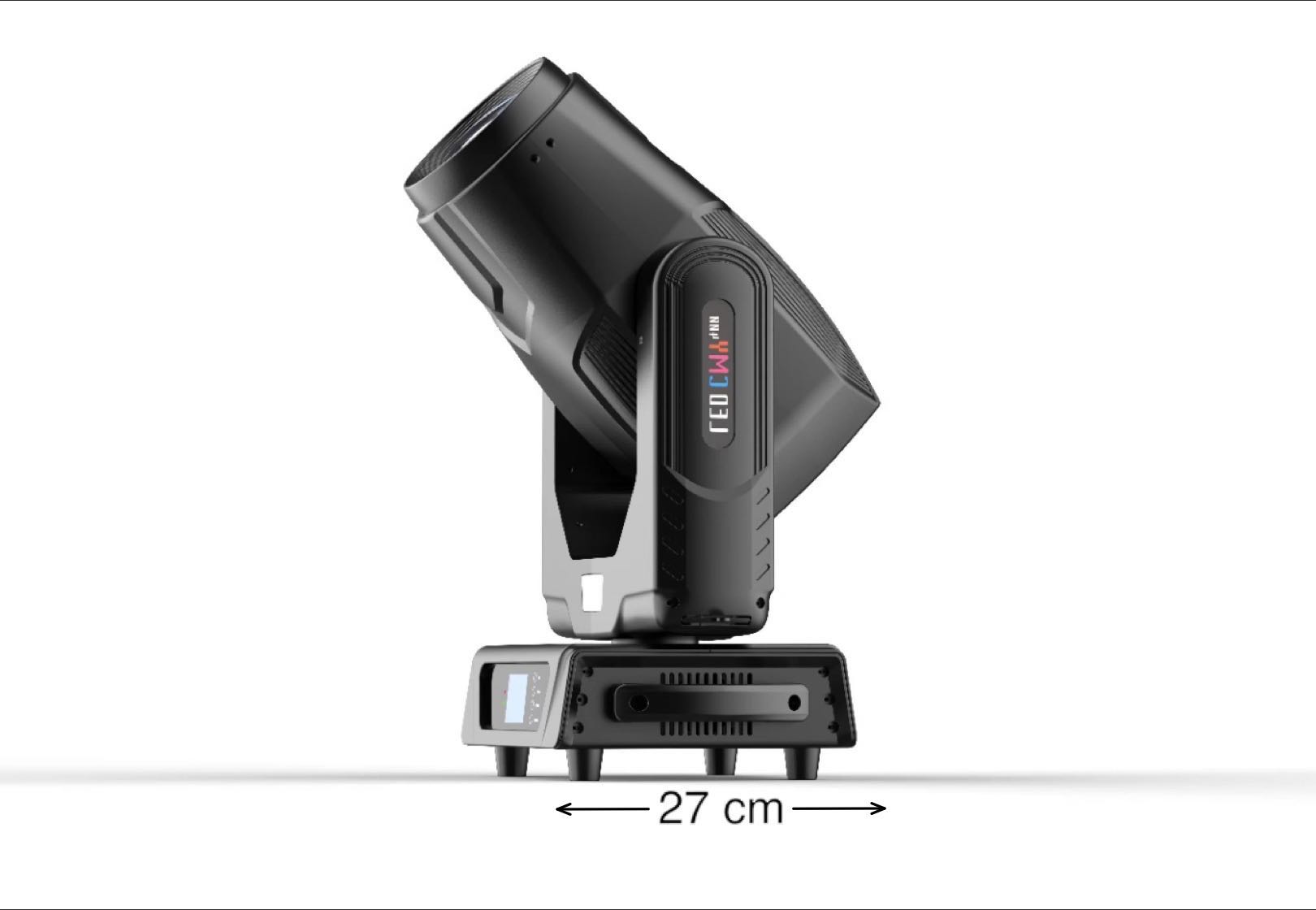

Product size35 x 27 x 65 cm
Net weight20 kg
Packing size75 x 36 x 46.5 cm
Gross weight23.15 kg

Download

User manual (English)EnglishDOCX
