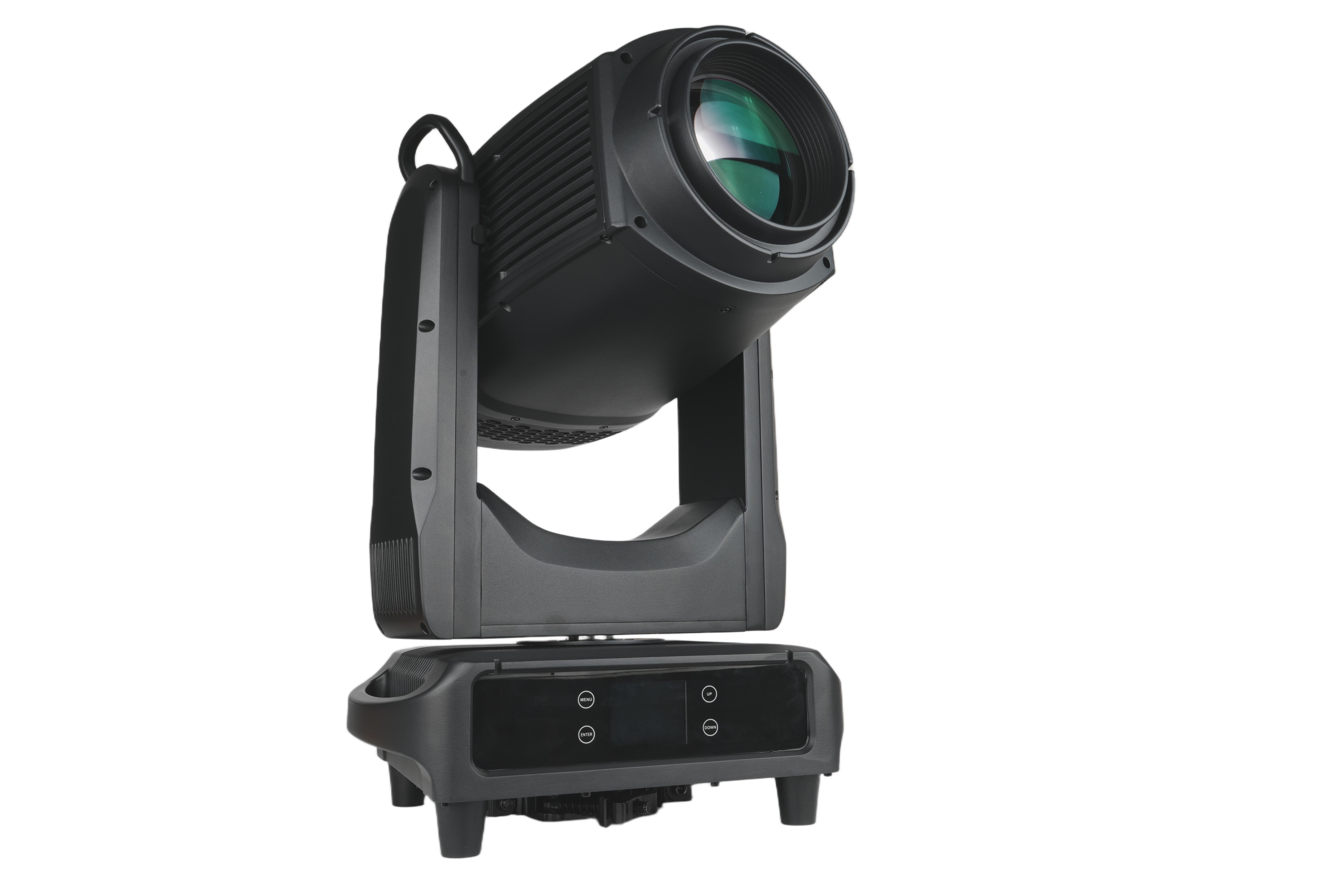

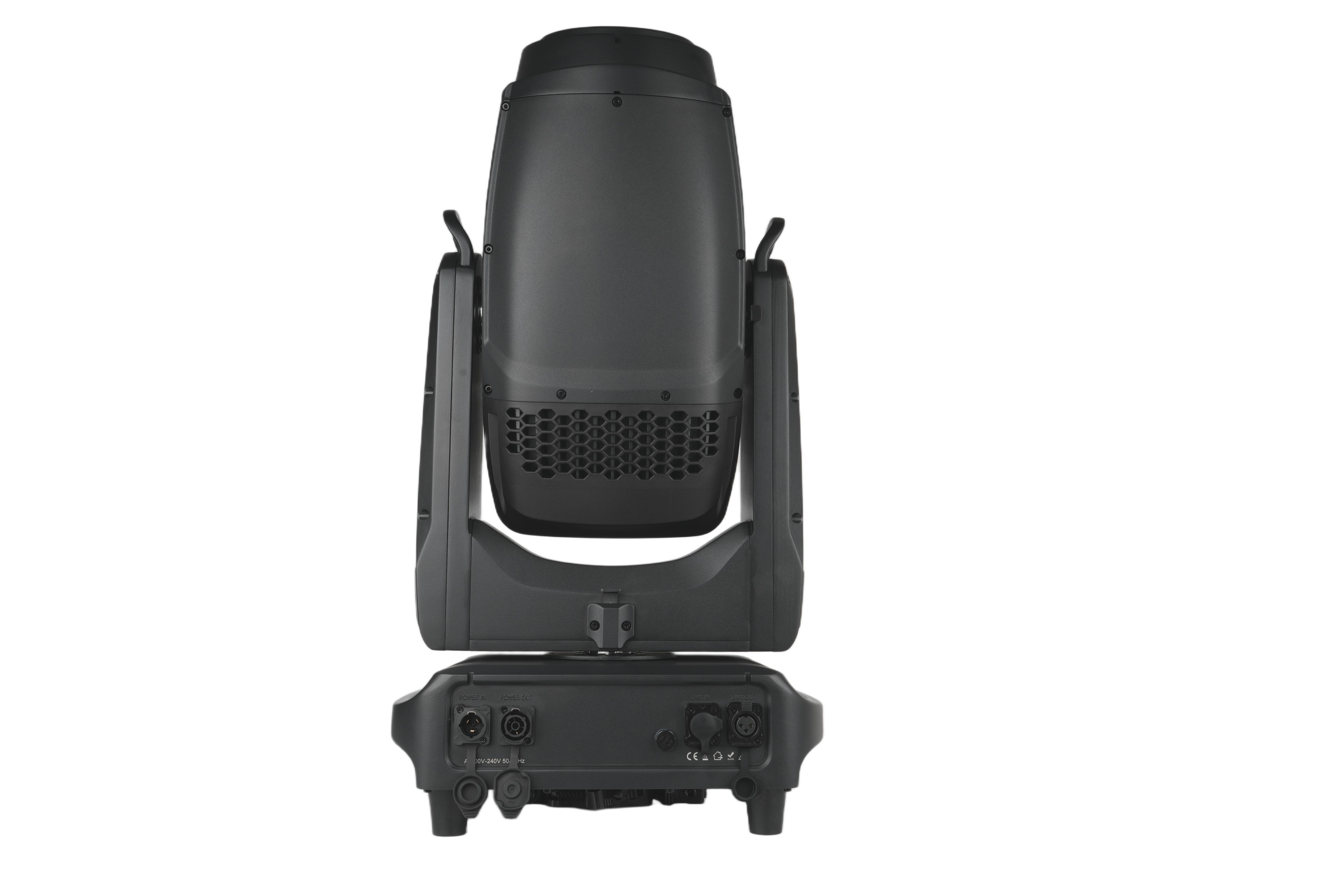

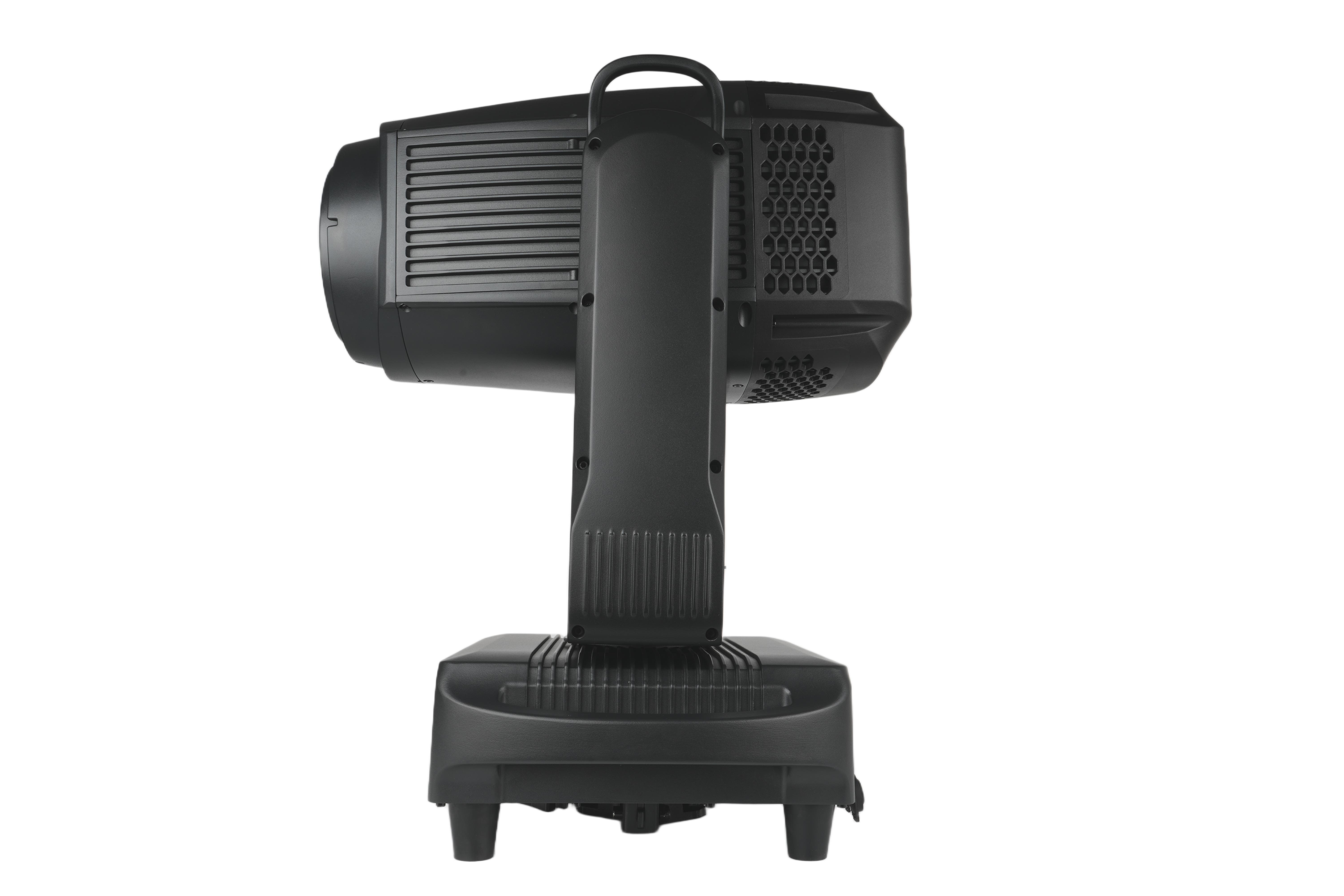

450 BSW IP Outdoor IP66 Beam Spot Wash Moving Head with CMY
Outdoor Beam Spot Wash Moving Head
The 450 BSW IP is an IP66 outdoor beam spot wash moving head with a USHIO NSLU7 lamp, linear CMY colour mixing and linear CTO from 3200K to 6700K. The 2-31° zoom from a 140 mm lens covers aerial beams, gobo projection and washes on festival and stadium stages.
Two colour wheels with 12 colours, 16 fixed gobos, 9 replaceable rotating gobos, a 6-facet prism and a 6-row linear prism, frost and 1-20 Hz strobe. Magnesium-alloy body, waterproof connectors, auto-rotating 2.8-inch display; DMX512 / RDM in 28 or 20 channels.

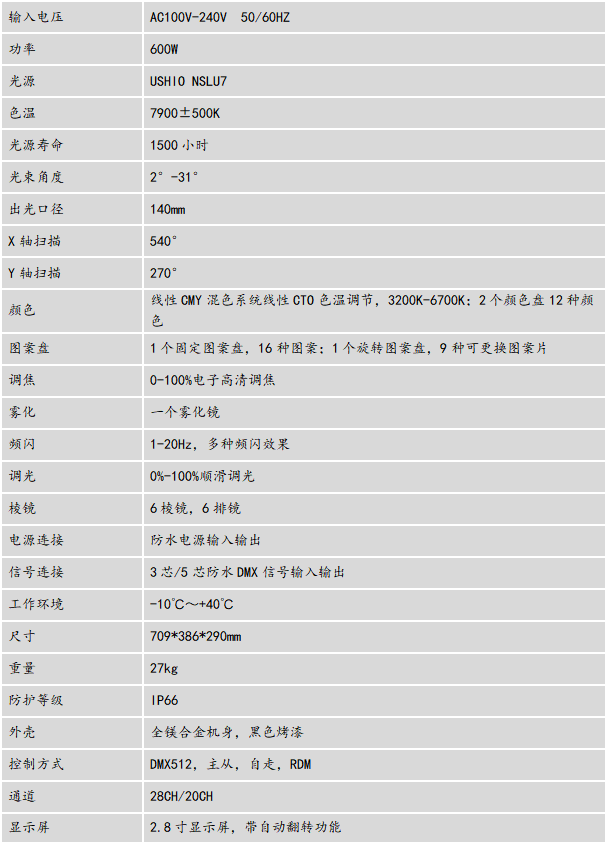

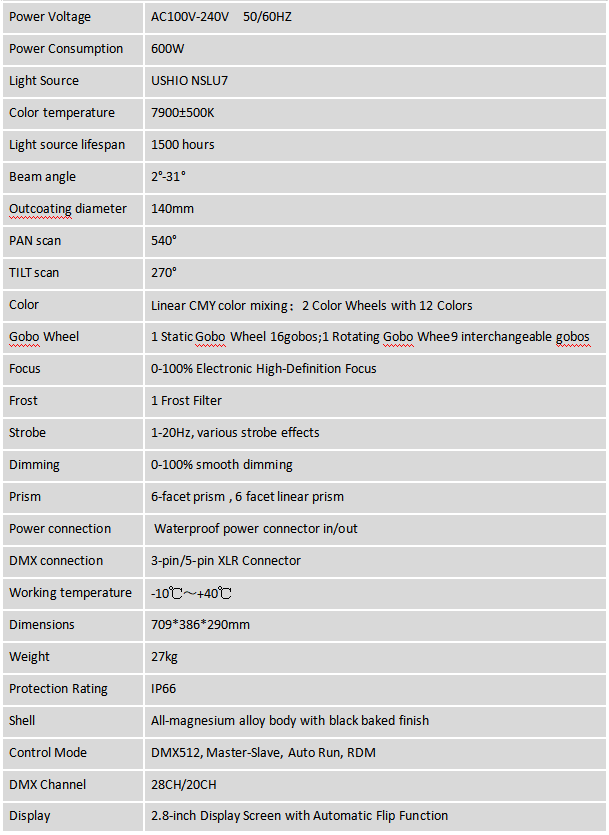

Specification
| Light source | USHIO NSLU7 lamp, 7900K ±500K |
|---|---|
| Lamp life | 1,500 hours |
| Rated power | 600W |
| Input voltage | AC100-240V, 50/60Hz |

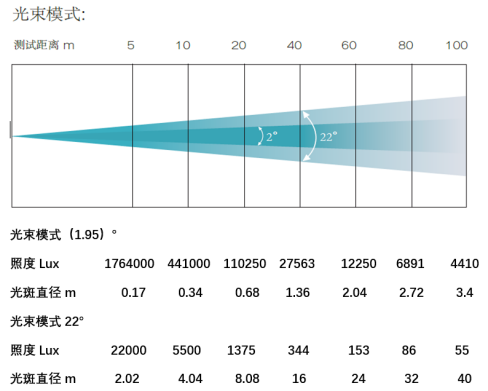

| Zoom | 2-31° |
| Front lens | 140 mm |
| Color mixing | Linear CMY + linear CTO 3200-6700K |
| Color wheel | 2 colour wheels, 12 colours |
| Fixed gobos | 16 gobos |
| Rotating gobos | 9 replaceable gobos |
| Prism | 6-facet prism + 6-row linear prism |
| Focus | 0-100% electronic HD focus |
| Frost | Frost filter |
| Strobe | 1-20 Hz with multiple strobe effects |
| Dimming | 0-100% smooth |
| Pan / Tilt | 540° / 270° |
| Control modes | DMX512, RDM, master-slave, auto |
| DMX channels | 28CH / 20CH |
| Display | 2.8-inch display, auto-rotating |
| Connections | Waterproof power in / out; waterproof 3-pin / 5-pin DMX in / out |
| Housing | Magnesium-alloy body, black finish |
| Protection rating | IP66 |
| Operating temperature | -10°C to 40°C |

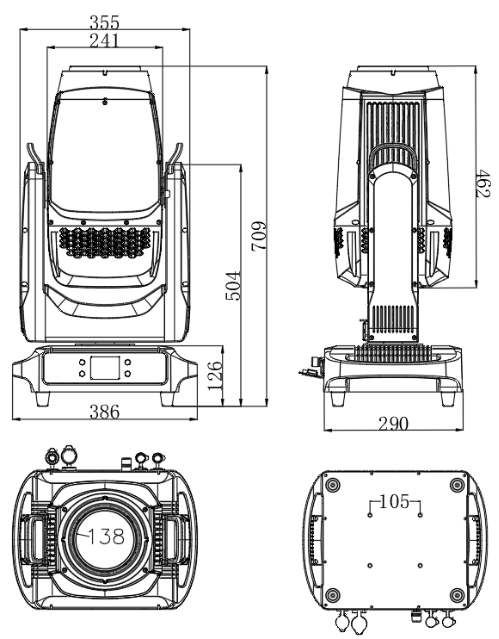

| Product size | 709 x 386 x 290 mm |
| Net weight | 27 kg |
