350W Beam / Spot / Wash
A 350W lamp-based moving head combining beam, spot and wash functions with DMX512 control.
WHATSAPPRequest a Quote- Light source
- 350 W lamp
- Beam angle
- 0–4°
- Net weight
- 25.5 kg
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Light source | 350 W lamp |
|---|---|
| Power consumption | 400 W |
| Power input | AC 110–250 V, 50/60 Hz |
| Beam angle | 0–4° |
| Dimming | 0–100% |
| Control | DMX512, auto, master-slave, sound |
| DMX channels | 16 / 24 |
| Movement | Pan 540° / tilt 270°, 16-bit |
| Gobo wheel | 17 gobos + open |
| Colour wheel | 14 colours + open |
| Effects | Rotating 8-facet prism, effect movement, frost |
| Data connectors | 3-pin input / output |
| Power connector | PowerCon input |
| Display | 180° reversible LCD |
| Protection rating | IP20 |
| Overheat protection | Yes |

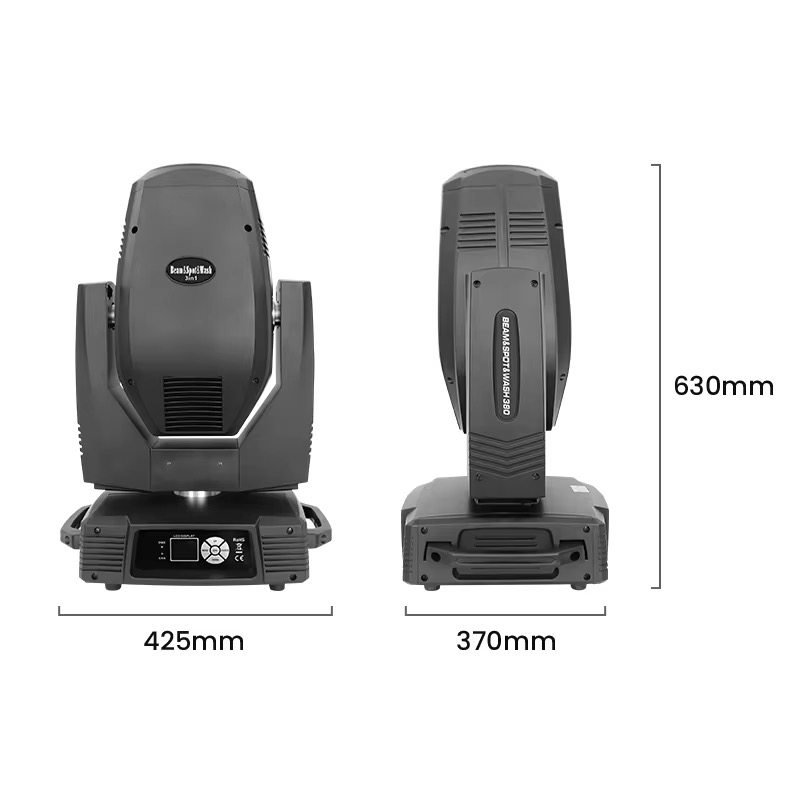

| Dimensions | 45 × 31 × 64 cm |
| Net weight | 25.5 kg |
| Package dimensions | 76.5 × 50.5 × 46.5 cm |
| Gross weight | 28 kg |
