Planning this product into your project
Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

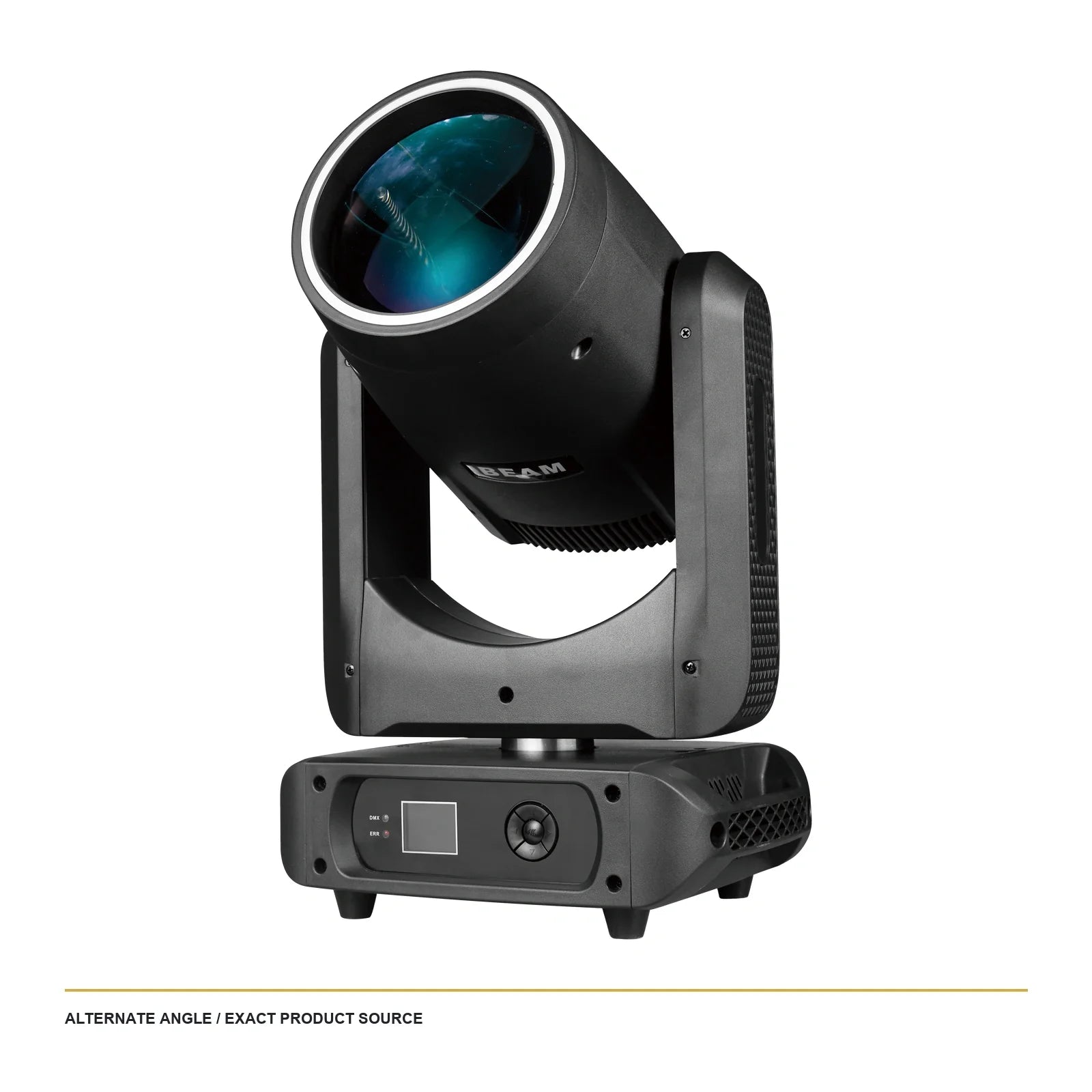

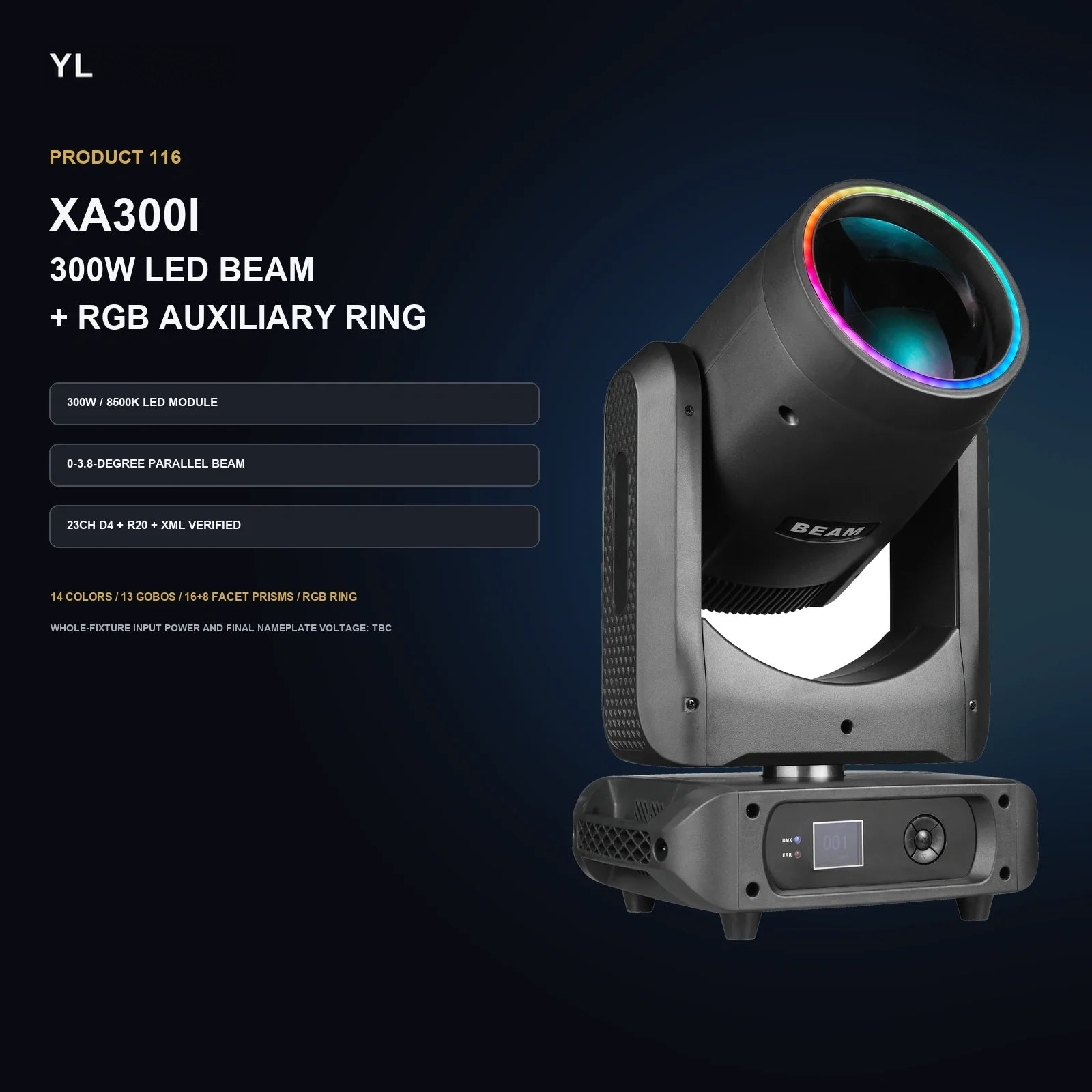

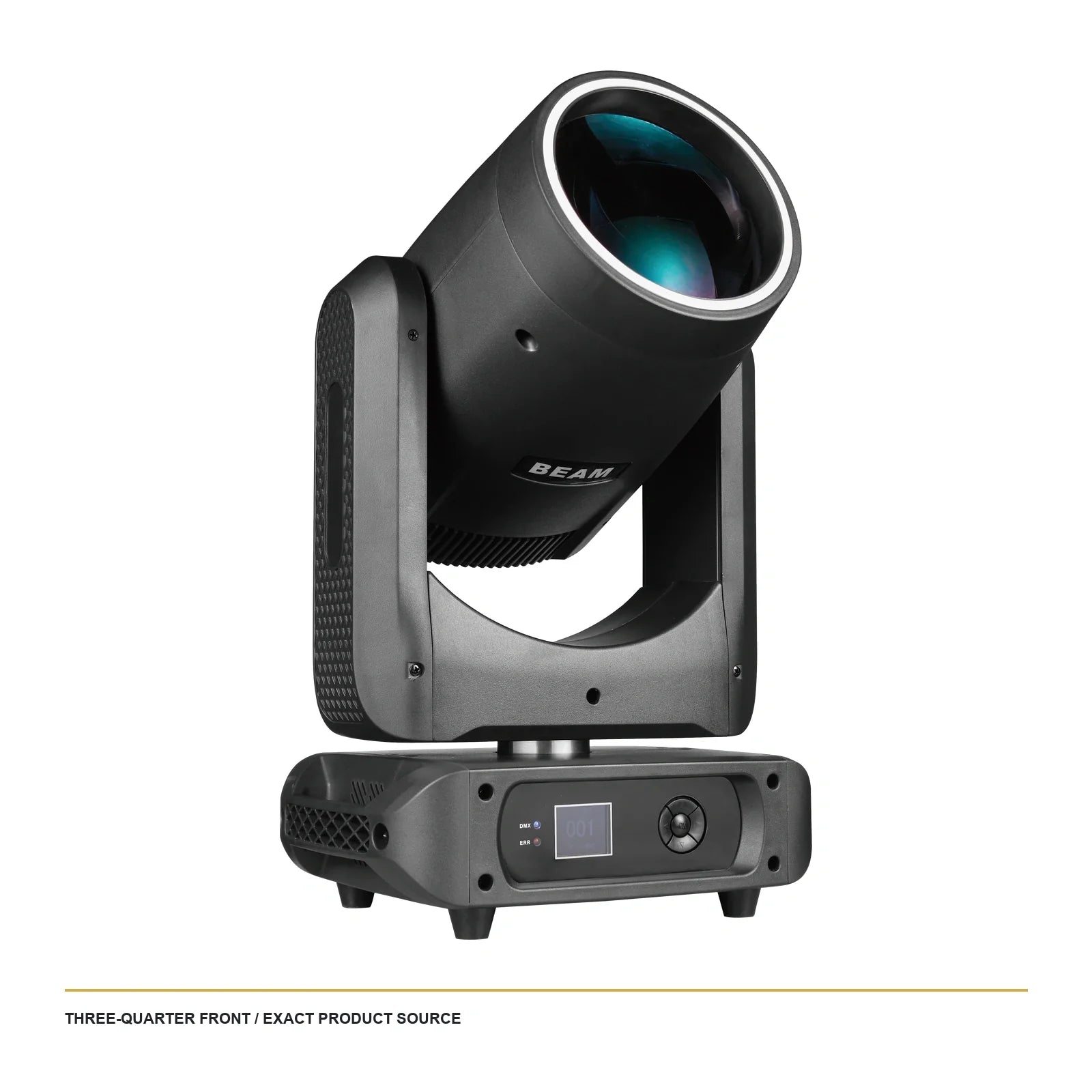

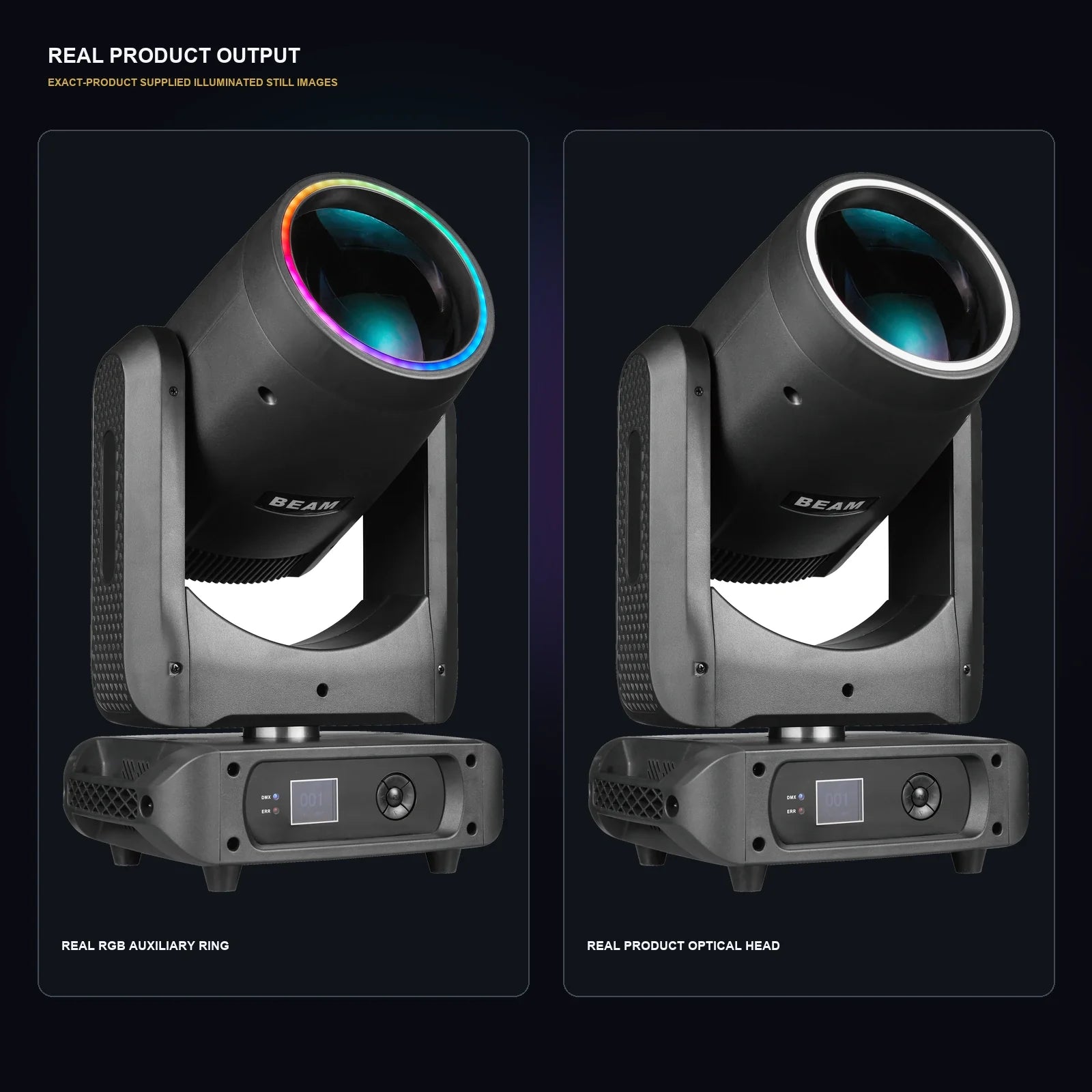

XA300I 300W LED Beam with RGB Auxiliary Ring Moving Head
XA300I 300W LED Beam with RGB Auxiliary Ring Moving Head is a stage lighting catalogue item in the moving head beam light category. Reference specifications list light source: 300W LED module; 8500K; 20,000-hour life claim; dmx channels: 23CH D4 + R20 + XML fixture-library verified. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Light source
- 300W LED module; 8500K; 20,000-hour life claim
- Beam angle
- 0-3.8-degree parallel beam
- Control modes
- DMX512 / auto 1 / auto 2 / sound; remote module switching documented
Product configuration
- Movement
- 540-degree pan / 270-degree tilt; fine channels and auto position correction
- Product
- XA300I 300W LED Beam with RGB Auxiliary Ring Moving Head
- Dimming / strobe
- 1-100% linear dimming; electronic strobe, manual wording 0.5-9 flashes/second
- Environment
- Indoor use stated; exact IP code TBC
Optical performance
- Light source
- 300W LED module; 8500K; 20,000-hour life claim
- Beam angle
- 0-3.8-degree parallel beam

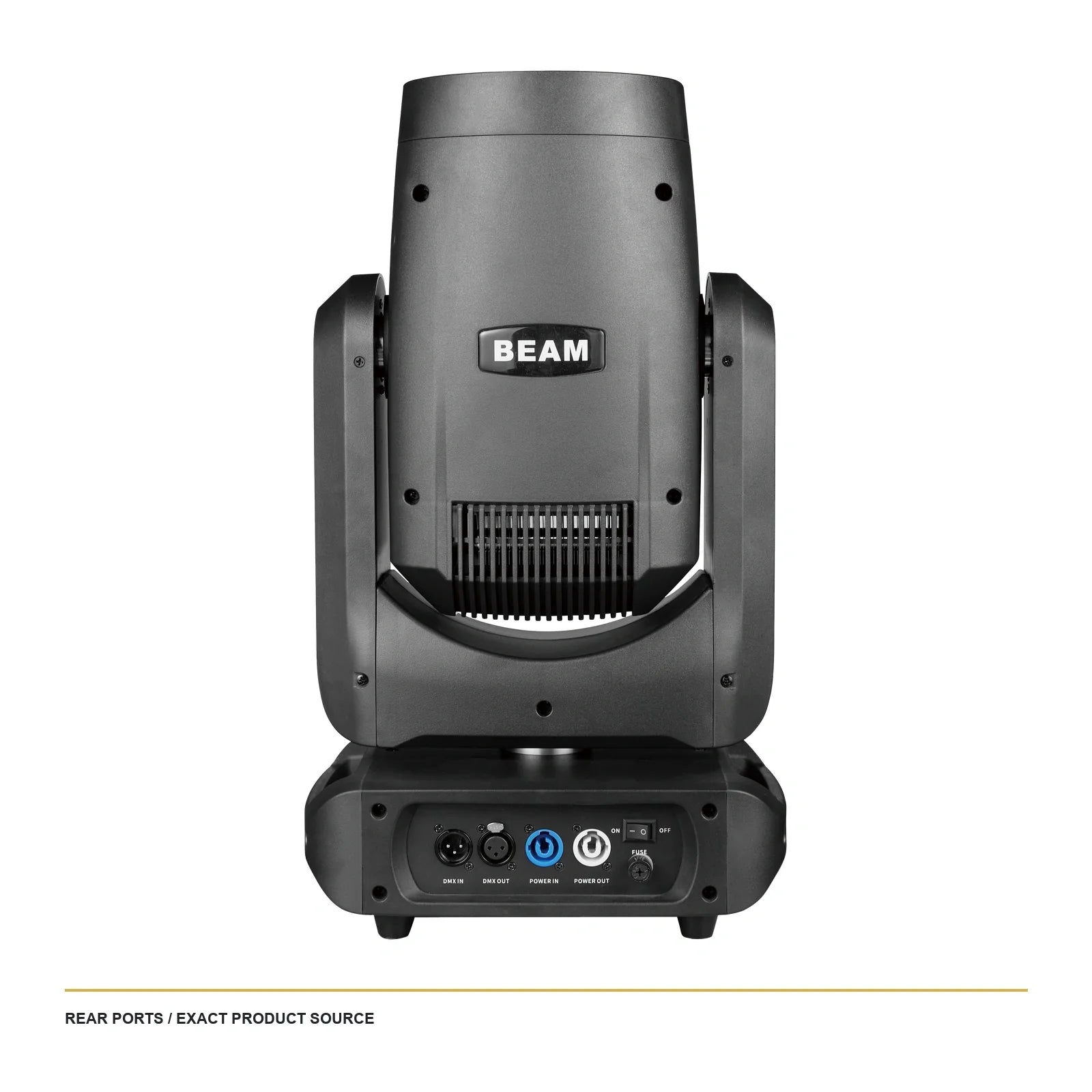

Control and connections
- DMX channels
- 23CH D4 + R20 + XML fixture-library verified
- Input voltage
- AC90-240V safety range; technical section says AC220-240V - nameplate check required
- Control modes
- DMX512 / auto 1 / auto 2 / sound; remote module switching documented
Construction and dimensions
Electrical protection: Rated current, fuse value and fuse-holder location: TBC.
What to confirm for your quotation
- Provide the throw distance, mounting height and beam or coverage required.
- Confirm the exact light source, optical functions and channel mode for the quoted variant.
- Request relevant photometric data and a demonstration using the intended colour and zoom settings.
- Check power, connectors, weight, protection rating and the included mounting accessories.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Light source | 300W LED module; 8500K; 20,000-hour life claim |
|---|---|
| DMX channels | 23CH D4 + R20 + XML fixture-library verified |
| Movement | 540-degree pan / 270-degree tilt; fine channels and auto position correction |
| Input voltage | AC90-240V safety range; technical section says AC220-240V - nameplate check required |
| Product | XA300I 300W LED Beam with RGB Auxiliary Ring Moving Head |
| Control modes | DMX512 / auto 1 / auto 2 / sound; remote module switching documented |
| Beam angle | 0-3.8-degree parallel beam |
| Dimming / strobe | 1-100% linear dimming; electronic strobe, manual wording 0.5-9 flashes/second |
| Environment | Indoor use stated; exact IP code TBC |
| Electrical protection | Rated current, fuse value and fuse-holder location: TBC. |
Downloads
Product documents are being prepared. Contact YL for the current information for XA300I 300W LED Beam with RGB Auxiliary Ring Moving Head.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for XA300I 300W LED Beam with RGB Auxiliary Ring Moving Head.
Ask about compatible accessoriesProduct videos
