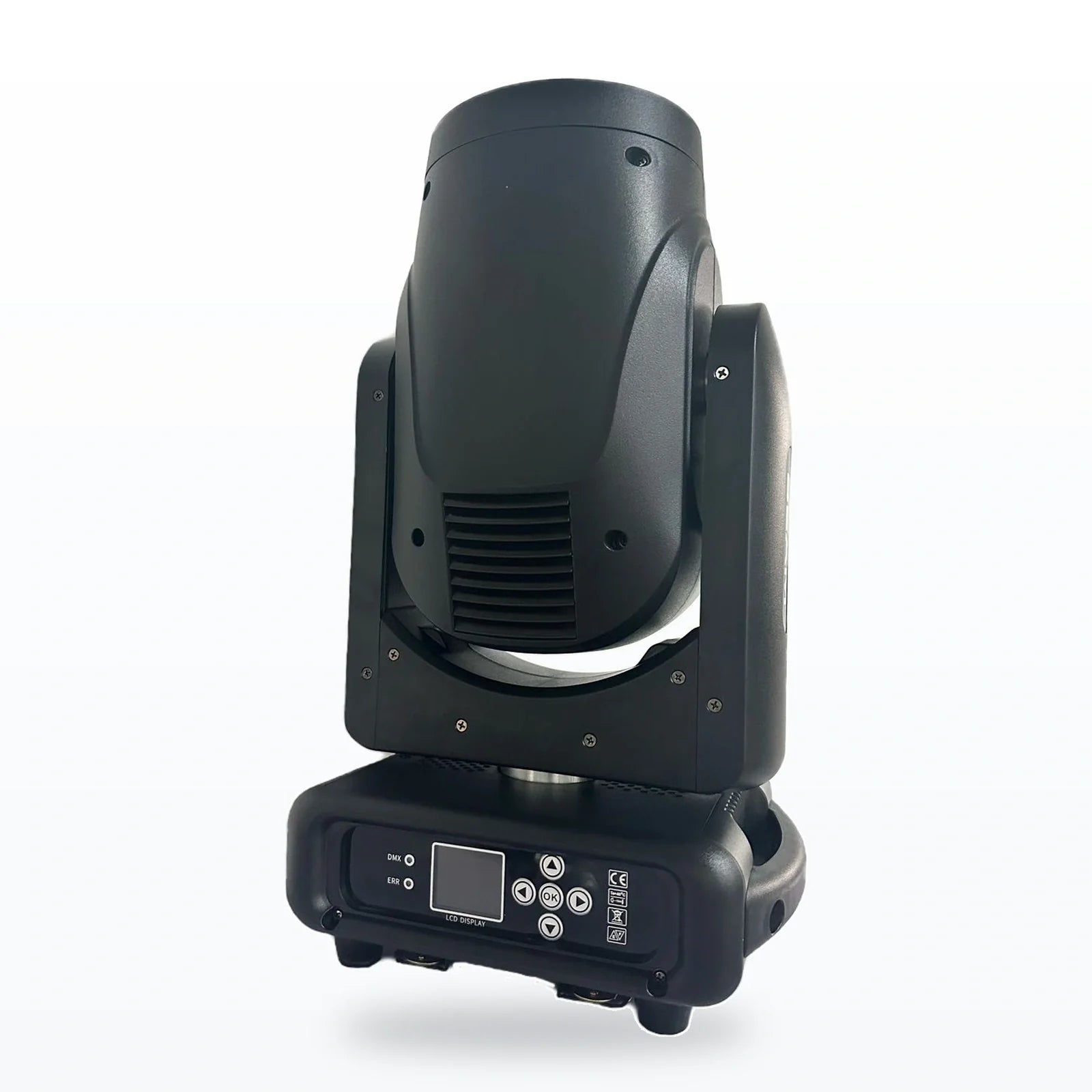

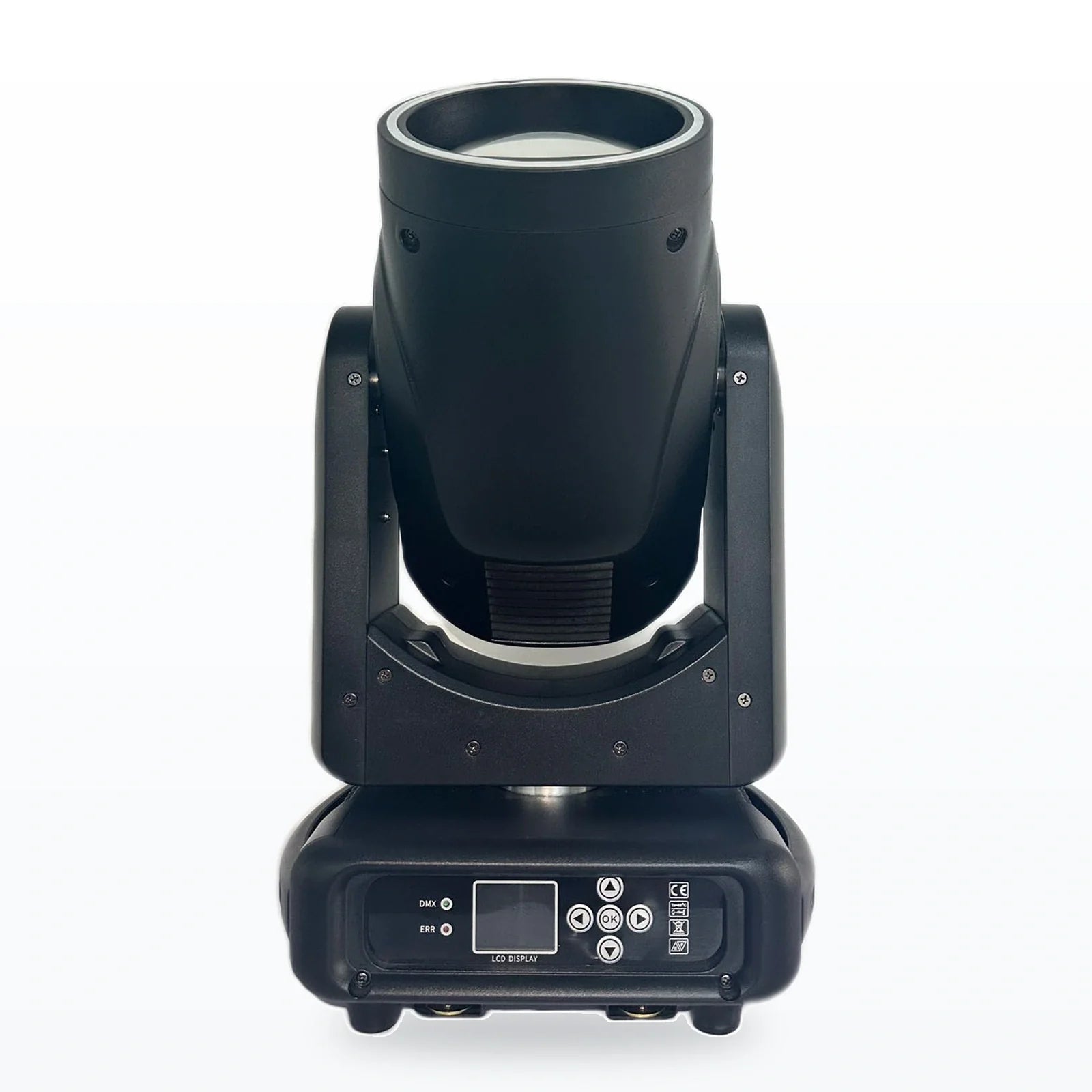

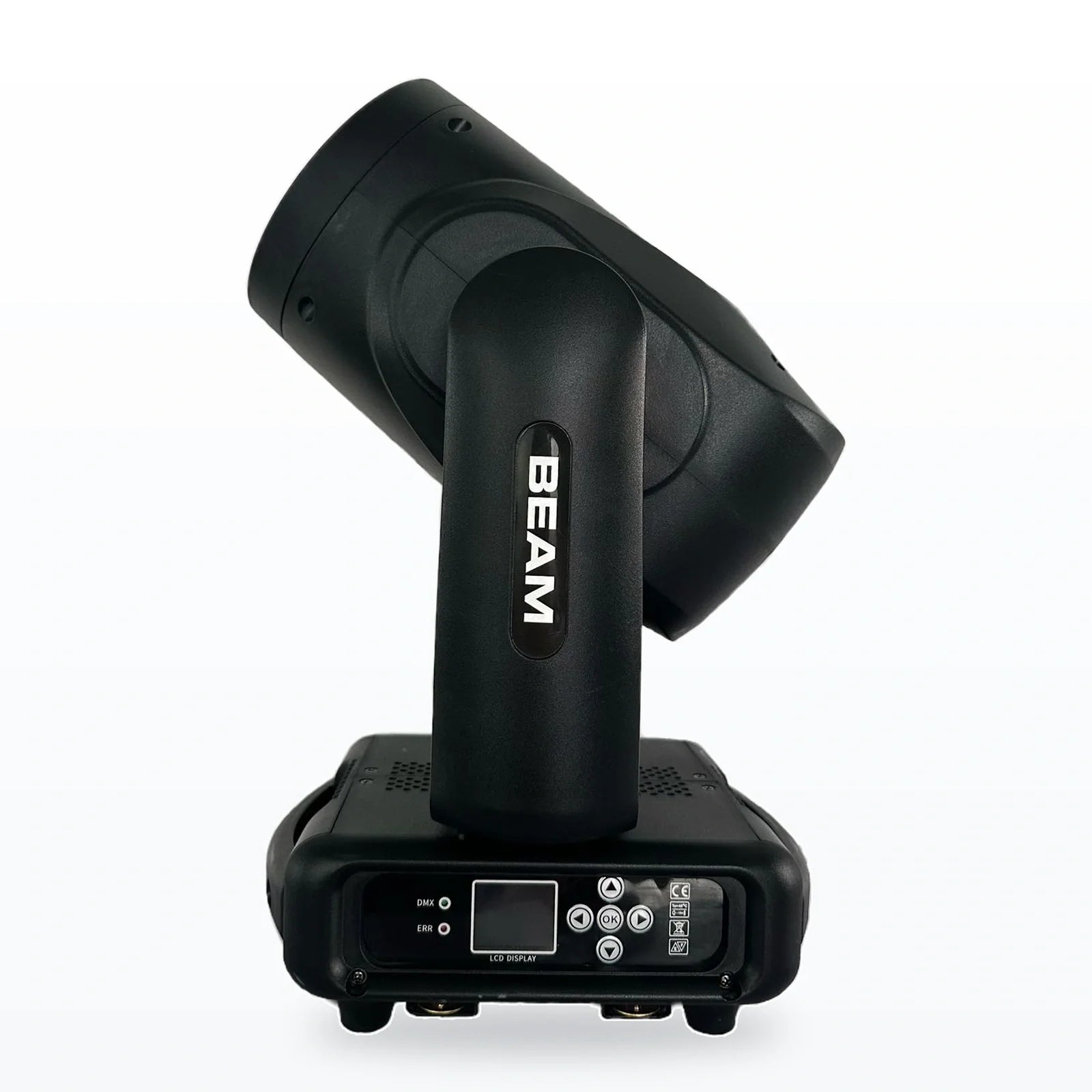

Mini 295W Moving Head Beam with LED Ring

Name: Mini 295W Moving Head Beam with LED Ring
Brand: YL Light

Mini 295W Moving Head Beam with LED Ring is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 450W; light source: Imported SRI source + LED ring. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: Imported SRI source + LED ring
Protection: IP20, professional indoor use
Net / gross weight: 8.5 kg / 10.2 kg

Planning this product into your project

Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

Product configuration

Movement: Pan 540 DEG / tilt 240 DEG / 16-bit fine channels
Product: Mini295W Moving Head Beam + LED Ring
Operating modes: DMX512 / sound / auto / master-slave
Dimming: 0-100% linear dimming

Optical performance

Rated power: 450W
Light source: Imported SRI source + LED ring
Color wheel: 12 colors + white
Fixed gobos: 13 patterns + open
Prism system: Two independent prism wheels; overlay supported
Prism effects: 8-facet and 8+16+24 prism combinations
Frost / color effect: Integrated frost + six-color effect

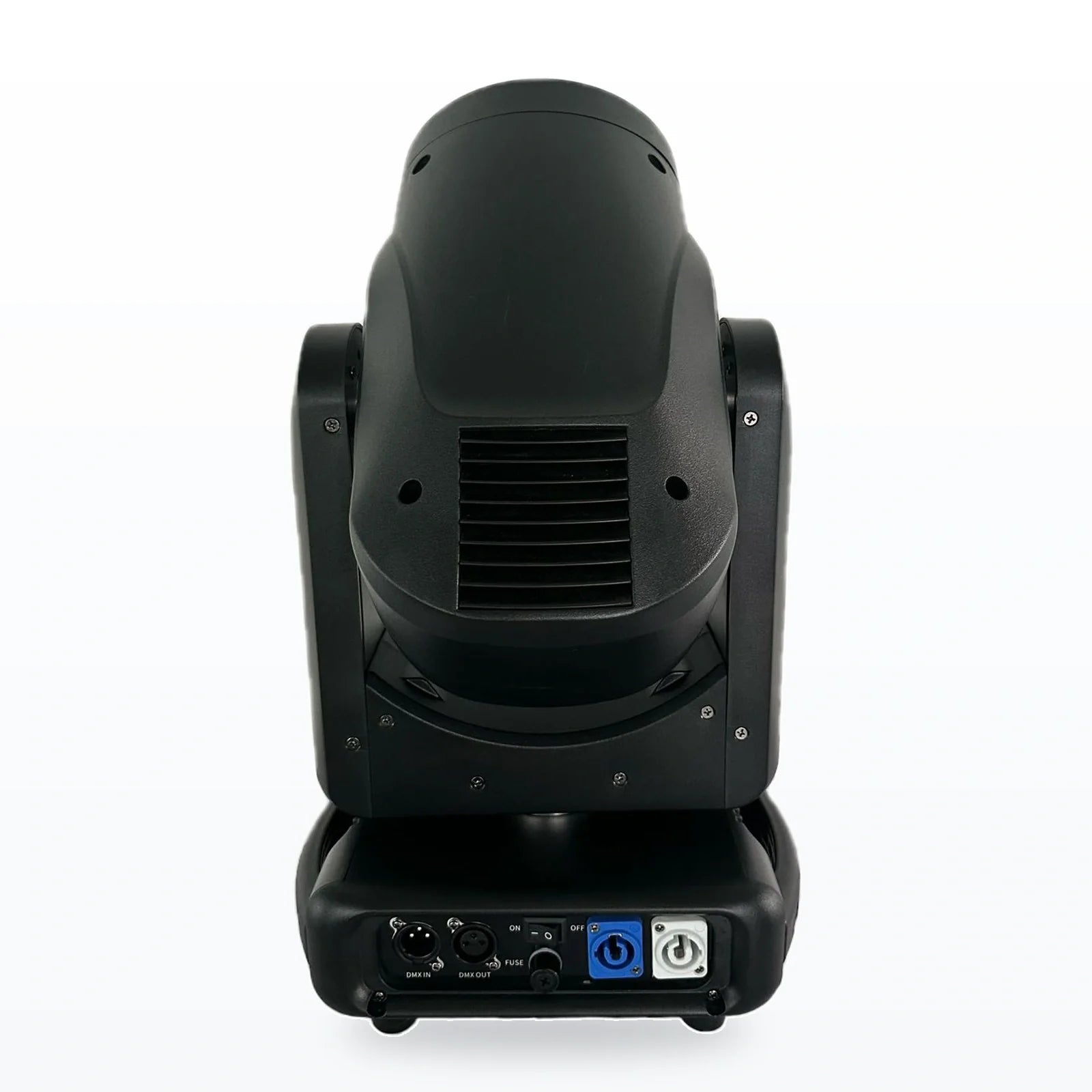

Control and connections

Control channels: 16 DMX channels
Input voltage: AC100-220V, 50/60Hz

Construction and dimensions

Product size: 27.5 x 20.5 x 45.5 cm
Net / gross weight: 8.5 kg / 10.2 kg
Protection: IP20, professional indoor use
Electrical protection: Use a grounded supply. Rated current and fuse specification must follow the product nameplate.

What to confirm for your quotation

Provide the throw distance, mounting height and beam or coverage required.
Confirm the exact light source, optical functions and channel mode for the quoted variant.
Request relevant photometric data and a demonstration using the intended colour and zoom settings.
Check power, connectors, weight, protection rating and the included mounting accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Mini 295W Moving Head Beam with LED Ring technical specifications
Rated power	450W
Light source	Imported SRI source + LED ring
Control channels	16 DMX channels
Movement	Pan 540 DEG / tilt 240 DEG / 16-bit fine channels
Product	Mini295W Moving Head Beam + LED Ring
Input voltage	AC100-220V, 50/60Hz
Operating modes	DMX512 / sound / auto / master-slave
Color wheel	12 colors + white
Fixed gobos	13 patterns + open
Prism system	Two independent prism wheels; overlay supported
Prism effects	8-facet and 8+16+24 prism combinations
Frost / color effect	Integrated frost + six-color effect
Dimming	0-100% linear dimming
Product size	27.5 x 20.5 x 45.5 cm
Net / gross weight	8.5 kg / 10.2 kg
Protection	IP20, professional indoor use
Electrical protection	Use a grounded supply. Rated current and fuse specification must follow the product nameplate.
