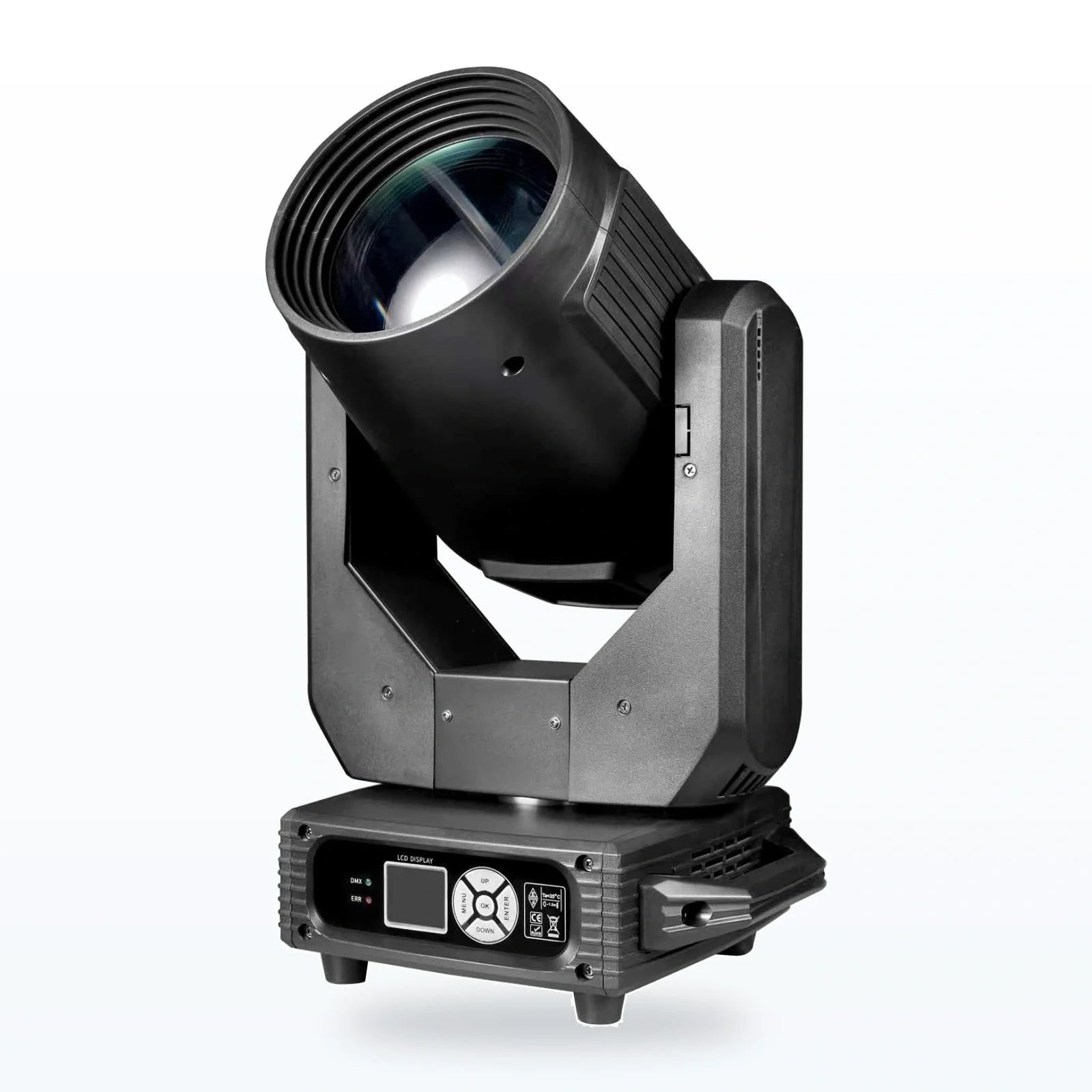

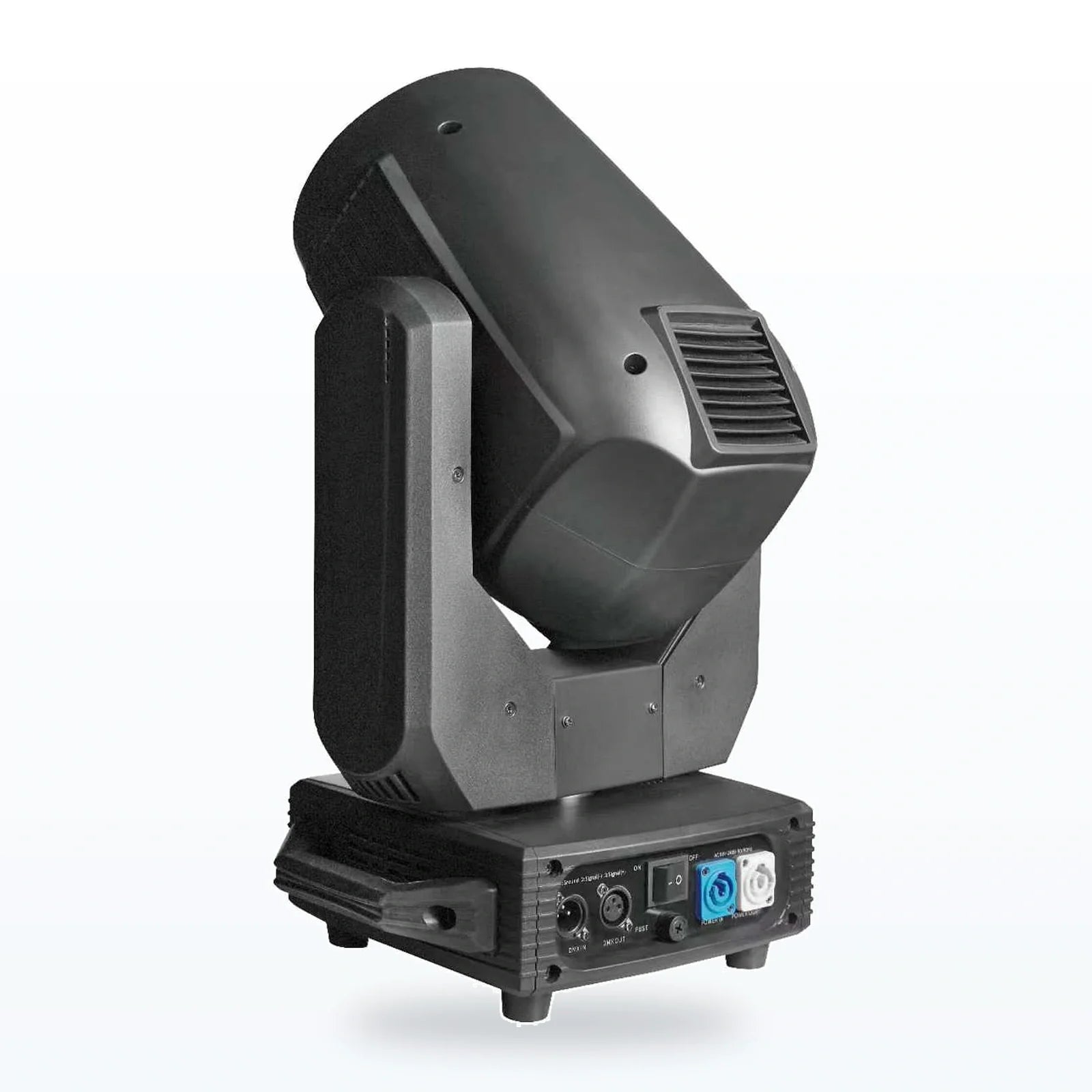

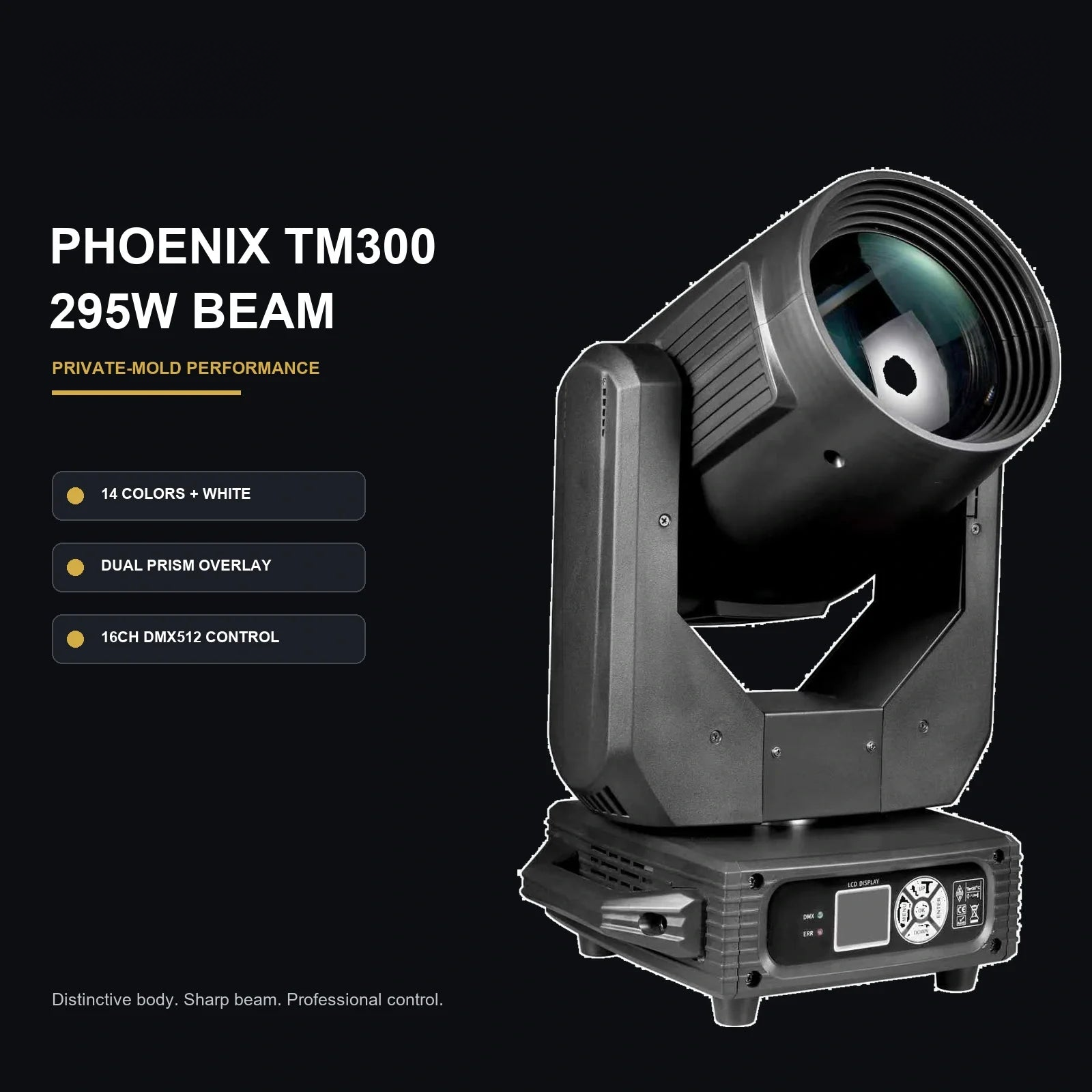

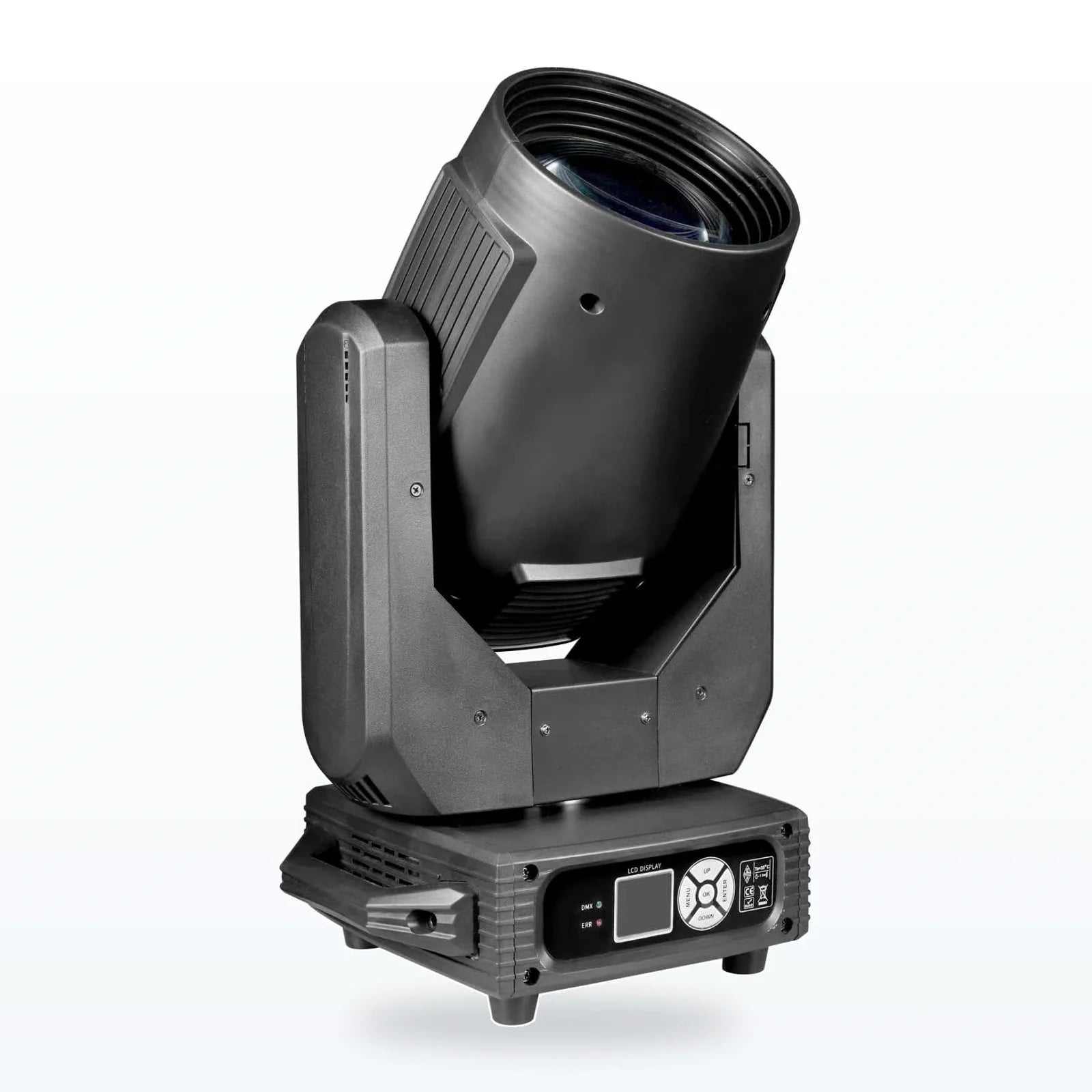

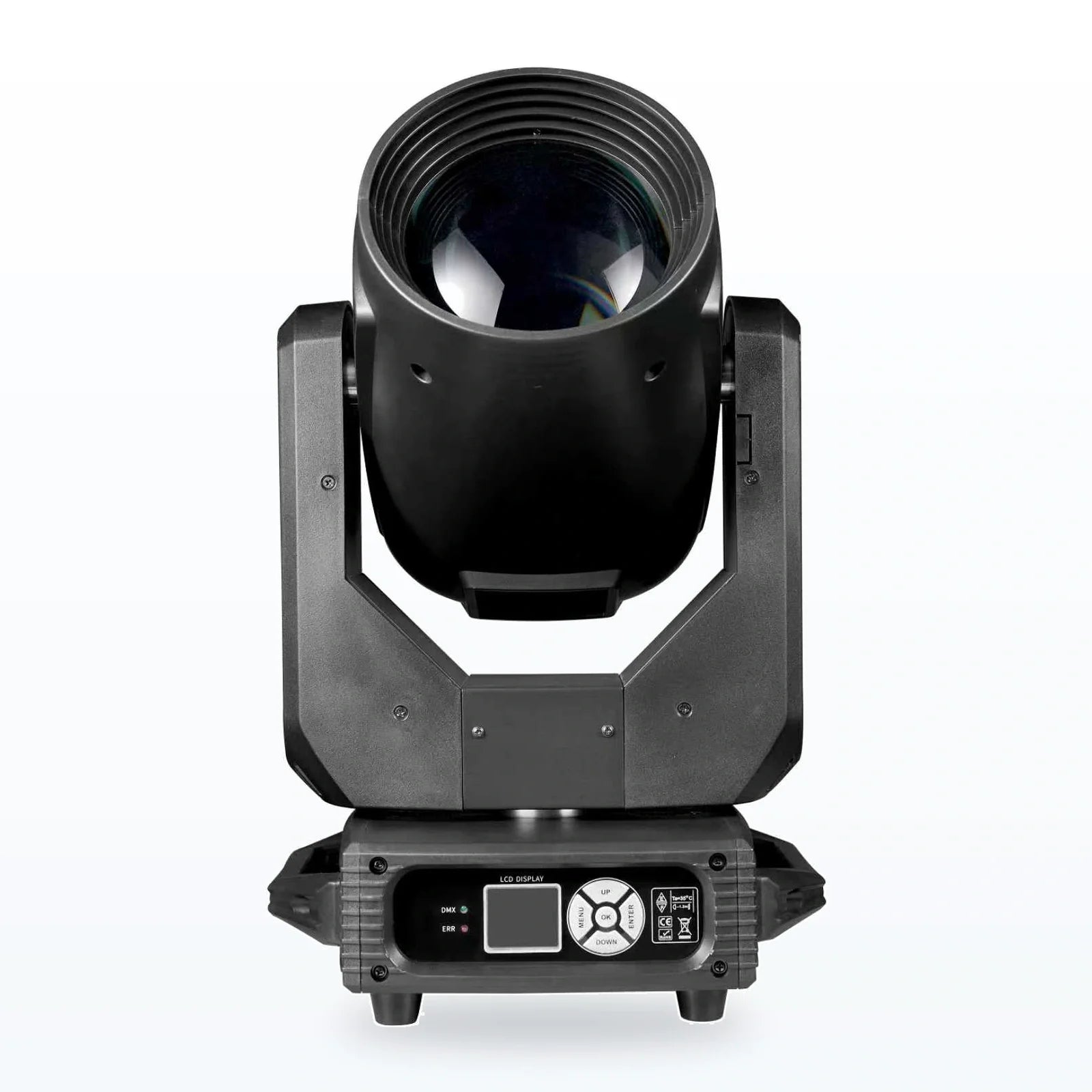

Phoenix TM300 295W Beam Moving Head Light

Name: Phoenix TM300 295W Beam Moving Head Light
Brand: YL Light

Phoenix TM300 295W Beam Moving Head Light is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 450W; light source: 295W SRI discharge lamp. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 295W SRI discharge lamp
Protection: IP20, professional indoor use
Control modes: Sound / auto / master-slave / DMX512

Planning this product into your project

Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

Product configuration

Movement: Pan 540 degrees / tilt 270 degrees
Product: Phoenix TM300 295W Beam Light
Focus: Motorized focus
Strobe: Variable and random strobe
Dimming: 0-100% linear dimming

Optical performance

Rated power: 450W
Light source: 295W SRI discharge lamp
Color system: 14 colors + white
Fixed gobos: 13 fixed gobos + open
Prism system: Two independent wheels; 8-facet + honeycomb; overlay

Control and connections

DMX channels: 16CH DMX512
Input voltage: AC100-220V, 50/60Hz
Control modes: Sound / auto / master-slave / DMX512

Construction and dimensions

Product size: TO BE CONFIRMED
Net / gross weight: TO BE CONFIRMED
Protection: IP20, professional indoor use
Electrical protection: Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is beside the rear -panel power section.

What to confirm for your quotation

Provide the throw distance, mounting height and beam or coverage required.
Confirm the exact light source, optical functions and channel mode for the quoted variant.
Request relevant photometric data and a demonstration using the intended colour and zoom settings.
Check power, connectors, weight, protection rating and the included mounting accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Phoenix TM300 295W Beam Moving Head Light technical specifications
Rated power	450W
Light source	295W SRI discharge lamp
DMX channels	16CH DMX512
Movement	Pan 540 degrees / tilt 270 degrees
Product	Phoenix TM300 295W Beam Light
Input voltage	AC100-220V, 50/60Hz
Control modes	Sound / auto / master-slave / DMX512
Color system	14 colors + white
Fixed gobos	13 fixed gobos + open
Prism system	Two independent wheels; 8-facet + honeycomb; overlay
Focus	Motorized focus
Strobe	Variable and random strobe
Dimming	0-100% linear dimming
Product size	TO BE CONFIRMED
Net / gross weight	TO BE CONFIRMED
Protection	IP20, professional indoor use
Electrical protection	Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is beside the rear -panel power section.
