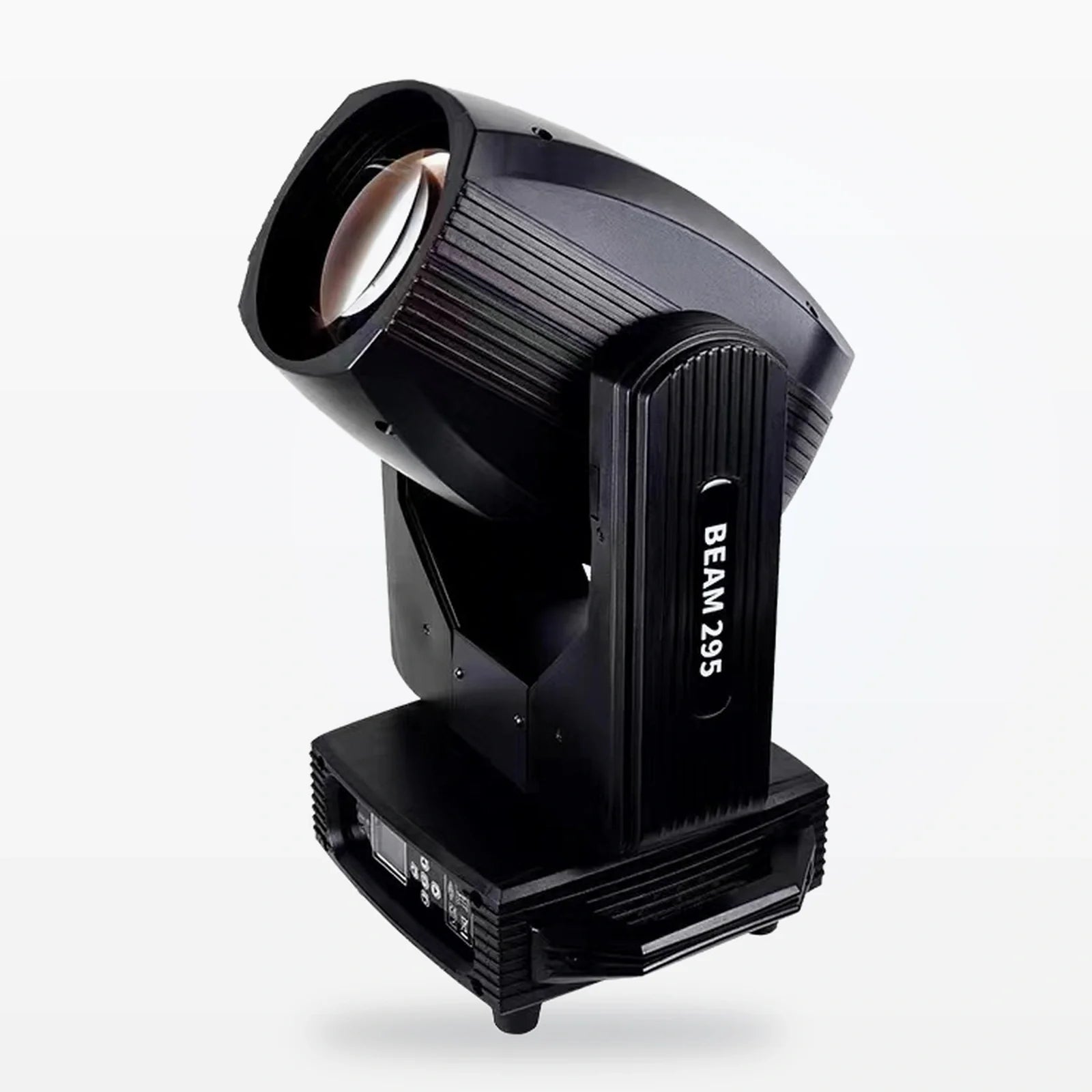

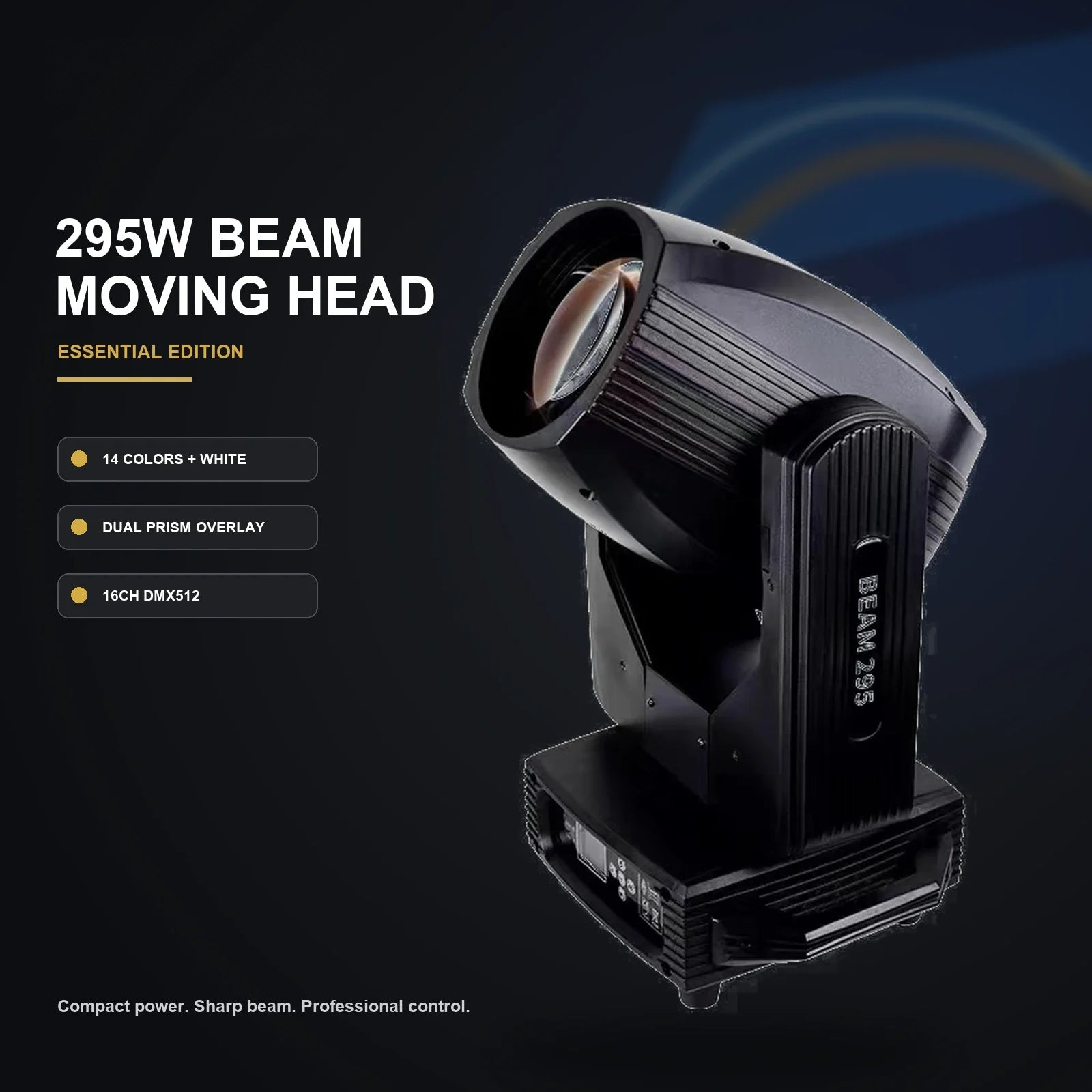

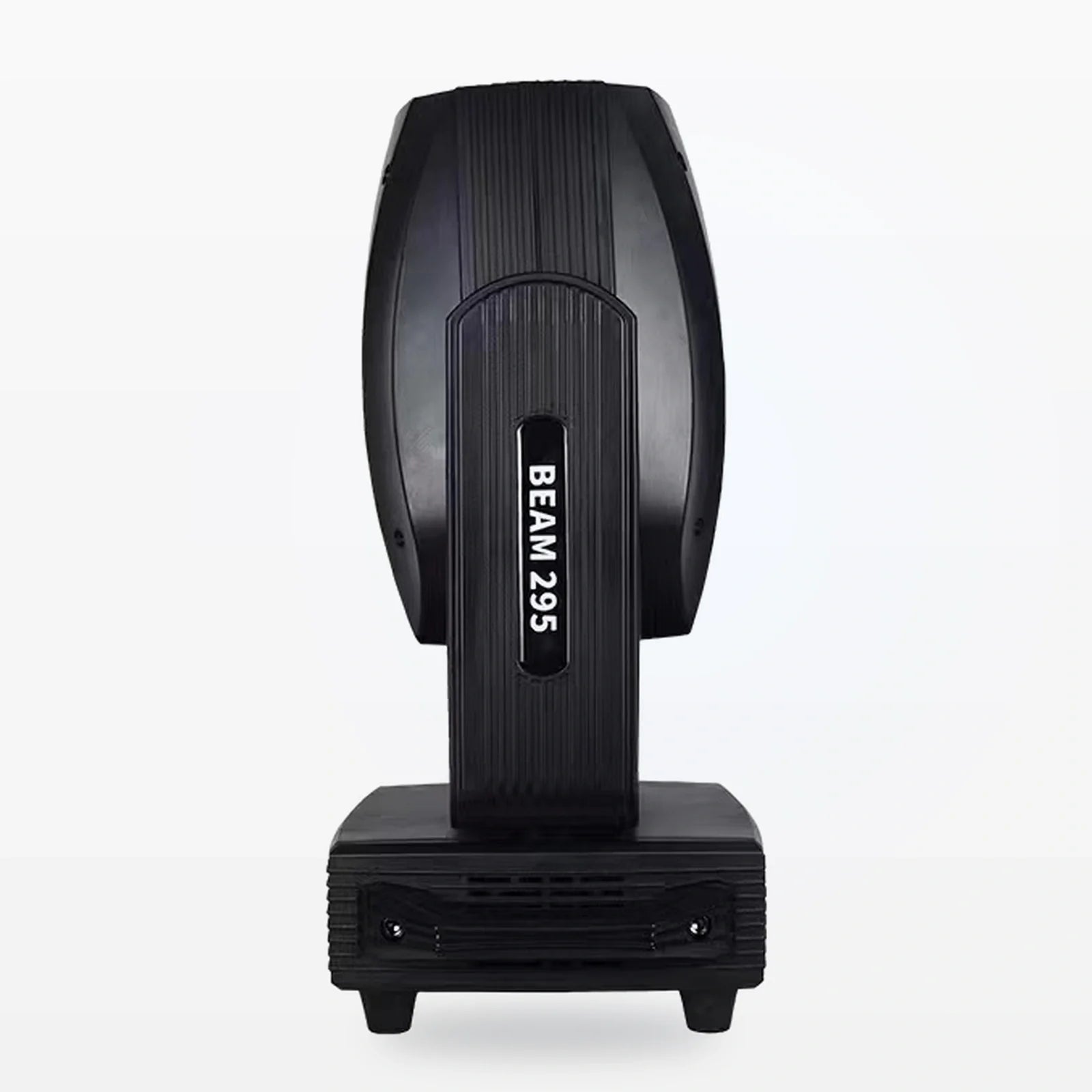

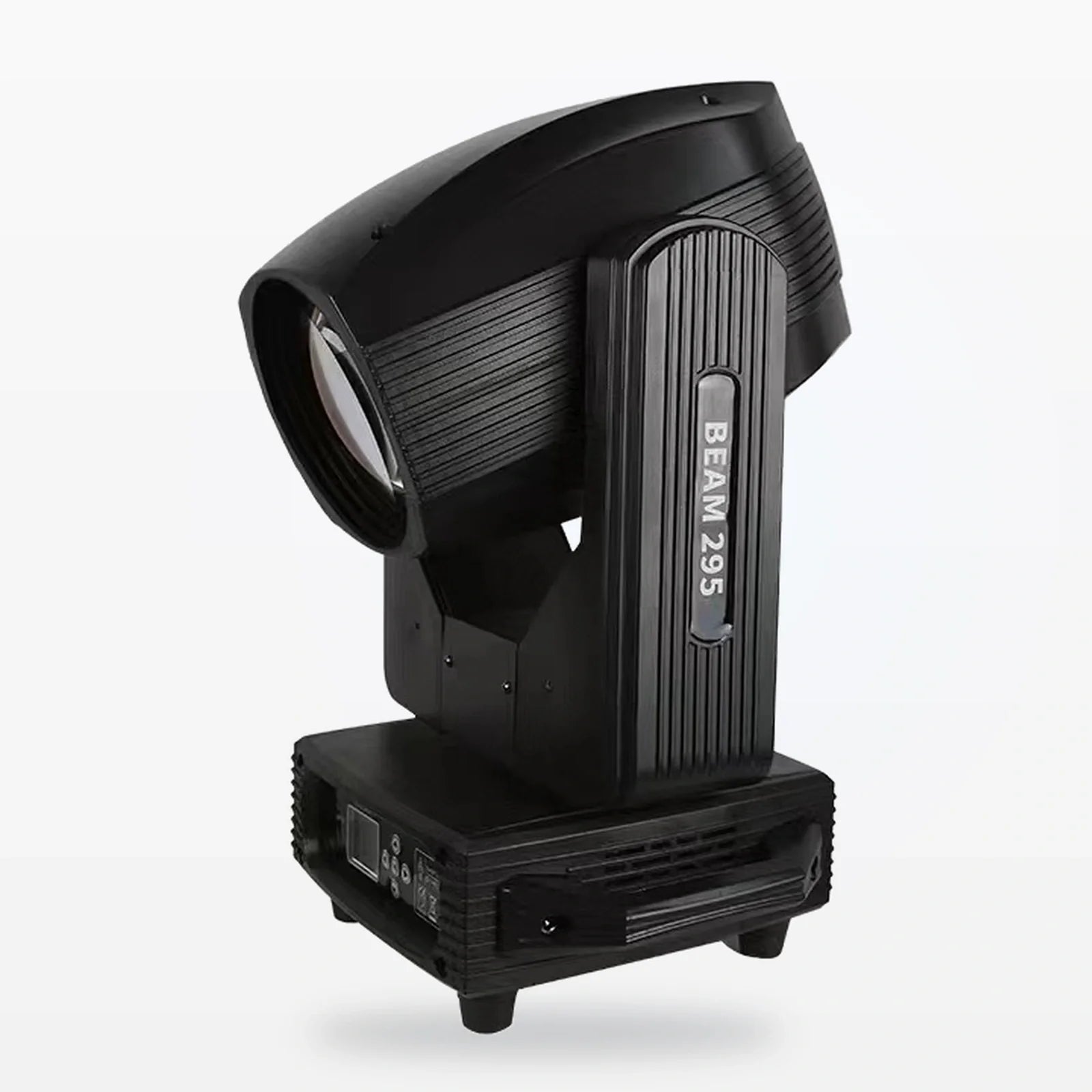

295W Beam Moving Head – Essential Edition

Name: 295W Beam Moving Head – Essential Edition
Brand: YL Light

295W Beam Moving Head – Essential Edition is a stage lighting catalogue item in the moving head beam light category. Reference specifications list beam source: 295W discharge lamp; rated power: 450W. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 295W discharge lamp
Protection: IP20, professional indoor use
Net / gross weight: 12.1 / 14.1kg

Planning this product into your project

Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

Product configuration

Movement: 540° pan / 270° tilt
Operating modes: DMX512 / sound / auto / master-slave
Focus: Dual-motor high-definition focus
Frost: Integrated frost effect
Dimming: 0-100% linear dimming
Pan / Tilt: 540° / 270°, 1.2° fine adjustment
Housing: High-temperature plastic + alloy

Optical performance

Beam source: 295W discharge lamp
Rated power: 450W
Light source: 295W discharge lamp
Color wheel: 14 colors + open white
Fixed gobos: 13 patterns + open
Prism system: 8-facet + honeycomb (8+16+24), overlay

Control and connections

DMX control: 16CH
Input voltage: AC 100-240V, 50/60Hz
DMX channels: 16CH

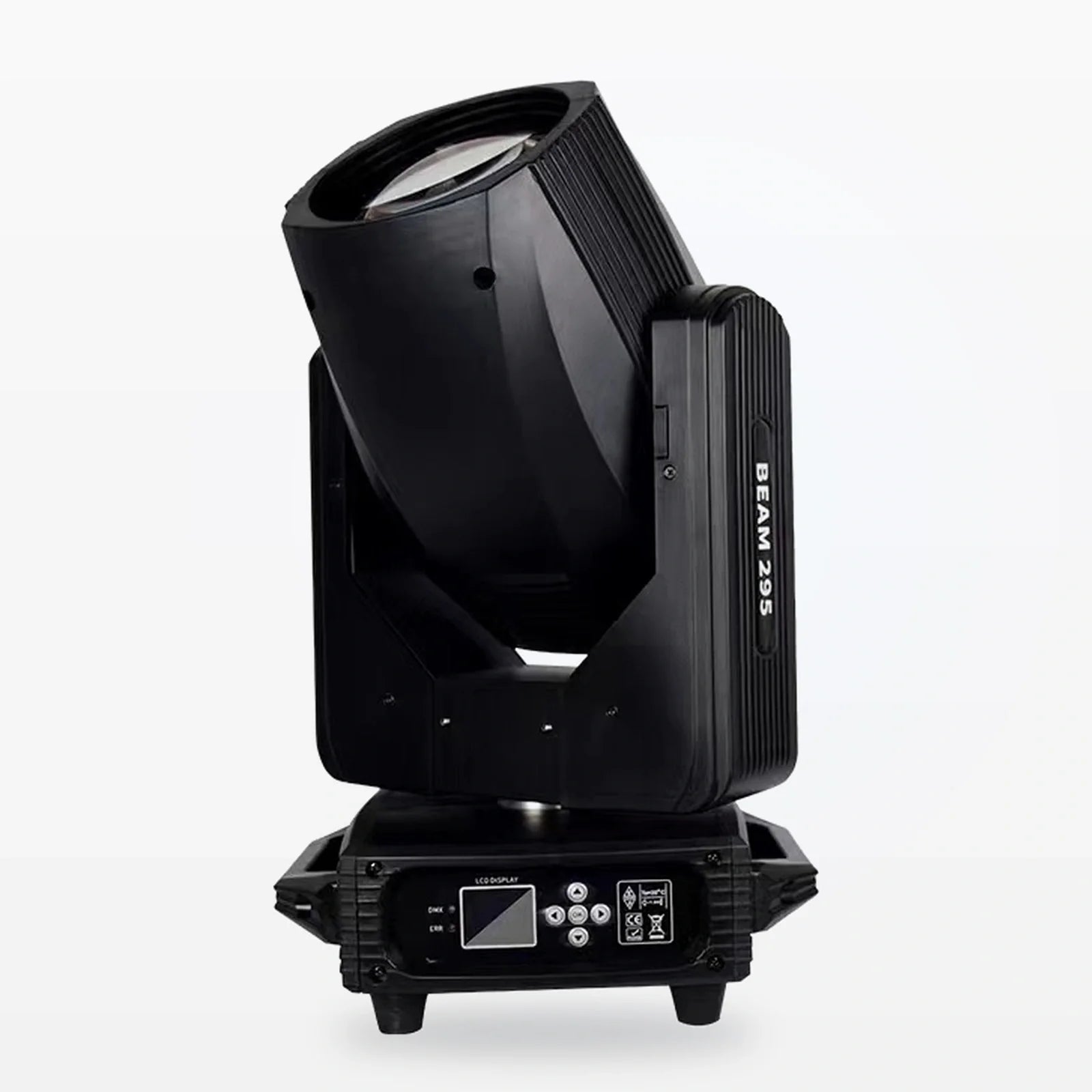

Display: 1.8-inch color screen, 180° reversible

Construction and dimensions

Protection: IP20, professional indoor use
Product size: 30 x 26 x 51cm
Net / gross weight: 12.1 / 14.1kg
Packing size: 53.5 x 37.5 x 40.5cm

What to confirm for your quotation

Provide the throw distance, mounting height and beam or coverage required.
Confirm the exact light source, optical functions and channel mode for the quoted variant.
Request relevant photometric data and a demonstration using the intended colour and zoom settings.
Check power, connectors, weight, protection rating and the included mounting accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

295W Beam Moving Head – Essential Edition technical specifications
Beam source	295W discharge lamp
Rated power	450W
DMX control	16CH
Movement	540° pan / 270° tilt
Input voltage	AC 100-240V, 50/60Hz
Light source	295W discharge lamp
DMX channels	16CH
Operating modes	DMX512 / sound / auto / master-slave
Color wheel	14 colors + open white
Fixed gobos	13 patterns + open
Prism system	8-facet + honeycomb (8+16+24), overlay
Focus	Dual-motor high-definition focus
Frost	Integrated frost effect
Dimming	0-100% linear dimming
Pan / Tilt	540° / 270°, 1.2° fine adjustment
Display	1.8-inch color screen, 180° reversible
Protection	IP20, professional indoor use
Product size	30 x 26 x 51cm
Net / gross weight	12.1 / 14.1kg
Packing size	53.5 x 37.5 x 40.5cm
Housing	High-temperature plastic + alloy
