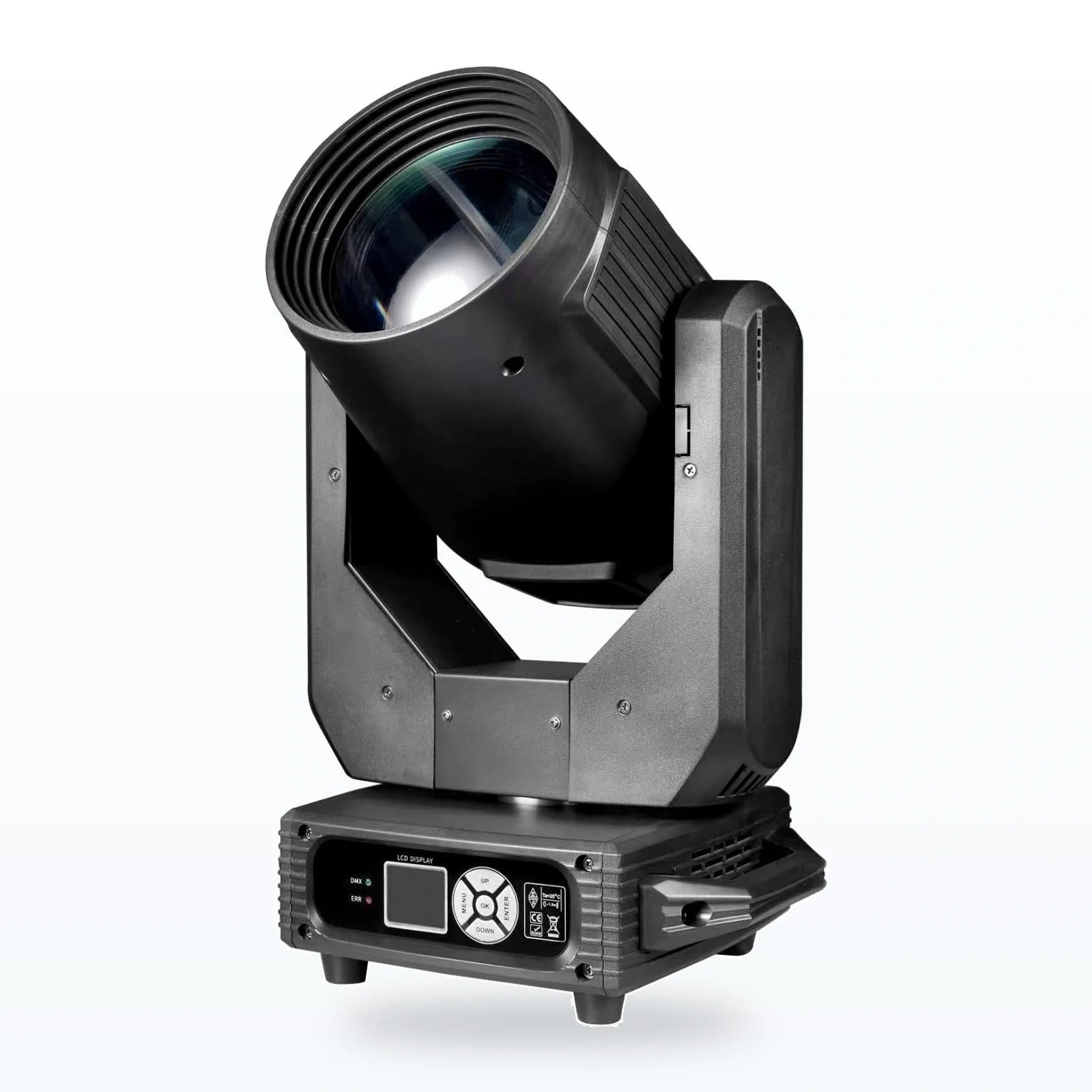

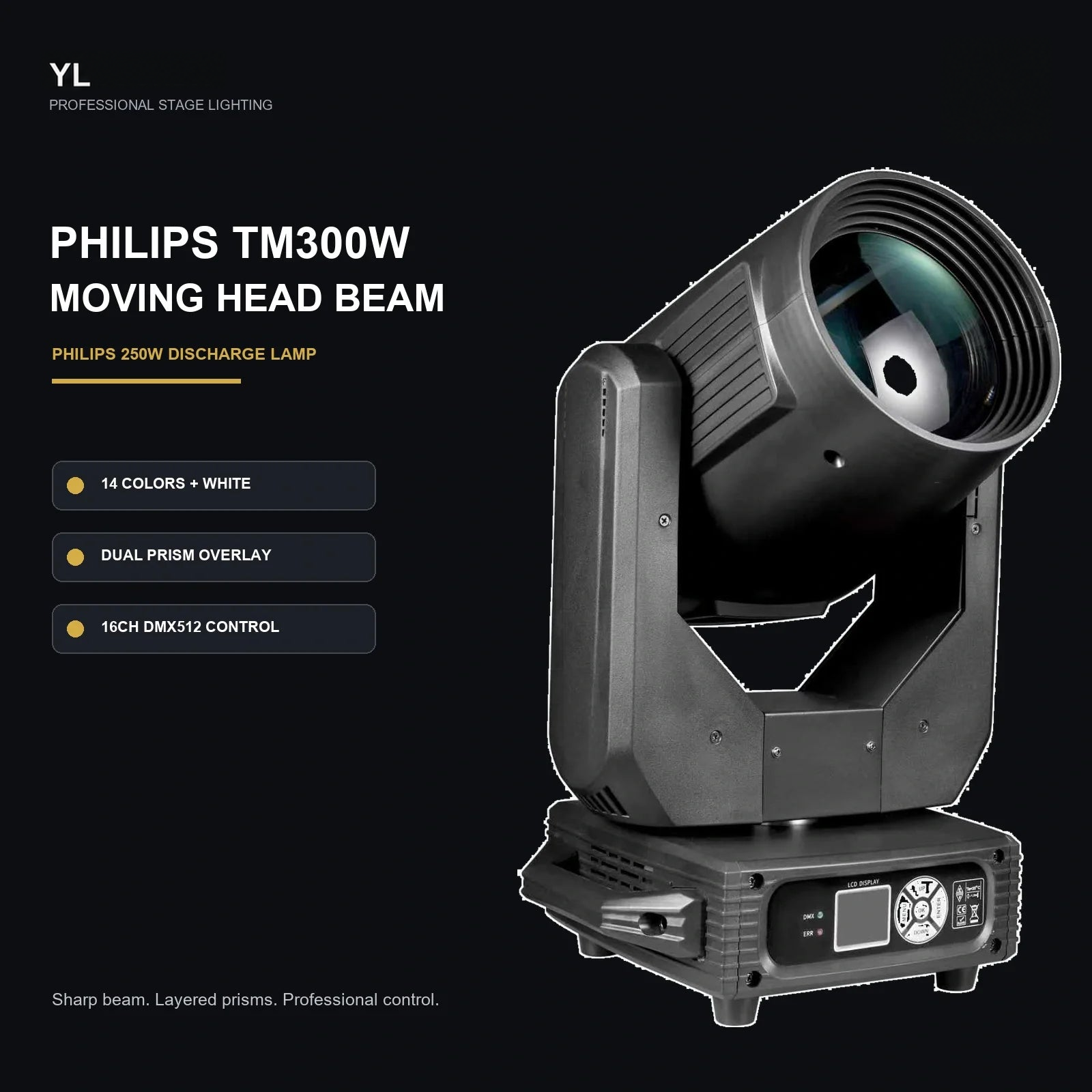

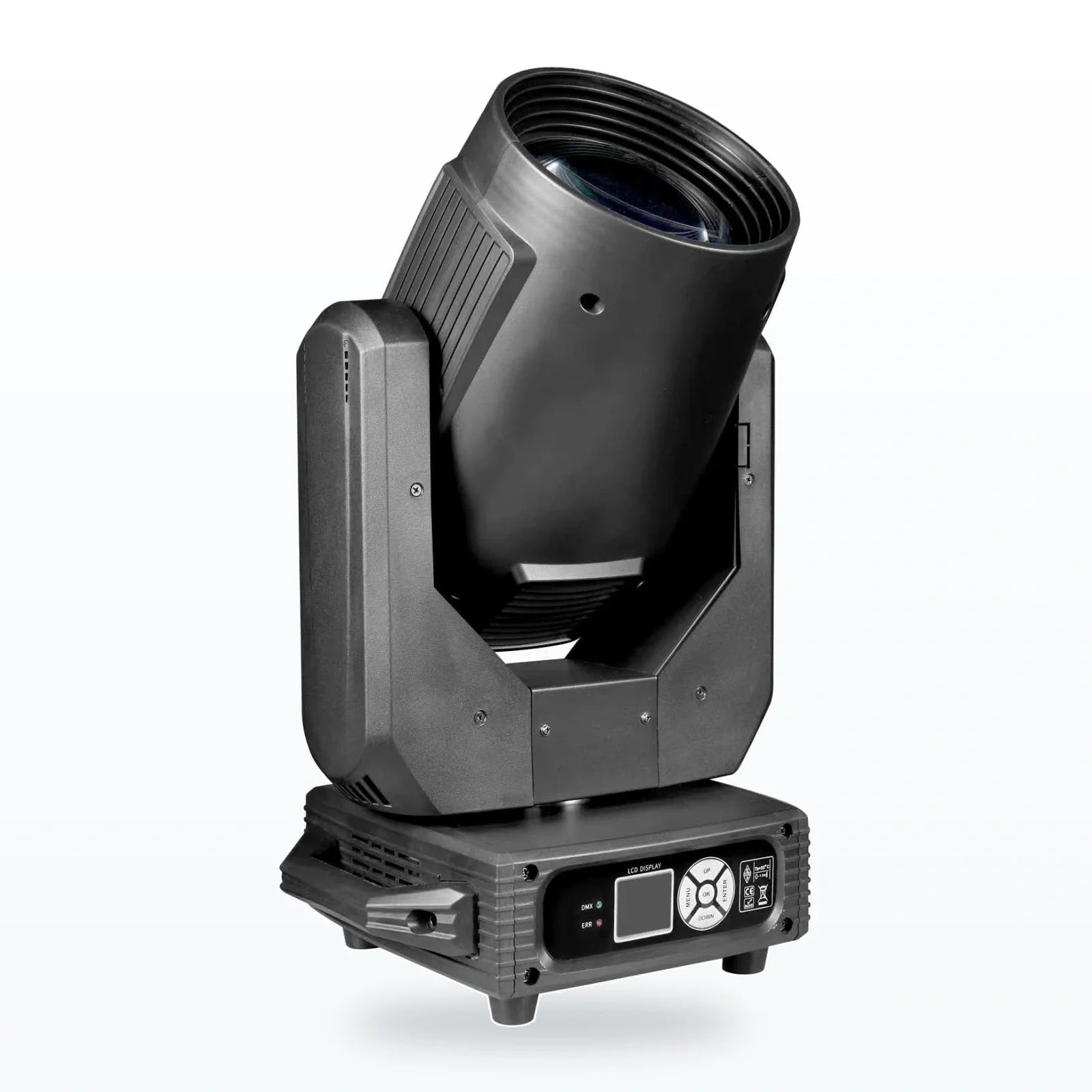

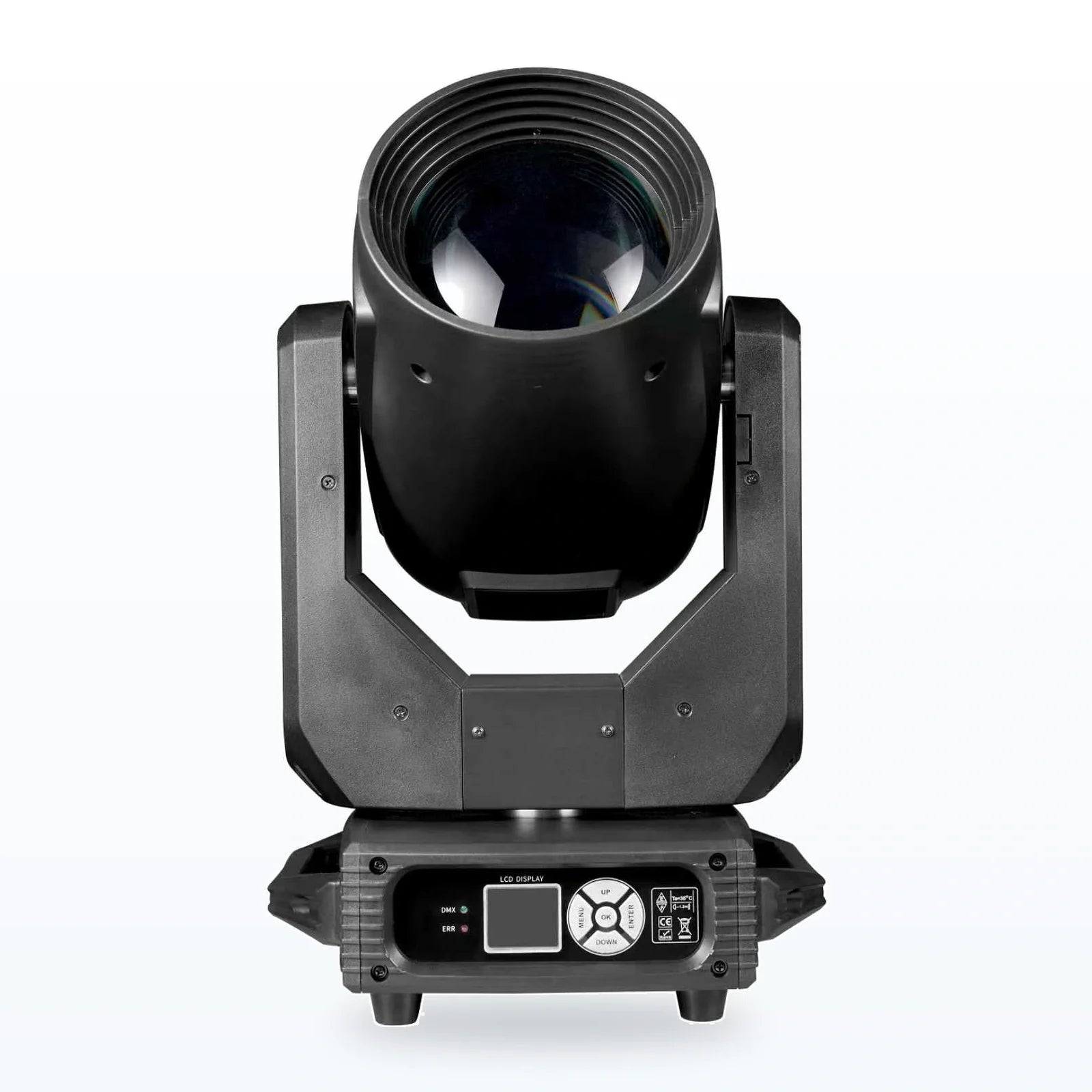

Philips TM300W Moving Head Beam Light

Name: Philips TM300W Moving Head Beam Light
Brand: YL Light

Philips TM300W Moving Head Beam Light is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 450W; light source: Philips 250W discharge lamp. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: Philips 250W discharge lamp
Protection: IP20, professional indoor use
Control modes: DMX512 / sound / auto / master-slave

Planning this product into your project

Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

Product configuration

Movement: Pan 540 degrees / tilt 270 degrees / fine channels
Product: Philips TM300W Moving Head Beam Light
Focus: Motorized focus
Dimming / strobe: 0-100% dimming; variable and random strobe

Optical performance

Rated power: 450W
Light source: Philips 250W discharge lamp
Color wheel: 14 colors + white
Fixed gobos: 13 fixed gobos + open

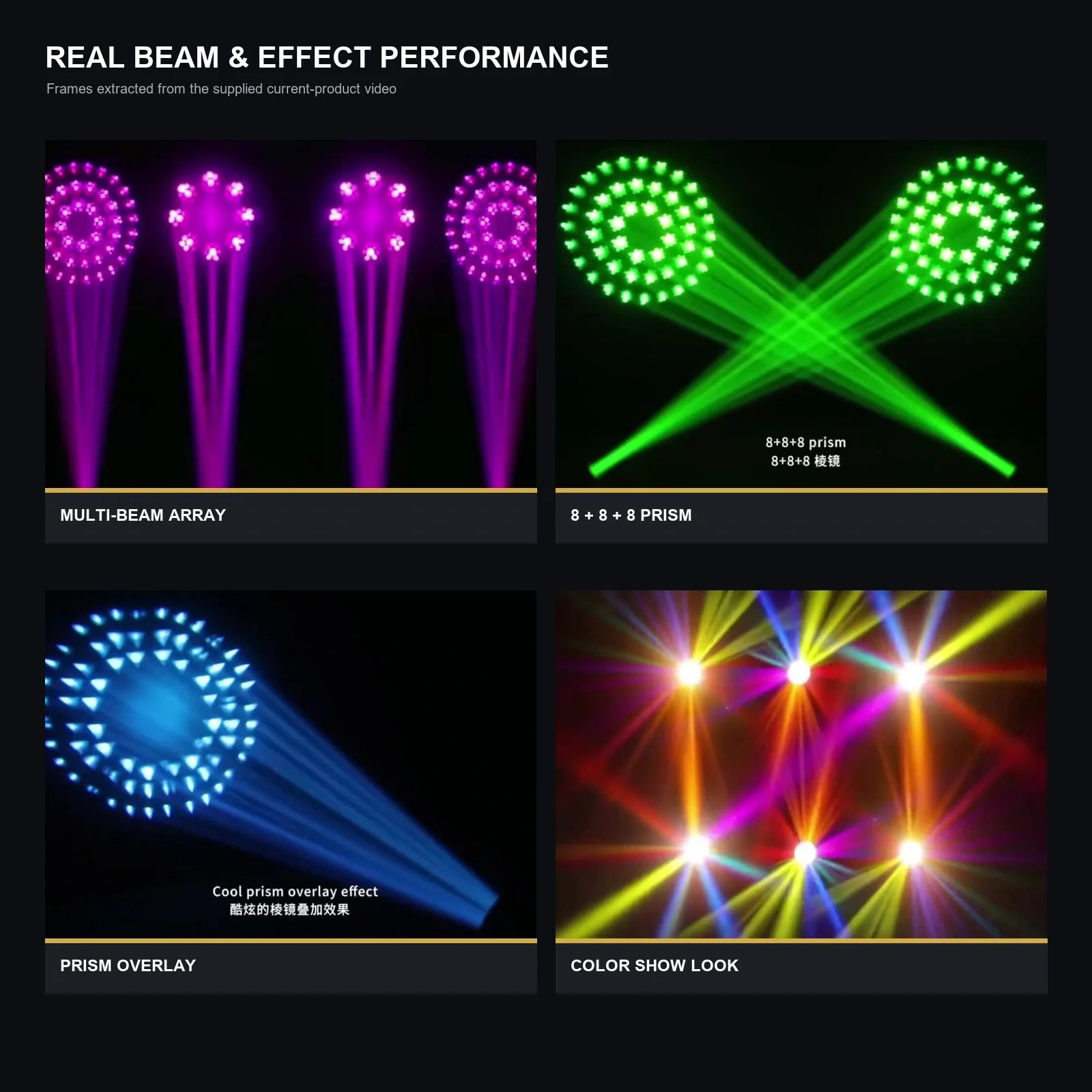

Prism system: Two independent wheels: 8-facet + honeycomb; overlay
Frost / color effect: Frost insertion on CH8; color effect on CH15

Control and connections

DMX channels: 16CH DMX512
Input voltage: AC100-220V, 50/60Hz
Control modes: DMX512 / sound / auto / master-slave
Lamp control: Lamp off, lamp on and full motor reset on CH16

Construction and dimensions

Size / weight: TO BE CONFIRMED
Protection: IP20, professional indoor use

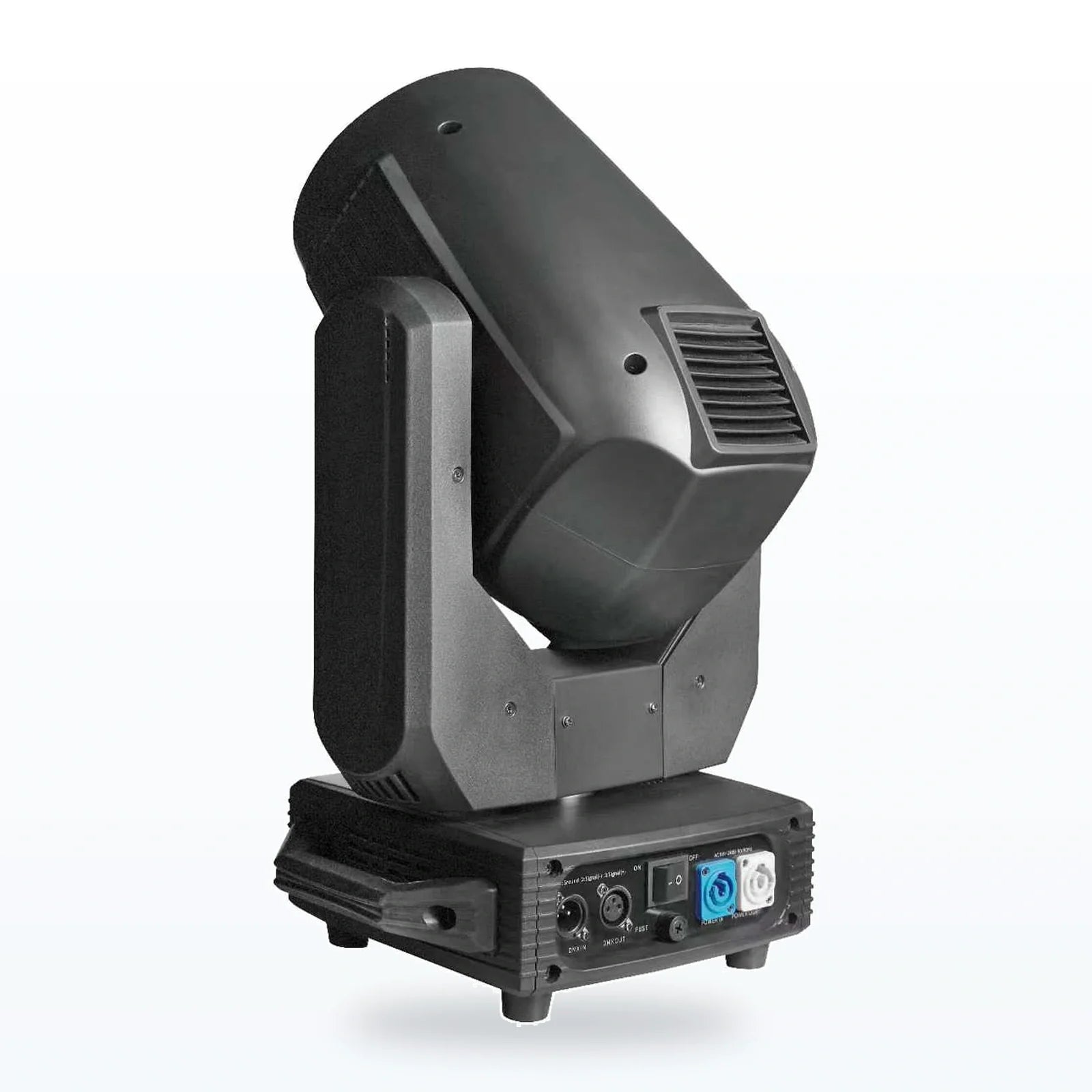

Electrical protection: Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.

What to confirm for your quotation

Provide the throw distance, mounting height and beam or coverage required.
Confirm the exact light source, optical functions and channel mode for the quoted variant.
Request relevant photometric data and a demonstration using the intended colour and zoom settings.
Check power, connectors, weight, protection rating and the included mounting accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Philips TM300W Moving Head Beam Light technical specifications
Rated power	450W
Light source	Philips 250W discharge lamp
DMX channels	16CH DMX512
Movement	Pan 540 degrees / tilt 270 degrees / fine channels
Product	Philips TM300W Moving Head Beam Light
Input voltage	AC100-220V, 50/60Hz
Control modes	DMX512 / sound / auto / master-slave
Color wheel	14 colors + white
Fixed gobos	13 fixed gobos + open
Prism system	Two independent wheels: 8-facet + honeycomb; overlay
Frost / color effect	Frost insertion on CH8; color effect on CH15
Focus	Motorized focus
Dimming / strobe	0-100% dimming; variable and random strobe
Size / weight	TO BE CONFIRMED
Protection	IP20, professional indoor use
Lamp control	Lamp off, lamp on and full motor reset on CH16
Electrical protection	Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.
