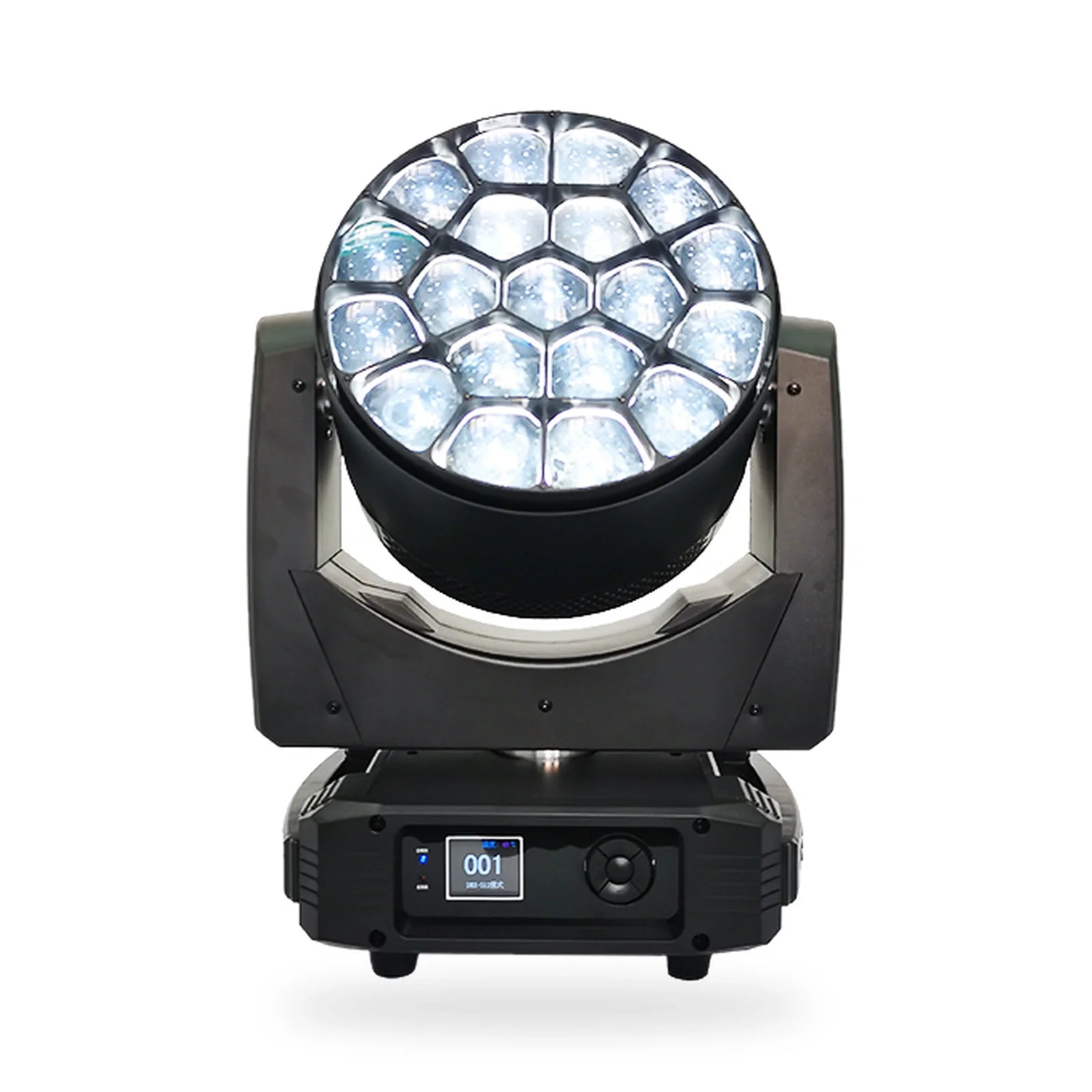

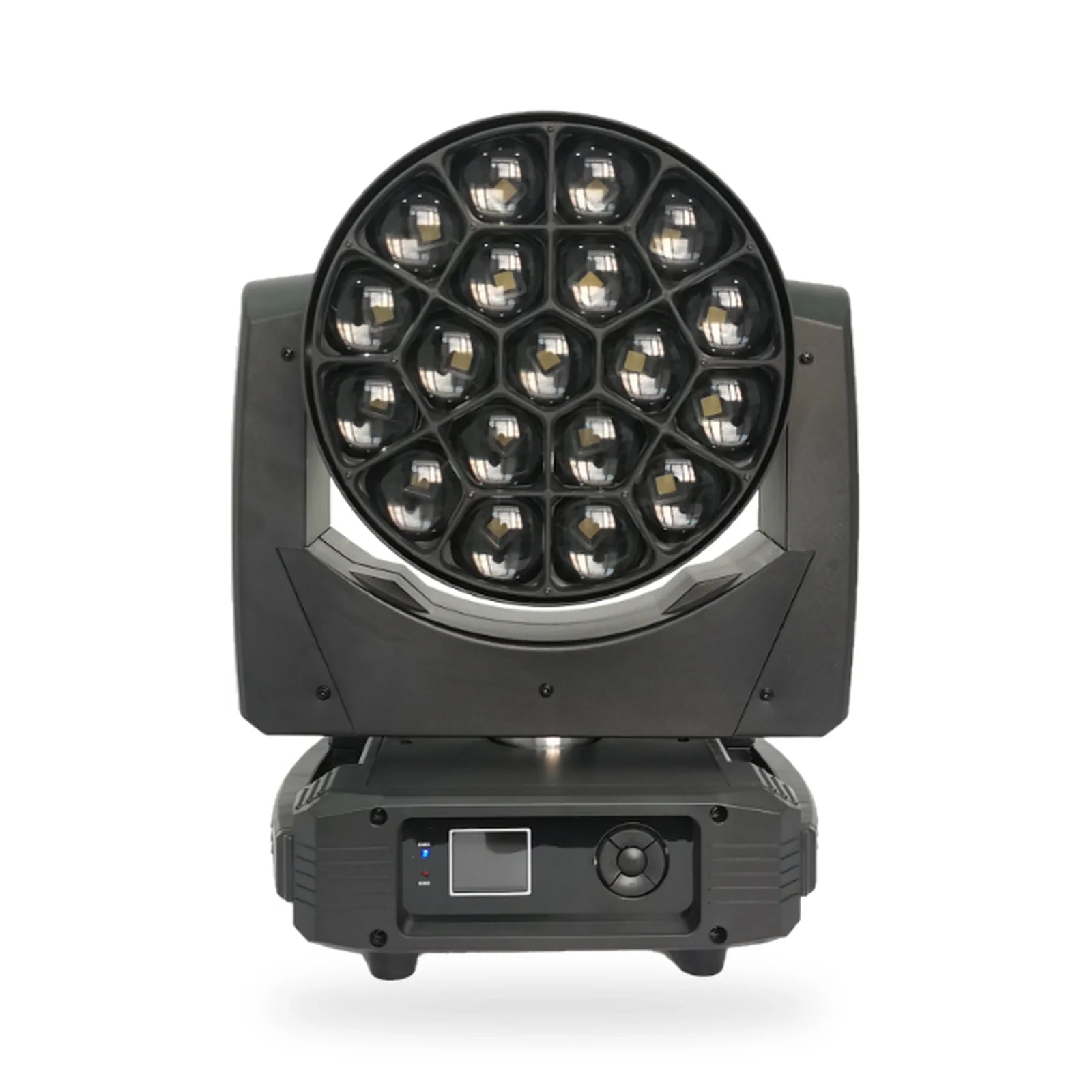

FY1915 19 x 15W RGBW Rotating Bee-Eye Moving Head

Name: FY1915 19 x 15W RGBW Rotating Bee-Eye Moving Head
Brand: YL Light

FY1915 19 x 15W RGBW Rotating Bee-Eye Moving Head is a stage lighting catalogue item in the bee-eye wash moving head light category. Reference specifications list light source: 19 x 15W 4-in-1 RGBW LEDs; 50,000-hour rated-life claim; dmx channels: 23CH XML + 35CH D4 verified; 21/78/92/97/99 manual-documented. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 19 x 15W 4-in-1 RGBW LEDs; 50,000-hour rated-life claim
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
Control modes: DMX512 / RDM; standalone modes are not fully defined in the supplied text

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: 540-degree pan / 270-degree tilt / 16-bit positioning
Product: FY1915 19 x 15W RGBW Rotating Bee-Eye Moving Head
Strobe: 0.3-25 flashes/second; synchronous, pulse and random behaviors
Dimming: 0-100%; adjustable 1.2-25kHz frequency
Environment: IP20 base fixture; optional rain-cover claim up to IP44

Optical performance

Light source: 19 x 15W 4-in-1 RGBW LEDs; 50,000-hour rated-life claim
Color system: RGBW mixing, CTO control, color macros and individual LED effects

Control and connections

DMX channels: 23CH XML + 35CH D4 verified; 21/78/92/97/99 manual-documented
Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / RDM; standalone modes are not fully defined in the supplied text

Construction and dimensions

Size / weight: 34 x 24 x 41cm; 15kg net / 16.5kg gross
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

FY1915 19 x 15W RGBW Rotating Bee-Eye Moving Head technical specifications
Light source	19 x 15W 4-in-1 RGBW LEDs; 50,000-hour rated-life claim
DMX channels	23CH XML + 35CH D4 verified; 21/78/92/97/99 manual-documented
Movement	540-degree pan / 270-degree tilt / 16-bit positioning
Input voltage	AC100-240V, 50/60Hz
Product	FY1915 19 x 15W RGBW Rotating Bee-Eye Moving Head
Control modes	DMX512 / RDM; standalone modes are not fully defined in the supplied text
Color system	RGBW mixing, CTO control, color macros and individual LED effects
Strobe	0.3-25 flashes/second; synchronous, pulse and random behaviors
Dimming	0-100%; adjustable 1.2-25kHz frequency
Size / weight	34 x 24 x 41cm; 15kg net / 16.5kg gross
Environment	IP20 base fixture; optional rain-cover claim up to IP44
Electrical protection	Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
