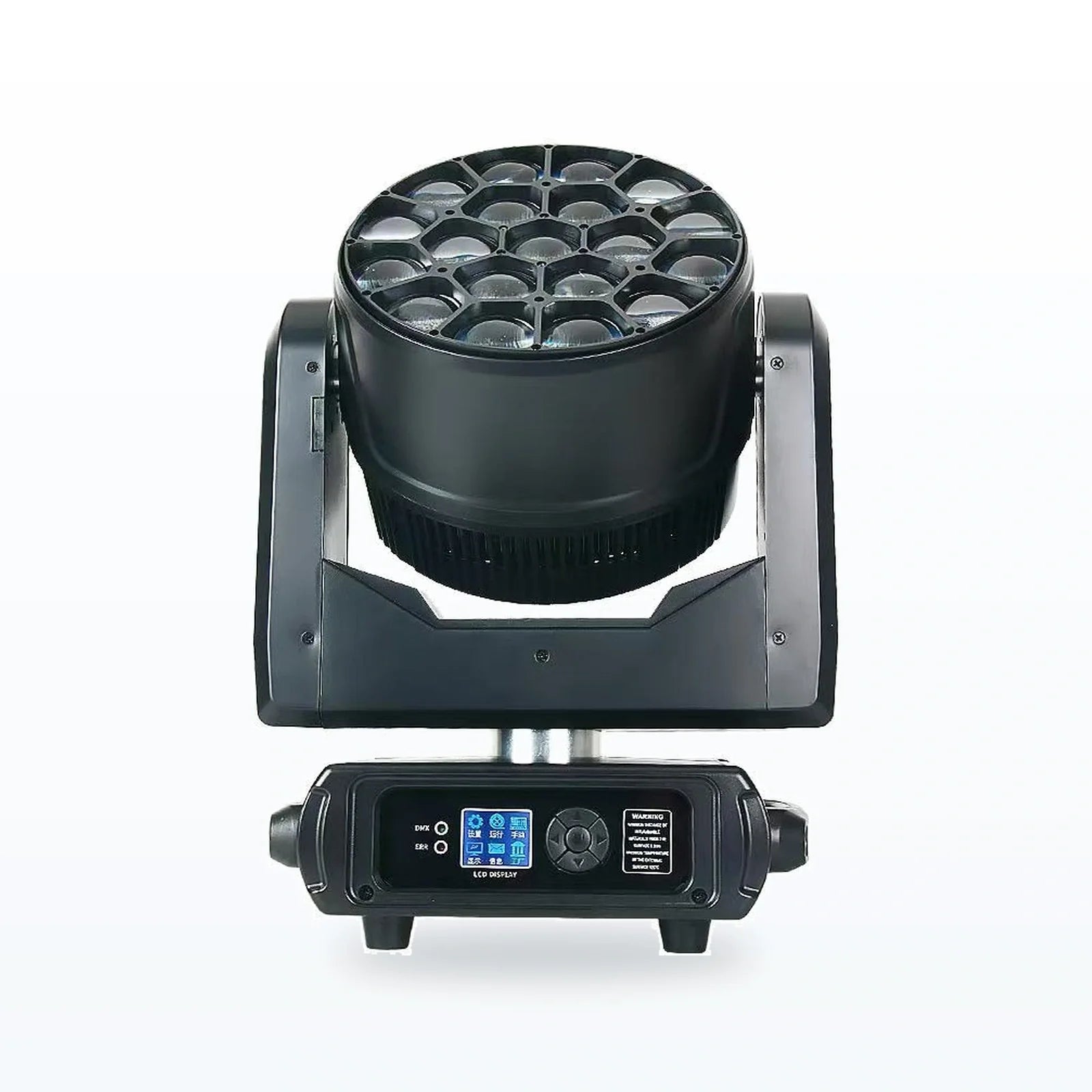

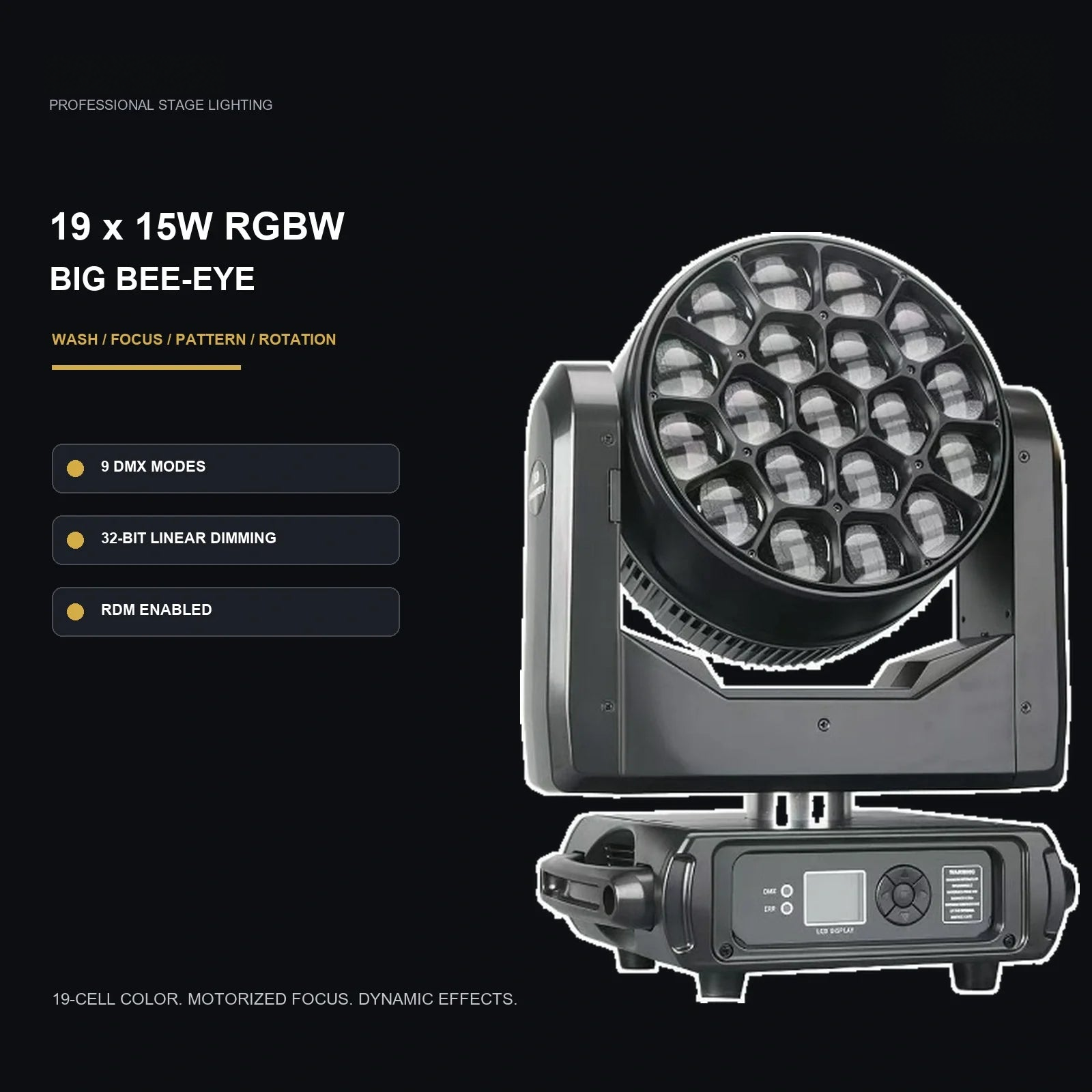

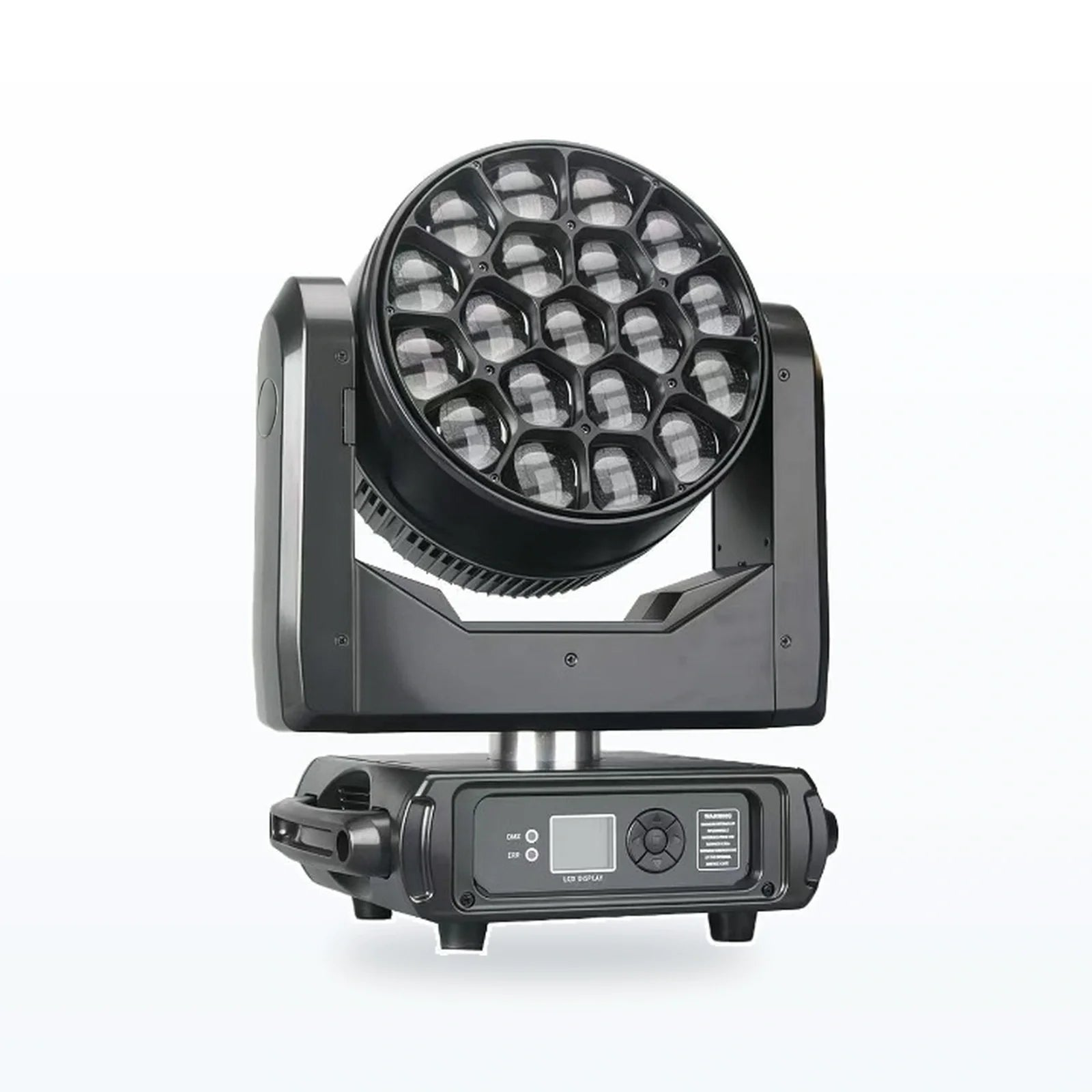

19 x 15W Big Bee-Eye Moving Head is a stage lighting catalogue item in the bee-eye wash moving head light category. Reference specifications list dmx modes: 22 / 23 / 25 / 36 / 78 / 92 / 97 / 99 / 101CH; movement: R20 fixture files record pan 540 degrees / tilt 290 degrees. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteFor a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.
Packing size: TO BE CONFIRMED
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| DMX modes | 22 / 23 / 25 / 36 / 78 / 92 / 97 / 99 / 101CH |
|---|---|
| Movement | R20 fixture files record pan 540 degrees / tilt 290 degrees |
| Input voltage | AC100-240V, 50/60Hz |
| Control modes | DMX512 / automatic / master-slave / sound-active / RDM |
| Product | 19 x 15W Big Bee-Eye Moving Head |
| Dimming / strobe | 32-bit 0-100% linear dimming / 1-30Hz strobe |
| Environment | 30 to 50 degrees C / IP20 indoor |

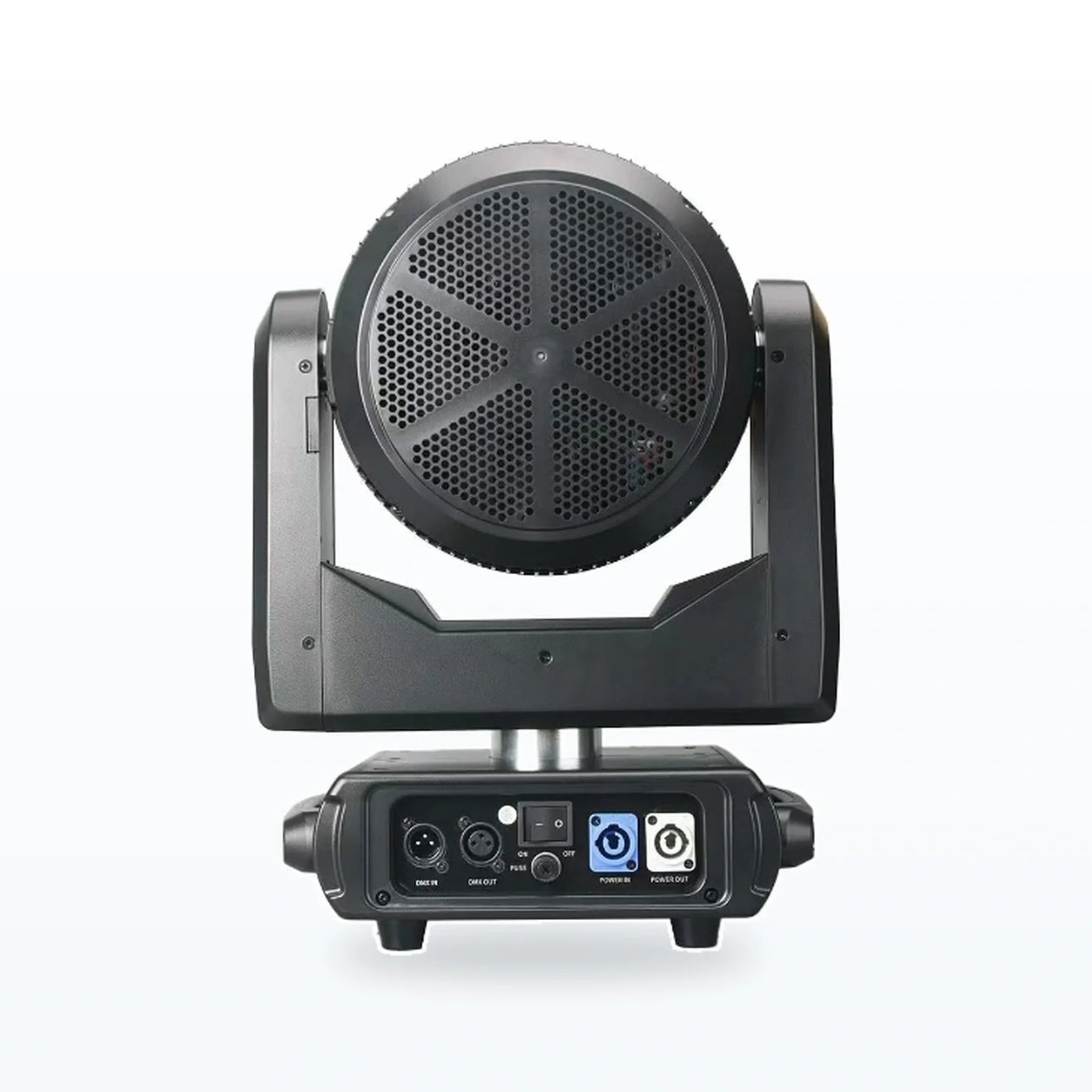

| Connection | DMX512 input/output and power input/output |
| Packing size | TO BE CONFIRMED |
| Housing | Metal, black; verify the actual nameplate and rated input power before connection. |
Product documents are being prepared. Contact YL for the current information for 19 x 15W Big Bee-Eye Moving Head.
Request product documentsContact YL to confirm the available accessories and the exact configuration for 19 x 15W Big Bee-Eye Moving Head.
Ask about compatible accessoriesAsk for an available demonstration of 19 x 15W Big Bee-Eye Moving Head and the configuration you need.
Request a product demonstration
