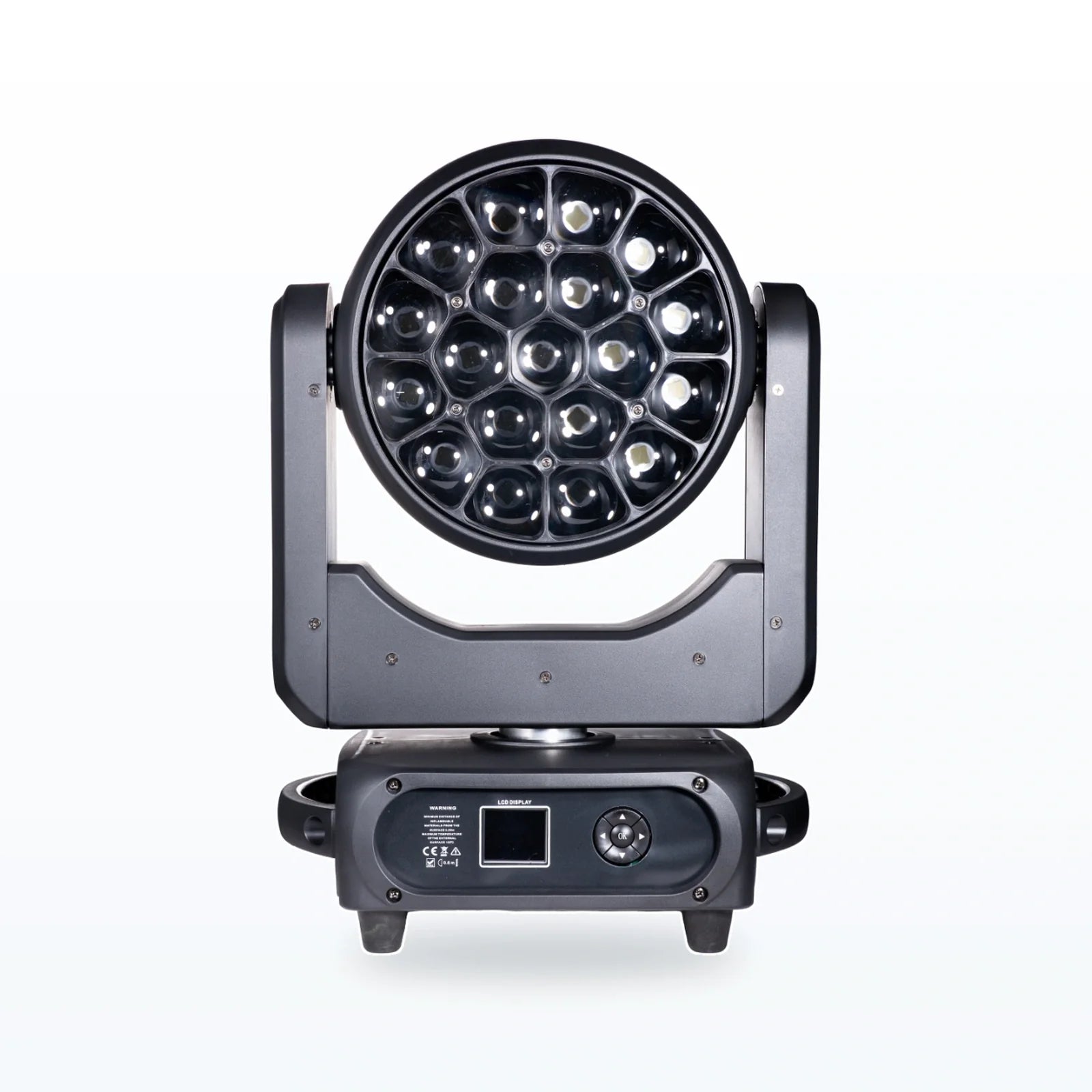

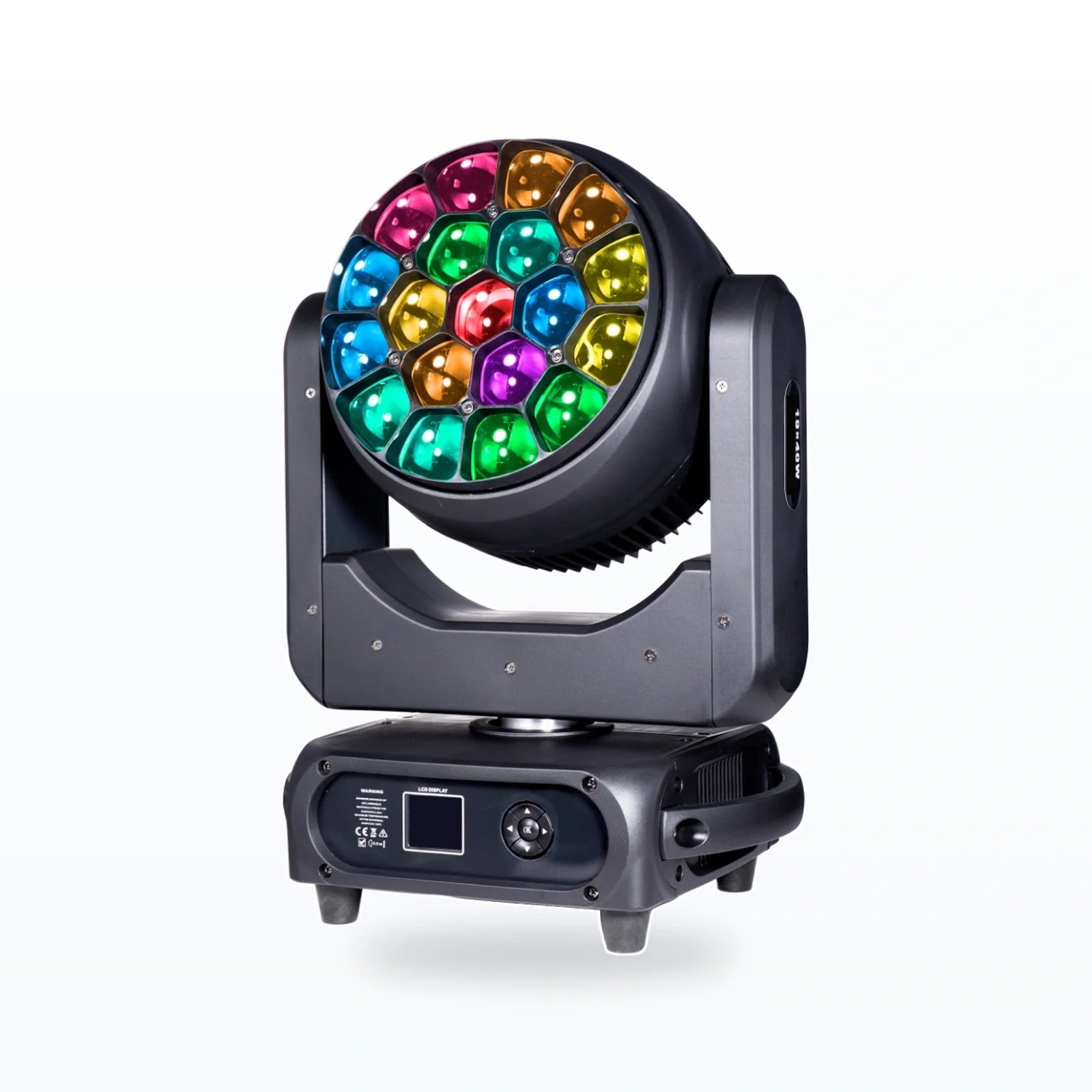

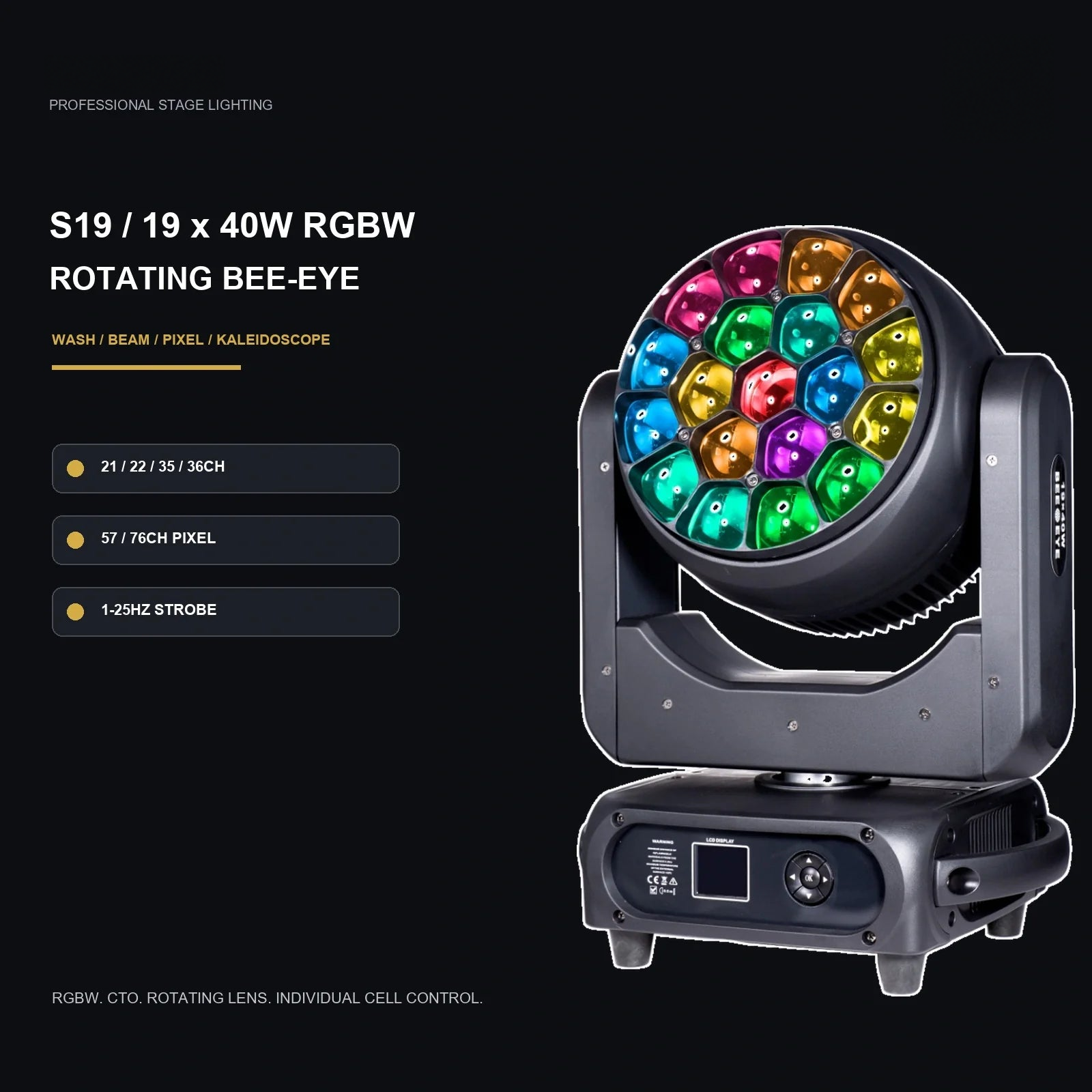

S19 19 x 40W RGBW Bee-Eye Moving Head is a stage lighting catalogue item in the bee-eye wash moving head light category. Reference specifications list light source: 19 x RGBW four-in-one cells; 40W per cell; dmx modes: 21CH / 22CH / 35CH / 36CH; pixel 57CH / 76CH. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteFor a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.
Protection: TO BE CONFIRMED; no IP rating in current source records
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Light source | 19 x RGBW four-in-one cells; 40W per cell |
|---|---|
| DMX modes | 21CH / 22CH / 35CH / 36CH; pixel 57CH / 76CH |
| Movement | Pan 540 degrees; manuals state tilt 240 degrees; matched quotation states 250 degrees - TBC |
| Input voltage | AC100-240V, 50/60Hz |
| Product | S19 19 x 40W RGBW Bee-Eye Moving Head |
| Dimming / strobe | 0-100% linear electronic dimming / 1-25 flashes per second or random |
| Color system | RGBW, 2800K-8500K and color macros |
| Protection | TO BE CONFIRMED; no IP rating in current source records |
| Packing | 520 x 350 x 440 mm |

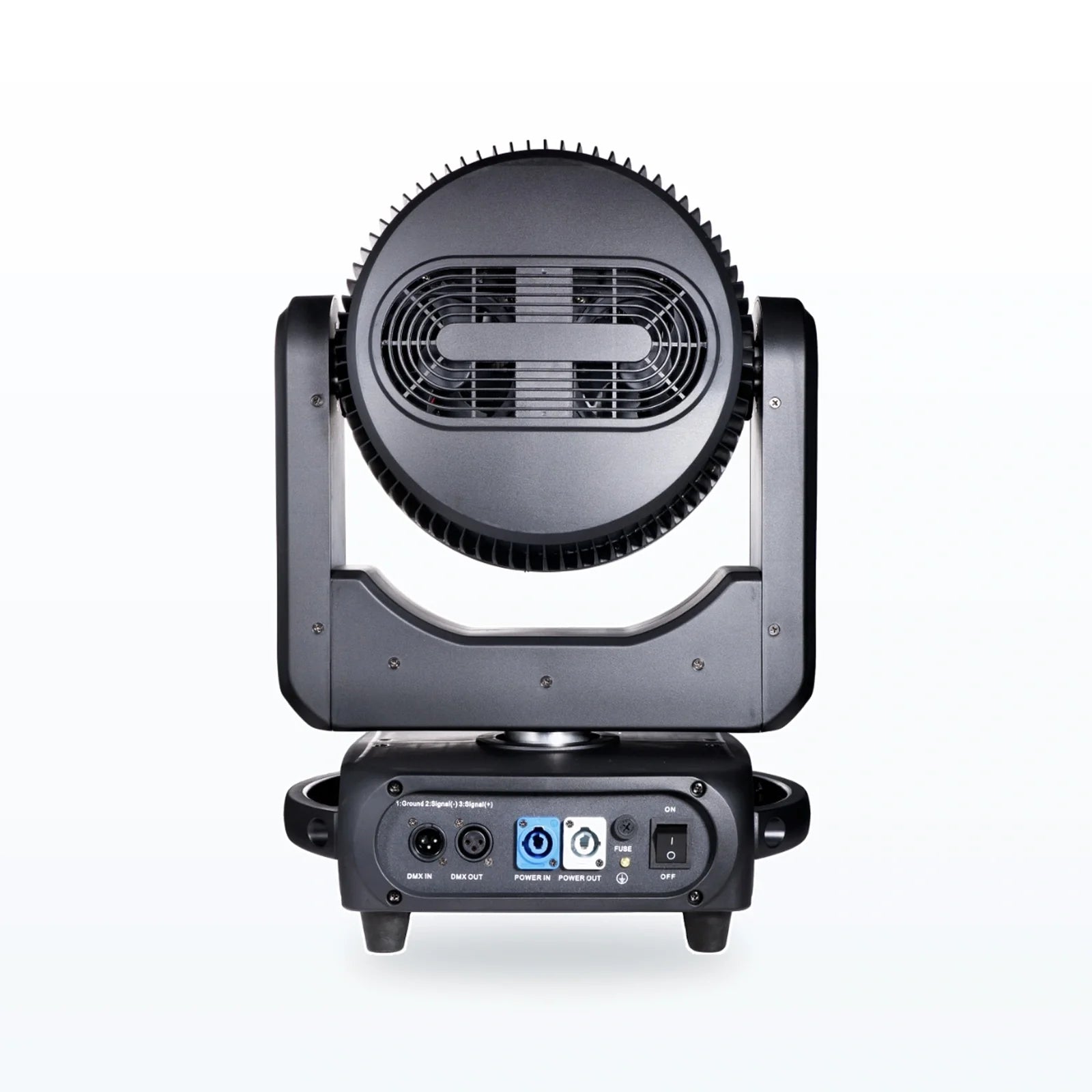

| Connection | 3-pin DMX input/output and locking power input/output |
Product documents are being prepared. Contact YL for the current information for S19 19 x 40W RGBW Bee-Eye Moving Head.
Request product documentsContact YL to confirm the available accessories and the exact configuration for S19 19 x 40W RGBW Bee-Eye Moving Head.
Ask about compatible accessoriesAsk for an available demonstration of S19 19 x 40W RGBW Bee-Eye Moving Head and the configuration you need.
Request a product demonstration
