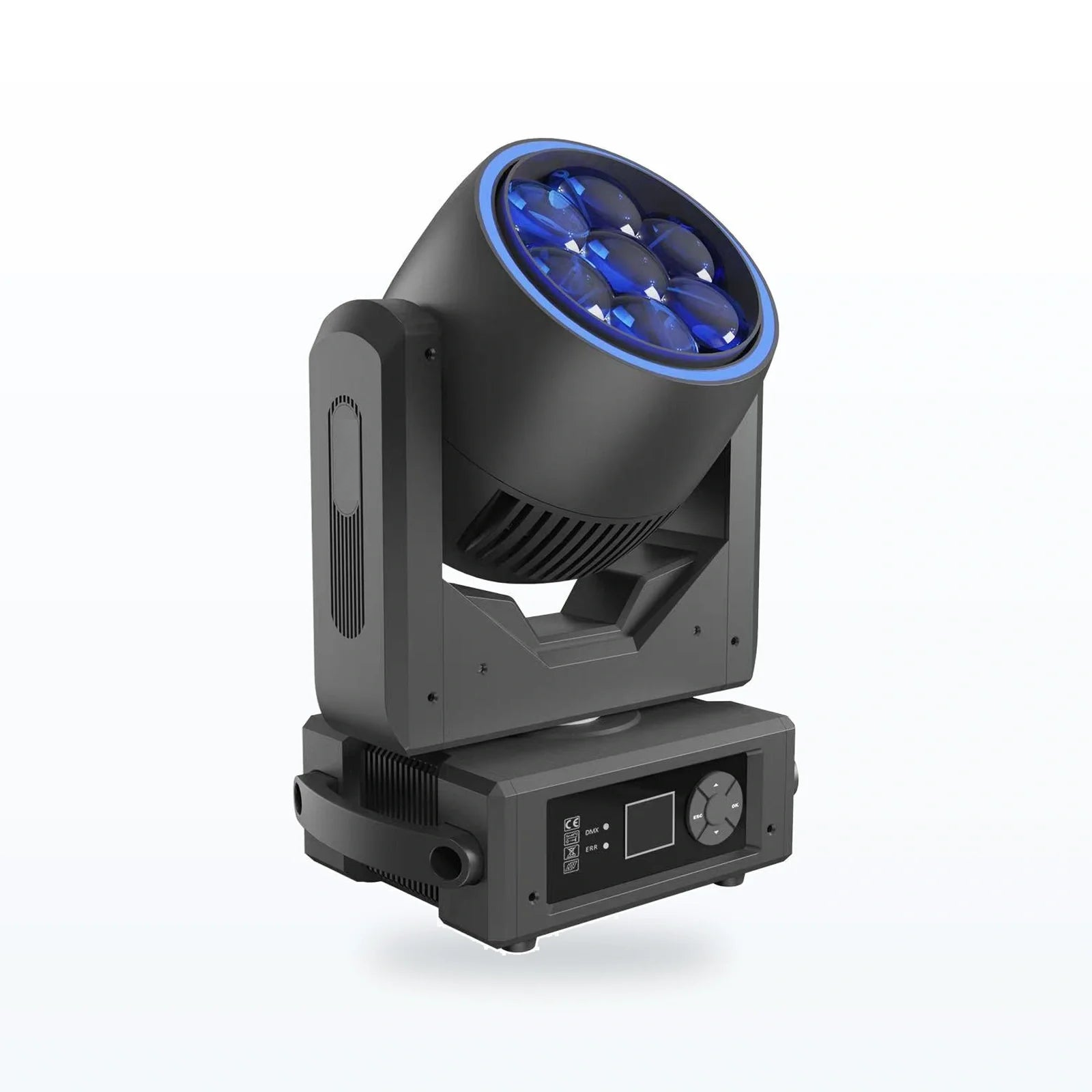

Mini 7 x 40W Bee-Eye Moving Head with LED Ring

Name: Mini 7 x 40W Bee-Eye Moving Head with LED Ring
Brand: YL Light

Mini 7 x 40W Bee-Eye Moving Head with LED Ring is a stage lighting catalogue item in the bee-eye wash moving head light category. Reference specifications list rated power: 150W in both manuals; product note states 280W - TO BE CONFIRMED; light source: 7 x RGBW four-in-one LED cells; 40W per cell stated by name and note. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 7 x RGBW four-in-one LED cells; 40W per cell stated by name and note
Control modes: DMX512 / automatic / master-slave / sound-active

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: 24CH fixture profile records pan 360 degrees / tilt 180 degrees; verify physical limits
Product: Mini 7 x 40W Bee-Eye Moving Head with LED Ring
Dimming / strobe: 32-bit 0-100% linear dimming / 1-30Hz strobe
LED ring: Ring color selection and macro change
Environment: 30 to 50 degrees C / IP20 indoor
Packing: Gross weight and packing size TO BE CONFIRMED
Connection: DMX512 input/output and power input/output
Housing: Metal, black; verify actual rated power on the nameplate before connection.

Optical performance

Rated power: 150W in both manuals; product note states 280W - TO BE CONFIRMED
Light source: 7 x RGBW four-in-one LED cells; 40W per cell stated by name and note

Control and connections

DMX modes: 24CH / 35CH / 52CH; current fixture files and manuals publish the set
Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / automatic / master-slave / sound-active

Construction and dimensions

Product size: 27 x 18 x 40 cm

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Mini 7 x 40W Bee-Eye Moving Head with LED Ring technical specifications
Rated power	150W in both manuals; product note states 280W - TO BE CONFIRMED
Light source	7 x RGBW four-in-one LED cells; 40W per cell stated by name and note
DMX modes	24CH / 35CH / 52CH; current fixture files and manuals publish the set
Movement	24CH fixture profile records pan 360 degrees / tilt 180 degrees; verify physical limits
Product	Mini 7 x 40W Bee-Eye Moving Head with LED Ring
Input voltage	AC100-240V, 50/60Hz
Control modes	DMX512 / automatic / master-slave / sound-active
Dimming / strobe	32-bit 0-100% linear dimming / 1-30Hz strobe
LED ring	Ring color selection and macro change
Environment	30 to 50 degrees C / IP20 indoor
Product size	27 x 18 x 40 cm
Packing	Gross weight and packing size TO BE CONFIRMED
Connection	DMX512 input/output and power input/output
Housing	Metal, black; verify actual rated power on the nameplate before connection.
