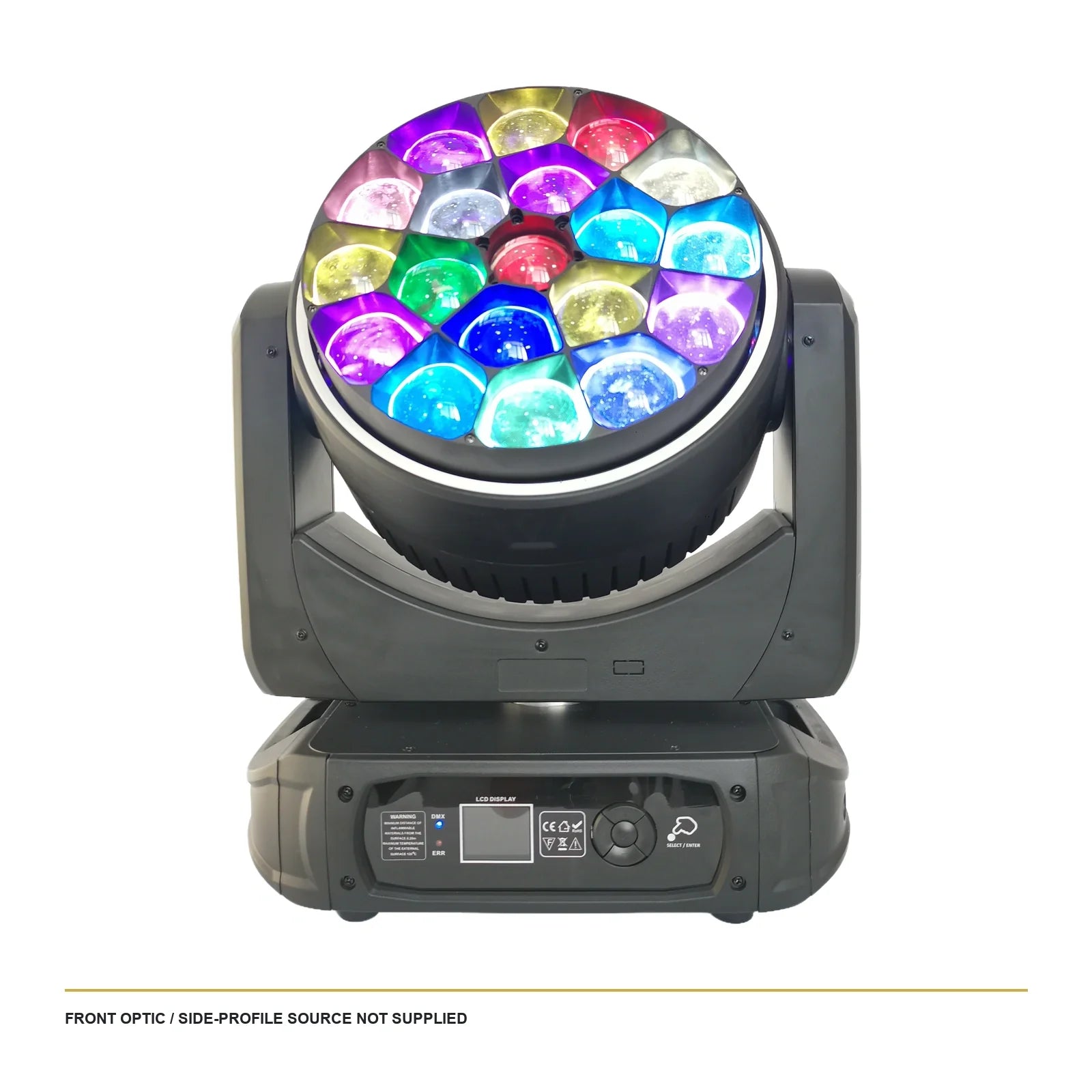

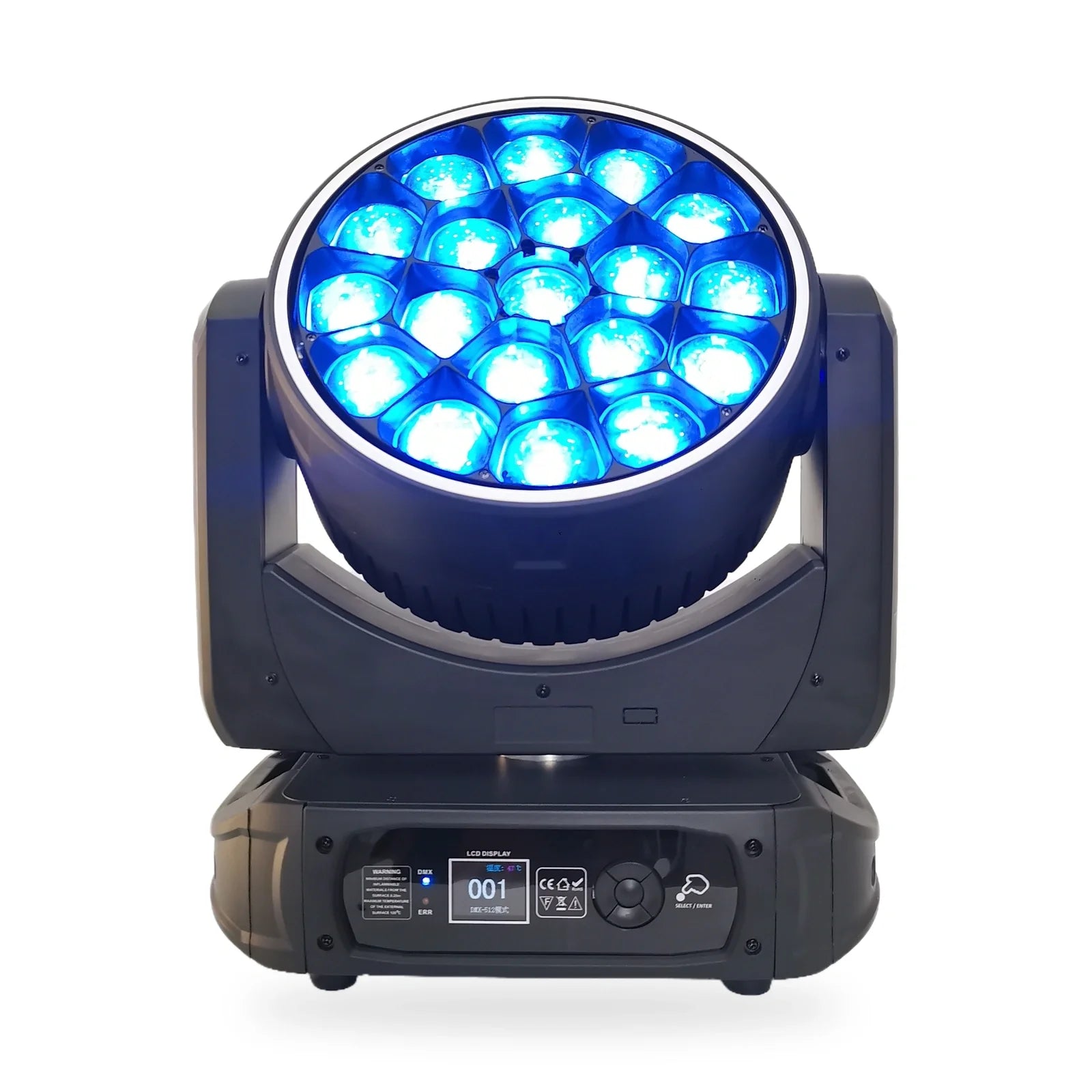

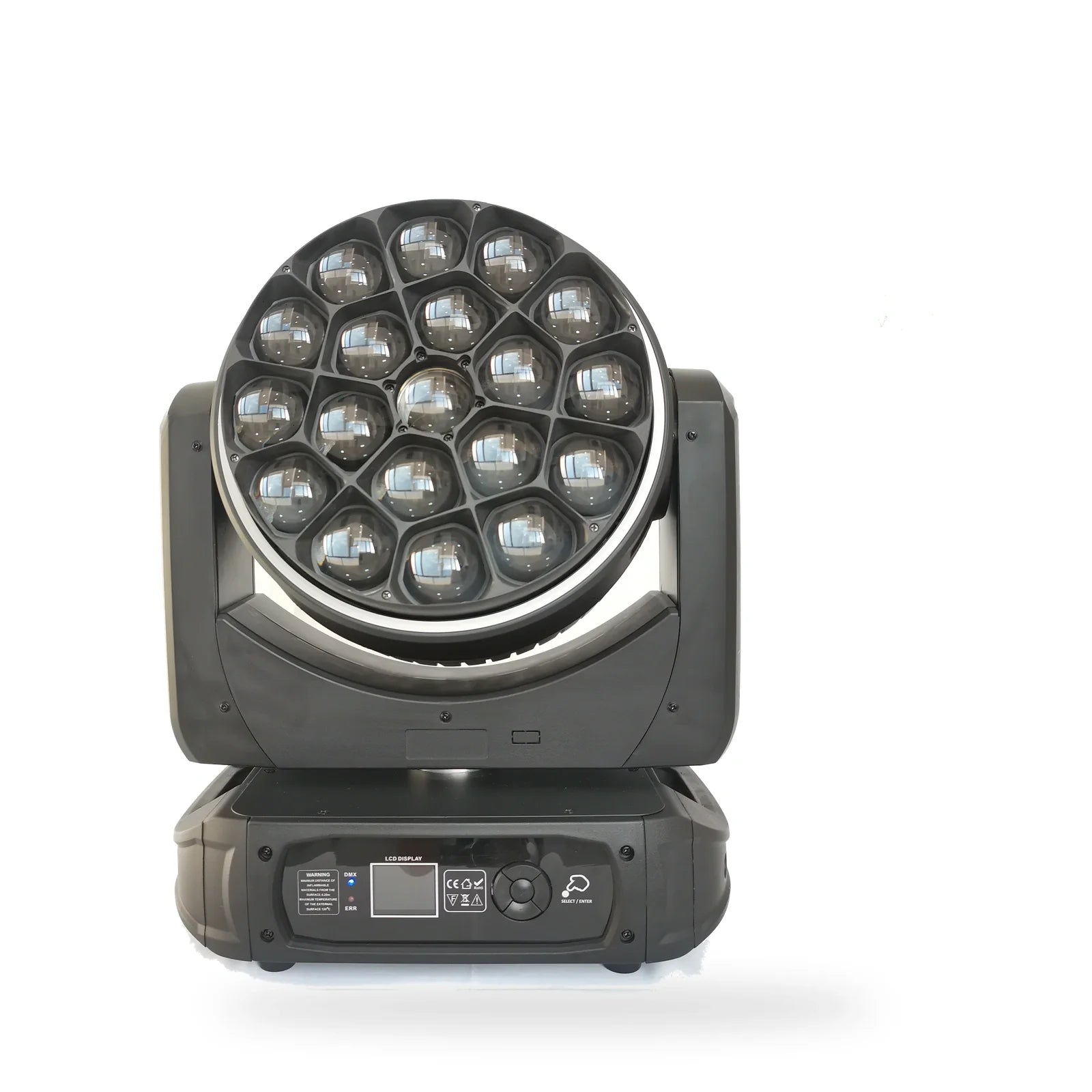

EYE1940 19 x 40W RGBW Rotating Bee-Eye Moving Head

Name: EYE1940 19 x 40W RGBW Rotating Bee-Eye Moving Head
Brand: YL Light

EYE1940 19 x 40W RGBW Rotating Bee-Eye Moving Head is a stage lighting catalogue item in the bee-eye wash moving head light category. Reference specifications list light source: 19 x 40W 4-in-1 RGBW Osram LEDs; 50,000-hour rated-life claim; dmx channels: 22CH + 26CH fixture-library verified; 36CH + 78CH manual-documented. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 19 x 40W 4-in-1 RGBW Osram LEDs; 50,000-hour rated-life claim
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
Control modes: DMX512 / RDM / auto 1 / auto 2 / sound

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: 540-degree pan / 270-degree tilt / 16-bit positioning
Product: EYE1940 19 x 40W RGBW Rotating Bee-Eye Moving Head
Strobe: 0.3-25 flashes/second; synchronous, pulse and random behaviors
Dimming: 0-100%; adjustable 1.2-25kHz frequency
Environment: IP20 base fixture; optional rain-cover claim up to IP44

Optical performance

Light source: 19 x 40W 4-in-1 RGBW Osram LEDs; 50,000-hour rated-life claim
Color system: RGBW mixing, CTO control and auxiliary/background light effects

Control and connections

DMX channels: 22CH + 26CH fixture-library verified; 36CH + 78CH manual-documented
Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / RDM / auto 1 / auto 2 / sound

Construction and dimensions

Size / weight: 40.5 x 23.4 x 44cm; 19kg net / 21kg gross
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

EYE1940 19 x 40W RGBW Rotating Bee-Eye Moving Head technical specifications
Light source	19 x 40W 4-in-1 RGBW Osram LEDs; 50,000-hour rated-life claim
DMX channels	22CH + 26CH fixture-library verified; 36CH + 78CH manual-documented
Movement	540-degree pan / 270-degree tilt / 16-bit positioning
Input voltage	AC100-240V, 50/60Hz
Product	EYE1940 19 x 40W RGBW Rotating Bee-Eye Moving Head
Control modes	DMX512 / RDM / auto 1 / auto 2 / sound
Color system	RGBW mixing, CTO control and auxiliary/background light effects
Strobe	0.3-25 flashes/second; synchronous, pulse and random behaviors
Dimming	0-100%; adjustable 1.2-25kHz frequency
Size / weight	40.5 x 23.4 x 44cm; 19kg net / 21kg gross
Environment	IP20 base fixture; optional rain-cover claim up to IP44
Electrical protection	Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
