DE300 300W BSW 3-in-1 Moving Head

Name: DE300 300W BSW 3-in-1 Moving Head
Brand: YL Light

DE300 300W BSW 3-in-1 Moving Head is a stage lighting catalogue item in the beam / spot / wash moving head light category. Reference specifications list light source: 300W white LED; 9000K; 20,000-hour rated-life claim; dmx channels: 17CH verified by the supplied XML, D4 and R20 libraries. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 300W white LED; 9000K; 20,000-hour rated-life claim

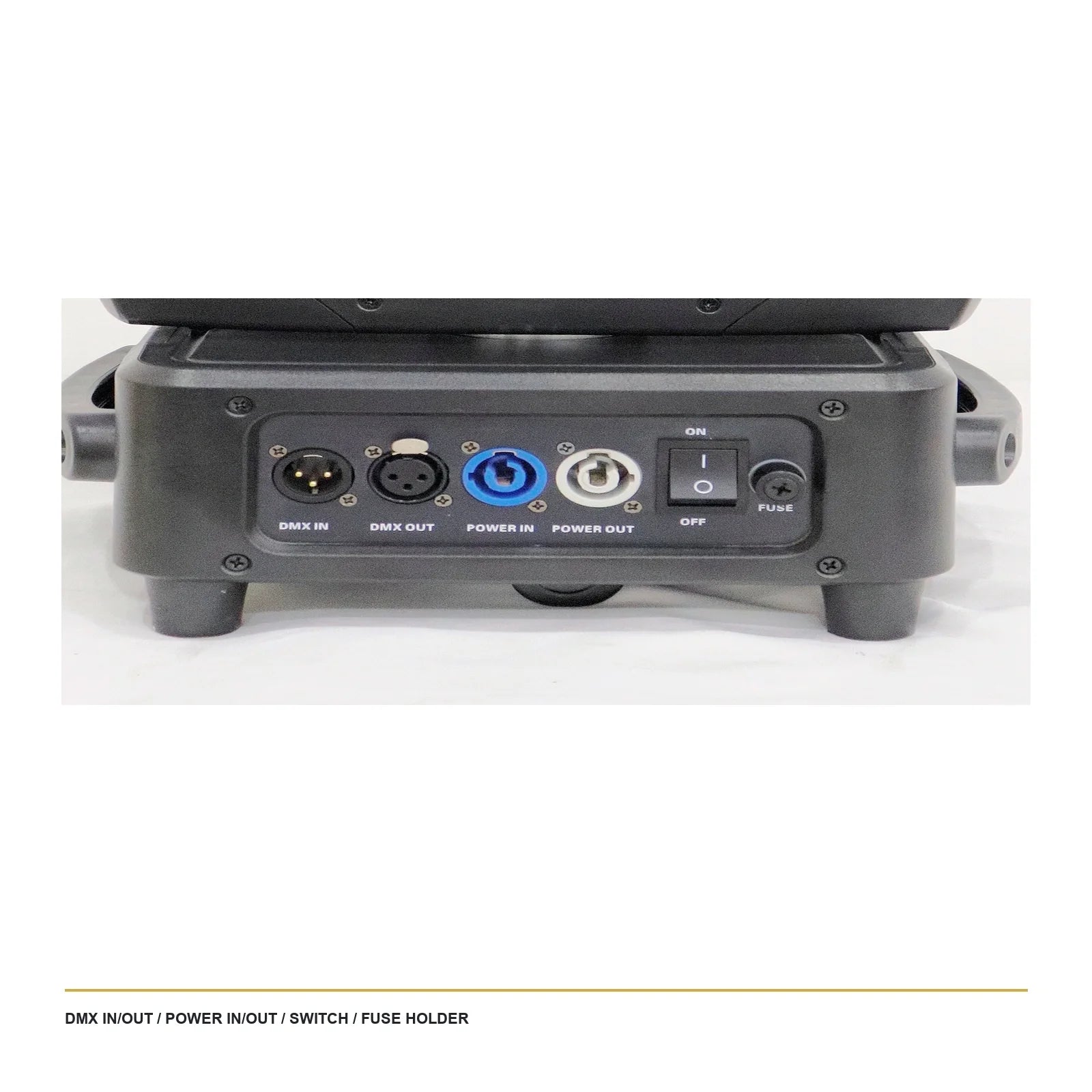

Electrical protection: Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.
Control modes: DMX512 / RDM / sound / auto 1 / auto 2

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: 540-degree pan / 270-degree tilt / 16-bit positioning
Product: DE300 300W BSW 3-in-1 Moving Head
Strobe: 0.3-25 flashes/second; synchronized, pulse and random behaviors
Dimming: 0-100%; adjustable 1.2-25kHz dimming-frequency claim
Environment: Indoor product; IP rating not stated and remains TBC

Optical performance

Light source: 300W white LED; 9000K; 20,000-hour rated-life claim
Color system: 14 colors + white; split-color and bidirectional rainbow effects

Control and connections

DMX channels: 17CH verified by the supplied XML, D4 and R20 libraries
Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / RDM / sound / auto 1 / auto 2

Construction and dimensions

Size / weight: 46 x 35 x 30cm; 13kg net / 14.7kg gross
Electrical protection: Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

DE300 300W BSW 3-in-1 Moving Head technical specifications
Light source	300W white LED; 9000K; 20,000-hour rated-life claim
DMX channels	17CH verified by the supplied XML, D4 and R20 libraries
Movement	540-degree pan / 270-degree tilt / 16-bit positioning
Input voltage	AC100-240V, 50/60Hz
Product	DE300 300W BSW 3-in-1 Moving Head
Control modes	DMX512 / RDM / sound / auto 1 / auto 2
Color system	14 colors + white; split-color and bidirectional rainbow effects
Strobe	0.3-25 flashes/second; synchronized, pulse and random behaviors
Dimming	0-100%; adjustable 1.2-25kHz dimming-frequency claim
Size / weight	46 x 35 x 30cm; 13kg net / 14.7kg gross
Environment	Indoor product; IP rating not stated and remains TBC
Electrical protection	Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.
