YL LightBeam Moving Light

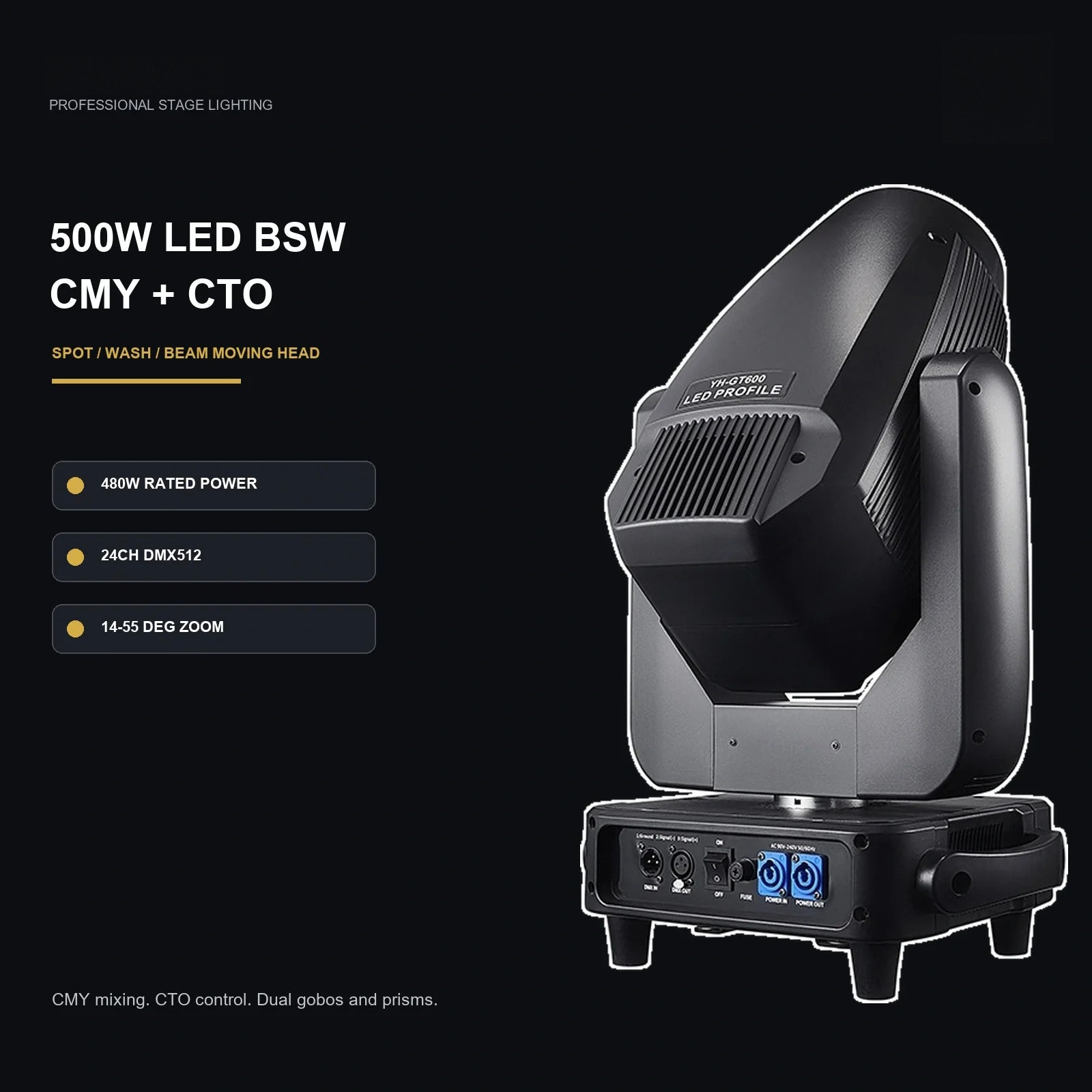

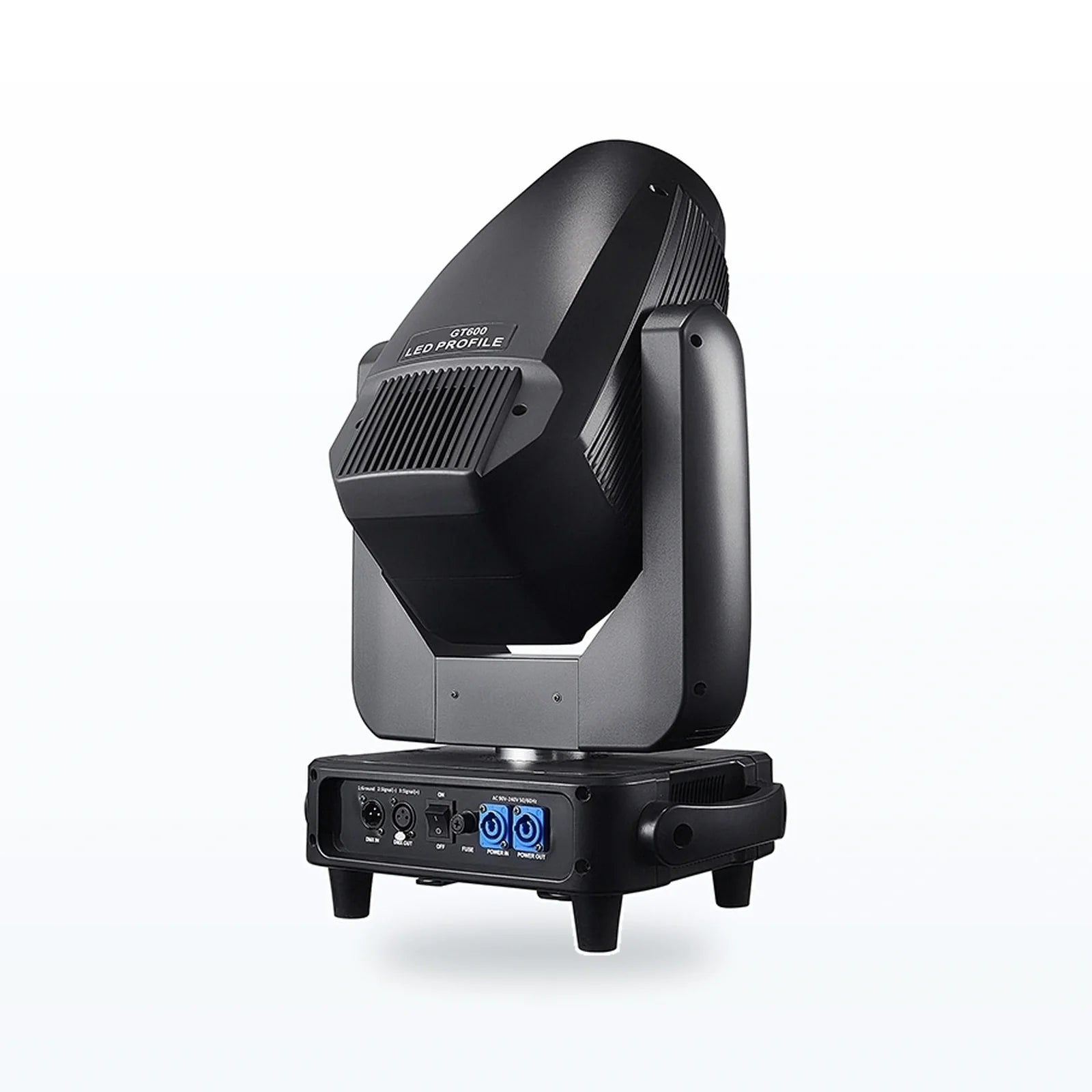

500W LED BSW Moving Head with CMY + CTO

500W LED BSW Moving Head with CMY + CTO is a stage lighting catalogue item in the beam / spot / wash moving head light category. Reference specifications list rated power: 480W; light source: 500W white LED module; 8000K; CRI 75; 50,000 hours. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
500W white LED module; 8000K; CRI 75; 50,000 hours
Protection
IP20 indoor
Control modes
DMX512 / master-slave / automatic

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement
Pan 540 degrees / tilt 270 degrees / 16-bit fine channels
Product
500W LED BSW Moving Head with CMY + CTO
Focus
/ zoom
Dimming
/ shutter

Optical performance

Rated power
480W
Light source
500W white LED module; 8000K; CRI 75; 50,000 hours
Color system
CMY + CTO plus color wheel; exact wheel count TO BE CONFIRMED
Prism system
Two independent prism blocks with rotation; exact facets TO BE CONFIRMED

Control and connections

DMX channels
24CH DMX512; XML, D4 and R20 agree
Input voltage
TO BE CONFIRMED: note AC110-220V; English manual AC200-240V
Control modes
DMX512 / master-slave / automatic

Construction and dimensions

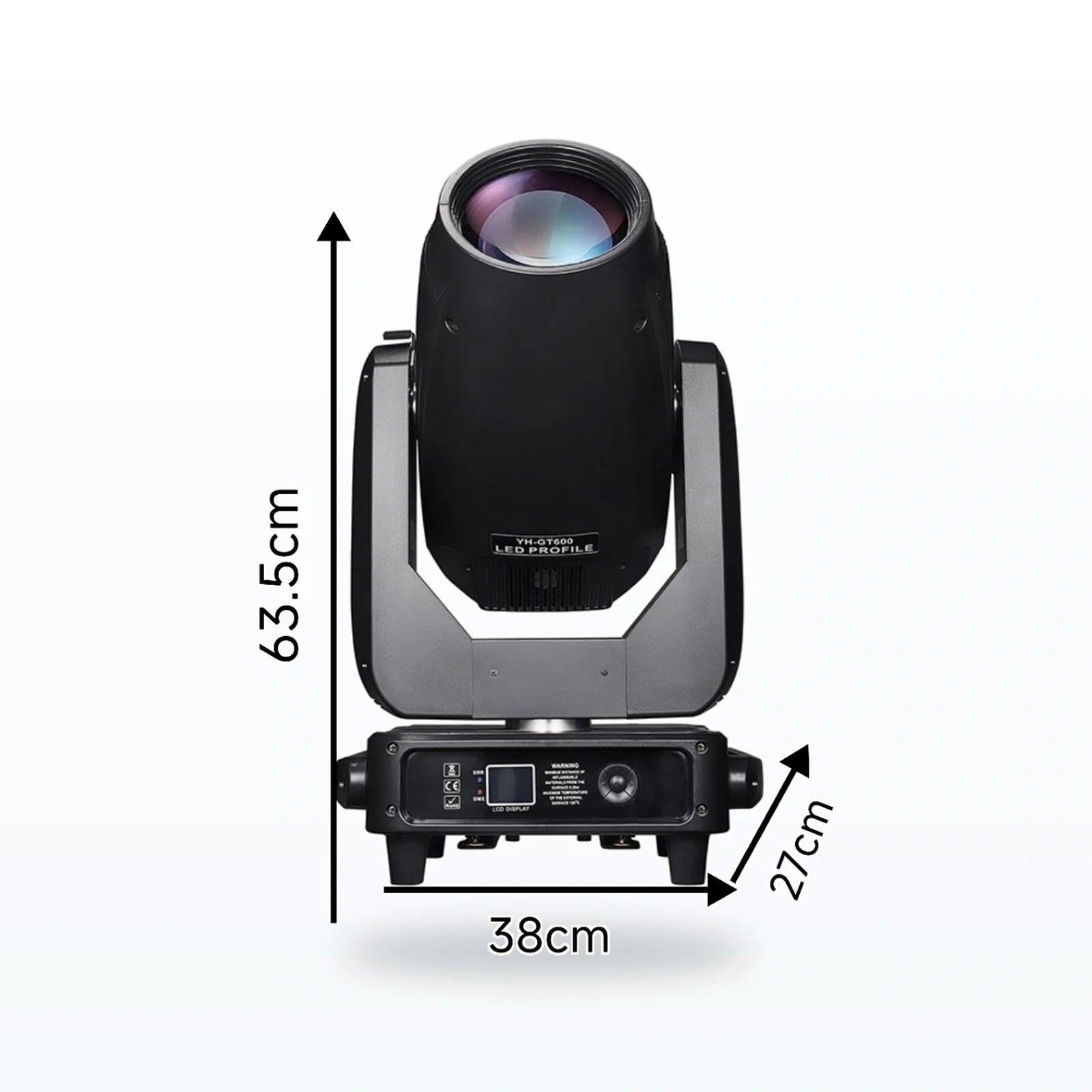

Product size
38 x 27 x 63.5 cm
Protection
IP20 indoor
Electrical protection
Rated current and fuse value, type and position remain TO BE CONFIRMED.

What to confirm for your quotation

  • Provide the subject dimensions, throw distance, fixture spacing and mounting height.
  • Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
  • For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
  • Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

500W LED BSW Moving Head with CMY + CTO technical specifications
Rated power480W
Light source500W white LED module; 8000K; CRI 75; 50,000 hours
DMX channels24CH DMX512; XML, D4 and R20 agree
MovementPan 540 degrees / tilt 270 degrees / 16-bit fine channels
Product500W LED BSW Moving Head with CMY + CTO
Input voltageTO BE CONFIRMED: note AC110-220V; English manual AC200-240V
Control modesDMX512 / master-slave / automatic
Color systemCMY + CTO plus color wheel; exact wheel count TO BE CONFIRMED
Prism systemTwo independent prism blocks with rotation; exact facets TO BE CONFIRMED
Focus/ zoom
Dimming/ shutter
Product size38 x 27 x 63.5 cm
ProtectionIP20 indoor
Electrical protectionRated current and fuse value, type and position remain TO BE CONFIRMED.

Downloads

Product documents are being prepared. Contact YL for the current information for 500W LED BSW Moving Head with CMY + CTO.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 500W LED BSW Moving Head with CMY + CTO.

Ask about compatible accessories
