YL LightBeam Moving Light

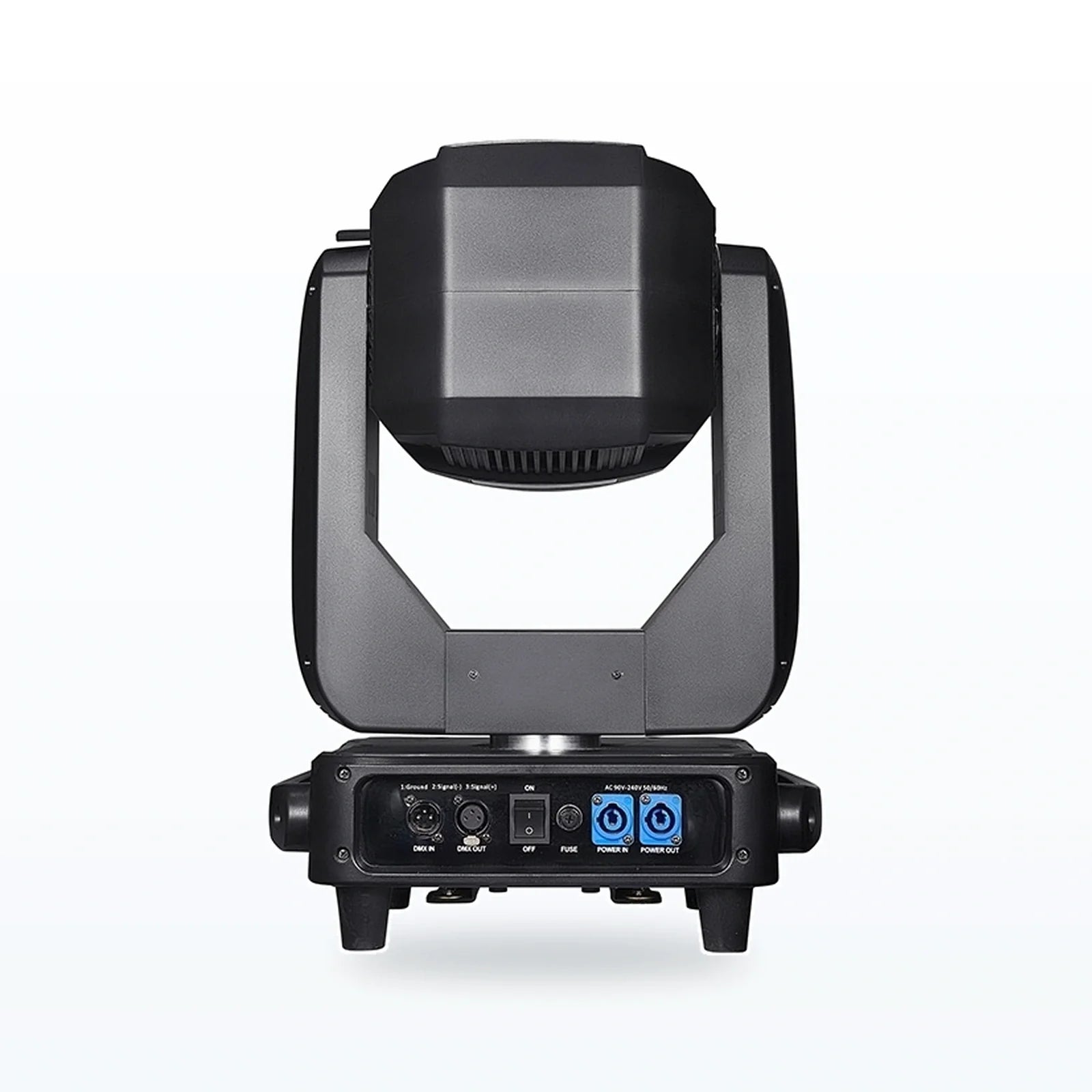

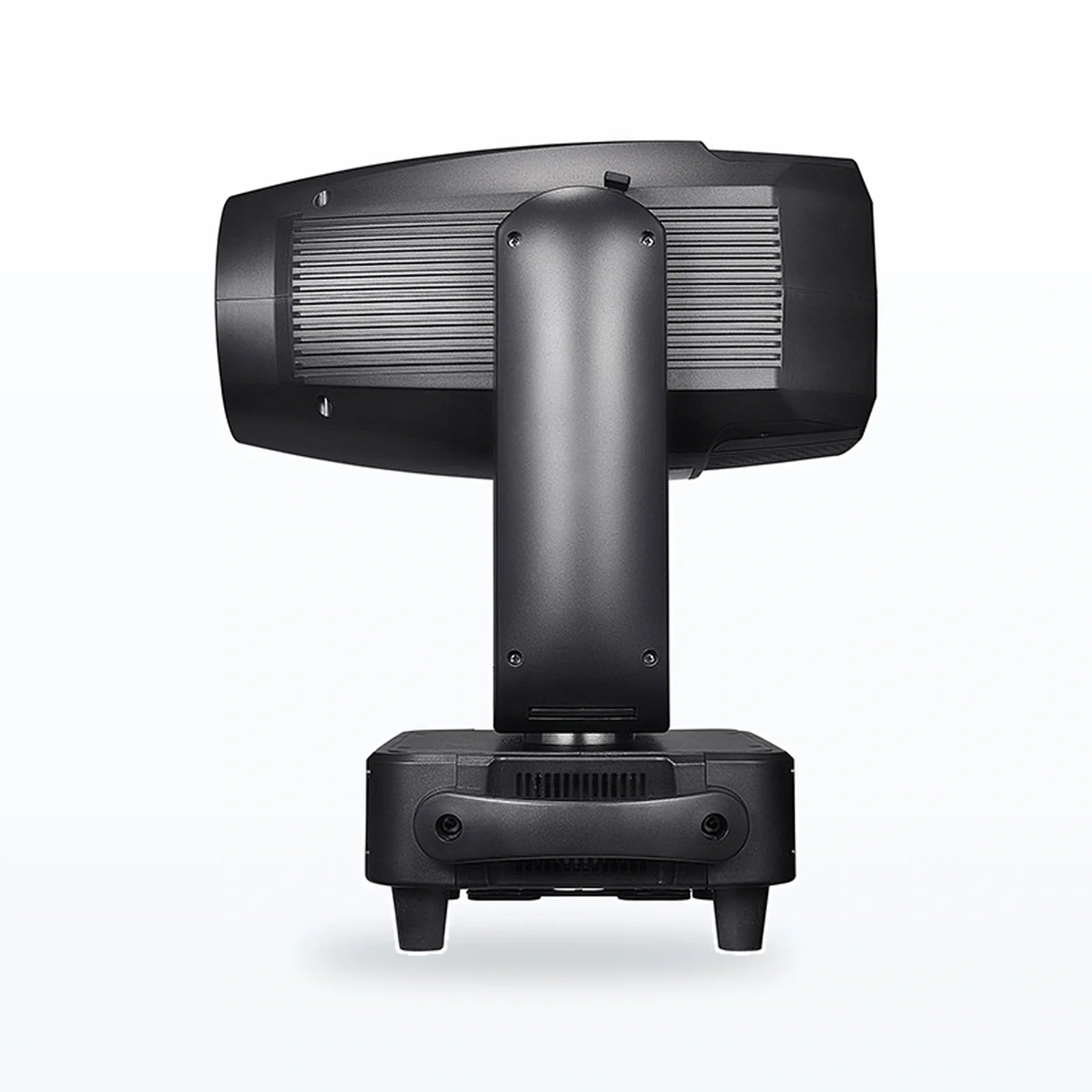

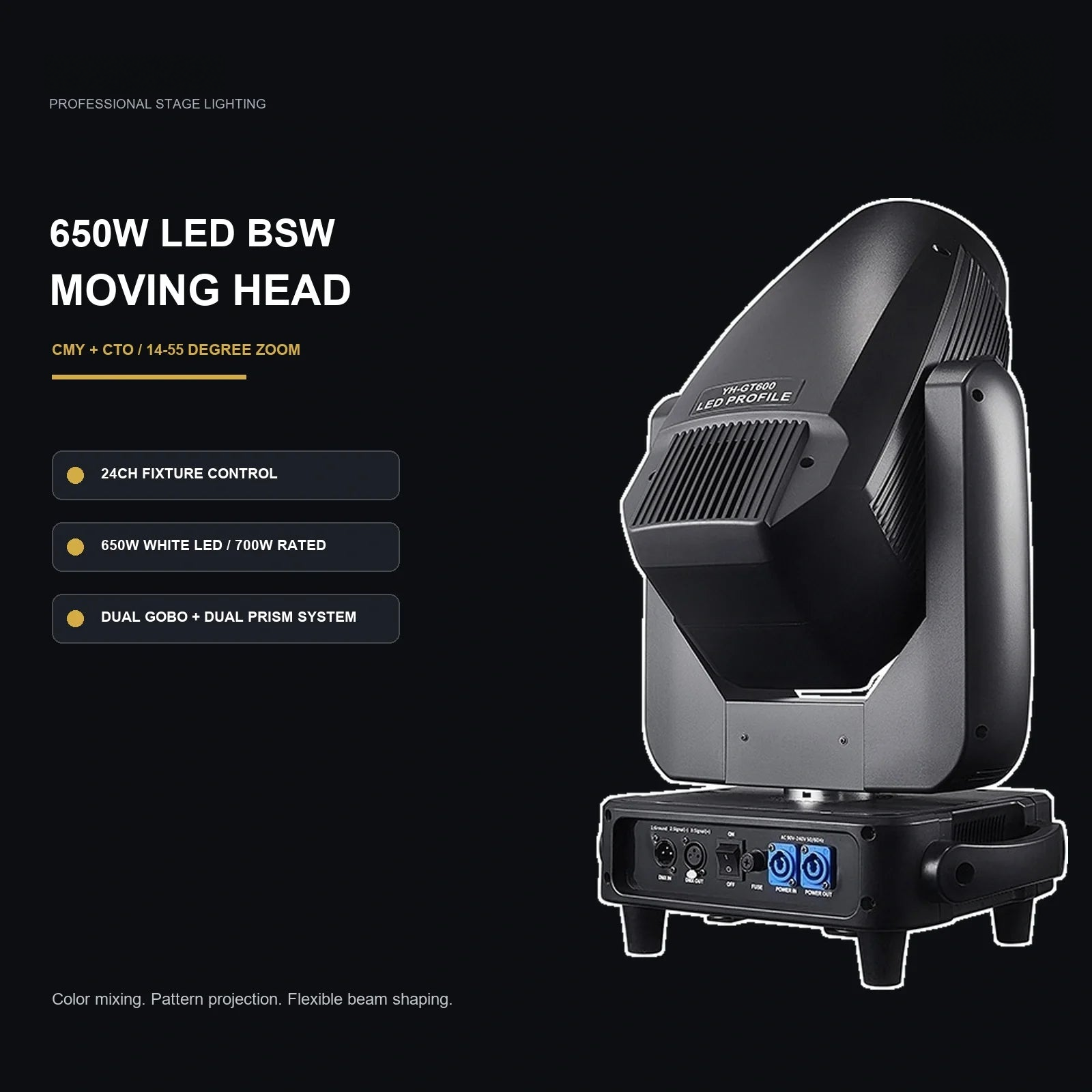

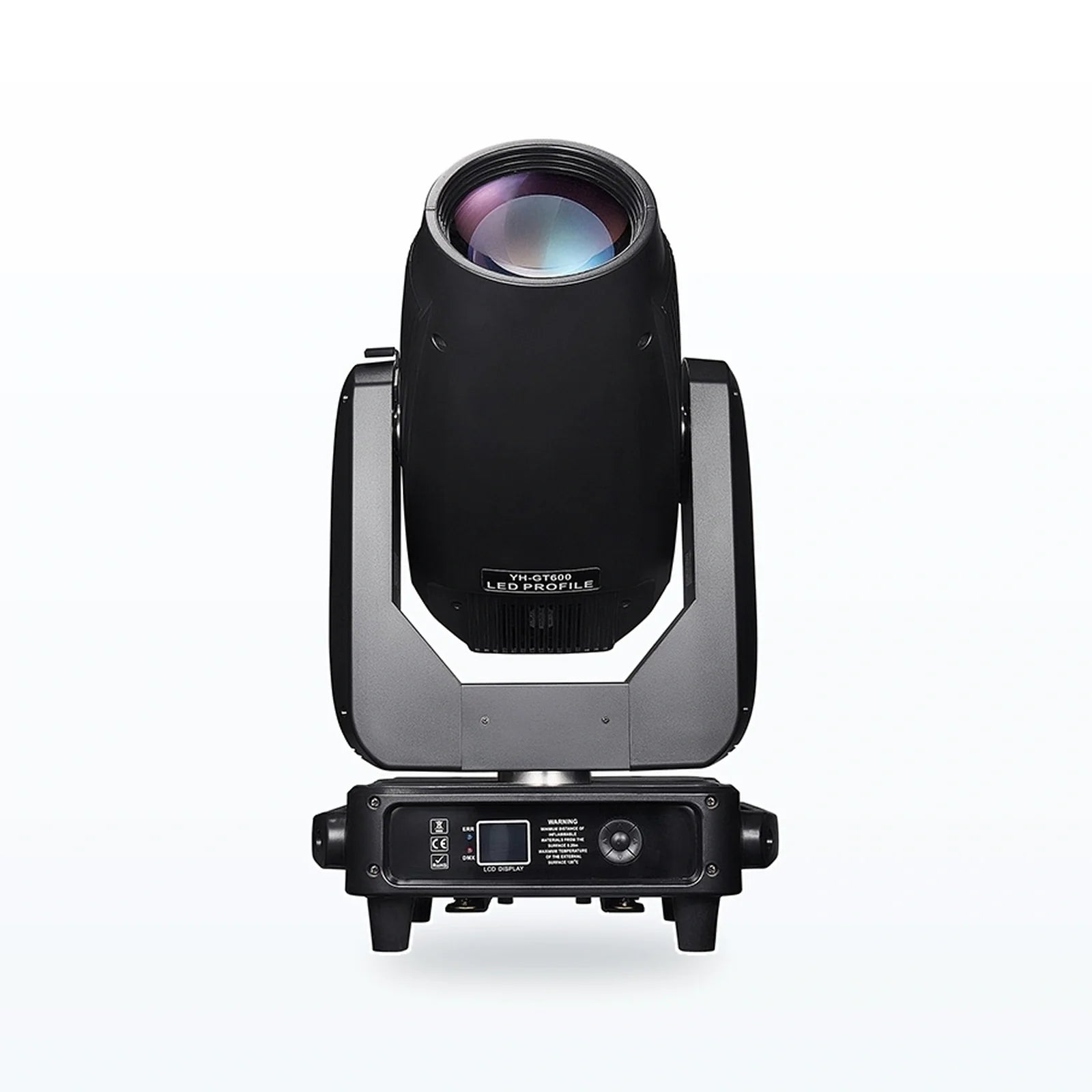

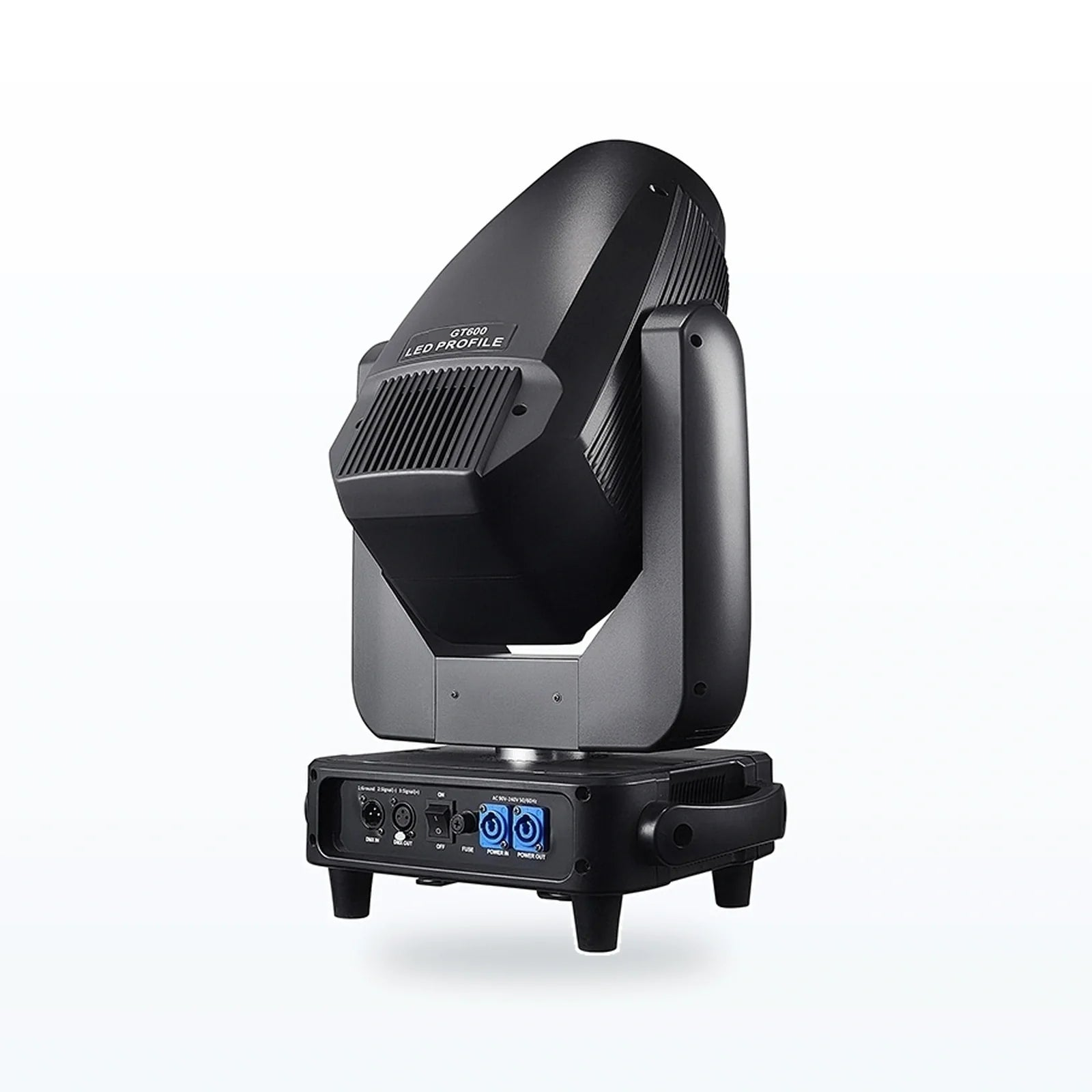

650W LED BSW Moving Head with CMY + CTO

650W LED BSW Moving Head with CMY + CTO is a stage lighting catalogue item in the beam / spot / wash moving head light category. Reference specifications list rated power: 700W; light source: 650W LED module; exact brand/model TO BE CONFIRMED. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
650W LED module; exact brand/model TO BE CONFIRMED
Protection
IP20 / indoor professional use
Electrical protection
Use a grounded supply. Rated current and fuse value, type and position remain TO BE CONFIRMED.

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement
Pan 540 degrees / tilt 270 degrees / fine channels
Product
650W LED BSW Moving Head with CMY + CTO
Frost
/ dimmer / strobe Frost; 16-bit dimming; shutter and strobe control
Packing
/ weight Net weight, packing size and gross weight TO BE CONFIRMED

Optical performance

Rated power
700W
Light source
650W LED module; exact brand/model TO BE CONFIRMED
Color system
CMY + CTO + eight-color wheel + open

Control and connections

DMX channels
24CH DMX512 (XML / D4 / R20 authority)
Input voltage
TO BE CONFIRMED - AC110-220V note / AC90-240V rear-panel conflict

Construction and dimensions

Product size
38 x 27 x 63.5 cm
Protection
IP20 / indoor professional use
Electrical protection
Use a grounded supply. Rated current and fuse value, type and position remain TO BE CONFIRMED.

What to confirm for your quotation

  • Provide the subject dimensions, throw distance, fixture spacing and mounting height.
  • Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
  • For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
  • Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

650W LED BSW Moving Head with CMY + CTO technical specifications
Rated power700W
Light source650W LED module; exact brand/model TO BE CONFIRMED
DMX channels24CH DMX512 (XML / D4 / R20 authority)
MovementPan 540 degrees / tilt 270 degrees / fine channels
Product650W LED BSW Moving Head with CMY + CTO
Input voltageTO BE CONFIRMED - AC110-220V note / AC90-240V rear-panel conflict
Color systemCMY + CTO + eight-color wheel + open
Frost/ dimmer / strobe Frost; 16-bit dimming; shutter and strobe control
Product size38 x 27 x 63.5 cm
ProtectionIP20 / indoor professional use
Packing/ weight Net weight, packing size and gross weight TO BE CONFIRMED
Electrical protectionUse a grounded supply. Rated current and fuse value, type and position remain TO BE CONFIRMED.

Downloads

Product documents are being prepared. Contact YL for the current information for 650W LED BSW Moving Head with CMY + CTO.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 650W LED BSW Moving Head with CMY + CTO.

Ask about compatible accessories

Product videos
