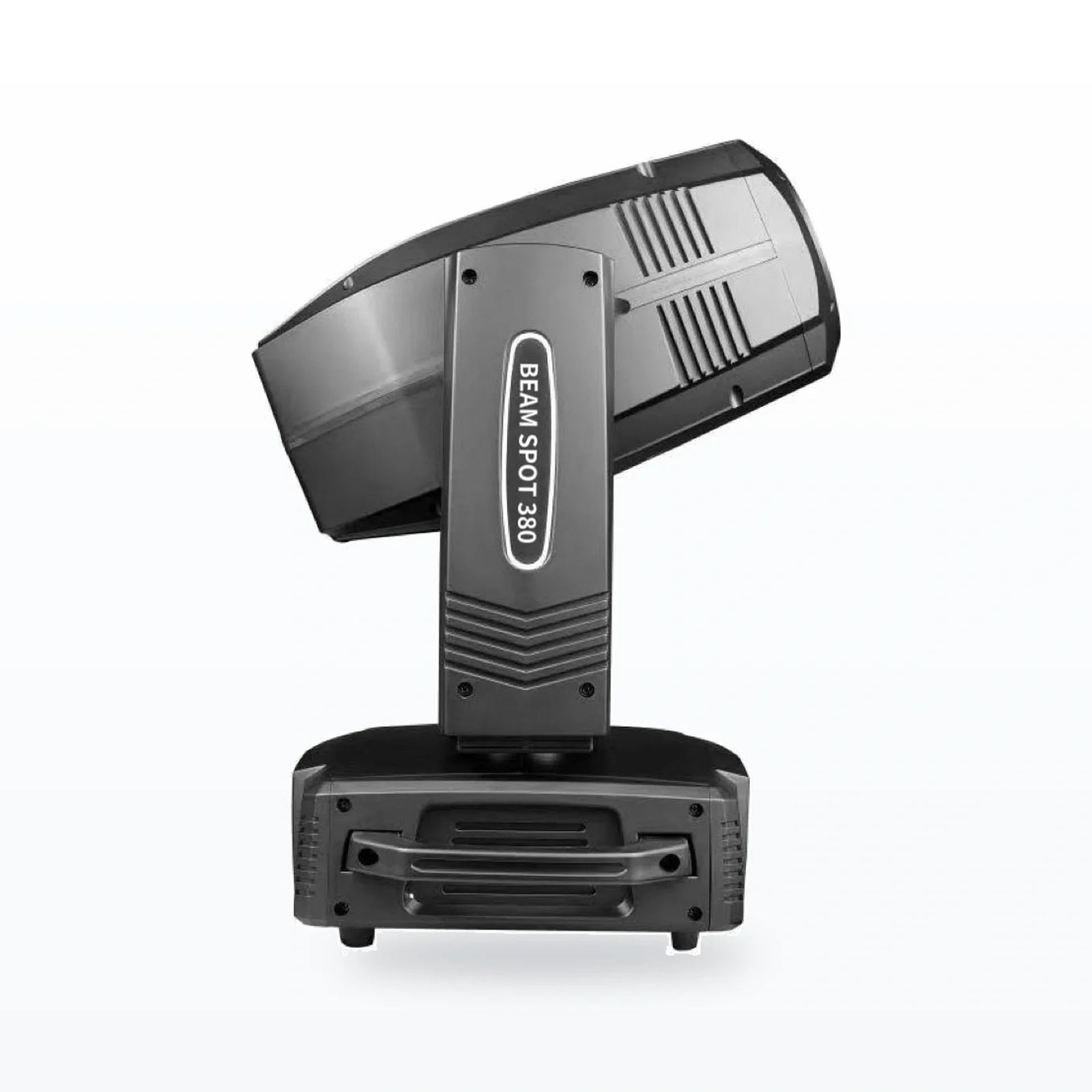

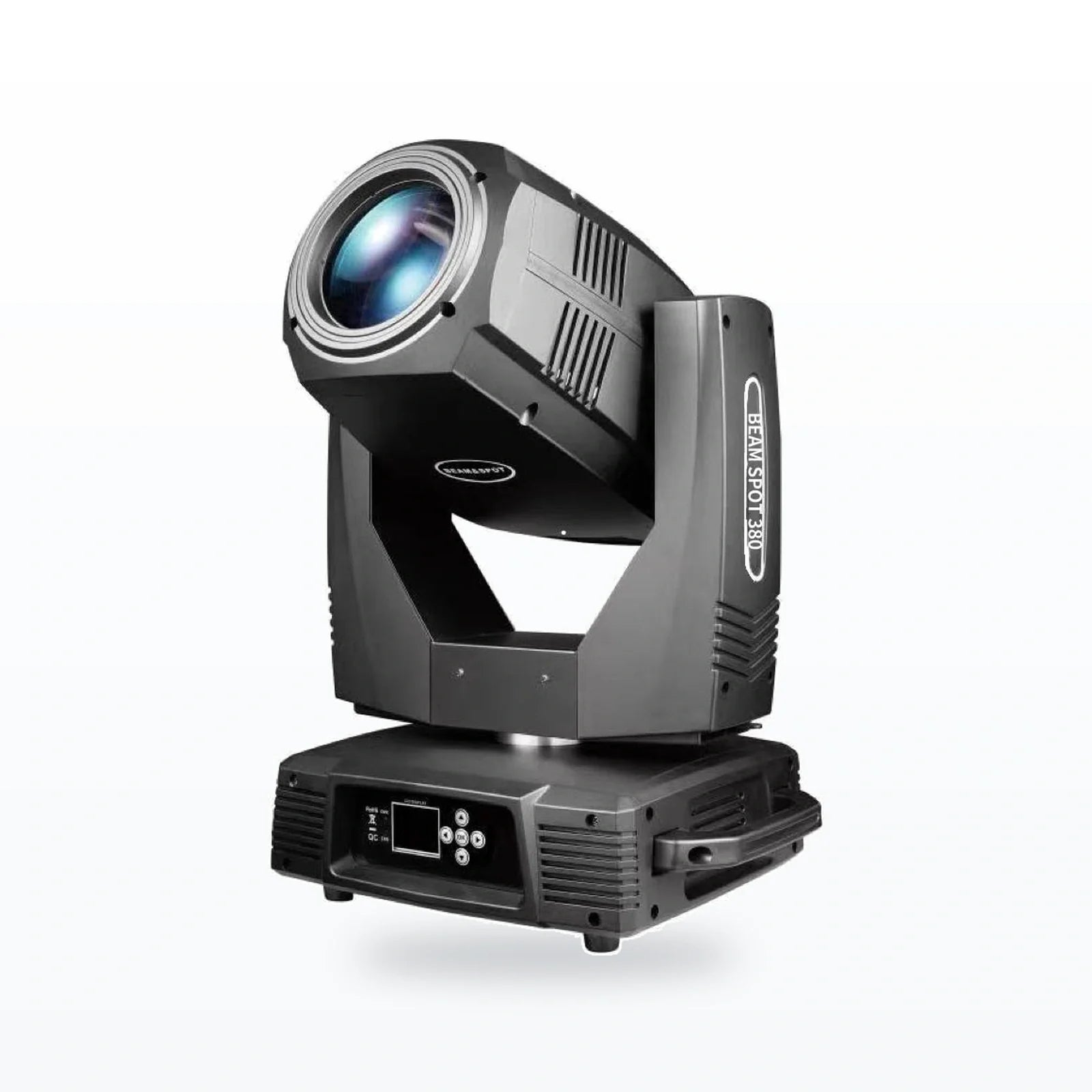

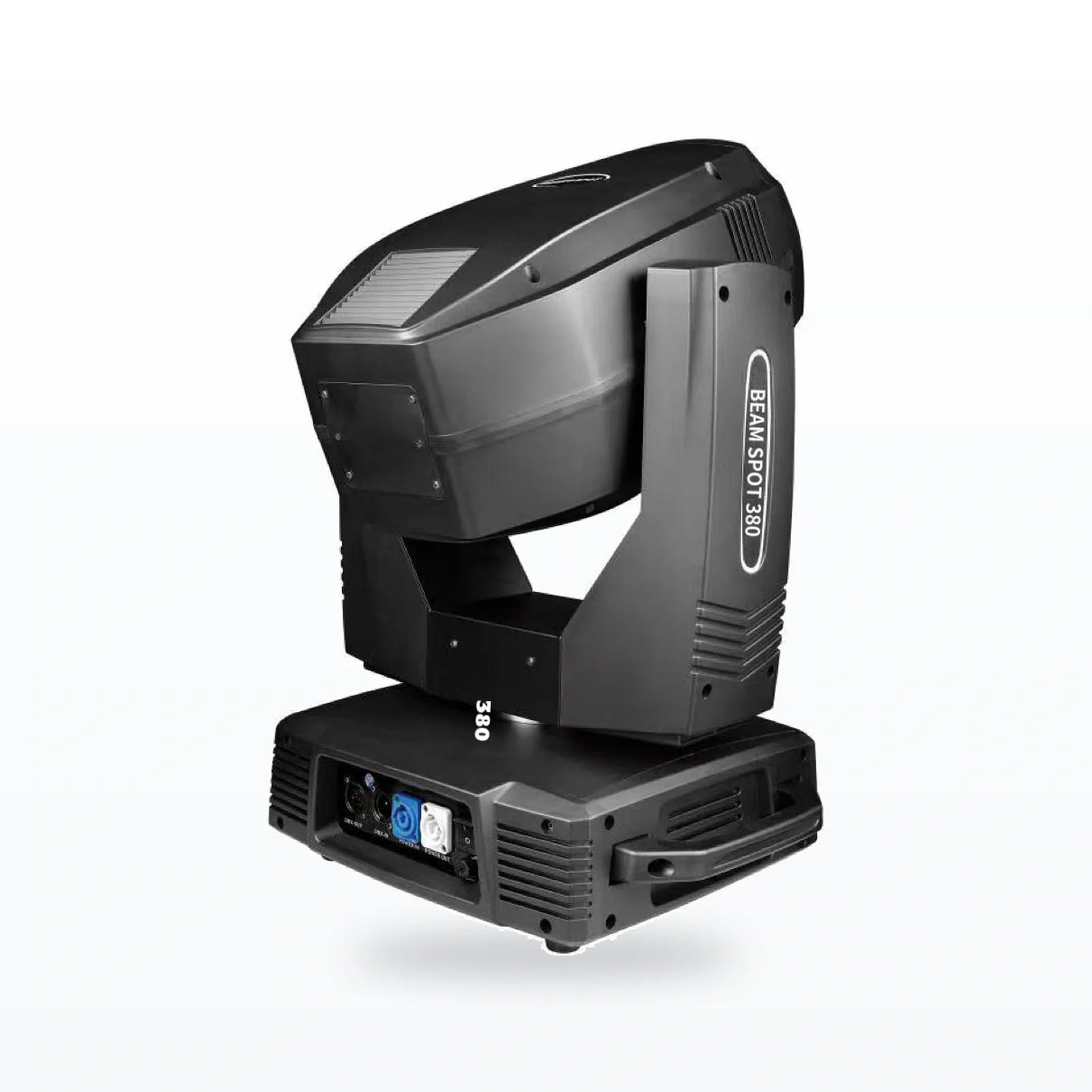

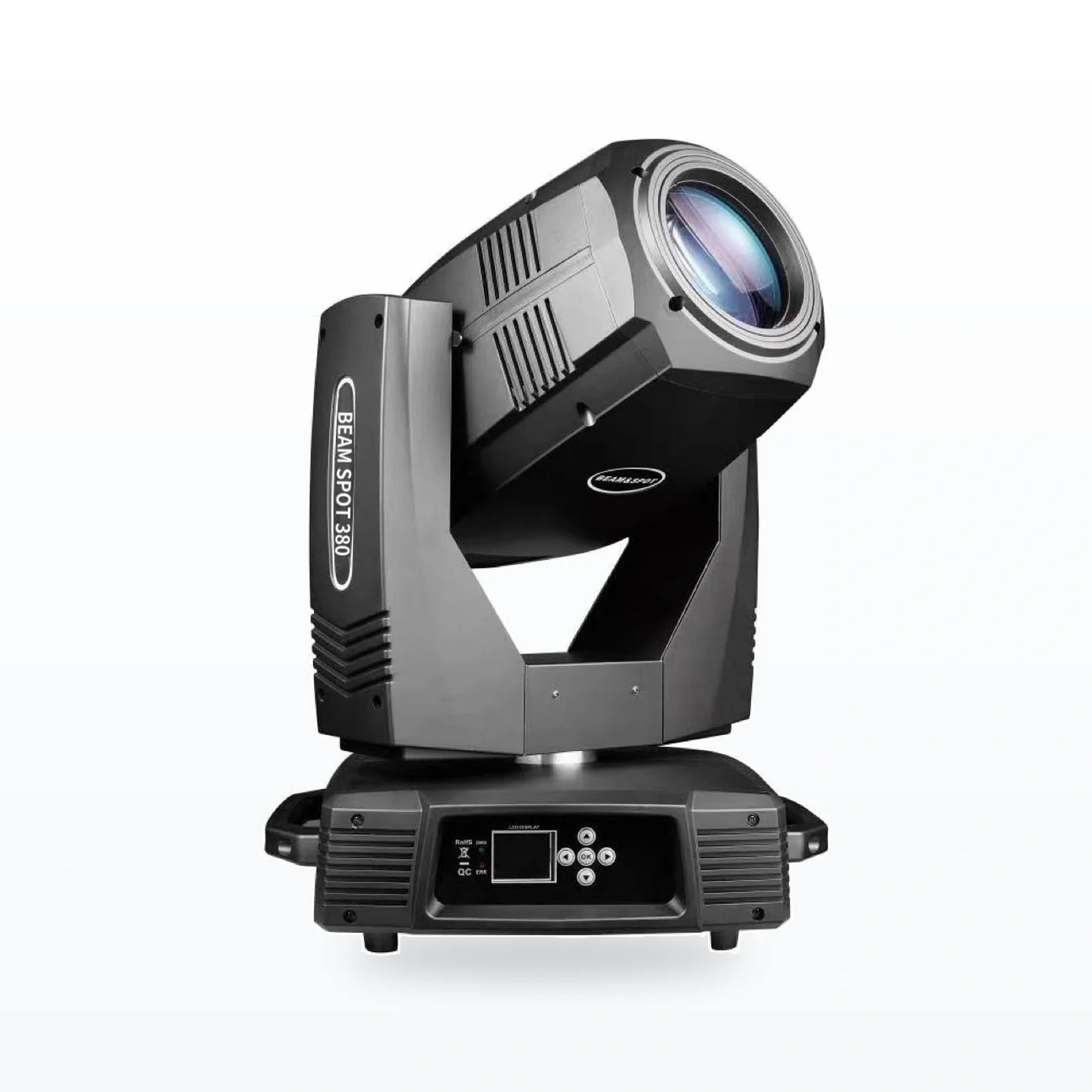

380W 3-in-1 BSW Moving Head Light

Name: 380W 3-in-1 BSW Moving Head Light
Brand: YL Light

380W 3-in-1 BSW Moving Head Light is a stage lighting catalogue item in the beam / spot / wash moving head light category. Reference specifications list rated power: 600W record / 480W video - TO BE CONFIRMED; light source: 380W discharge source; EXACT LAMP BRAND AND MODEL TO BE CONFIRMED. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 380W discharge source; EXACT LAMP BRAND AND MODEL TO BE CONFIRMED
Electrical protection: Use a grounded supply. Rated current, fuse value, type and position remain TO BE CONFIRMED.
Control modes: DMX512 / sound / auto / master-slave

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: Pan 540 degrees / tilt 270 degrees / fine channels
Product: 380W 3-in-1 BSW Moving Head Light
Focus: Motorized focus verified by the current fixture mapping
Dimming / strobe: 0-100% linear dimming; dual-blade strobe 0.5-9 flashes per second
Environment: IP20 indoor use
Packing: 49 x 49 x 59 cm / gross weight 21.1 kg

Optical performance

Rated power: 600W record / 480W video - TO BE CONFIRMED
Light source: 380W discharge source; EXACT LAMP BRAND AND MODEL TO BE CONFIRMED
Color wheel: 13 colors + white; split-color and rainbow effects
Fixed gobos: 11/14 fixed gobos conflict; 9 replaceable rotating gobos + open
Prism system: Two overlay-capable prism effects; exact facet structures TO BE CONFIRMED
Frost / color effect: Frost insertion and color effects; final DMX values follow the selected fixture library

Control and connections

DMX channels: 19CH / 24CH DMX512
Input voltage: AC110-240V, 50/60Hz
Control modes: DMX512 / sound / auto / master-slave

Construction and dimensions

Size / weight: 43 x 31 x 63 cm / net weight 18.8 kg
Electrical protection: Use a grounded supply. Rated current, fuse value, type and position remain TO BE CONFIRMED.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

380W 3-in-1 BSW Moving Head Light technical specifications
Rated power	600W record / 480W video - TO BE CONFIRMED
Light source	380W discharge source; EXACT LAMP BRAND AND MODEL TO BE CONFIRMED
DMX channels	19CH / 24CH DMX512
Movement	Pan 540 degrees / tilt 270 degrees / fine channels
Product	380W 3-in-1 BSW Moving Head Light
Input voltage	AC110-240V, 50/60Hz
Control modes	DMX512 / sound / auto / master-slave
Color wheel	13 colors + white; split-color and rainbow effects
Fixed gobos	11/14 fixed gobos conflict; 9 replaceable rotating gobos + open
Prism system	Two overlay-capable prism effects; exact facet structures TO BE CONFIRMED
Frost / color effect	Frost insertion and color effects; final DMX values follow the selected fixture library
Focus	Motorized focus verified by the current fixture mapping
Dimming / strobe	0-100% linear dimming; dual-blade strobe 0.5-9 flashes per second
Size / weight	43 x 31 x 63 cm / net weight 18.8 kg
Environment	IP20 indoor use
Packing	49 x 49 x 59 cm / gross weight 21.1 kg
Electrical protection	Use a grounded supply. Rated current, fuse value, type and position remain TO BE CONFIRMED.
