YL LightStrobe Wash Effect Light

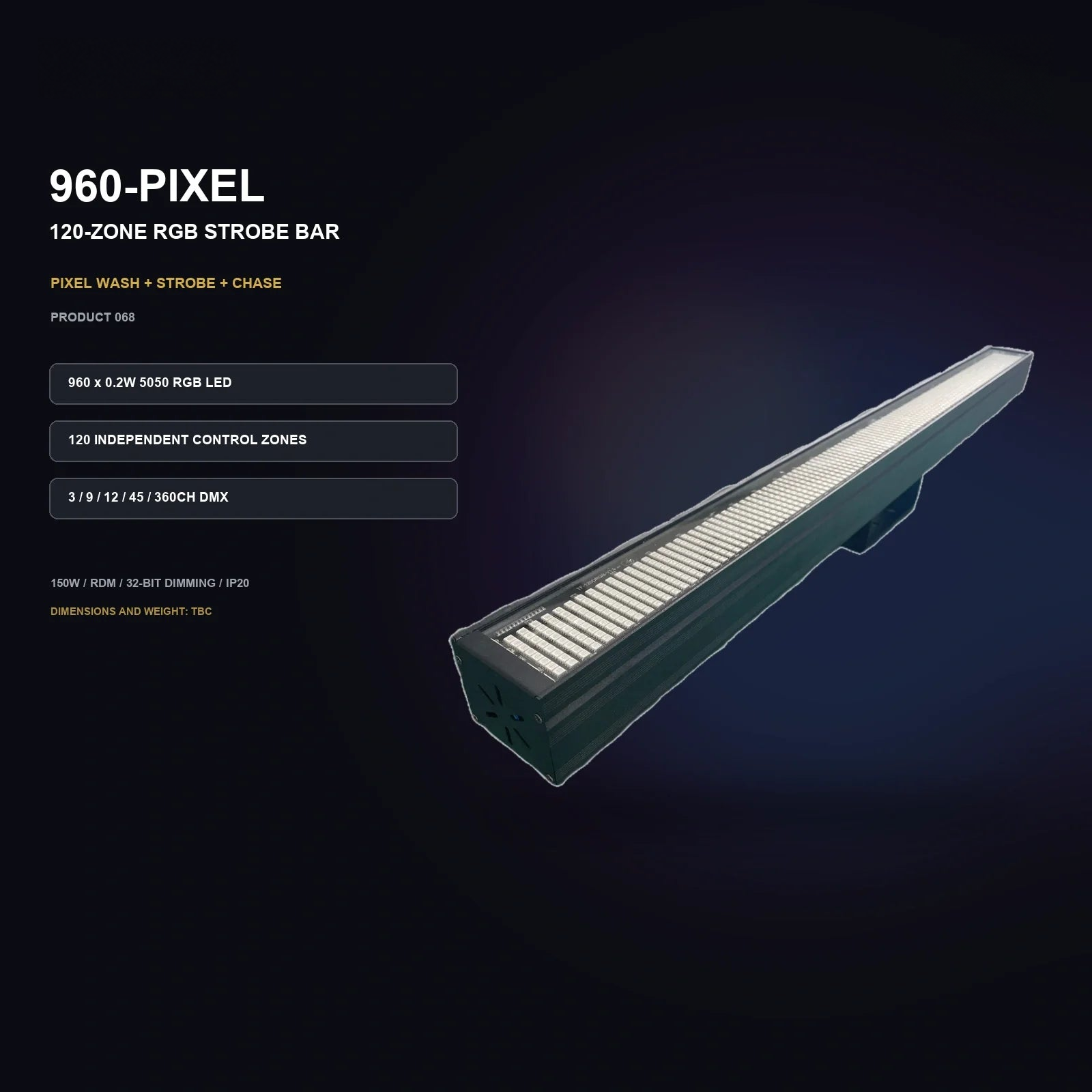

960-pixel 120-zone RGB strobe bar

960-pixel 120-zone RGB strobe bar is a stage lighting catalogue item in the led strobe / pixel effect bar category. Reference specifications list rated power: 150W; light source: 960 x 0.2W 5050 RGB LEDs; English 0.25W conflict recorded. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
960 x 0.2W 5050 RGB LEDs; English 0.25W conflict recorded
Protection
IP20 / dry indoor use

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

Product
960-pixel 120-zone RGB strobe bar
Dimming
32-bit linear, 0-100%
Strobe
1-30Hz
Packing
dimensions / gross weight
Current / fuse
/ link count

Optical performance

Rated power
150W
Light source
960 x 0.2W 5050 RGB LEDs; English 0.25W conflict recorded

Control and connections

DMX modes
3 / 9 / 12 / 45 / 360CH
Input voltage
AC100-240V, 50/60Hz

Construction and dimensions

Protection
IP20 / dry indoor use
Operating temperature
30 to 50 C

What to confirm for your quotation

  • Describe the desired effect, viewing distance and fixture positions.
  • Confirm the controllable sections, movement functions and selected channel mode.
  • Check console profiles, addressing, power distribution and cable routing for the planned quantity.
  • Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

960-pixel 120-zone RGB strobe bar technical specifications
Rated power150W
Light source960 x 0.2W 5050 RGB LEDs; English 0.25W conflict recorded
DMX modes3 / 9 / 12 / 45 / 360CH
ProtectionIP20 / dry indoor use
Product960-pixel 120-zone RGB strobe bar
Input voltageAC100-240V, 50/60Hz
Dimming32-bit linear, 0-100%
Strobe1-30Hz
Operating temperature30 to 50 C
Packingdimensions / gross weight
Current / fuse/ link count

Downloads

Product documents are being prepared. Contact YL for the current information for 960-pixel 120-zone RGB strobe bar.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 960-pixel 120-zone RGB strobe bar.

Ask about compatible accessories

Product videos

Ask for an available demonstration of 960-pixel 120-zone RGB strobe bar and the configuration you need.

Request a product demonstration
