8+8 segment LED strobe light

Name: 8+8 segment LED strobe light
Brand: YL Light

8+8 segment LED strobe light is a stage lighting catalogue item in the led strobe / pixel effect bar category. Reference specifications list rated power: 130W note/Chinese manual; 150W English note; 250W English manual - TBC; protection: IP20 / indoor. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Protection: IP20 / indoor
Control modes: DMX512 / automatic / master-slave / sound active / RDM

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

Strobe: frequency
Product: 8+8 segment LED strobe light
Dimming: 32-bit / 0-100% linear dimming

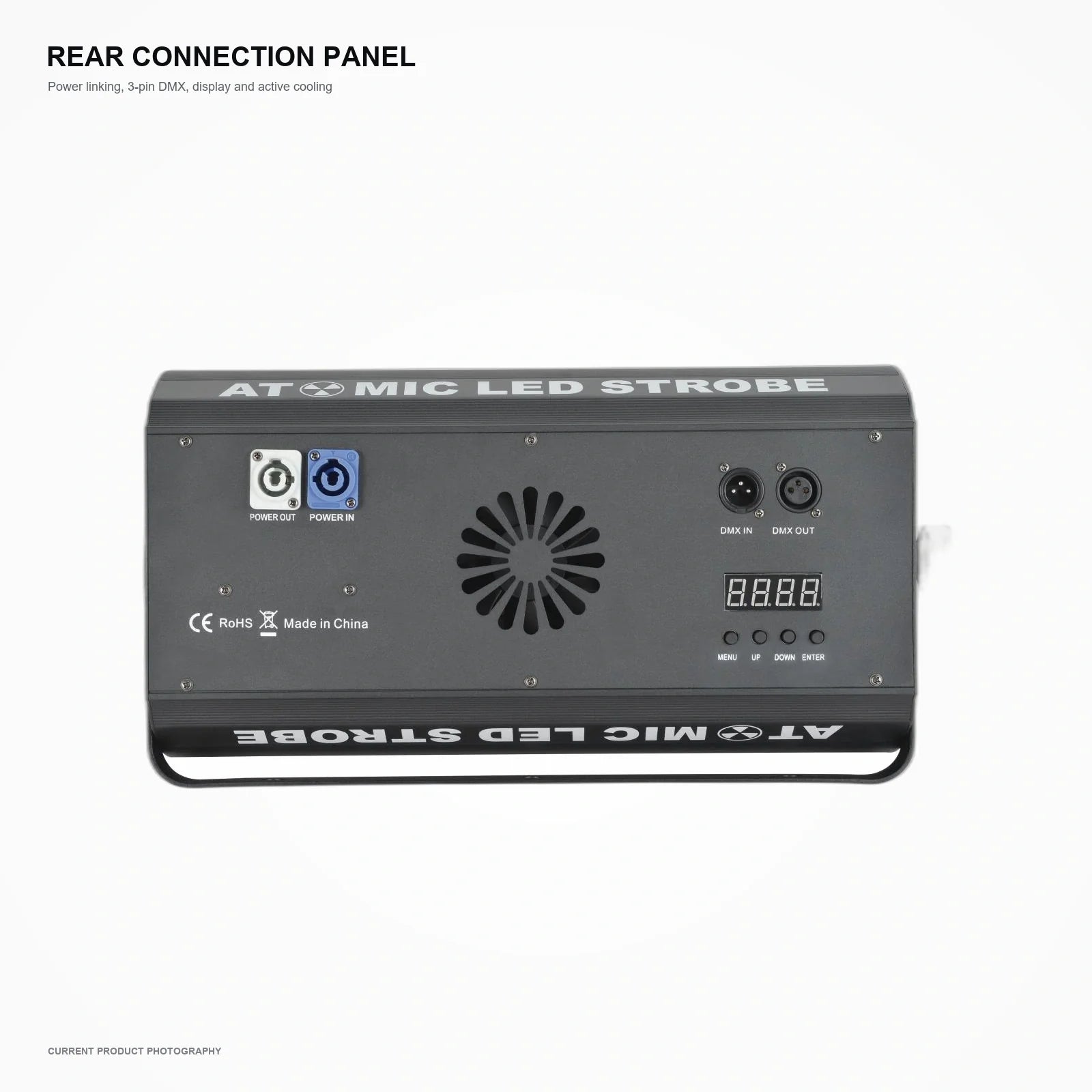

Connections: 3-pin DMX IN/OUT / power IN/OUT

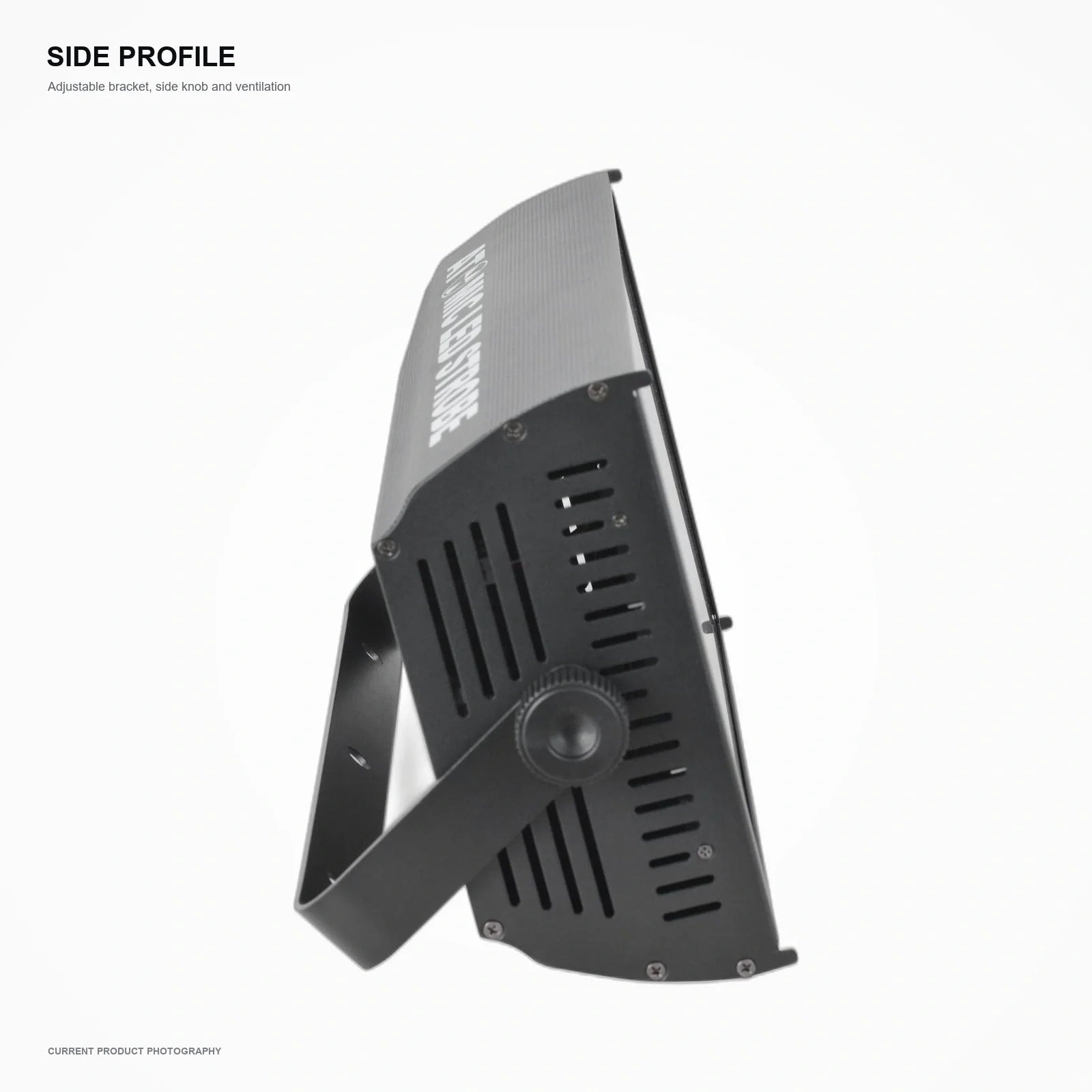

Housing: Black metal enclosure / adjustable bracket / active cooling

Optical performance

Rated power: 130W note/Chinese manual; 150W English note; 250W English manual - TBC

Control and connections

Input voltage: AC100-240V, 50/60Hz - source text; verify production nameplate
Control modes: DMX512 / automatic / master-slave / sound active / RDM

Construction and dimensions

Protection: IP20 / indoor
Product size: 46 x 25 x 10 cm in English note; not corroborated - TBC

What to confirm for your quotation

Describe the desired effect, viewing distance and fixture positions.
Confirm the controllable sections, movement functions and selected channel mode.
Check console profiles, addressing, power distribution and cable routing for the planned quantity.
Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

8+8 segment LED strobe light technical specifications
Rated power	130W note/Chinese manual; 150W English note; 250W English manual - TBC
Protection	IP20 / indoor
Input voltage	AC100-240V, 50/60Hz - source text; verify production nameplate
Strobe	frequency
Product	8+8 segment LED strobe light
Dimming	32-bit / 0-100% linear dimming
Control modes	DMX512 / automatic / master-slave / sound active / RDM
Connections	3-pin DMX IN/OUT / power IN/OUT
Housing	Black metal enclosure / adjustable bracket / active cooling
Product size	46 x 25 x 10 cm in English note; not corroborated - TBC

Downloads

Product documents are being prepared. Contact YL for the current information for 8+8 segment LED strobe light.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 8+8 segment LED strobe light.

Ask about compatible accessories

Product videos

Ask for an available demonstration of 8+8 segment LED strobe light and the configuration you need.

Request a product demonstration
