YL LightStrobe Wash Effect Light

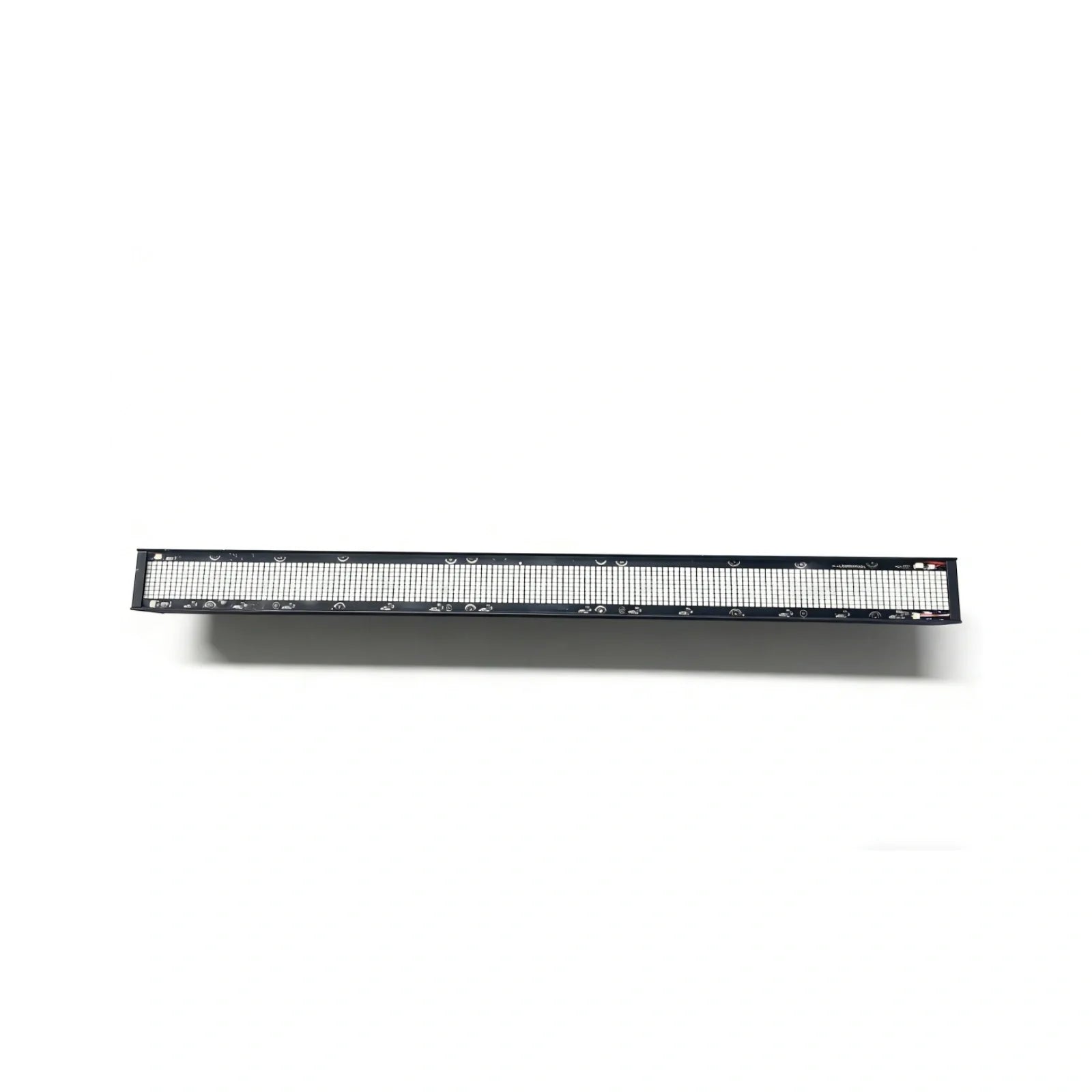

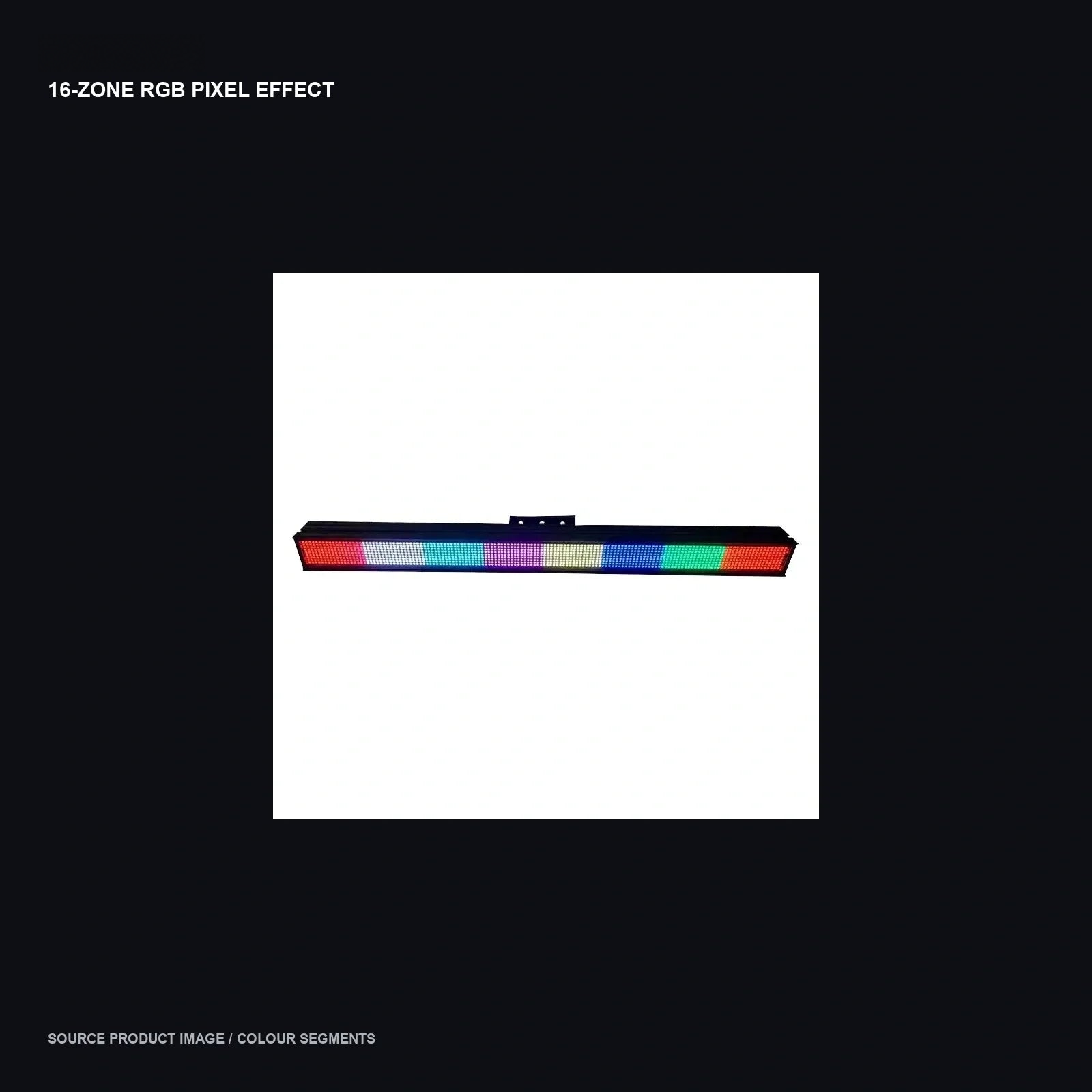

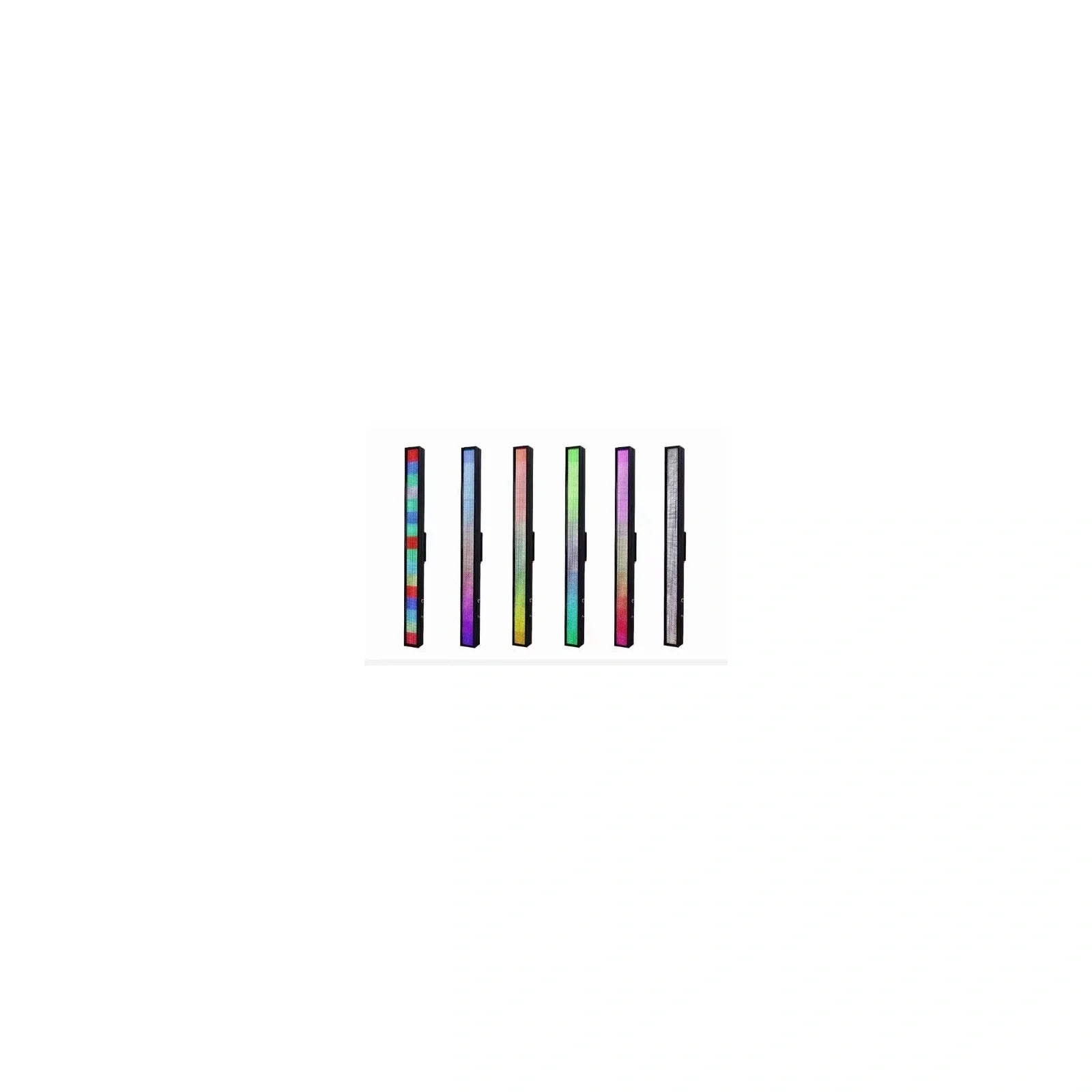

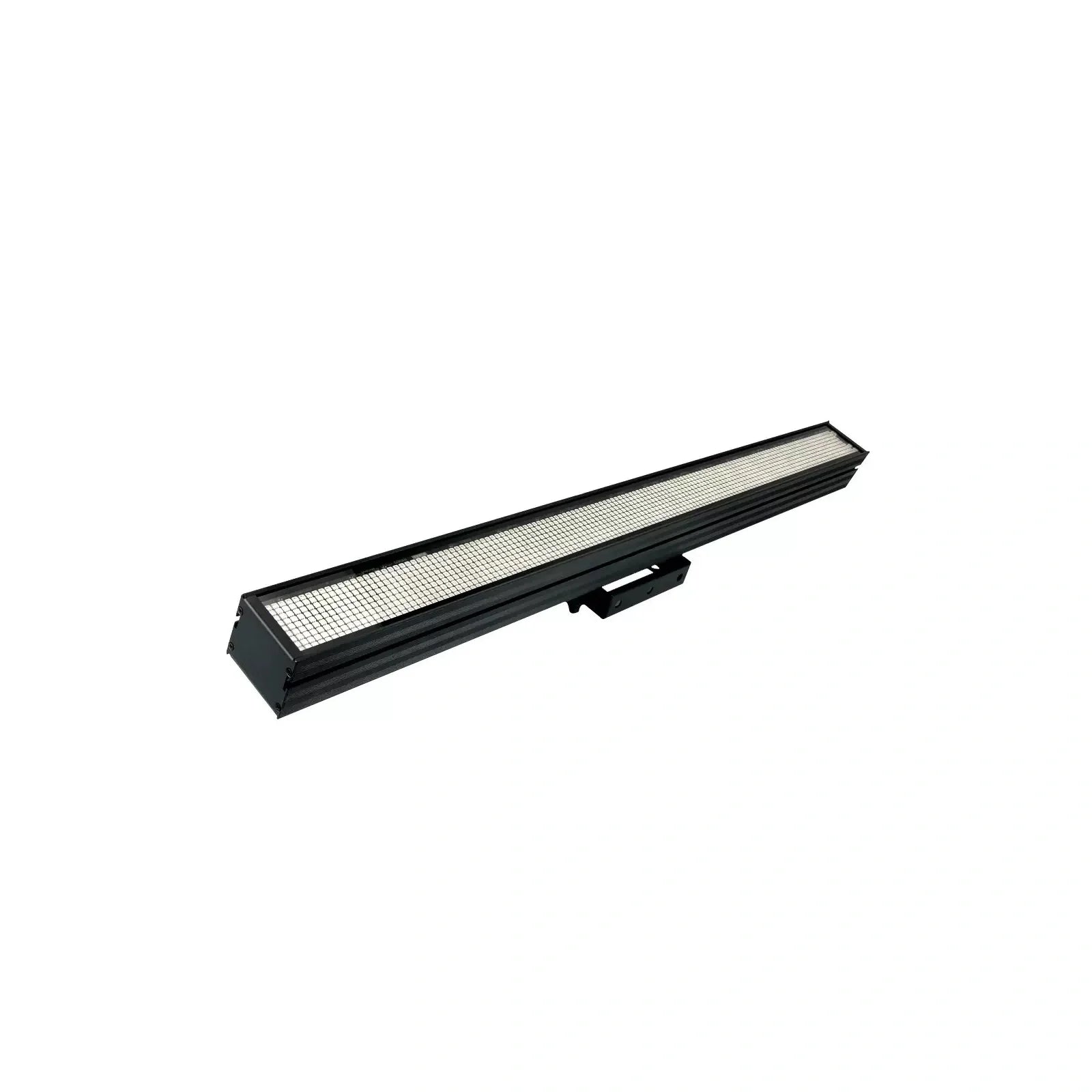

1296-pixel 16-zone RGB strobe bar

1296-pixel 16-zone RGB strobe bar is a stage lighting catalogue item in the led strobe / pixel effect bar category. Reference specifications list rated power: 250W; light source: 1296 x 0.2W 5050 RGB LEDs. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
1296 x 0.2W 5050 RGB LEDs
Protection
IP20 / indoor
Beam angle
TO BE CONFIRMED - generic fixture values excluded

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

Product
1296-pixel 16-zone RGB strobe bar
Strobe
frequency
Dimming
32-bit / 0-100% linear

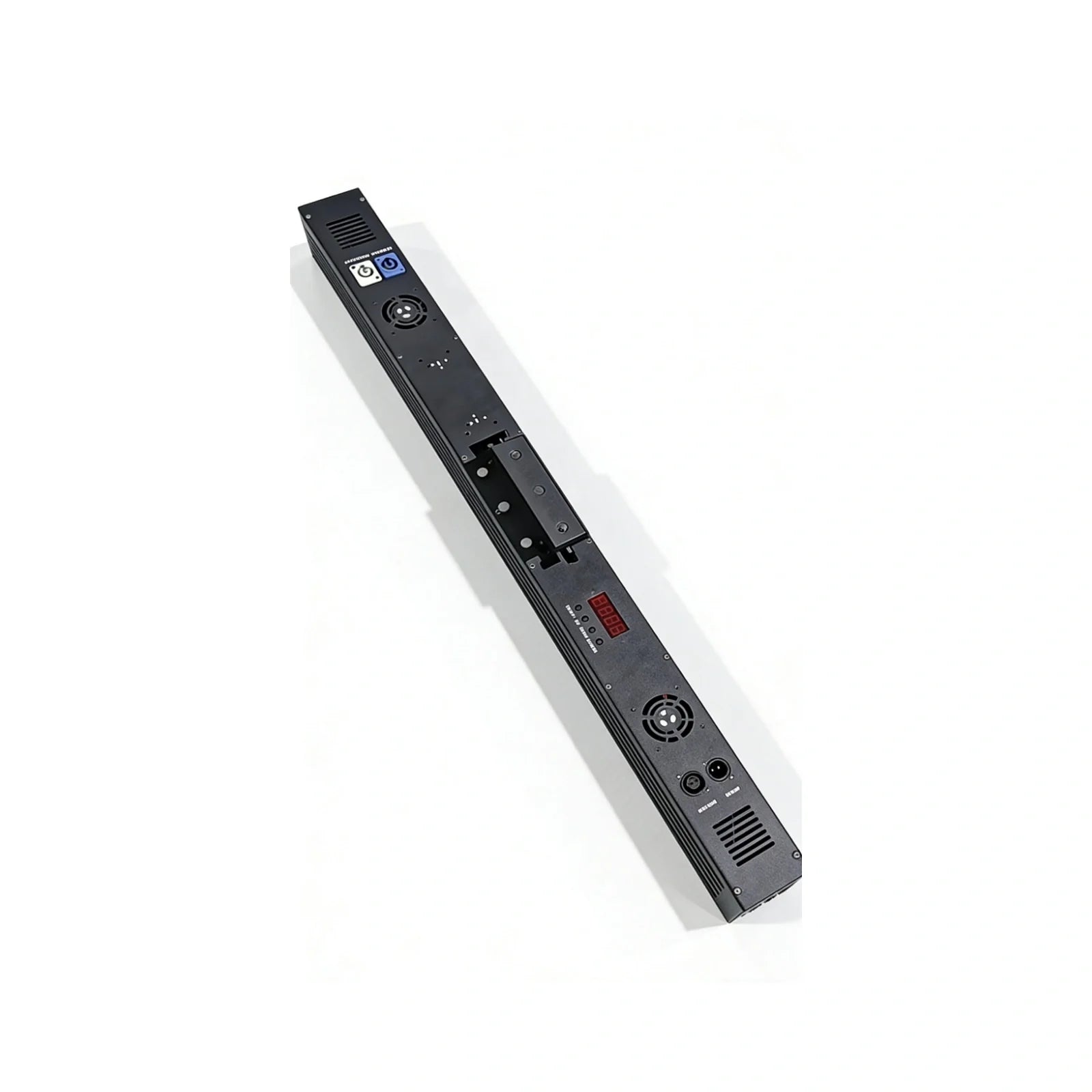

Connections
DMX input/output and power input/output; exact connector type TBC
Housing
Black metal chassis

Optical performance

Rated power
250W
Light source
1296 x 0.2W 5050 RGB LEDs
Beam angle
TO BE CONFIRMED - generic fixture values excluded

Control and connections

DMX modes
3CH / 5CH / 9CH / 48CH / 57CH
Input voltage
AC100-240V, 50/60Hz

Construction and dimensions

Protection
IP20 / indoor
Operating temperature
30 to 50 degrees C

What to confirm for your quotation

  • Describe the desired effect, viewing distance and fixture positions.
  • Confirm the controllable sections, movement functions and selected channel mode.
  • Check console profiles, addressing, power distribution and cable routing for the planned quantity.
  • Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

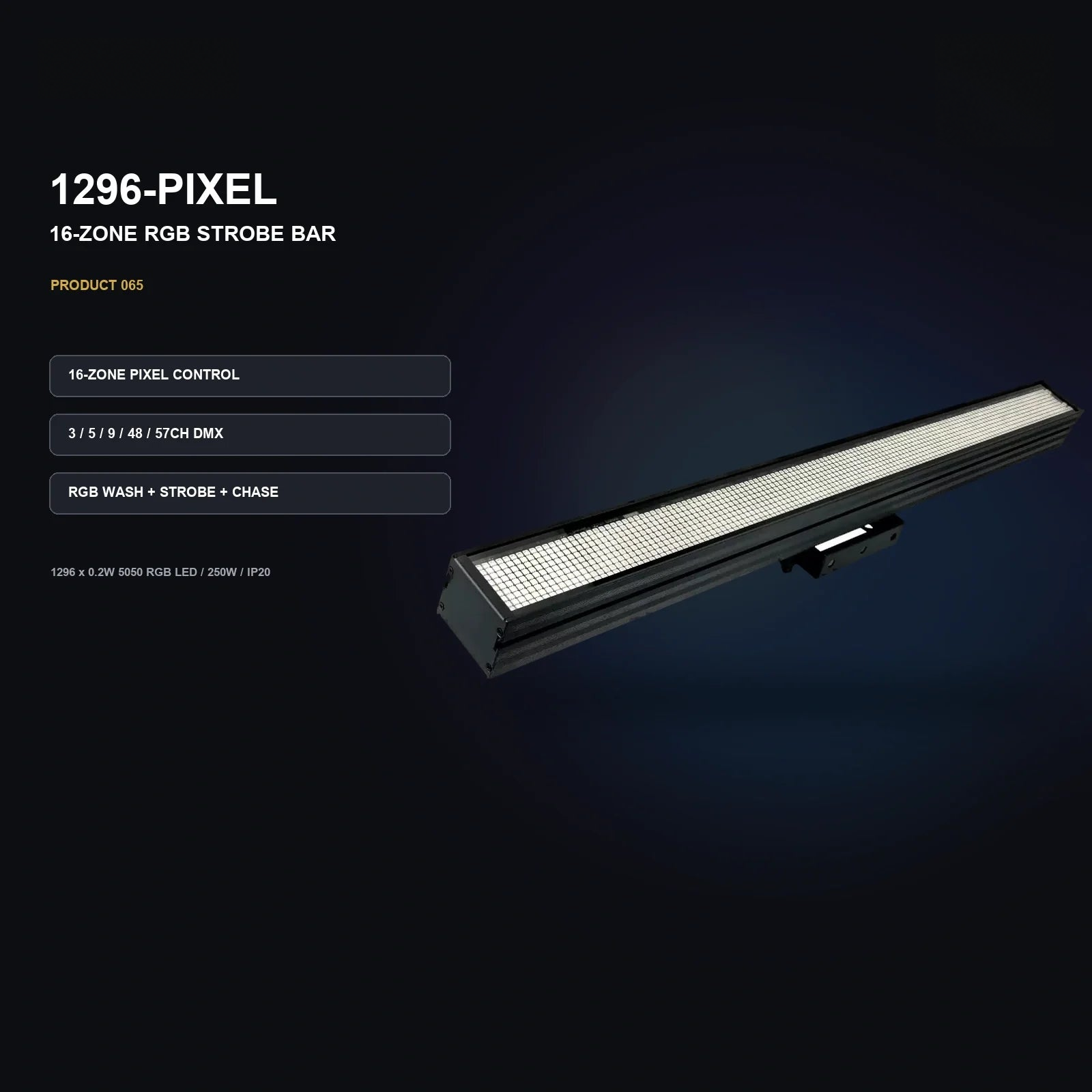

1296-pixel 16-zone RGB strobe bar technical specifications
Rated power250W
Light source1296 x 0.2W 5050 RGB LEDs
DMX modes3CH / 5CH / 9CH / 48CH / 57CH
ProtectionIP20 / indoor
Product1296-pixel 16-zone RGB strobe bar
Input voltageAC100-240V, 50/60Hz
Beam angleTO BE CONFIRMED - generic fixture values excluded
Strobefrequency
Dimming32-bit / 0-100% linear
ConnectionsDMX input/output and power input/output; exact connector type TBC
Operating temperature30 to 50 degrees C
HousingBlack metal chassis

Downloads

Product documents are being prepared. Contact YL for the current information for 1296-pixel 16-zone RGB strobe bar.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 1296-pixel 16-zone RGB strobe bar.

Ask about compatible accessories

Product videos

Ask for an available demonstration of 1296-pixel 16-zone RGB strobe bar and the configuration you need.

Request a product demonstration
