48-Segment RGB + 8-Segment White LED Strobe Light

Name: 48-Segment RGB + 8-Segment White LED Strobe Light
Brand: YL Light

48-Segment RGB + 8-Segment White LED Strobe Light is a stage lighting catalogue item in the led strobe / pixel effect bar category. Reference specifications list rated power: 200W; led configuration: 768 RGB LEDs + 96 white LEDs. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Protection: IP20
Control modes: DMX512 / auto programs / master-slave

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

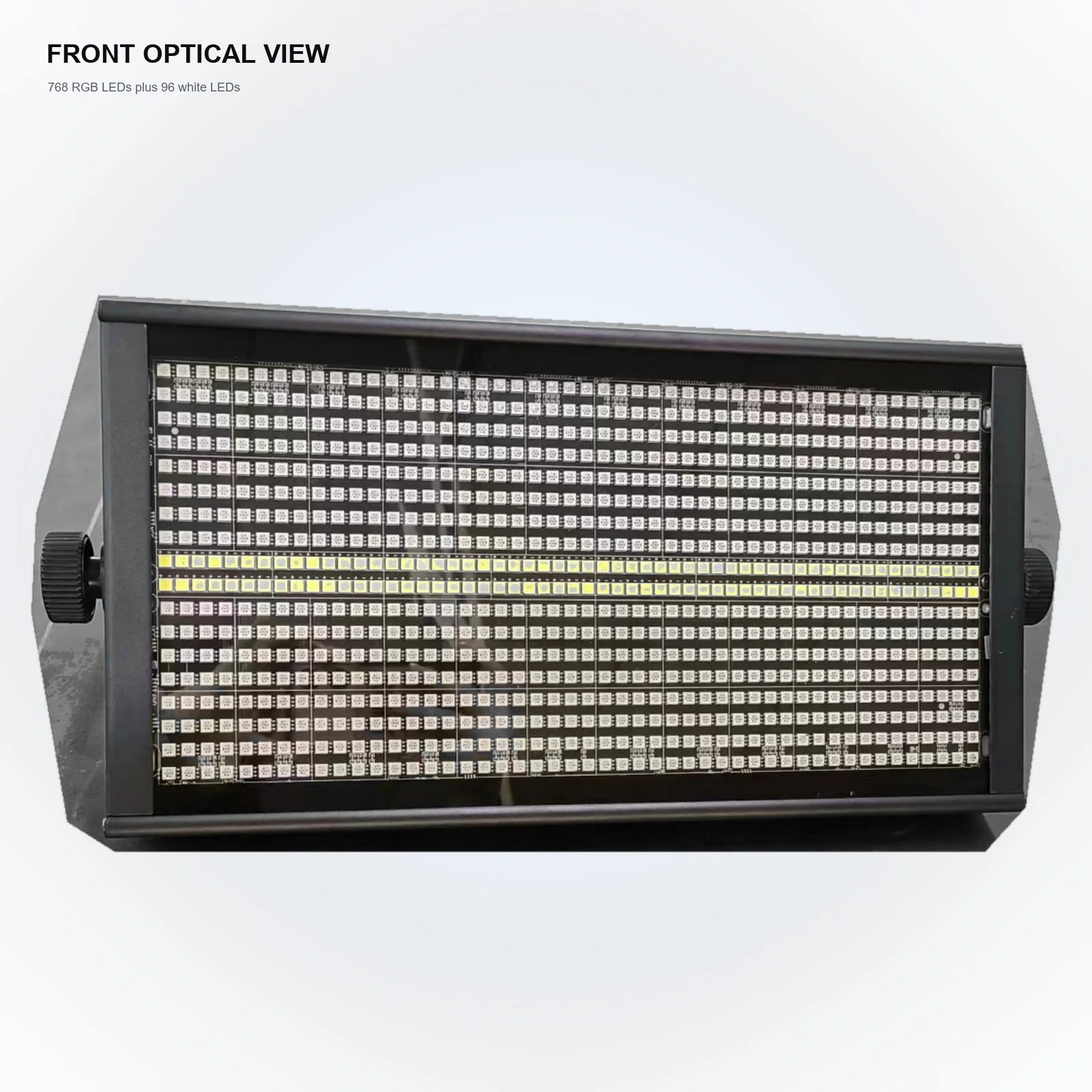

LED configuration: 768 RGB LEDs + 96 white LEDs
Product: 48-Segment RGB + 8-Segment White LED Strobe Light
Dimming: 16-bit claim TO BE CONFIRMED
Strobe: 1-30Hz
Connections: DMX input/output + power input/output
Packing: TO BE CONFIRMED

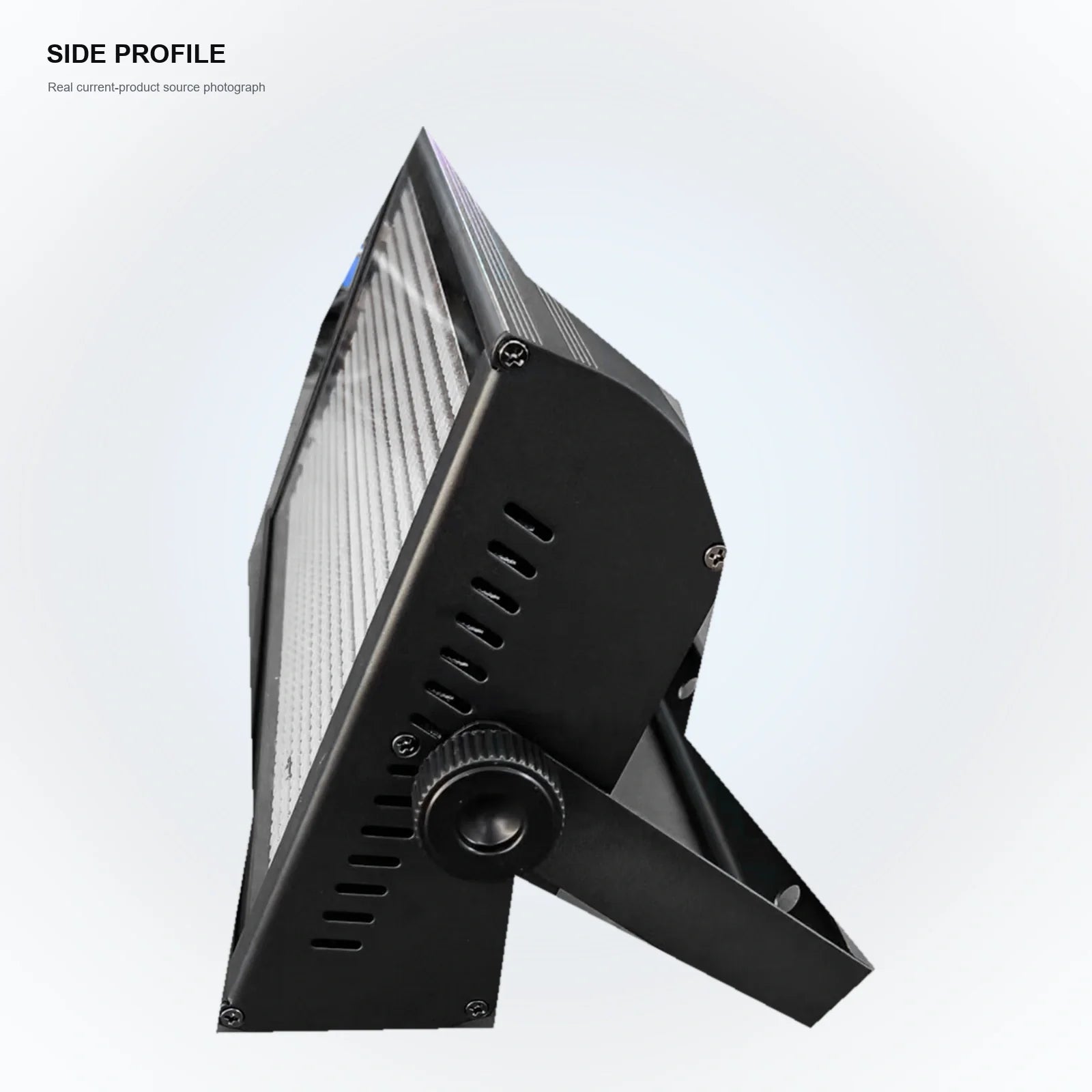

Housing: Black metal
Current / fuse / RDM: TO BE CONFIRMED

Optical performance

Rated power: 200W

Control and connections

Published DMX modes: 4CH + 15CH
Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / auto programs / master-slave

Construction and dimensions

Protection: IP20
Operating temperature: 30 to 50°C (source record)

What to confirm for your quotation

Describe the desired effect, viewing distance and fixture positions.
Confirm the controllable sections, movement functions and selected channel mode.
Check console profiles, addressing, power distribution and cable routing for the planned quantity.
Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

48-Segment RGB + 8-Segment White LED Strobe Light technical specifications
Rated power	200W
LED configuration	768 RGB LEDs + 96 white LEDs
Published DMX modes	4CH + 15CH
Protection	IP20
Product	48-Segment RGB + 8-Segment White LED Strobe Light
Input voltage	AC100-240V, 50/60Hz
Control modes	DMX512 / auto programs / master-slave
Dimming	16-bit claim TO BE CONFIRMED
Strobe	1-30Hz
Connections	DMX input/output + power input/output
Operating temperature	30 to 50°C (source record)
Packing	TO BE CONFIRMED
Housing	Black metal
Current / fuse / RDM	TO BE CONFIRMED

Downloads

Product documents are being prepared. Contact YL for the current information for 48-Segment RGB + 8-Segment White LED Strobe Light.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 48-Segment RGB + 8-Segment White LED Strobe Light.

Ask about compatible accessories

Product videos

Ask for an available demonstration of 48-Segment RGB + 8-Segment White LED Strobe Light and the configuration you need.

Request a product demonstration
