Planning this product into your project
Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

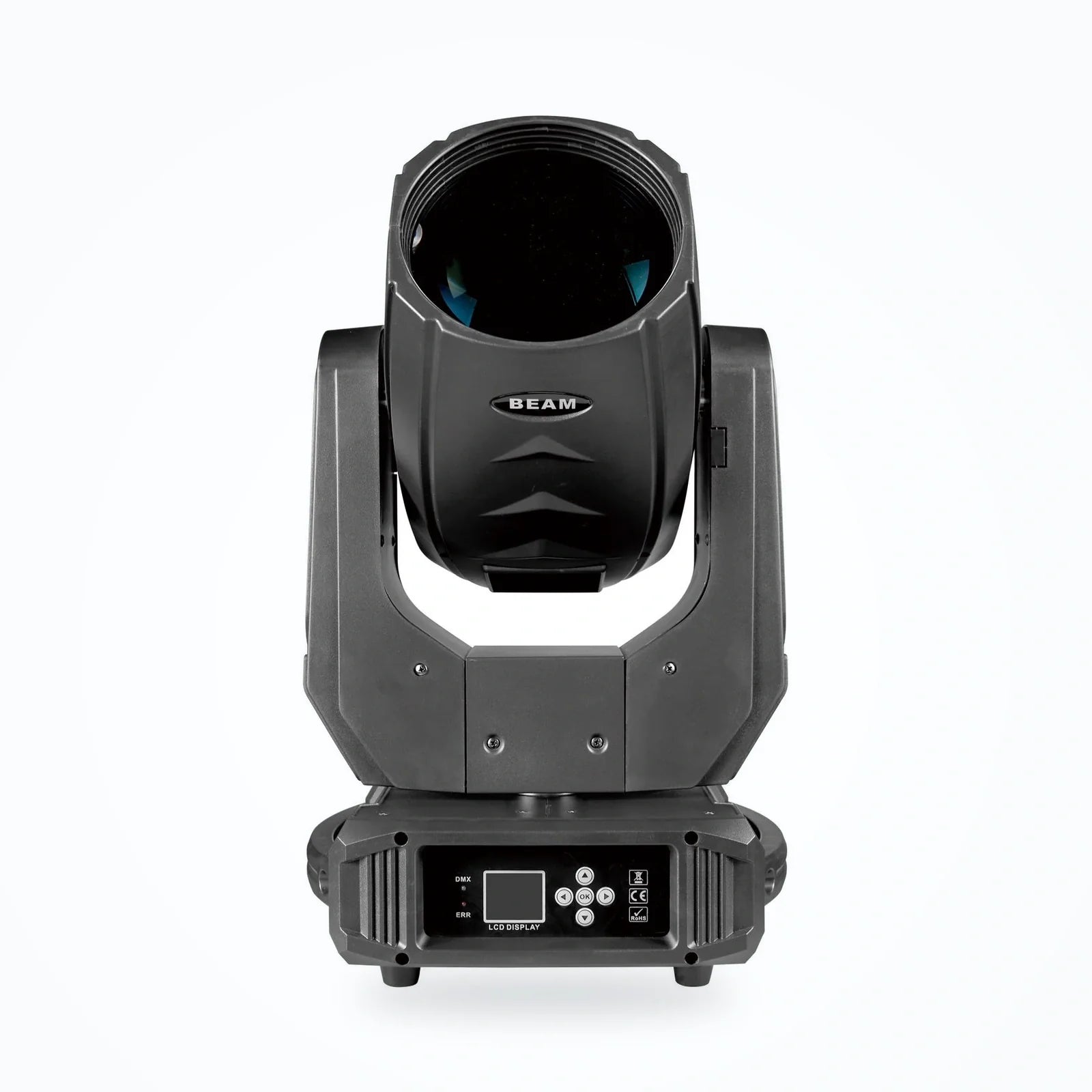

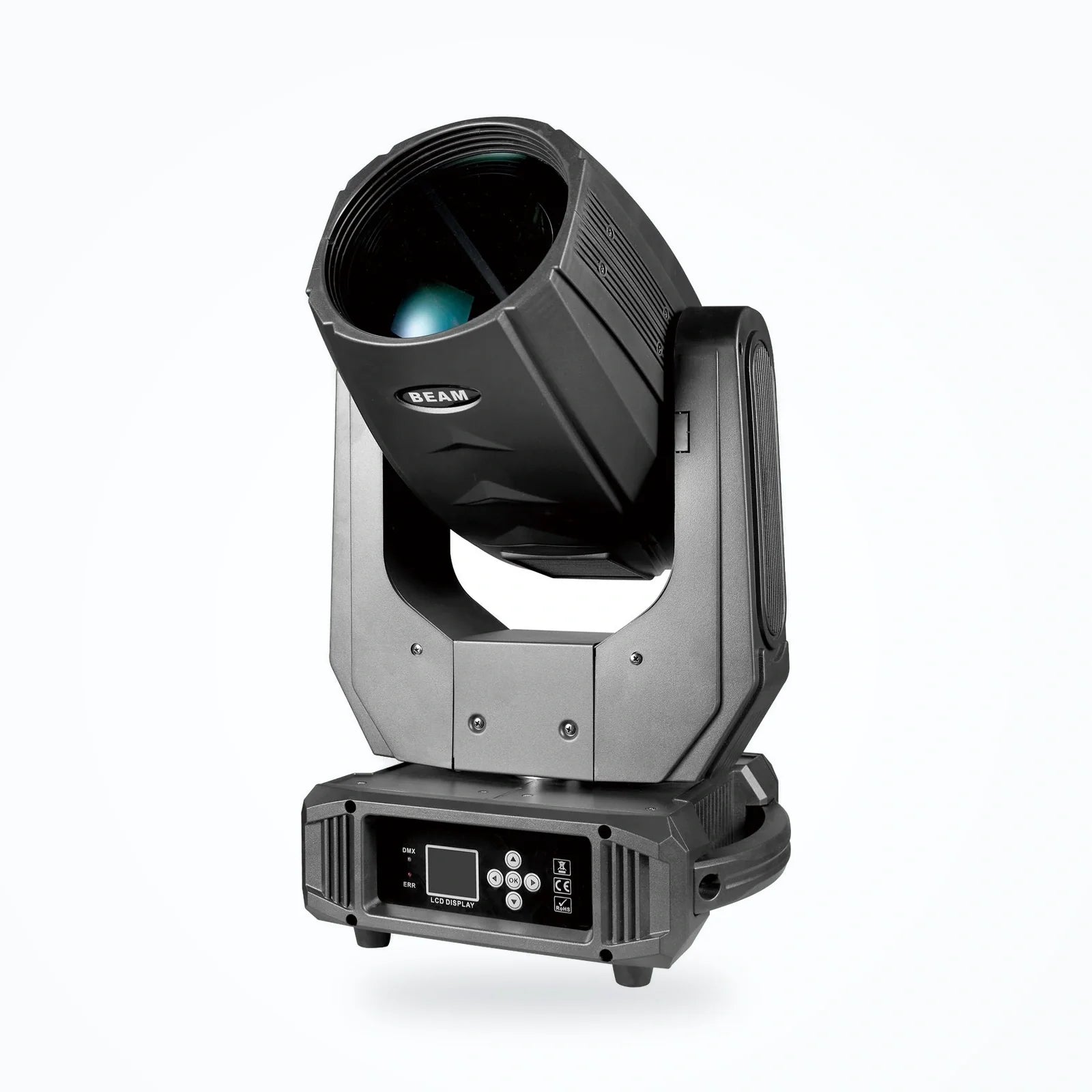

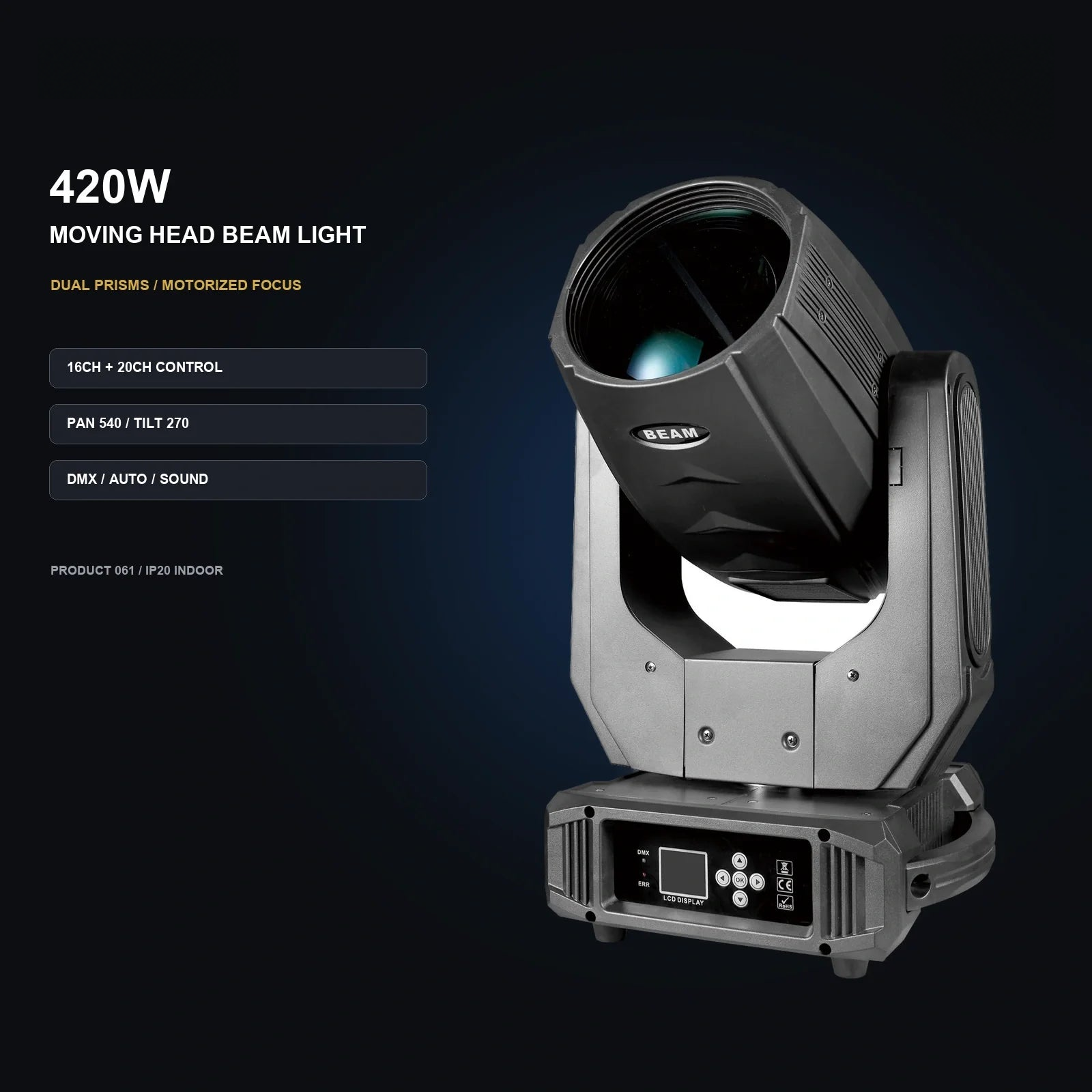

420W moving head beam light
420W moving head beam light is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 600W total power - note-only claim; light source: Philips bulb - note-only; 420W category supported by filenames. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Light source
- Philips bulb - note-only; 420W category supported by filenames
- Beam angle
- 0-10° note / 19° fixture XML - TO BE CONFIRMED
- Protection
- IP20 / indoor
Product configuration
- Movement
- Pan 540° / tilt 270°
- Product
- 420W moving head beam light
- Connections

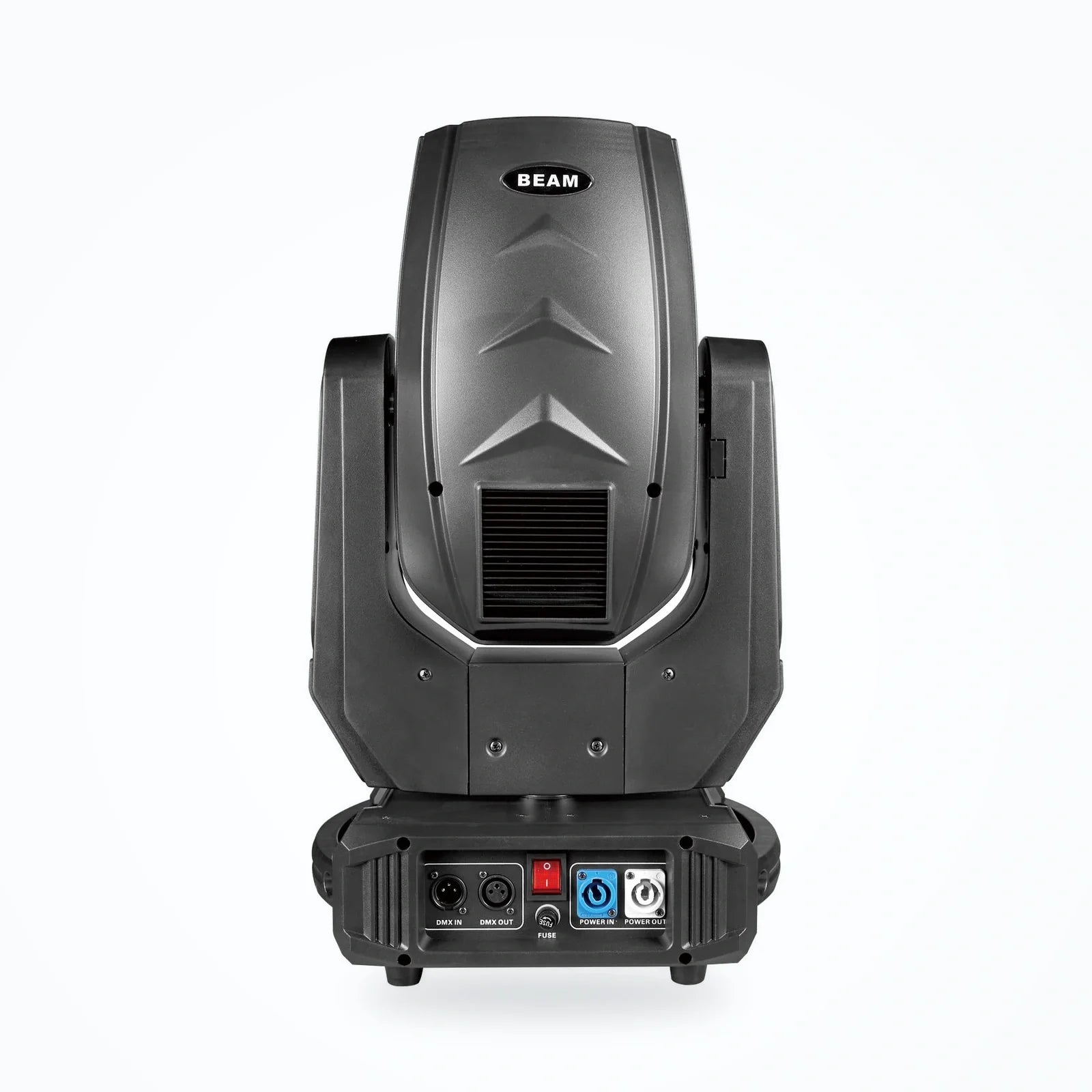

- 3-pin DMX IN/OUT / POWER IN/OUT / switch / fuse holder
Optical performance
- Rated power
- 600W total power - note-only claim
- Light source
- Philips bulb - note-only; 420W category supported by filenames
- Beam angle
- 0-10° note / 19° fixture XML - TO BE CONFIRMED
Control and connections
- DMX modes
- Standard 16CH / extended 20CH
- Input voltage
- AC200-240V in both manuals; note says AC100-220V - TBC
Construction and dimensions
Protection: IP20 / indoor
What to confirm for your quotation
- Provide the throw distance, mounting height and beam or coverage required.
- Confirm the exact light source, optical functions and channel mode for the quoted variant.
- Request relevant photometric data and a demonstration using the intended colour and zoom settings.
- Check power, connectors, weight, protection rating and the included mounting accessories.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 600W total power - note-only claim |
|---|---|
| Light source | Philips bulb - note-only; 420W category supported by filenames |
| DMX modes | Standard 16CH / extended 20CH |
| Movement | Pan 540° / tilt 270° |
| Product | 420W moving head beam light |
| Input voltage | AC200-240V in both manuals; note says AC100-220V - TBC |
| Beam angle | 0-10° note / 19° fixture XML - TO BE CONFIRMED |
| Connections | 3-pin DMX IN/OUT / POWER IN/OUT / switch / fuse holder |
| Protection | IP20 / indoor |
Downloads
Product documents are being prepared. Contact YL for the current information for 420W moving head beam light.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for 420W moving head beam light.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of 420W moving head beam light and the configuration you need.
Request a product demonstrationYou may also like
