400W LED BSW CMY+CTO Moving Head

Name: 400W LED BSW CMY+CTO Moving Head
Brand: YL Light

400W LED BSW CMY+CTO Moving Head is a stage lighting catalogue item in the beam / spot / wash moving head light category. Reference specifications list light source: 400W LED module; 8000K; 50,000-hour and CRI >95 claims; dmx channels: 23CH: manuals, D4 and R20 agree; XML offsets 18-21 conflict. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 400W LED module; 8000K; 50,000-hour and CRI >95 claims

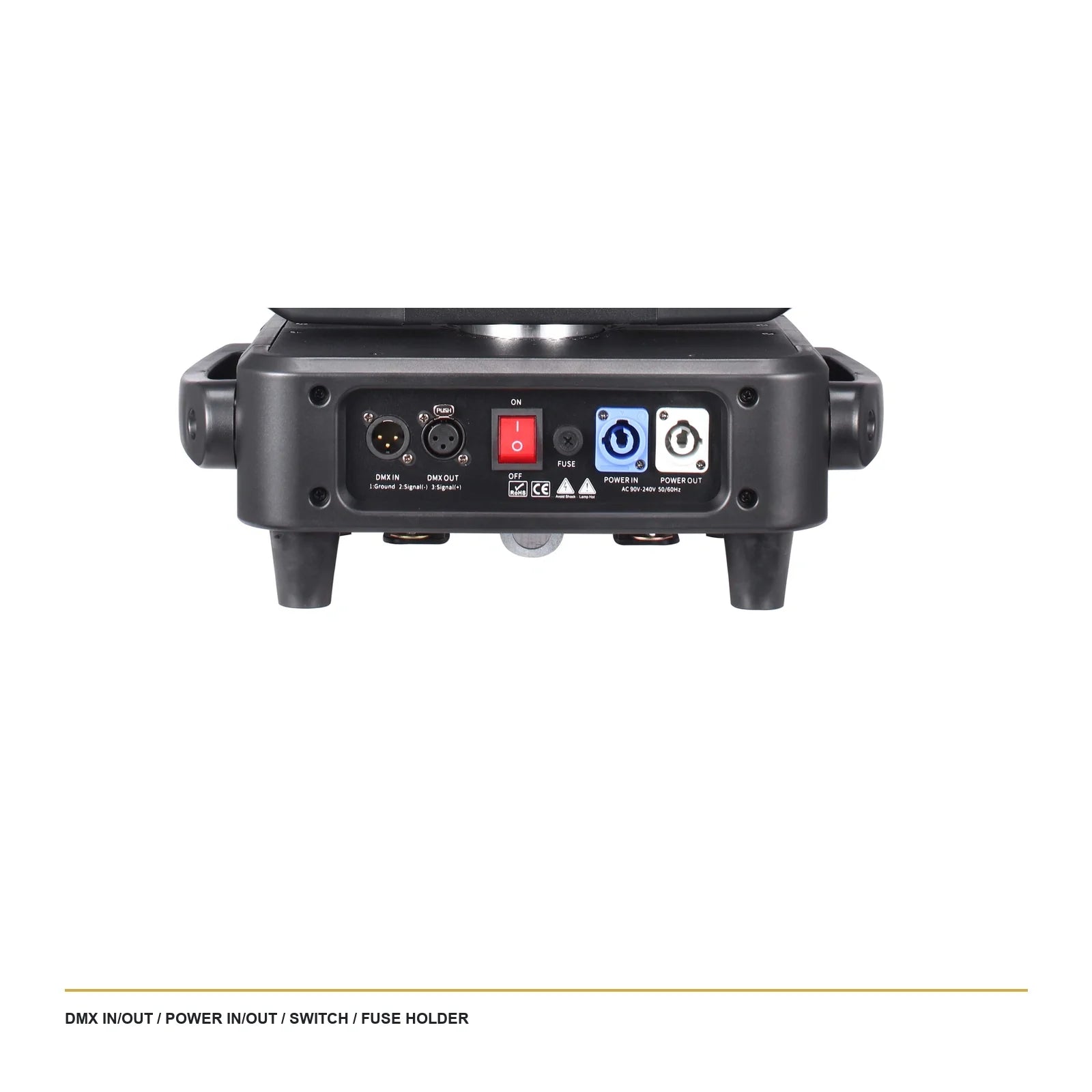

Electrical protection: Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.
Control modes: DMX512 / RDM / self-running / master-slave

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: 540-degree pan / 270-degree tilt / 16-bit positioning
Product: 400W LED BSW CMY+CTO Moving Head
Strobe: 0-30 flashes/second with variable-speed and macro effects
Dimming: 0-100%; linear dimming
Environment: IP20; stated operating environment -20 to 40 degrees C

Optical performance

Light source: 400W LED module; 8000K; 50,000-hour and CRI >95 claims
Color system: 8 colors + open; linear CMY + CTO color mixing

Control and connections

DMX channels: 23CH: manuals, D4 and R20 agree; XML offsets 18-21 conflict
Input voltage: AC110-240V, 50/60Hz
Control modes: DMX512 / RDM / self-running / master-slave

Construction and dimensions

Size / weight: Manual: 38 x 27 x 65cm / 22.5kg; source dimension evidence conflicts at 67cm / 22.9kg
Electrical protection: Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

400W LED BSW CMY+CTO Moving Head technical specifications
Light source	400W LED module; 8000K; 50,000-hour and CRI >95 claims
DMX channels	23CH: manuals, D4 and R20 agree; XML offsets 18-21 conflict
Movement	540-degree pan / 270-degree tilt / 16-bit positioning
Input voltage	AC110-240V, 50/60Hz
Product	400W LED BSW CMY+CTO Moving Head
Control modes	DMX512 / RDM / self-running / master-slave
Color system	8 colors + open; linear CMY + CTO color mixing
Strobe	0-30 flashes/second with variable-speed and macro effects
Dimming	0-100%; linear dimming
Size / weight	Manual: 38 x 27 x 65cm / 22.5kg; source dimension evidence conflicts at 67cm / 22.9kg
Environment	IP20; stated operating environment -20 to 40 degrees C
Electrical protection	Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.
