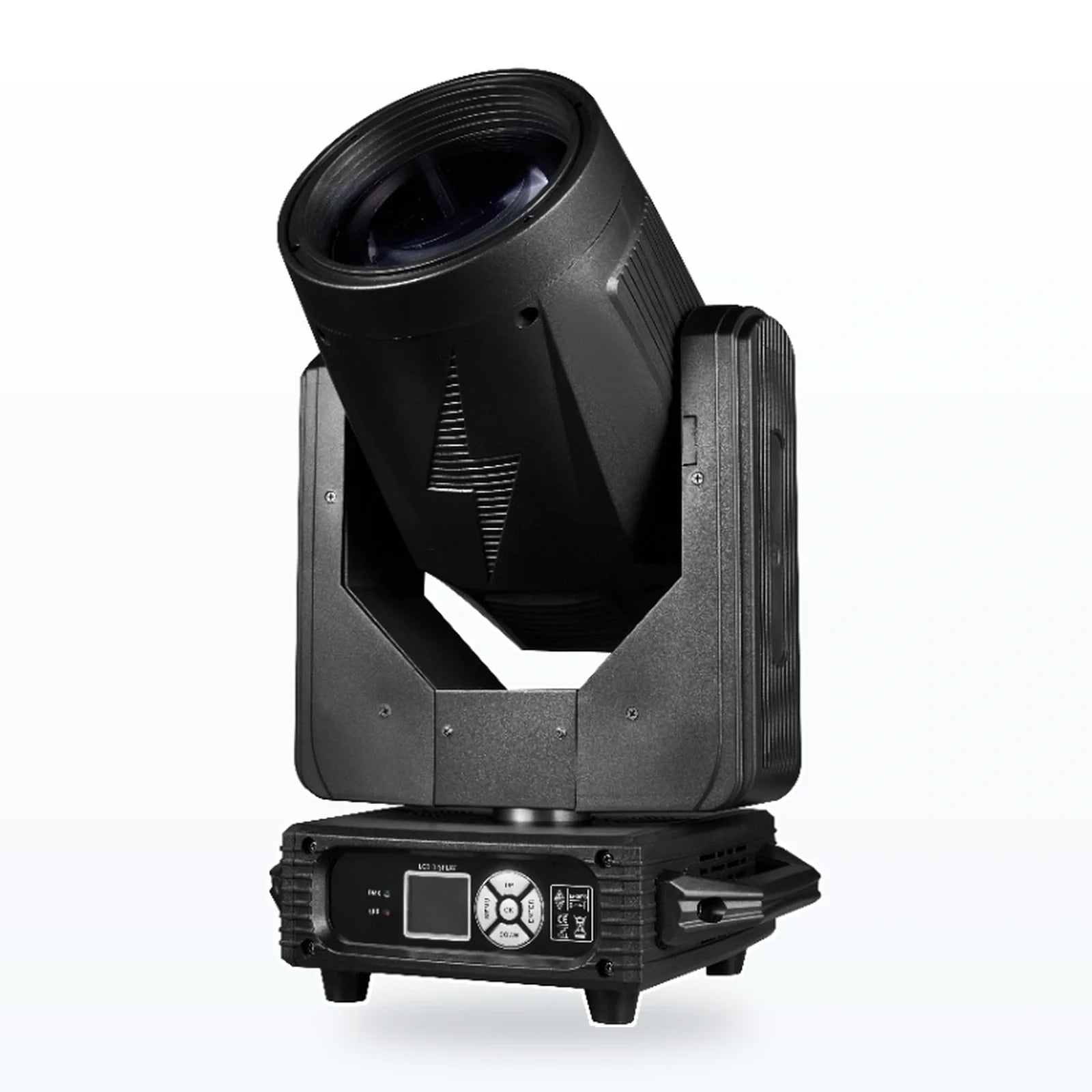

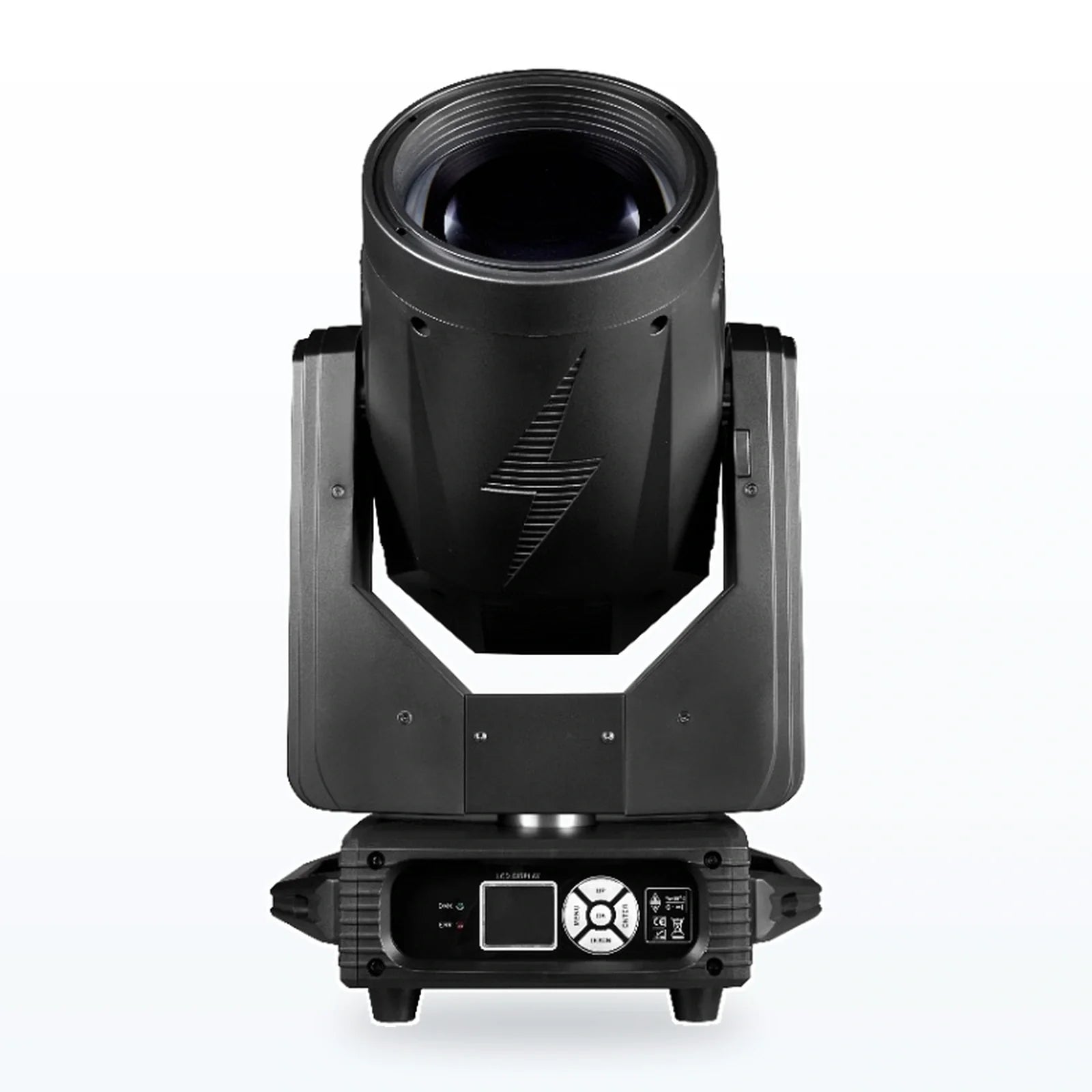

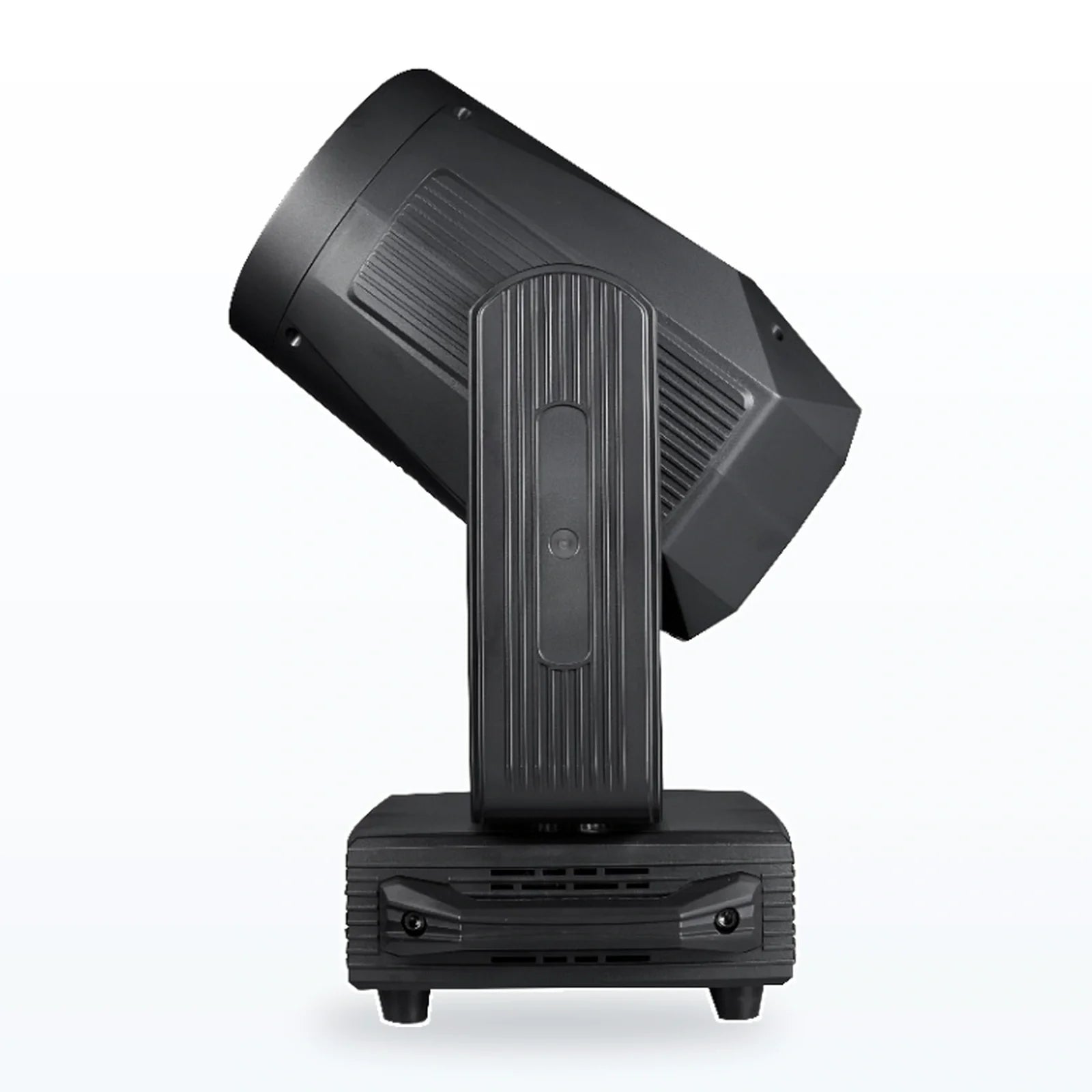

380W Moving Head Beam Light

Name: 380W Moving Head Beam Light
Brand: YL Light

380W Moving Head Beam Light is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 600W; light source: 380W beam lamp system; EXACT LAMP MODEL TO BE CONFIRMED. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 380W beam lamp system; EXACT LAMP MODEL TO BE CONFIRMED
Control modes: DMX512 / sound / auto / master-slave
Size / weight: TO BE CONFIRMED

Planning this product into your project

Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

Product configuration

Movement: Pan 540 degrees / tilt 270 degrees / fine channels
Product: 380W Moving Head Beam Light
Focus: Motorized focus verified by the current fixture mapping
Dimming / strobe: 0-100% dimming; variable and random strobe
Environment: PROTECTION RATING TO BE CONFIRMED

Optical performance

Rated power: 600W
Light source: 380W beam lamp system; EXACT LAMP MODEL TO BE CONFIRMED
Color wheel: 14 colors + white
Fixed gobos: 13 fixed gobos + open
Prism system: Independent 8-facet and honeycomb prisms; indexed and bidirectional rotation
Frost / color effect: Frost insertion and separate effect control on CH15; exact CH15 behavior to be

Control and connections

DMX channels: 16CH DMX512
Input voltage: AC100-220V, 50/60Hz
Control modes: DMX512 / sound / auto / master-slave
Lamp control: Lamp off, lamp on and full reset ranges on CH16; CH15 effect behavior to be confirmed

Construction and dimensions

Size / weight: TO BE CONFIRMED

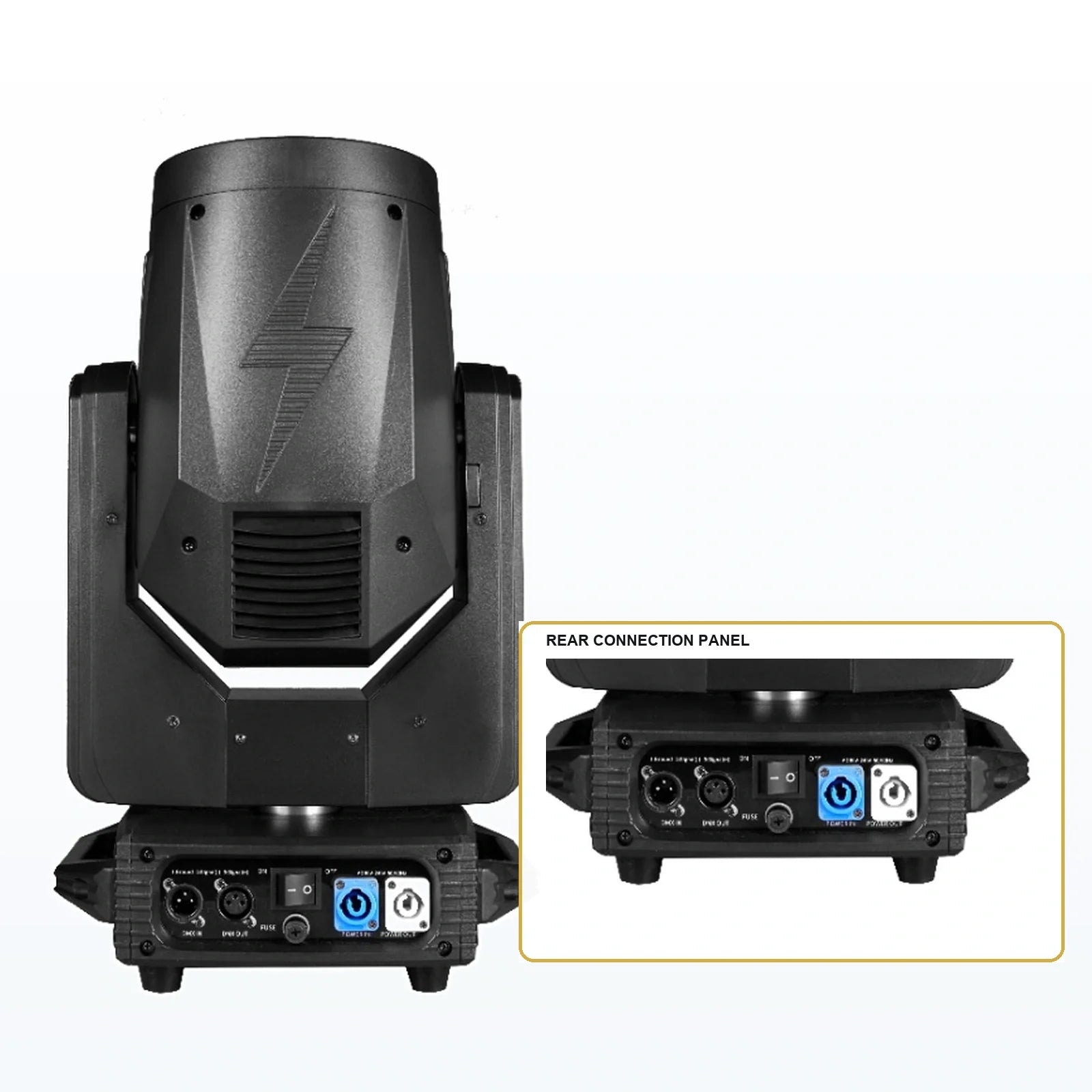

Electrical protection: Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.

What to confirm for your quotation

Provide the throw distance, mounting height and beam or coverage required.
Confirm the exact light source, optical functions and channel mode for the quoted variant.
Request relevant photometric data and a demonstration using the intended colour and zoom settings.
Check power, connectors, weight, protection rating and the included mounting accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

380W Moving Head Beam Light technical specifications
Rated power	600W
Light source	380W beam lamp system; EXACT LAMP MODEL TO BE CONFIRMED
DMX channels	16CH DMX512
Movement	Pan 540 degrees / tilt 270 degrees / fine channels
Product	380W Moving Head Beam Light
Input voltage	AC100-220V, 50/60Hz
Control modes	DMX512 / sound / auto / master-slave
Color wheel	14 colors + white
Fixed gobos	13 fixed gobos + open
Prism system	Independent 8-facet and honeycomb prisms; indexed and bidirectional rotation
Frost / color effect	Frost insertion and separate effect control on CH15; exact CH15 behavior to be
Focus	Motorized focus verified by the current fixture mapping
Dimming / strobe	0-100% dimming; variable and random strobe
Size / weight	TO BE CONFIRMED
Environment	PROTECTION RATING TO BE CONFIRMED
Lamp control	Lamp off, lamp on and full reset ranges on CH16; CH15 effect behavior to be confirmed
Electrical protection	Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.
