Planning this product into your project
Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

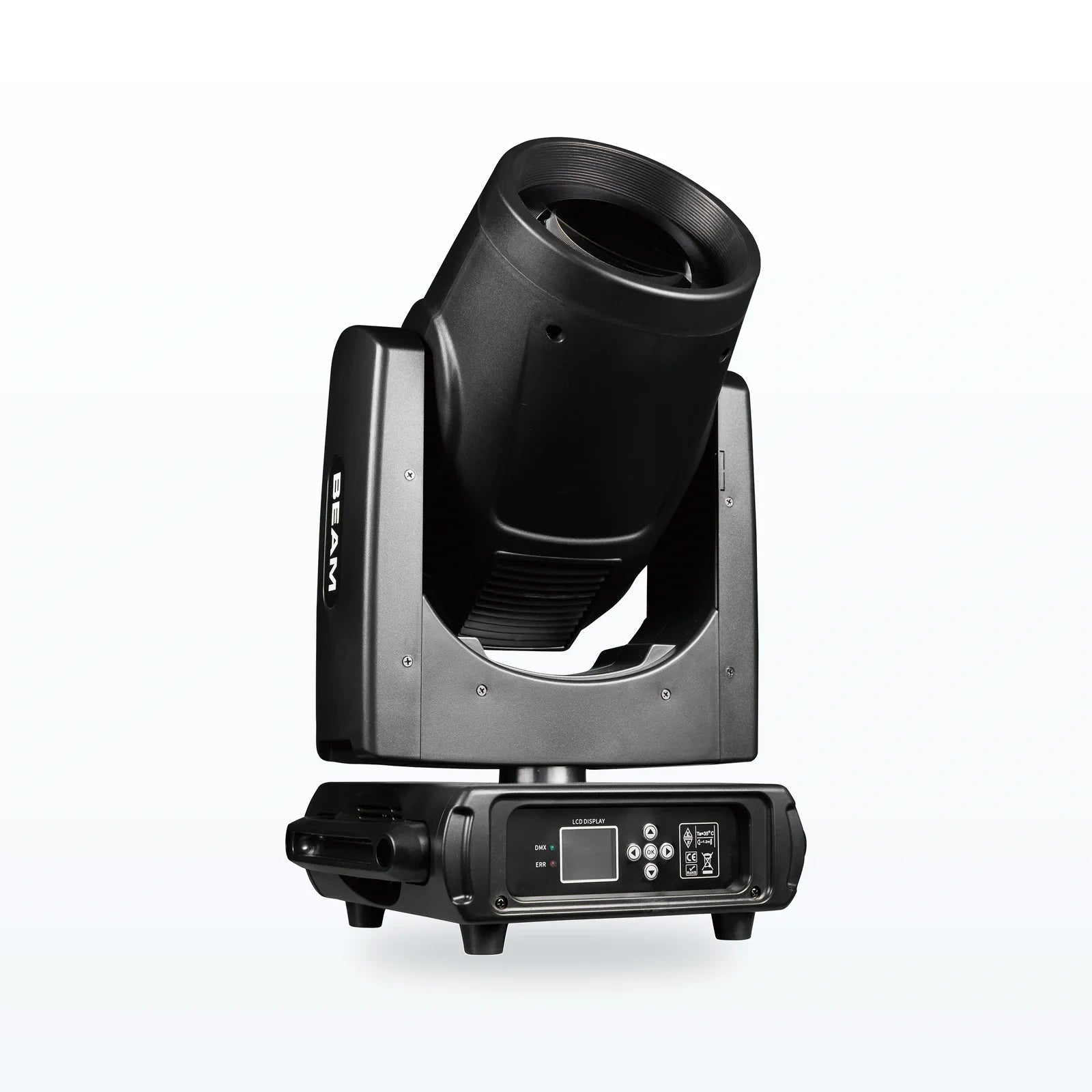

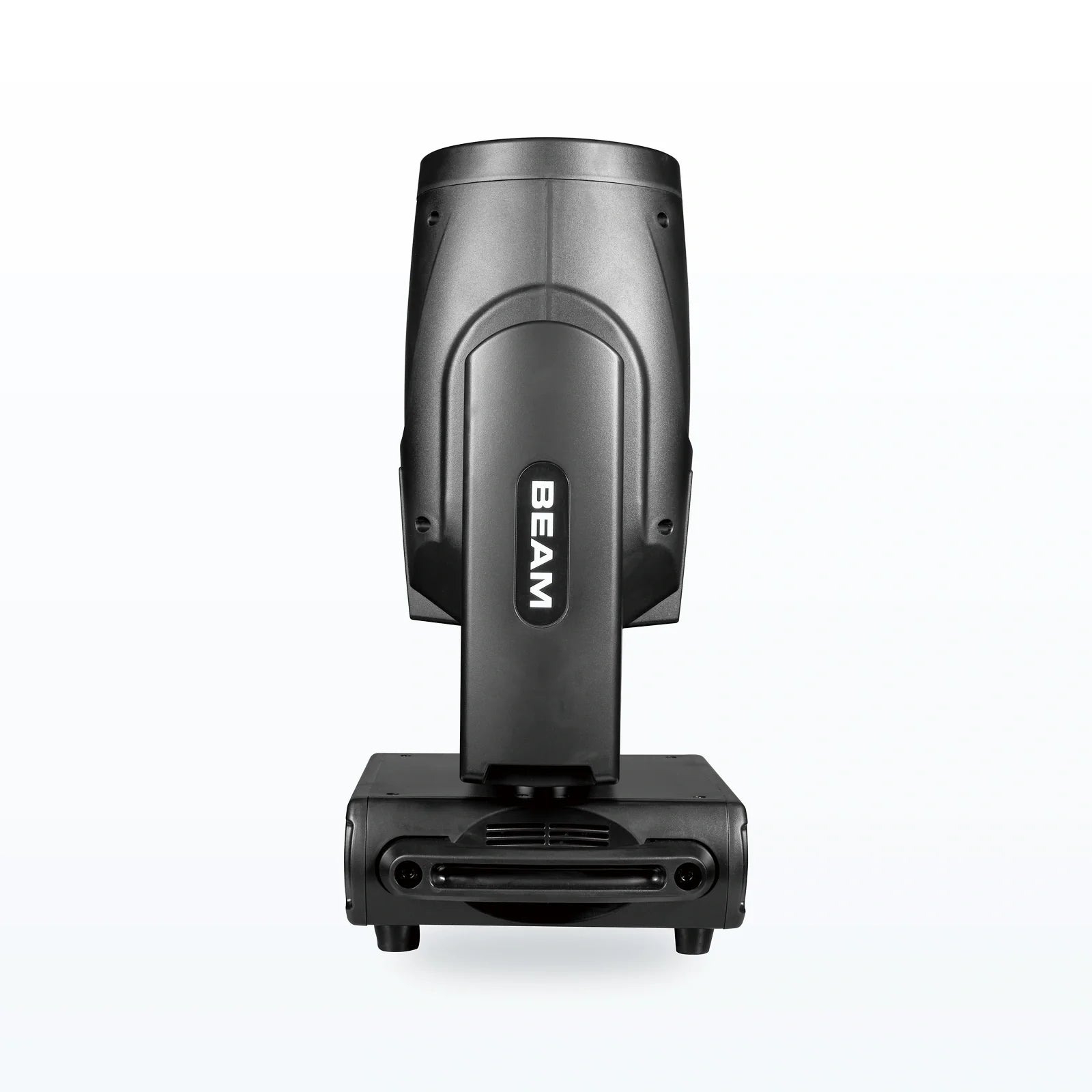

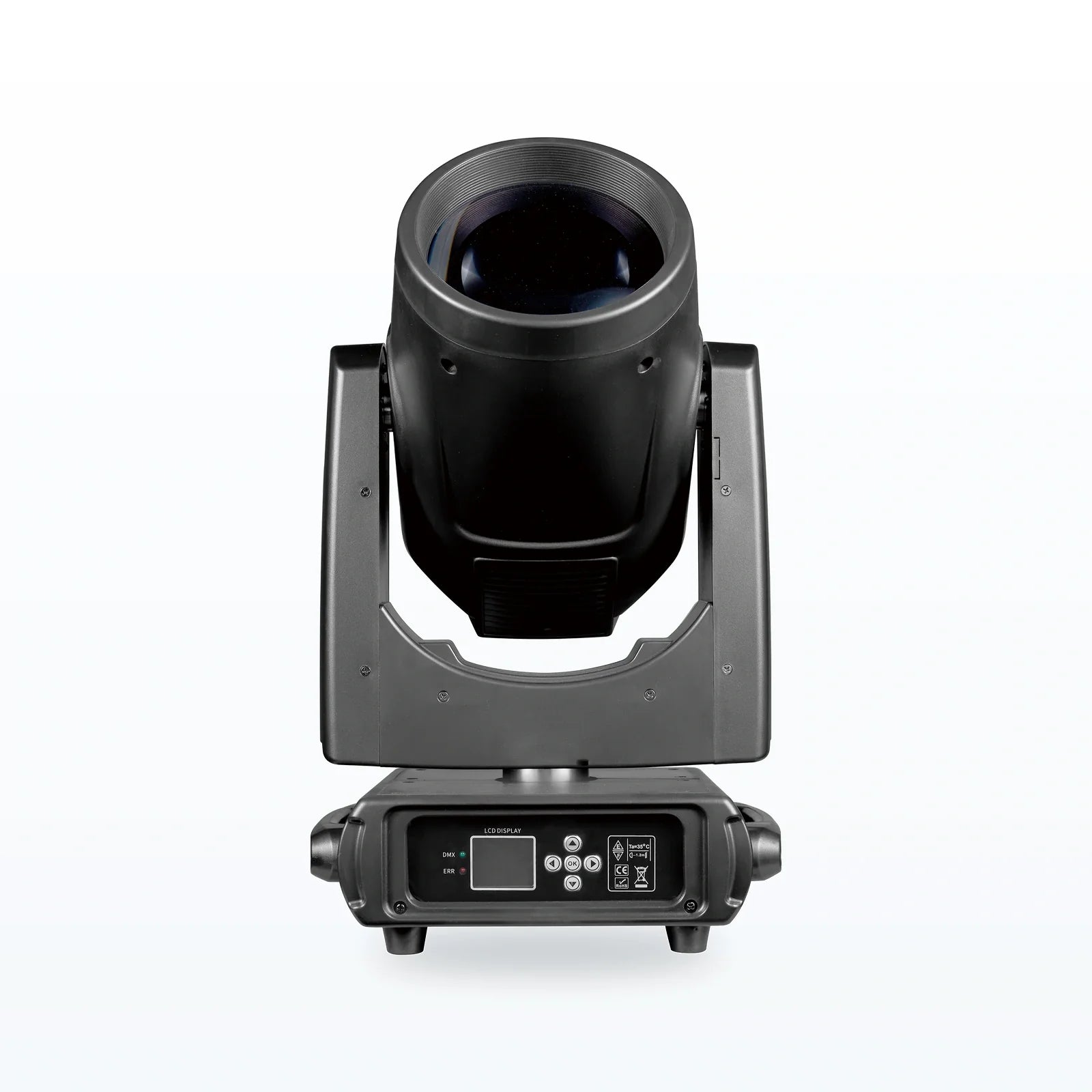

300W LED Module Beam Moving Head
300W LED Module Beam Moving Head is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 350W; light source: 300W white LED module; 8000K; CRI 75; 50,000 hours. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Light source
- 300W white LED module; 8000K; CRI 75; 50,000 hours
- Protection
- IP20 indoor
- Control modes
- DMX512 / master-slave / auto; sound mode appears in menu
Product configuration
- Movement
- Pan 540 degrees / tilt 270 degrees / 16-bit fine channels
- Product
- 300W LED Module Beam Moving Head
- Focus
- Motorized focus
- Packing
- TO BE CONFIRMED
Optical performance
- Rated power
- 350W
- Light source
- 300W white LED module; 8000K; CRI 75; 50,000 hours
- Color wheel
- COUNT TO BE CONFIRMED (12 + white / 14 + white conflict)
- Fixed gobos
- COUNT TO BE CONFIRMED (16 / 18 conflict)
- Prism system
- Two independent prism wheels with rotation; exact facets TO BE CONFIRMED
- Frost / colorful
- Dedicated frost / colorful effect channel
- Beam angle
- TO BE CONFIRMED; an isolated fixture-file value is not independently corroborated
Control and connections
- DMX channels
- 16CH DMX512; XML, D4 and R20 agree
- Input voltage
- TO BE CONFIRMED: note AC110-240V; manuals AC200-240V
- Control modes
- DMX512 / master-slave / auto; sound mode appears in menu
Construction and dimensions
- Protection
- IP20 indoor
- Size / weight
- TO BE CONFIRMED
- Electrical protection
- Rated current and fuse value, type and position remain TO BE CONFIRMED.
What to confirm for your quotation
- Provide the throw distance, mounting height and beam or coverage required.
- Confirm the exact light source, optical functions and channel mode for the quoted variant.
- Request relevant photometric data and a demonstration using the intended colour and zoom settings.
- Check power, connectors, weight, protection rating and the included mounting accessories.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 350W |
|---|---|
| Light source | 300W white LED module; 8000K; CRI 75; 50,000 hours |
| DMX channels | 16CH DMX512; XML, D4 and R20 agree |
| Movement | Pan 540 degrees / tilt 270 degrees / 16-bit fine channels |
| Product | 300W LED Module Beam Moving Head |
| Input voltage | TO BE CONFIRMED: note AC110-240V; manuals AC200-240V |
| Control modes | DMX512 / master-slave / auto; sound mode appears in menu |
| Color wheel | COUNT TO BE CONFIRMED (12 + white / 14 + white conflict) |
| Fixed gobos | COUNT TO BE CONFIRMED (16 / 18 conflict) |
| Prism system | Two independent prism wheels with rotation; exact facets TO BE CONFIRMED |
| Frost / colorful | Dedicated frost / colorful effect channel |
| Focus | Motorized focus |
| Protection | IP20 indoor |
| Size / weight | TO BE CONFIRMED |
| Packing | TO BE CONFIRMED |
| Beam angle | TO BE CONFIRMED; an isolated fixture-file value is not independently corroborated |
| Electrical protection | Rated current and fuse value, type and position remain TO BE CONFIRMED. |
Downloads
Product documents are being prepared. Contact YL for the current information for 300W LED Module Beam Moving Head.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for 300W LED Module Beam Moving Head.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of 300W LED Module Beam Moving Head and the configuration you need.
Request a product demonstrationYou may also like
