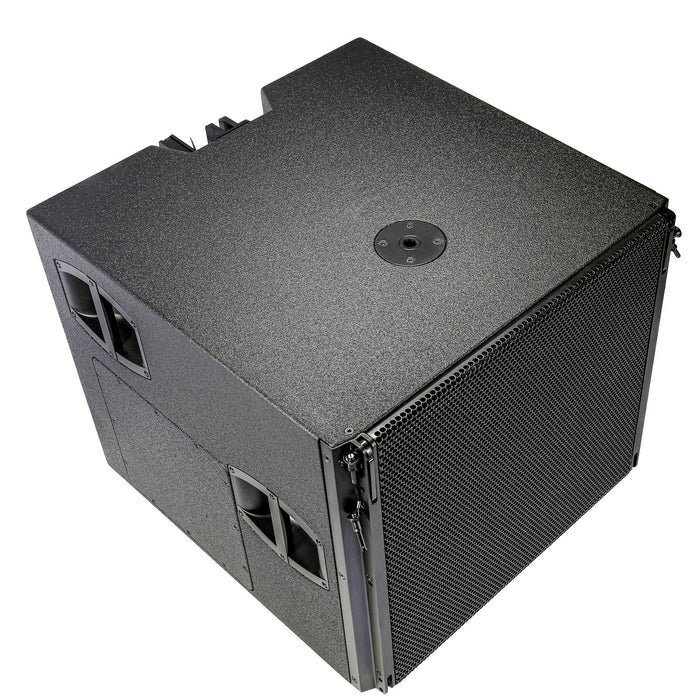

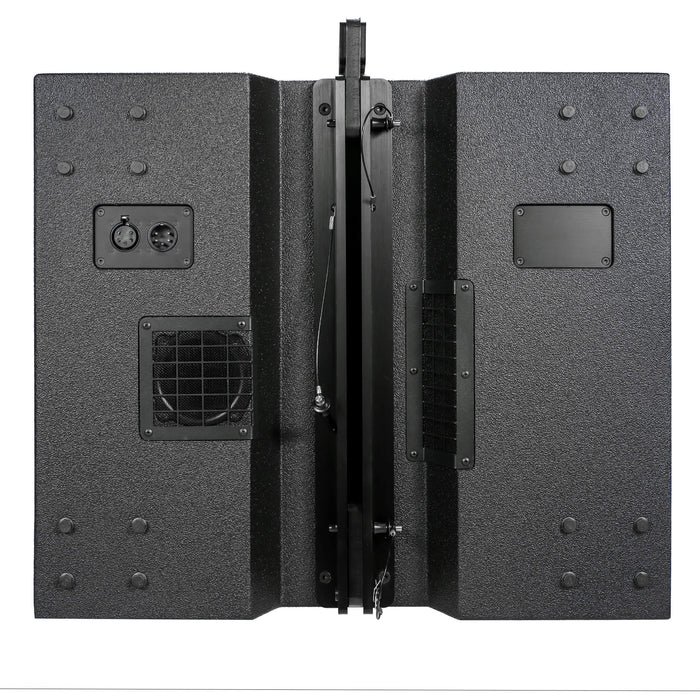

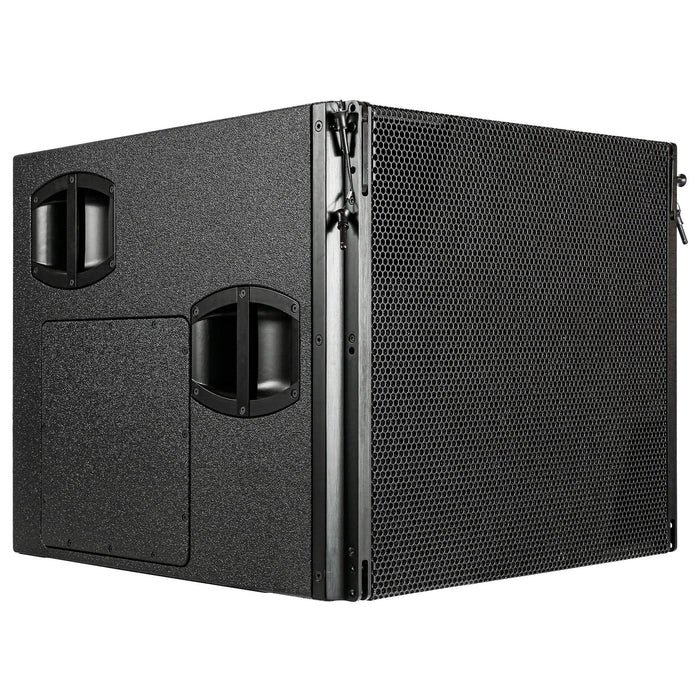

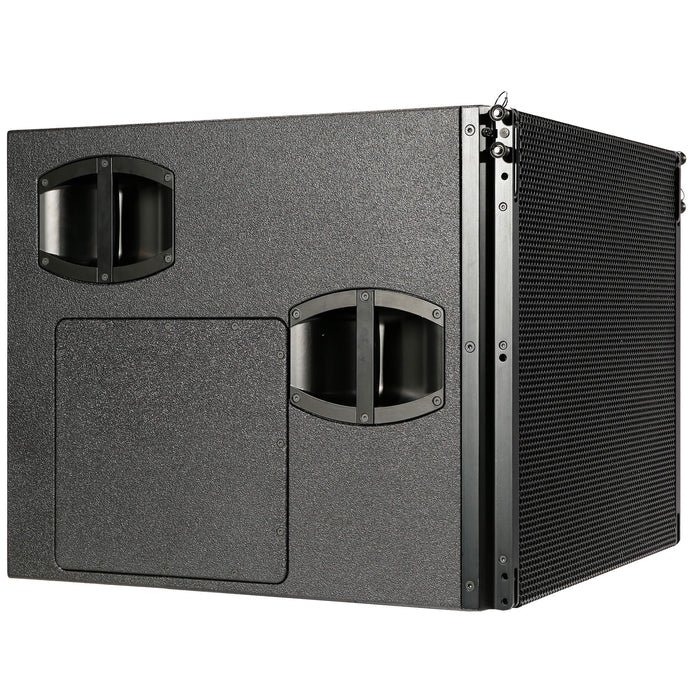

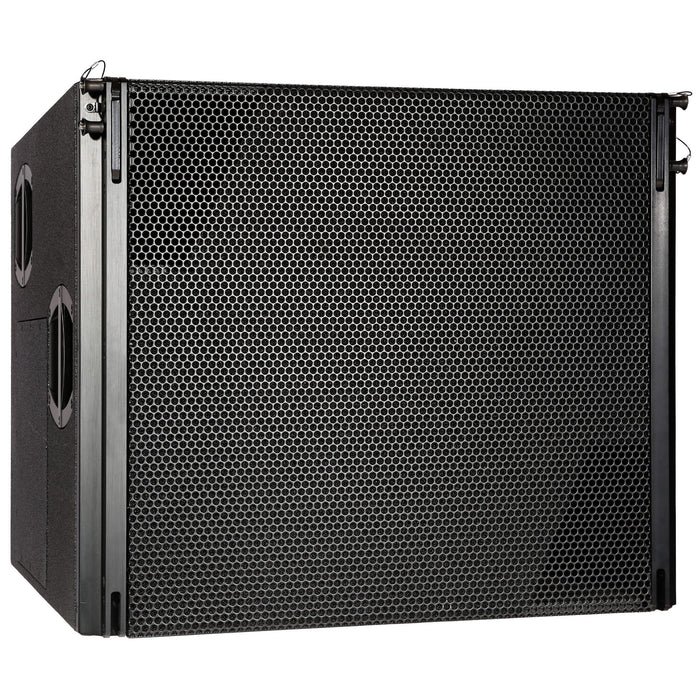

VSUB–V118SUB — product photo 1

YL Light YL-B&B Subwoofer Systems

VSUB–V118SUB

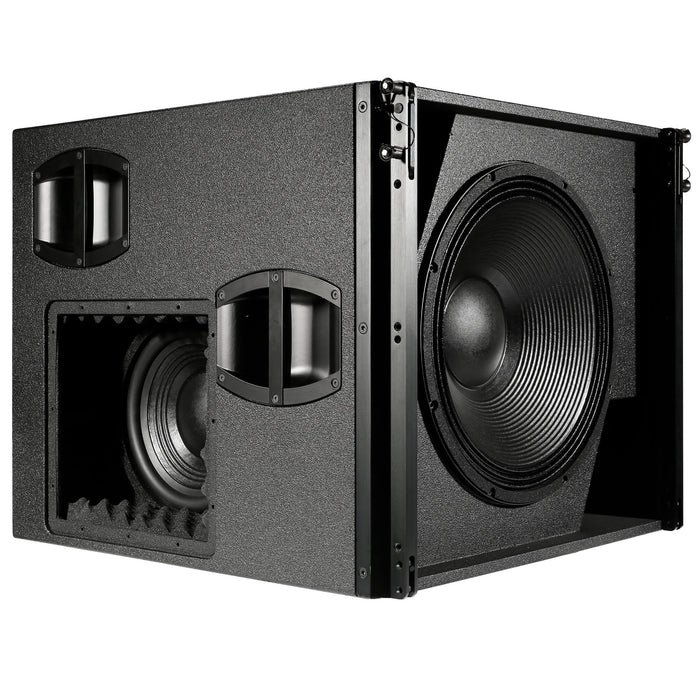

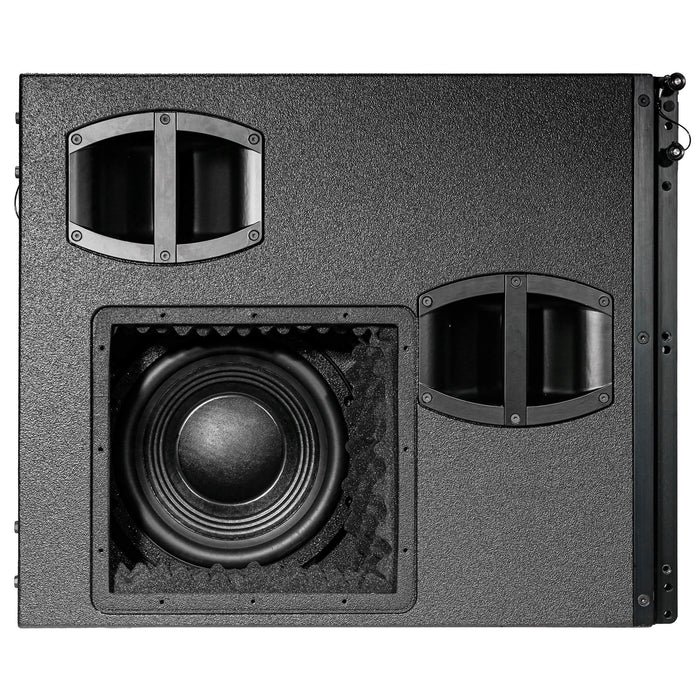

A cardioid subwoofer with one front-facing 18-inch driver and one rear-facing 12-inch driver.

WHATSAPPRequest a Quote

View specifications

Maximum SPL: 137 dB
Bandwidth (−5 dB): 37 Hz – 115 Hz
Weight: 55 kg / 121 lb

Product identification

Model: VSUB–V118SUB
Product category: Subwoofers

Technical specifications

Configuration: Cardioid subwoofer, 18″ front + 12″ rear
Maximum SPL: 137 dB
Bandwidth (−5 dB): 37 Hz – 115 Hz
Low-frequency drivers: 1 × 18″ (front) + 1 × 12″ (rear)
Coverage / directivity: Cardioid (front + rear drivers)
Nominal impedance: 8 Ω
Power handling: 800 W AES / 1600 W Program / 3200 W Peak

Physical specifications

Weight: 55 kg / 121 lb
Dimensions (H × W × D): 580 × 700 × 720 mm

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

VSUB–V118SUB technical specifications
Configuration	Cardioid subwoofer, 18″ front + 12″ rear
Maximum SPL	137 dB
Bandwidth (−5 dB)	37 Hz – 115 Hz
Low-frequency drivers	1 × 18″ (front) + 1 × 12″ (rear)
Weight	55 kg / 121 lb
Coverage / directivity	Cardioid (front + rear drivers)
Dimensions (H × W × D)	580 × 700 × 720 mm
Nominal impedance	8 Ω
Power handling	800 W AES / 1600 W Program / 3200 W Peak

Downloads

Product documents are being prepared. Contact YL for the current information for VSUB–V118SUB.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for VSUB–V118SUB.

Ask about compatible accessories

Product videos

Ask for an available demonstration of VSUB–V118SUB and the configuration you need.

Request a product demonstration
