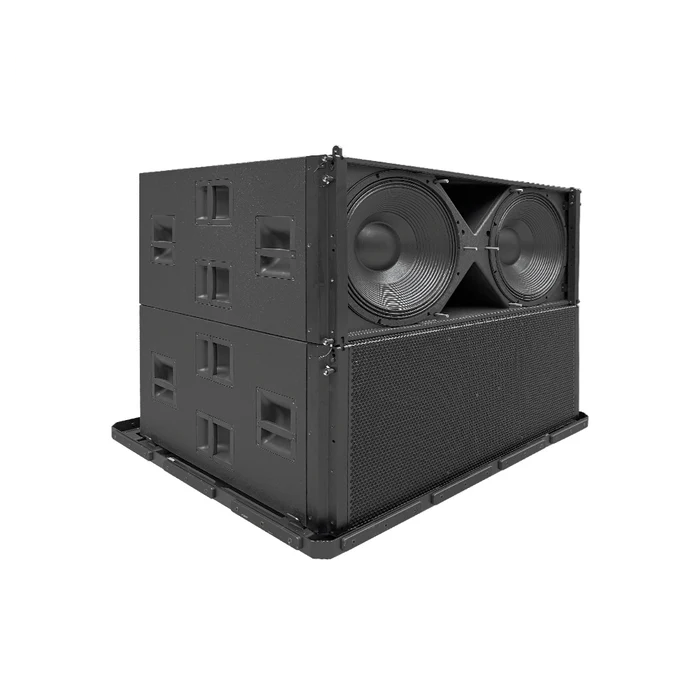

SL SUB–SL321SUB — product photo 1

YL Light YL-B&B Subwoofer Systems

SL SUB–SL321SUB

A large-format cardioid subwoofer with two front-facing and one rear-facing 21-inch drivers.

WHATSAPPRequest a Quote

View specifications

Maximum SPL: 145 dB
Bandwidth (−5 dB): 30 Hz – 100 Hz
Weight: 152 kg / 335 lb

Product identification

Model: SL SUB–SL321SUB
Product category: Subwoofers

Technical specifications

Configuration: Large-format cardioid subwoofer, 3 × 21″ (2 front + 1 rear)
Maximum SPL: 145 dB
Bandwidth (−5 dB): 30 Hz – 100 Hz
Low-frequency drivers: 2 × 21″ front + 1 × 21″ rear
Coverage / directivity: Cardioid (front + rear drivers)
Nominal impedance: 4 Ω
Power handling: 2000 W AES / 4000 W Program

Physical specifications

Weight: 152 kg / 335 lb
Dimensions (H × W × D): 580 × 1140 × 1170 mm

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

SL SUB–SL321SUB technical specifications
Configuration	Large-format cardioid subwoofer, 3 × 21″ (2 front + 1 rear)
Maximum SPL	145 dB
Bandwidth (−5 dB)	30 Hz – 100 Hz
Low-frequency drivers	2 × 21″ front + 1 × 21″ rear
Weight	152 kg / 335 lb
Coverage / directivity	Cardioid (front + rear drivers)
Dimensions (H × W × D)	580 × 1140 × 1170 mm
Nominal impedance	4 Ω
Power handling	2000 W AES / 4000 W Program

Downloads

Product documents are being prepared. Contact YL for the current information for SL SUB–SL321SUB.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for SL SUB–SL321SUB.

Ask about compatible accessories

Product videos

Ask for an available demonstration of SL SUB–SL321SUB and the configuration you need.

Request a product demonstration
