Product identification
- Model
- B22 SUB–B218SUB
- Product category
- Subwoofers

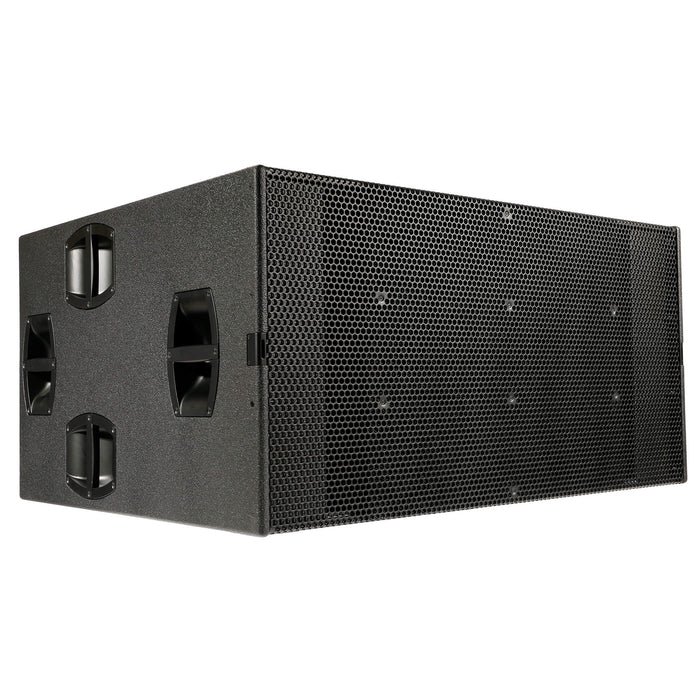

B22 SUB–B218SUB
A high-output dual 18-inch direct-radiating subwoofer with a stated 37–90 Hz bandwidth.
WHATSAPPRequest a Quote- Maximum SPL
- 143 dB
- Bandwidth (−5 dB)
- 37 Hz – 90 Hz
- Weight
- 117 kg / 258 lb
Technical specifications
- Configuration
- High-output subwoofer, dual 18″ direct-radiating
- Maximum SPL
- 143 dB
- Bandwidth (−5 dB)
- 37 Hz – 90 Hz
- Low-frequency drivers
- 2 × 18″ front-facing woofers
- Coverage / directivity
- Omni (direct-radiating, cardioid pattern possible when arrayed)
- Nominal impedance
- 4 Ω
- Power handling
- 1600 W AES / 3200 W Program
Physical specifications
- Weight
- 117 kg / 258 lb
- Dimensions (H × W × D)
- 580 × 1220 × 770 mm
Compatibility and deployment
Function / configuration: A high-output dual 18-inch direct-radiating subwoofer with a stated 37–90 Hz bandwidth.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | High-output subwoofer, dual 18″ direct-radiating |
|---|---|
| Maximum SPL | 143 dB |
| Bandwidth (−5 dB) | 37 Hz – 90 Hz |
| Low-frequency drivers | 2 × 18″ front-facing woofers |
| Weight | 117 kg / 258 lb |
| Coverage / directivity | Omni (direct-radiating, cardioid pattern possible when arrayed) |
| Dimensions (H × W × D) | 580 × 1220 × 770 mm |
| Nominal impedance | 4 Ω |
| Power handling | 1600 W AES / 3200 W Program |
Downloads
Product documents are being prepared. Contact YL for the current information for B22 SUB–B218SUB.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for B22 SUB–B218SUB.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of B22 SUB–B218SUB and the configuration you need.
