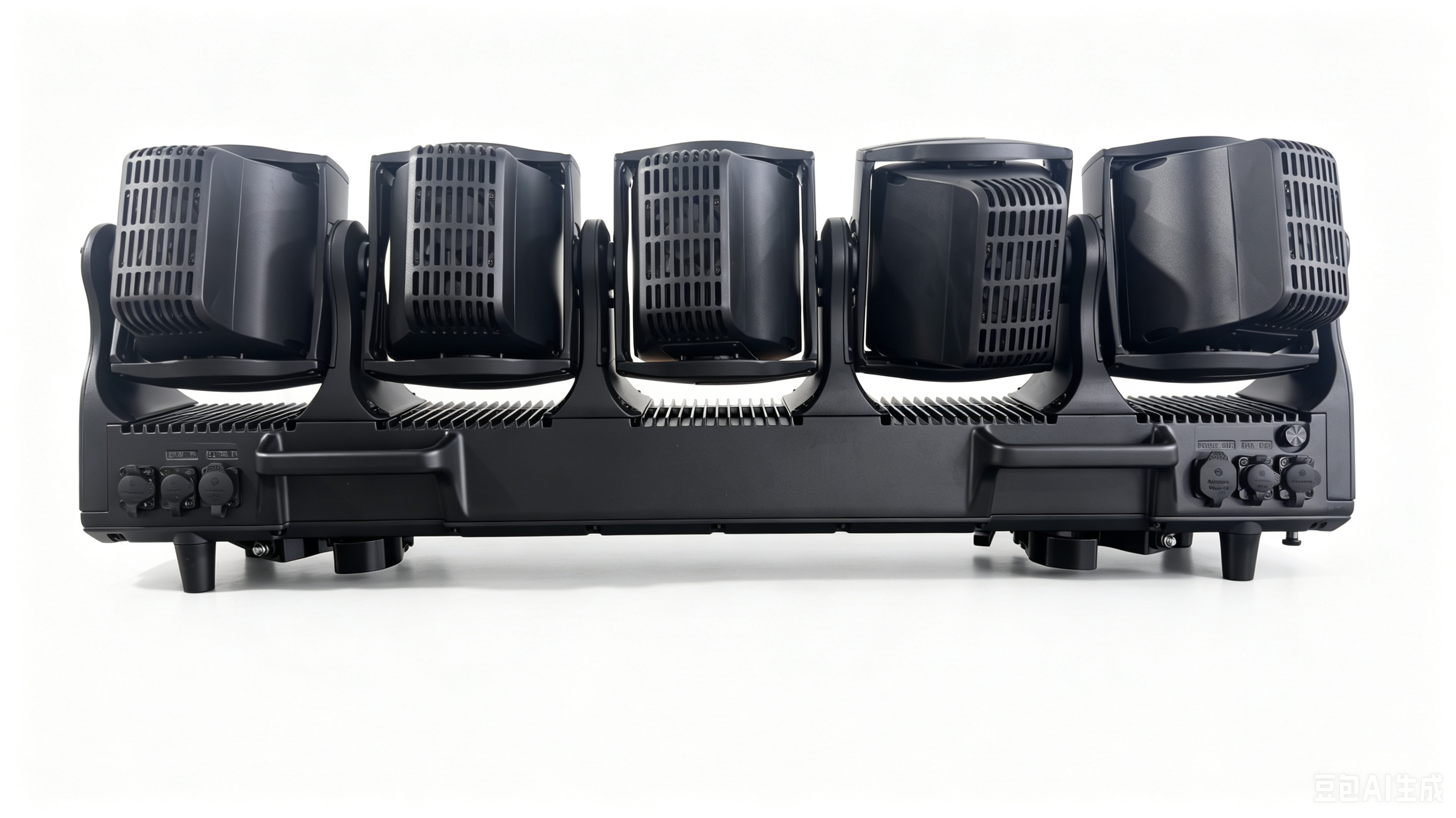

TB5 5 x 120W RGBW Outdoor IP66 Moving Head Bar Light
Outdoor Moving Head Bar Light
The TB5 is an IP66 outdoor moving head bar with five 120W RGBW heads and a 120-LED RGB ring, for festivals, stadiums and outdoor stages. Beam angle 3-30° and field 4-35°, 12,000 lumens, tilt 221° and pan 59°, with linear CTO from 2500K to 8000K.

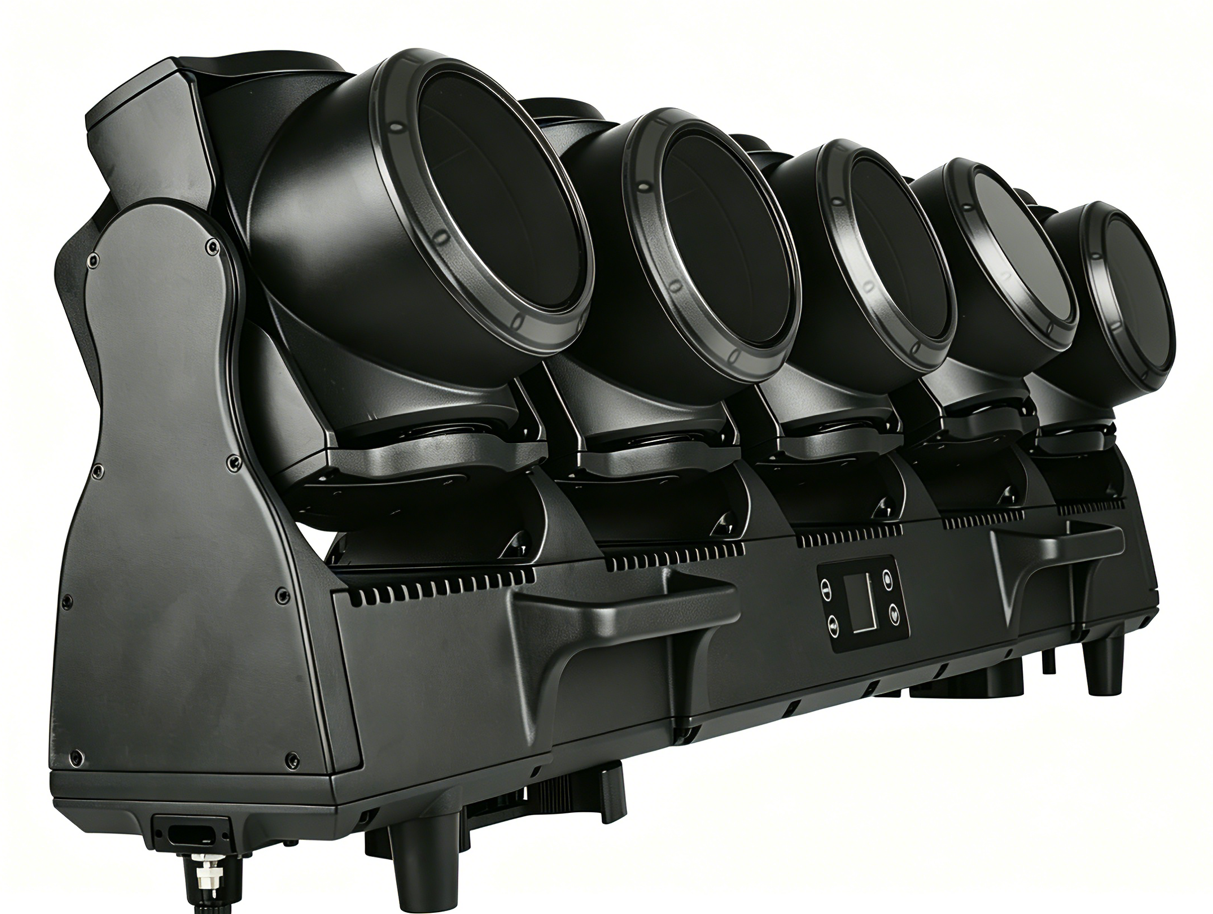

Magnesium-alloy body, waterproof power and signal connectors with RJ45 for Art-Net, quiet variable-speed fans and an LCD with four touch keys. DMX512, RDM and Art-Net in six modes from 21 to 170 channels; 27.5 kg.

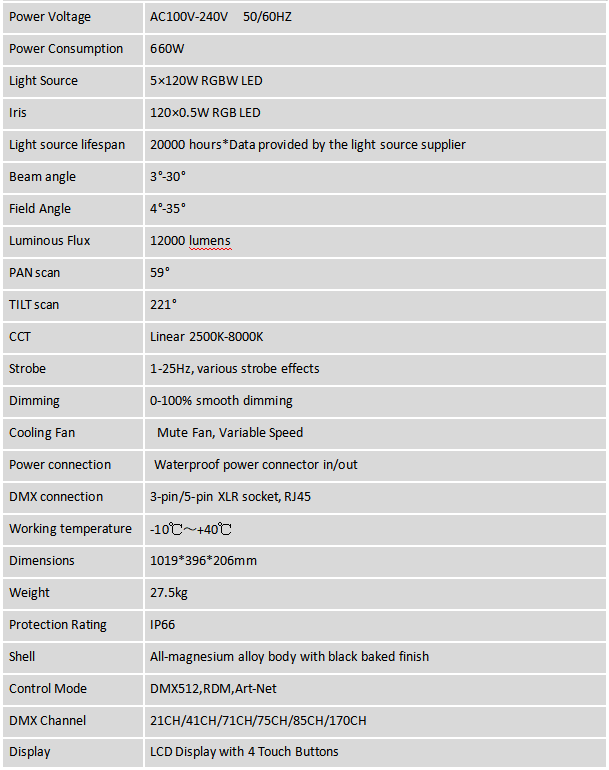

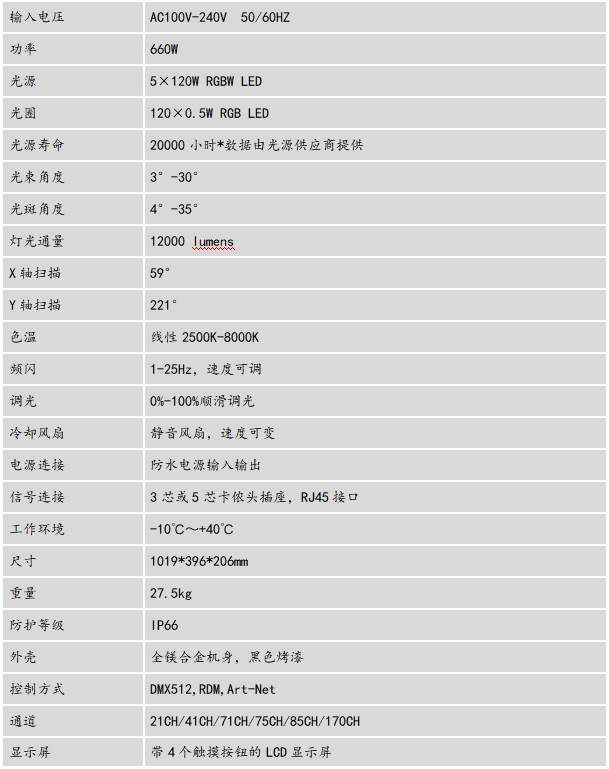

Specification
| Product model | TB5 |
|---|---|
| Light source | 5 x 120W RGBW LEDs |
| Auxiliary LEDs | 120 x 0.5W RGB LED ring |
| Lamp life | 20,000 hours (light-source supplier data) |
| Rated power | 660W |
| Input voltage | AC100-240V, 50/60Hz |

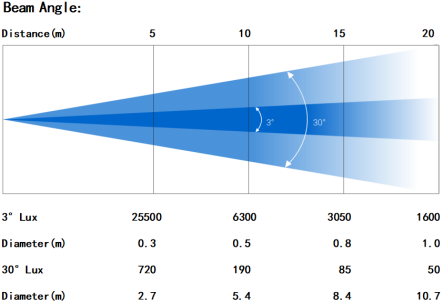

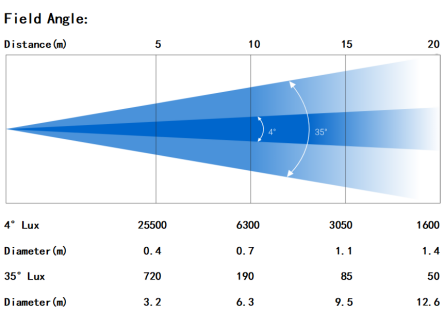

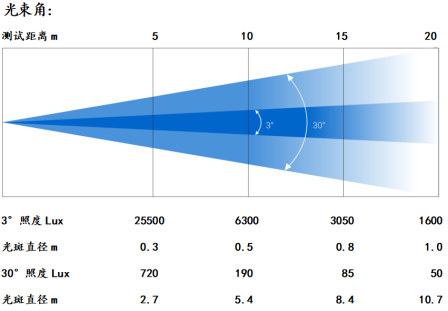

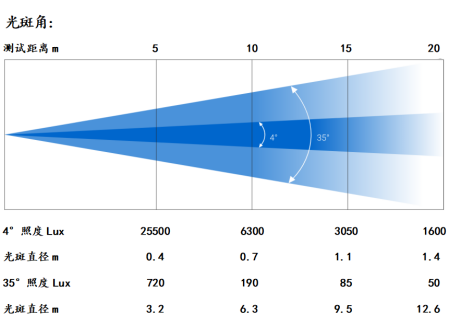

| Beam angle | 3-30° beam; 4-35° field |
| Luminous flux | 12,000 lm |
| Color temperature | Linear 2500-8000K |
| Pan / Tilt | Pan 59° / tilt 221° |
| Strobe | 1-25 Hz, variable speed |
| Dimming | 0-100% smooth |
| Control modes | DMX512, RDM, Art-Net |
| DMX channels | 21 / 41 / 71 / 75 / 85 / 170CH |
| Display | LCD with 4 touch keys |
| Connections | Waterproof power in / out; 3-pin or 5-pin XLR; RJ45 |
| Cooling | Quiet variable-speed fans |
| Housing | Magnesium-alloy body, black finish |
| Protection rating | IP66 |
| Operating temperature | -10°C to 40°C |

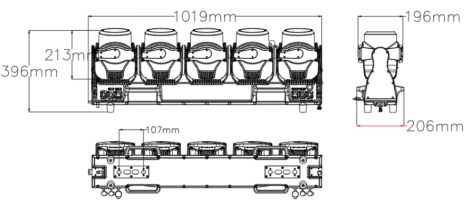

| Product size | 1019 x 396 x 206 mm |
| Net weight | 27.5 kg |
