Product identification
- Model
- SB28 Subwoofer
- Product category
- Subwoofers

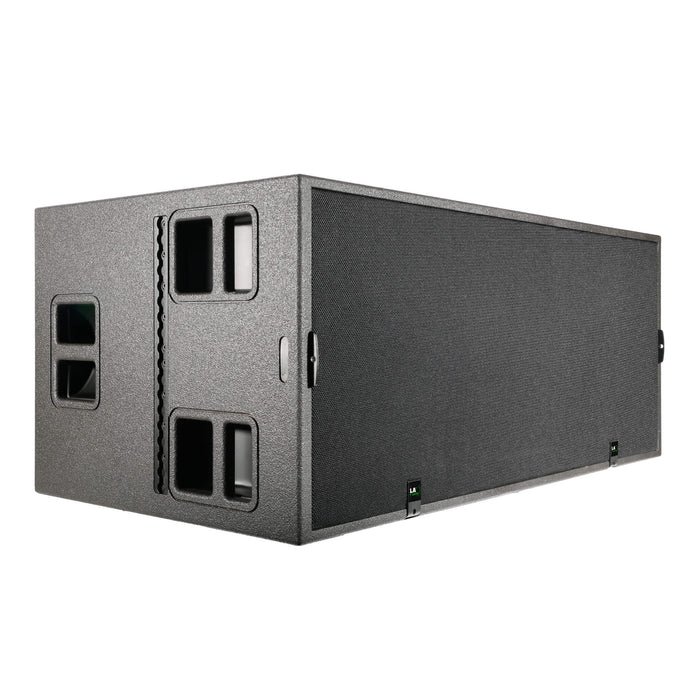

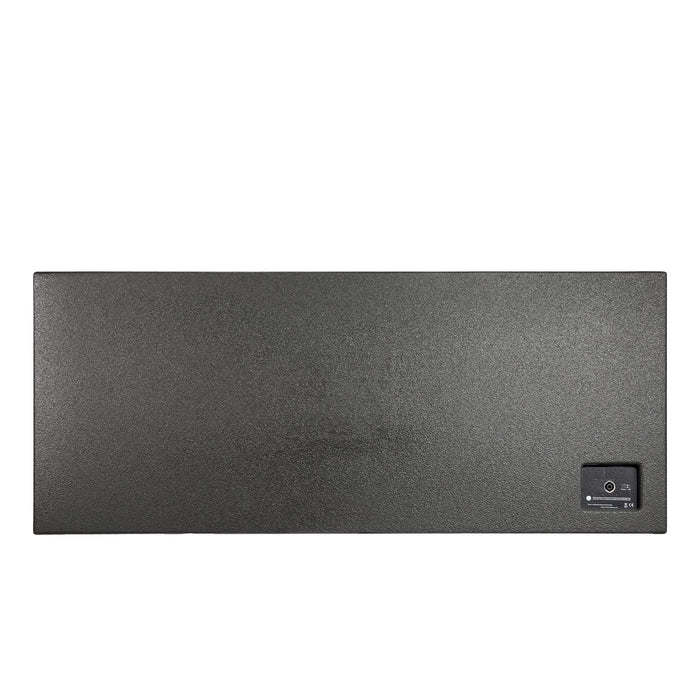

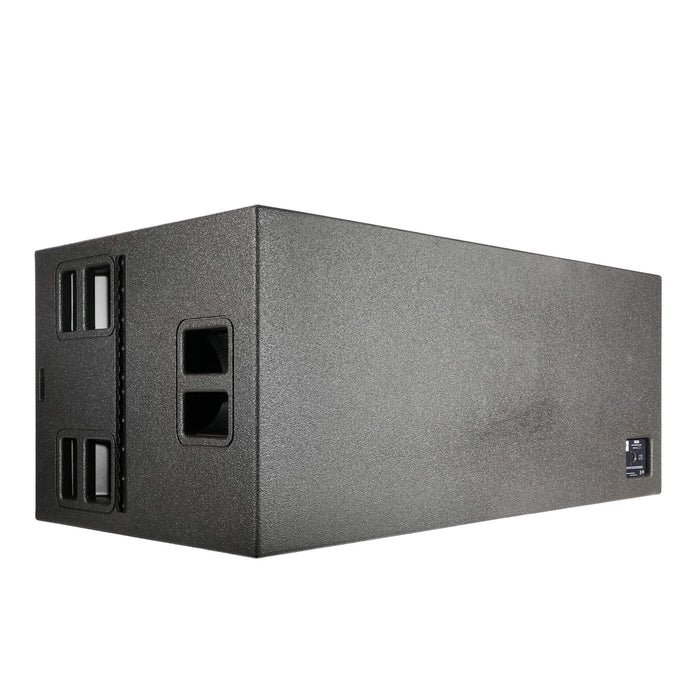

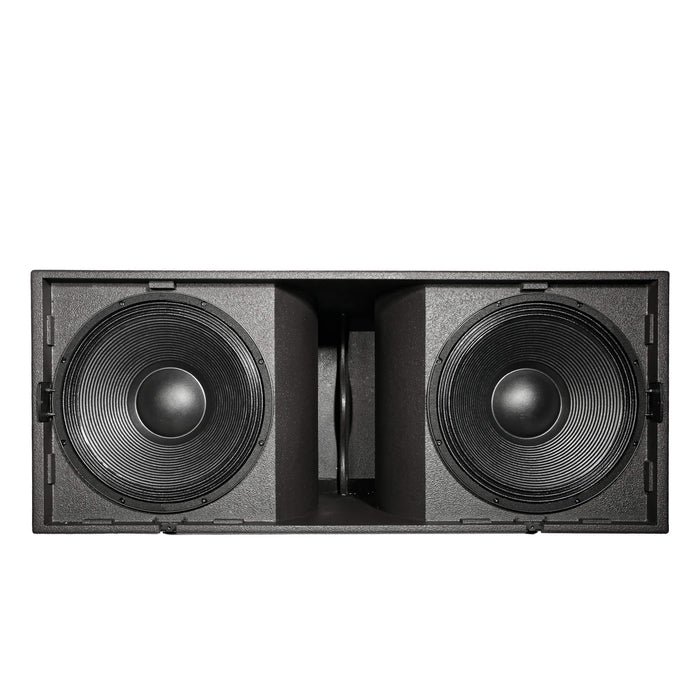

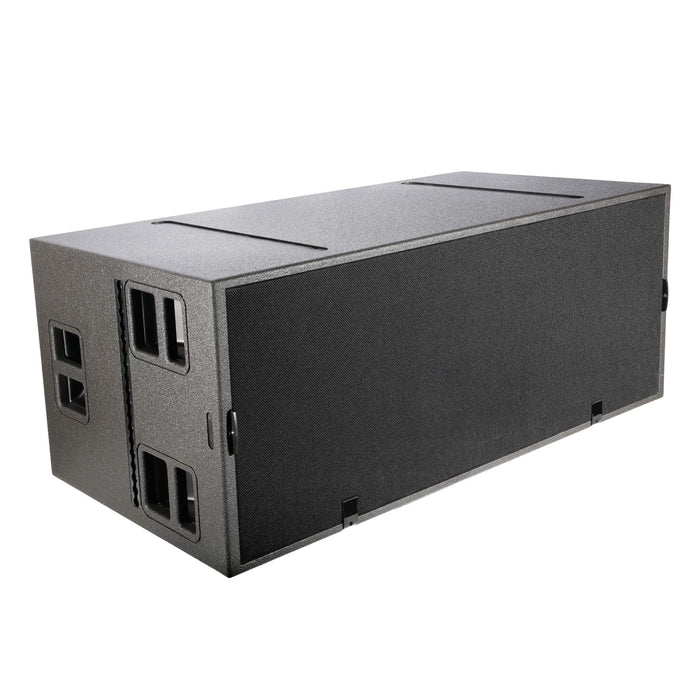

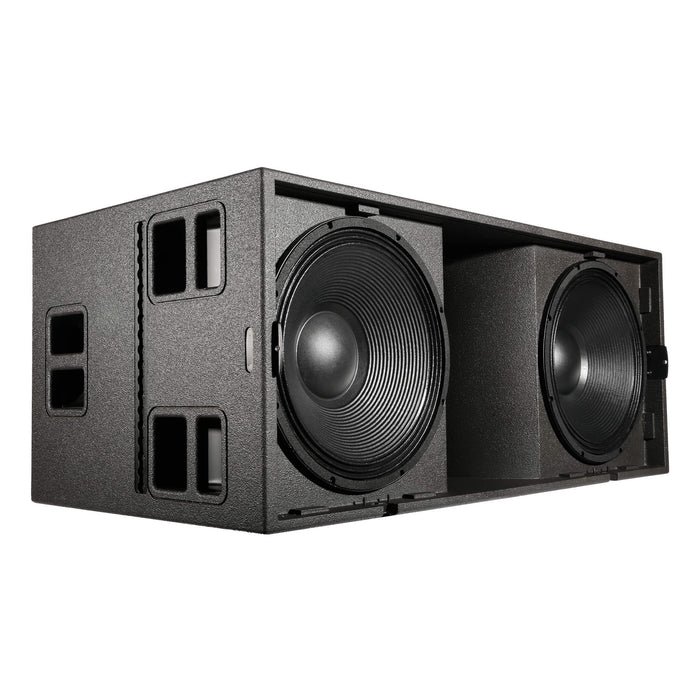

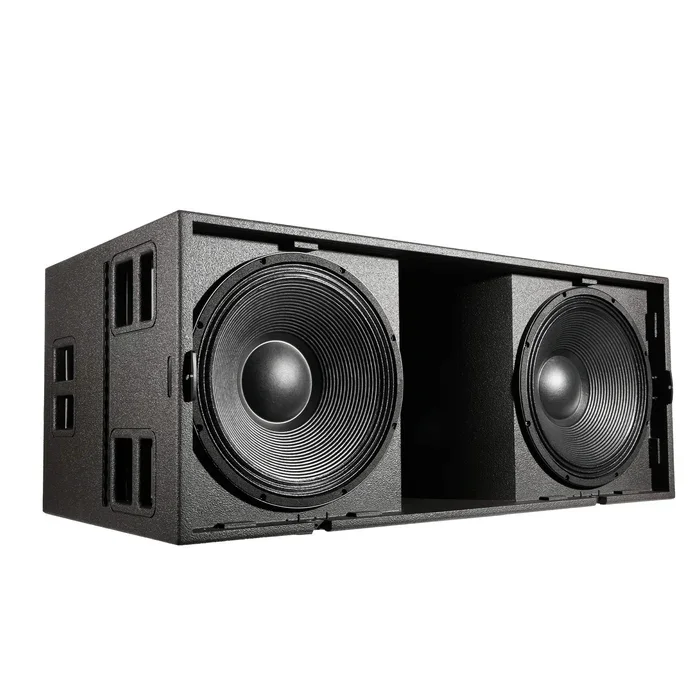

SB28 Subwoofer
A dual 18-inch bass-reflex subwoofer with neodymium drivers and a Baltic birch plywood cabinet.
WHATSAPPRequest a Quote- Maximum SPL
- 142 dB peak at 1 m, half-space, pink noise with crest factor 4
- Low-frequency drivers
- 2 × 18-inch neodymium, direct-radiating
- Net weight
- 93 kg / 205 lb
Technical specifications
- Low-frequency drivers
- 2 × 18-inch neodymium, direct-radiating
- Directivity
- Standard or cardioid configuration
- Nominal impedance
- 4 Ω
- Usable bandwidth
- 25–117 Hz (−10 dB); 30–90 Hz (−6 dB); 33–70 Hz (−3 dB)
- RMS power handling
- 655 W, calculated using mean impedance over usable bandwidth
- Maximum SPL
- 142 dB peak at 1 m, half-space, pink noise with crest factor 4
- Acoustical load
- Bass-reflex
- Connector
- 1 × 4-point speakON input
Physical specifications
- Cabinet
- Baltic birch plywood
- Dimensions (W × H × D)
- 1300 × 550 × 700 mm
- Net weight
- 93 kg / 205 lb
- Finish
- Dark grey-brown, Pantone 426 C
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Low-frequency drivers | 2 × 18-inch neodymium, direct-radiating |
|---|---|
| Directivity | Standard or cardioid configuration |
| Nominal impedance | 4 Ω |
| Usable bandwidth | 25–117 Hz (−10 dB); 30–90 Hz (−6 dB); 33–70 Hz (−3 dB) |
| RMS power handling | 655 W, calculated using mean impedance over usable bandwidth |
| Maximum SPL | 142 dB peak at 1 m, half-space, pink noise with crest factor 4 |
| Acoustical load | Bass-reflex |
| Cabinet | Baltic birch plywood |
| Dimensions (W × H × D) | 1300 × 550 × 700 mm |
| Net weight | 93 kg / 205 lb |
| Connector | 1 × 4-point speakON input |
| Finish | Dark grey-brown, Pantone 426 C |
Downloads
Product documents are being prepared. Contact YL for the current information for SB28 Subwoofer.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for SB28 Subwoofer.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of SB28 Subwoofer and the configuration you need.
