Product identification
- Model
- Y28F Compact Dual 8-Inch Line Array
- Product category
- Line Array Systems

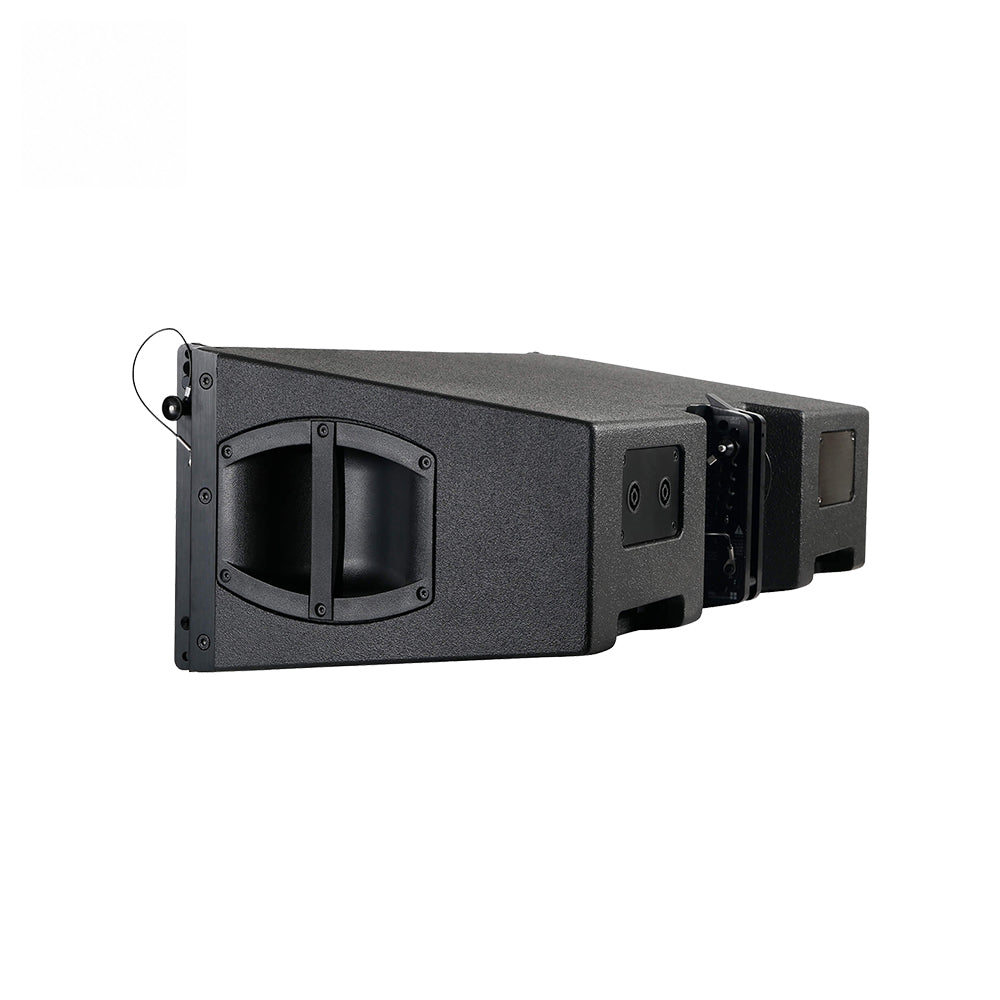

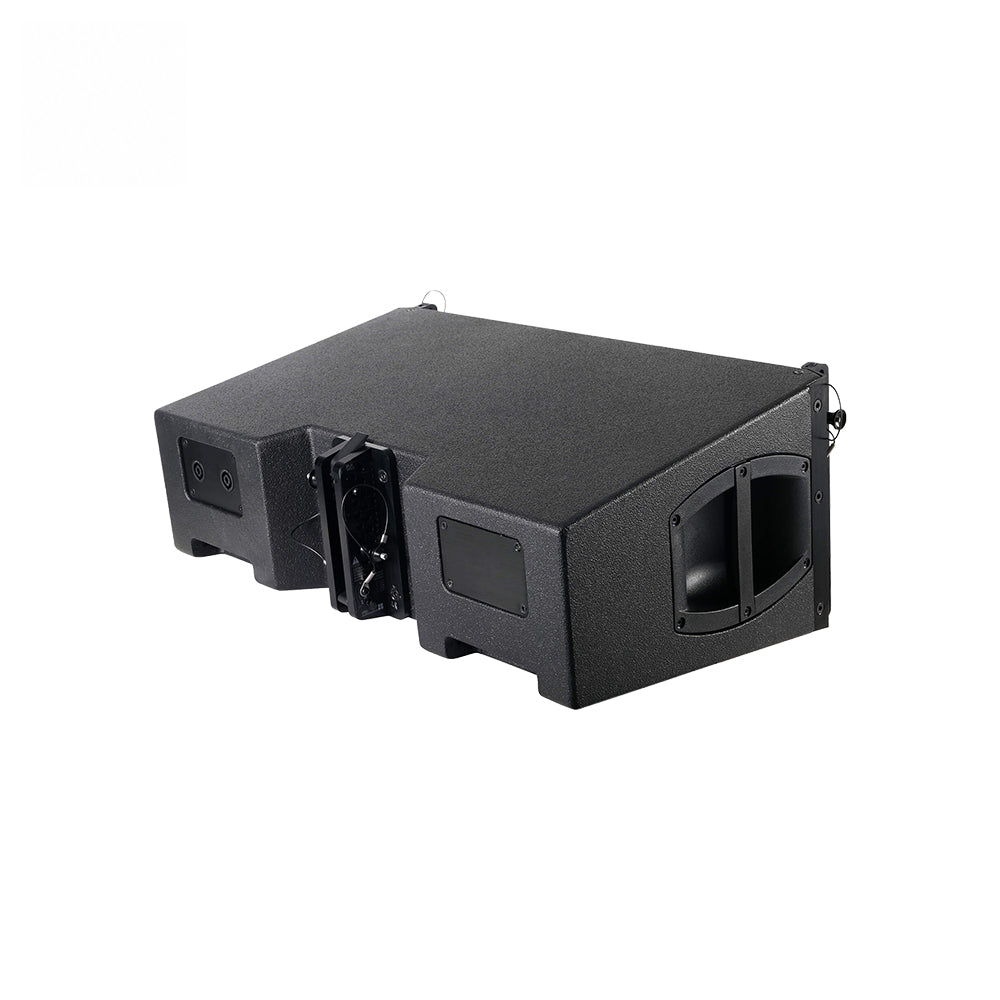

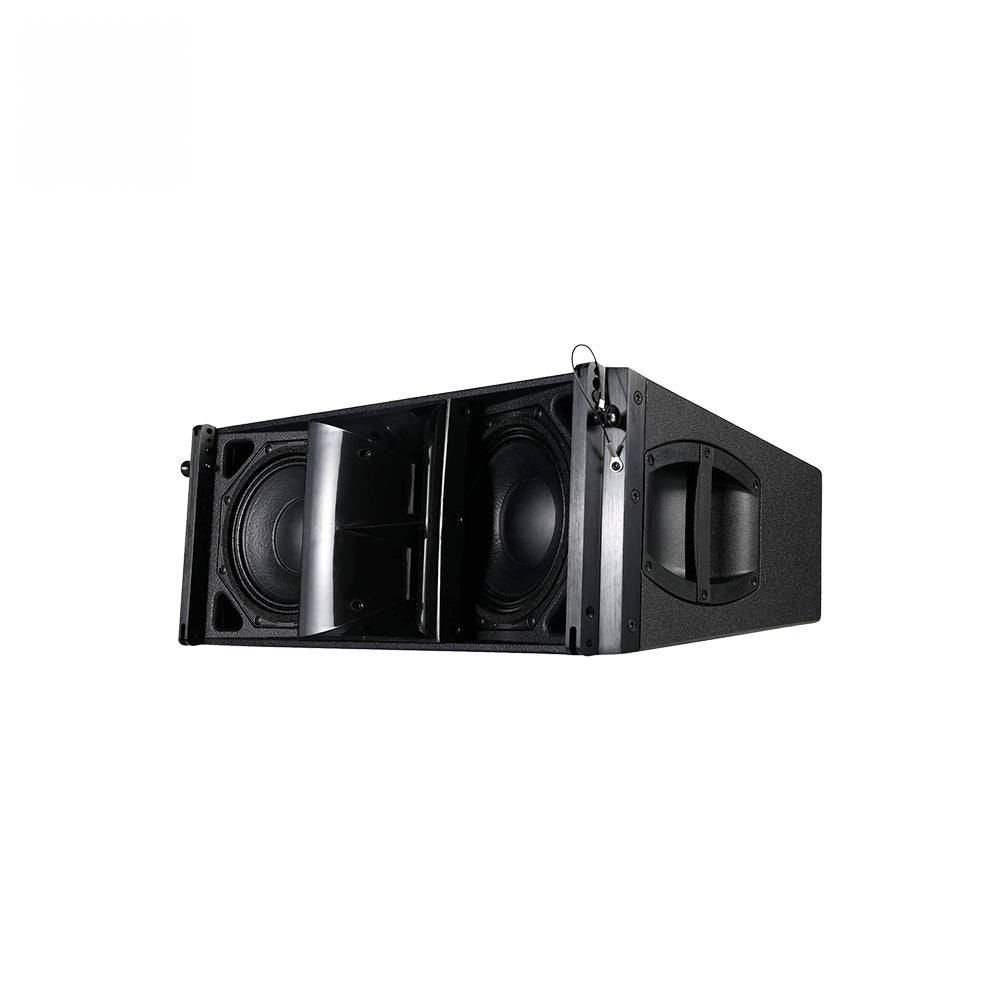

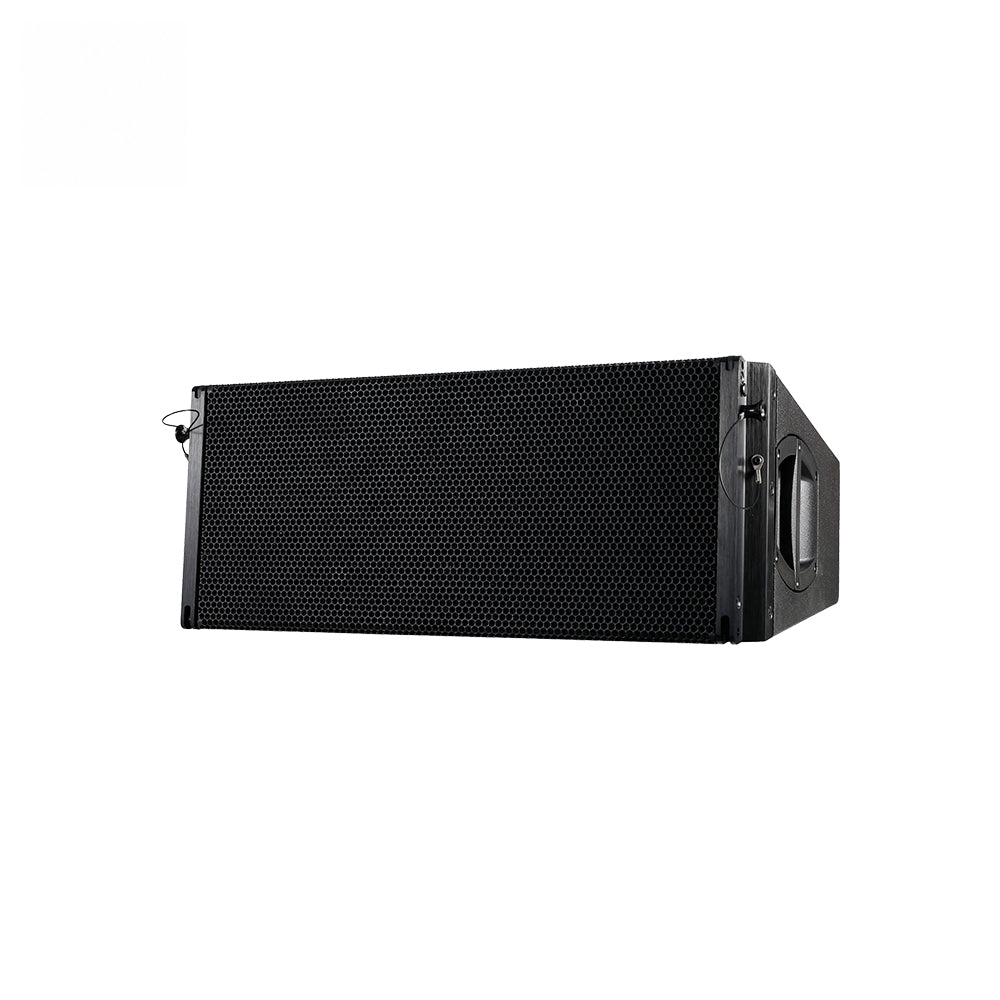

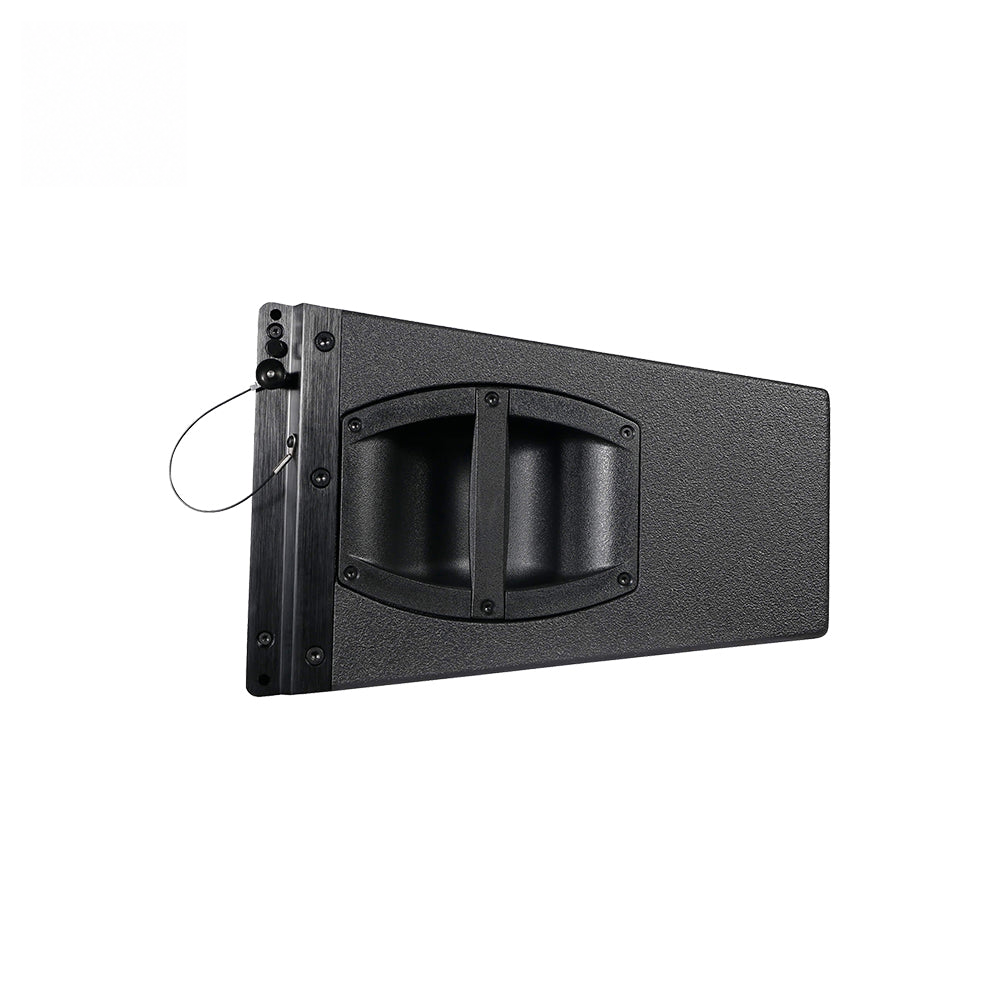

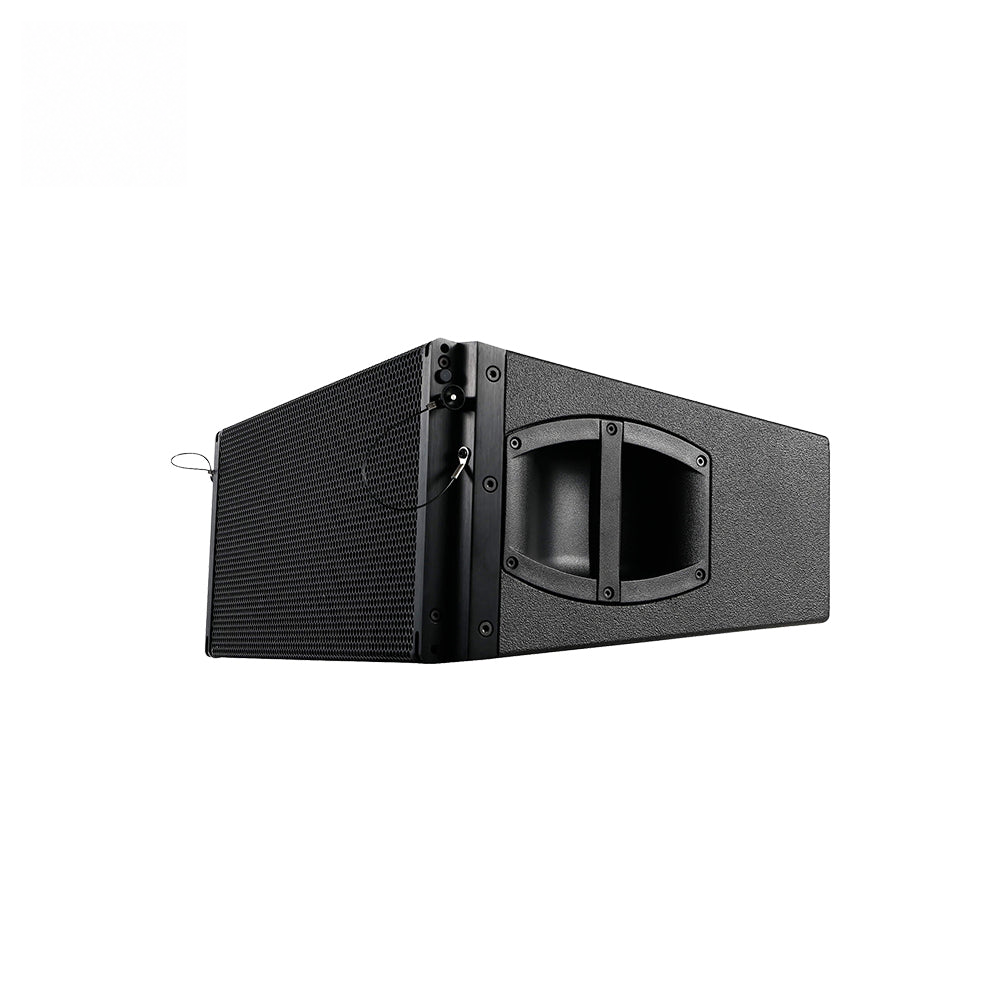

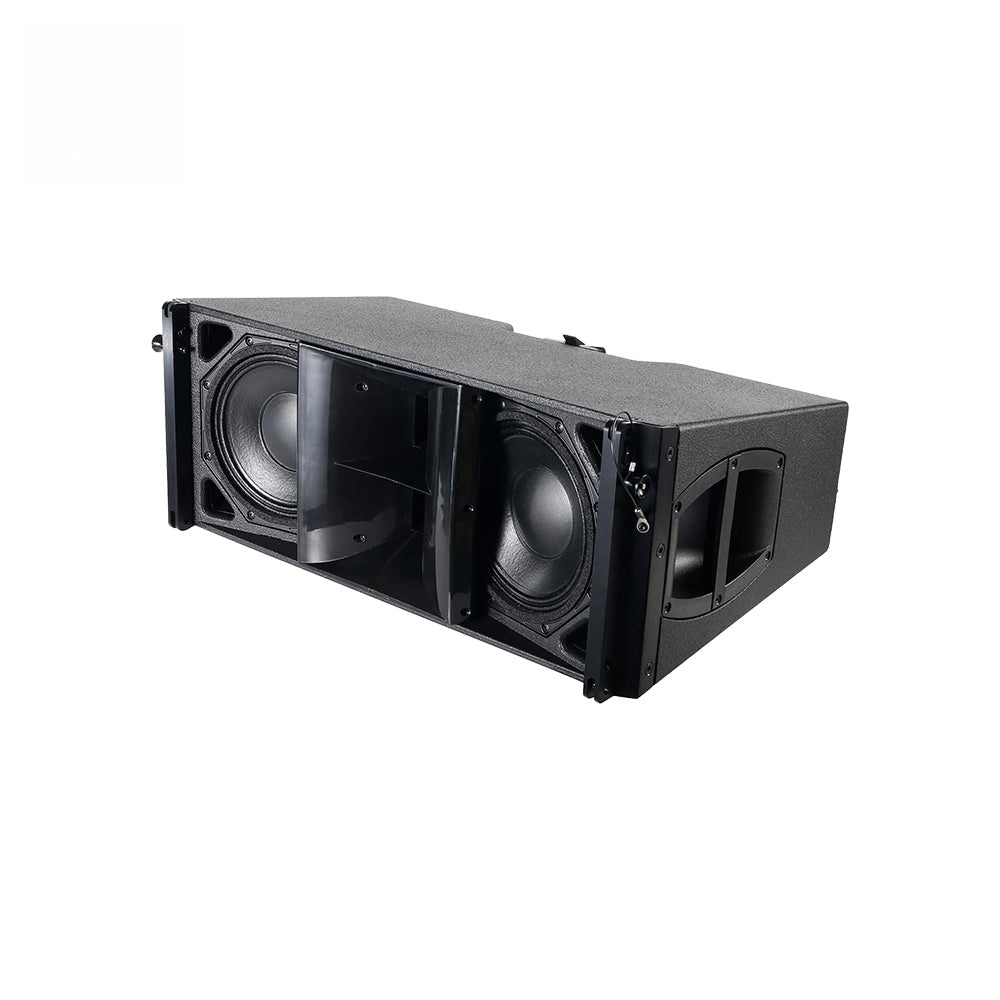

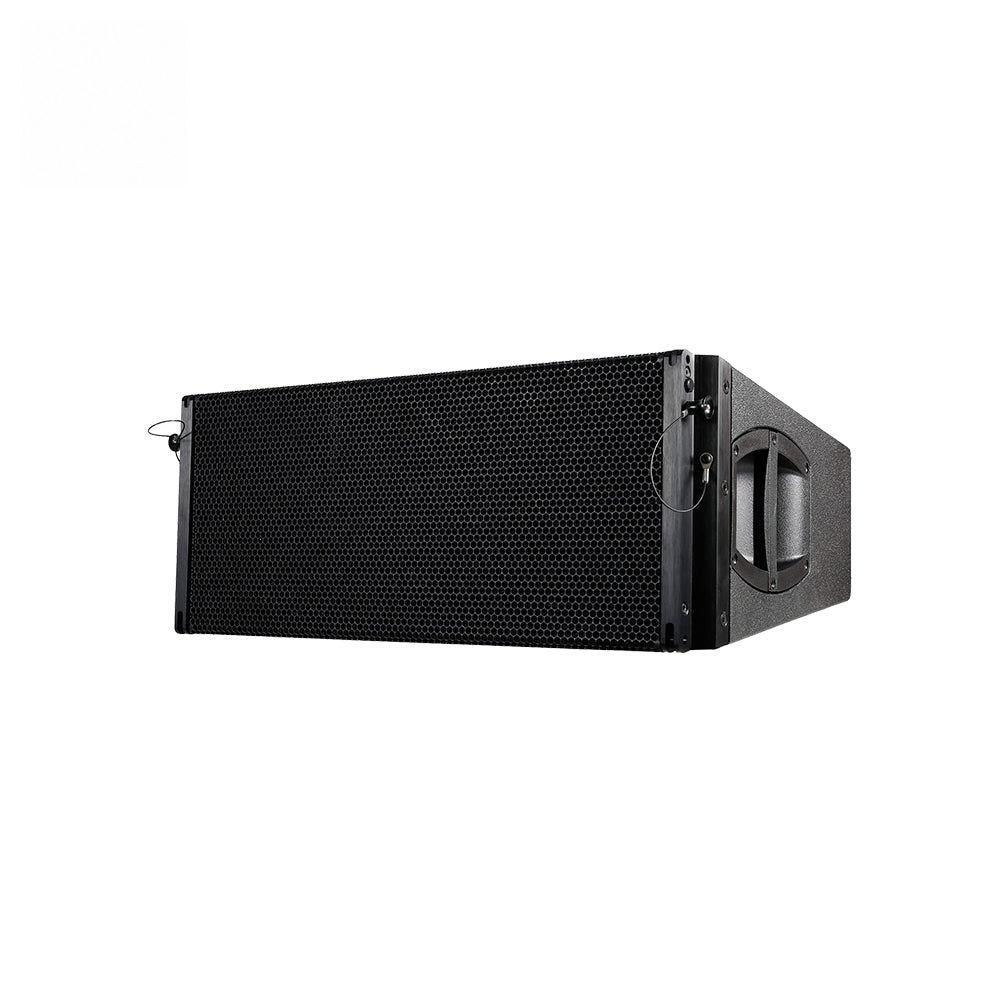

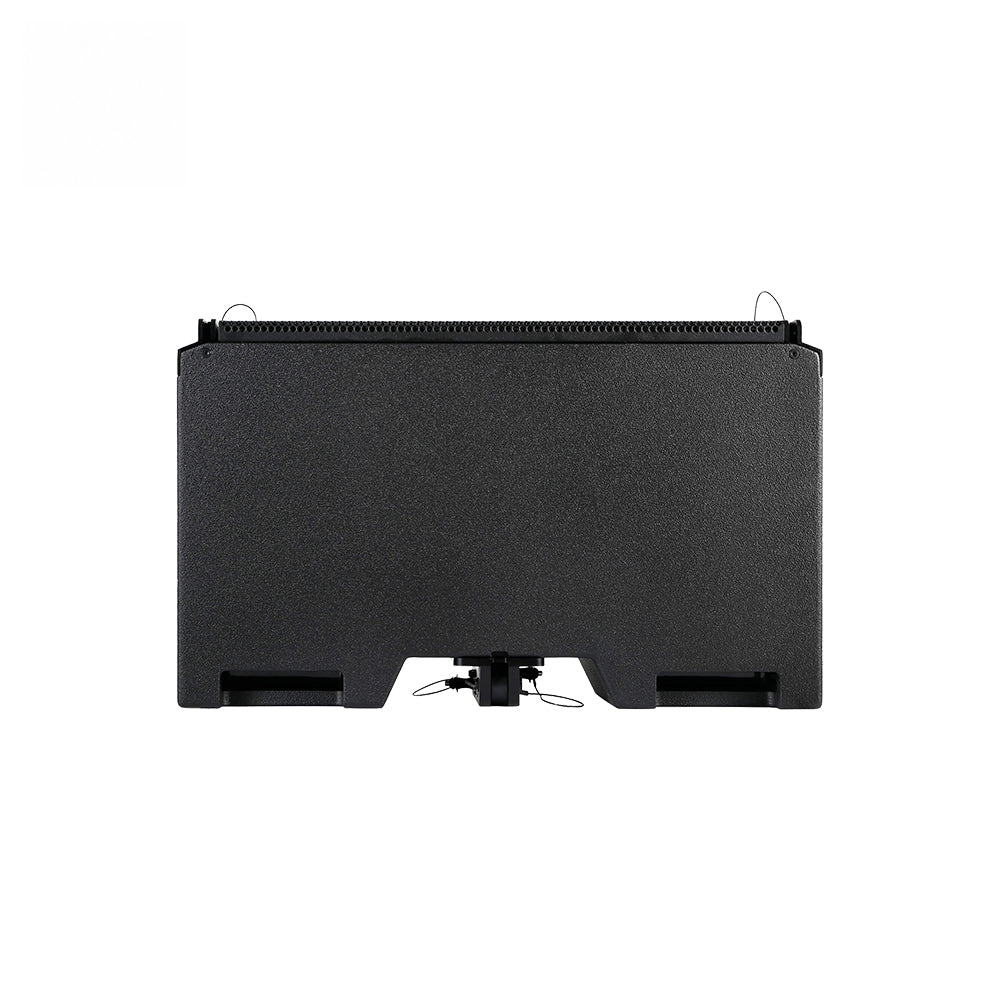

Y28F Compact Dual 8-Inch Line Array
Y28F Compact Dual 8-Inch Line Array is listed in the line array systems category as a line array system. The reference lists maximum spl: 139 dB; bandwidth: 54 Hz – 19 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 139 dB
- Bandwidth
- 54 Hz – 19 kHz
- Weight
- 20 kg44 lb
Technical specifications
- Maximum SPL
- 139 dB
- Bandwidth
- 54 Hz – 19 kHz
- Transducers

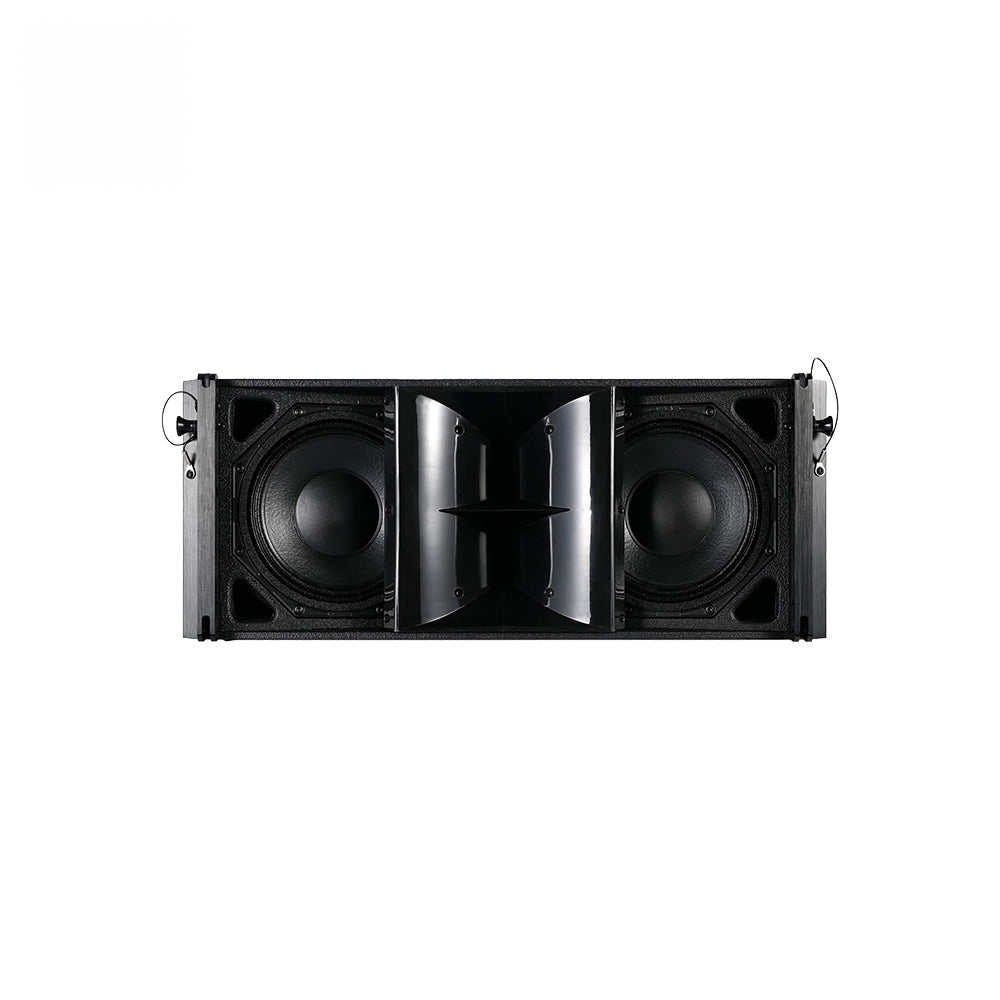

- LF: 2 × 8″ • MF/HF: 1 × 8″ + 1 × 1.4″ compression driver
- Frequency response (-5 dB standard)
- 54 Hz - 19 kHz
- Frequency response (-5 dB CUT mode)
- 100 Hz - 19 kHz
- Max. sound pressure1 with 10D
- 134 dB with D20/30D:137 dB with D40/D80/40D:139 dB
- Configuration
- High performance 2-way passive line array loudspeaker
- Nominal impedance
- 8 Ω
- Power handling capacity (RMS/peak 10 ms)
- 400/1600 W
- Components

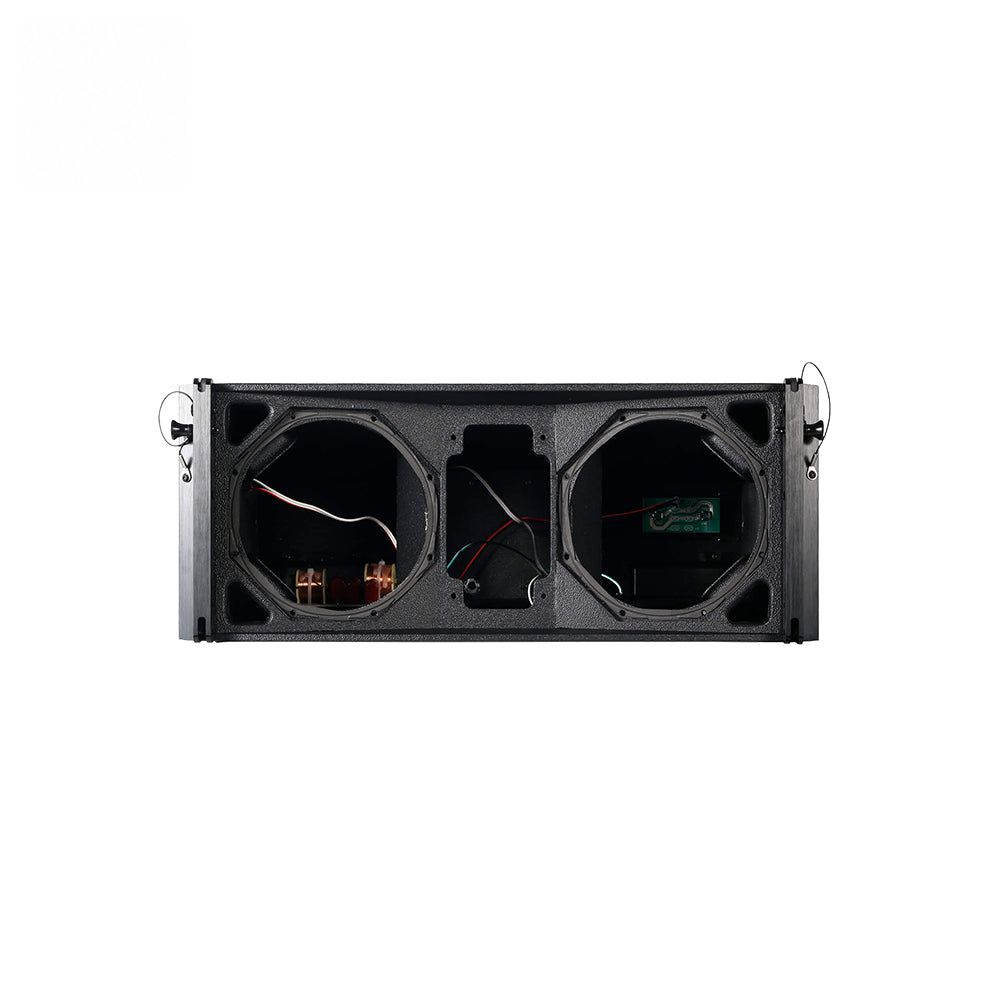

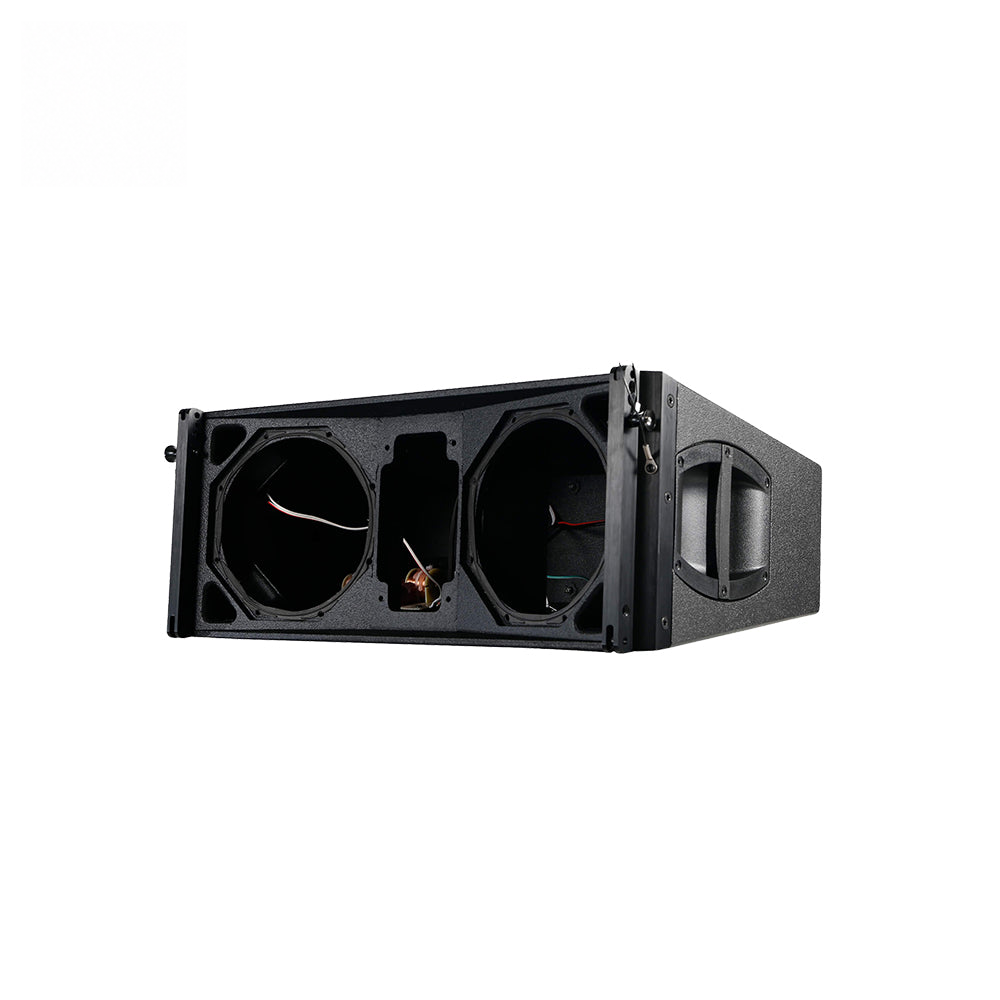

- 2 x 8" driver with neodymium magnet 1.4" exit compression driverpassive crossover network

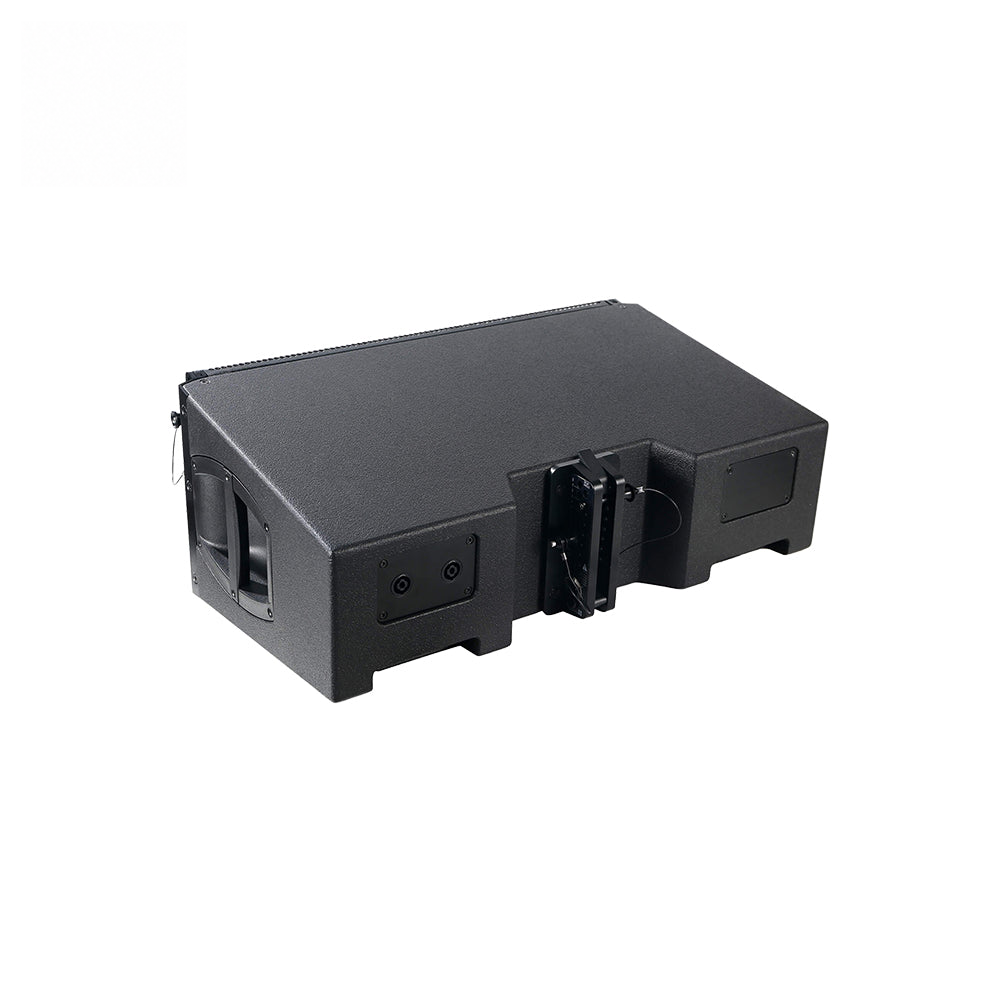

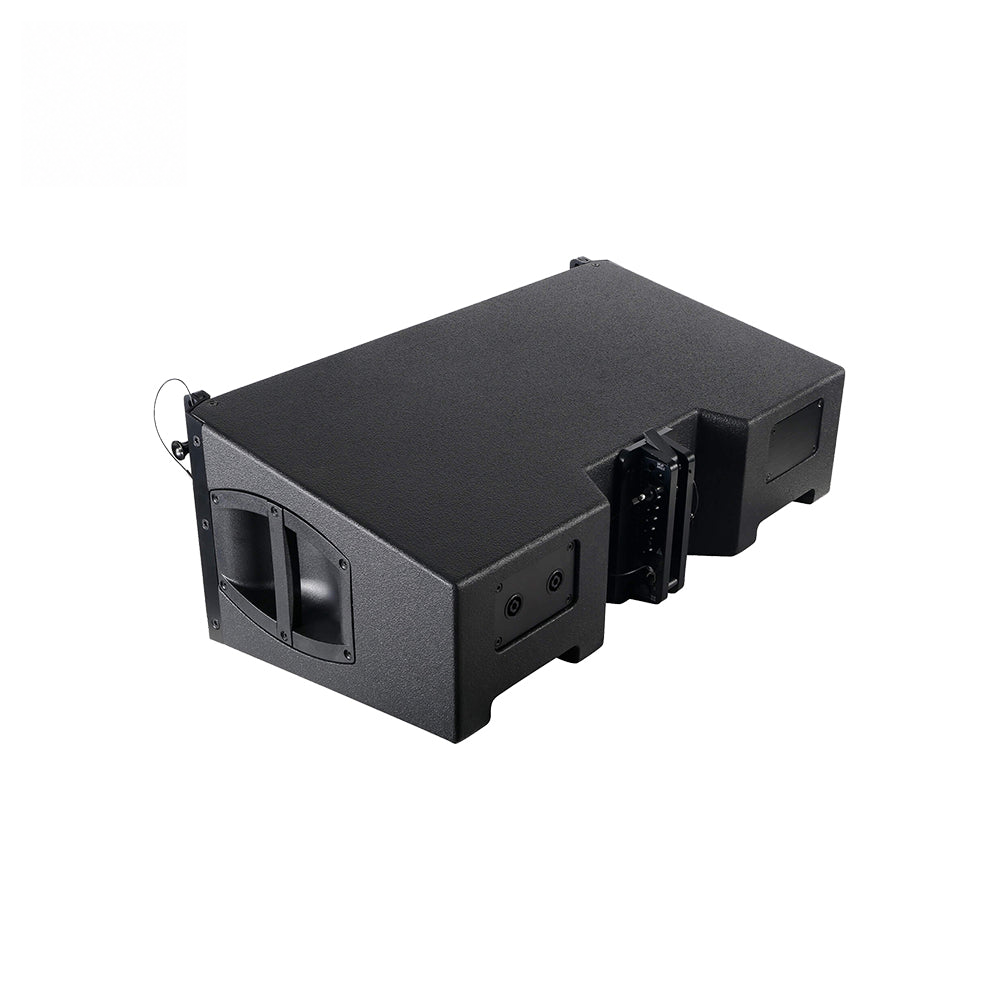

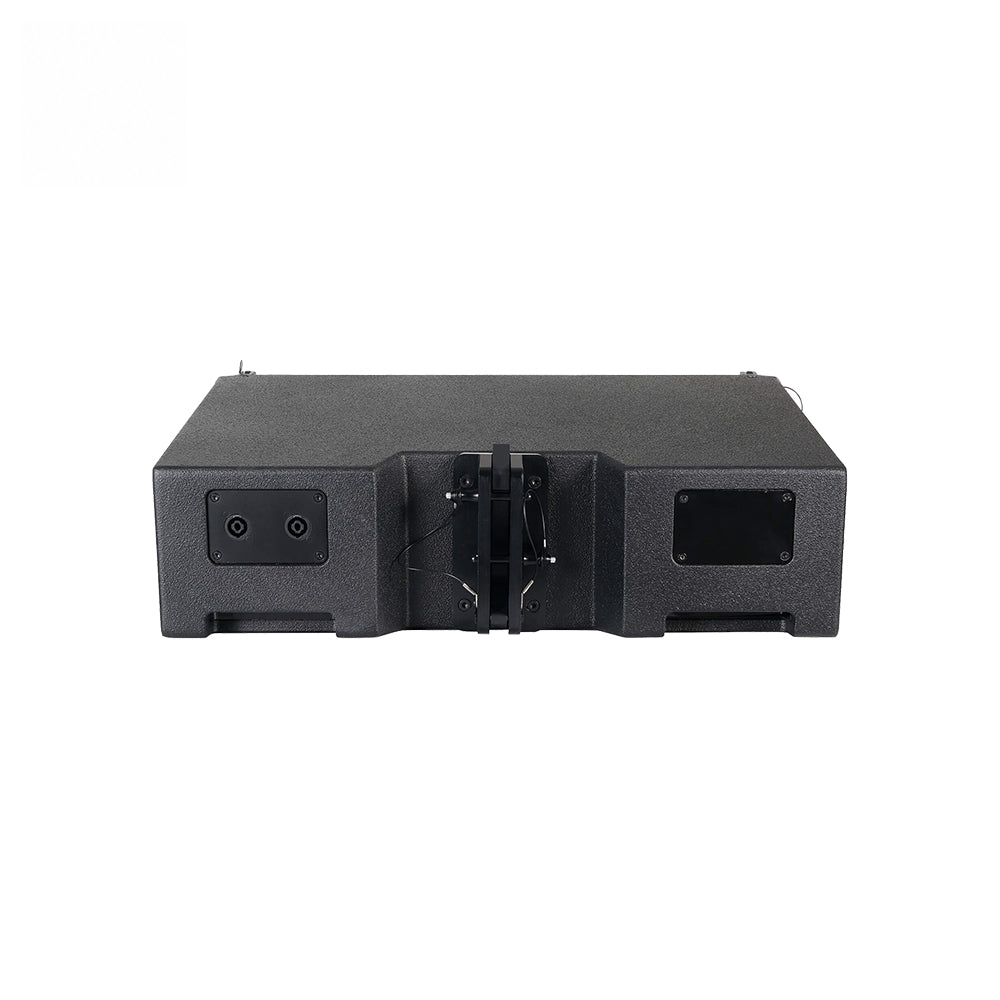

- Connections
- 2 x NLT4 F/M optional 2 x NL4
Physical specifications
- Dimensions
- 235 × 700 × 380 mm
- Weight
- 20 kg / 44 lb
- Cabinets per amplifier channel
- 2
- Weight
- 20 kg44 lb
Compatibility and deployment
- Nominal dispersion angle (horizontal)
- 80°
- Splay angle settings
- 0° - 14° (1° increment)
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 139 dB |
|---|---|
| Bandwidth | 54 Hz – 19 kHz |
| Transducers | • LF: 2 × 8″ • MF/HF: 1 × 8″ + 1 × 1.4″ compression driver |
| Dimensions | 235 × 700 × 380 mm |
| Weight | 20 kg / 44 lb |
| Frequency response (-5 dB standard) | 54 Hz - 19 kHz |
| Frequency response (-5 dB CUT mode) | 100 Hz - 19 kHz |
| Max. sound pressure1 with 10D | 134 dB with D20/30D:137 dB with D40/D80/40D:139 dB |
| Cabinets per amplifier channel | 2 |
| Configuration | High performance 2-way passive line array loudspeaker |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 400/1600 W |
| Nominal dispersion angle (horizontal) | 80° |
| Splay angle settings | 0° - 14° (1° increment) |
| Components | 2 x 8" driver with neodymium magnet 1.4" exit compression driverpassive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x NL4 |
| Dimensions (H x W x D) | 257 x 630 x 375 mm10 x 24.8 x 14.8" |
| Weight | 20 kg44 lb |
