Product identification
- Model
- VTX A12 Dual 12-Inch Line Array Loudspeaker
- Product category
- Line Array Systems

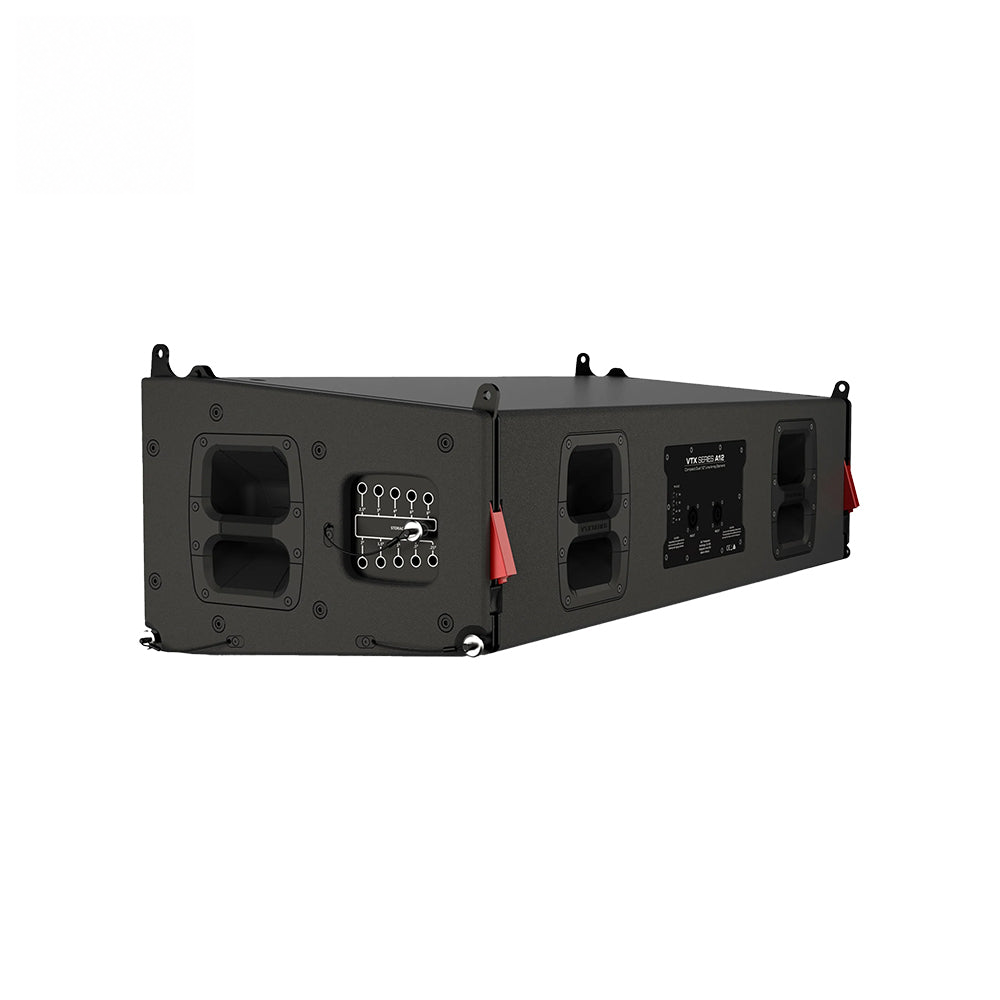

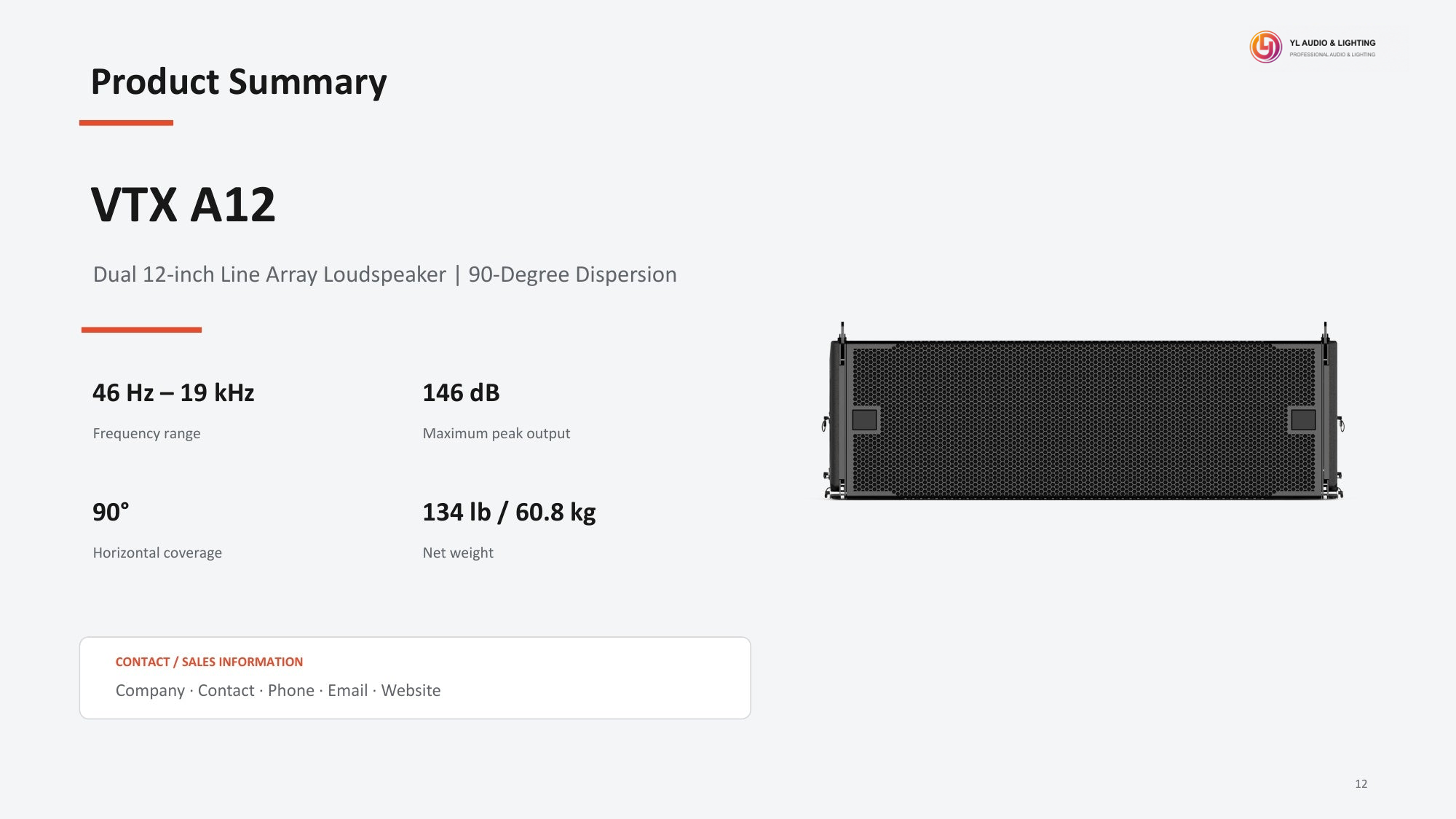

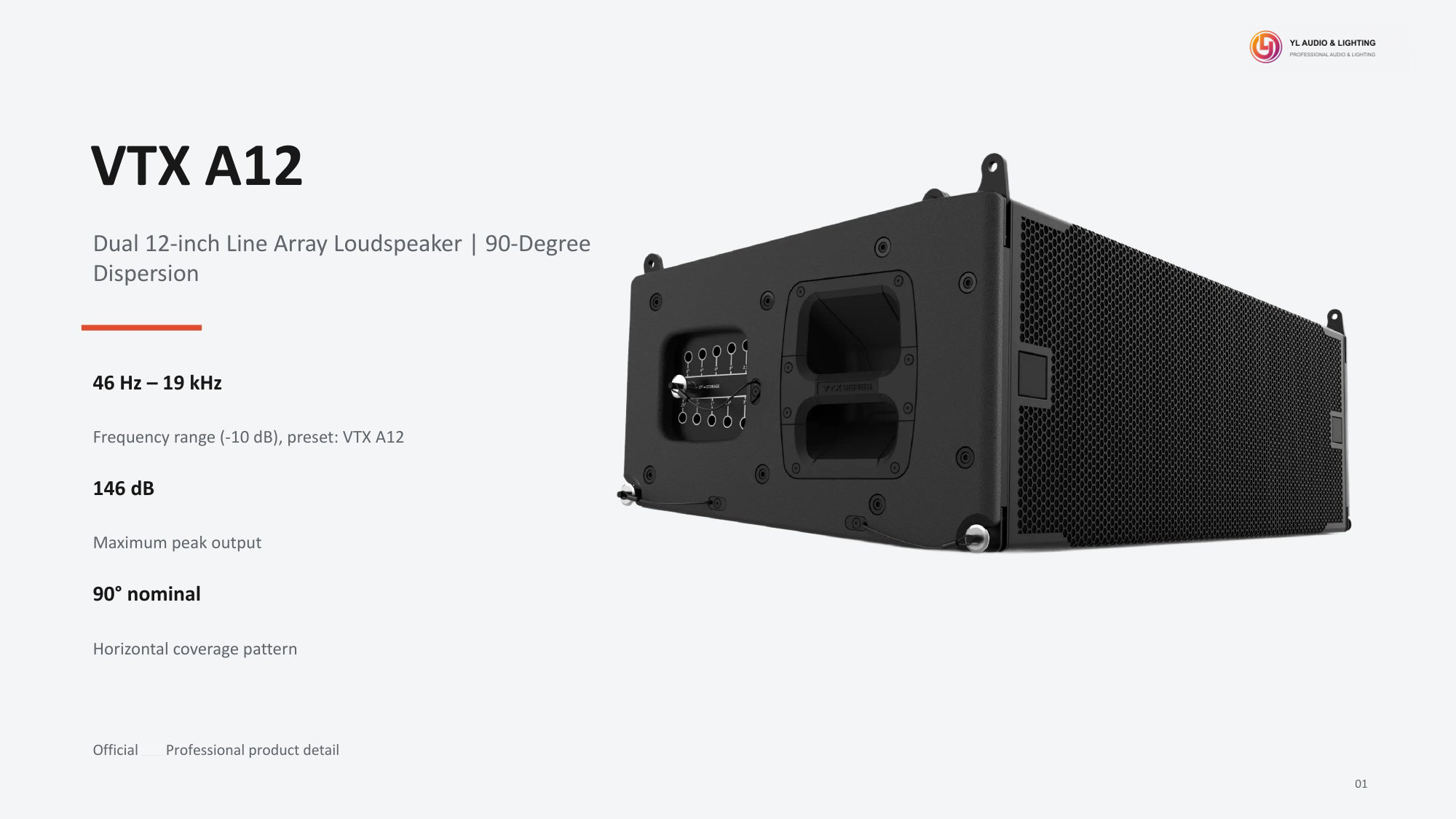

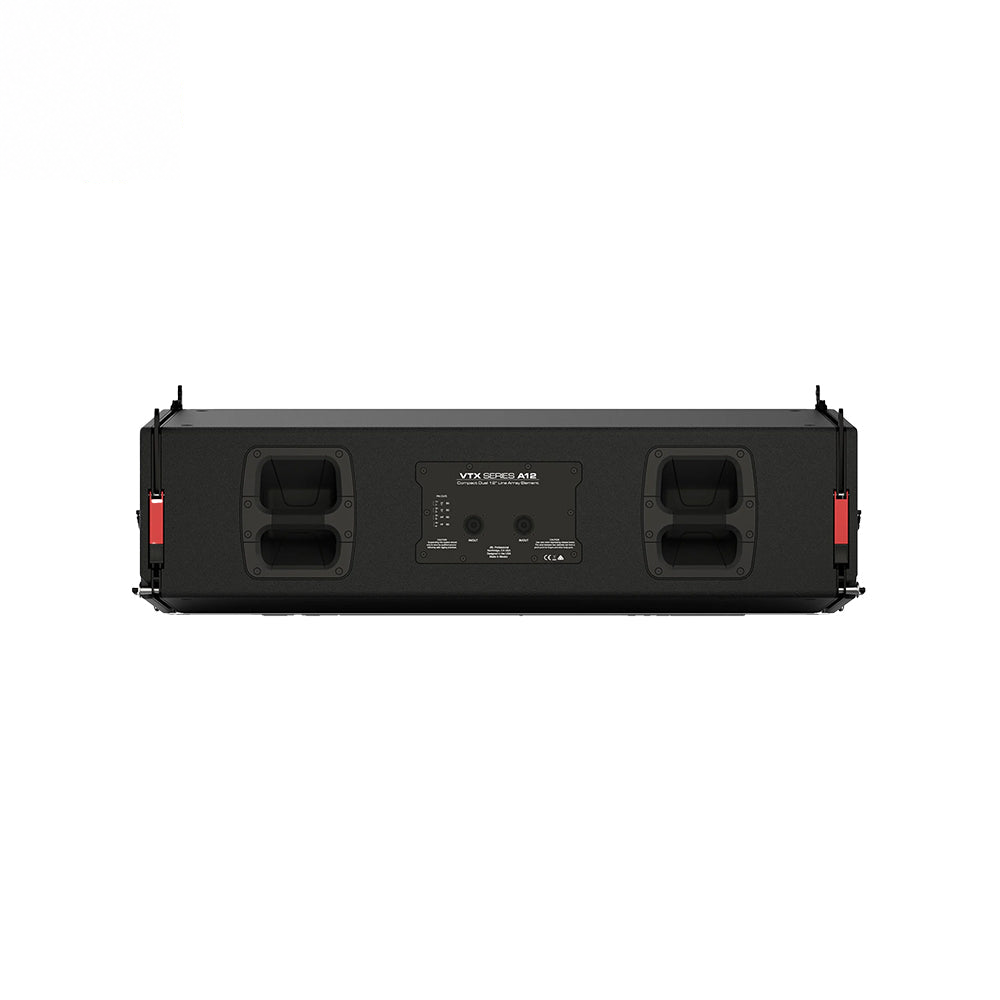

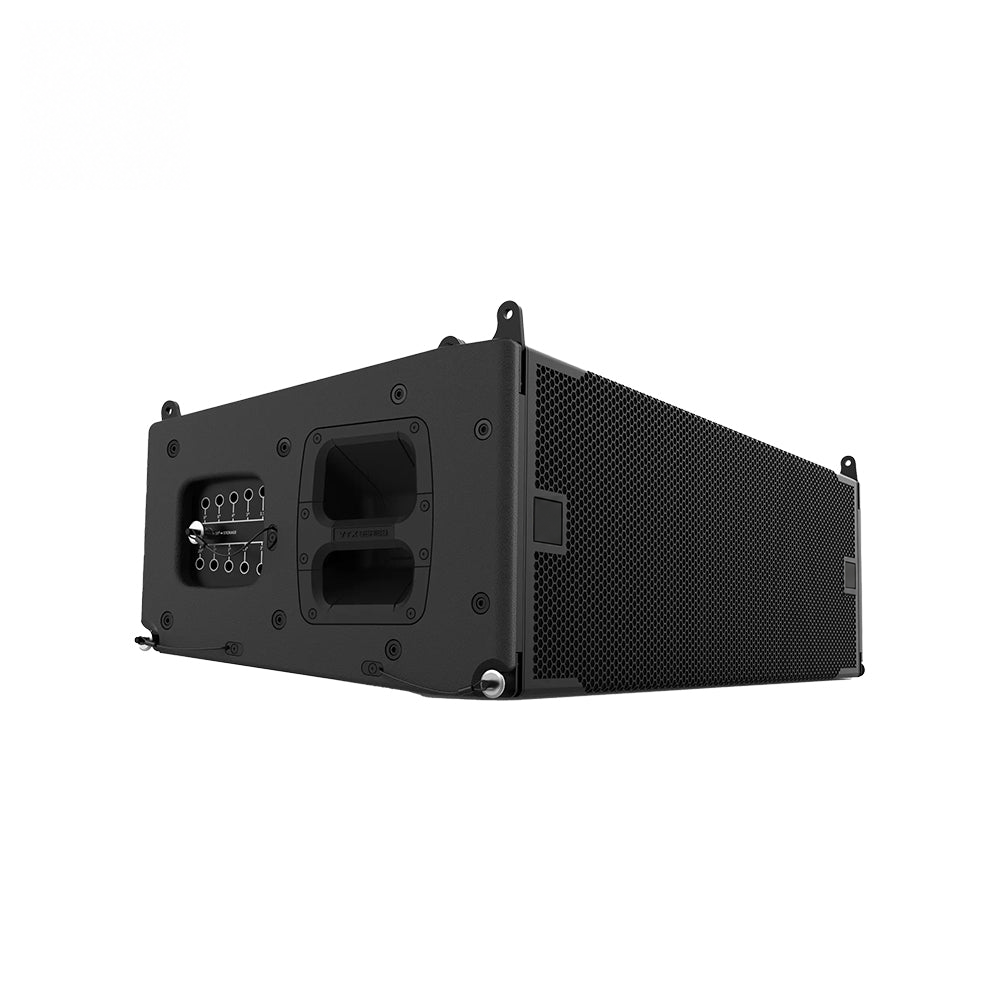

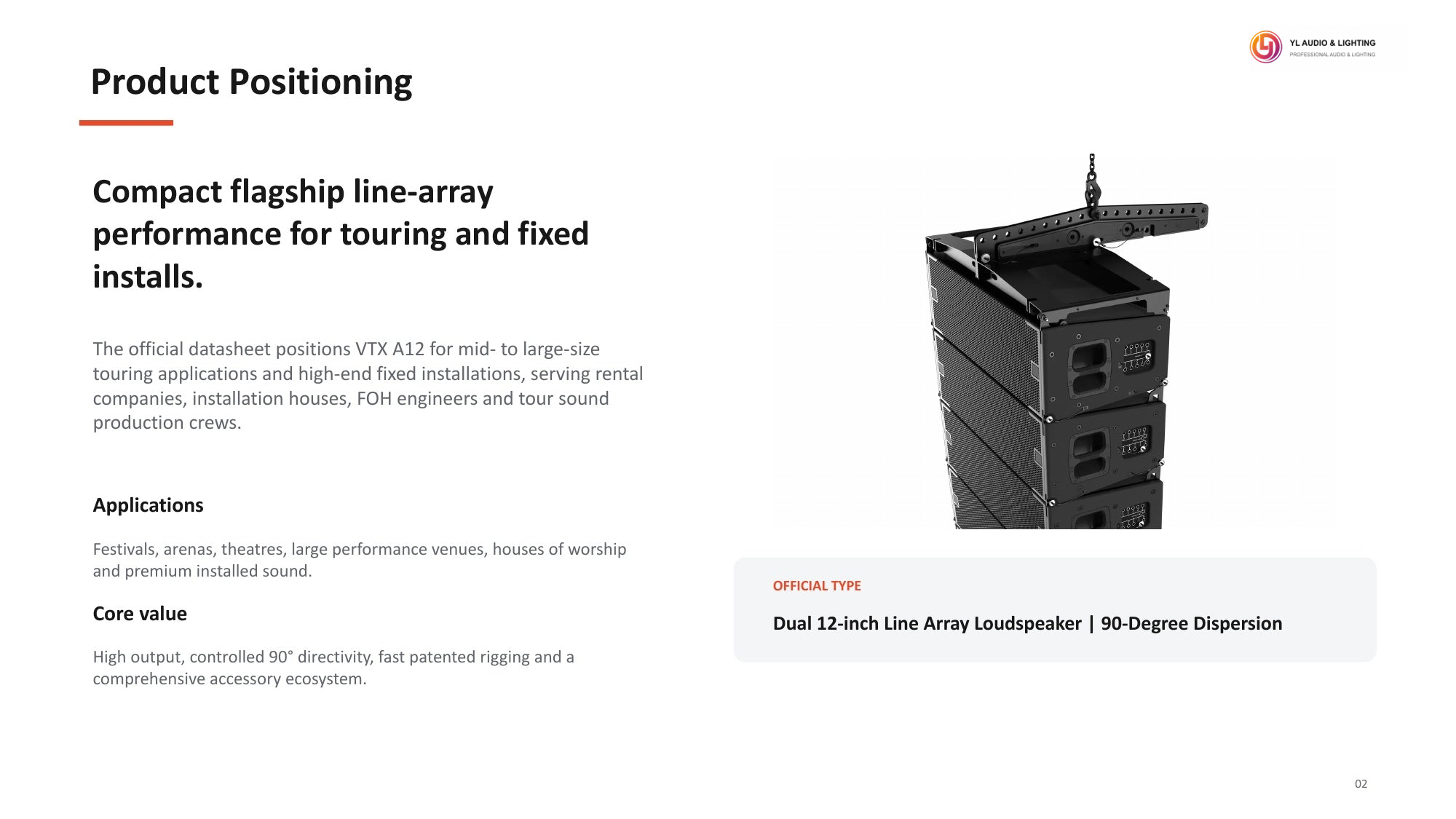

VTX A12 Dual 12-Inch Line Array Loudspeaker
VTX A12 Dual 12-Inch Line Array Loudspeaker is listed in the line array systems category as a line array system. The reference lists frequency range: 46 Hz - 19 kHz (-10 dB), preset VTX A12; rated power: LF 2 x 800 W Continuous; MF 400 W Continuous; HF 150 W Continuous (IEC/100 h). Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 146 dB maximum peak output
- Frequency Range
- 46 Hz - 19 kHz (-10 dB), preset VTX A12
- Weight
- 60.8 kg / 134 lb

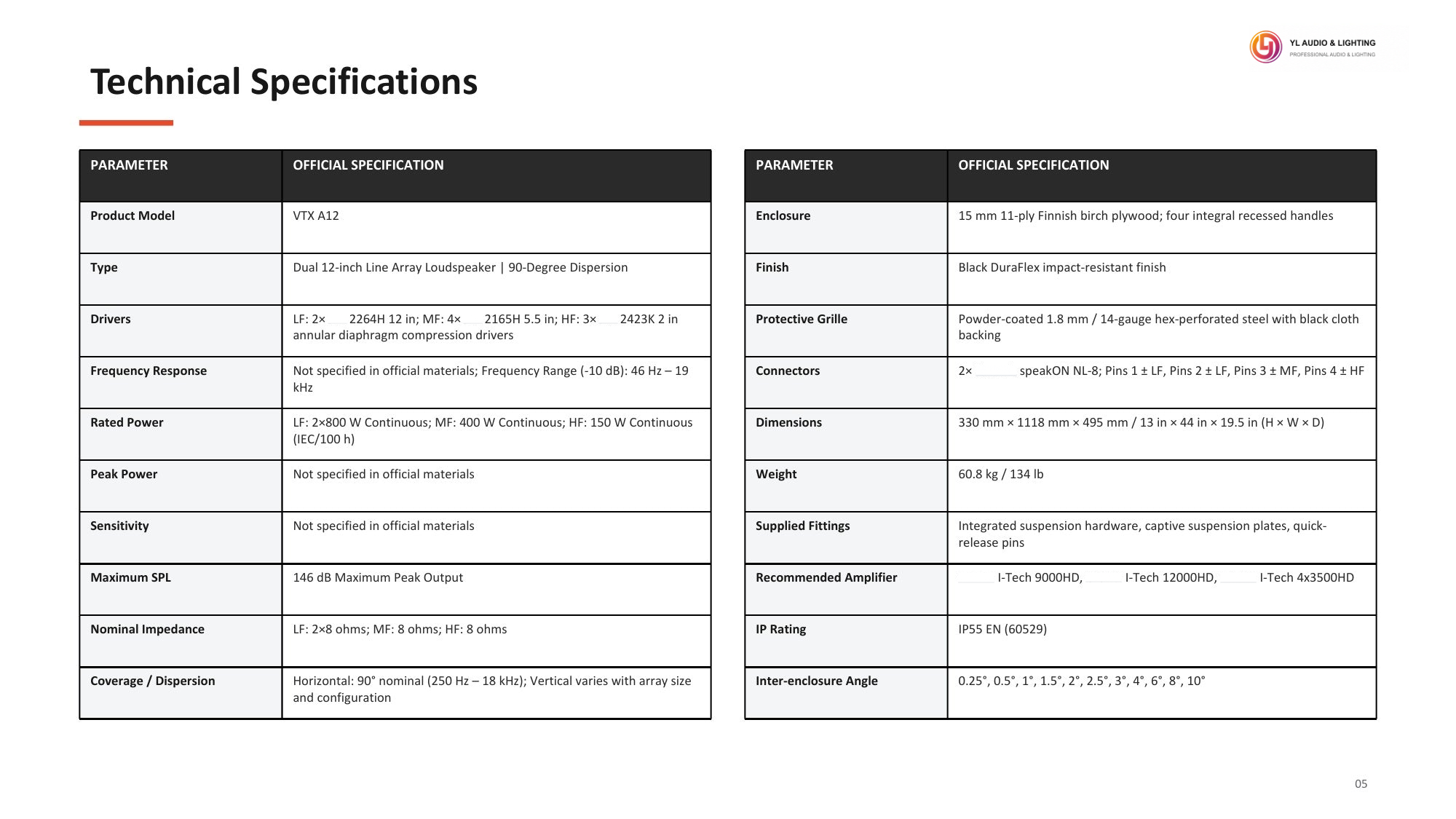

Technical specifications
- Product Model
- VTX A12
- Company Model
- XA12
- Type
- Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion
- Frequency Range
- 46 Hz - 19 kHz (-10 dB), preset VTX A12
- Rated Power
- LF 2 x 800 W Continuous; MF 400 W Continuous; HF 150 W Continuous (IEC/100 h)
- Maximum SPL
- 146 dB maximum peak output
- Nominal Impedance
- LF 2 x 8 ohms; MF 8 ohms; HF 8 ohms
- Coverage / Dispersion
- 90-degree nominal horizontal coverage (250 Hz - 18 kHz); vertical coverage varies with array size and configuration

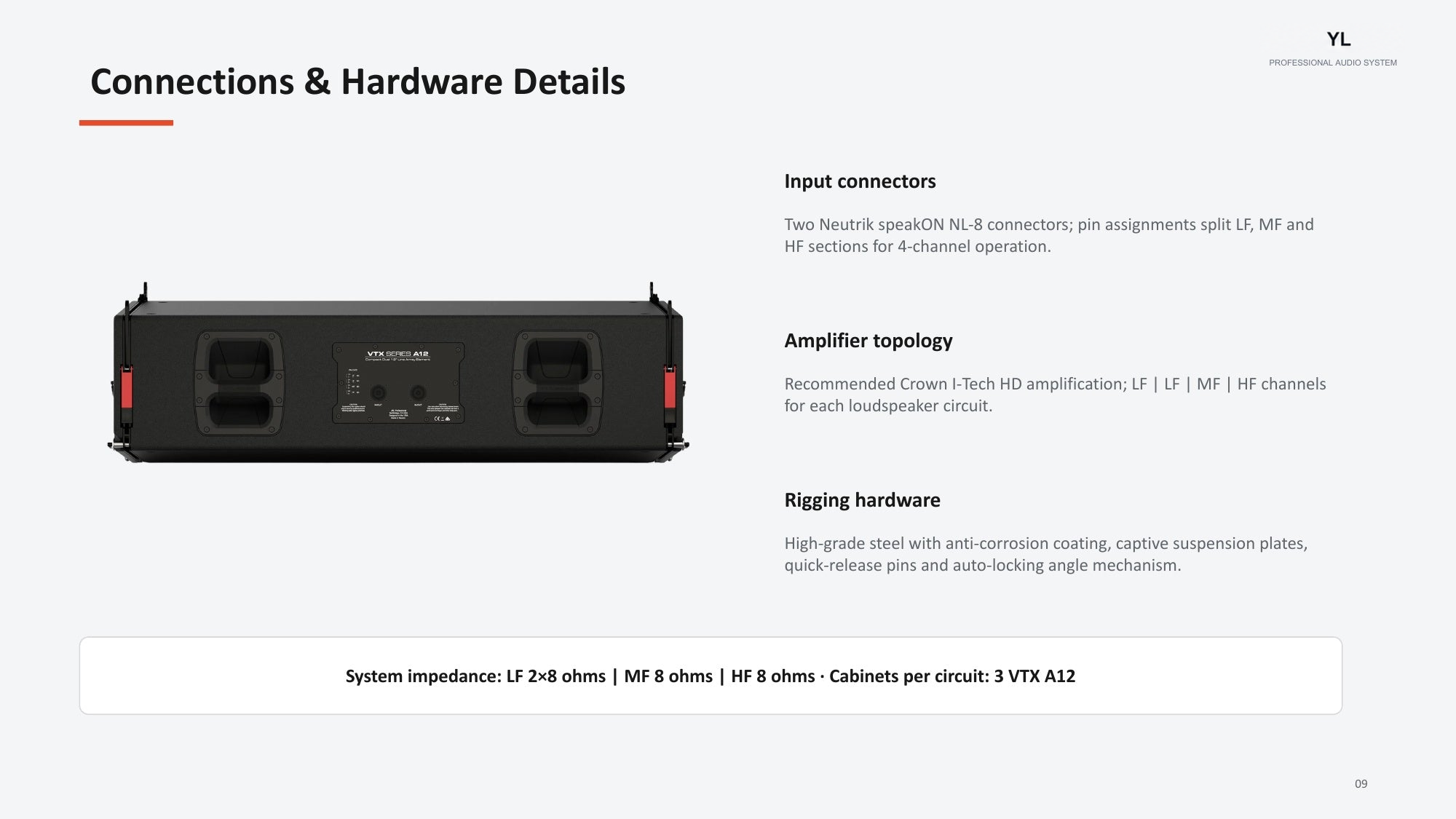

- Connectors
- 2 x Neutrik speakON NL-8; Pins 1 +/- LF, Pins 2 +/- LF, Pins 3 +/- MF, Pins 4 +/- HF
- IP Rating
- IP55 EN (60529)

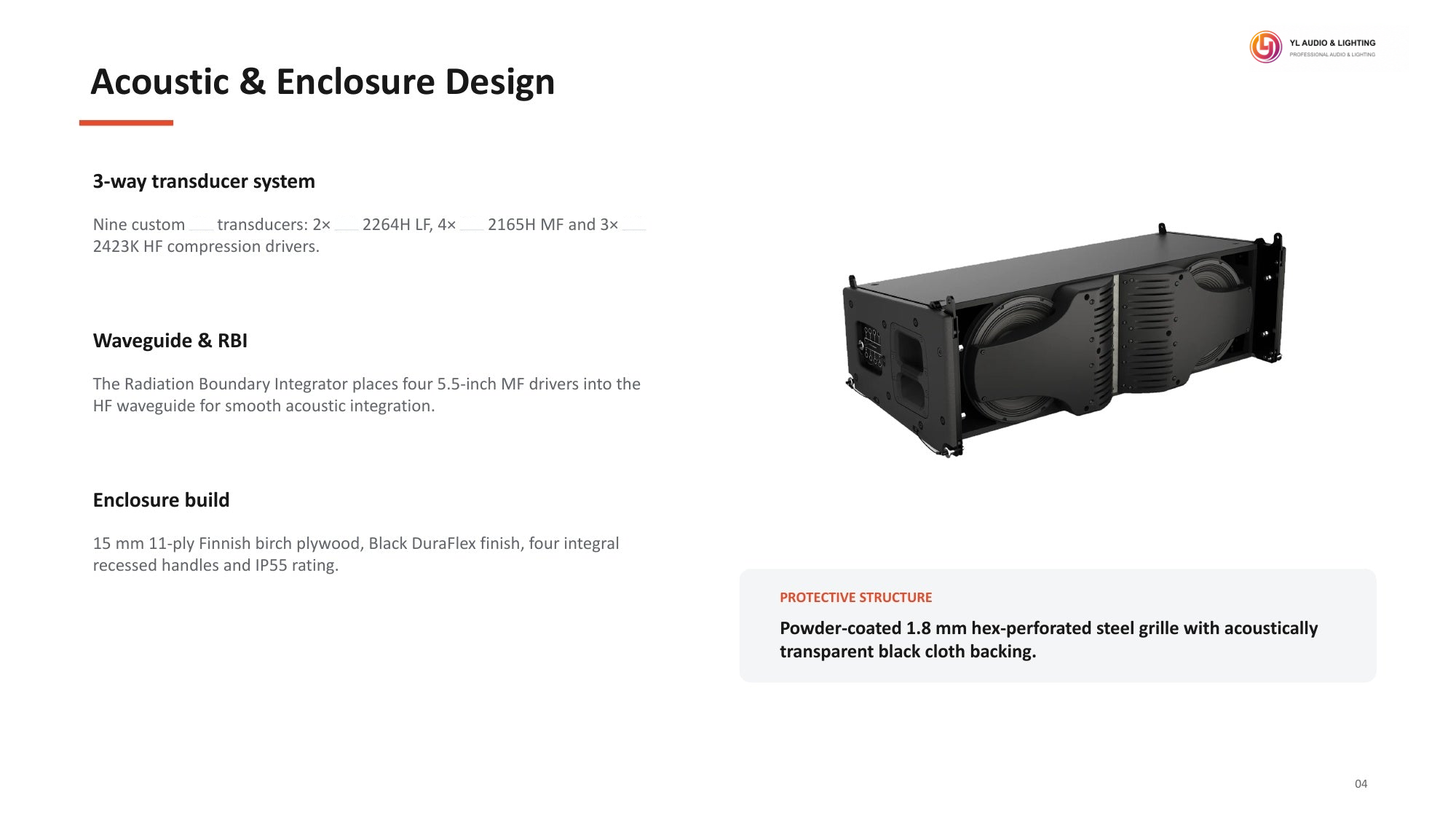

- Drivers

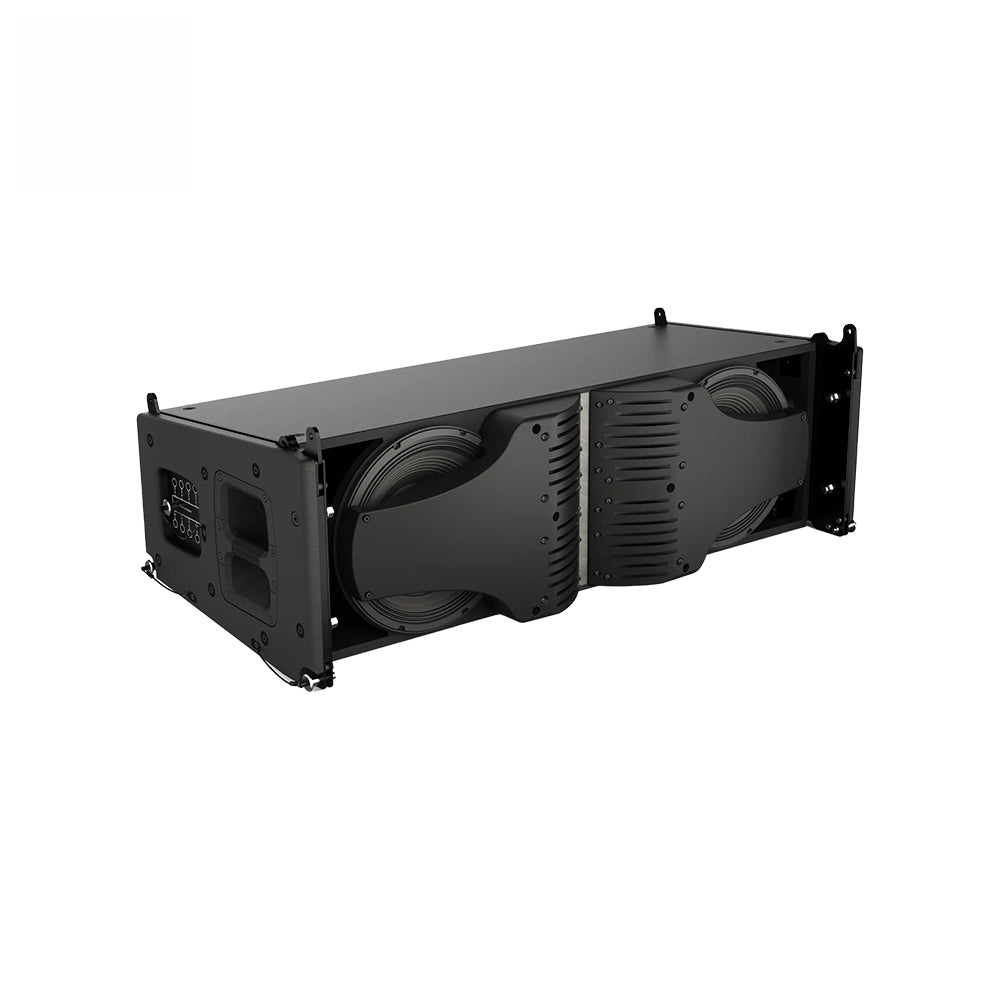

- LF 2 x 2264H 12 in; MF 4 x 2165H 5.5 in; HF 3 x 2423K 2 in annular diaphragm compression drivers

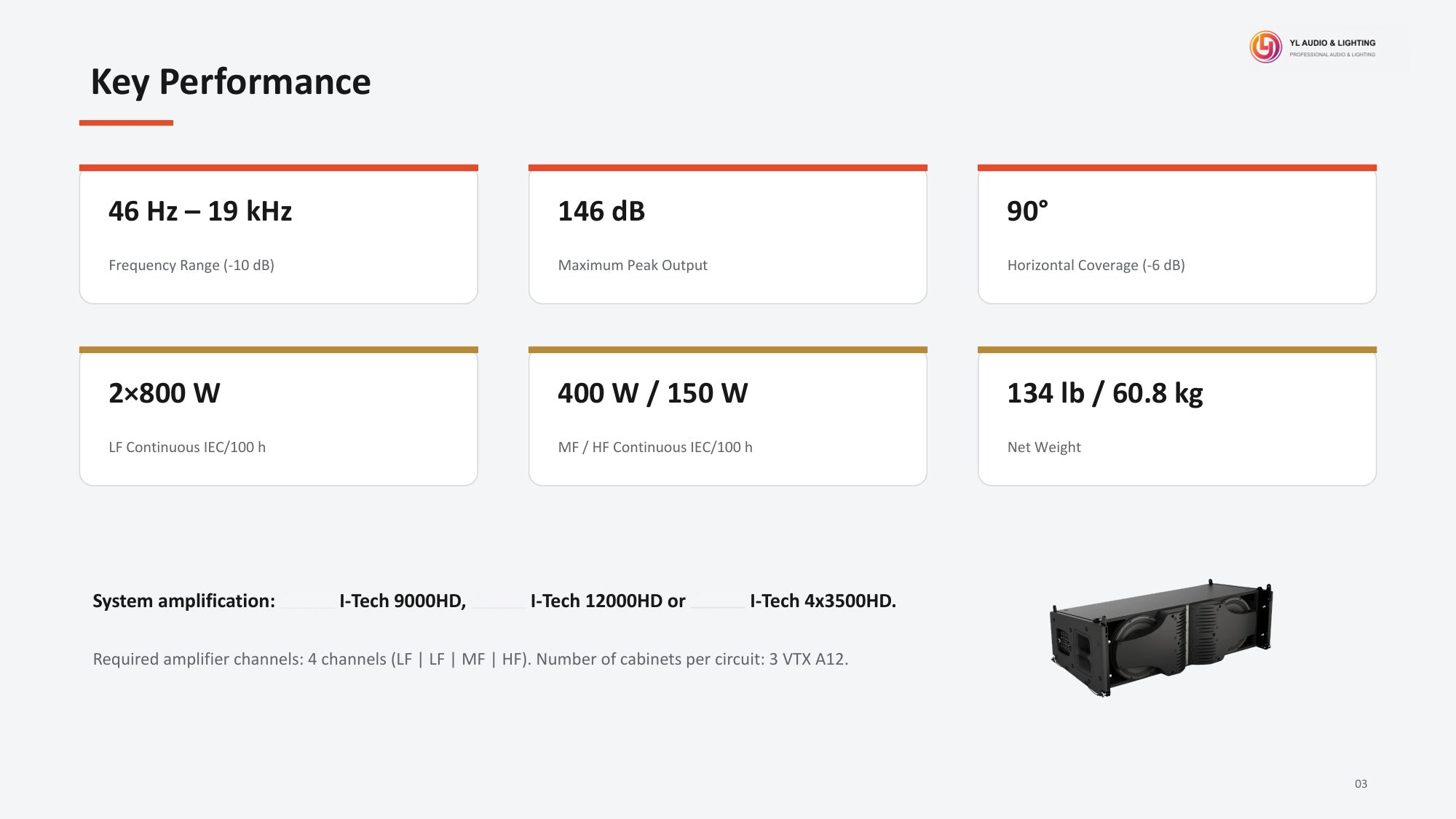

- Recommended Amplifier
- Crown I-Tech 9000HD, Crown I-Tech 12000HD or Crown I-Tech 4x3500HD
Physical specifications
- Enclosure
- 15 mm 11-ply Finnish birch plywood with four integral recessed handles
- Finish
- Black DuraFlex impact-resistant finish
- Protective Grille
- Powder-coated 1.8 mm / 14-gauge hex-perforated steel grille with black cloth backing

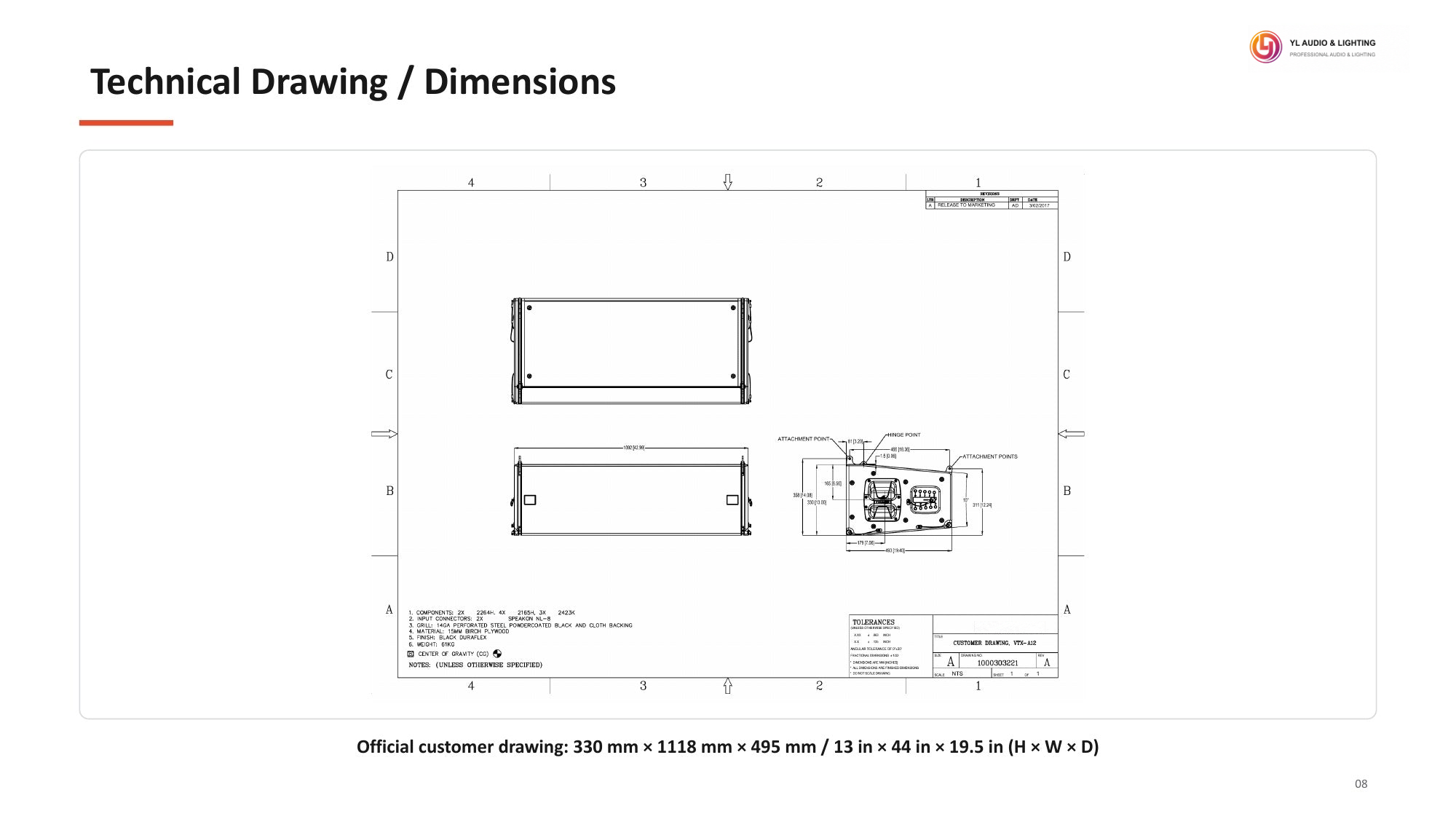

- Dimensions
- 330 x 1118 x 495 mm / 13 x 44 x 19.5 in (H x W x D)
- Weight
- 60.8 kg / 134 lb

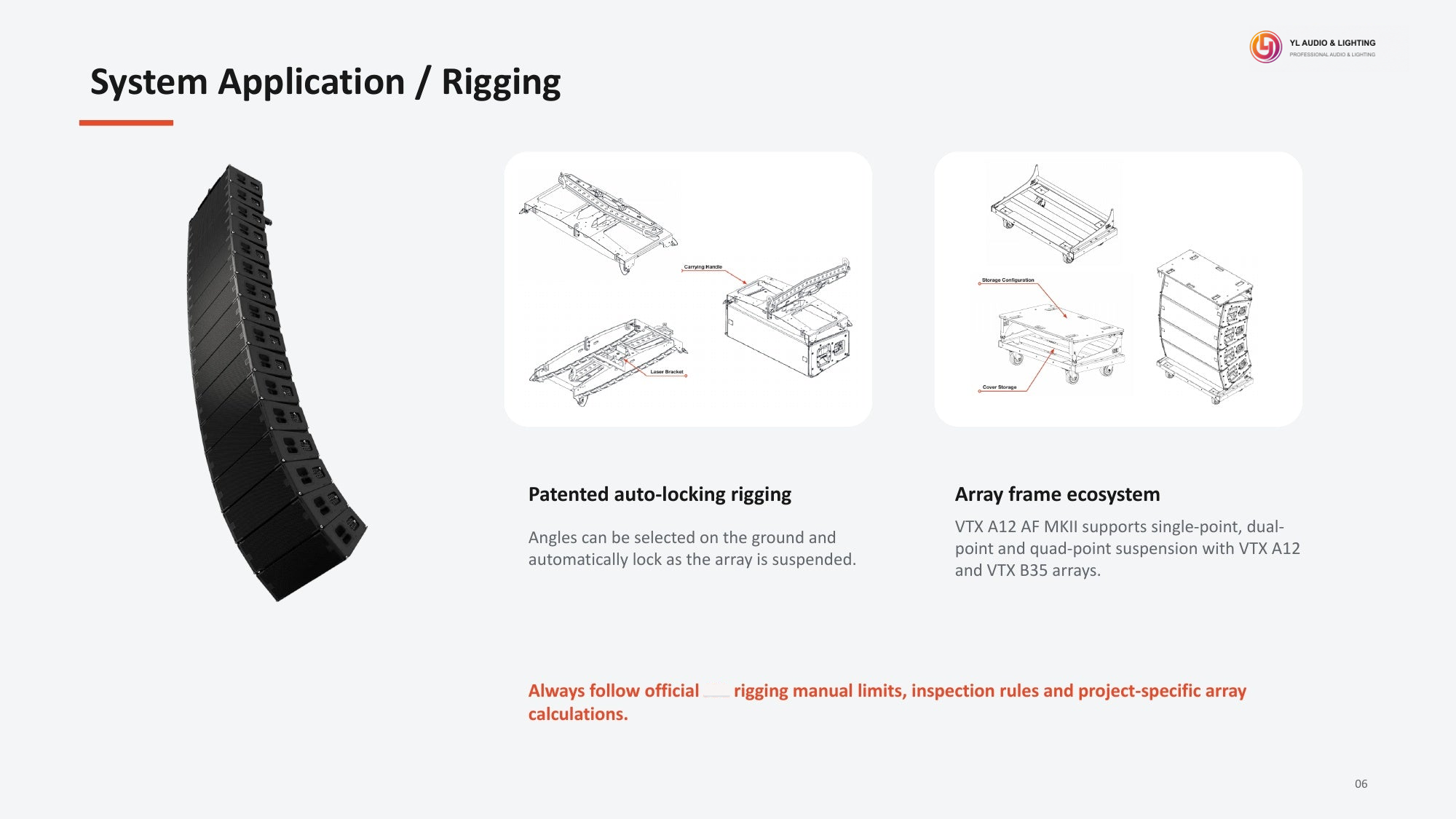

- Inter-enclosure Angle
- 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10 degrees
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Product Model | VTX A12 |
|---|---|
| Company Model | XA12 |
| Type | Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion |
| Frequency Range | 46 Hz - 19 kHz (-10 dB), preset VTX A12 |
| Rated Power | LF 2 x 800 W Continuous; MF 400 W Continuous; HF 150 W Continuous (IEC/100 h) |
| Maximum SPL | 146 dB maximum peak output |
| Nominal Impedance | LF 2 x 8 ohms; MF 8 ohms; HF 8 ohms |
| Coverage / Dispersion | 90-degree nominal horizontal coverage (250 Hz - 18 kHz); vertical coverage varies with array size and configuration |
| Enclosure | 15 mm 11-ply Finnish birch plywood with four integral recessed handles |
| Finish | Black DuraFlex impact-resistant finish |
| Protective Grille | Powder-coated 1.8 mm / 14-gauge hex-perforated steel grille with black cloth backing |
| Connectors | 2 x Neutrik speakON NL-8; Pins 1 +/- LF, Pins 2 +/- LF, Pins 3 +/- MF, Pins 4 +/- HF |
| Dimensions | 330 x 1118 x 495 mm / 13 x 44 x 19.5 in (H x W x D) |
| Weight | 60.8 kg / 134 lb |
| IP Rating | IP55 EN (60529) |
| Inter-enclosure Angle | 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10 degrees |
Downloads
| Title | File type | Download |
|---|---|---|
| YL VTX A12 Product DetailsEnglish | PDF5.6 MB | |
| YL VTX A12 Product Details — Additional ViewsEnglish | PDF287 KB |

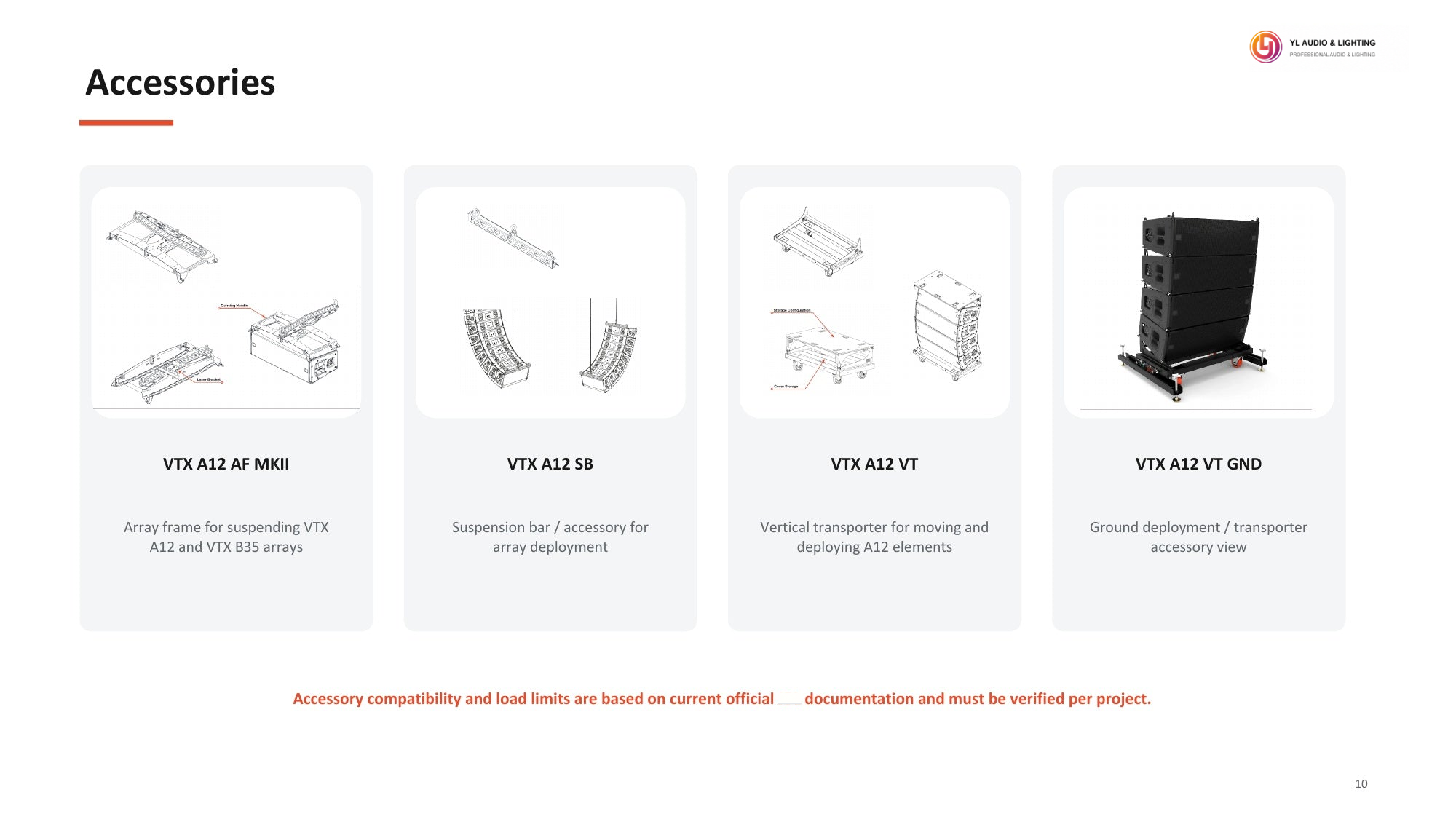

System accessories
YL LightYL-JBLX
Rigging & Accessories

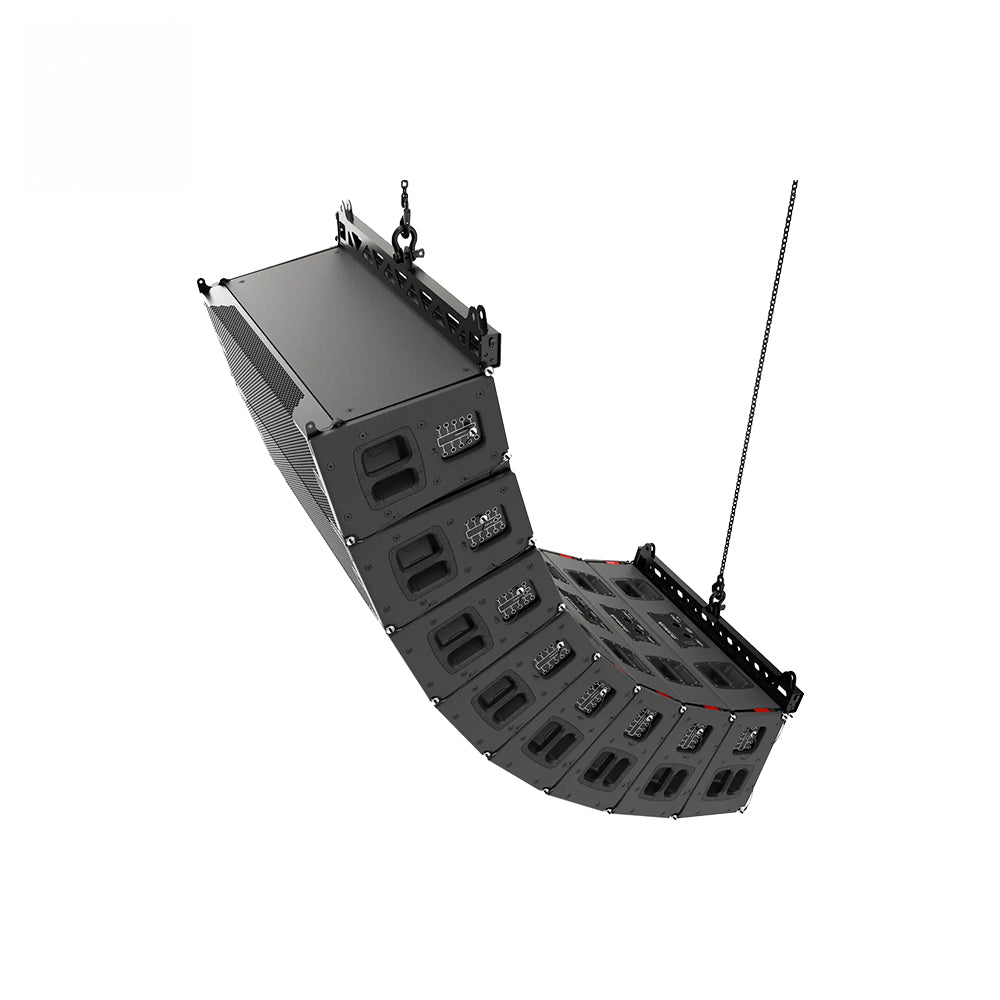

VTX A12 AF MKII Array Frame
VTX A12 AF MKII Array Frame is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-JBLX
Rigging & Accessories
A12 AF - Extension Bar for use with A12 AF
A12 AF - Extension Bar for use with A12 AF is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-JBLX
Rigging & Accessories

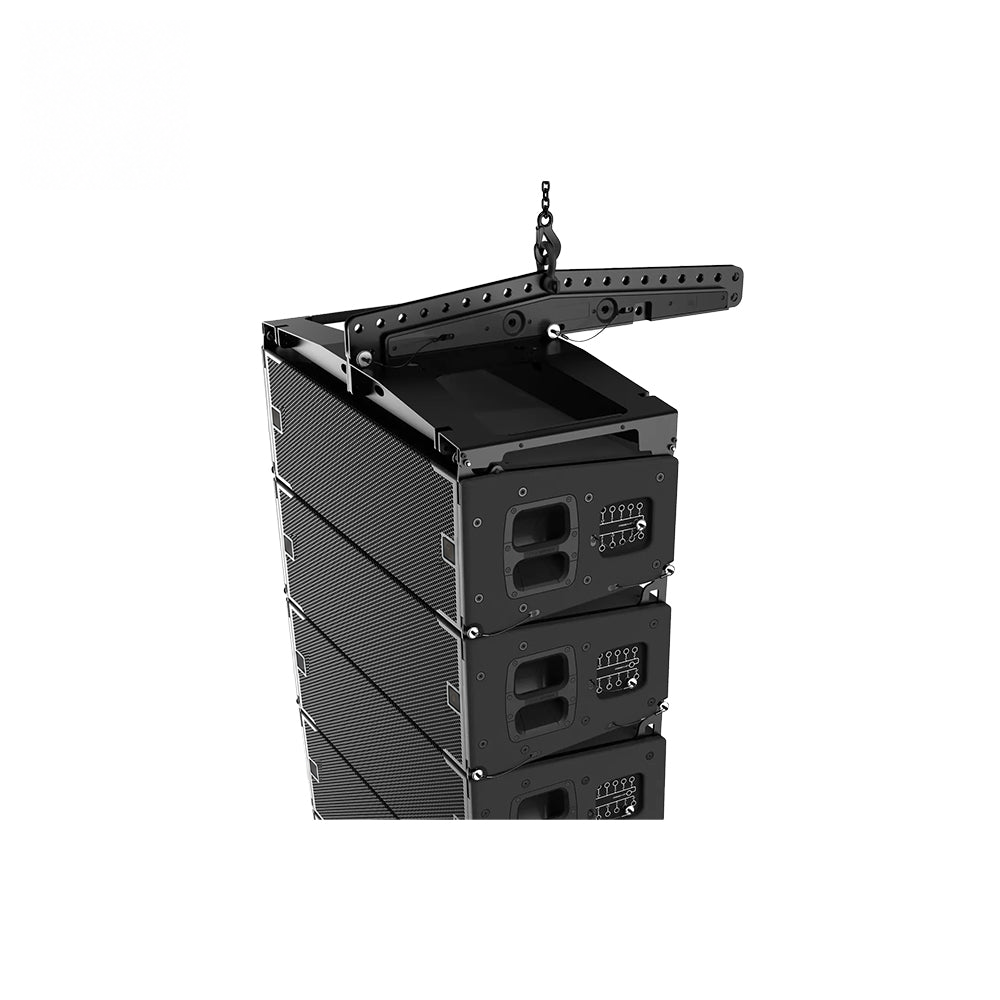

VTX A12 SB Suspension Bar
VTX A12 SB Suspension Bar is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-JBLX
Rigging & Accessories
VTX A12 VT GND Ground Transporter
VTX A12 VT GND Ground Transporter is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-JBLX
Rigging & Accessories

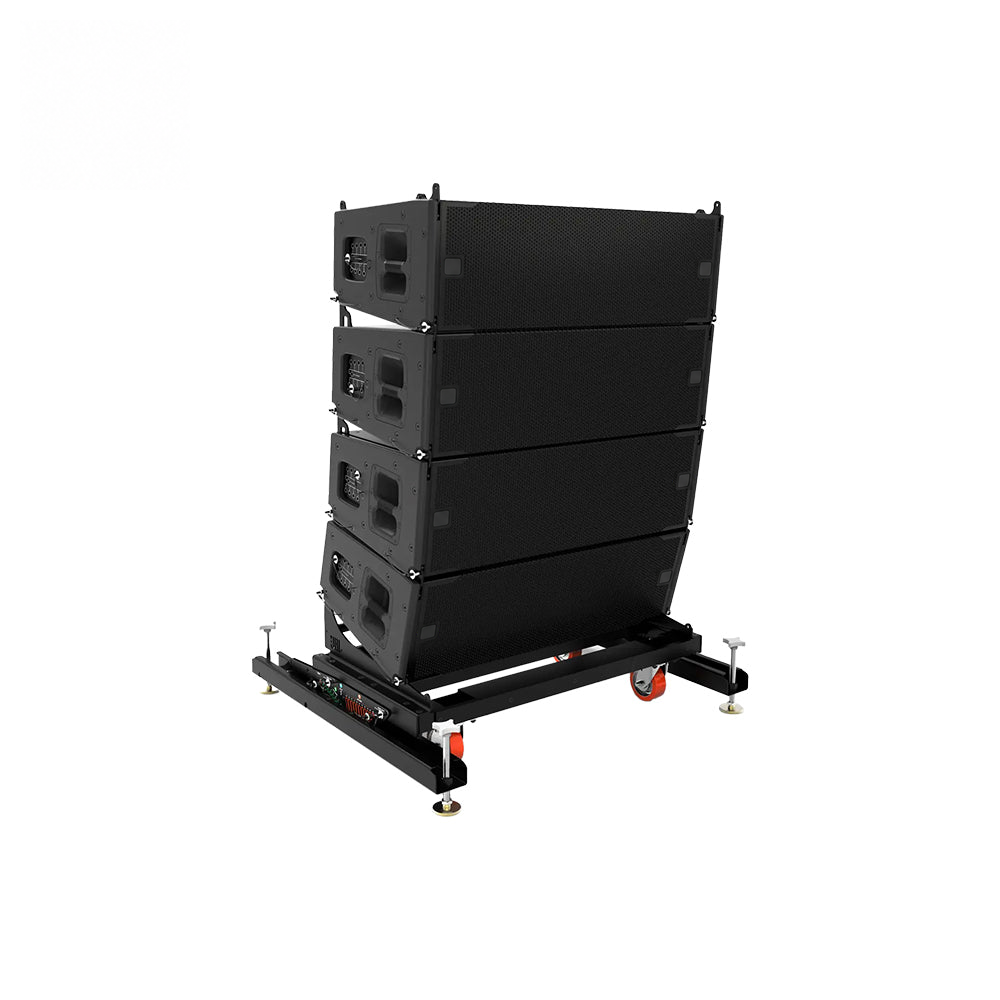

A12Larger Images - Vertical transport cart for (4) A12 enclosures
