Product identification
- Model
- V25 3-Way Dual 15-Inch Line Array Element
- Product category
- Line Array Systems

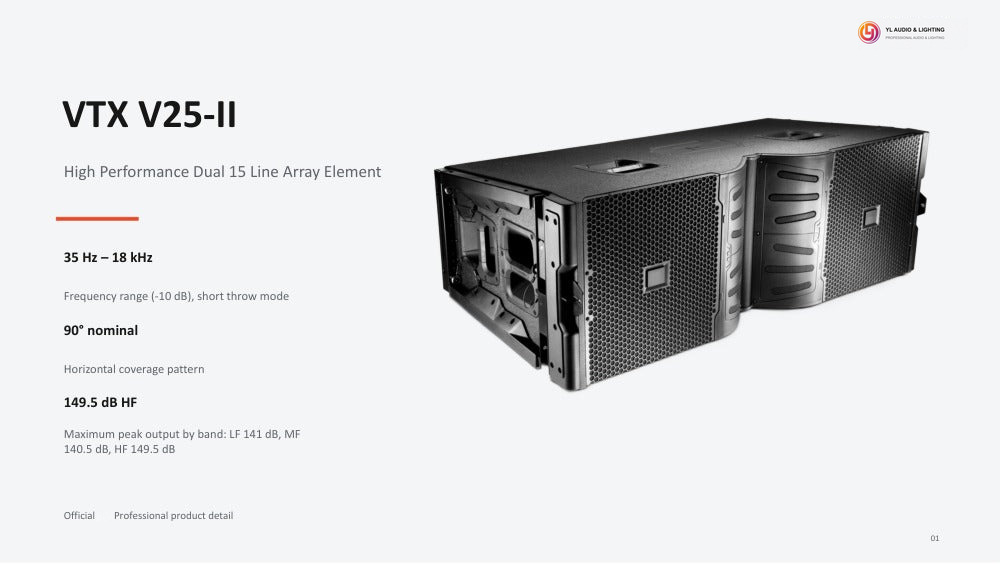

V25 3-Way Dual 15-Inch Line Array Element
V25 3-Way Dual 15-Inch Line Array Element is listed in the line array systems category as a line array system. The reference lists frequency range: 35 Hz - 18 kHz; horizontal coverage: 90 deg nominal. Confirm the exact model, current specifications and supply details before use.

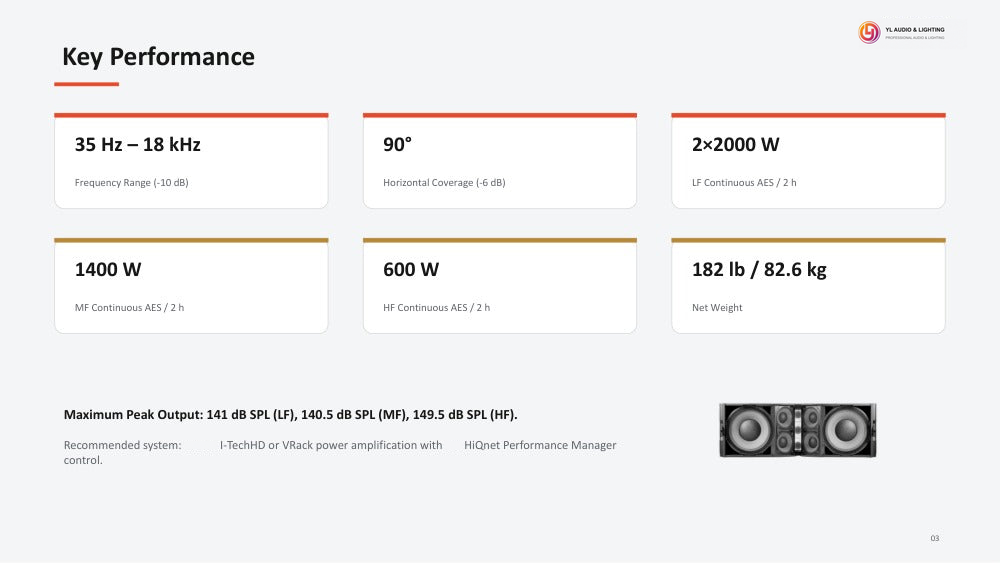

WHATSAPPRequest a Quote- Maximum SPL
- 141 dB LF / 140.5 dB MF / 149.5 dB HF peak by band
- Frequency range
- 35 Hz - 18 kHz
- Weight
- 82.6 kg / 182 lb

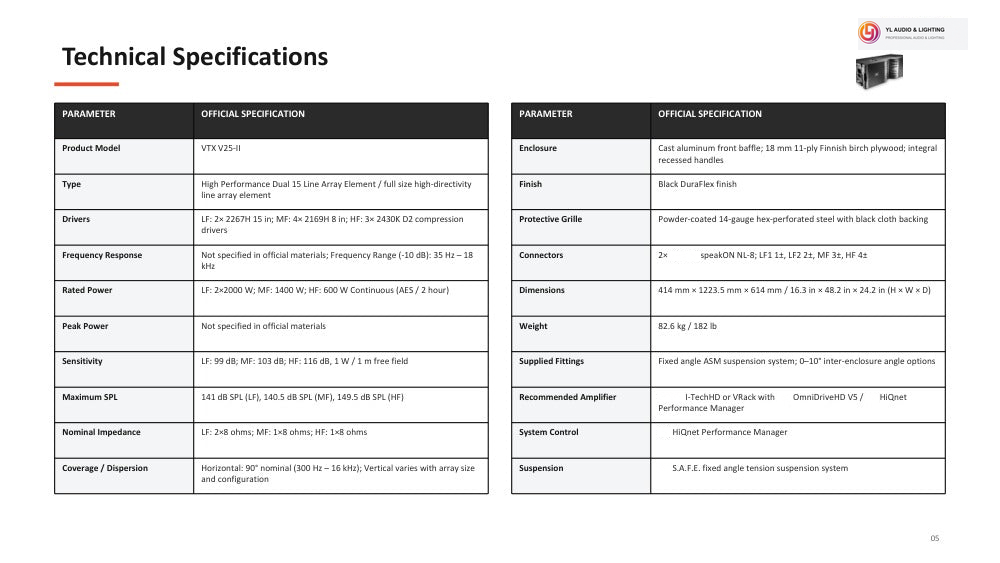

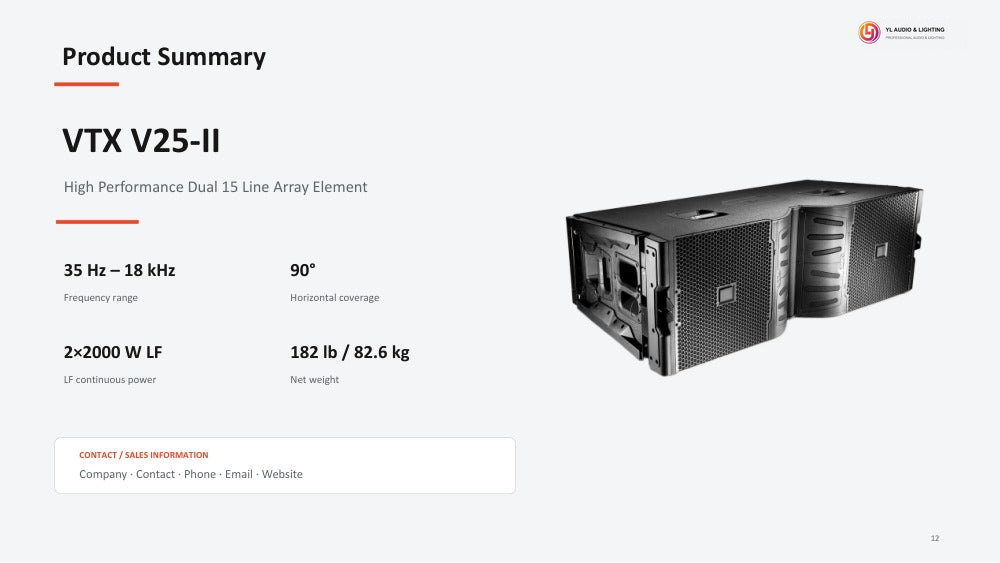

Technical specifications
- Type
- 3-way dual 15-inch line array element
- Frequency range
- 35 Hz - 18 kHz
- Horizontal coverage
- 90 deg nominal

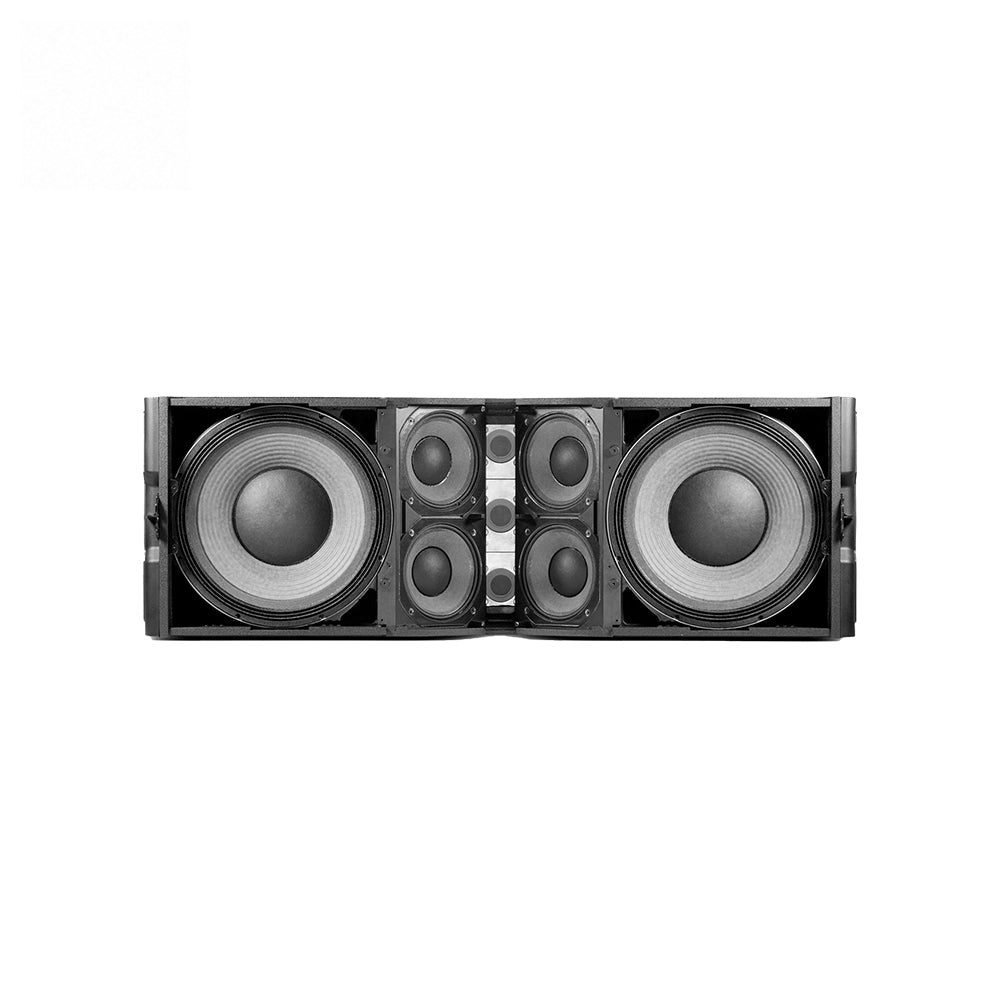

- Transducers
- LF: 2 x 15 in; MF: 4 x 8 in; HF: 3 compression drivers
- Maximum SPL
- 141 dB LF / 140.5 dB MF / 149.5 dB HF peak by band
- Power handling
- LF: 2 x 2000 W; MF: 1400 W; HF: 600 W continuous AES
- Model
- VTX V25-II / V25
- Drivers
- LF 2 x 2267H 15 in; MF 4 x 2169H 8 in; HF 3 x 2430K D2 compression drivers Frequency range: 35 Hz - 18 kHz (-10 dB), short throw mode
- Rated power
- LF 2 x 2000 W; MF 1400 W; HF 600 W Continuous (AES / 2 hour)
- Peak power
- Not specified in official materials Sensitivity: LF 99 dB; MF 103 dB; HF 116 dB, 1 W / 1 m free field
- Maximum SPL
- 141 dB SPL (LF), 140.5 dB SPL (MF), 149.5 dB SPL (HF)
- Nominal impedance
- LF 2 x 8 ohms; MF 1 x 8 ohms; HF 1 x 8 ohms Coverage / dispersion: Horizontal 90-degree nominal (300 Hz - 16 kHz); vertical varies with array size and configuration

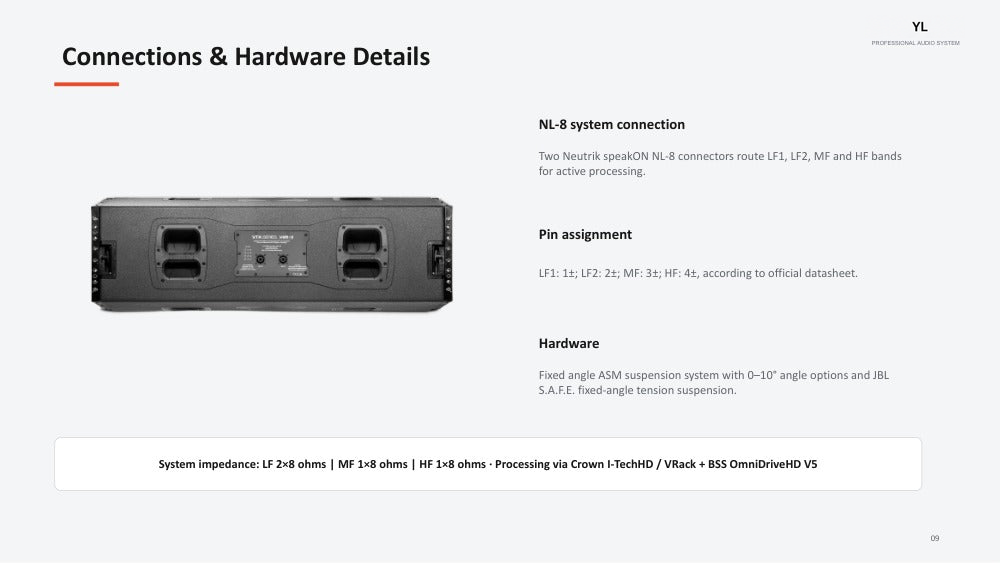

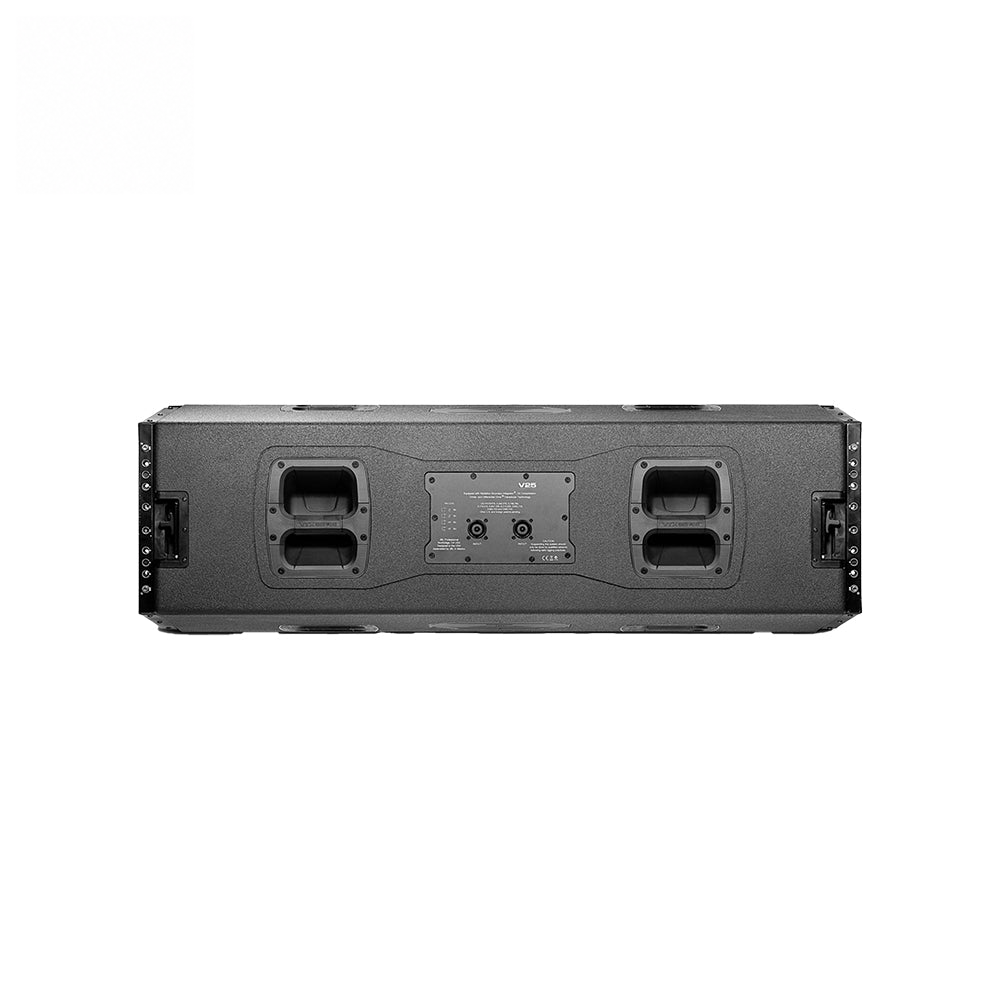

- Connectors
- 2 x Neutrik speakON NL-8; LF1 1 +/-, LF2 2 +/-, MF 3 +/-, HF 4 +/-
- Recommended amplifier
- Crown I-TechHD or VRack with BSS OmniDriveHD V5 / HiQnet Performance Manager System control: HiQnet Performance Manager Suspension: S.A.F.E. fixed angle tension suspension system
- Frequency range
- 35 Hz - 18 kHz (-10 dB), short throw mode
- Peak power
- Not specified in official materials
- Sensitivity
- LF 99 dB; MF 103 dB; HF 116 dB, 1 W / 1 m free field
- Coverage / dispersion
- Horizontal 90-degree nominal (300 Hz - 16 kHz); vertical varies with array size and configuration
- Recommended amplifier
- Crown I-TechHD or VRack with BSS OmniDriveHD V5 / HiQnet Performance Manager
- System control
- HiQnet Performance Manager
Physical specifications

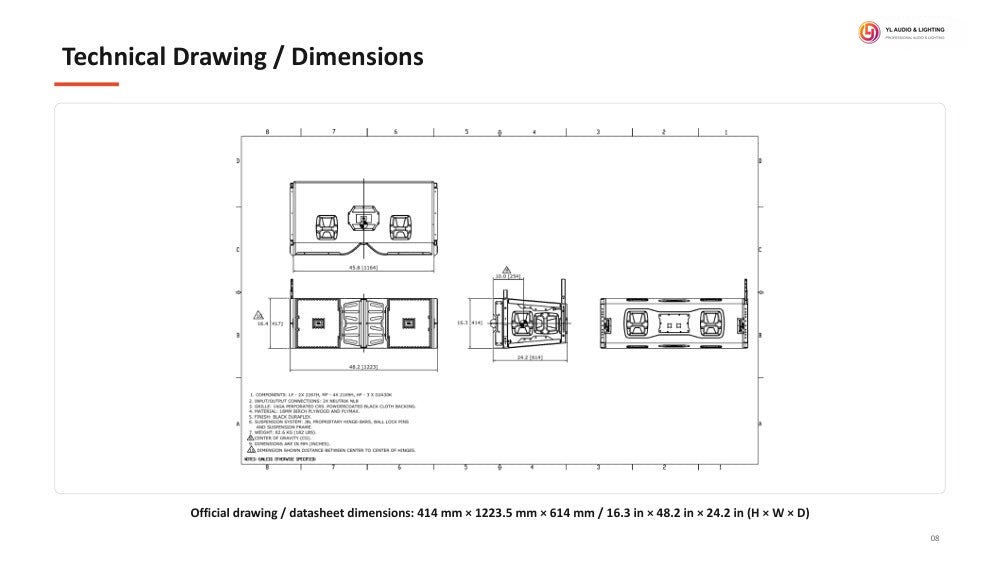

- Dimensions
- 414 x 1223.5 x 614 mm (H x W x D)
- Weight
- 82.6 kg / 182 lb
- Dimensions
- 414 x 1223.5 x 614 mm / 16.3 x 48.2 x 24.2 in (H x W x D)

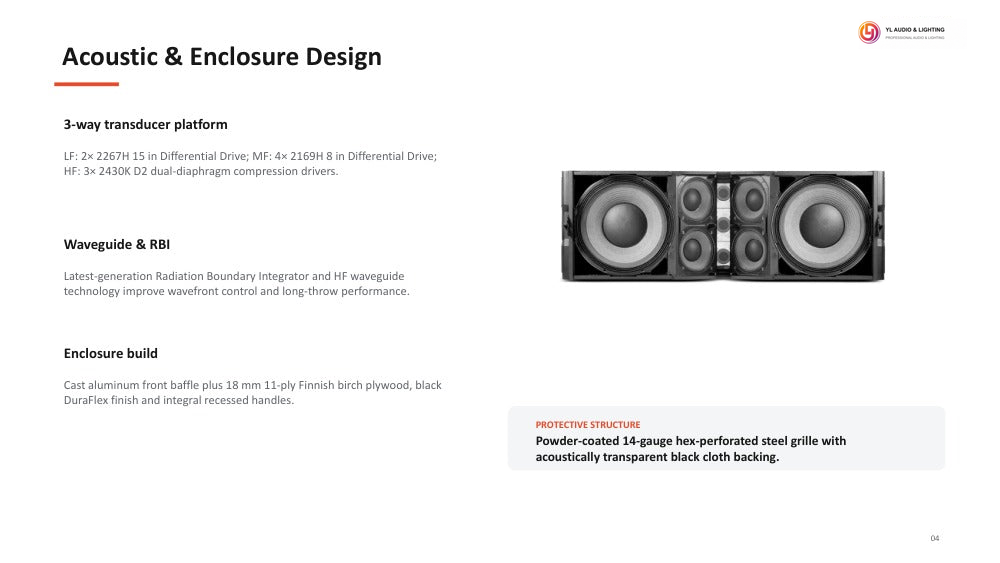

- Enclosure
- Cast aluminum front baffle; 18 mm 11-ply Finnish birch plywood; integral recessed handles Finish: Black DuraFlex finish Protective grille: Powder-coated 14-gauge hex-perforated steel with black cloth backing
- Finish
- Black DuraFlex finish
- Protective grille
- Powder-coated 14-gauge hex-perforated steel with black cloth backing
Compatibility and deployment

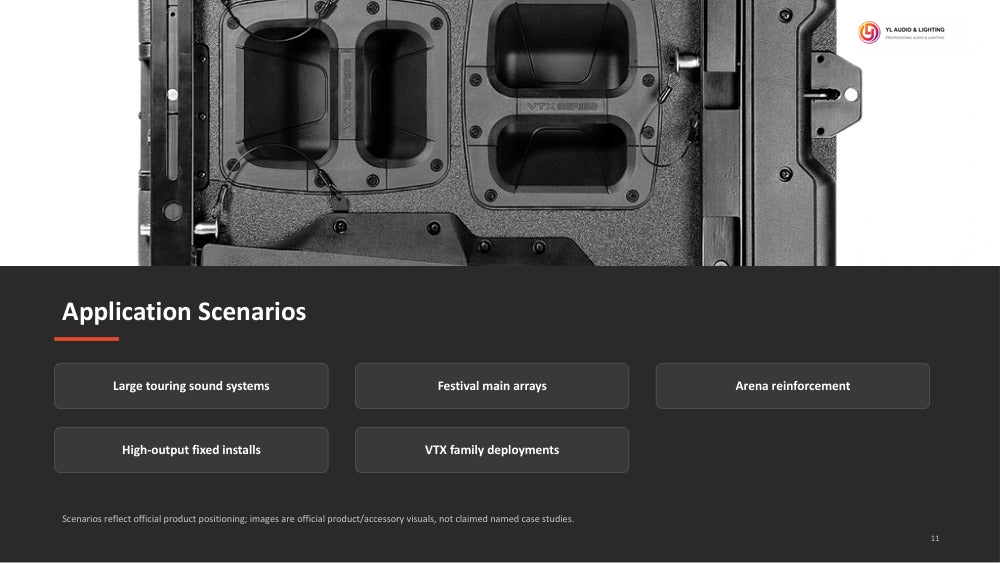

- Applications
- large touring sound systems, festival main arrays, arena reinforcement and high-output fixed installations.
- Suspension

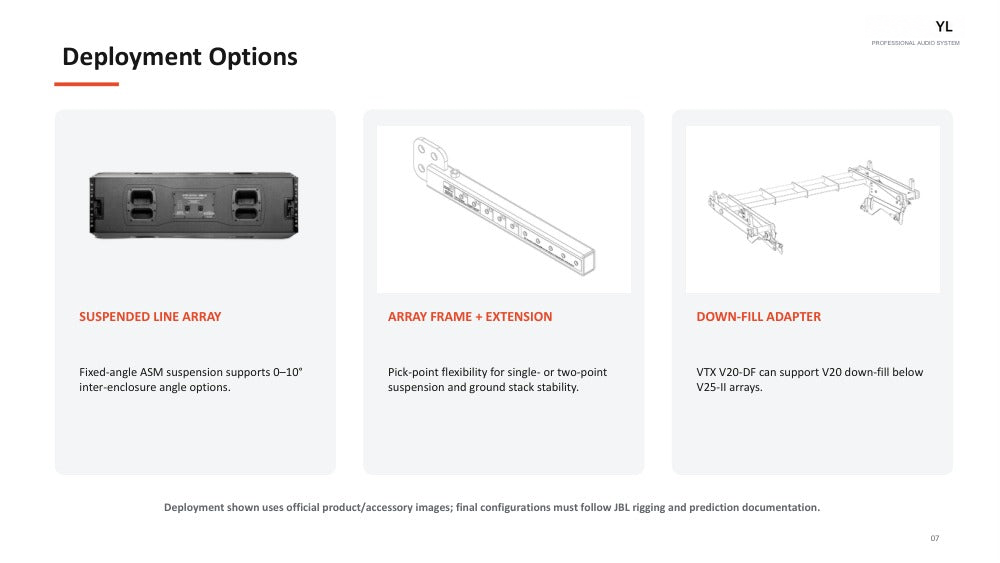

- S.A.F.E. fixed angle tension suspension system
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Type | 3-way dual 15-inch line array element |
|---|---|
| Frequency range | 35 Hz - 18 kHz |
| Horizontal coverage | 90 deg nominal |
| Transducers | LF: 2 x 15 in; MF: 4 x 8 in; HF: 3 compression drivers |
| Maximum SPL | 141 dB LF / 140.5 dB MF / 149.5 dB HF peak by band |
| Power handling | LF: 2 x 2000 W; MF: 1400 W; HF: 600 W continuous AES |
| Dimensions | 414 x 1223.5 x 614 mm (H x W x D) |
| Weight | 82.6 kg / 182 lb |
| Applications | large touring sound systems, festival main arrays, arena reinforcement and high-output fixed installations. |
Downloads
| Title | File type | Download |
|---|---|---|
| YL V25 Product DetailsEnglish | PDF1.5 MB | |
| YL V25 Product Details — Additional ViewsEnglish | PDF453 KB |

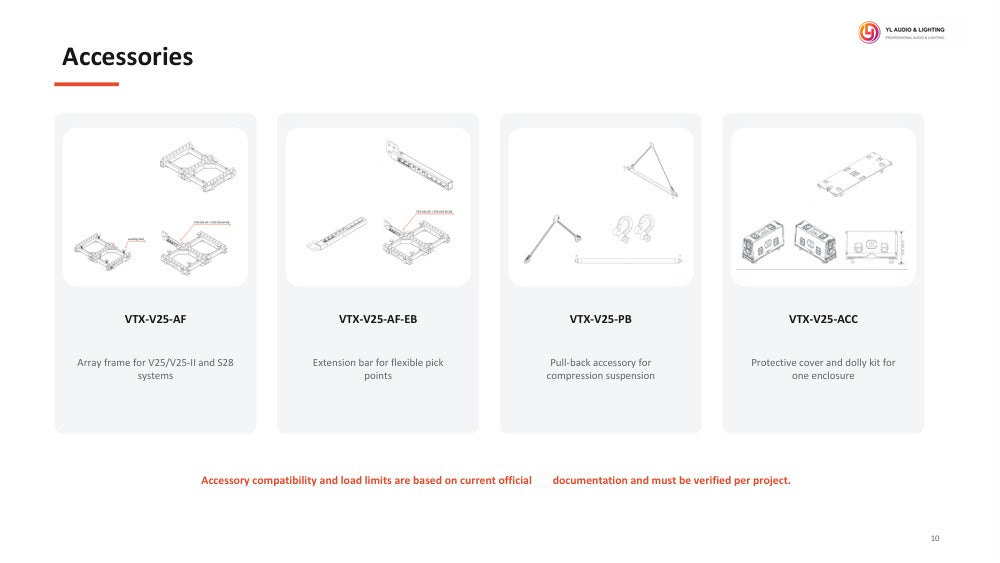

System accessories
YL LightYL-JBLX
Rigging & Accessories

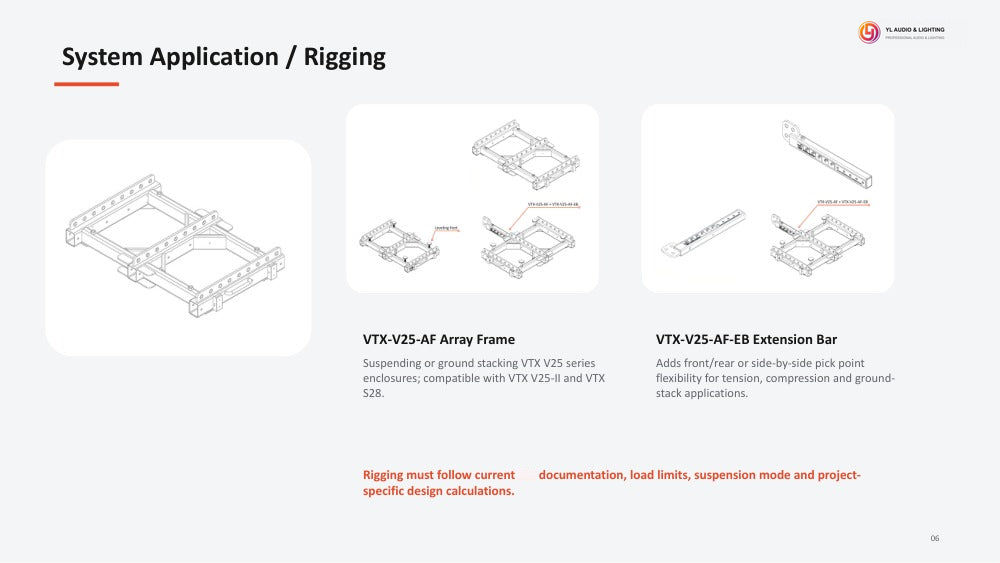

VTX-V25-AF Array Frame
