Product identification
- Model
- V28P Compact 3-Way Dual 10-Inch Line Array
- Product category
- Line Array Systems

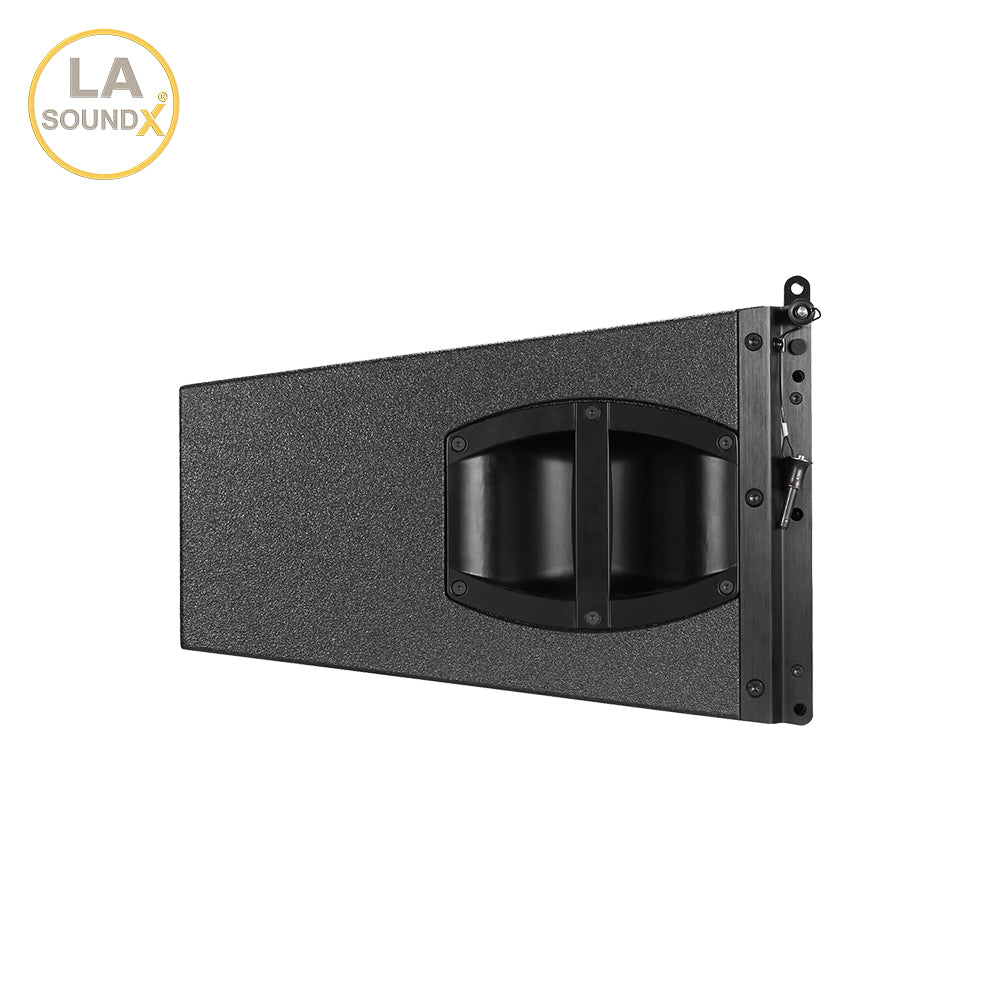

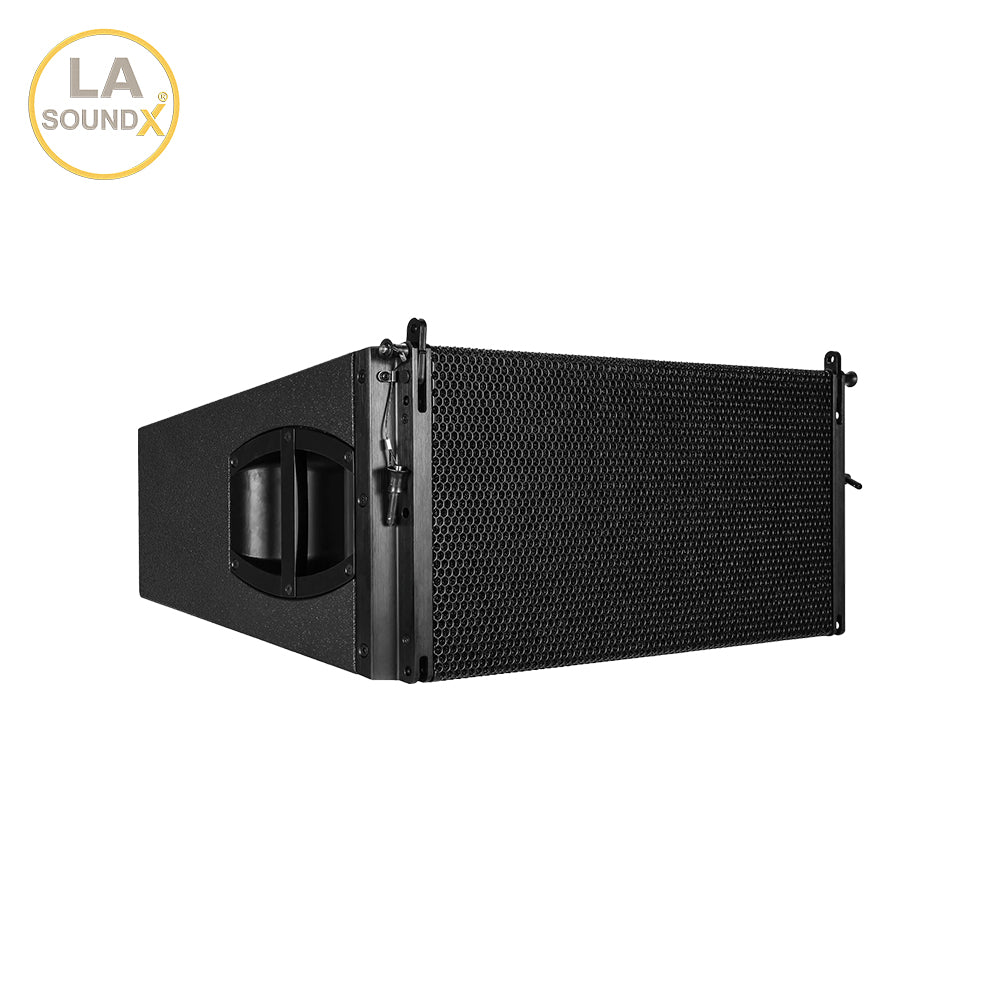

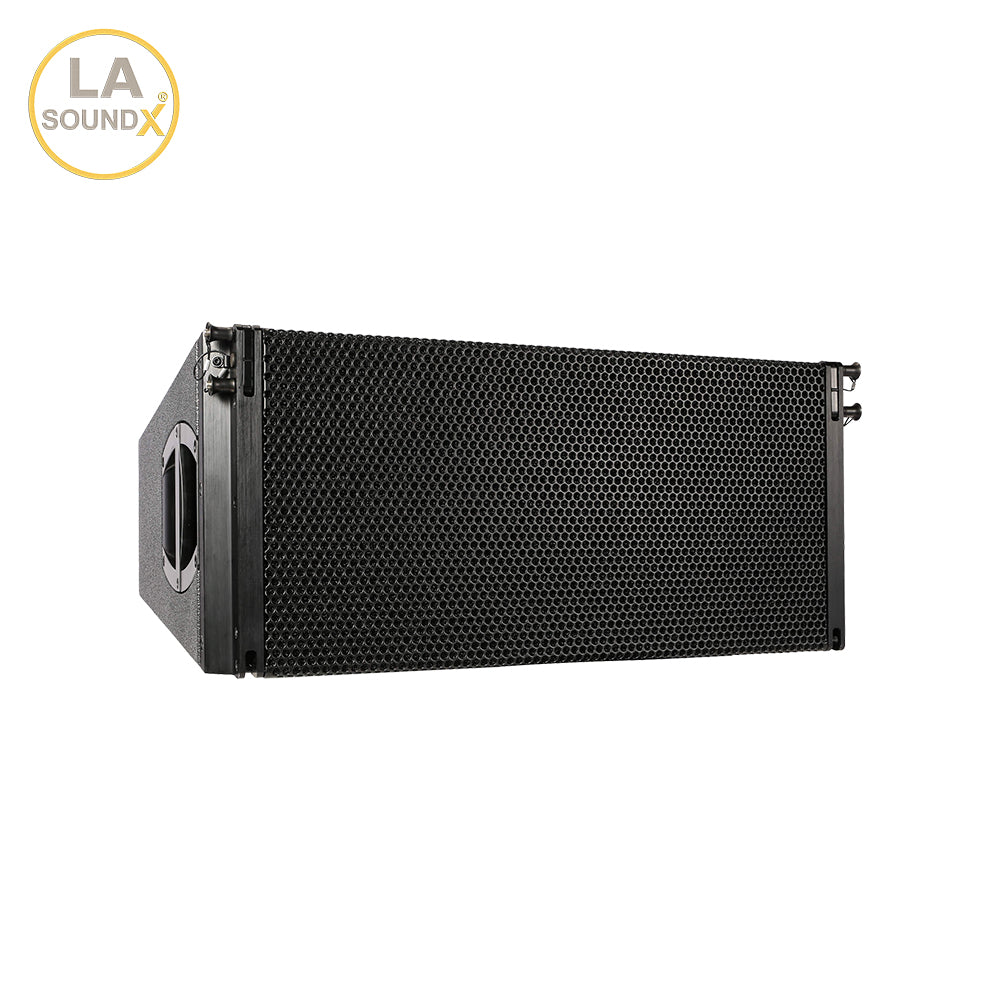

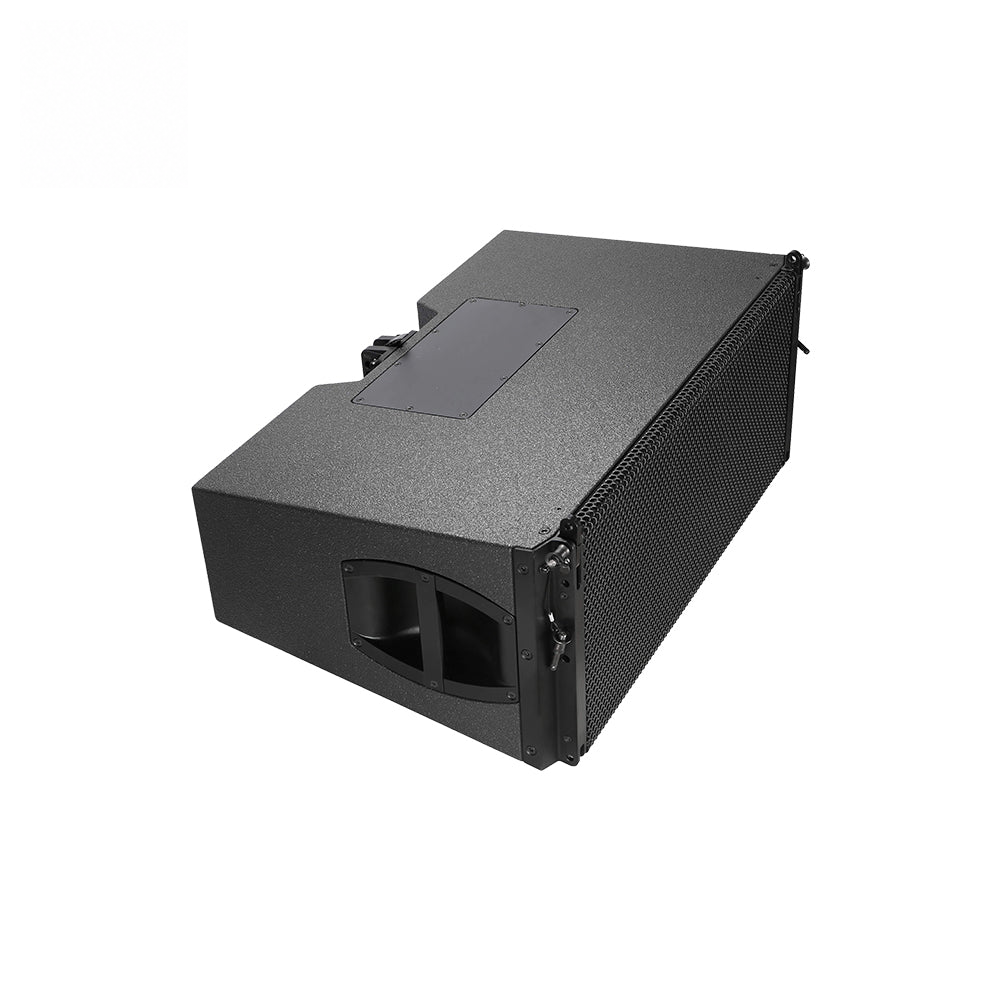

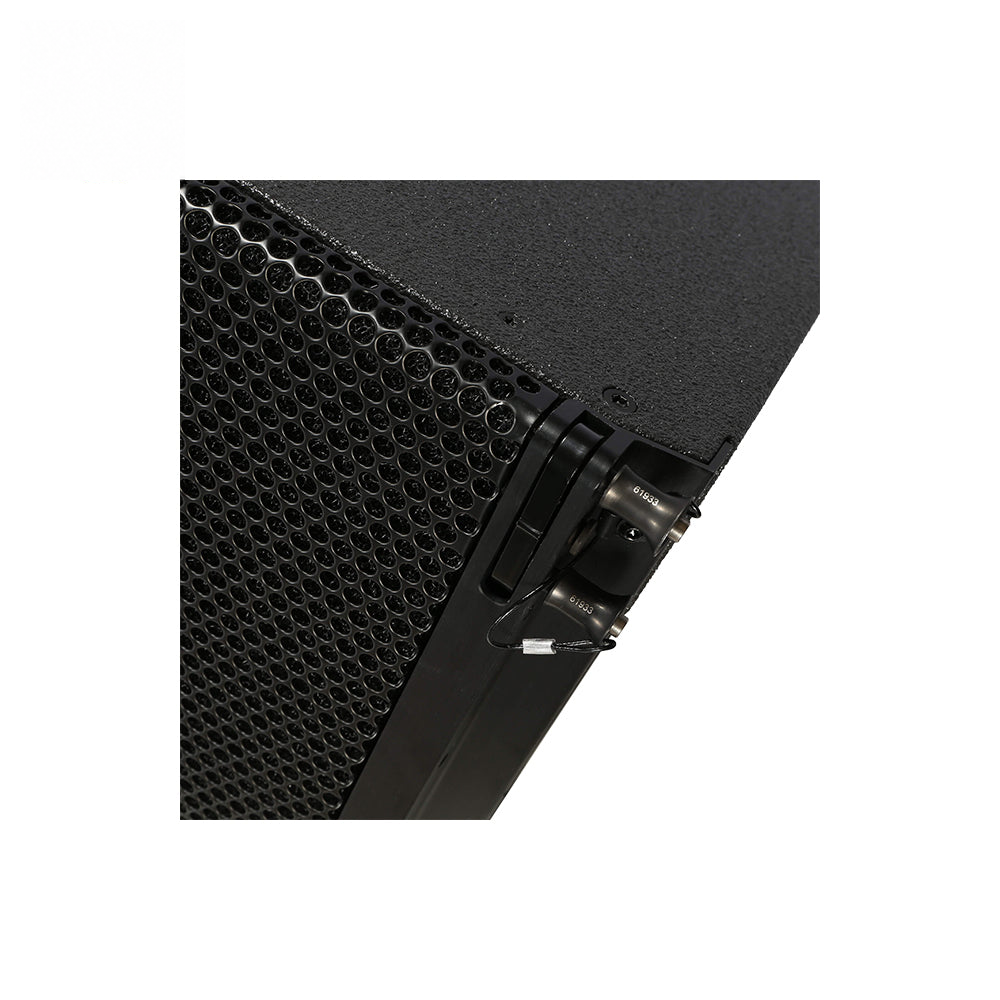

V28P Compact 3-Way Dual 10-Inch Line Array
V28P Compact 3-Way Dual 10-Inch Line Array is listed in the line array systems category as a line array system. The reference lists max spl: 139 dB; bandwidth (-5 db): 67 Hz – 19 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 139 dB
- Bandwidth (-5 dB)
- 67 Hz – 19 kHz
- Weight
- 34 kg 75 lb
Technical specifications
- Configuration
- Compact line array, 3-way
- Max SPL
- 139 dB
- Bandwidth (-5 dB)
- 67 Hz – 19 kHz
- LF transducers
- 2 × 10″
- MF transducers
- 1 × 8″
- HF transducers
- 2 × 1.4″ compression drivers
- Directivity
- H: 80° | V: 10°
- Nominal Impedance
- 8 Ω
- Power Handling
- 50
- Frequency response (-5 dB standard)
- 67 Hz - 18 kHz
- Frequency response (-5 dB CUT mode)
- 100 Hz - 18 kHz
- Max. sound pressure1 with D20/30D
- 139 dB
- with D40/D80/40D
- 142 dB
- Configuration
- High performance 3-way passive line array loudspeaker
- Power handling capacity (RMS/peak 10 ms)
- 500/2000 W

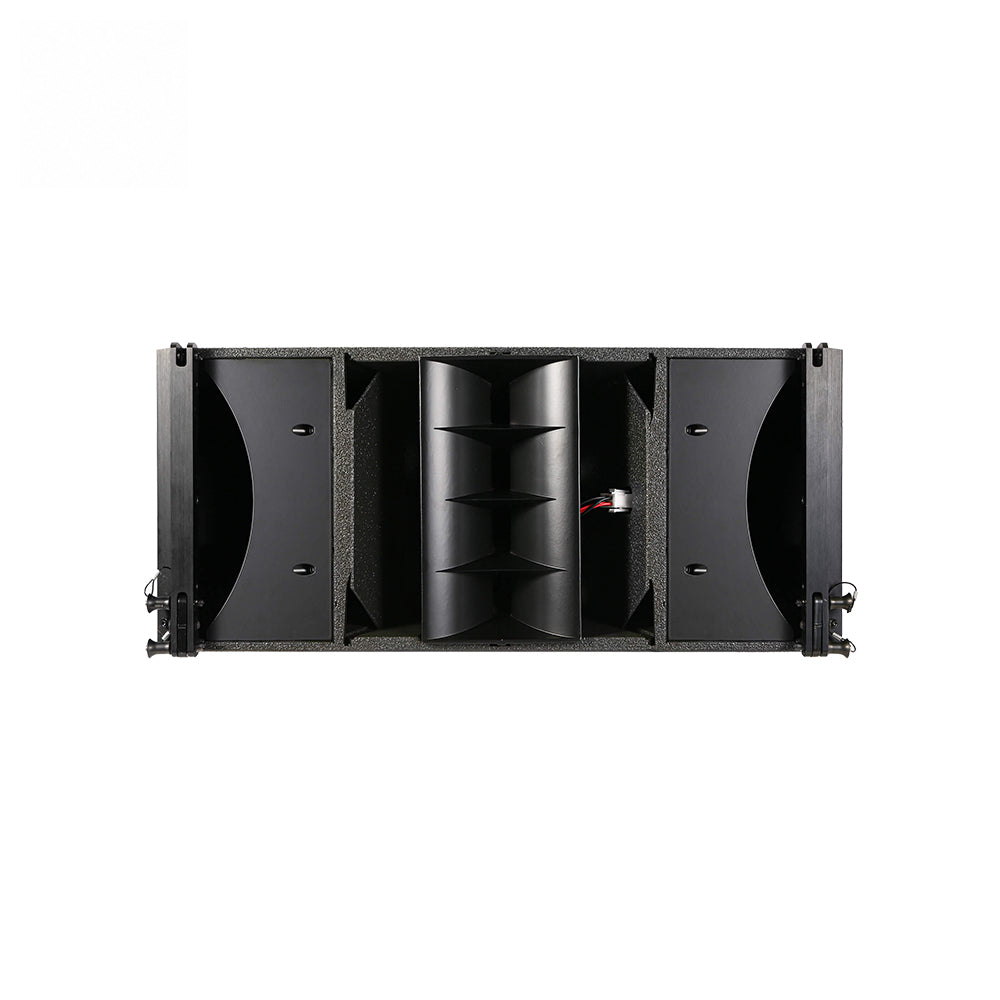

- Components
- 2 x 10" driver / 1 x 8" driver 2 x 1.4" exit compression driver passive crossover network

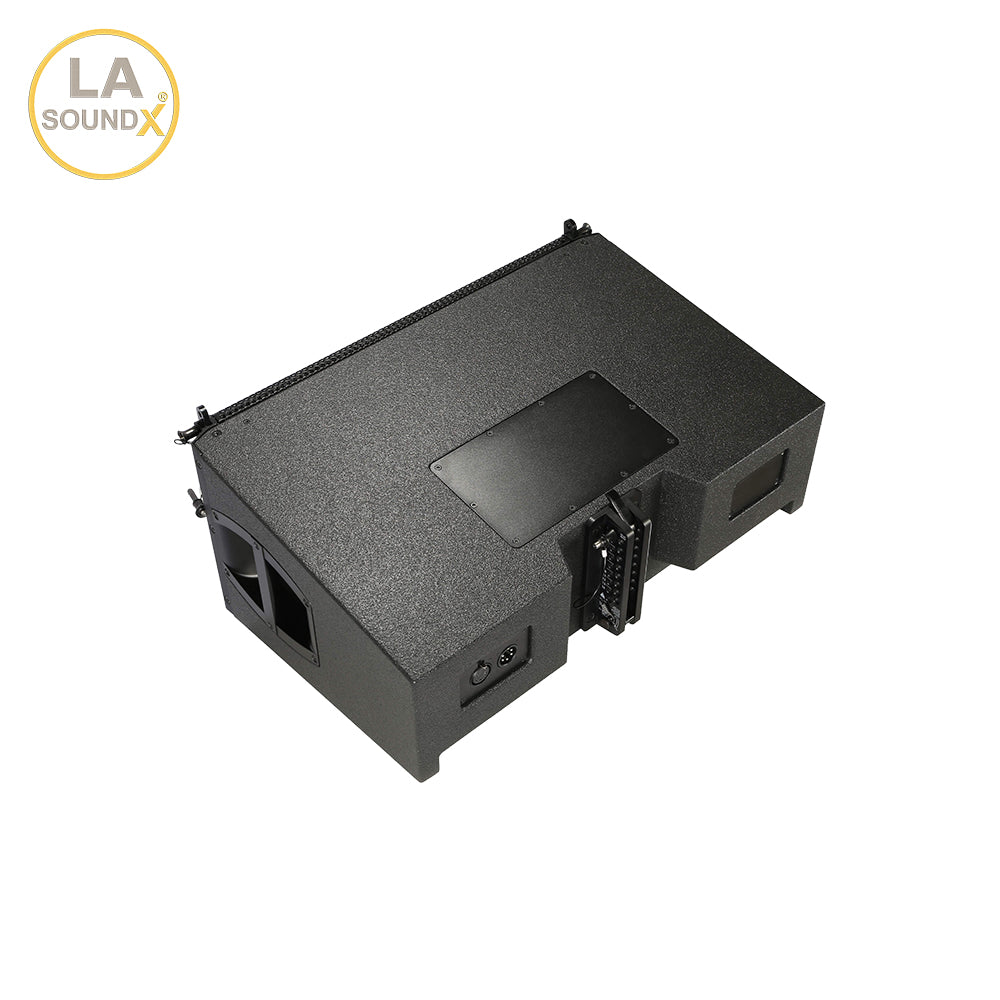

- Connections
- 2 x NLT4 F/M optional 2 x NL4
- Transducers
- LF: 2 × 10″
Physical specifications
- Weight
- 33 kg / 73 lb
- Dimensions (H × W × D)
- 310 × 700 × 440 mm
- Cabinets per amplifier channel
- 2
Compatibility and deployment
- Nominal dispersion angle (horizontal)
- 80°2

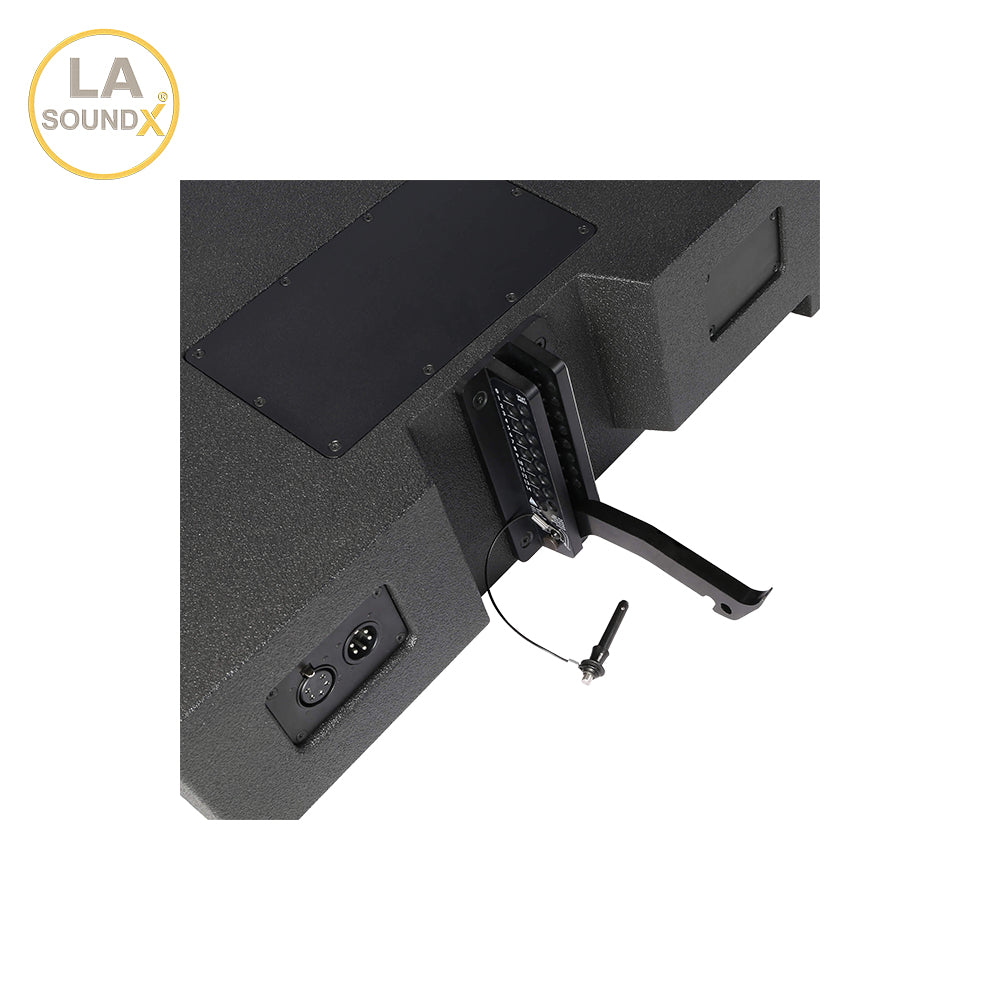

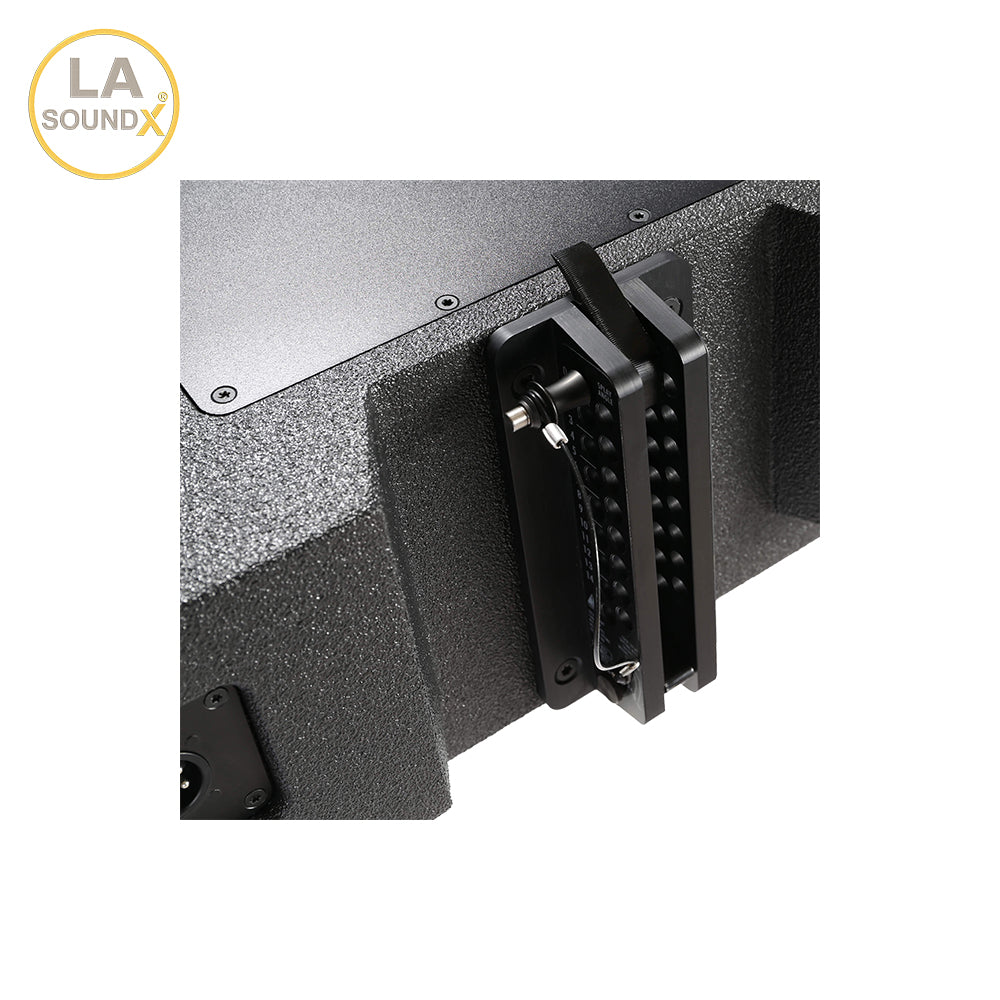

- Splay angle settings
- 0° - 14° (1° increment)
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Compact line array, 3-way |
|---|---|
| Max SPL | 139 dB |
| Bandwidth (-5 dB) | 67 Hz – 19 kHz |
| LF | 2 × 10″ |
| MF | 1 × 8″ |
| HF | 2 × 1.4″ compression drivers |
| Weight | 33 kg / 73 lb |
| Directivity | H: 80° | V: 10° |
| Dimensions (H × W × D) | 310 × 700 × 440 mm |
| Nominal Impedance | 8 Ω |
| Power Handling | 50 |
| Frequency response (-5 dB standard) | 67 Hz - 18 kHz |
| Frequency response (-5 dB CUT mode) | 100 Hz - 18 kHz |
| Max. sound pressure1 with D20/30D | 139 dB |
| with D40/D80/40D | 142 dB |
| Cabinets per amplifier channel | 2 |
| Configuration | High performance 3-way passive line array loudspeaker |
| Power handling capacity (RMS/peak 10 ms) | 500/2000 W |
| Nominal dispersion angle (horizontal) | 80°2 |
| Splay angle settings | 0° - 14° (1° increment) |
| Components | 2 x 10" driver / 1 x 8" driver 2 x 1.4" exit compression driver passive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x NL4 |
| Dimensions (H x W x D) | 310 x 700 x 460 mm 12.2 x 27.5 x 18" |
| Weight | 34 kg 75 lb |
Downloads
| Title | File type | Download |
|---|---|---|
| YL V28P Selected Technical DataEnglish | PDF74 KB |
