Product identification
- Model
- SY5 Active 2-Way Column Loudspeaker
- Product category
- Column Loudspeakers

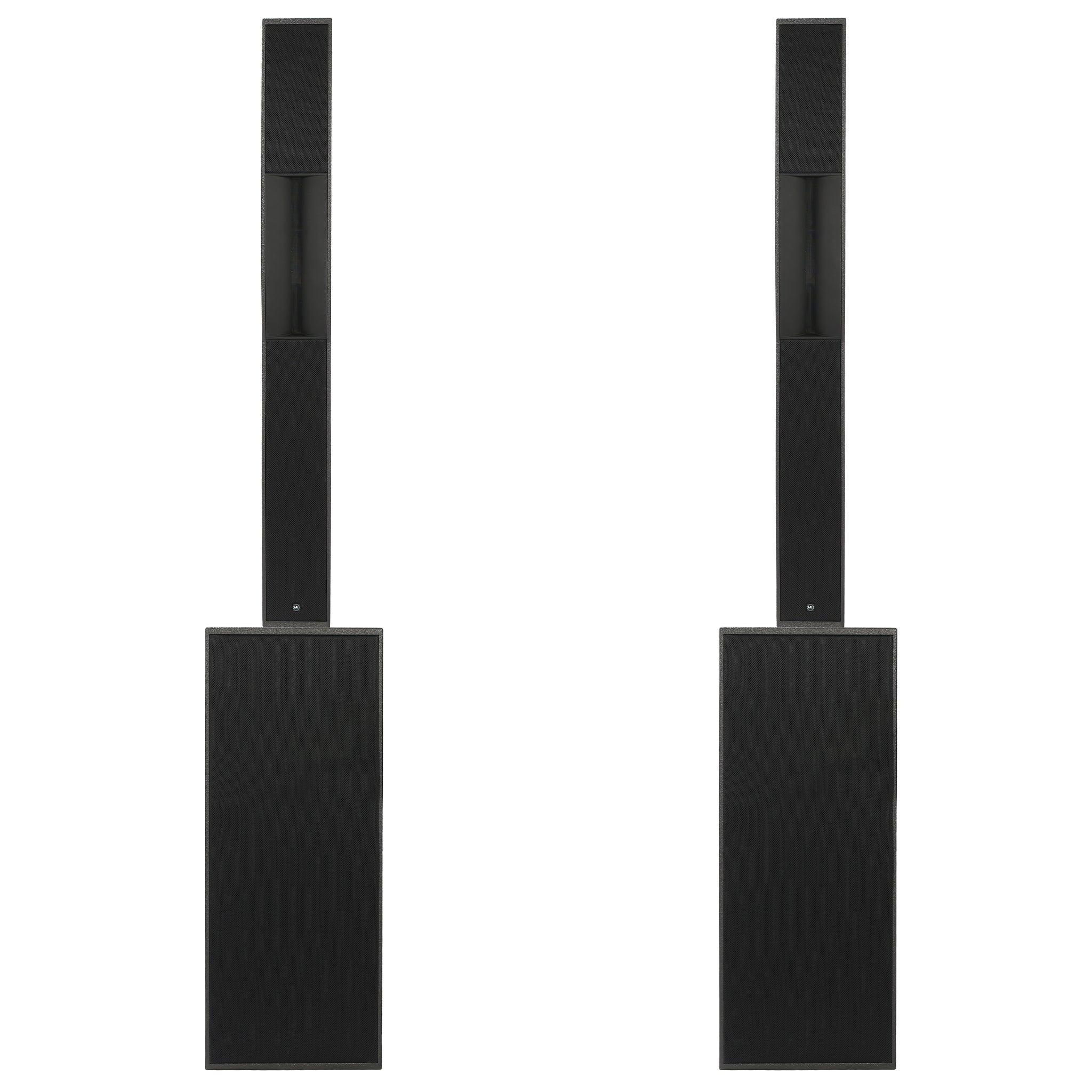

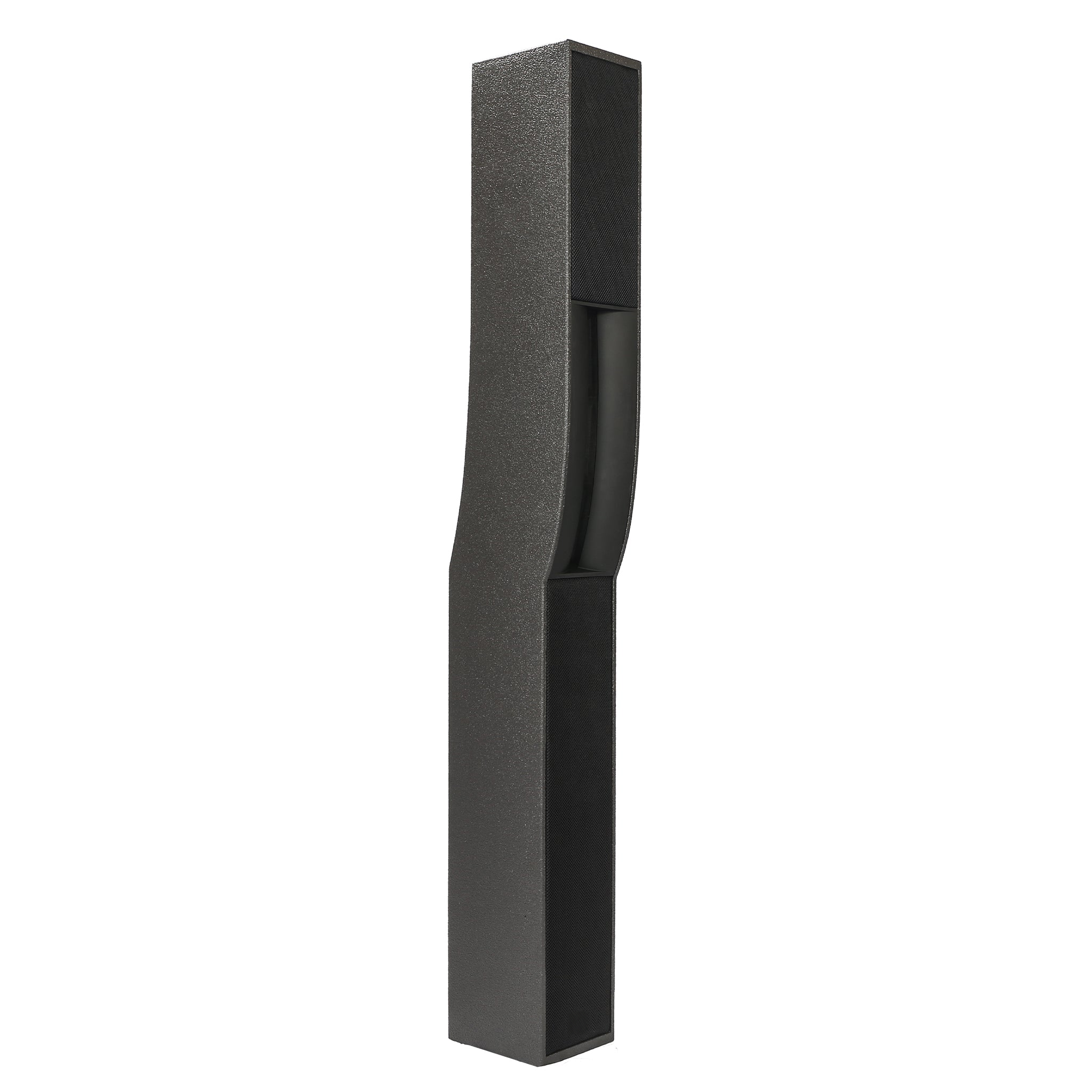

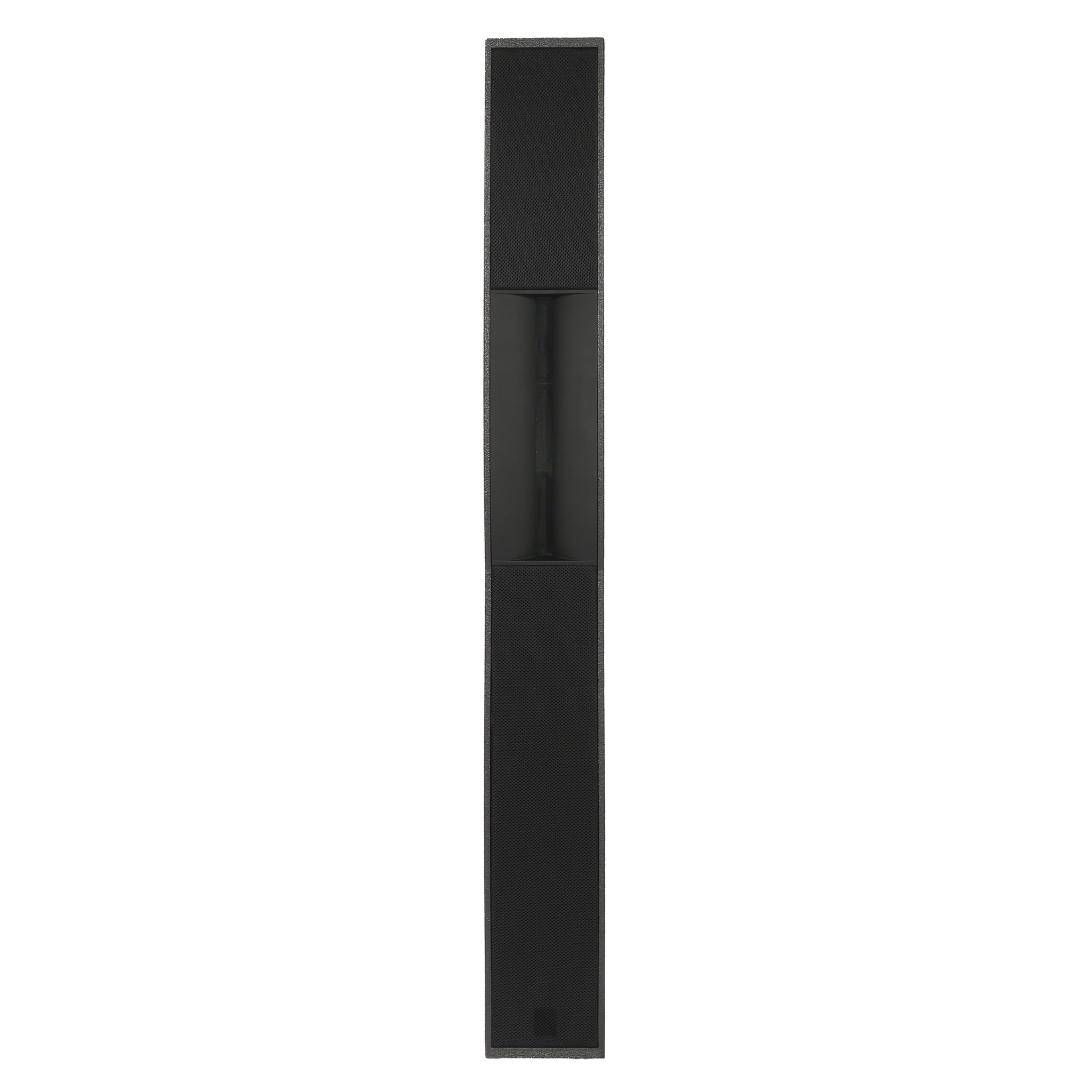

SY5 Active 2-Way Column Loudspeaker
SY5 Active 2-Way Column Loudspeaker is listed in the column loudspeakers category as a column loudspeaker. The reference lists maximum spl: 141 dB; bandwidth: 55 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 141 dB
- Bandwidth
- 55 Hz – 20 kHz
- Weight
- ≈ 26 kg / 57 lb
Technical specifications
- Maximum SPL
- 141 dB
- Bandwidth
- 55 Hz – 20 kHz
- Transducers
- LF: 2 × 8″ • HF: 1 × 3″ compression driver
- Channels
- 1in-2out
- DSP
- ADI architecture+24bit@48kHz AD/DA
- DSP input
- Delay340ms+5 PEQ
- DSP output
- Delay10ms+Crossover+11 PEQ+Limiters
- Maximum output power per channel @ 8Ω
- 1000W+1000W
- Maximum output power per channel @ 4Ω
- 1500W+1500W
Physical specifications
- Dimensions
- 700 × 250 × 445 mm
- Weight
- ≈ 26 kg / 57 lb
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 141 dB |
|---|---|
| Bandwidth | 55 Hz – 20 kHz |
| Transducers | • LF: 2 × 8″ • HF: 1 × 3″ compression driver |
| Dimensions | 700 × 250 × 445 mm |
| Weight | ≈ 26 kg / 57 lb |
| Channels | 1in-2out |
| DSP | ADI architecture+24bit@48kHz AD/DA |
| DSP input | Delay340ms+5 PEQ |
| DSP output | Delay10ms+Crossover+11 PEQ+Limiters |
| Maximum output power per channel @ 8Ω | 1000W+1000W |
| Maximum output power per channel @ 4Ω | 1500W+1500W |
Downloads
Product documents are being prepared. Contact YL for the current information for SY5 Active 2-Way Column Loudspeaker.
