Product identification
- Model
- NXL 44-A MK2 Active Column Array Loudspeaker
- Product category
- Column Loudspeakers

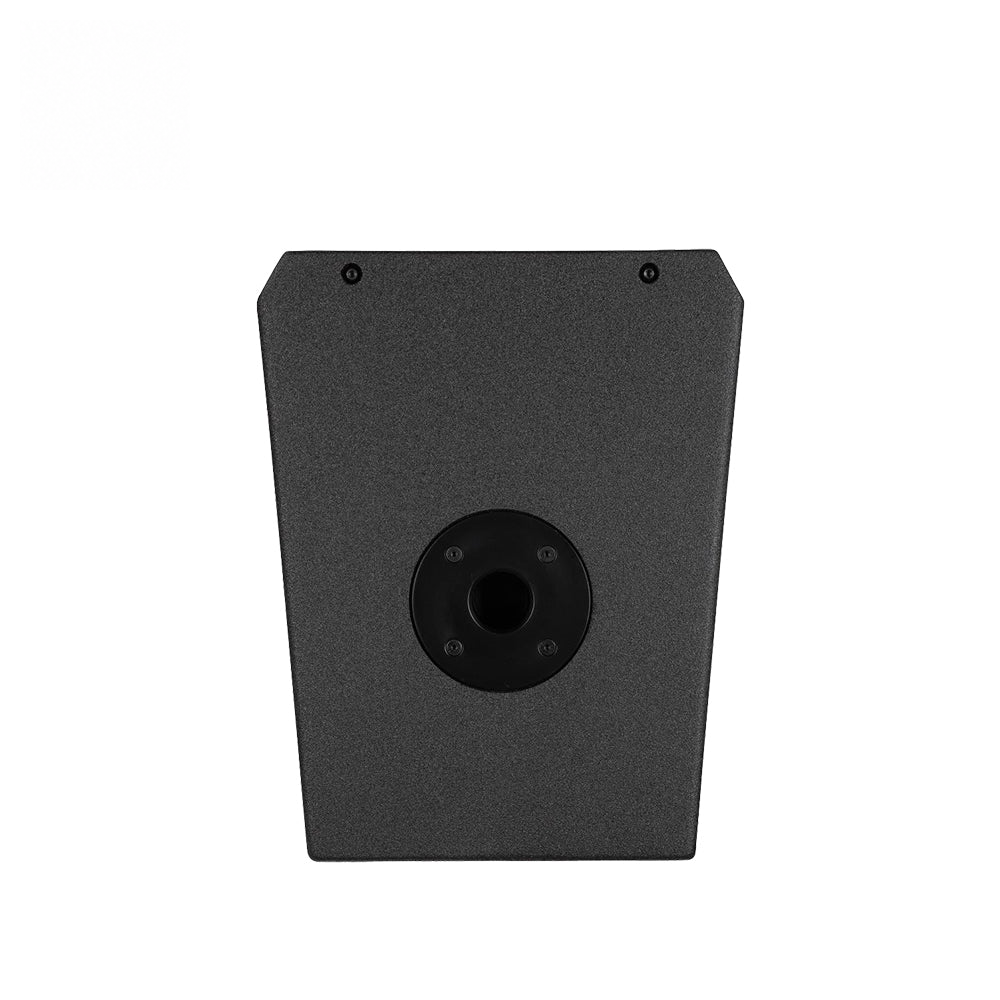

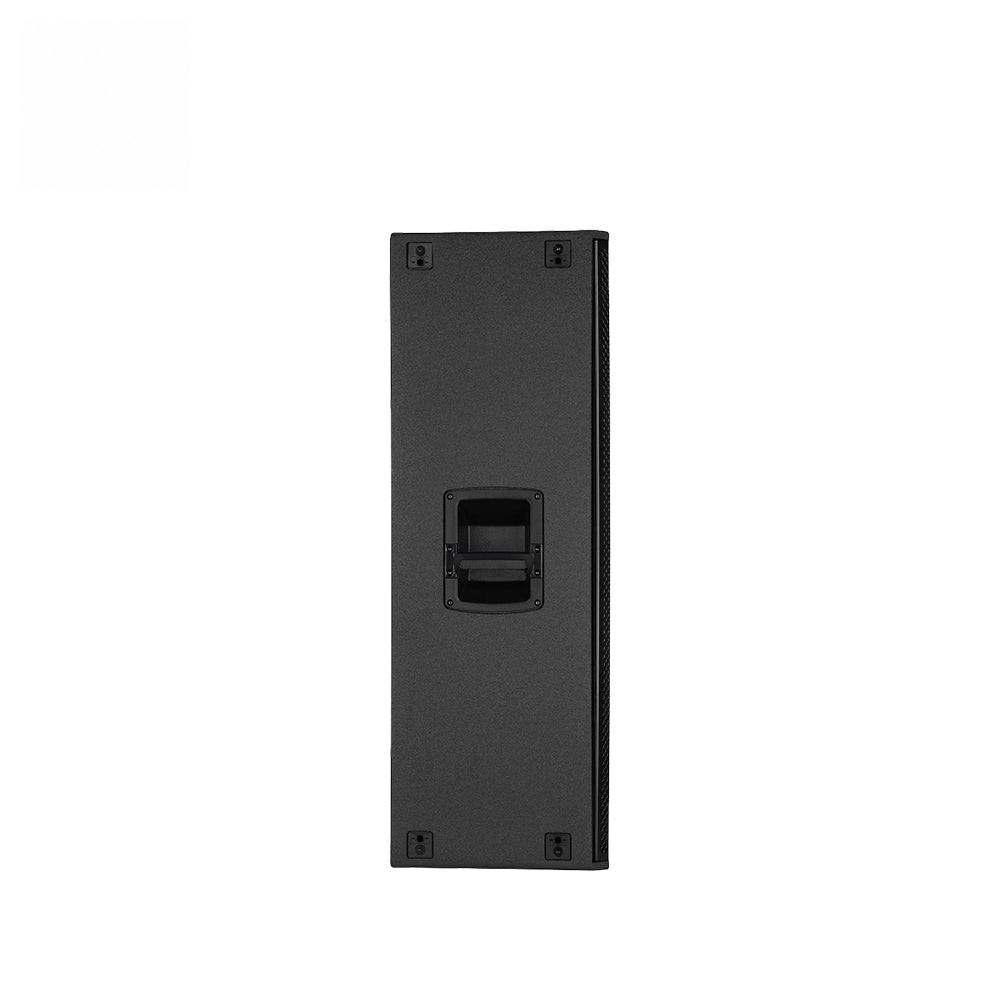

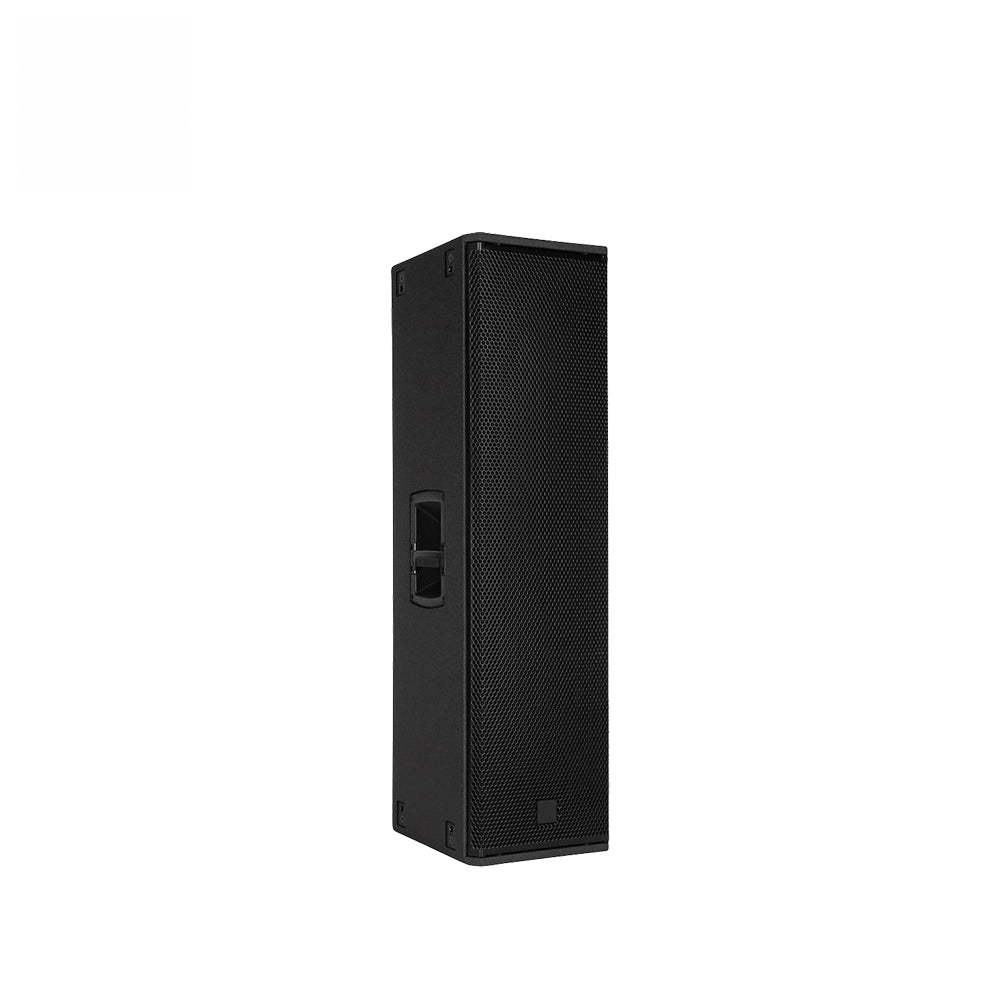

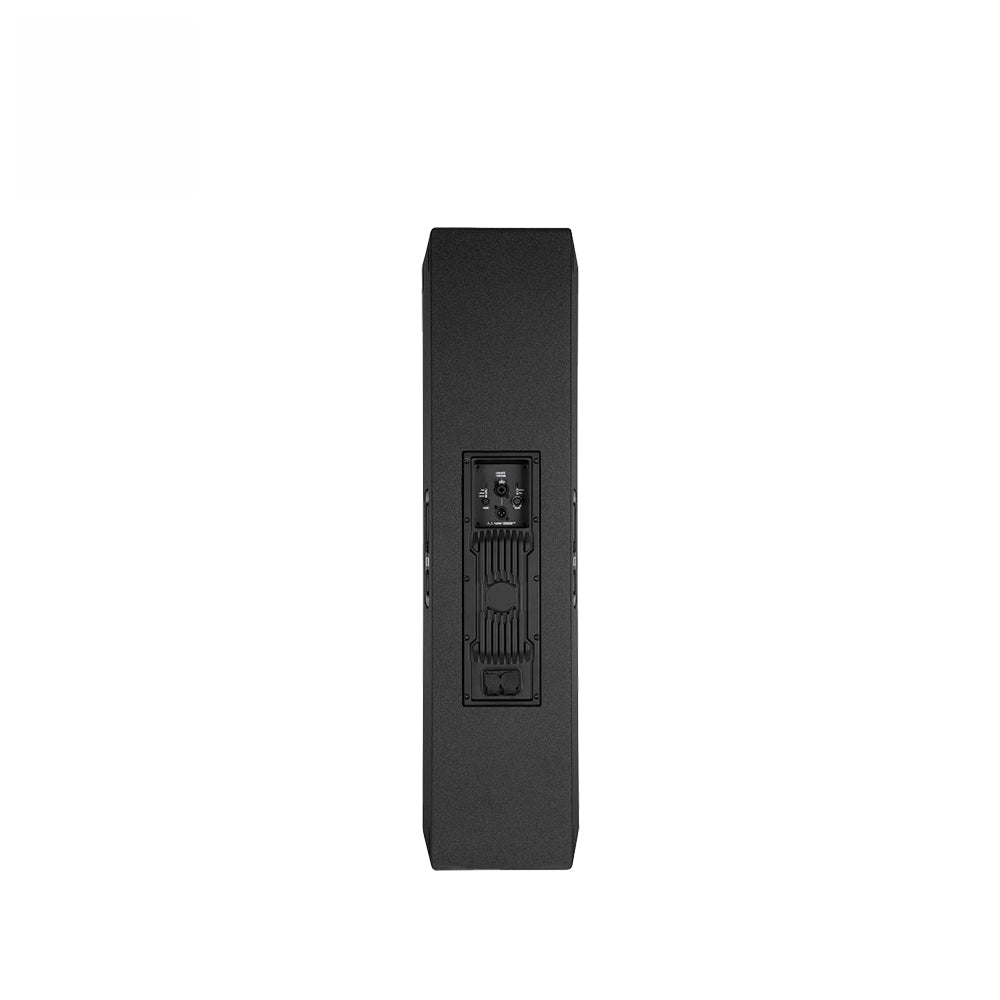

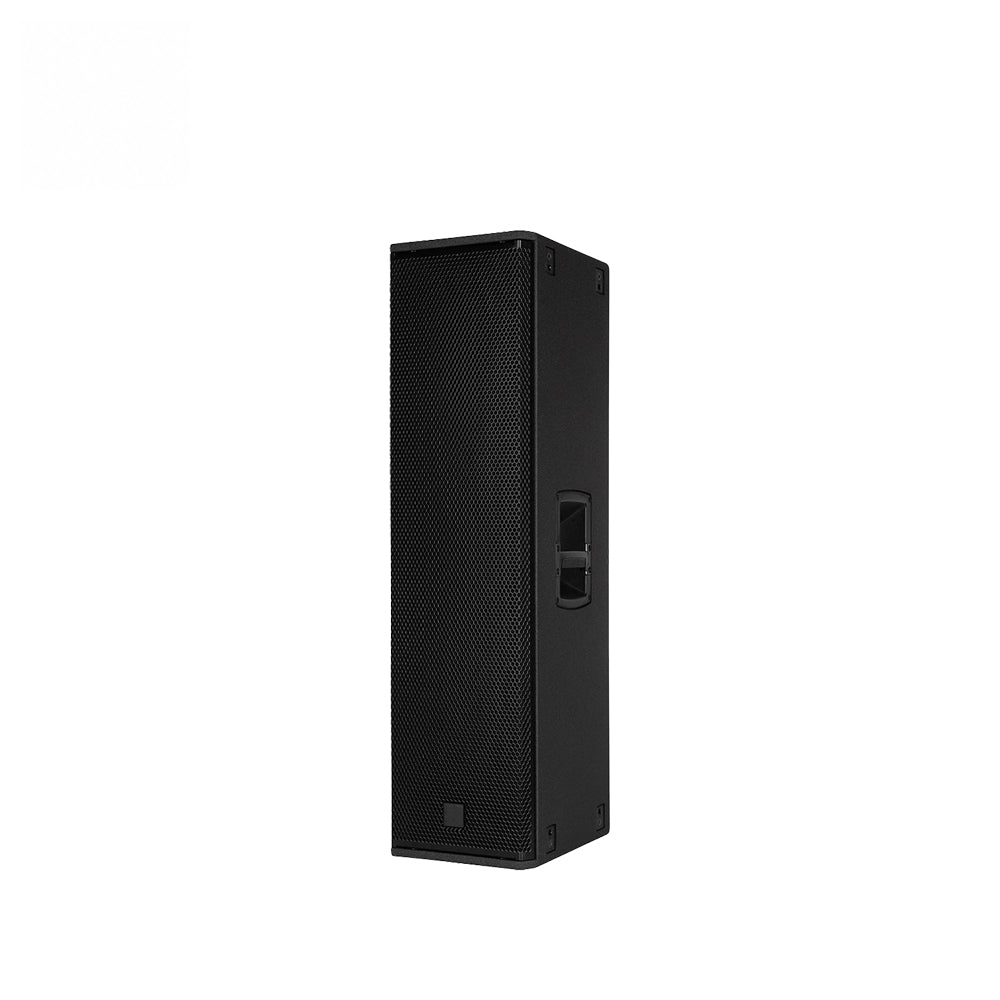

NXL 44-A MK2 Active Column Array Loudspeaker
NXL 44-A MK2 Active Column Array Loudspeaker is listed in the column loudspeakers category as a column loudspeaker. The reference lists frequency response: 45 Hz - 20 kHz; maximum spl: 135 dB @ 1 m. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 135 dB @ 1 m
- Frequency response
- 45 Hz - 20 kHz
- Weight
- 33.4 kg / 73.63 lb
Technical specifications
- Type
- Active two-way column array loudspeaker
- Frequency response
- 45 Hz - 20 kHz
- Maximum SPL
- 135 dB @ 1 m
- Coverage
- 100 deg x 25 deg
- Transducers

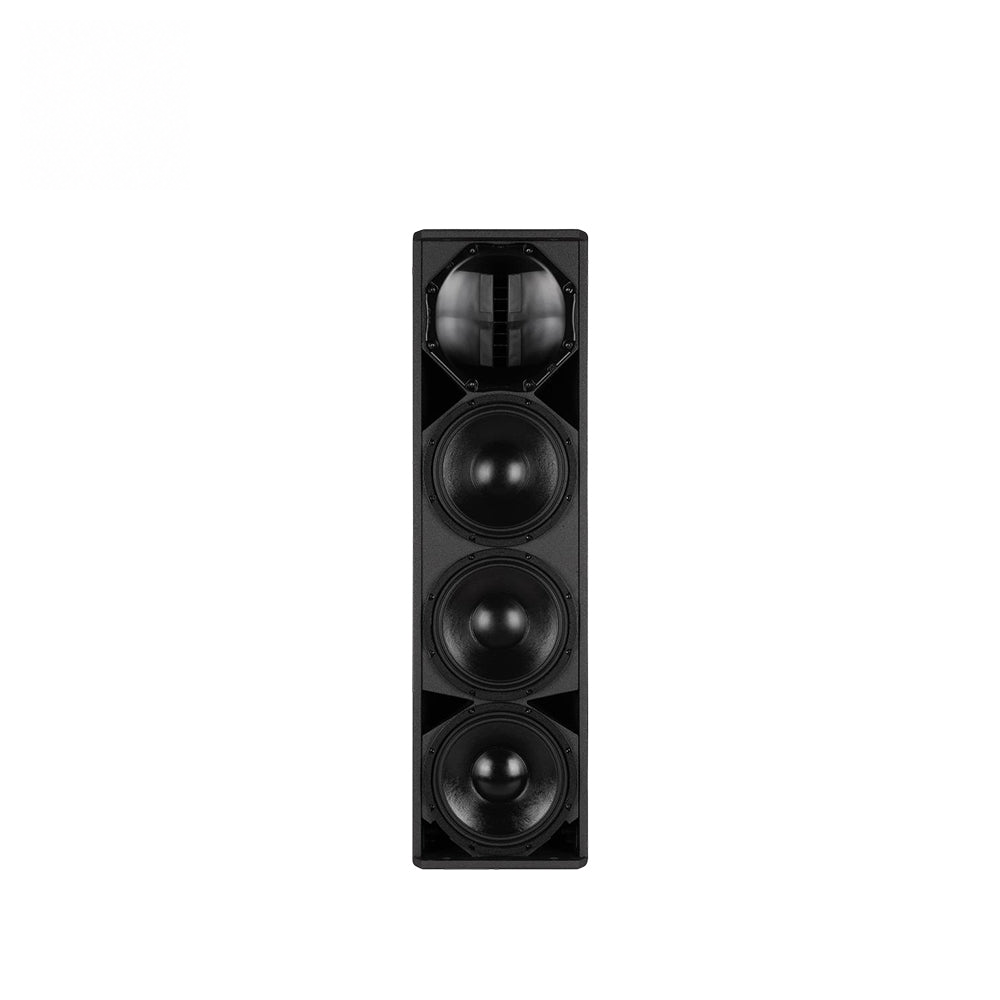

- LF: 3 x 10 in neodymium woofers; HF: 1 x 1.4 in neo compression driver
- Amplifier
- Built-in 2100 W peak Class-D amplifier
Physical specifications
- Dimensions
- 1080 x 297.5 x 373 mm
- Weight
- 33.4 kg / 73.63 lb
Compatibility and deployment
Applications: stand-alone reinforcement, pole or sub-mounted deployment, flown systems and fixed installation.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Type | Active two-way column array loudspeaker |
|---|---|
| Frequency response | 45 Hz - 20 kHz |
| Maximum SPL | 135 dB @ 1 m |
| Coverage | 100 deg x 25 deg |
| Transducers | LF: 3 x 10 in neodymium woofers; HF: 1 x 1.4 in neo compression driver |
| Amplifier | Built-in 2100 W peak Class-D amplifier |
| Dimensions | 1080 x 297.5 x 373 mm |
| Weight | 33.4 kg / 73.63 lb |
| Applications | stand-alone reinforcement, pole or sub-mounted deployment, flown systems and fixed installation. |
Downloads
| Title | File type | Download |
|---|---|---|
| YL NXL 44-A MK2 Selected Technical DataEnglish | PDF73 KB |
