Product identification
- Model
- PANTHER-L-P212-W- P212 - Dual 12-inch Active Line Array
- Product category
- Line Array Systems

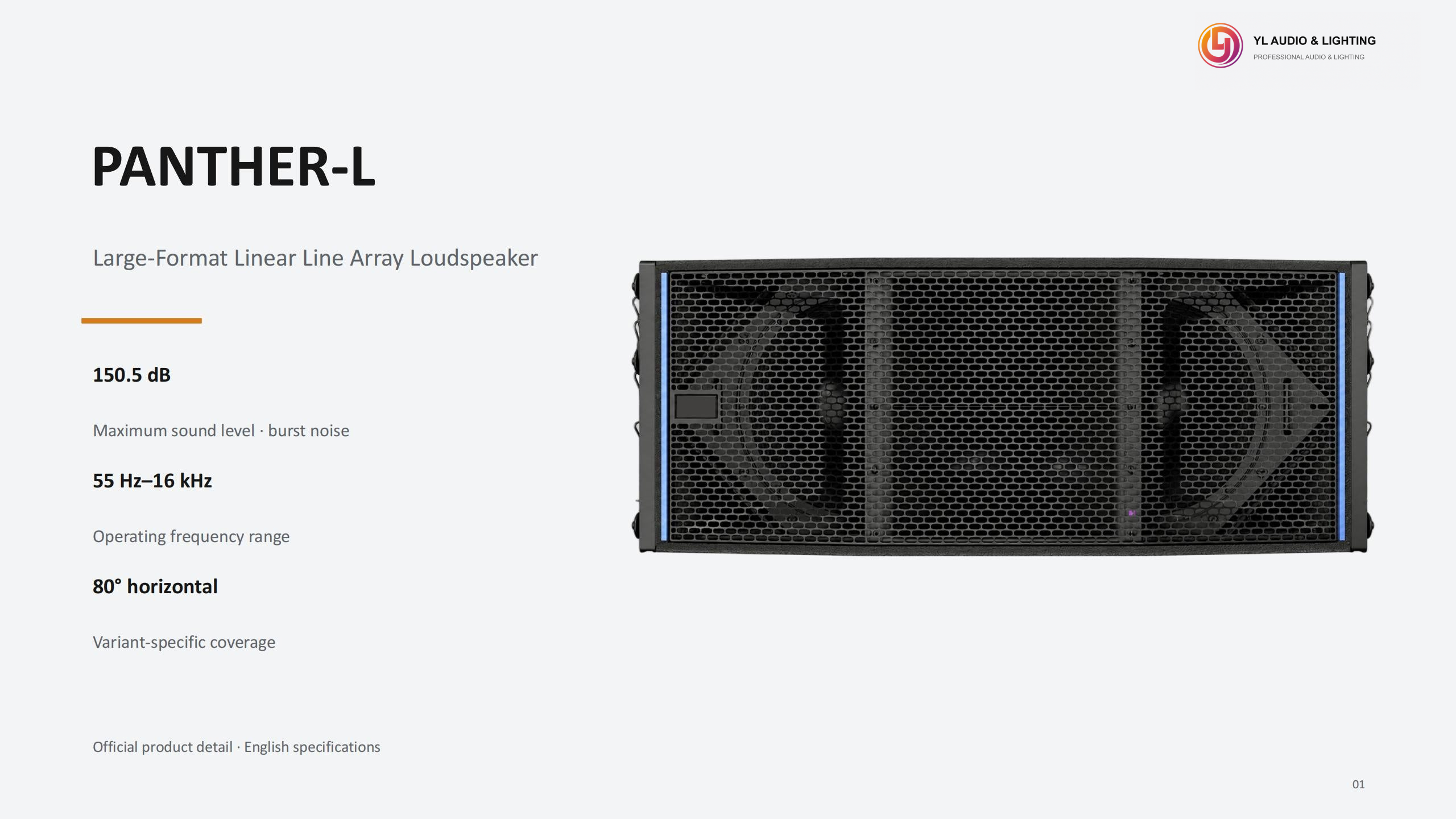

PANTHER-L-P212-W- P212 - Dual 12-inch Active Line Array
PANTHER-L-P212-W- P212 - Dual 12-inch Active Line Array is listed in the line array systems category as a line array system. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Dimensions / weight
- 38.15 x 14.85 x 22.25 in / 969 x 377 x 565 mm; 150 lb / 68 kg
- Drivers
- LF 2 x 12" long-excursion cone drivers; HF 2 x 3" diaphragm compression drivers
- Power / protection
- 200-240 V AC, 50/60 Hz; 1100 W max long-term; 2200 W burst; IP55 with terminated Neutrik TOP cables

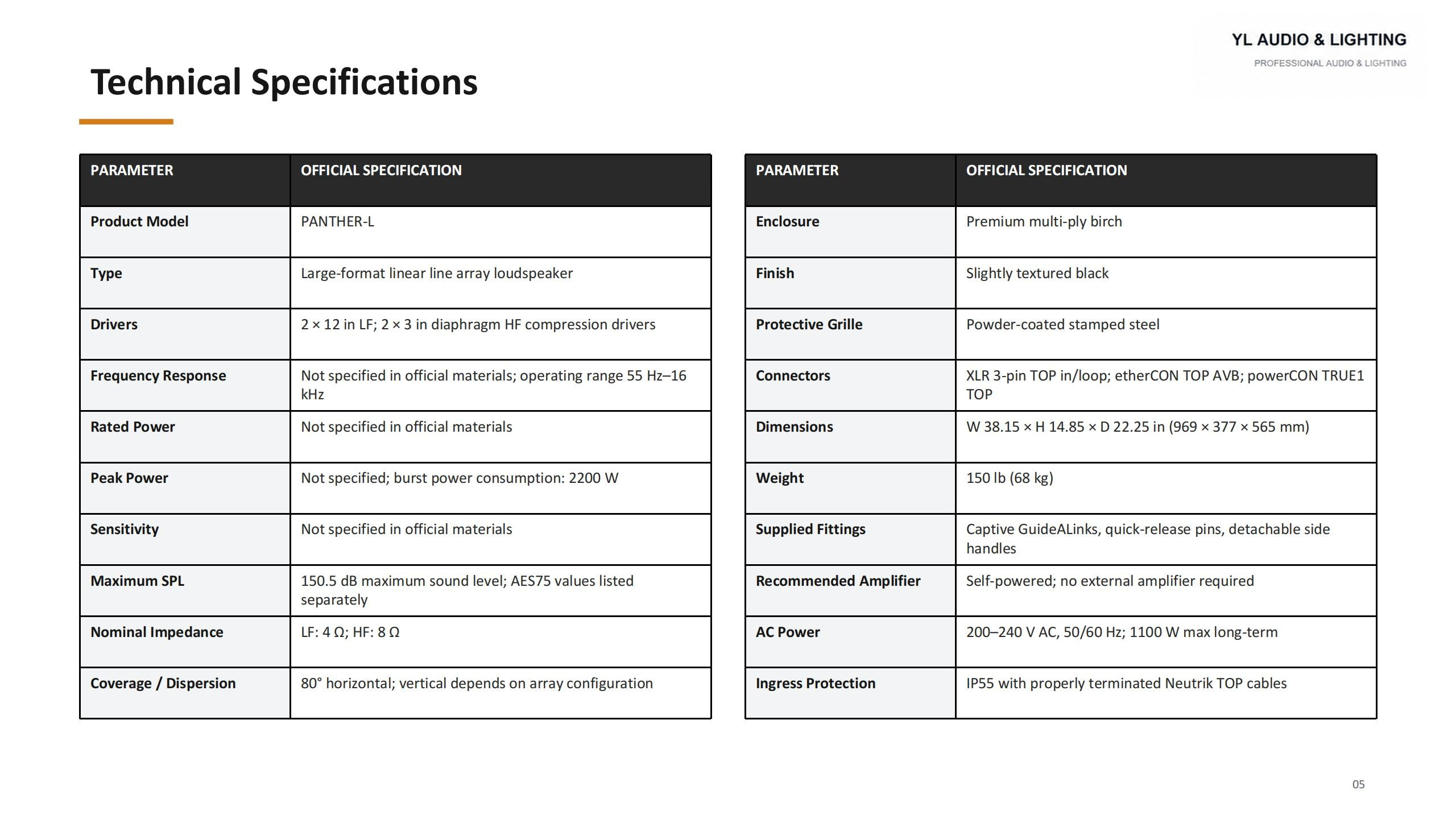

Technical specifications
- Website Model
- PANTHER-L
- Company Model
- P212-W
- Configuration
- Self-powered dual 12" active line array loudspeaker
- Performance

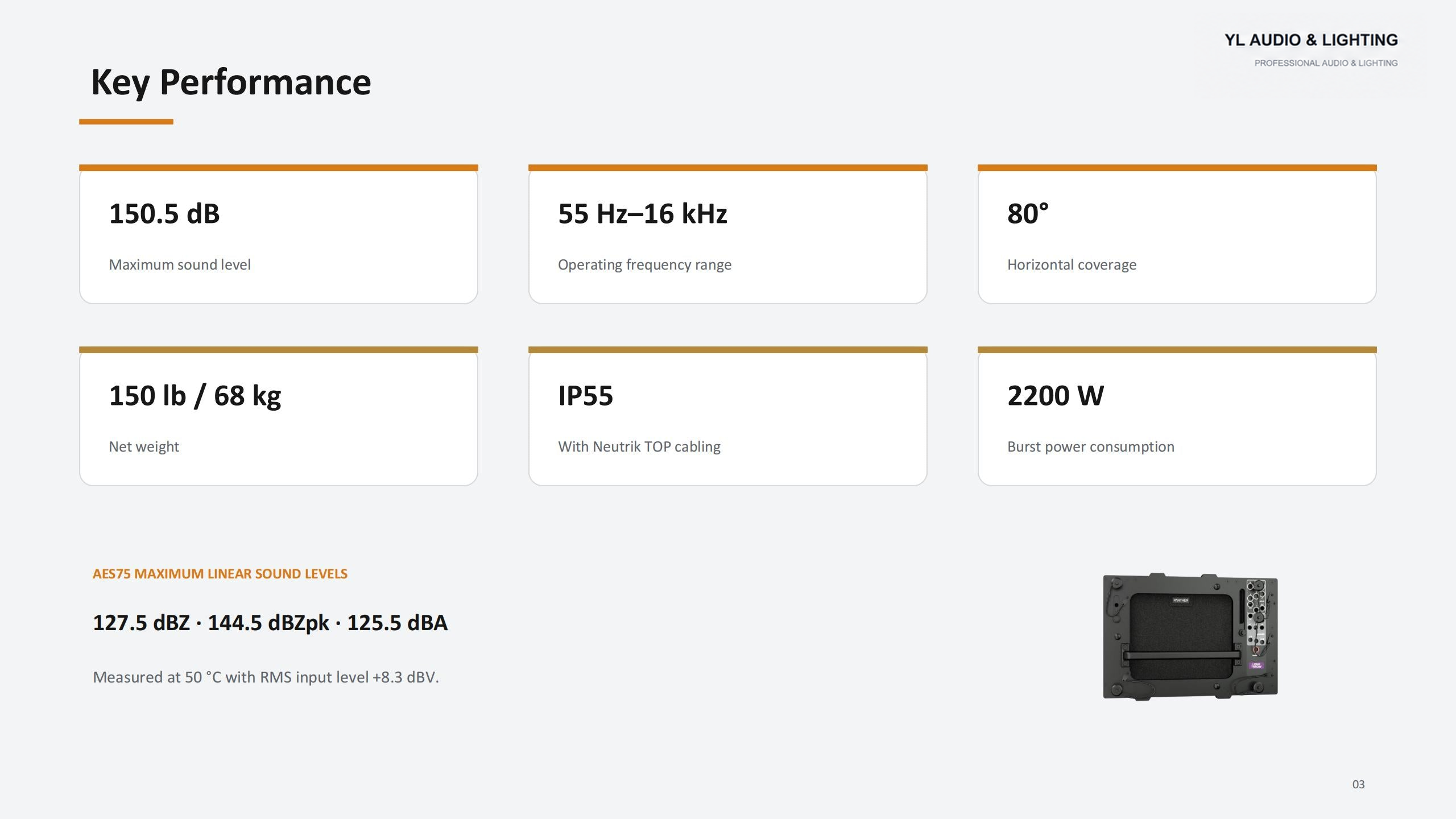

- 150.5 dB burst; 55 Hz - 16 kHz operating range; 80° horizontal coverage
- Drivers

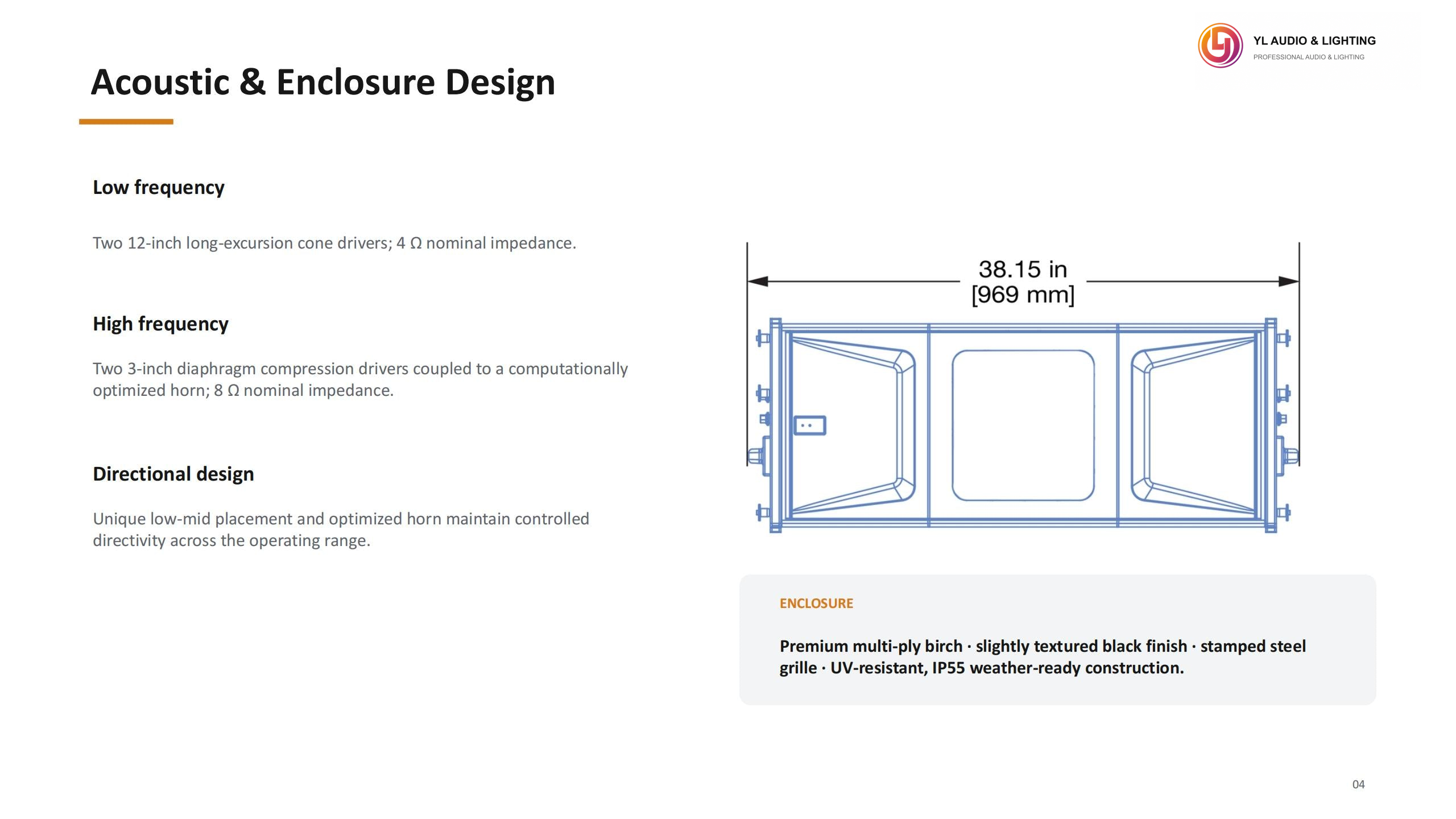

- LF 2 x 12" long-excursion cone drivers; HF 2 x 3" diaphragm compression drivers
- Power / protection
- 200-240 V AC, 50/60 Hz; 1100 W max long-term; 2200 W burst; IP55 with terminated Neutrik TOP cables
Physical specifications

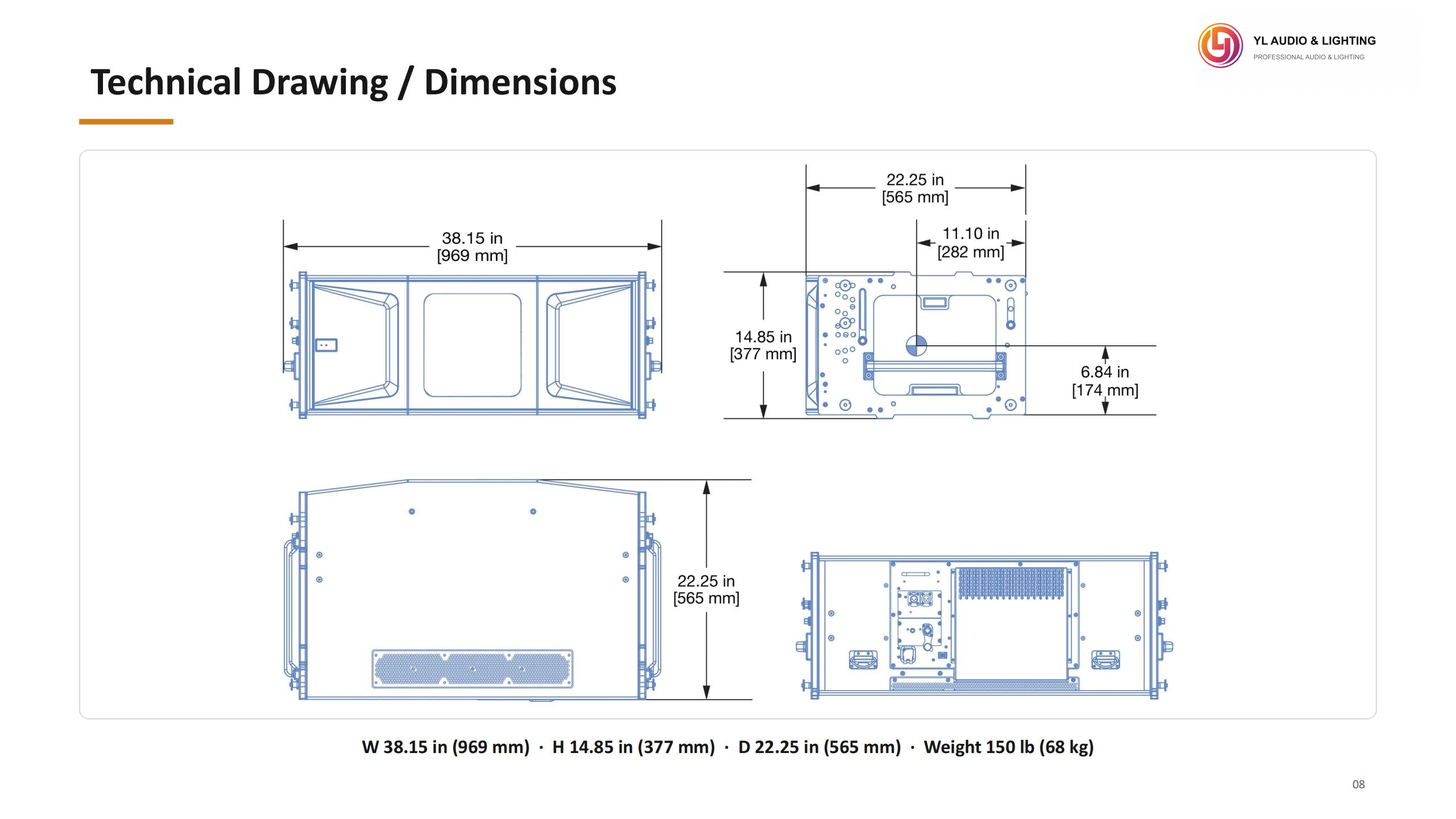

- Dimensions / weight
- 38.15 x 14.85 x 22.25 in / 969 x 377 x 565 mm; 150 lb / 68 kg
- Connectors / enclosure

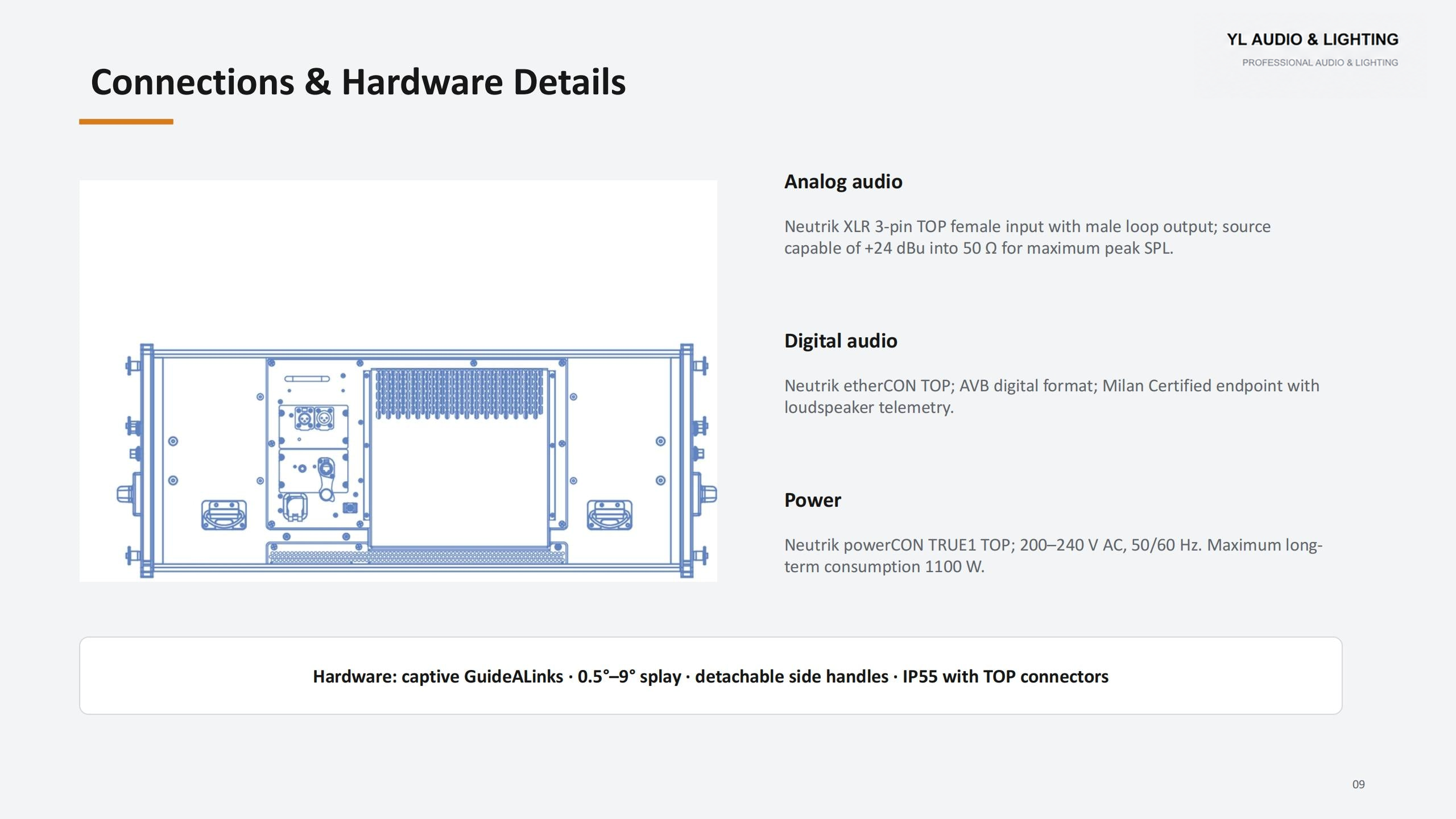

- XLR 3-pin TOP in/loop, etherCON TOP AVB, powerCON TRUE1 TOP; multi-ply birch cabinet
Compatibility and deployment

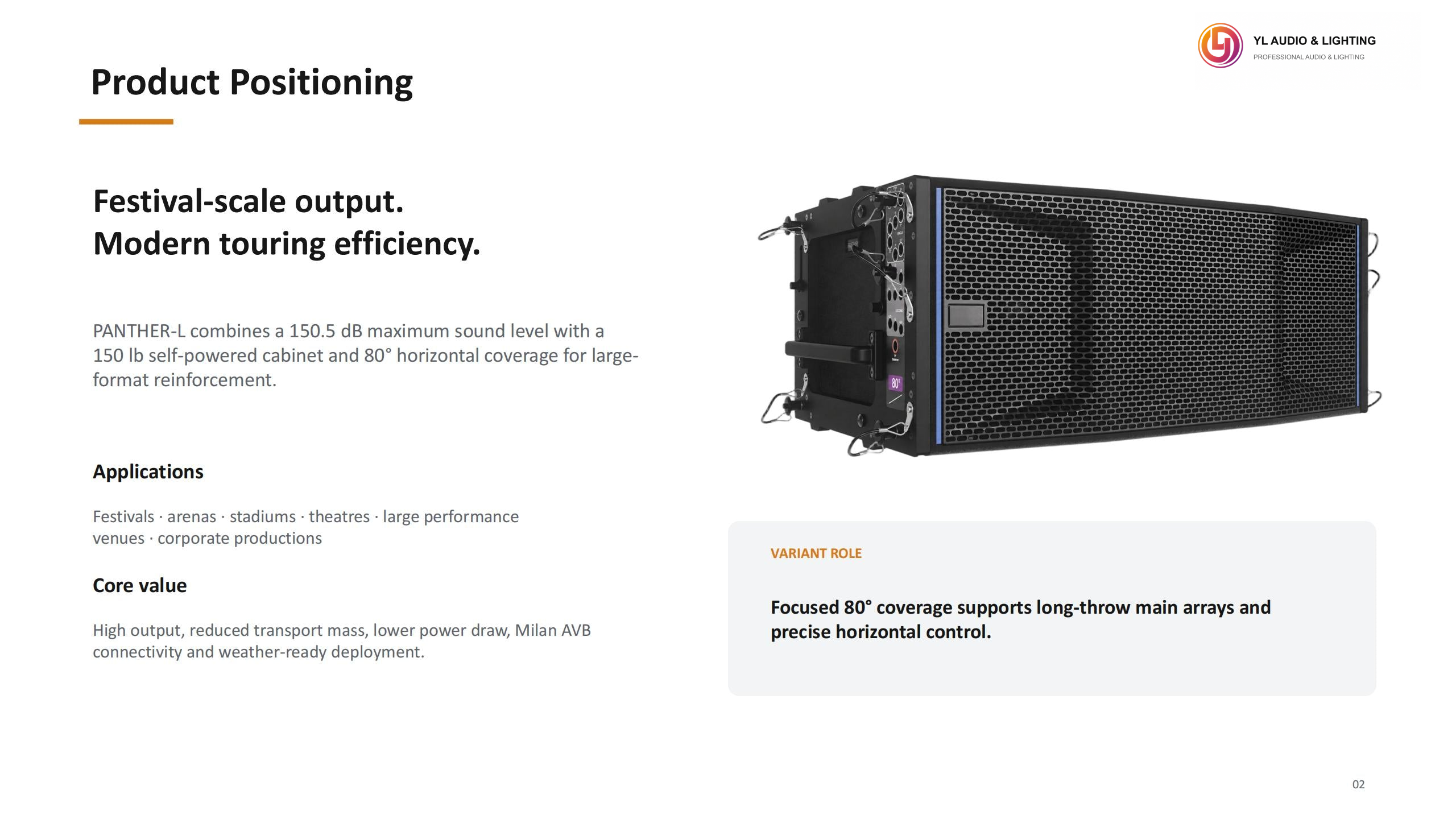

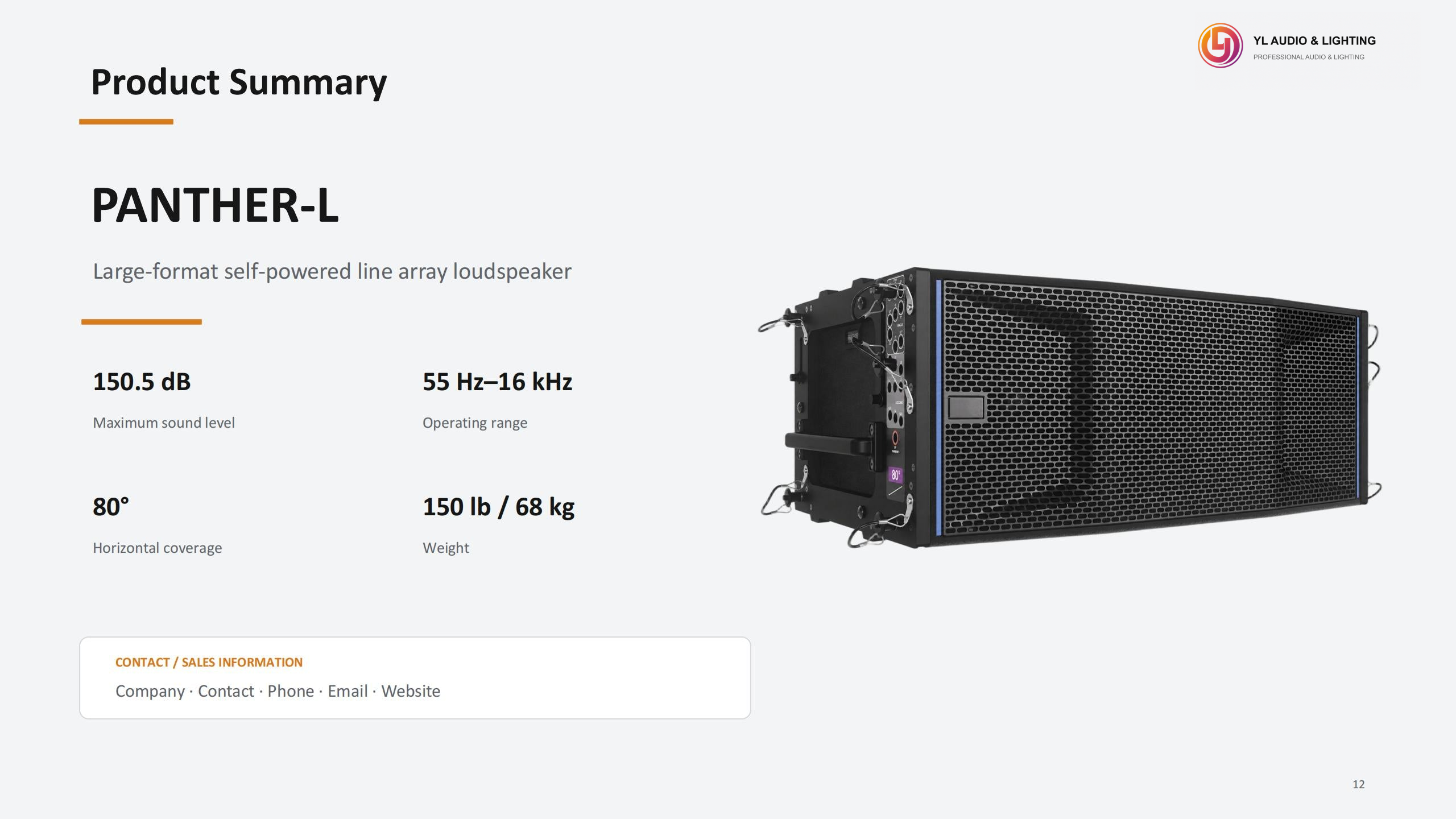

Function / configuration: Large-format self-powered dual 12-inch line array loudspeaker. 150.5 dB maximum sound level, 55 Hz-16 kHz operating range, 80-degree horizontal coverage, Milan AVB connectivity and 68 kg net weight.
The stated IP55 protection applies only with the specified, properly terminated Neutrik TOP cabling. Protection of the complete installation depends on the connector, cable termination and installation conditions; the rating is not an unconditional waterproof claim.
The stated IP55 protection applies only with the specified, properly terminated Neutrik TOP cabling. Protection of the complete installation depends on the connector, cable termination and installation conditions; the rating is not an unconditional waterproof claim.

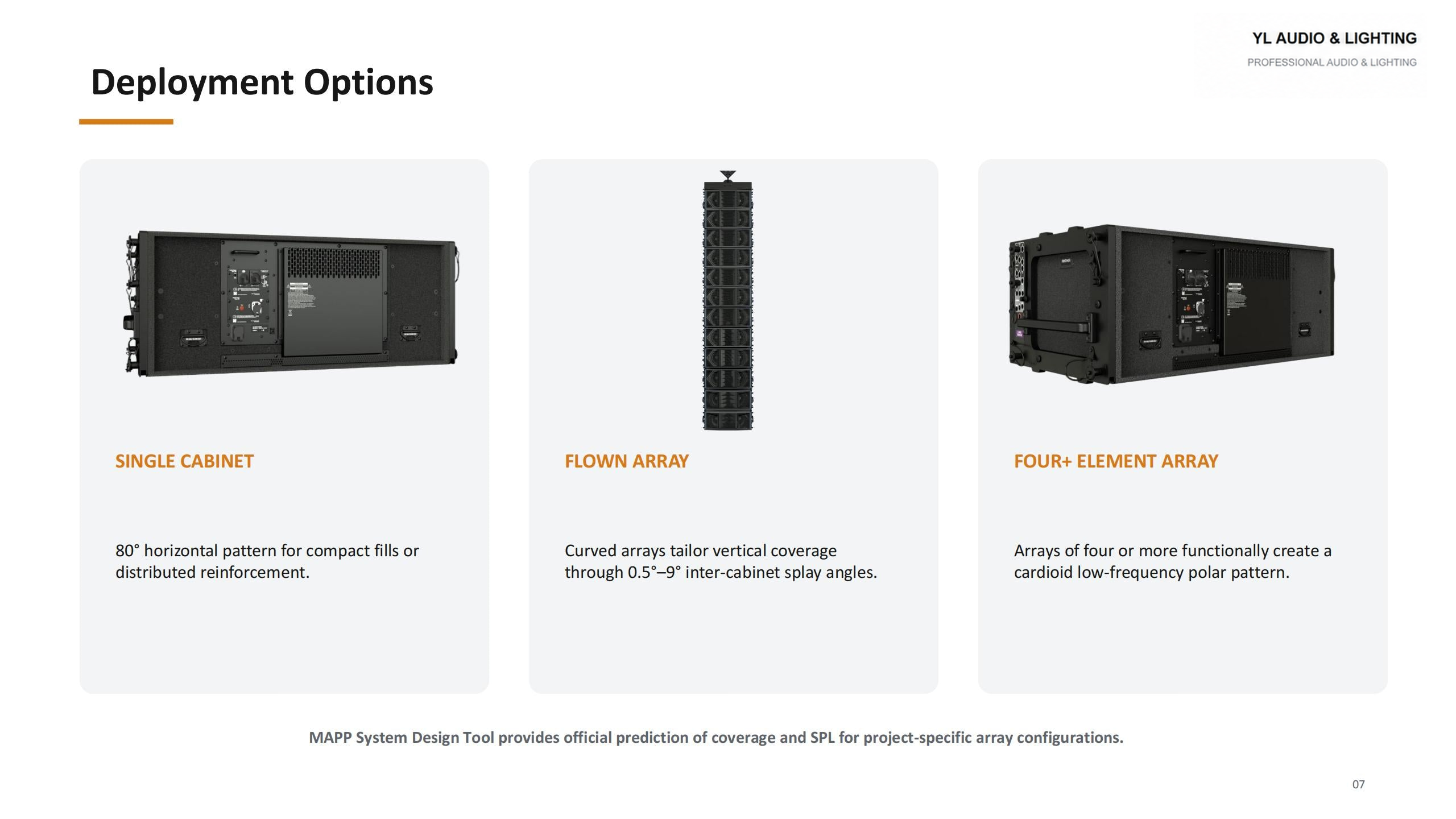

The source specifies Meyer Sound MAPP prediction or load verification for the illustrated system configuration. Use the applicable model data, hardware and current load documentation; an illustration or prediction is not a measured coverage result or suspension approval for another configuration.
The source specifies Meyer Sound MAPP prediction or load verification for the illustrated system configuration. Use the applicable model data, hardware and current load documentation; an illustration or prediction is not a measured coverage result or suspension approval for another configuration.
The source describes a Milan Certified endpoint and specifies Neutrik interfaces. Certification and networking support apply to the documented endpoint hardware and firmware; this description does not certify every YL-branded configuration.

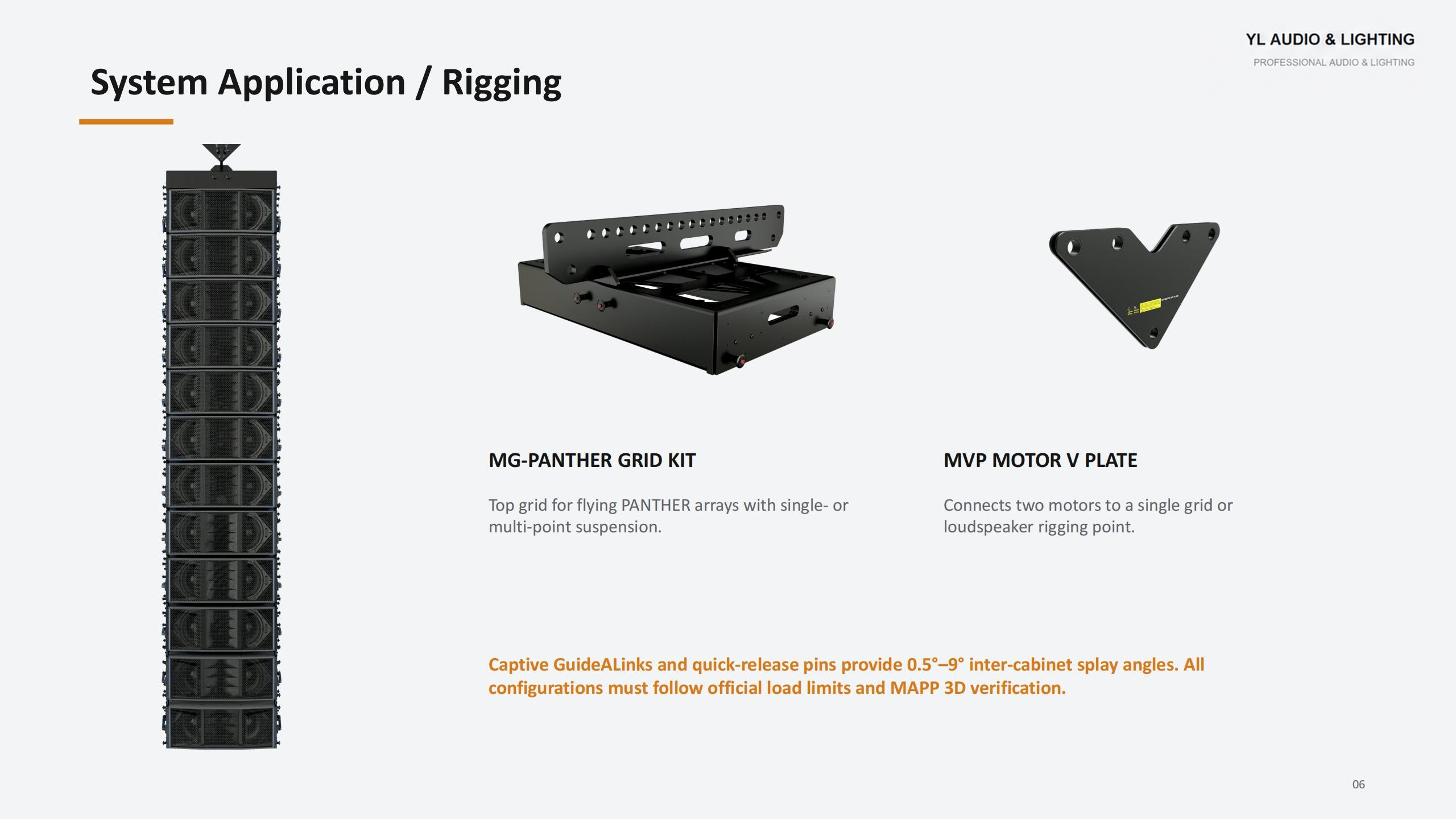

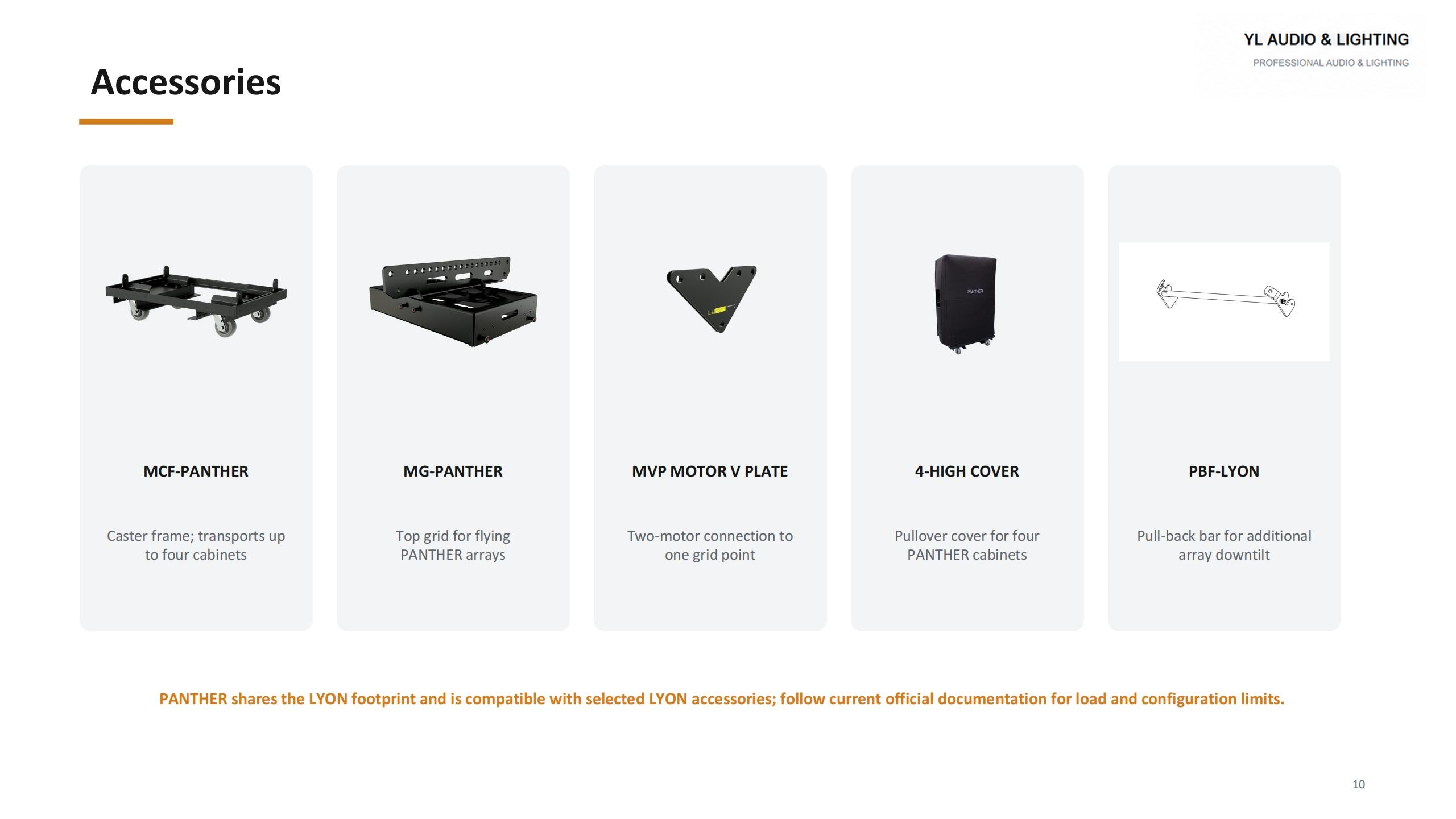

The illustrated accessory relationship is specific to the LYON-compatible hardware and stated manufacturer load conditions. Confirm the exact frame, pins, attachment points and load chart for the proposed assembly before suspension.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Website Model | PANTHER-L |
|---|---|
| Company Model | P212-W |
| Configuration | Self-powered dual 12" active line array loudspeaker |
| Performance | 150.5 dB burst; 55 Hz - 16 kHz operating range; 80° horizontal coverage |
| Drivers | LF 2 x 12" long-excursion cone drivers; HF 2 x 3" diaphragm compression drivers |
| Dimensions / weight | 38.15 x 14.85 x 22.25 in / 969 x 377 x 565 mm; 150 lb / 68 kg |
| Power / protection | 200-240 V AC, 50/60 Hz; 1100 W max long-term; 2200 W burst; IP55 with terminated Neutrik TOP cables |
| Connectors / enclosure | XLR 3-pin TOP in/loop, etherCON TOP AVB, powerCON TRUE1 TOP; premium multi-ply birch cabinet |
Downloads
| Title | File type | Download |
|---|---|---|
| YL P212-W Product DetailsEnglish | PDF7.3 MB |
System accessories
YL LightYL-LFC
Rigging & Accessories
P212 BUMP - BUMP – Flying frame for (incl. 1 BPCHAIN 1.5T)
P212 BUMP - BUMP – Flying frame for (incl. 1 BPCHAIN 1.5T) is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists weight: Approx. 65–70 kg; dimensions (h × w × d): Approx. 160 × 1160 × 600 mm. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LFC
Rigging & Accessories
P212 CHARIOT - CHARIOT – Transport cart for up to 4
P212 CHARIOT - CHARIOT – Transport cart for up to 4 is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists weight: Approx. 40–45 kg; dimensions (l × w × h): Approx. 1100 × 900 × 220 mm. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LFC
Rigging & Accessories
P212 PANTHER COV - Heavy-duty soft cover for enclosures
P212 PANTHER COV - Heavy-duty soft cover for enclosures is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists dimensions: 1130 × 760 × 950 mm. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
MVP Motor V Plate
MVP Motor V Plate is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
PBF-LYON Pull Back Bar Kit
PBF-LYON Pull Back Bar Kit is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
