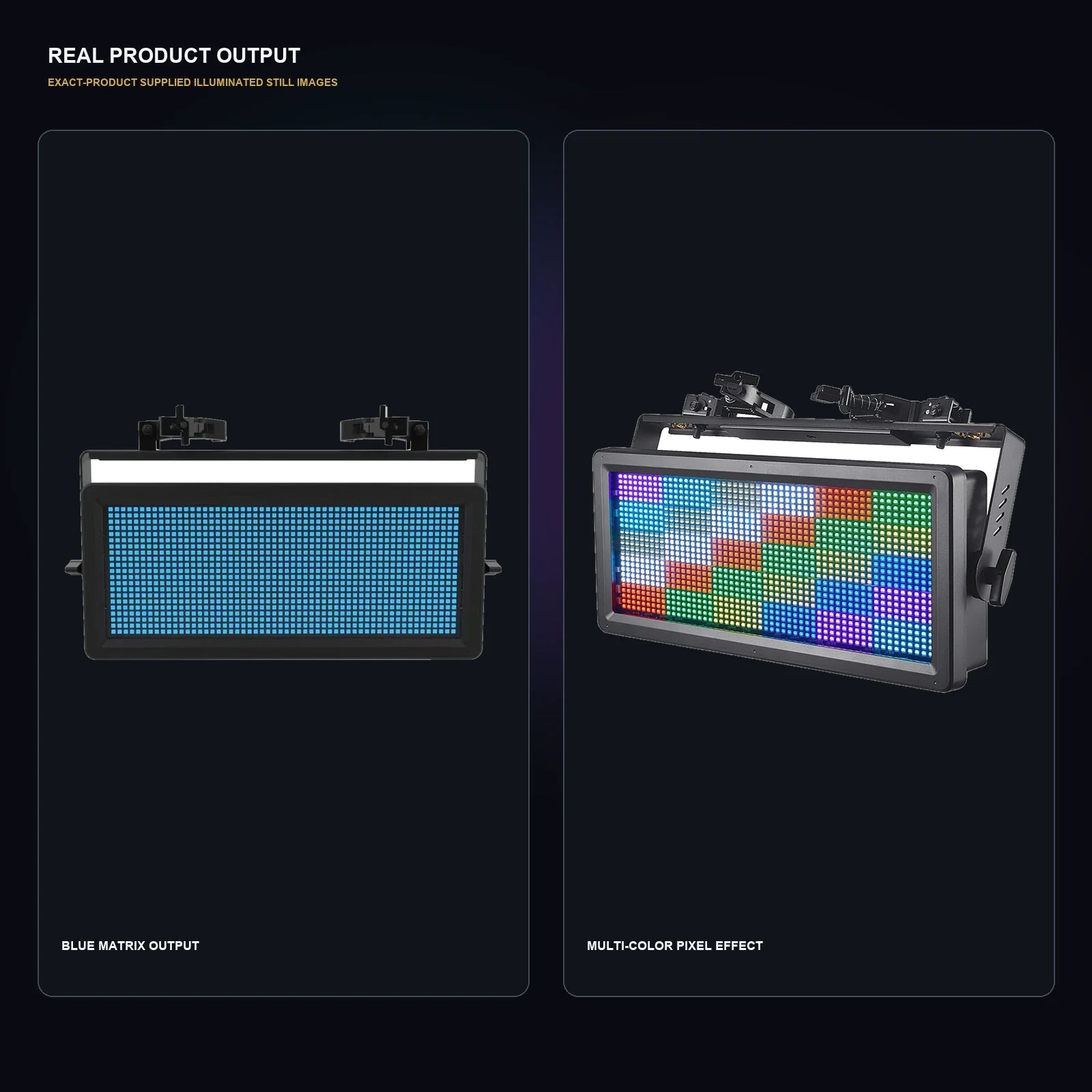

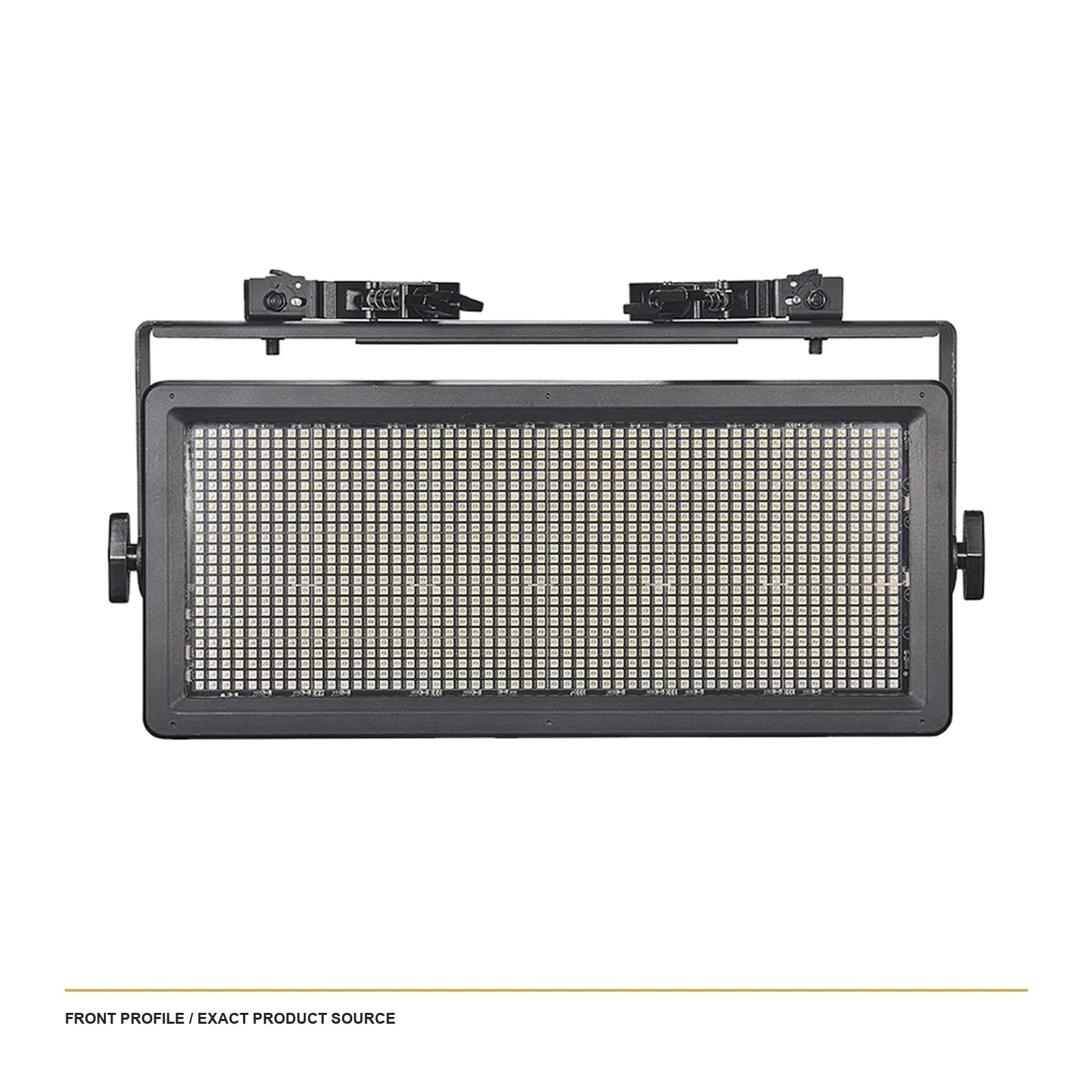

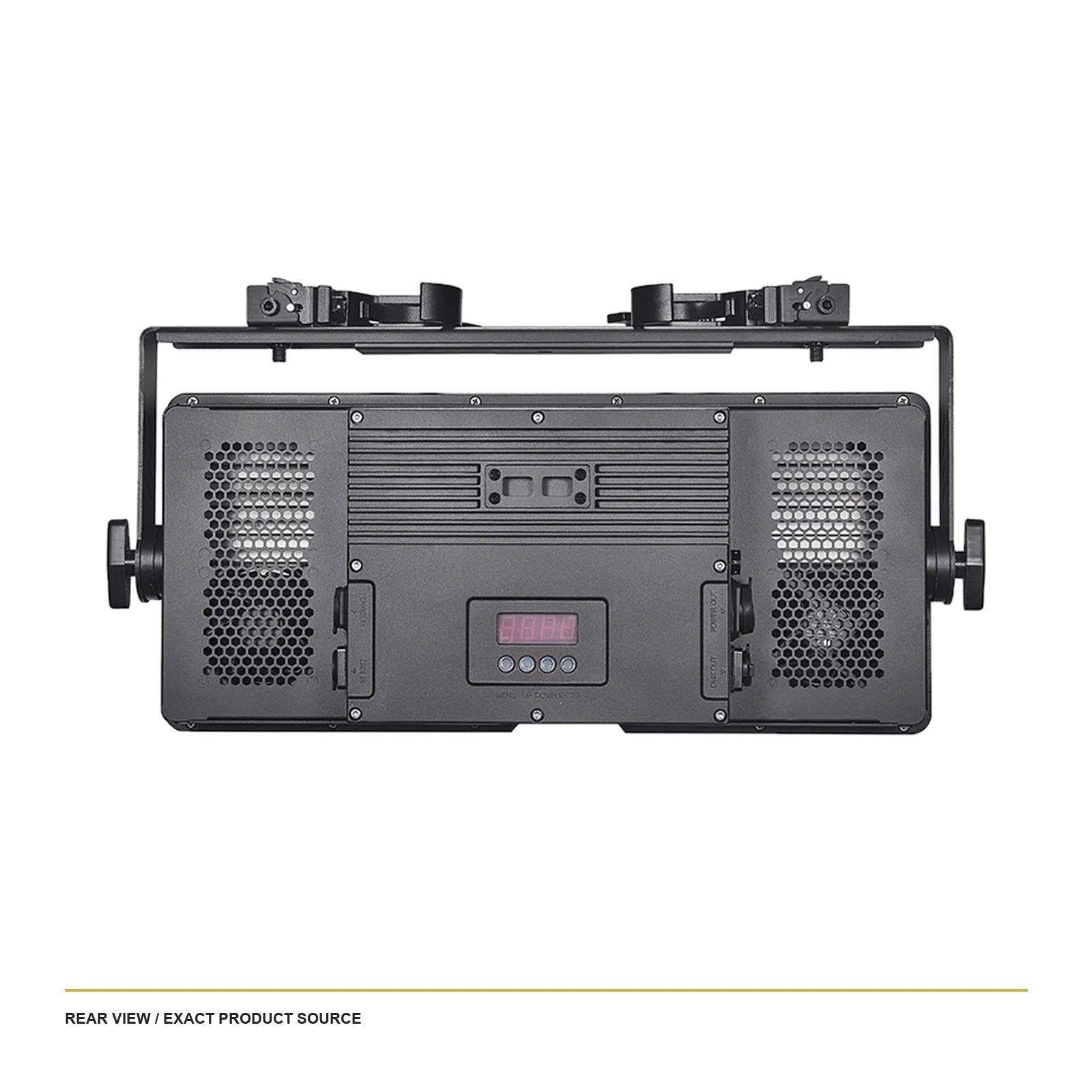

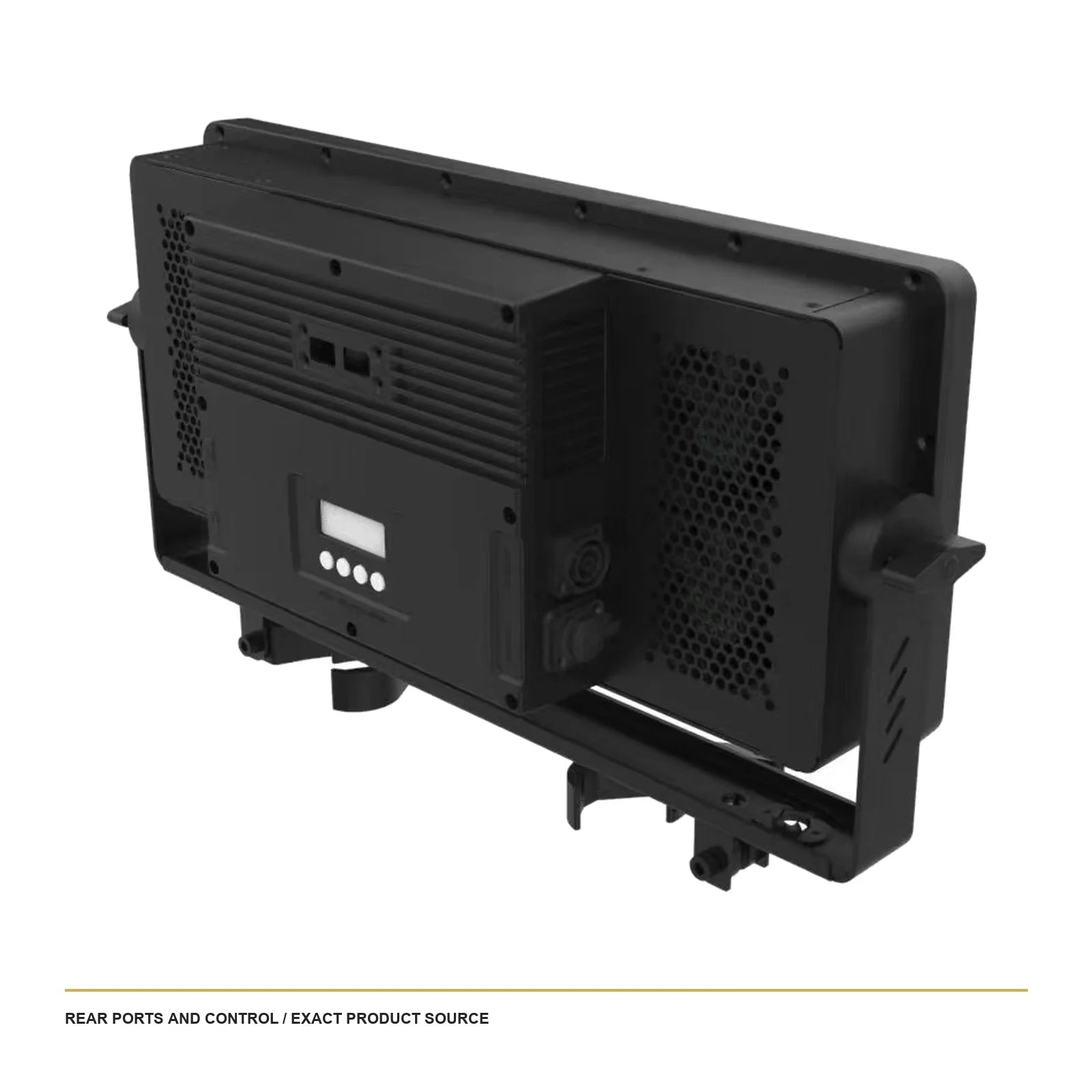

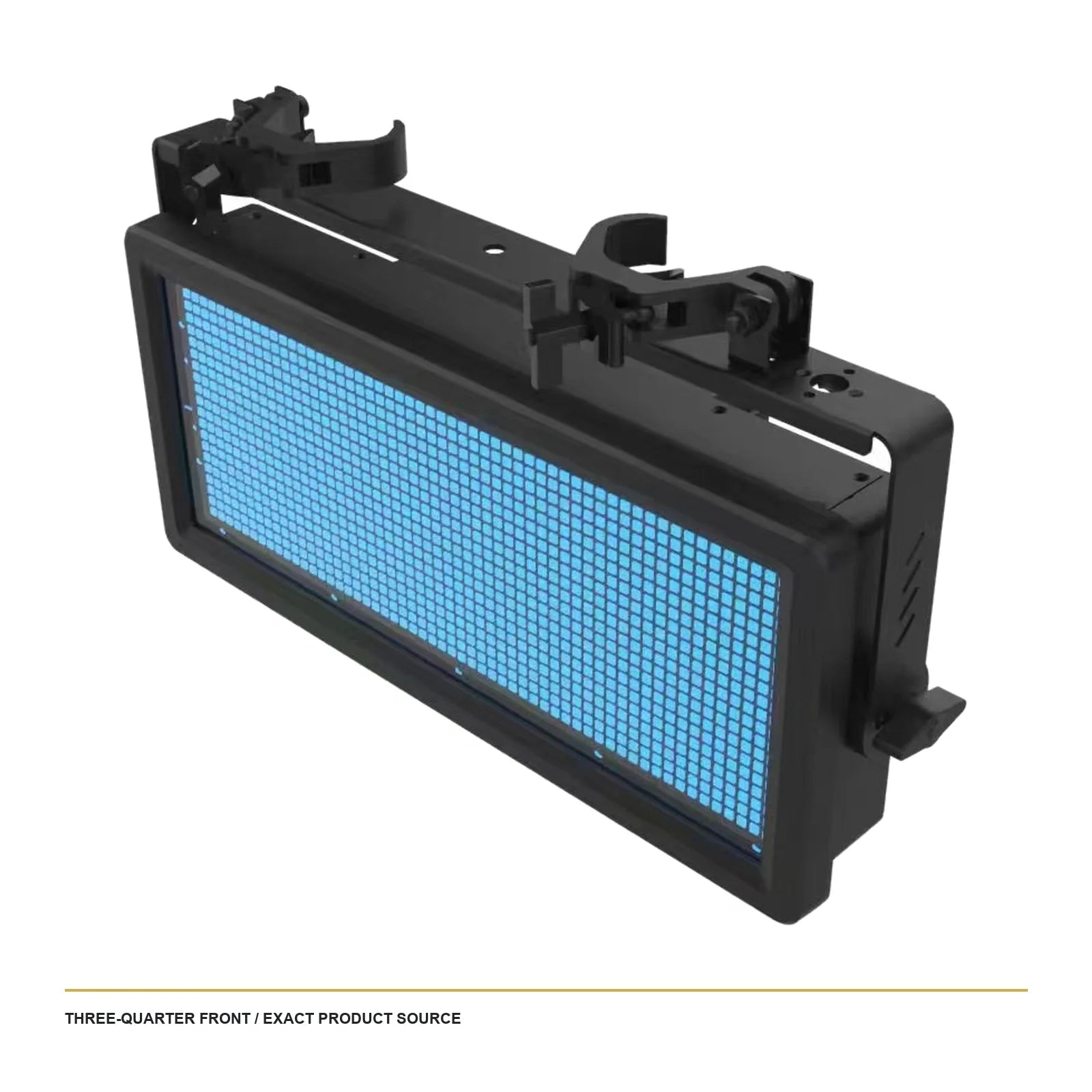

STORM1350 IP65 RGBW Outdoor Strobe / Pixel Panel

Name: STORM1350 IP65 RGBW Outdoor Strobe / Pixel Panel
Brand: YL Light

STORM1350 IP65 RGBW Outdoor Strobe / Pixel Panel is a stage lighting catalogue item in the led strobe / pixel panel category. Reference specifications list rated power: 500W; light source: 1350 x 0.5W RGBW 5050 SMD LEDs. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 1350 x 0.5W RGBW 5050 SMD LEDs
Protection: IP65
Control modes: DMX512 / auto / master-slave / sound / RDM

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Product: STORM1350 IP65 RGBW Outdoor Strobe / Pixel Panel
Strobe: 1-25Hz
Dimming: 32-bit, 0-100% linear dimming
Packing: Flight case or carton; final carton dimensions and gross weight TBC
Connections: DMX512 input/output and power input/output

Optical performance

Rated power: 500W
Light source: 1350 x 0.5W RGBW 5050 SMD LEDs
Color system: RGBW mixing, macros, character and animated matrix effects

Control and connections

DMX channels: 4CH / 12CH / 120CH, manual-documented; fixture-library file not supplied
Input voltage: AC90-240V, 50/60Hz
Control modes: DMX512 / auto / master-slave / sound / RDM

Construction and dimensions

Protection: IP65
Size / weight: 650 x 140 x 394mm; 12.8kg net - manual values
Electrical protection: Rated current, fuse value and fuse-holder location: TBC.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

STORM1350 IP65 RGBW Outdoor Strobe / Pixel Panel technical specifications
Rated power	500W
Light source	1350 x 0.5W RGBW 5050 SMD LEDs
DMX channels	4CH / 12CH / 120CH, manual-documented; fixture-library file not supplied
Protection	IP65
Product	STORM1350 IP65 RGBW Outdoor Strobe / Pixel Panel
Input voltage	AC90-240V, 50/60Hz
Control modes	DMX512 / auto / master-slave / sound / RDM
Color system	RGBW mixing, macros, character and animated matrix effects
Strobe	1-25Hz
Dimming	32-bit, 0-100% linear dimming
Size / weight	650 x 140 x 394mm; 12.8kg net - manual values
Packing	Flight case or carton; final carton dimensions and gross weight TBC
Connections	DMX512 input/output and power input/output
Electrical protection	Rated current, fuse value and fuse-holder location: TBC.
