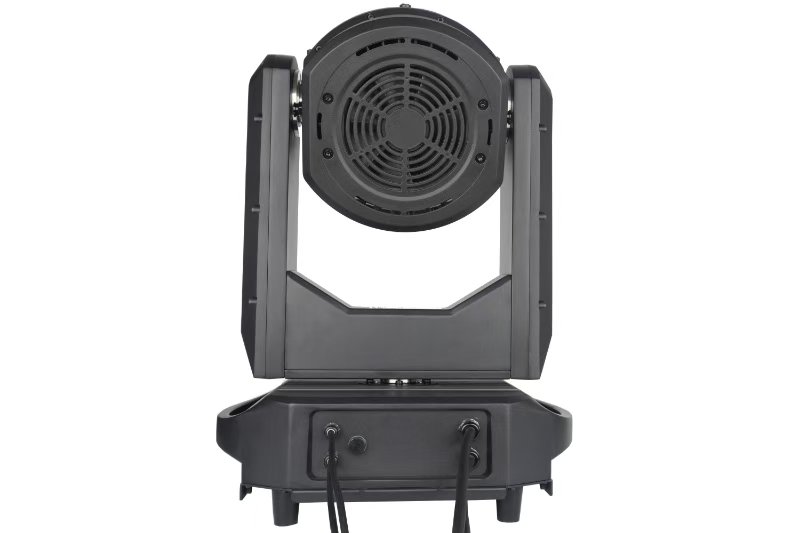

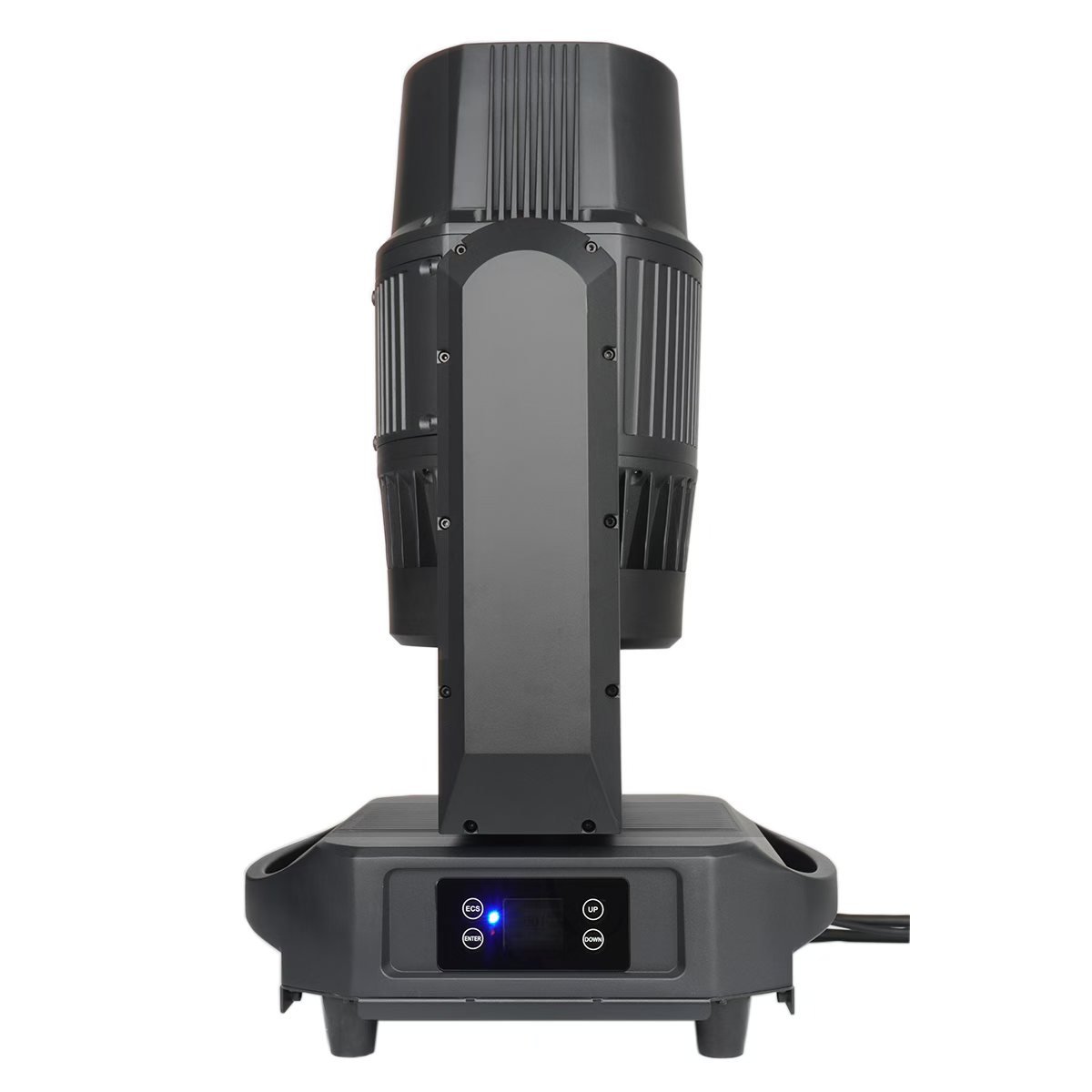

500WBEAM IP

An IP66-rated moving head with a 1.7° beam, motorized focus and DMX512 control.

WHATSAPPRequest a Quote
View specifications
Light source
USHIO NSLU6C
Protection rating
IP66
Net weight
25 kg

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

500WBEAM IP technical specifications
Model500WBEAM IP
Light sourceUSHIO NSLU6C
Power consumption550 W
Power inputAC 100–240 V, 50/60 Hz
Colour temperature7900 ± 500 K
Light source life1500 hours
Protection ratingIP66

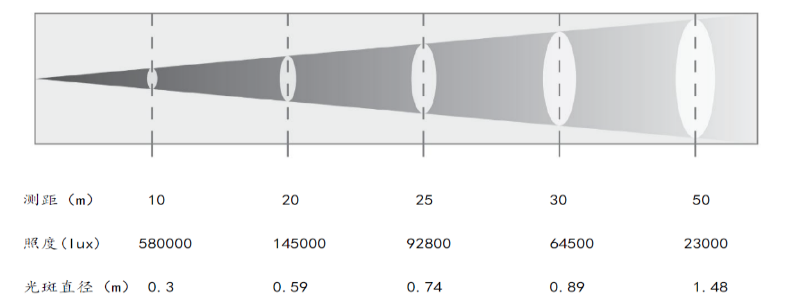

Beam angle1.7°
Output aperture diameter160 mm
MovementPan 540° / tilt 270°
Colour wheel14 colours + open
Gobo wheel13 gobos + open
FocusMotorized
FrostIndependent frost effect
Strobe1–20 Hz
Dimming0–100%
Prisms8-facet and 24-facet
ControlDMX512, 16 channels
Power connectionsWaterproof input / output
DMX connections3-pin / 5-pin waterproof input / output
Operating temperature−10 to 40 °C

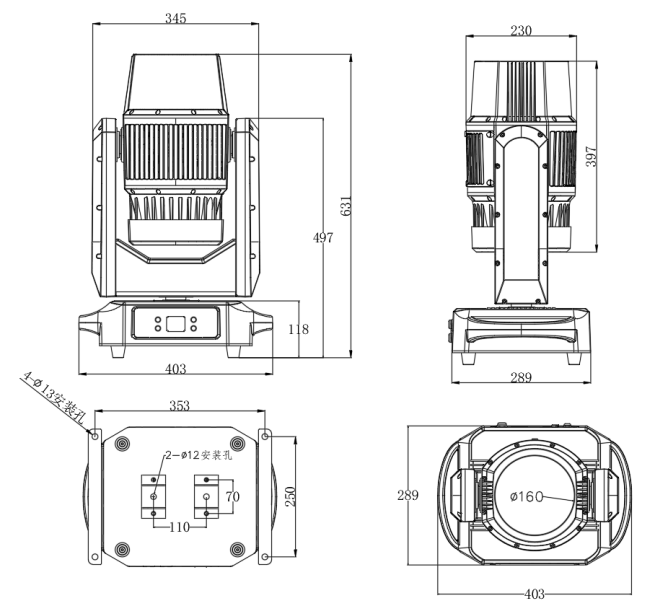

Dimensions631 × 403 × 289 mm
Net weight25 kg
HousingDie-cast aluminium
Display1.8-inch display, reversible
