PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar

Name: PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar
Brand: YL Light

PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar is a stage lighting catalogue item in the led pixel effect bar category. Reference specifications list light source: 10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note; dmx channels: 8CH fixture-library verified; 23CH manual-documented. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
Control modes: DMX512 / RDM

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

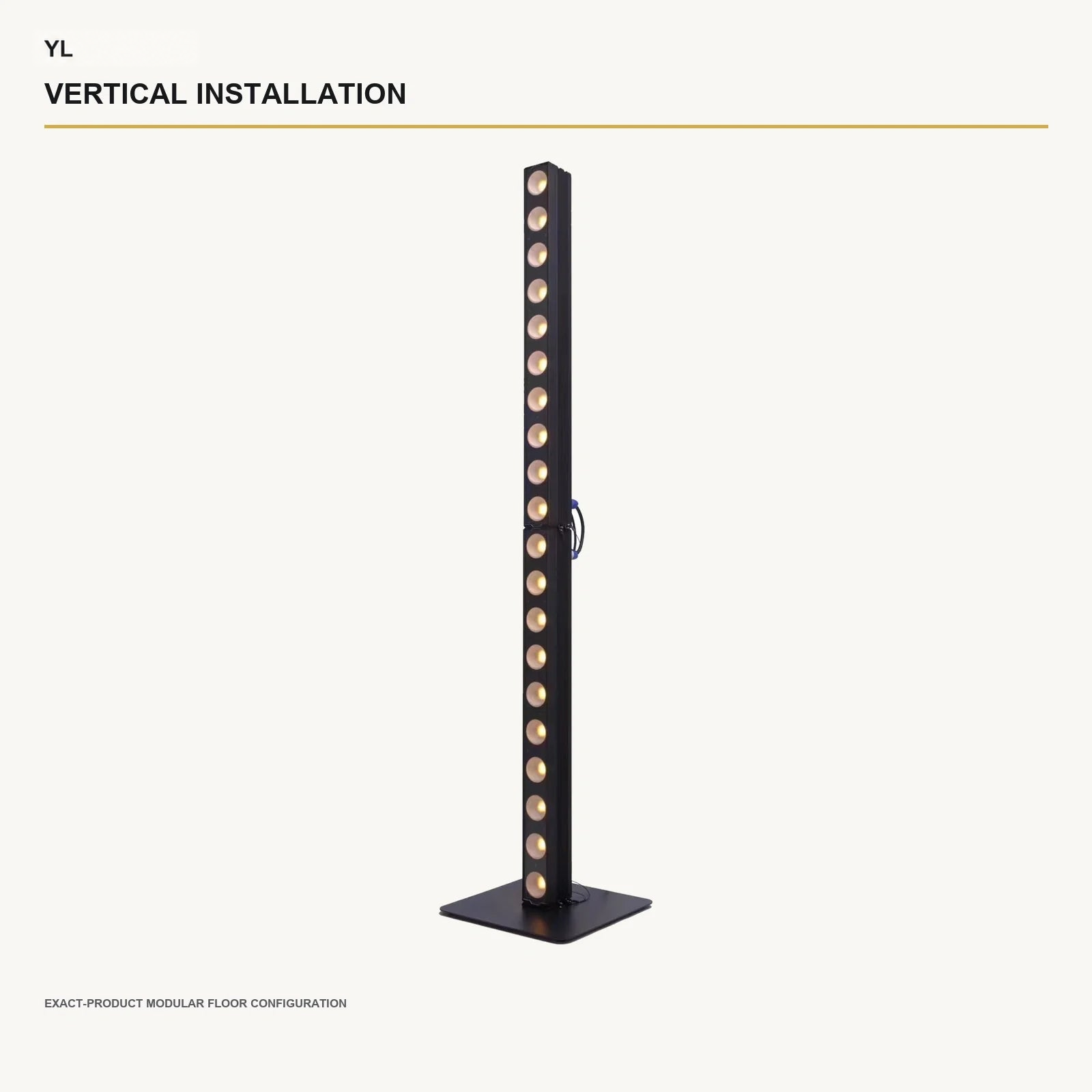

Movement: Static linear fixture; horizontal, floor-tilt and vertical mounting documented
Product: PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar
Strobe: 0.3-25 flashes/second; synchronized, asynchronous and random modes
Dimming: 0-100% linear dimming
Environment: IP22

Optical performance

Light source: 10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
Color system: Dual-white mixing and CTO control; RGBW optional configuration claim

Control and connections

DMX channels: 8CH fixture-library verified; 23CH manual-documented
Input voltage: AC90-240V, 50/60Hz
Control modes: DMX512 / RDM

Construction and dimensions

Size / weight: 952 x 80 x 106MM; 9.95 KG NET
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.

What to confirm for your quotation

Describe the desired effect, viewing distance and fixture positions.
Confirm the controllable sections, movement functions and selected channel mode.
Check console profiles, addressing, power distribution and cable routing for the planned quantity.
Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar technical specifications
Light source	10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
DMX channels	8CH fixture-library verified; 23CH manual-documented
Movement	Static linear fixture; horizontal, floor-tilt and vertical mounting documented
Input voltage	AC90-240V, 50/60Hz
Product	PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar
Control modes	DMX512 / RDM
Color system	Dual-white mixing and CTO control; RGBW optional configuration claim
Strobe	0.3-25 flashes/second; synchronized, asynchronous and random modes
Dimming	0-100% linear dimming
Size / weight	952 x 80 x 106MM; 9.95 KG NET
Environment	IP22
Electrical protection	Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.

Downloads

Product documents are being prepared. Contact YL for the current information for PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar.

Ask about compatible accessories

Product videos

Ask for an available demonstration of PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar and the configuration you need.

Request a product demonstration
