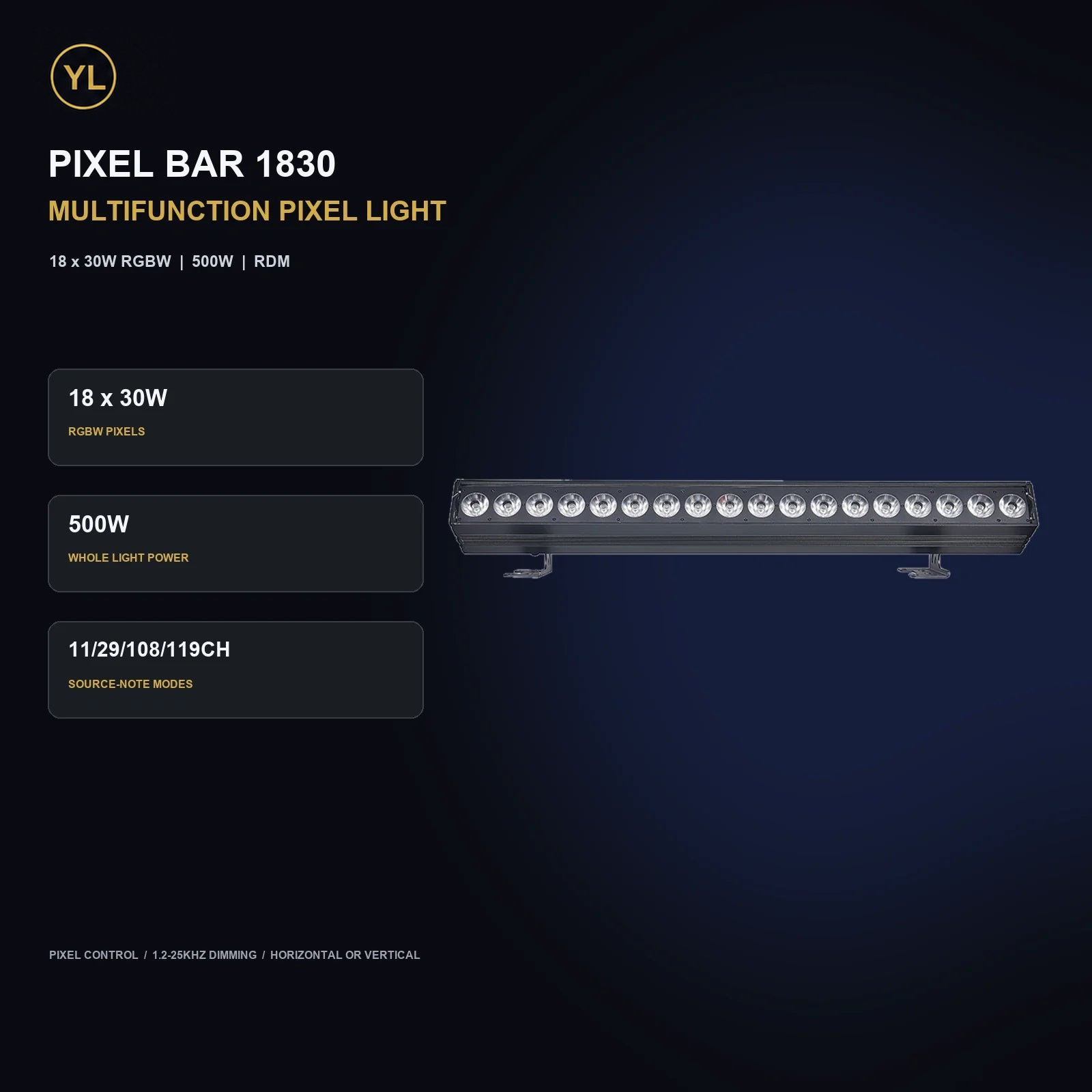

Pixel Bar 1830 18 x 30W RGBW Multifunction Pixel Light

Name: Pixel Bar 1830 18 x 30W RGBW Multifunction Pixel Light
Brand: YL Light

Pixel Bar 1830 18 x 30W RGBW Multifunction Pixel Light is a stage lighting catalogue item in the led pixel effect bar category. Reference specifications list light source: 18 x 30W 5050 Cree RGBW sources; dmx channels: 11CH / 29CH / 108CH / 119CH source-note documented. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

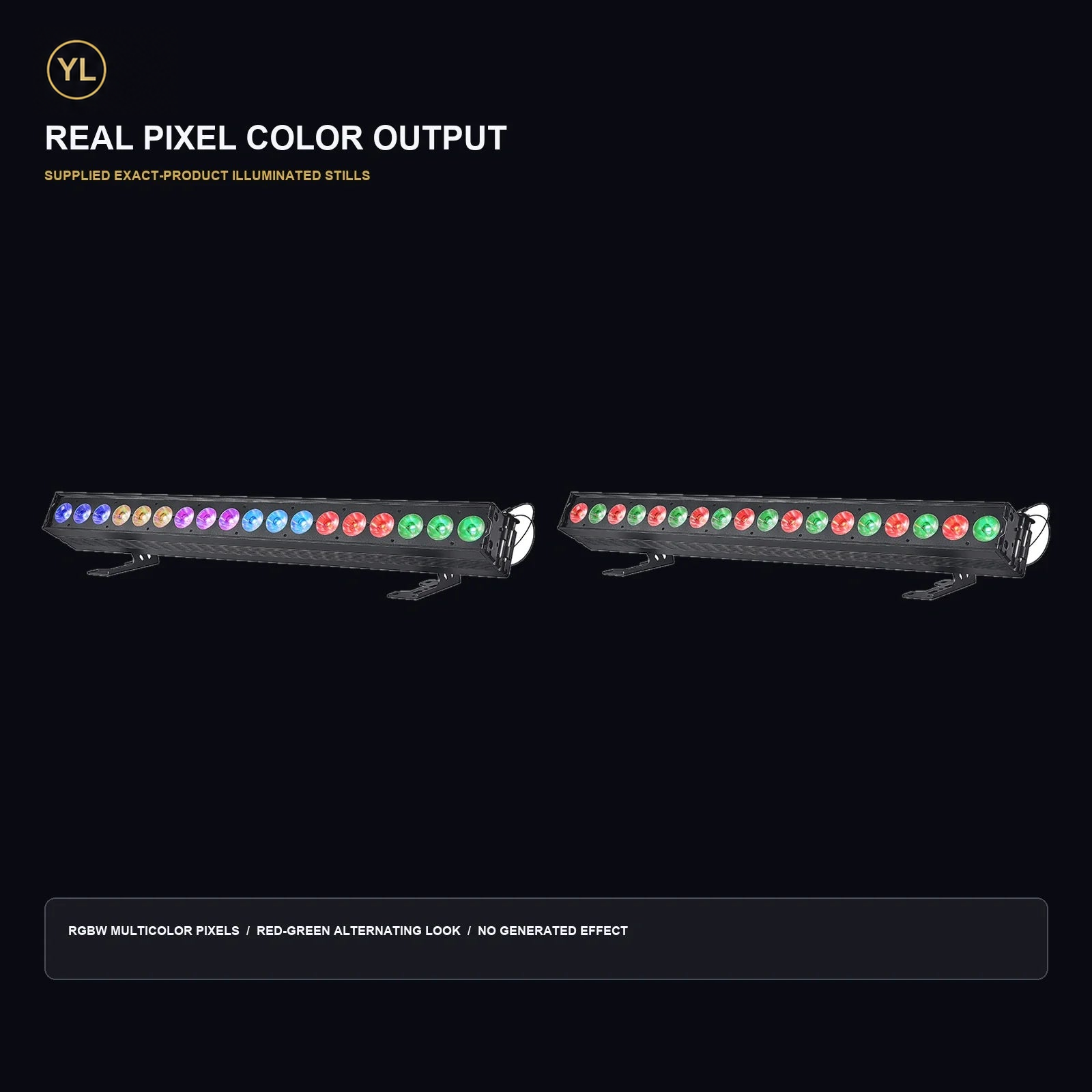

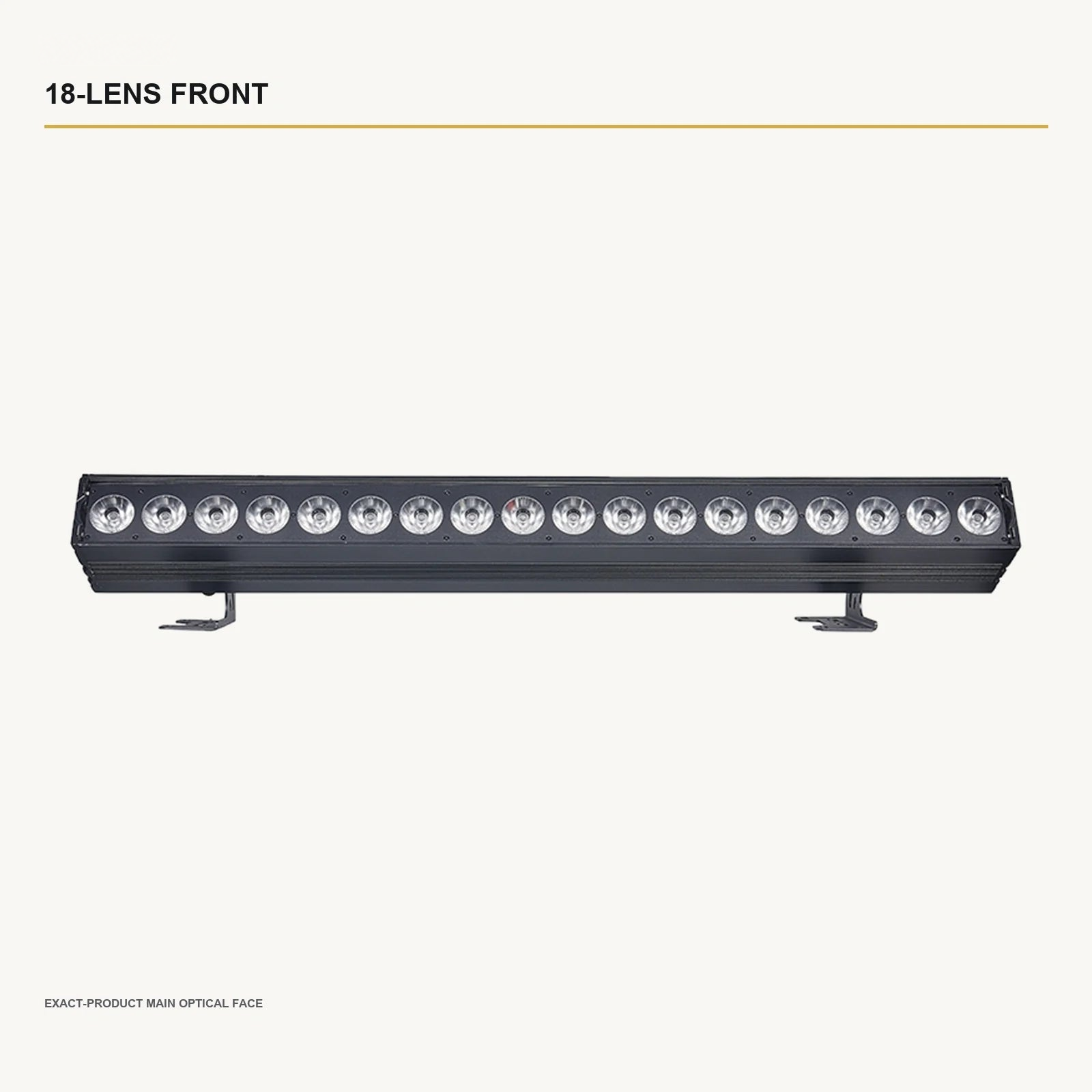

Light source: 18 x 30W 5050 Cree RGBW sources
Protection: IP22
Size / weight: 952mm length / 106mm height / width TBC / 9.0kg net

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

Product: Pixel Bar 1830 18 x 30W RGBW Multifunction Pixel Light
Strobe: 0.3-25 flashes/second
Dimming: Electronic 0-100% linear adjustment with gamma-curve claim
Dimming: frequency

Optical performance

Light source: 18 x 30W 5050 Cree RGBW sources

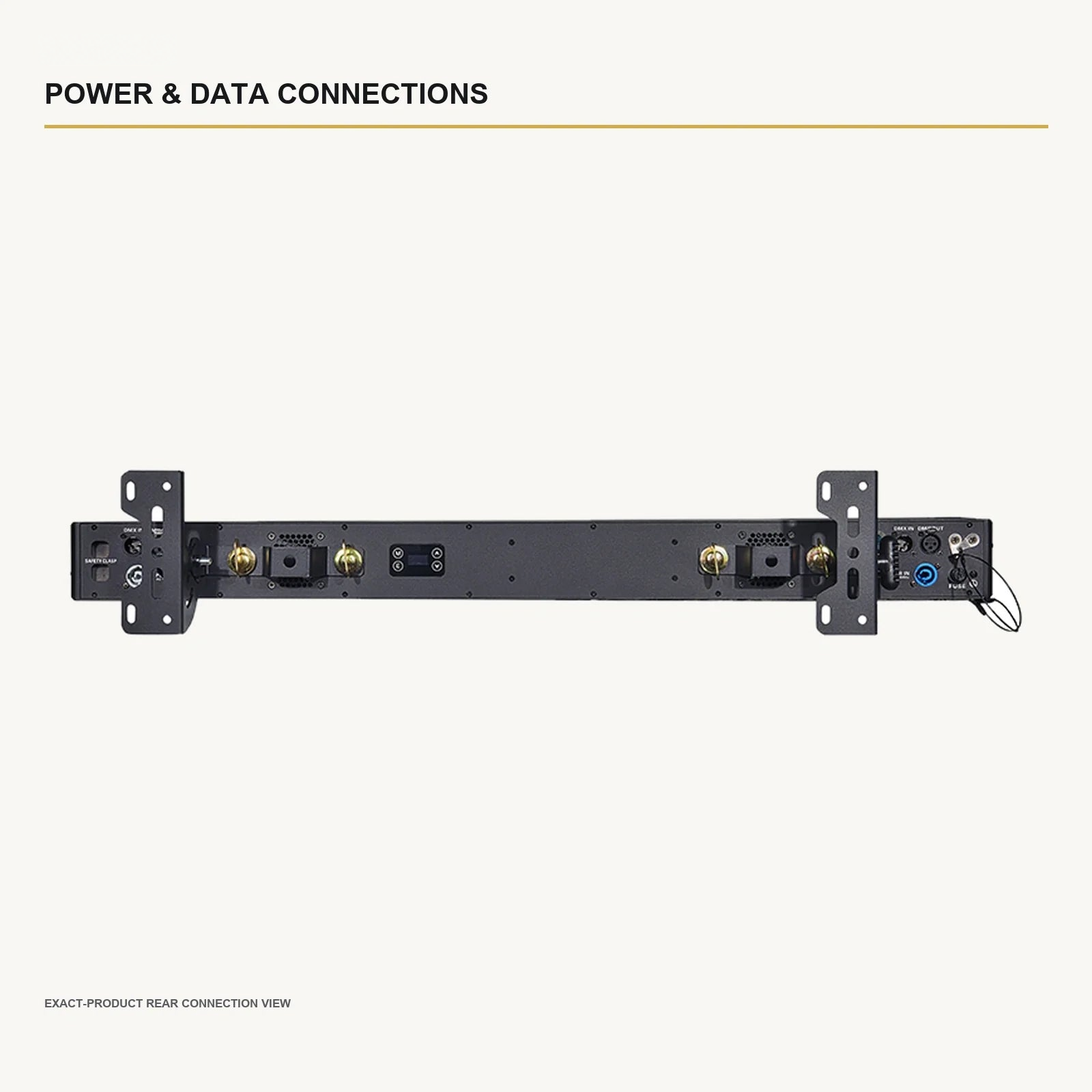

Control and connections

DMX channels: 11CH / 29CH / 108CH / 119CH source-note documented
Input voltage: AC90-240V, 50/60Hz

Construction and dimensions

Protection: IP22

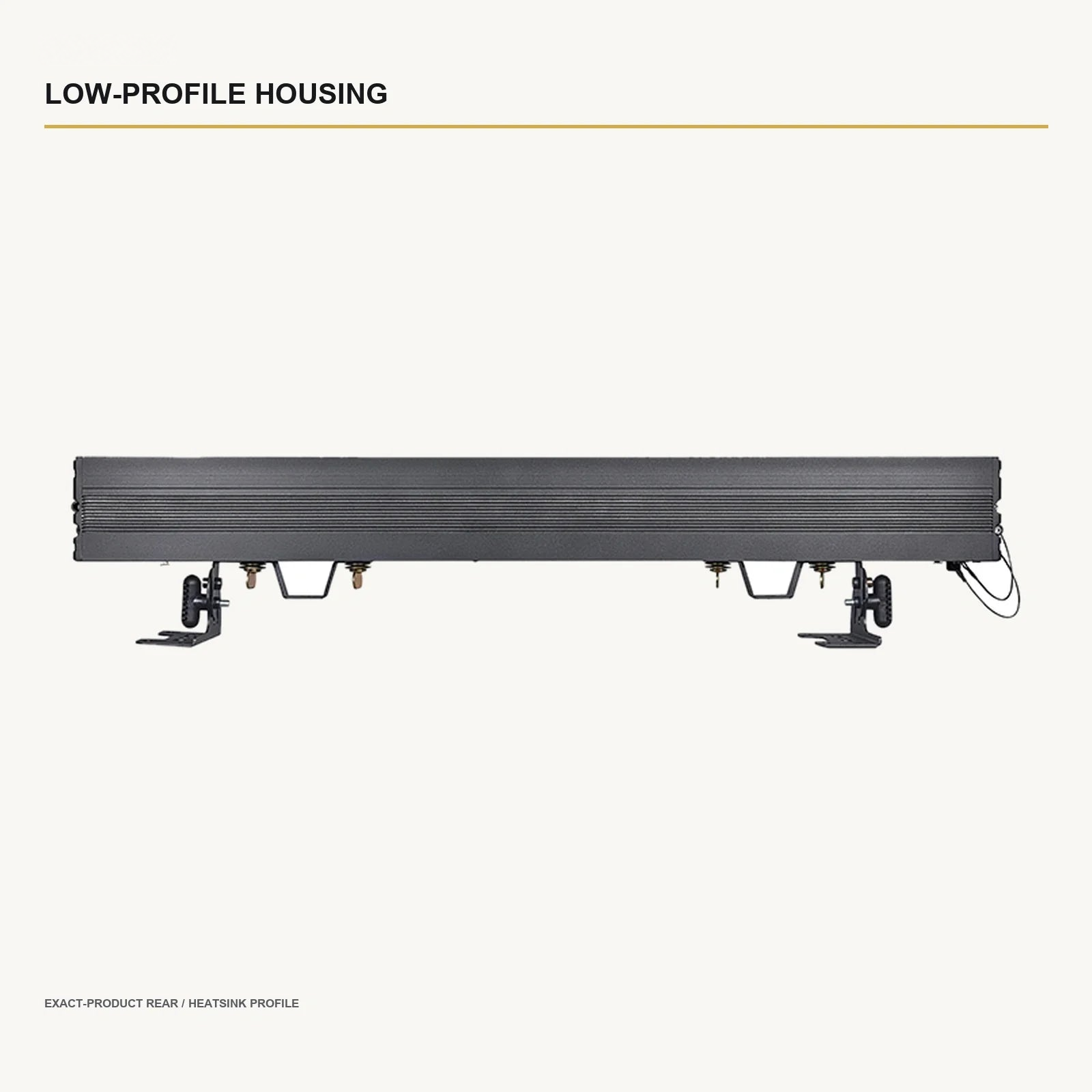

Size / weight: 952mm length / 106mm height / width TBC / 9.0kg net
Electrical protection: Grounded supply required. Fuse carrier is visible; rated current, fuse value and maximum linked quantity remain TBC.

What to confirm for your quotation

Describe the desired effect, viewing distance and fixture positions.
Confirm the controllable sections, movement functions and selected channel mode.
Check console profiles, addressing, power distribution and cable routing for the planned quantity.

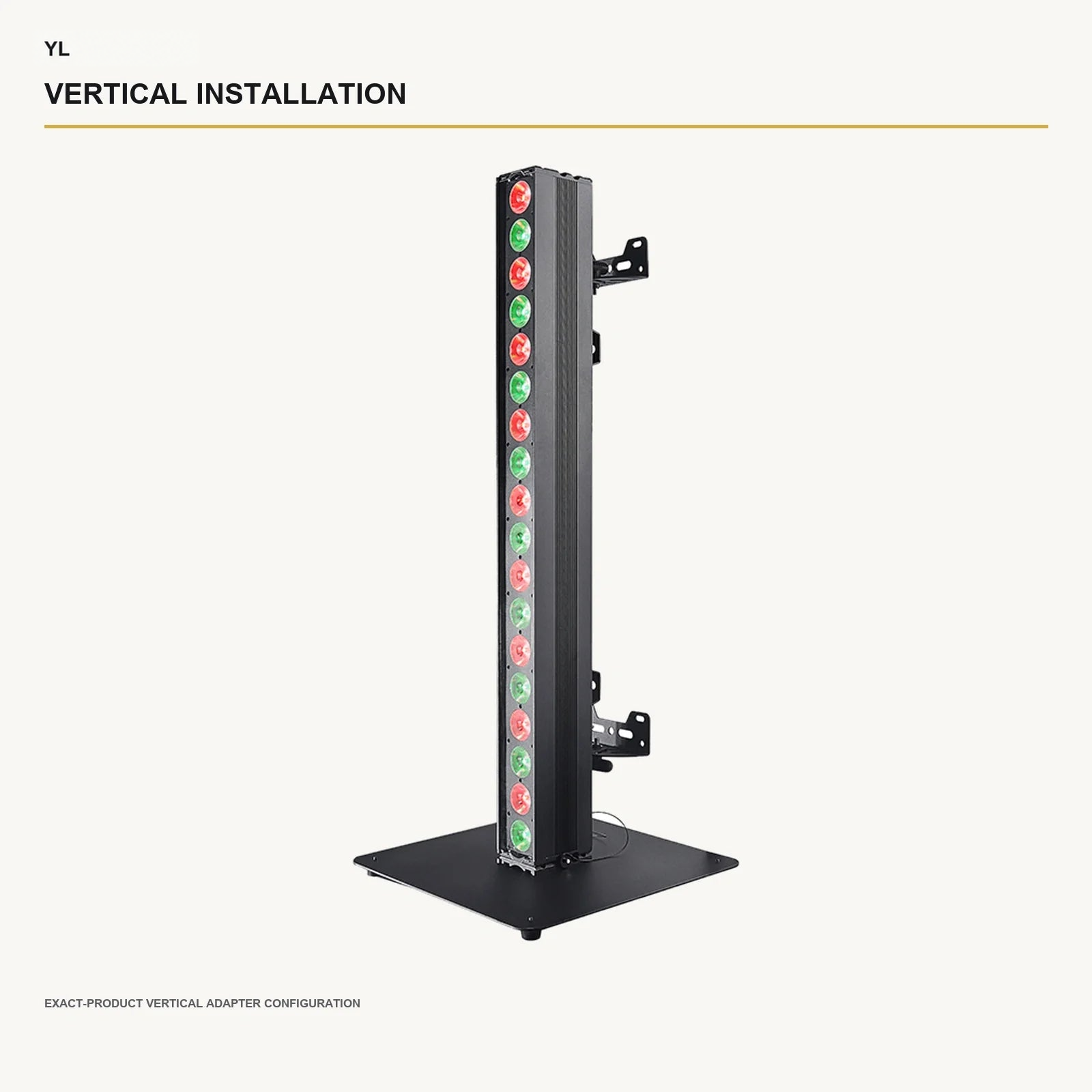

Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Pixel Bar 1830 18 x 30W RGBW Multifunction Pixel Light technical specifications
Light source	18 x 30W 5050 Cree RGBW sources
DMX channels	11CH / 29CH / 108CH / 119CH source-note documented
Protection	IP22
Input voltage	AC90-240V, 50/60Hz
Product	Pixel Bar 1830 18 x 30W RGBW Multifunction Pixel Light
Strobe	0.3-25 flashes/second
Dimming	Electronic 0-100% linear adjustment with gamma-curve claim
Dimming	frequency
Size / weight	952mm length / 106mm height / width TBC / 9.0kg net
Electrical protection	Grounded supply required. Fuse carrier is visible; rated current, fuse value and maximum linked quantity remain TBC.
