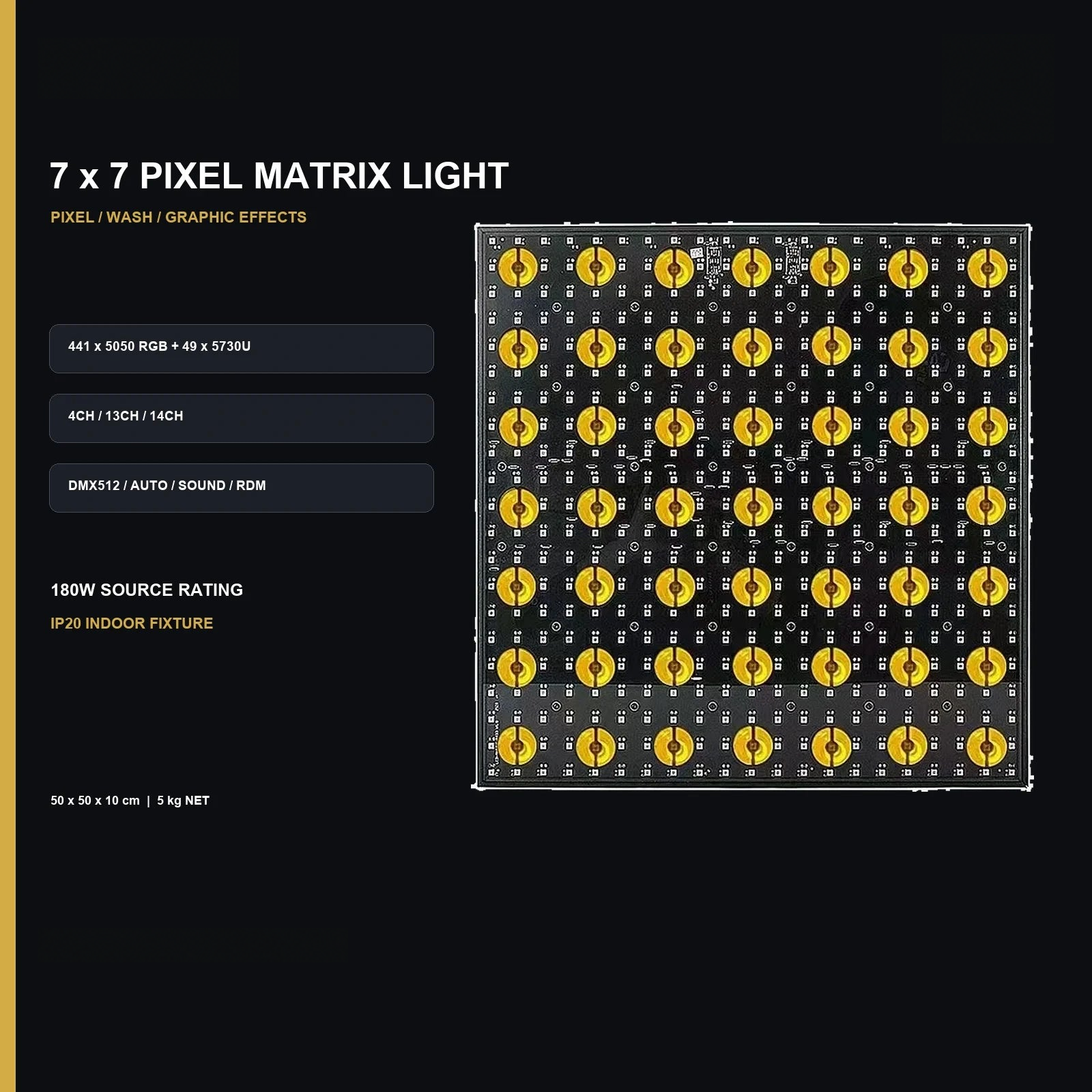

7 x 7 Pixel Matrix Light is a stage lighting catalogue item in the led pixel matrix light category. Reference specifications list rated power: 180W; light source: 441 x 5050 RGB 0.25W + 49 x 5730U 5W. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteSelect this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 180W |
|---|---|

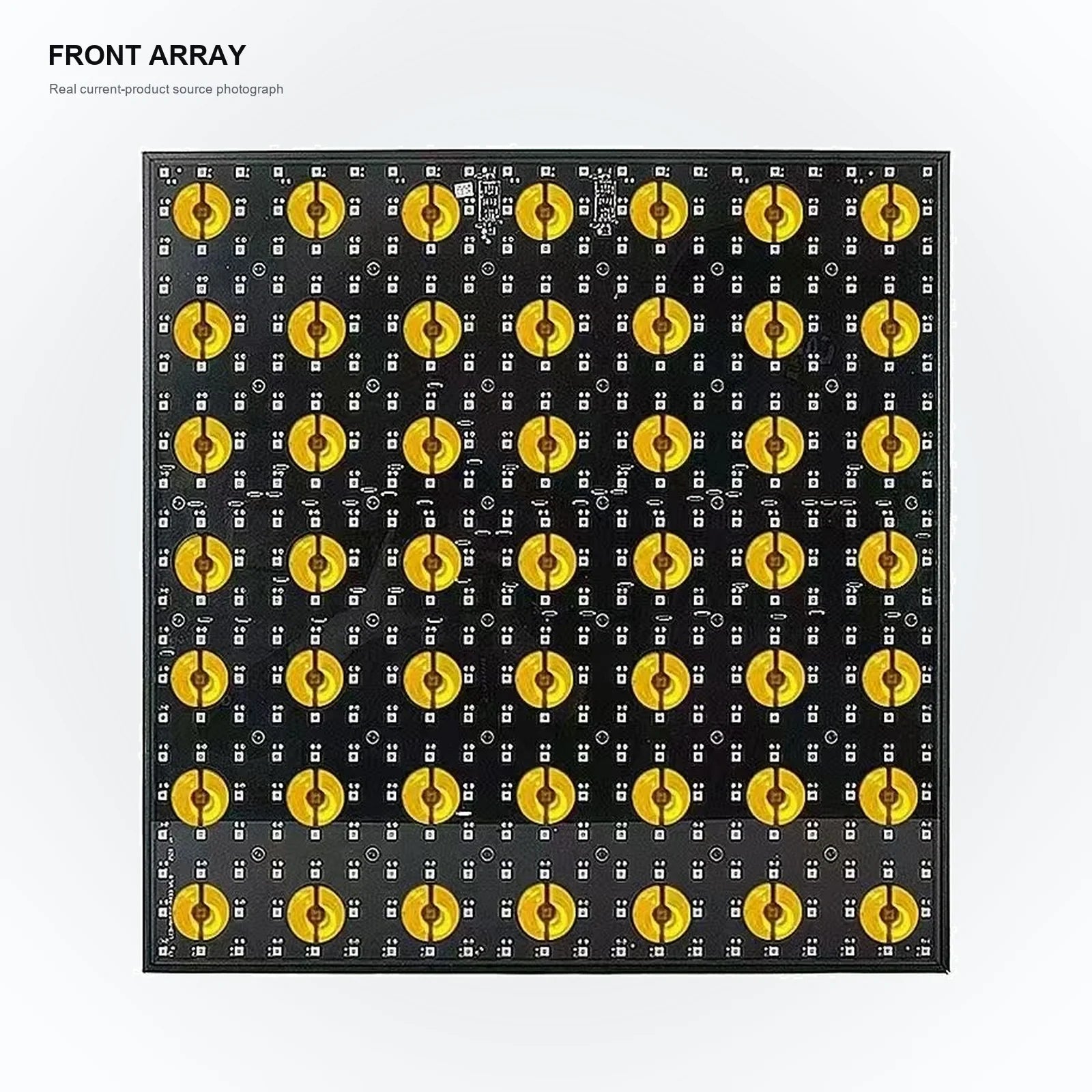

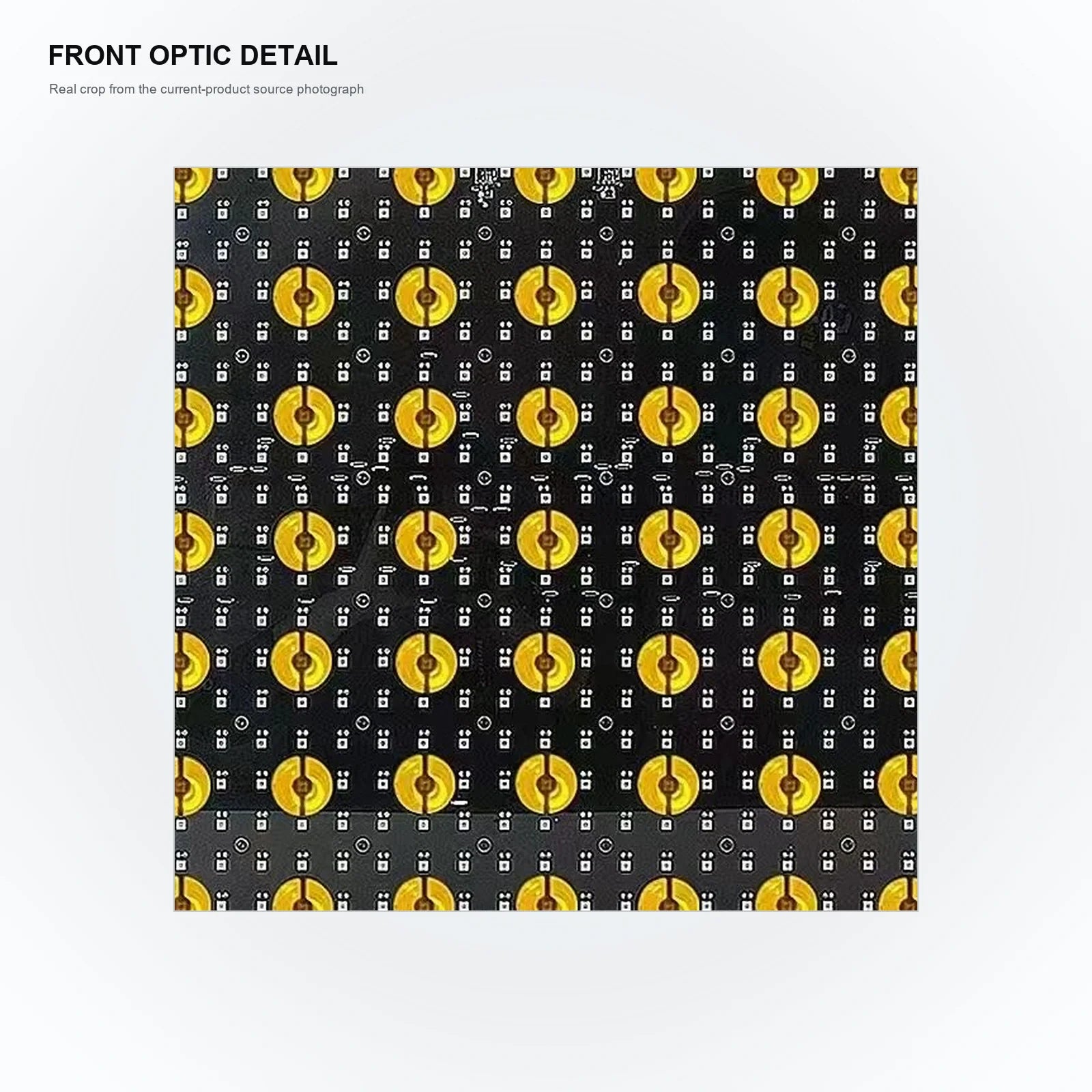

| Light source | 441 x 5050 RGB 0.25W + 49 x 5730U 5W |
| Protection | IP20 |
| Input voltage | AC100-240V, 50/60Hz |
| Product | 7 x 7 Pixel Matrix Light |

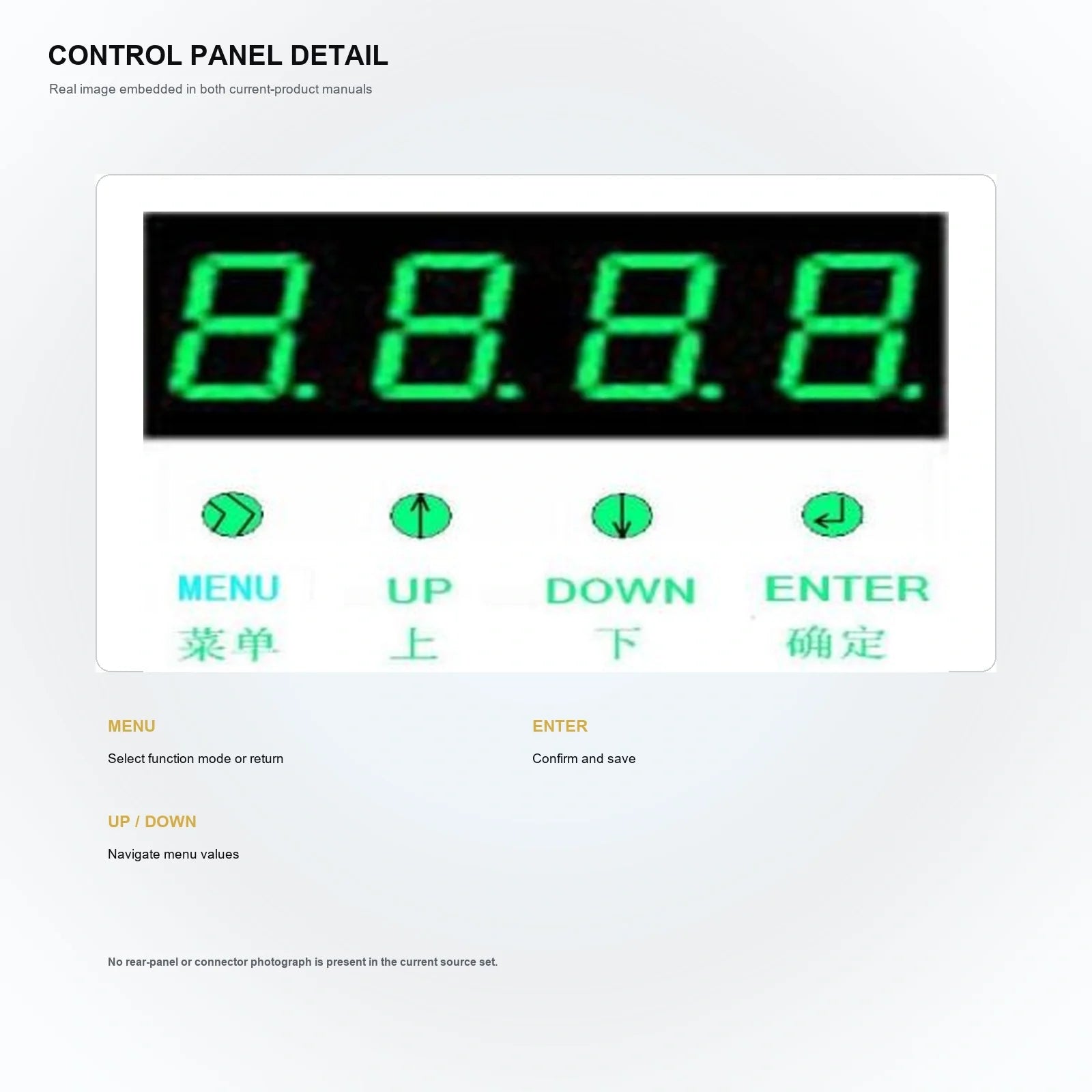

| Control modes | DMX512 / automatic / master-slave / sound-active / RDM |
| Dimming | feature 441 RGB + 49 white sections; single-point control stated |
| Strobe | 1-30Hz |
| Operating temperature | 30 to 50 C (source record) |
| Connections | DMX input/output + power input/output |
| Product size | 50 x 50 x 10 cm |
| Current / fuse | / gross TO BE CONFIRMED |
Product documents are being prepared. Contact YL for the current information for 7 x 7 Pixel Matrix Light.
Request product documentsContact YL to confirm the available accessories and the exact configuration for 7 x 7 Pixel Matrix Light.
Ask about compatible accessoriesAsk for an available demonstration of 7 x 7 Pixel Matrix Light and the configuration you need.
Request a product demonstration
