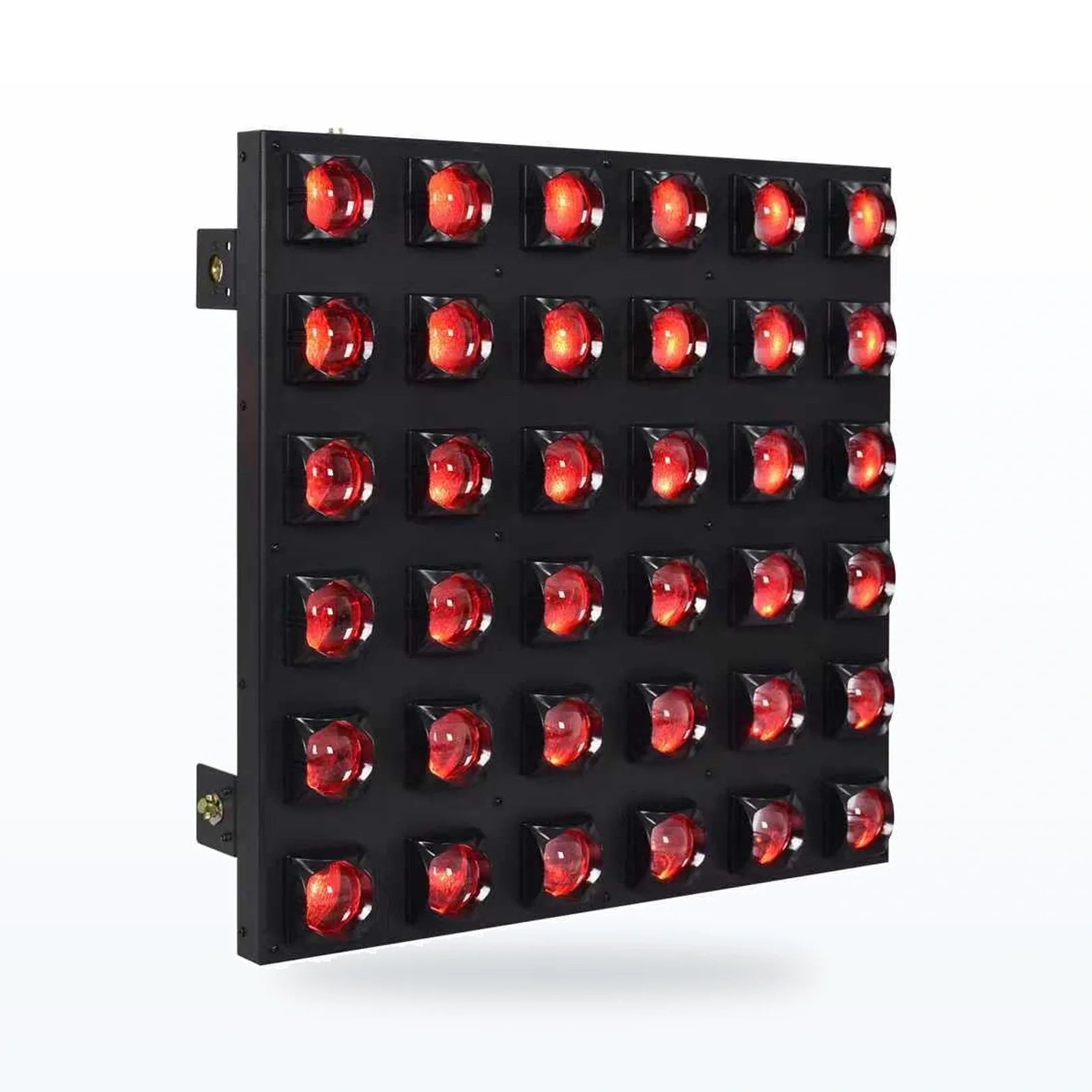

36-Cell RGBW Diamond Matrix - Youth Edition

Name: 36-Cell RGBW Diamond Matrix - Youth Edition
Brand: YL Light

36-Cell RGBW Diamond Matrix - Youth Edition is a stage lighting catalogue item in the led matrix effect light category. Reference specifications list input voltage: AC100-240V, 50/60Hz; control modes: DMX512 / automatic / master-slave / sound-active; RDM documented. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Control modes: DMX512 / automatic / master-slave / sound-active; RDM documented

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

Dimming / strobe: 32-bit 0-100% linear dimming / 1-30Hz
Environment: 30 to 50 degrees C / IP20 indoor
Product: 36-Cell RGBW Diamond Matrix - Youth Edition
Product: note: 36 x 4W RGBW Cree; both manuals: 36 x 8W RGBW Cree - TO BE CONFIRMED

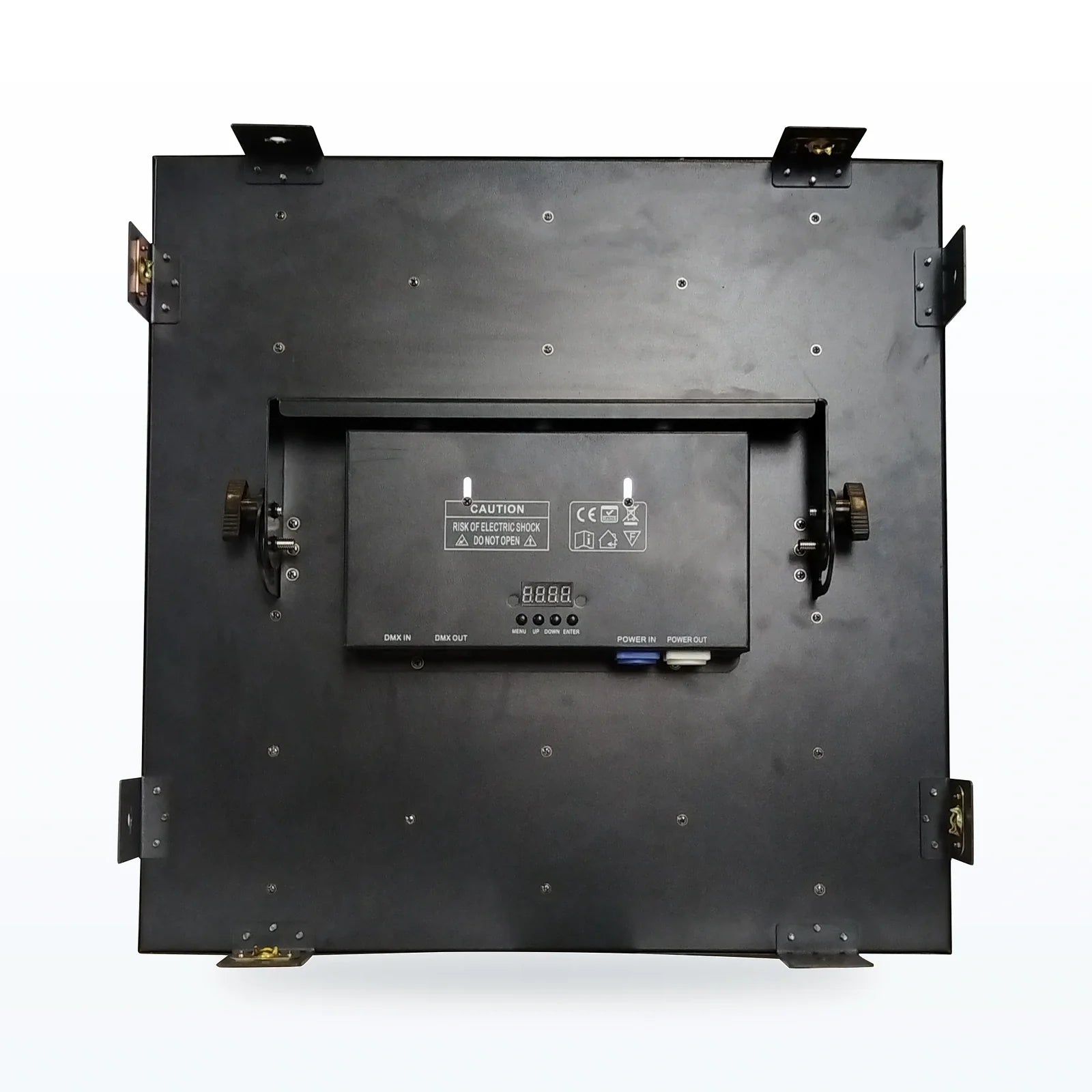

Connections: DMX input/output and power input/output
Housing: Metal, black

Control and connections

Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / automatic / master-slave / sound-active; RDM documented

Construction and dimensions

Packing size: / gross weight

What to confirm for your quotation

Describe the desired effect, viewing distance and fixture positions.
Confirm the controllable sections, movement functions and selected channel mode.
Check console profiles, addressing, power distribution and cable routing for the planned quantity.
Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

36-Cell RGBW Diamond Matrix - Youth Edition technical specifications
Input voltage	AC100-240V, 50/60Hz
Control modes	DMX512 / automatic / master-slave / sound-active; RDM documented
Dimming / strobe	32-bit 0-100% linear dimming / 1-30Hz
Environment	30 to 50 degrees C / IP20 indoor
Product	36-Cell RGBW Diamond Matrix - Youth Edition
Product	note: 36 x 4W RGBW Cree; both manuals: 36 x 8W RGBW Cree - TO BE CONFIRMED
Connections	DMX input/output and power input/output
Packing size	/ gross weight
Housing	Metal, black
