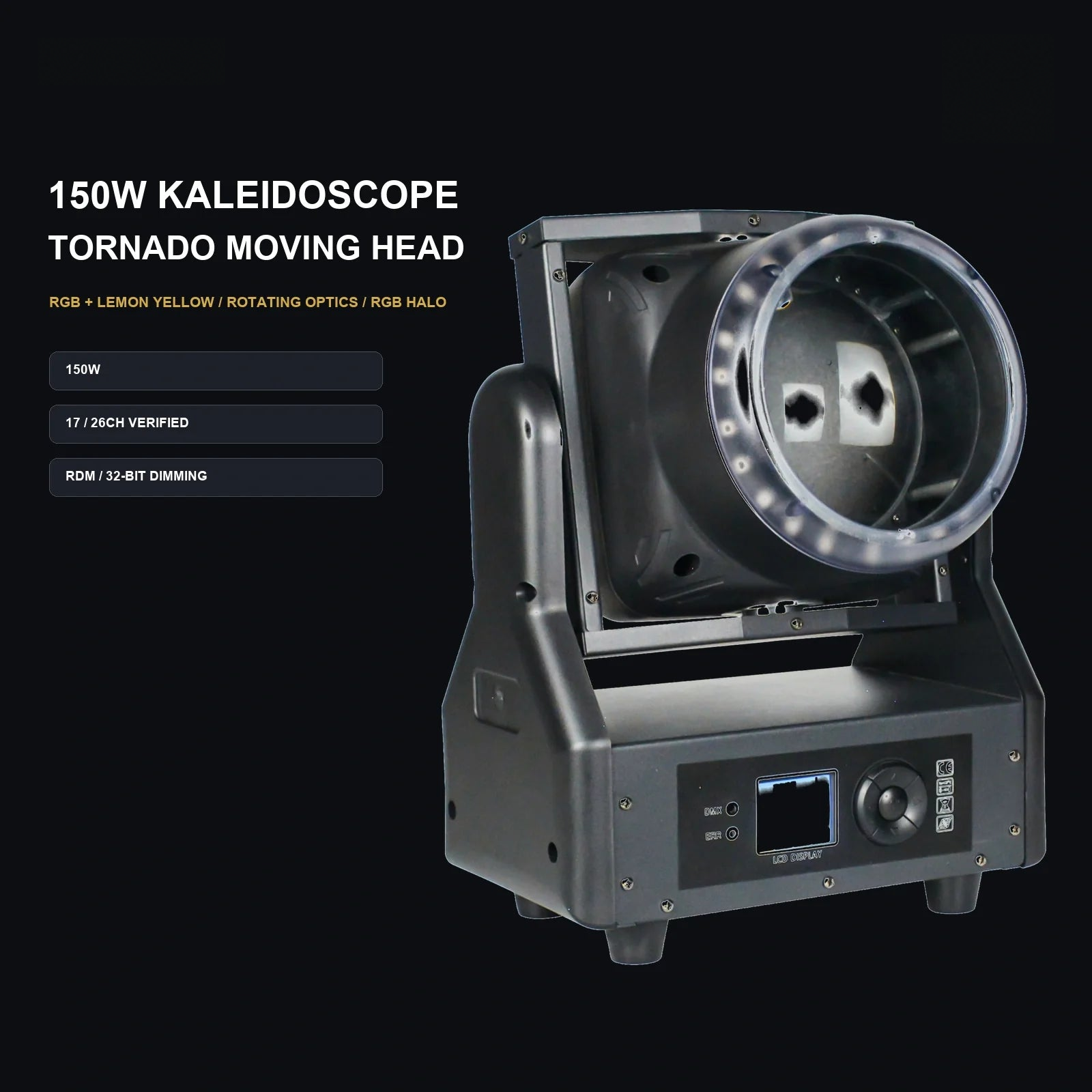

150W kaleidoscope tornado moving head is a stage lighting catalogue item in the kaleidoscope effect moving head light category. Reference specifications list rated power: 150W; main led source: 1 x 120W RGB plus lemon-yellow LED. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteSelect this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 150W |
|---|---|
| Main LED source | 1 x 120W RGB plus lemon-yellow LED |
| DMX modes | 17CH / 26CH |
| Protection | IP20 indoor |
| Product | 150W kaleidoscope tornado moving head |
| Input voltage | AC100-240V, 50/60Hz |
| Movement record | R20: moving head, pan 540 degrees / tilt 270 degrees |
| Dimming / strobe | 32-bit 0-100% linear / 1-30Hz |
| Optical rotation | Stroke plus forward and reverse variable-speed rotation |
| Auxiliary LEDs | 24 x 0.5W 5050 RGB LEDs |

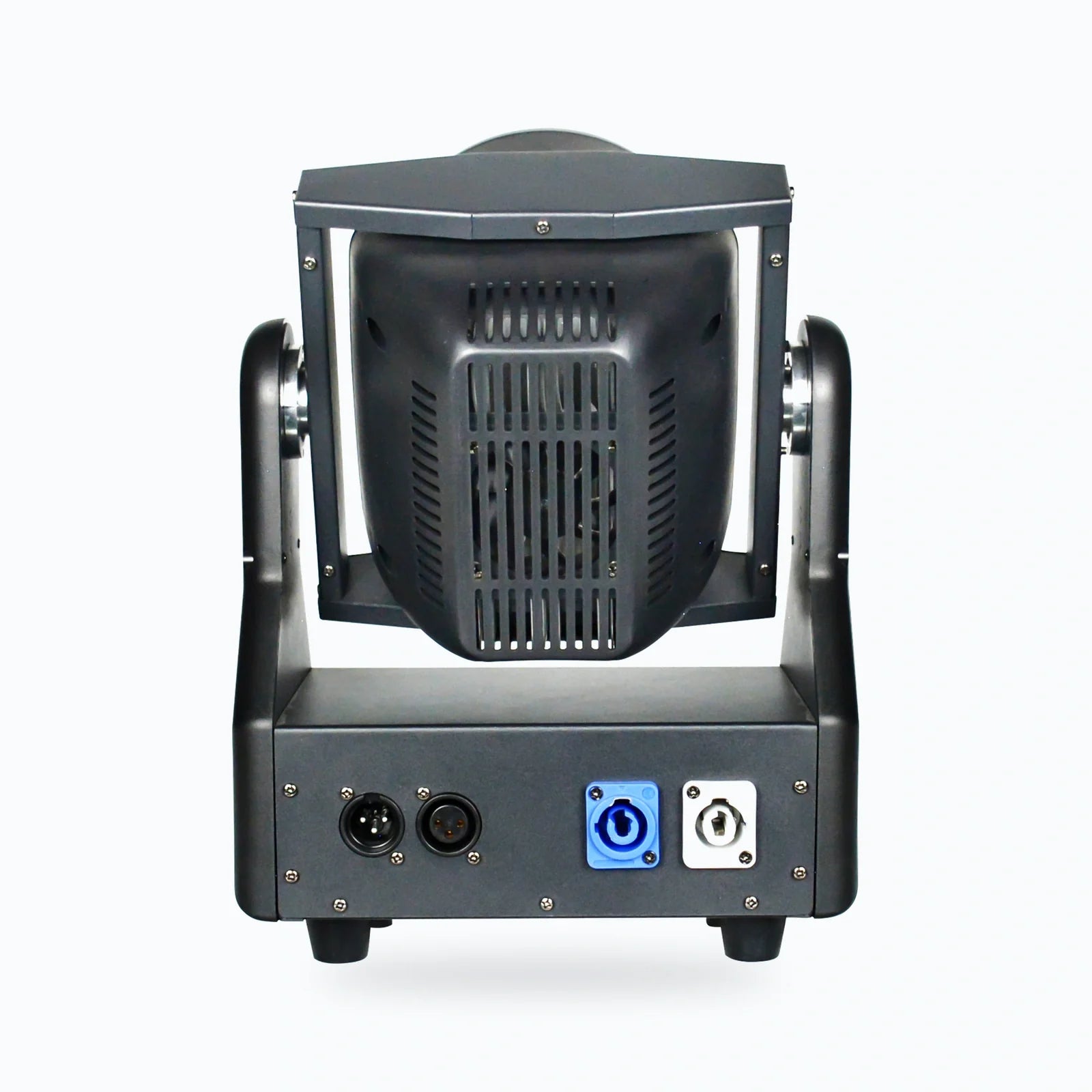

| Connection | DMX input/output and locking power input/output |
| Product size | 21 x 23.2 x 34 cm |
| Net / gross weight | 4.7 kg / TO BE CONFIRMED |
| Housing | Metal, black |
Product documents are being prepared. Contact YL for the current information for 150W kaleidoscope tornado moving head.
Request product documentsContact YL to confirm the available accessories and the exact configuration for 150W kaleidoscope tornado moving head.
Ask about compatible accessories
