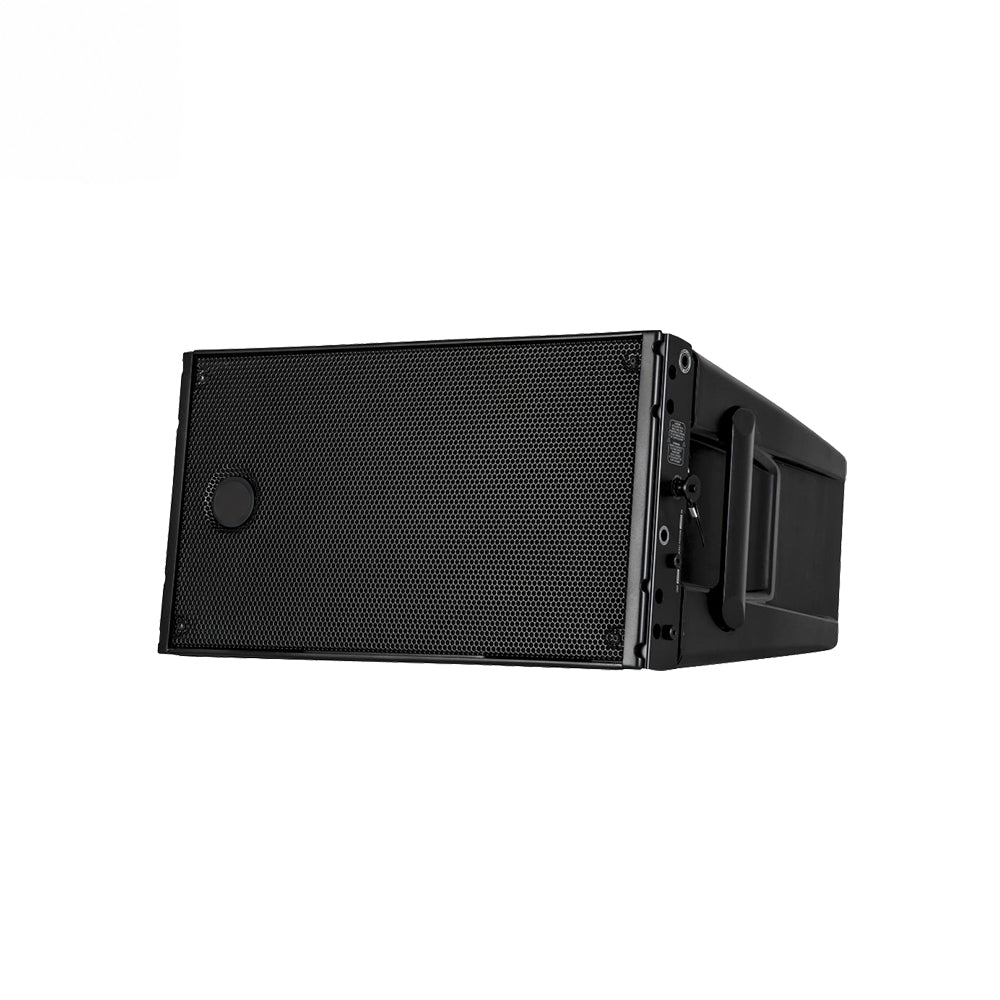

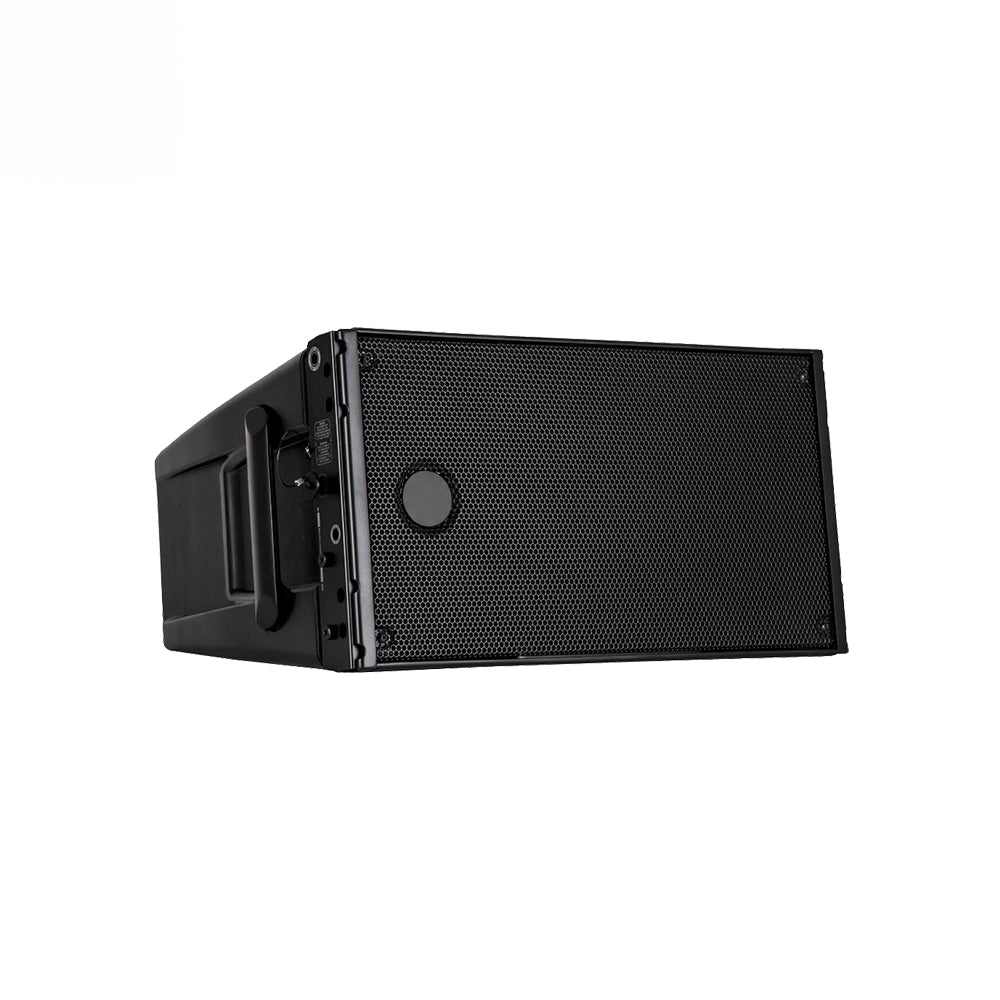

LA-10-K Active Dual 8-Inch Line Array Module

Name: LA-10-K Active Dual 8-Inch Line Array Module
Brand: YL Light

LA-10-K Active Dual 8-Inch Line Array Module is listed in the line array systems category as a line array system. The reference lists power: 1400 W peak / 700 W RMS; frequency response: 65 Hz - 20 kHz. Confirm the exact model, current specifications and supply details before use.

WHATSAPPRequest a Quote

View specifications

Maximum SPL: 133 dB
Frequency response: 65 Hz - 20 kHz
Weight: 20.4 kg / 44.97 lbs

Product identification

Model: LA-10-K Active Dual 8-Inch Line Array Module
Product category: Line Array Systems

Technical specifications

Type: Active line array module
Power: 1400 W peak / 700 W RMS
Frequency response: 65 Hz - 20 kHz
Maximum SPL: 133 dB
Transducers: 2 x 8 in woofers

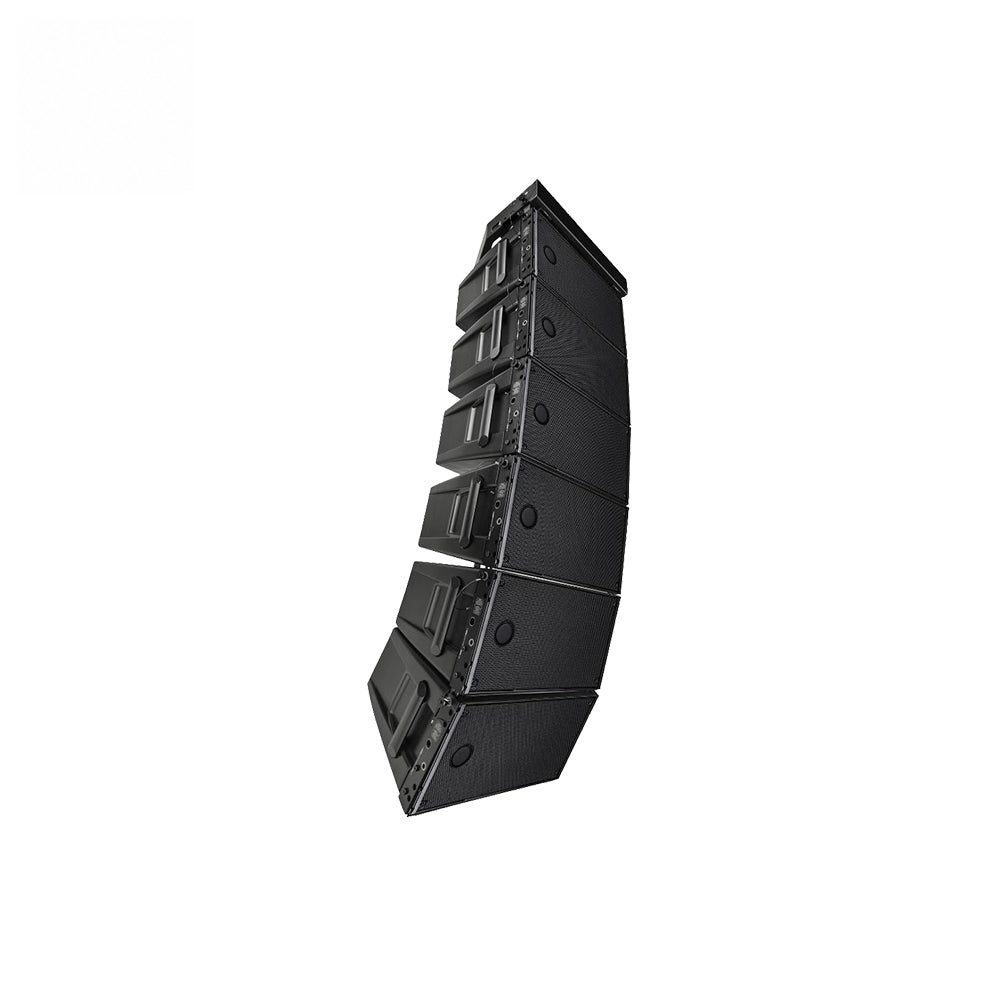

System role: Compact line array element for scalable arrays
Max SPL @ 1m: 133 dB

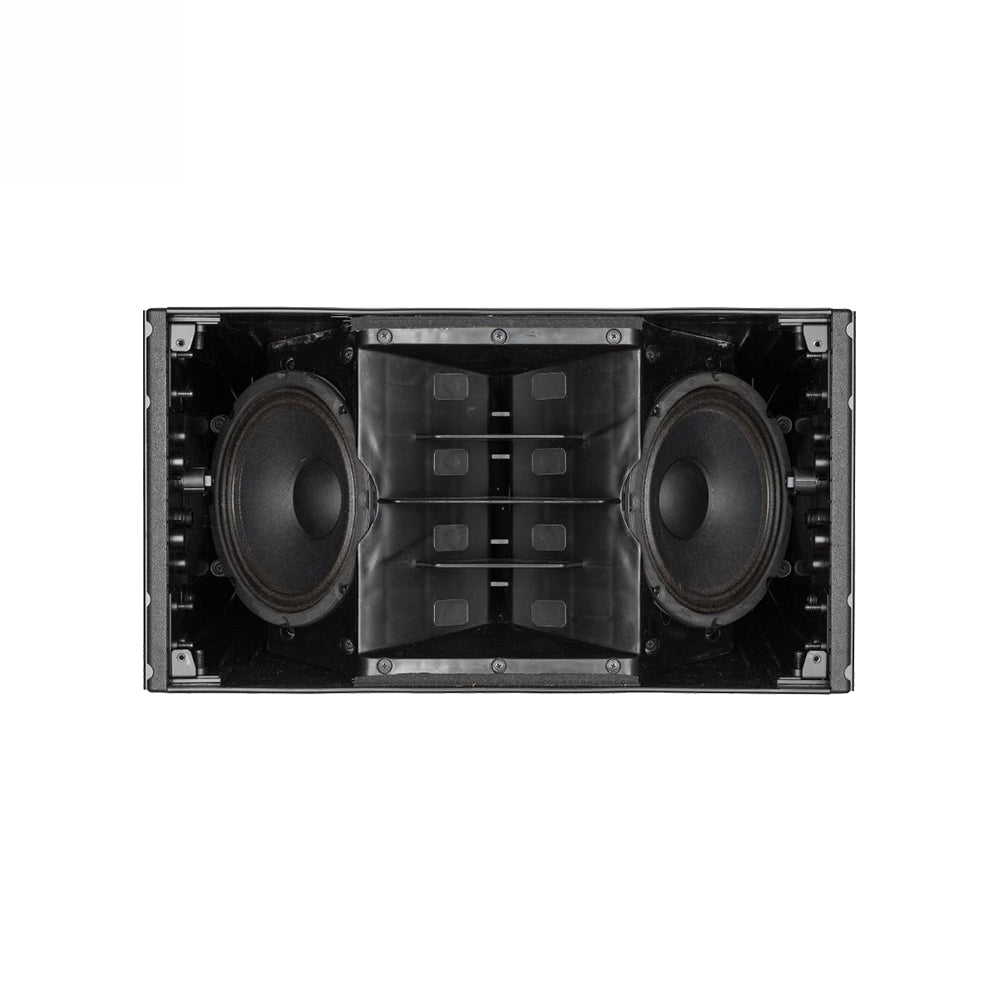

Compression Driver: 1 x 2.0'', 2.5'' v.c
Woofer: 2 x 8'', 2.0'' v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: 2 dBu/+4 dBu
Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter

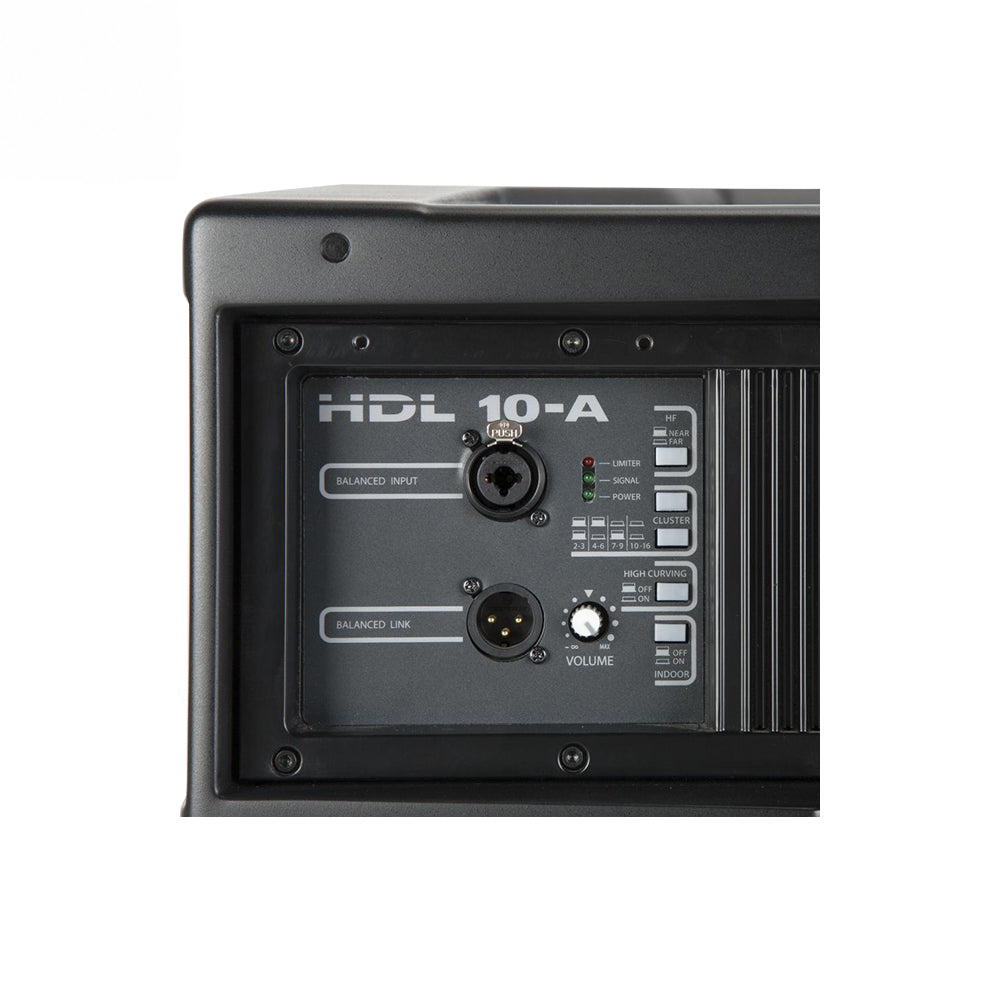

Controls: Cluster, HF, High curving, Indoor
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection

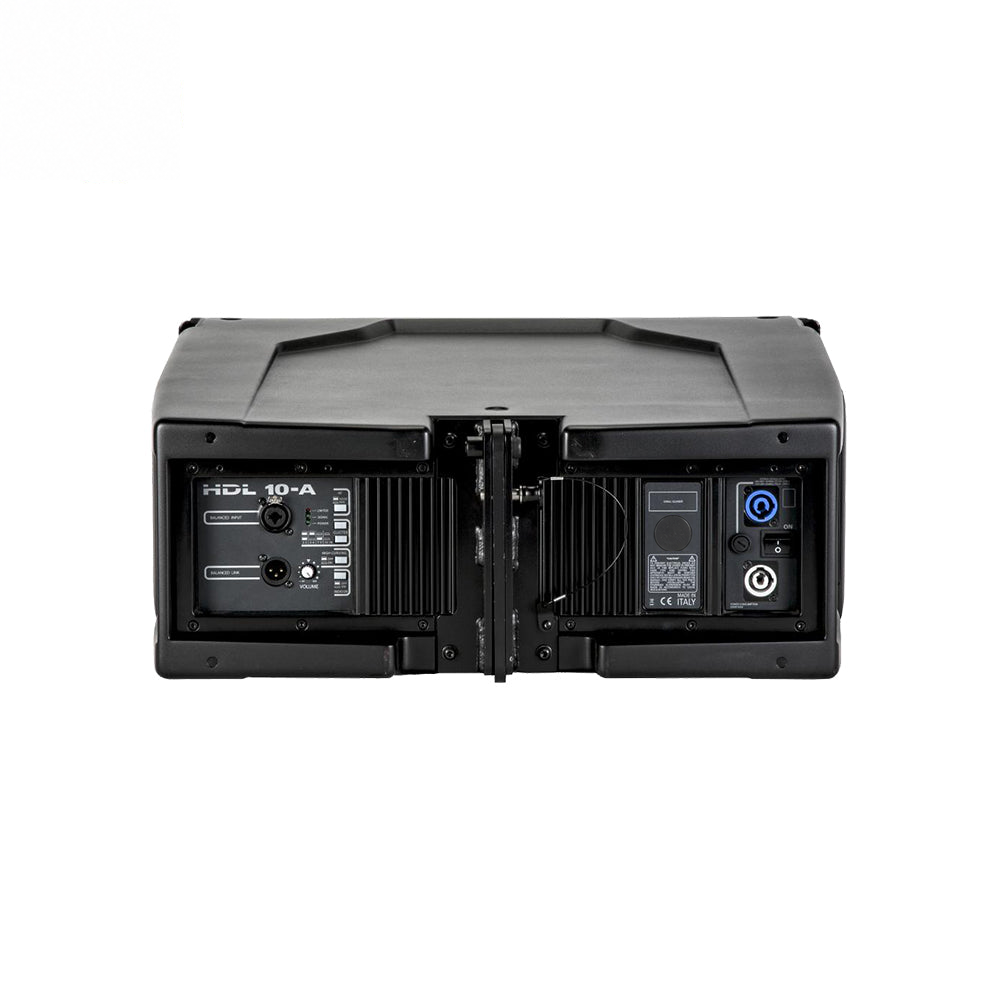

Connections: Powercon IN/OUT
Hardware: Rigging flyware

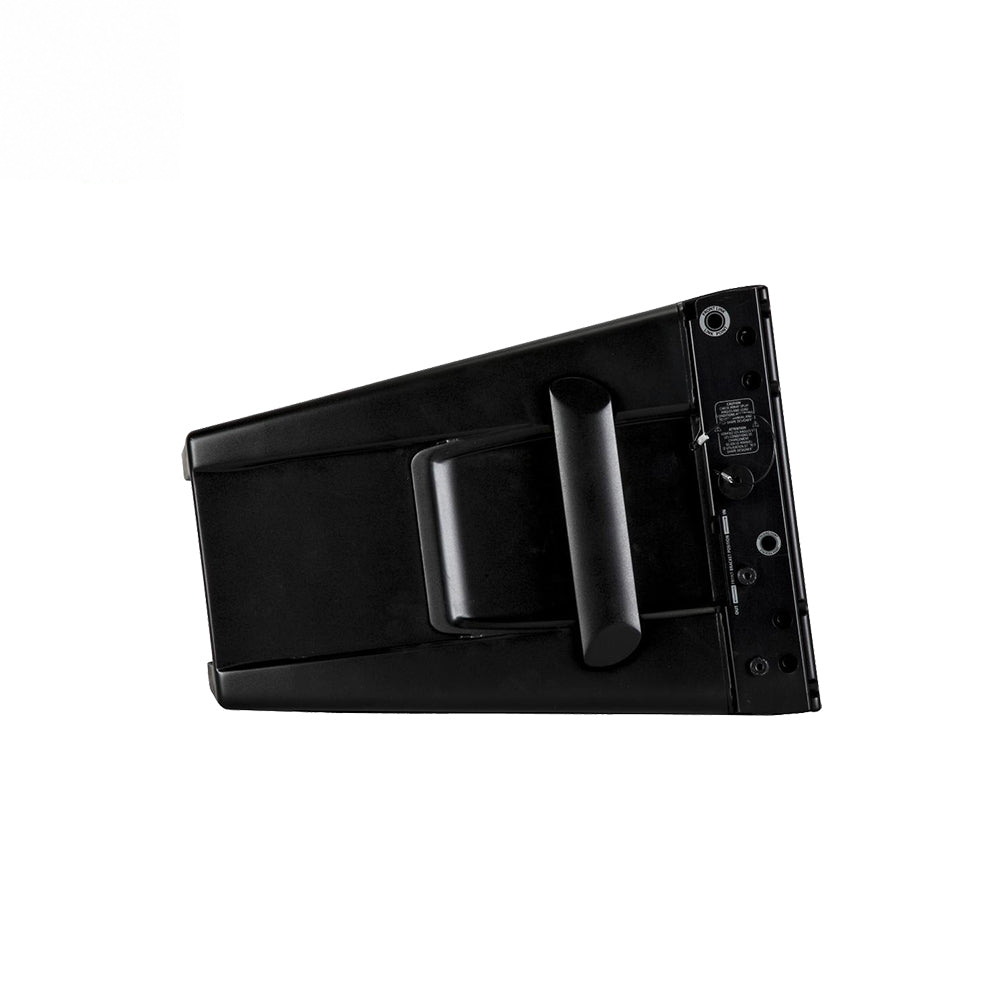

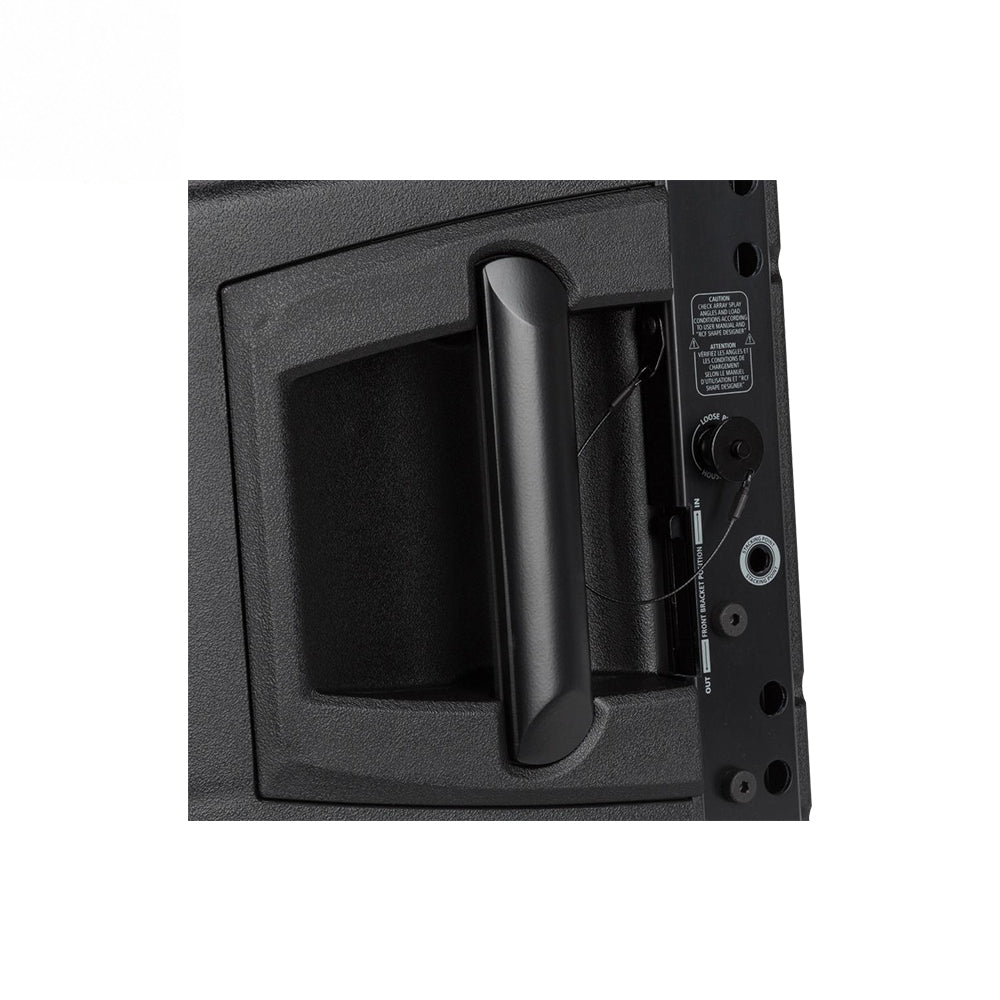

Handles: 2 side
Input sensitivity: -2 dBu/+4 dBu

Compatibility and deployment

Applications: compact line array systems, rental inventory, small-to-medium live events and fixed installation.
Horizontal coverage angle: 100°
Vertical coverage angle: 15°

Physical specifications

Cabinet/Case Material: PP Composite
Grille: Steel
Color: Black, White
Height: 294 mm / 11.57 inches
Width: 569 mm / 22.4 inches
Depth: 434 mm / 17.09 inches
Weight: 20.4 kg / 44.97 lbs
Package Height: 375 mm / 14.76 inches
Package Width: 650 mm / 25.59 inches
Package Depth: 500 mm / 19.69 inches
Package Weight: 23 kg / 50.71 lbs

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

LA-10-K Active Dual 8-Inch Line Array Module technical specifications
Type	Active line array module
Power	1400 W peak / 700 W RMS
Frequency response	65 Hz - 20 kHz
Maximum SPL	133 dB
Transducers	2 x 8 in woofers
System role	Compact line array element for scalable arrays
Applications	compact line array systems, rental inventory, small-to-medium live events and fixed installation.
Frequency Response	65 Hz ÷ 20000 Hz
Max SPL @ 1m	133 dB
Horizontal coverage angle	100°
Vertical coverage angle	15°
Compression Driver	1 x 2.0'', 2.5'' v.c
Woofer	2 x 8'', 2.0'' v.c
Input signal	bal/unbal
Input connectors	XLR
Output connectors	XLR
Input sensitivity	2 dBu/+4 dBu
Crossover Frequencies	800 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Cluster, HF, High curving, Indoor
Total Power	1400 W Peak, 700 W RMS
High frequencies	400 W Peak, 200 W RMS
Low frequencies	1000 W Peak, 500 W RMS
Cooling	Convection
Connections	Powercon IN/OUT
Safety agency	CE compliant
Cabinet/Case Material	PP Composite
Hardware	Rigging flyware
Handles	2 side
Grille	Steel
Color	Black, White
Height	294 mm / 11.57 inches
Width	569 mm / 22.4 inches
Depth	434 mm / 17.09 inches
Weight	20.4 kg / 44.97 lbs
Package Height	375 mm / 14.76 inches
Package Width	650 mm / 25.59 inches
Package Depth	500 mm / 19.69 inches
Package Weight	23 kg / 50.71 lbs
