Product identification
- Model
- K3-K312-Medium-format line array, 2-way active, dual 12'' LF
- Product category
- Line Array Systems

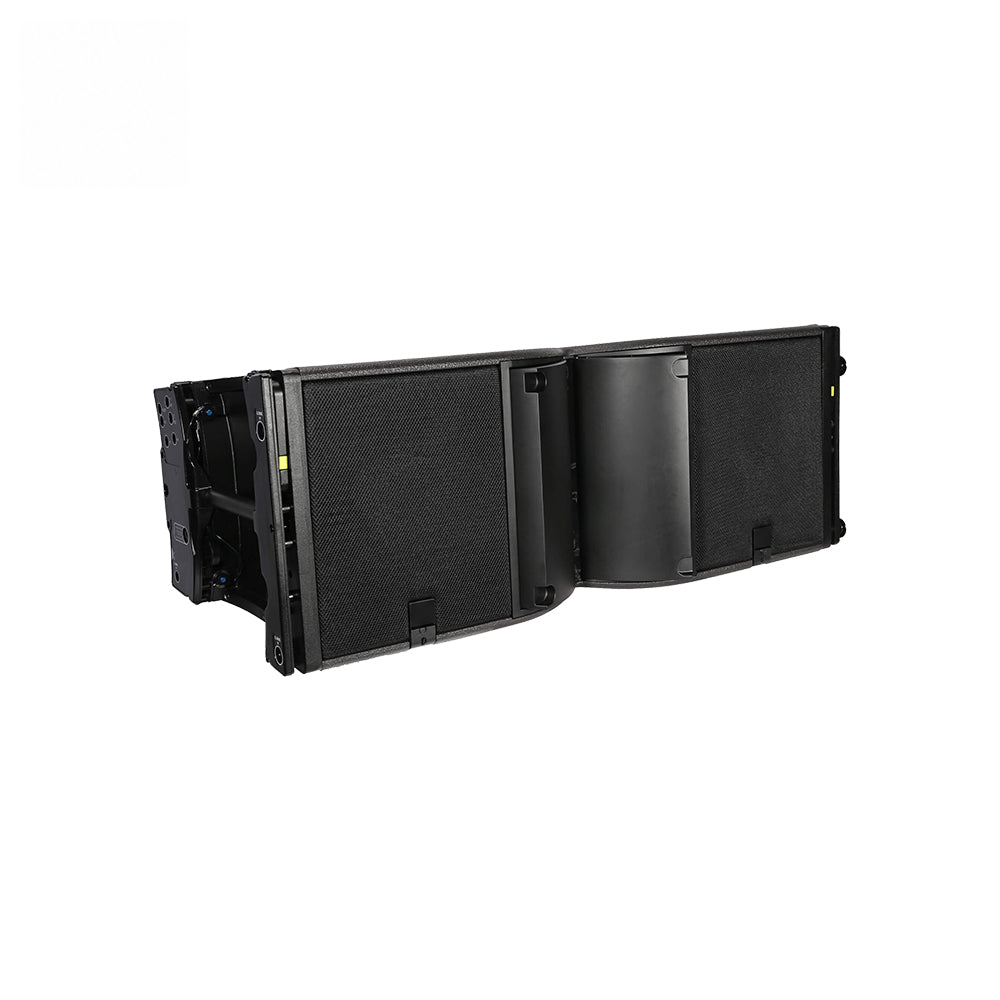

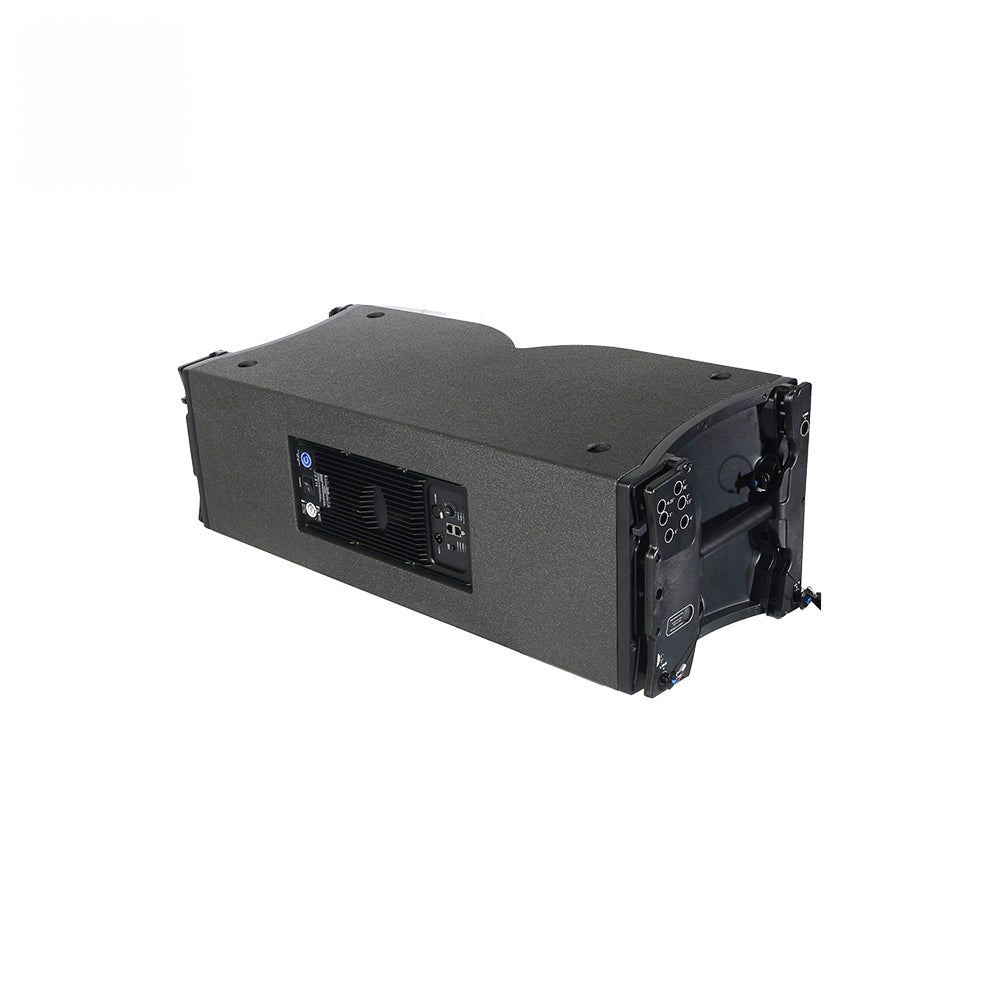

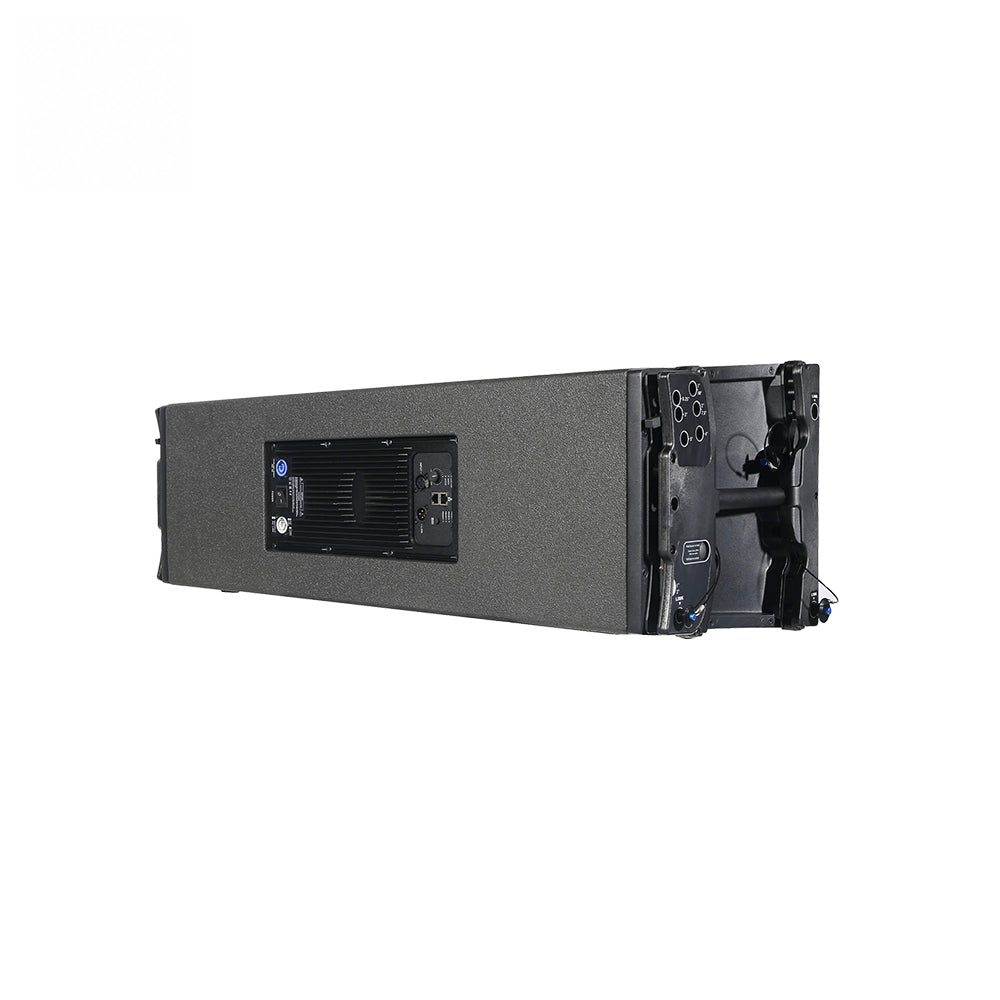

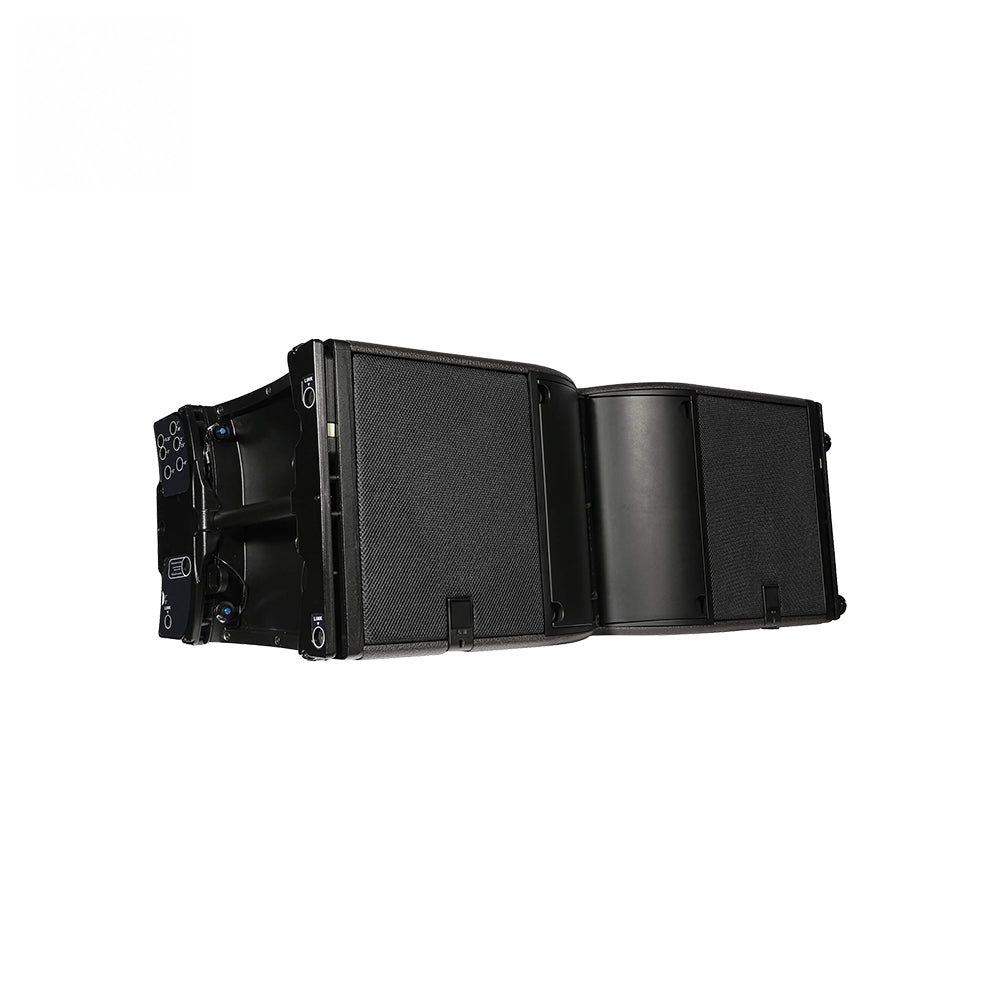

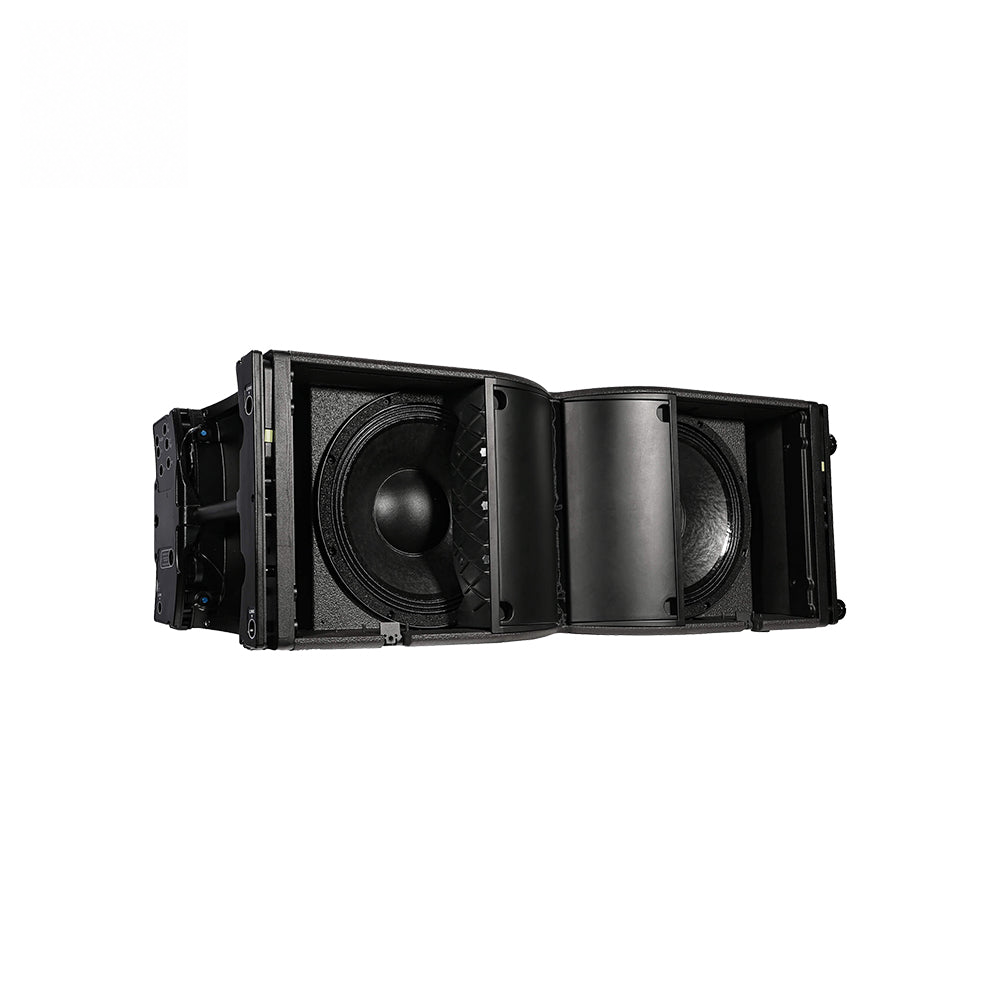

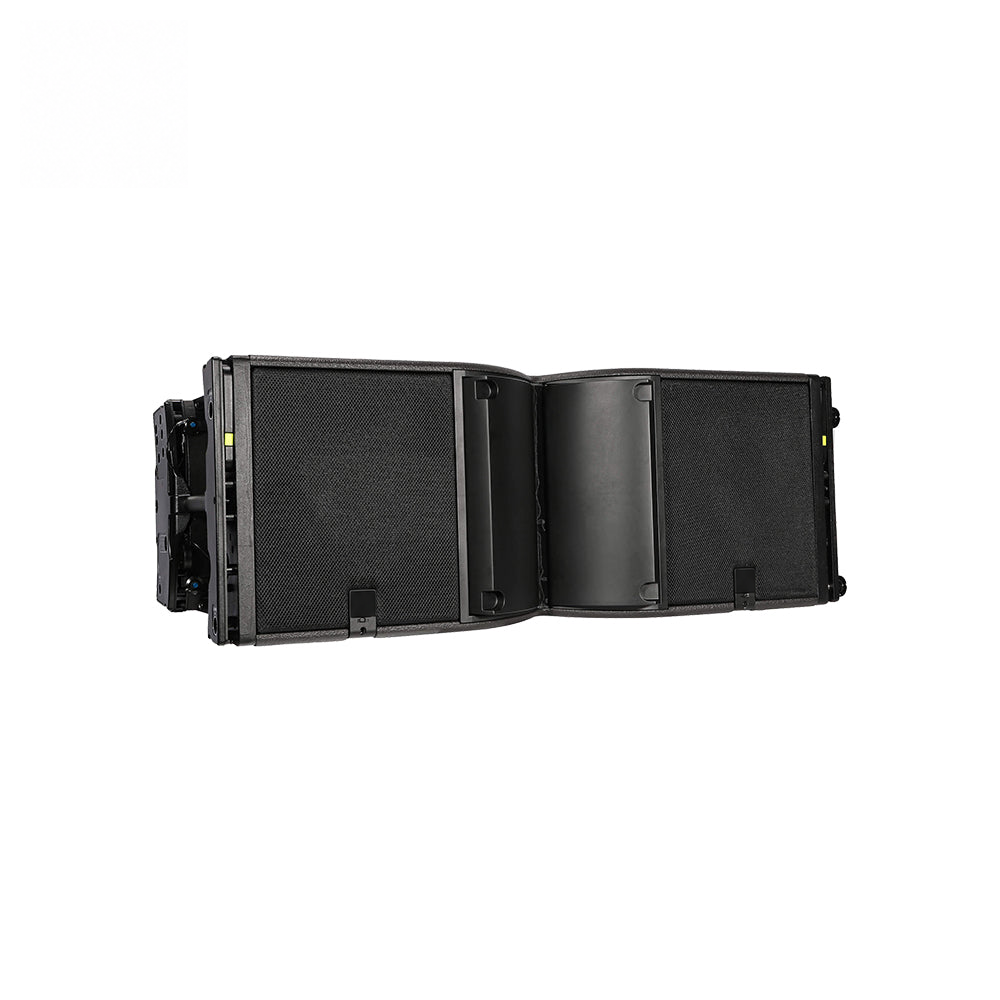

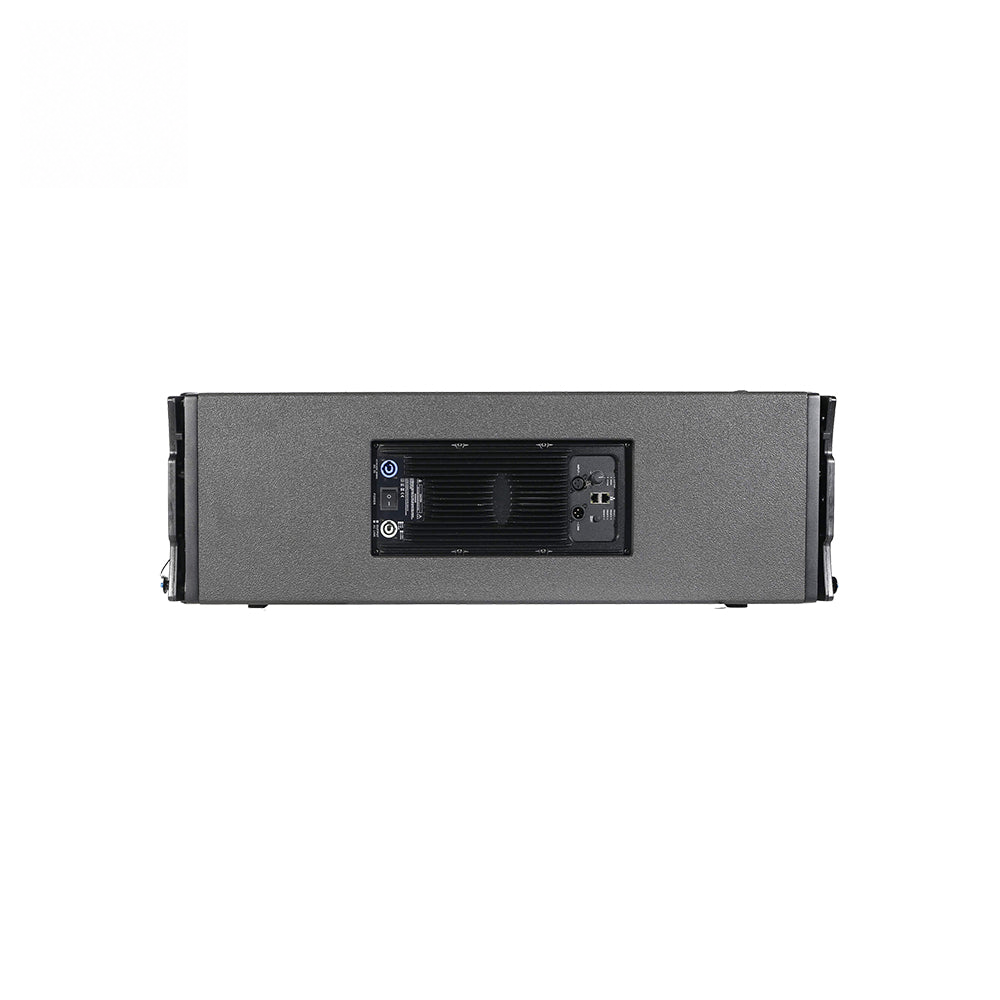

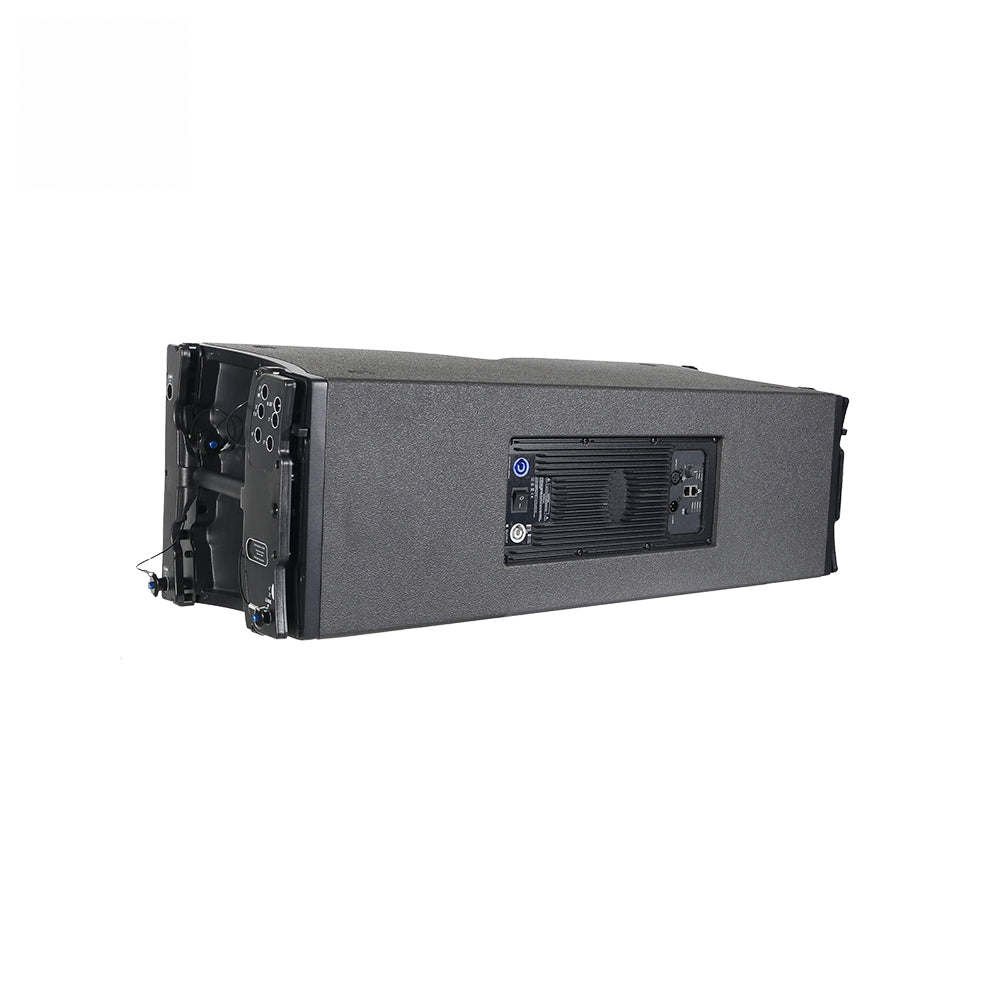

K3-K312-Medium-format line array, 2-way active, dual 12'' LF
K3-K312-Medium-format line array, 2-way active, dual 12'' LF is listed in the line array systems category as a line array system. The reference lists maximum spl: 143 dB; bandwidth: 42 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 143 dB
- Bandwidth
- 42 Hz – 20 kHz
- Weight
- 38 kg / 84 lb
Technical specifications
- Maximum SPL
- 143 dB
- Bandwidth
- 42 Hz – 20 kHz
- Transducers
- LF: 2 × 12″ • HF: 1 × 3″
- Usable bandwidth (-10 dB)
- 42 Hz – 20 kHz ([K3 70])
- Maximum SPL1
- 143 dB ([K3 70])
- Nominal directivity (-6 dB)
- Horizontal: 70° / 110° symmetric or 90° asymmetric vertical: depending on number of elements and array curvature

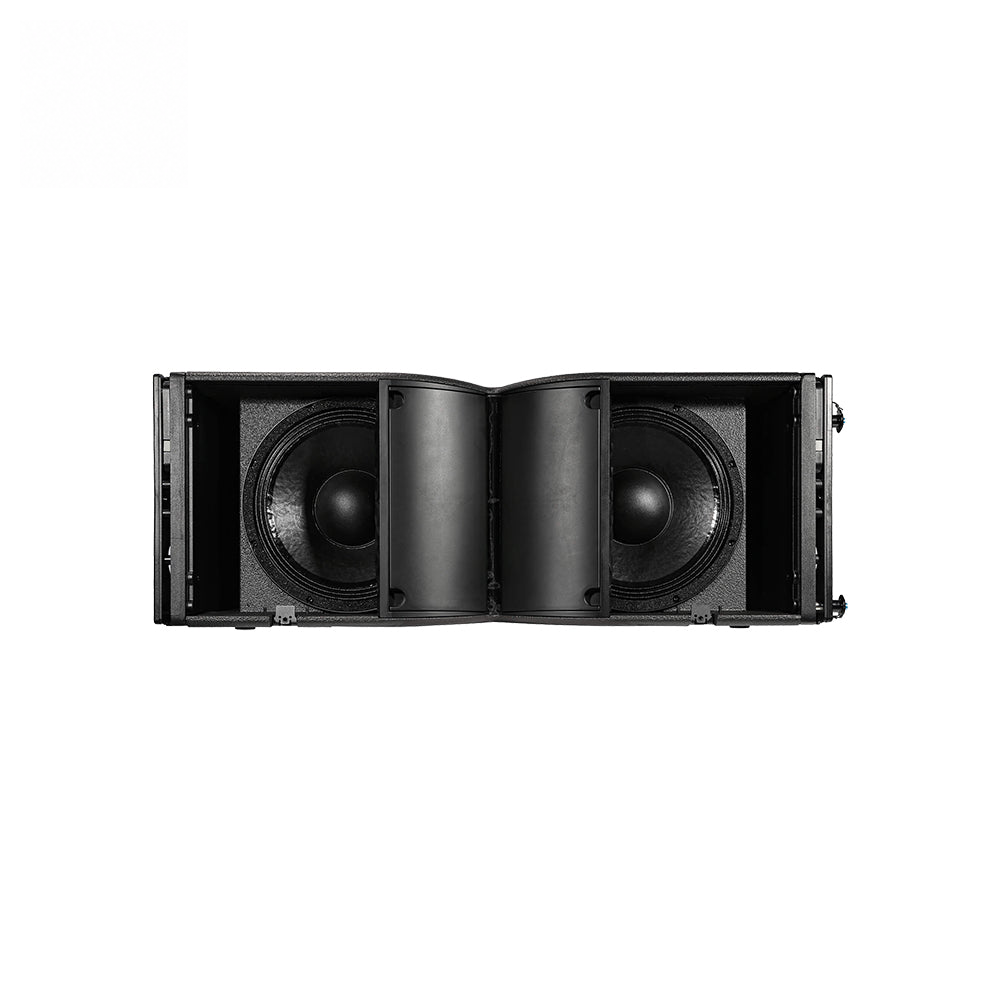

- Transducers LF
- 2 × 12″ neodymium cone driver HF: 1 × 4″ diaphragm compression driver, neodymium
- Acoustical load LF
- bass-reflex, L-Vents HF: DOSC waveguide, Panflex
- Nominal impedance LF
- 8 Ω HF : 8 Ω

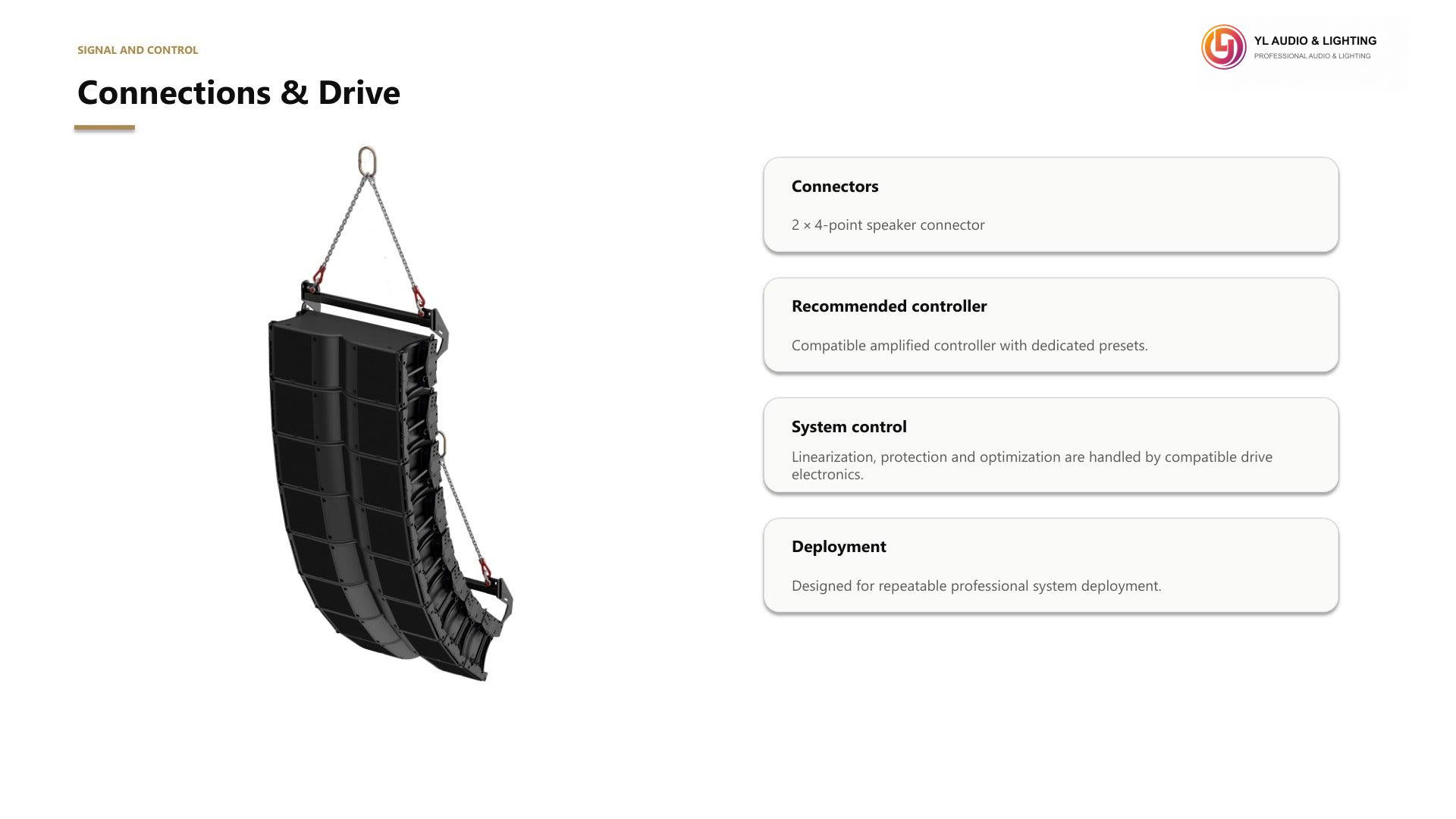

- Connectors
- 2 × 4-point speakON
- Nominal directivity (-6 dB)
- Horizontal: 70° / 110° symmetric or 90° asymmetric
- vertical
- depending on number of elements and array curvature
- HF transducers
- 1 × 4″ diaphragm compression driver, neodymium
- HF impedance
- 8 Ω
Physical specifications
- Dimensions
- 1000 × 330 × 460 mm
- Weight
- 38 kg / 84 lb
- Cabinet
- Baltic birch plywood
- Front
- Coated steel grill acoustically neutral 3D fabric
- Finish
- Dark grey brown Pantone 426 C
- IP
- IP55
- inter-enclosure angles
- 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Compatibility and deployment

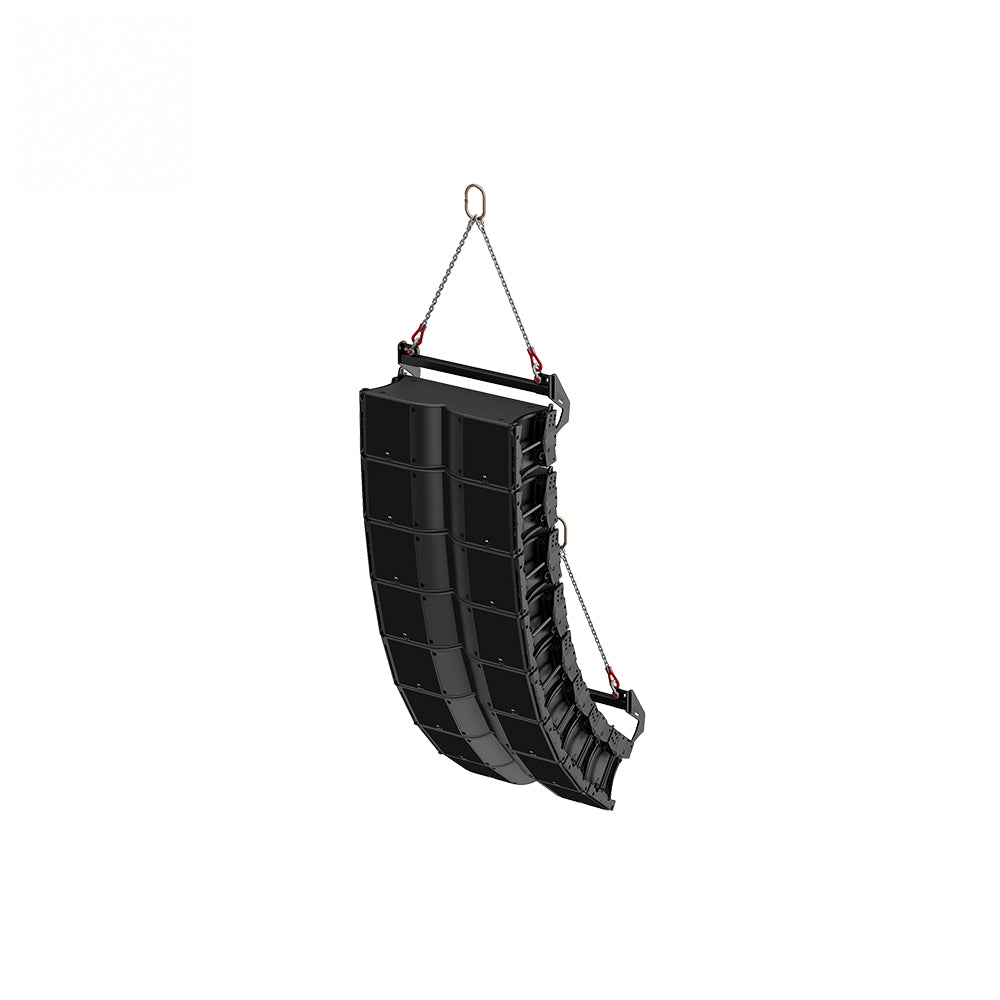

- Rigging and handling
- Flush-fitting 4-point rigging system 2 handles inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
- Rigging components
- steel with anti-corrosion coating
- Function / configuration
- 2-way active WST enclosure
- Function / configuration
- amplified by LA4X / LA8 / LA12X
- Function / configuration
- Rigging components：steel with anti-corrosion coating
- Function / configuration
- 2-way active WST enclosure amplified by LA4X / LA8 / LA12X
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 143 dB |
|---|---|
| Bandwidth | 42 Hz – 20 kHz |
| Transducers | • LF: 2 × 12″ • HF: 1 × 3″ |
| Dimensions | 1000 × 330 × 460 mm |
| Weight | 38 kg / 84 lb |
| Usable bandwidth (-10 dB) | 42 Hz – 20 kHz ([K3 70]) |
| Maximum SPL1 | 143 dB ([K3 70]) |
| Nominal directivity (-6 dB) | Horizontal: 70° / 110° symmetric or 90° asymmetric vertical: depending on number of elements and array curvature |
| Transducers LF | 2 × 12″ neodymium cone driver HF: 1 × 4″ diaphragm compression driver, neodymium |
| Acoustical load LF | bass-reflex, L-Vents HF: DOSC waveguide, Panflex |
| Nominal impedance LF | 8 Ω HF : 8 Ω |
| Connectors | 2 × 4-point speakON |
| Rigging and handling | Flush-fitting 4-point rigging system 2 handles inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
| Weight (net) | 43 kg / 95 lb |
| Cabinet | Premium grade Baltic birch plywood |
| Front | Coated steel grill acoustically neutral 3D fabric |
| Rigging components | High grade steel with anti-corrosion coating |
| Finish | Dark grey brown Pantone 426 C |
| IP | IP55 |
Downloads
| Title | File type | Download |
|---|---|---|
| YL K312 Product DetailsEnglish | PDF1.6 MB |
System accessories
YL LightYL-LA

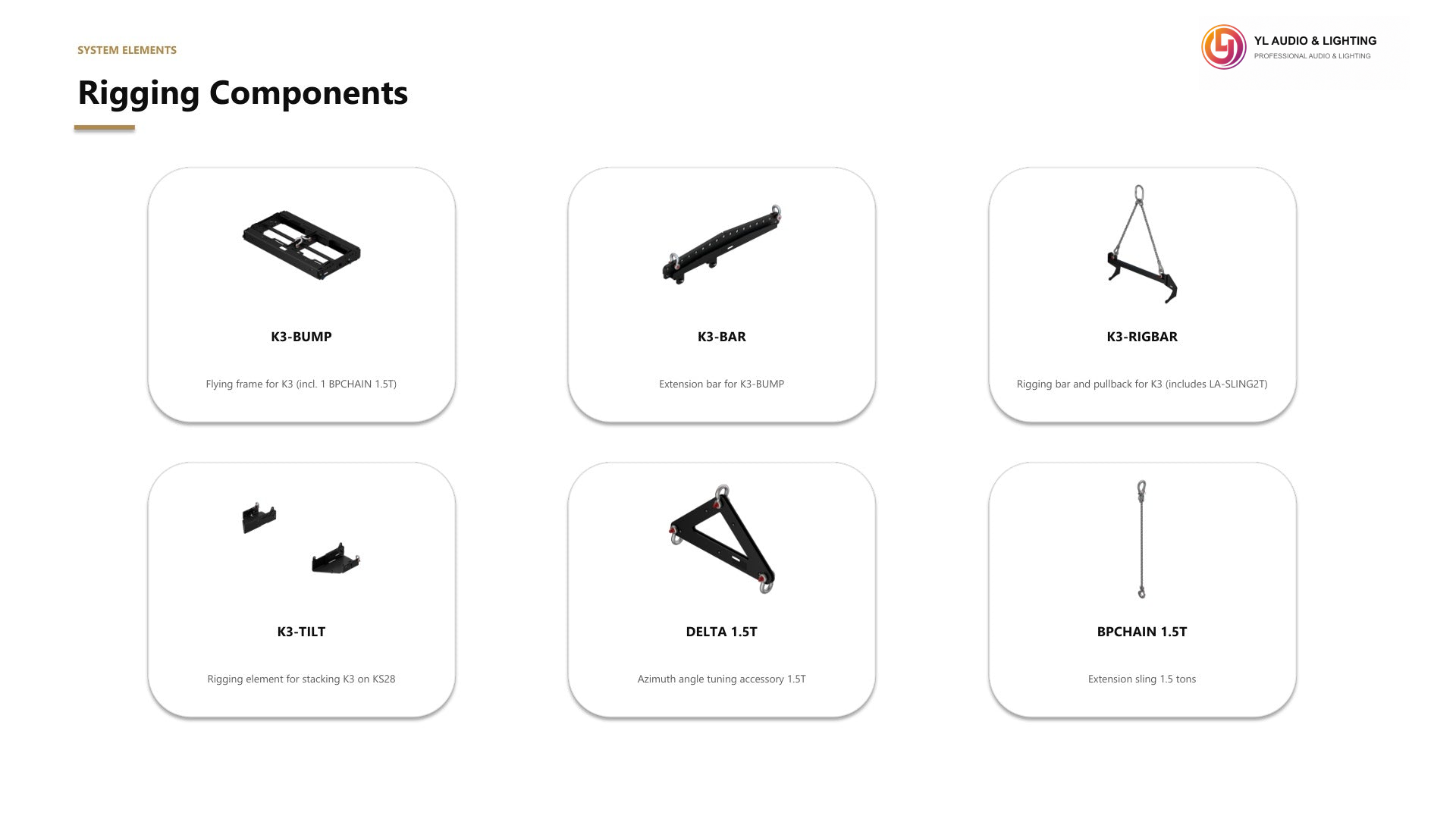

Rigging & Accessories
K3-BUMP
K3-BUMP is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
K3-BAR
K3-BAR is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
K3i-RIGBAR
K3i-RIGBAR is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
K3-TILT
K3-TILT is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories

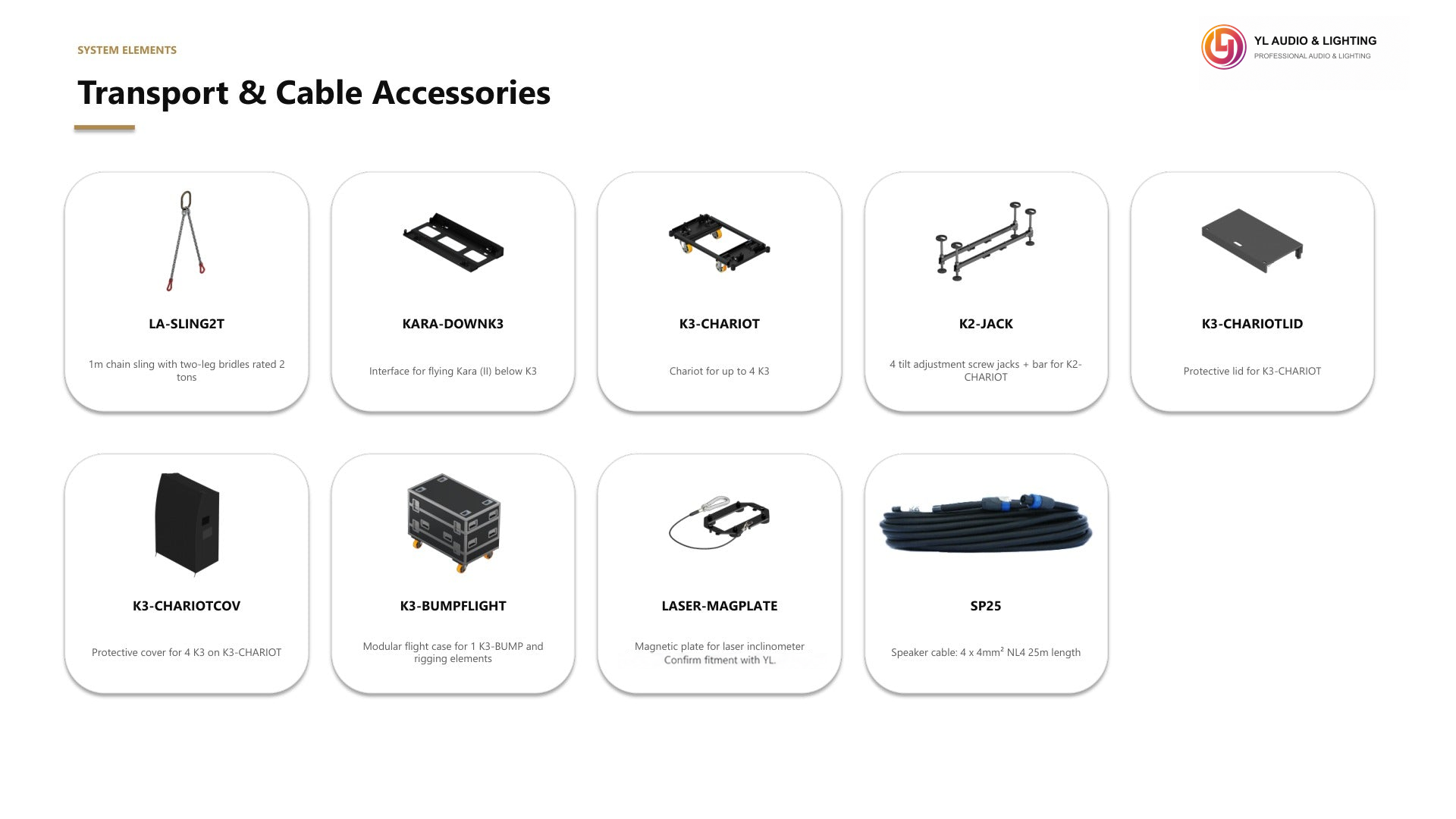

K3-CHARIOT
