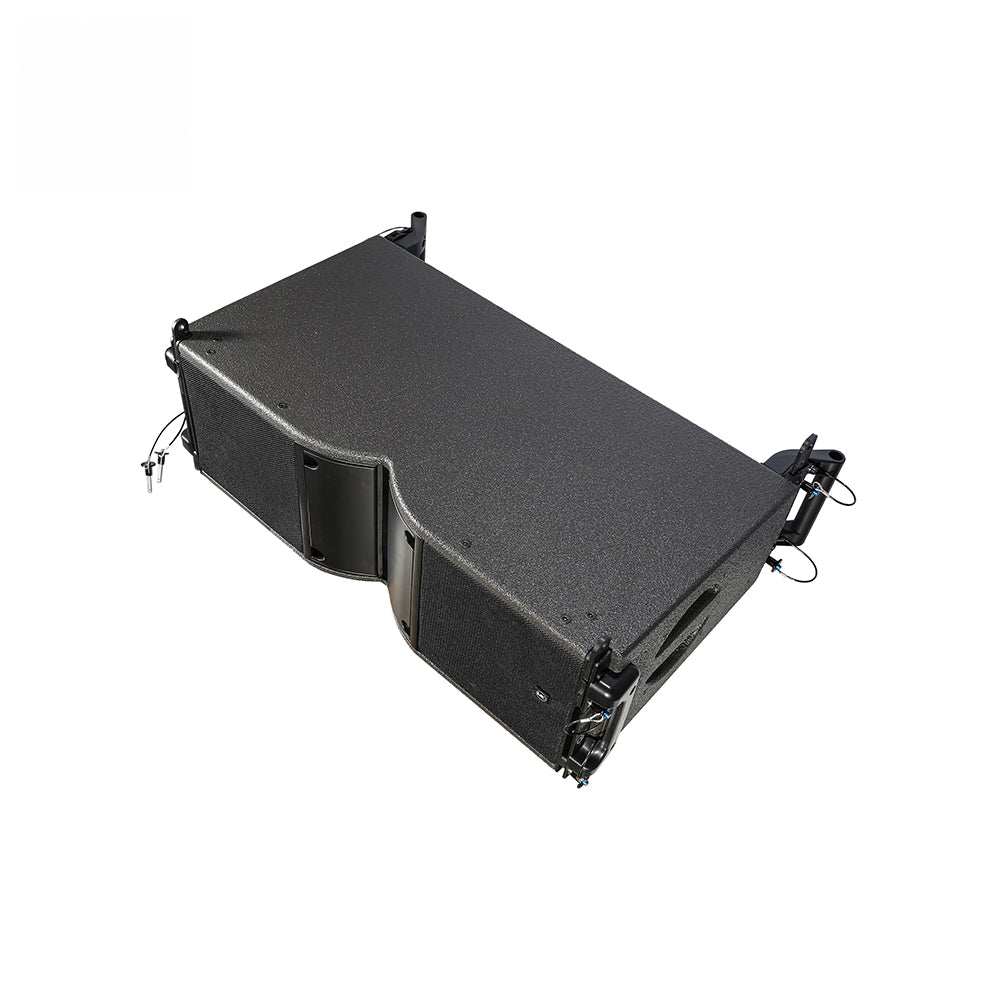

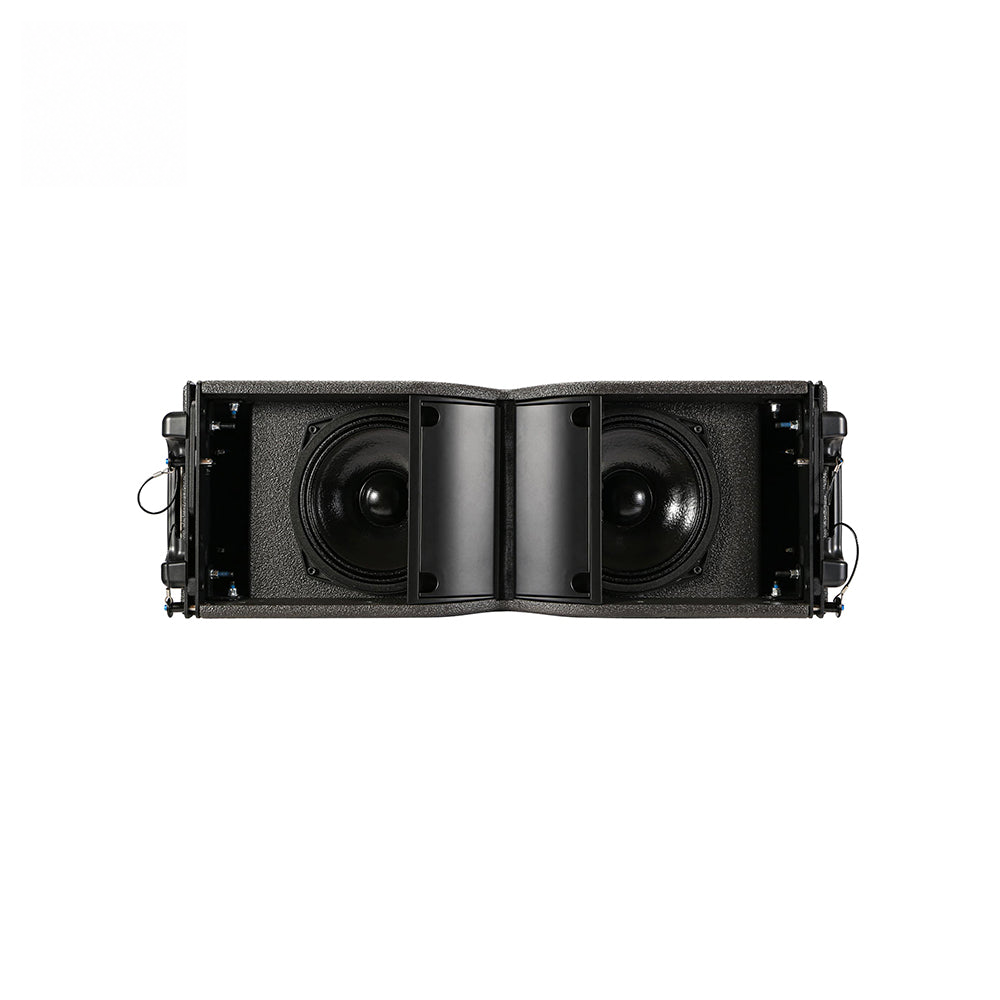

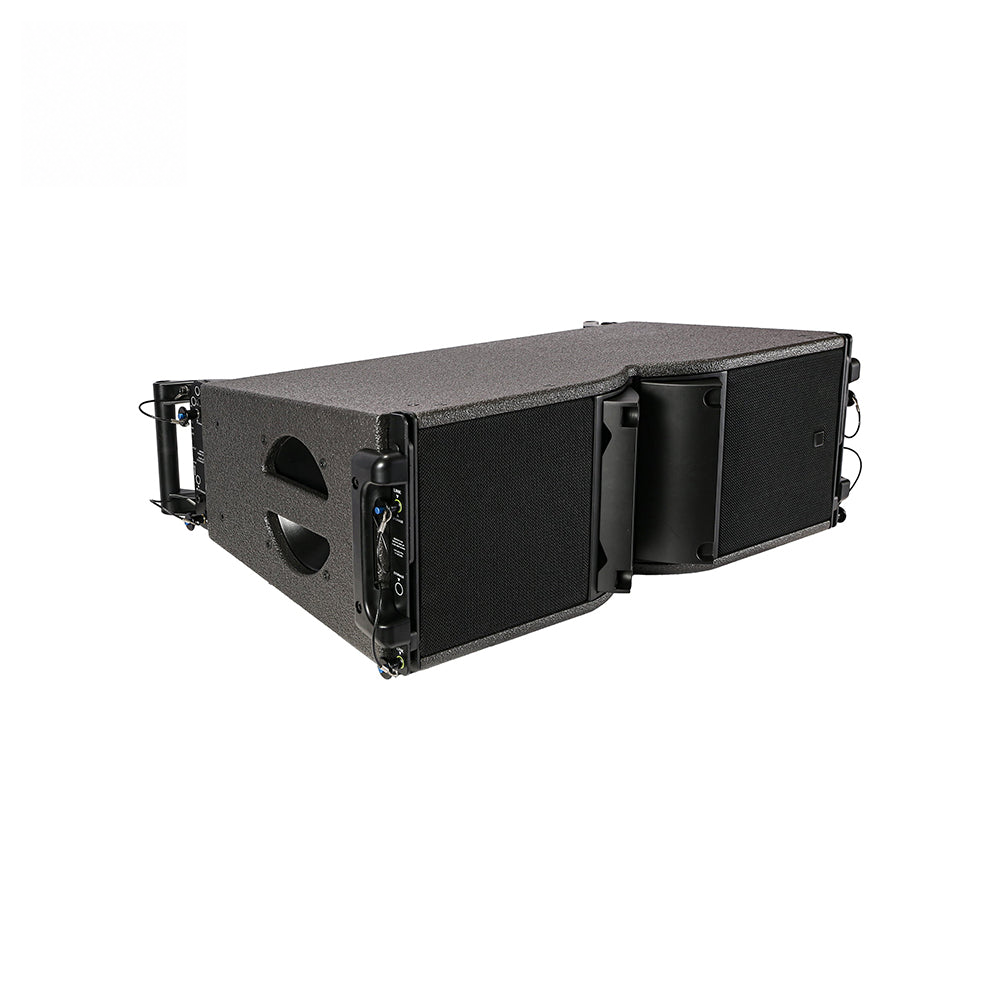

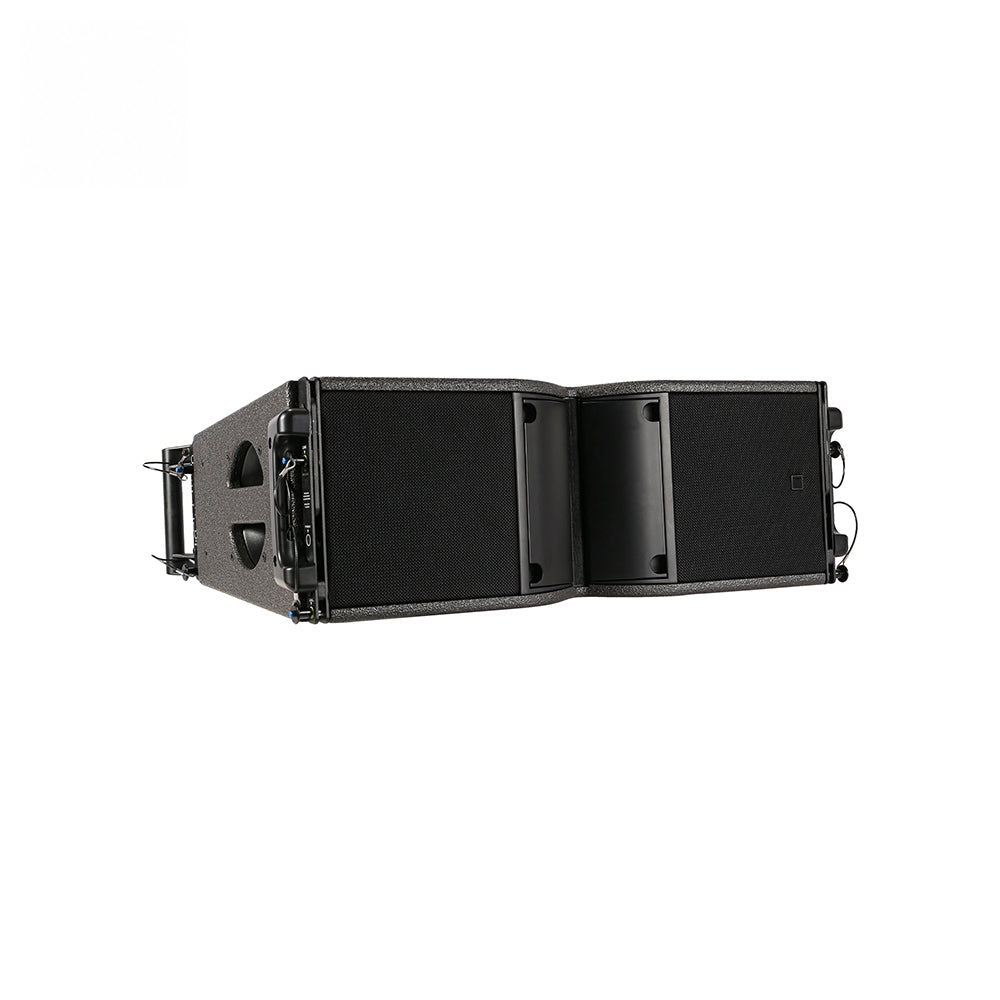

Product identification
- Model
- KARA II-K28II-Modular line array, 2-way passive, dual 8'' LF
- Product category
- Line Array Systems

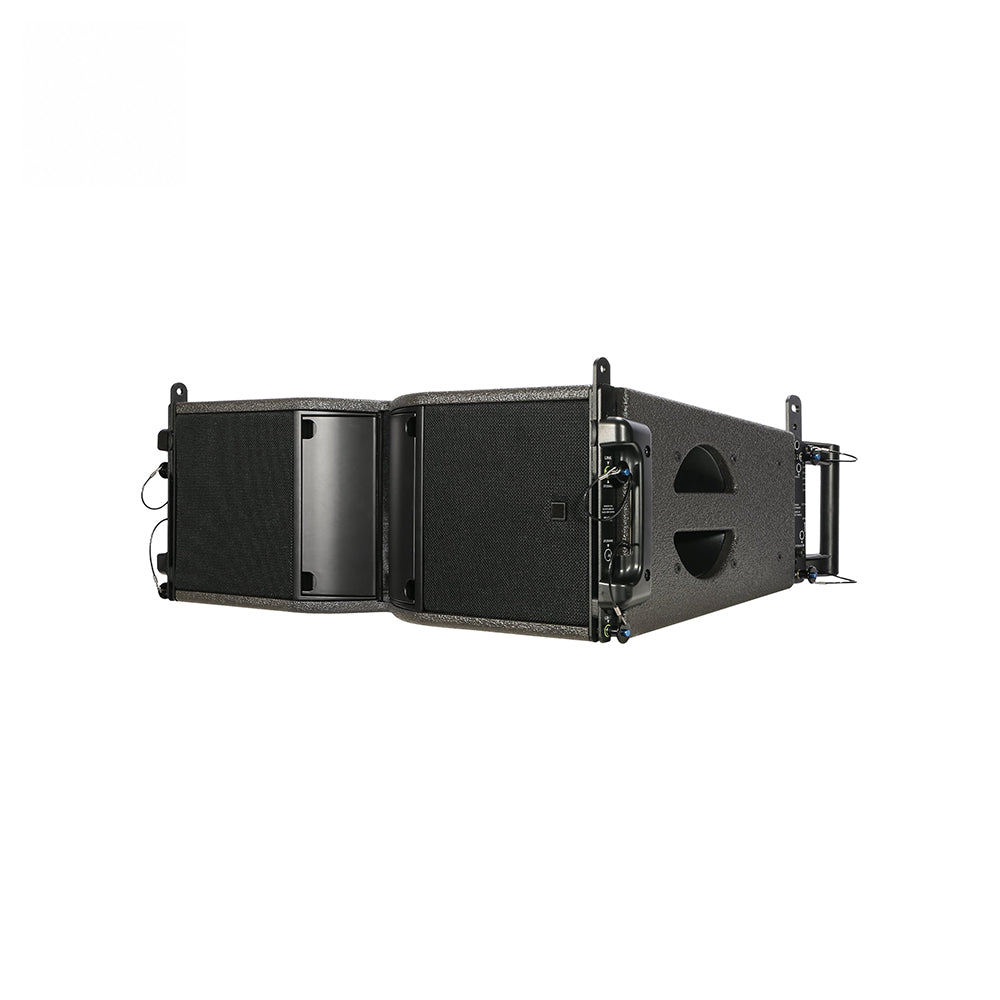

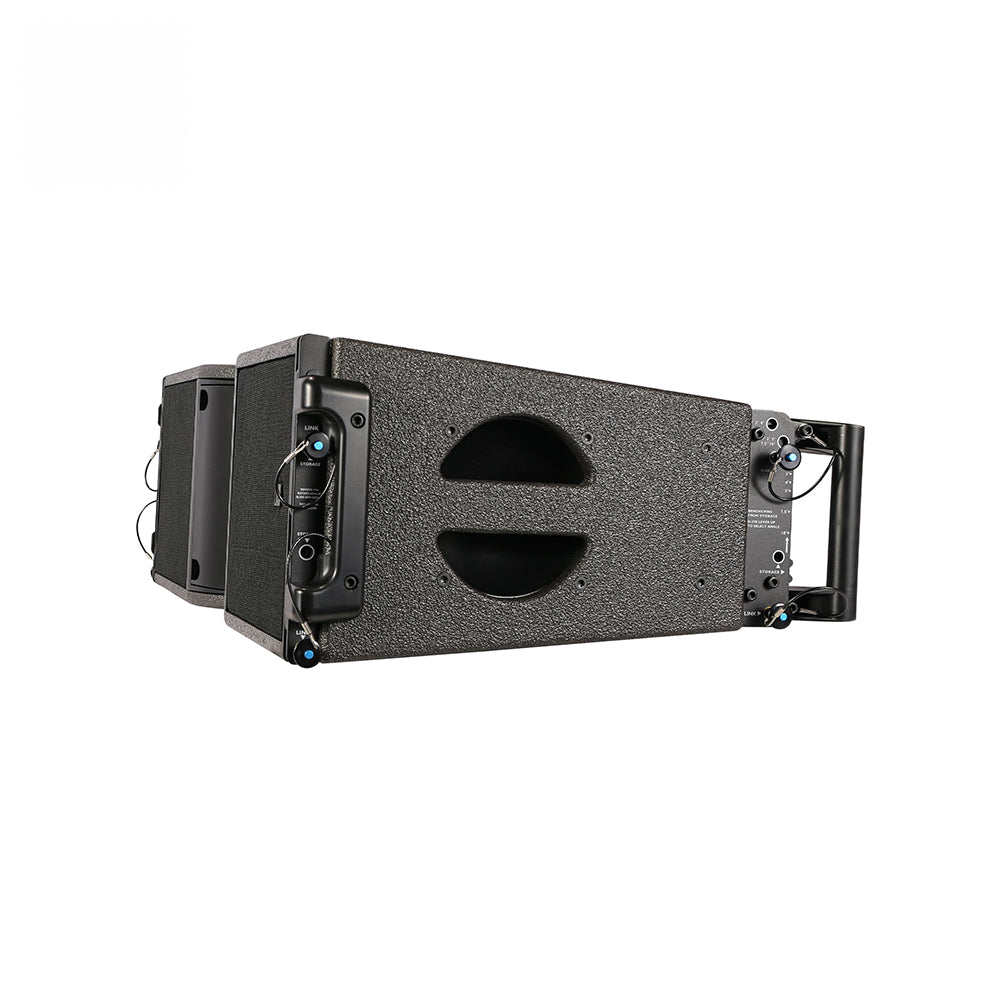

KARA II-K28II-Modular line array, 2-way passive, dual 8'' LF
KARA II-K28II-Modular line array, 2-way passive, dual 8'' LF is listed in the line array systems category as a line array system. The reference lists max spl: 142 dB; bandwidth (-5 db): 55 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.

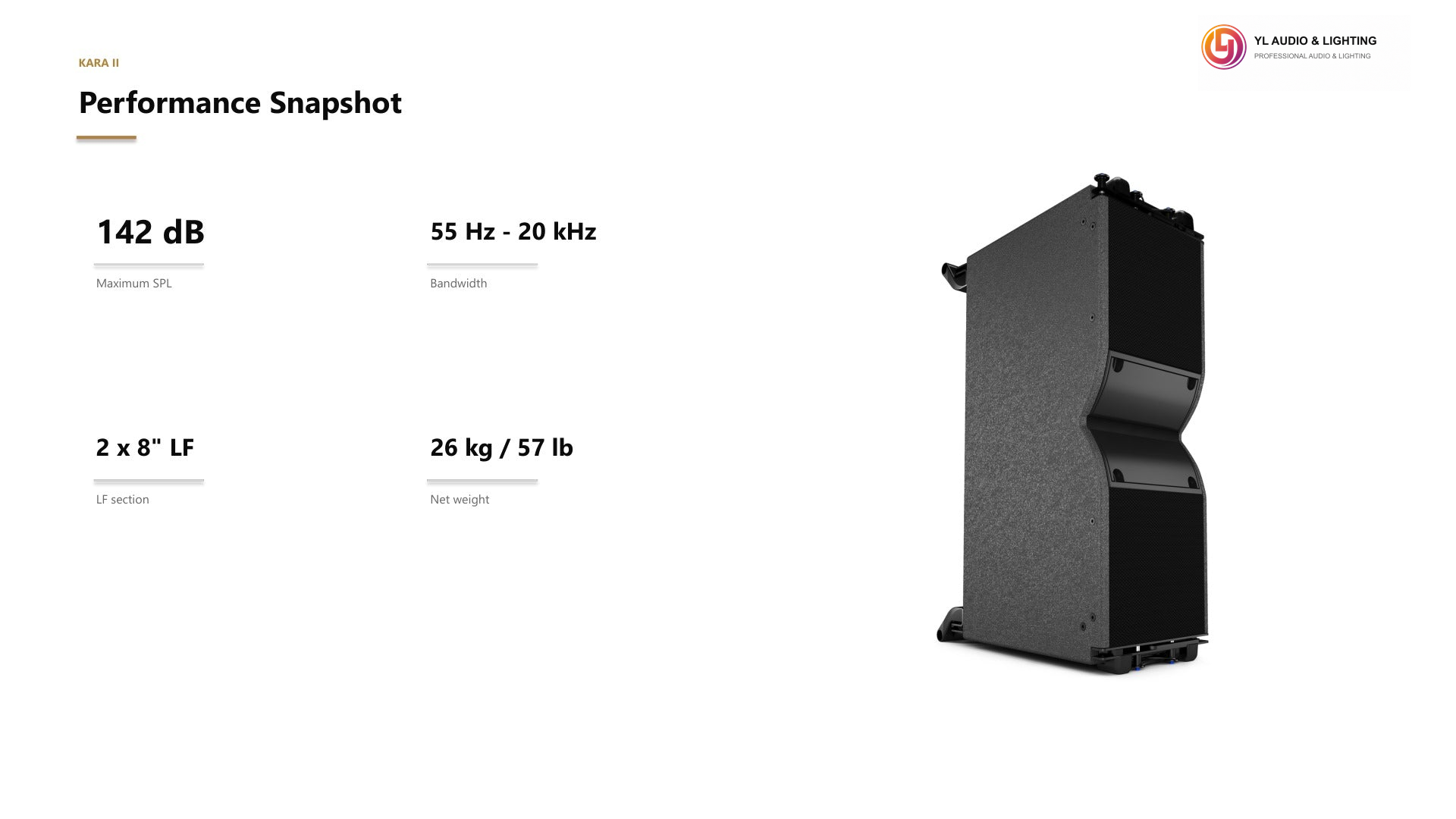

WHATSAPPRequest a Quote- Max SPL
- 142 dB
- Bandwidth (-5 dB)
- 55 Hz – 20 kHz
- Weight
- 26 kg / 57 lb
Technical specifications
- Configuration
- Modular line array, 2-way active, dual 8″ LF
- Max SPL
- 142 dB
- Bandwidth (-5 dB)
- 55 Hz – 20 kHz
- LF transducers
- 2 × 8″
- HF transducers
- 1 × 3″
- Directivity
- H: 70°/110° | V: 10°
- Nominal Impedance
- 8 Ω
- Power Handling
- 450 W AES / 900 W Program / 1800 W Peak
- Nominal directivity (-6 dB) Horizontal
- 70° / 110° symmetric or 90° asymmetric
- vertical
- dependent upon the number of elements and the line source curvature

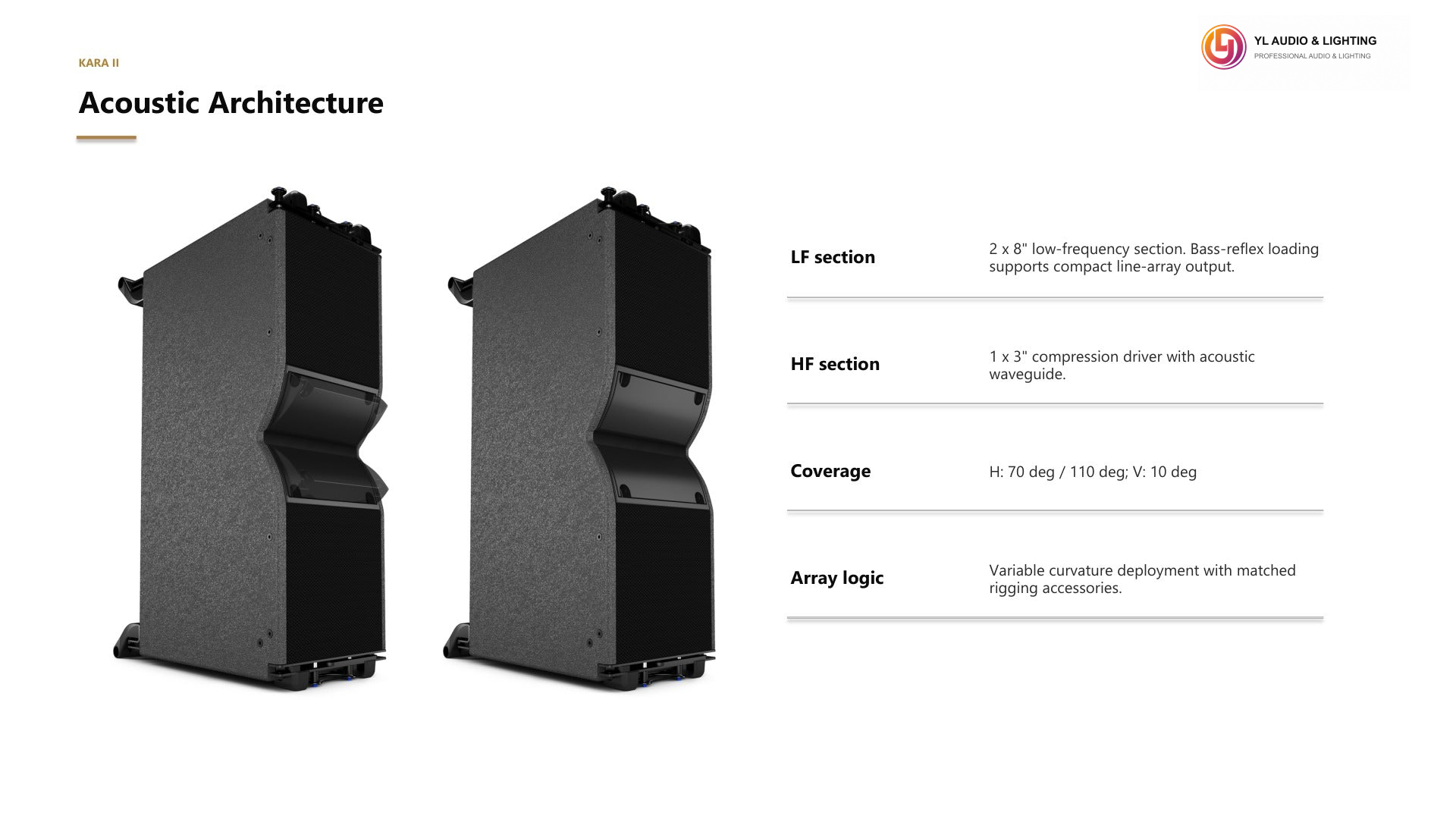

- Transducers LF
- 2 × 8″ neodymium cone drivers
- HF transducers
- 1 × 3″ neodymium diaphragm compression driver
- Acoustical load LF
- bass-reflex
- HF
- DOSC waveguide, Panflex
- Nominal impedance LF
- 8 Ω
- HF impedance
- 8 Ω
- Transducers
- LF: 2 × 8″
- Nominal directivity (-6 dB) Horizontal
- 70° / 110° symmetric or 90°
- vertical
- dependent upon the number of
- HF transducers
- 1 × 3″ neodymium diaphragm compression

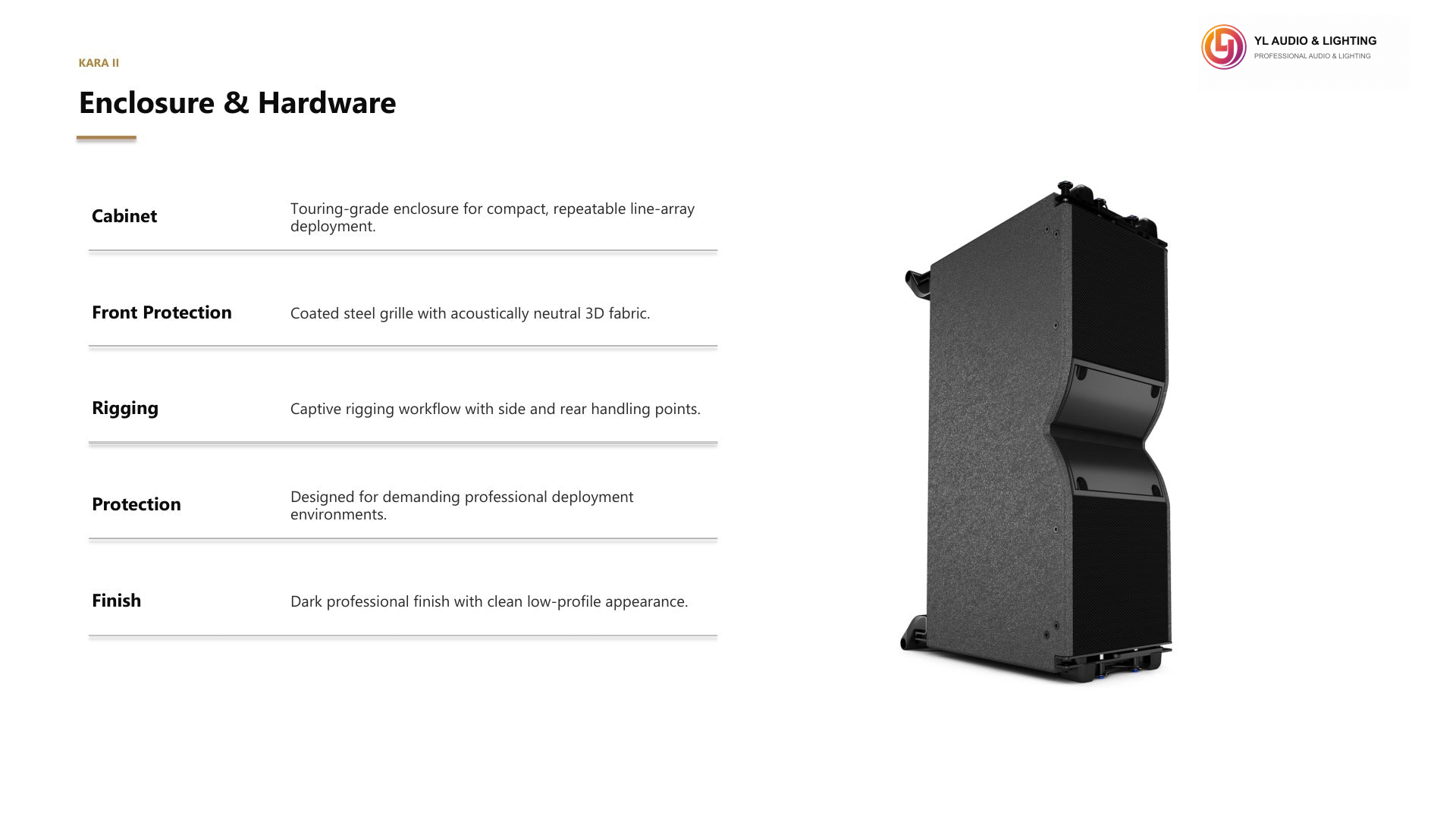

Physical specifications

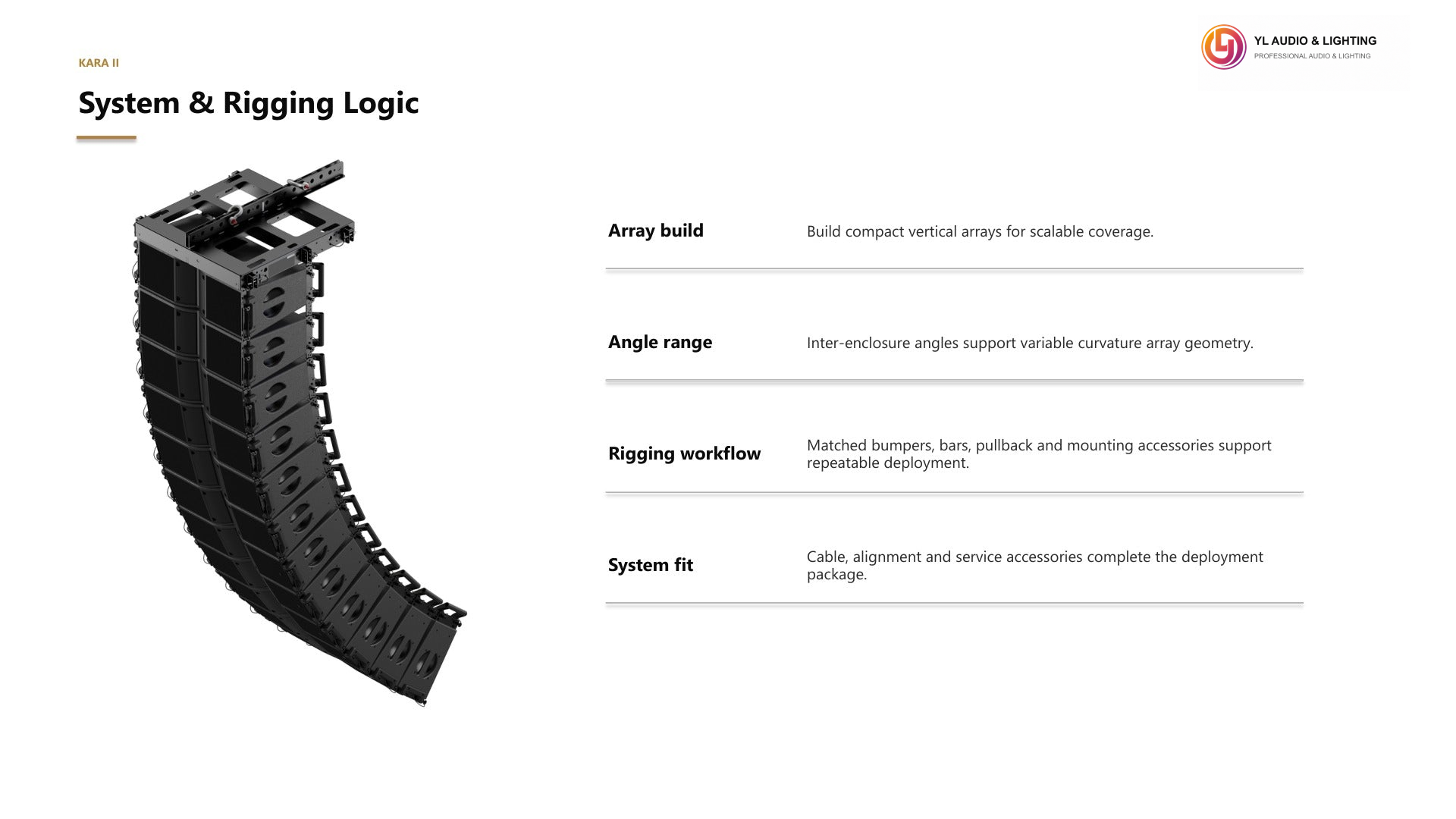

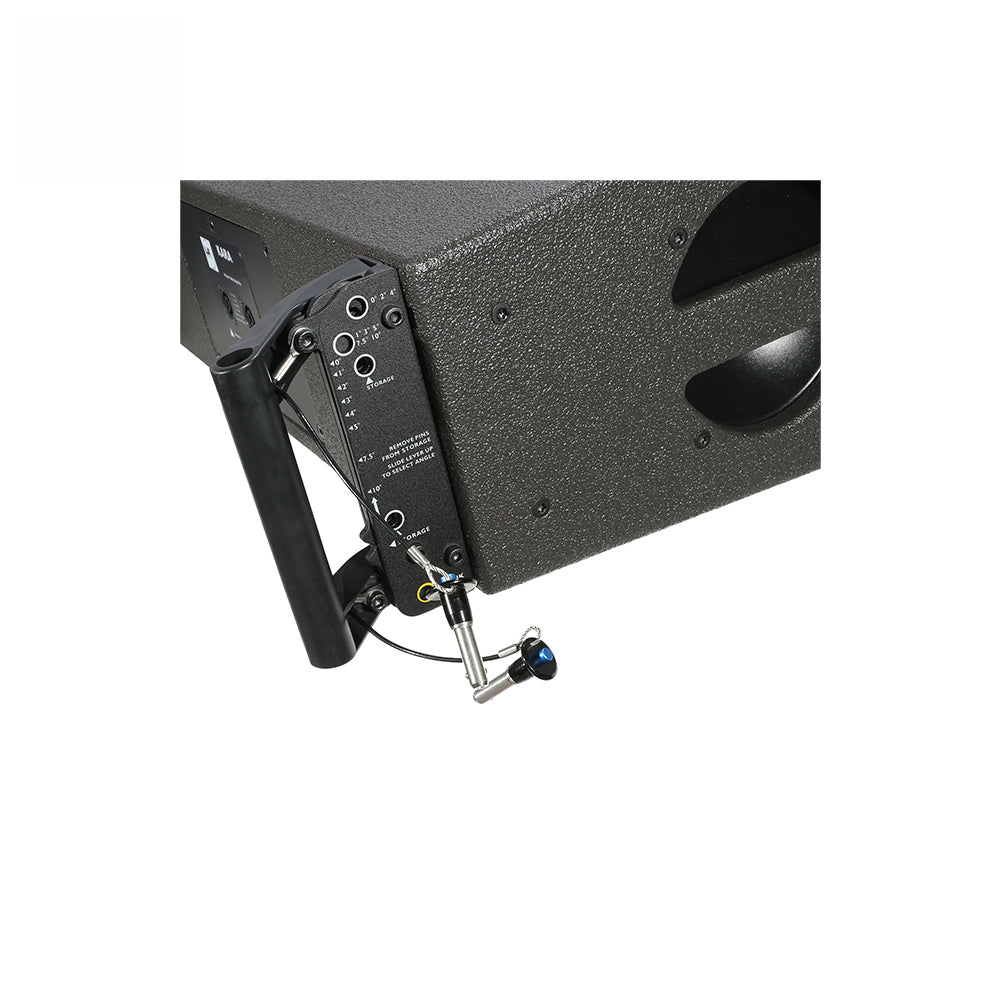

Weight: 26 kg / 57 lb Dimensions (H × W × D): 700 × 250 × 445 mm Connectors 2 × 4-point speakON Rigging and handling 4-point captive rigging system 2 side handles 2 rear handles inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° Weight: (net) 26 kg / 57 lb
Compatibility and deployment
- Function / configuration
- 2-way active WST enclosure
- Function / configuration
- amplified by LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([KARA II 70])
- Function / configuration
- Maximum SPL1 142 dB ([KARA II 70])
- Function / configuration
- 1Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
- Function / configuration

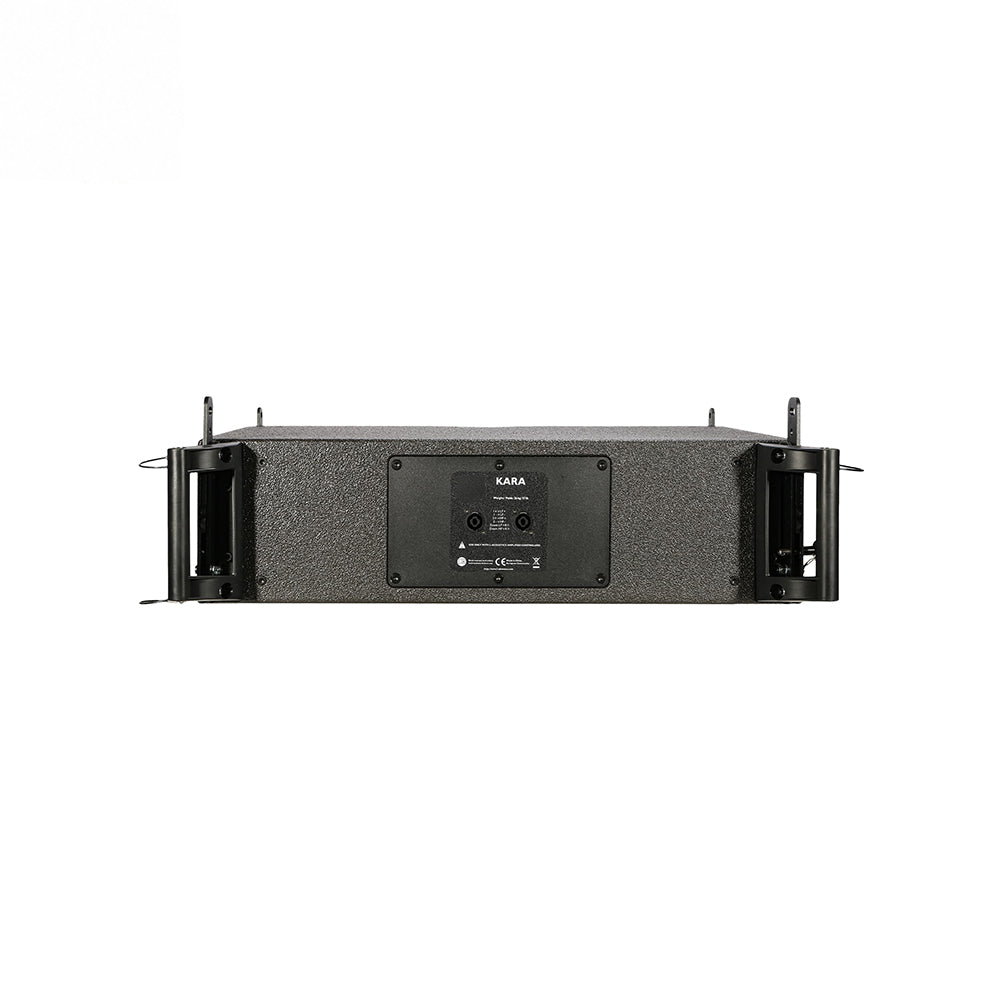

- Connectors 2 × 4-point speakON
- Function / configuration

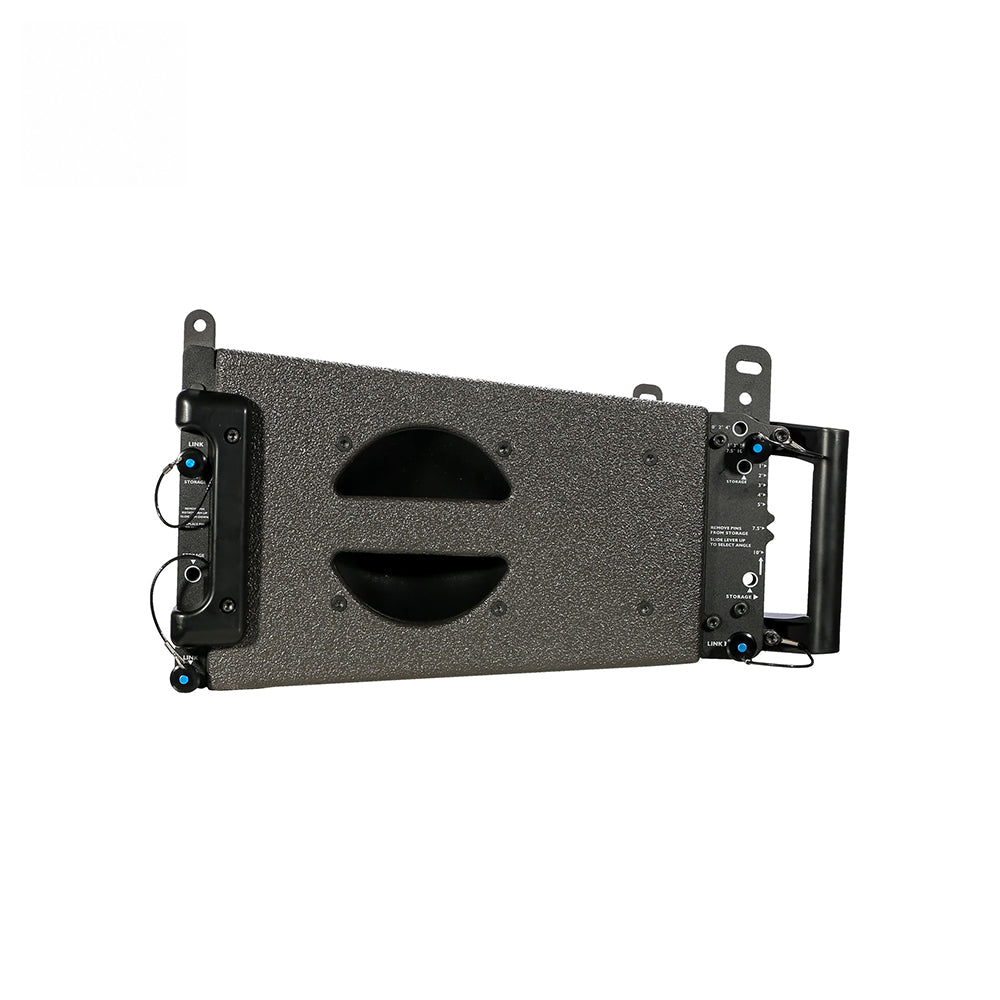

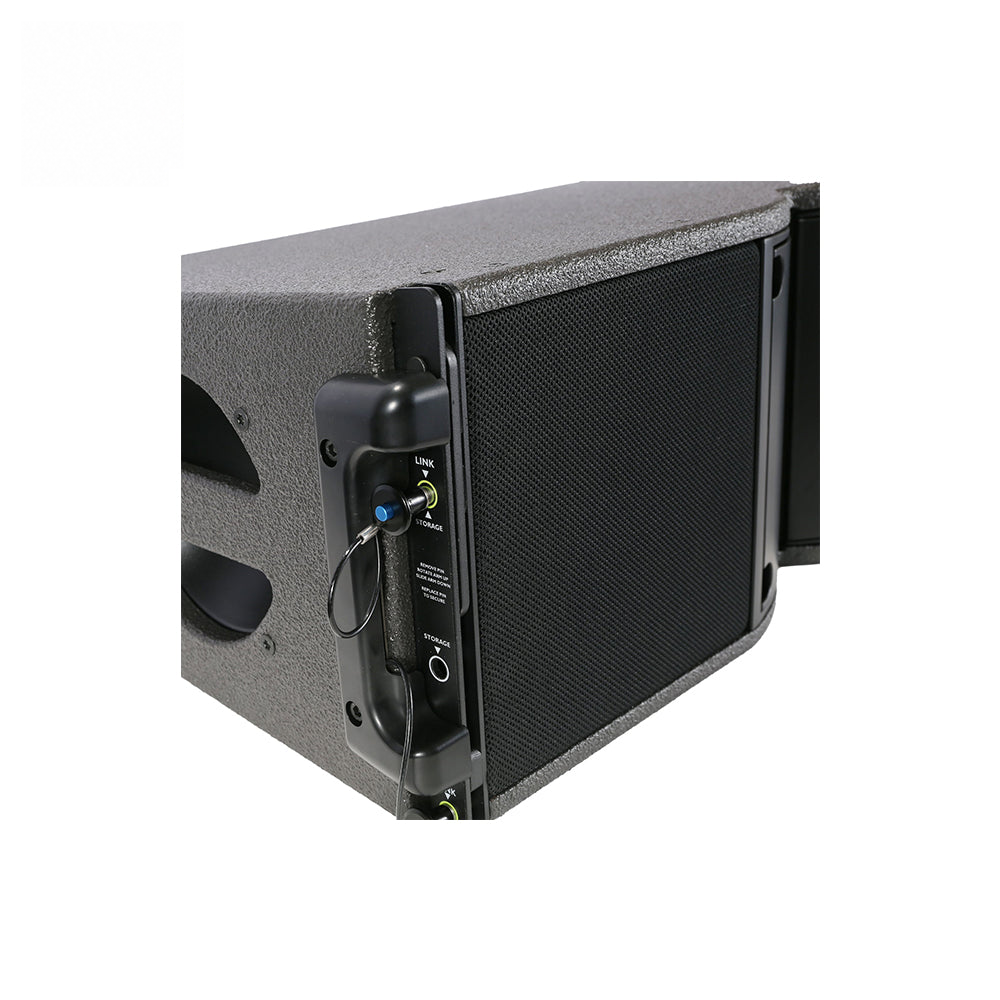

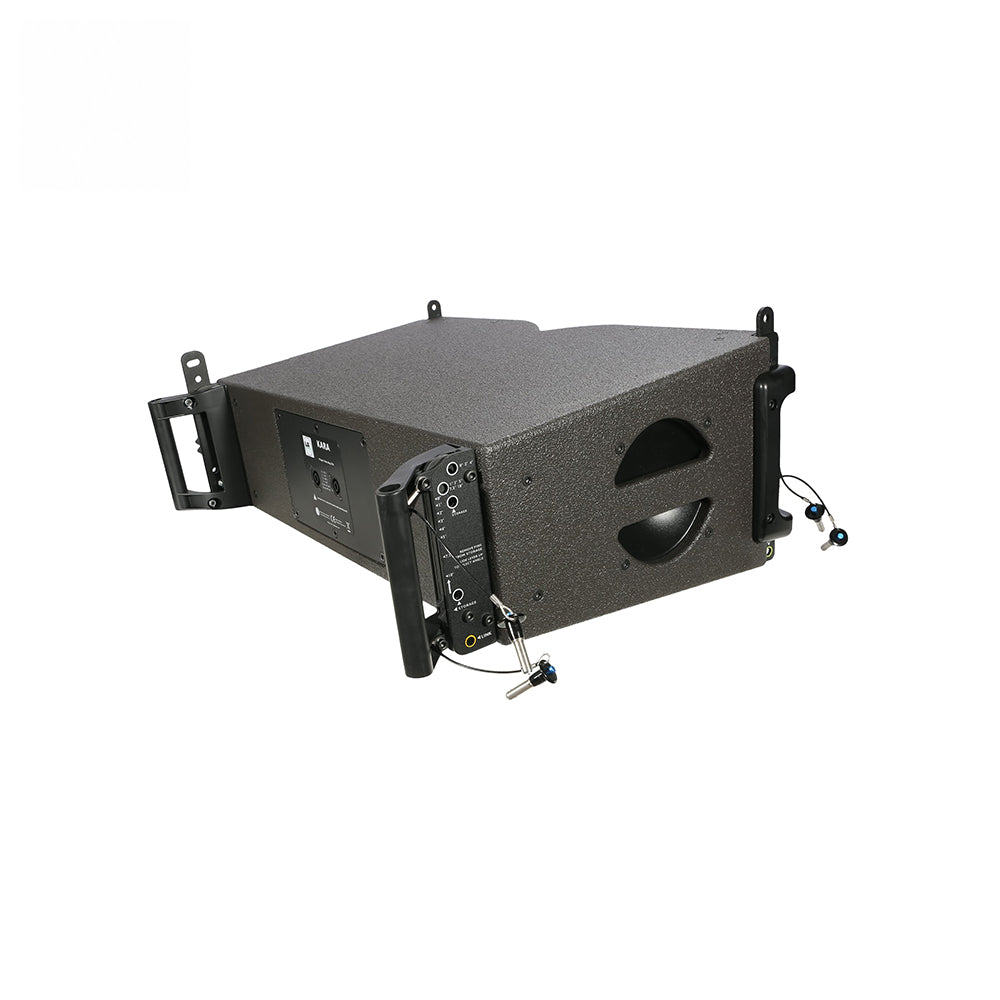

- Rigging and handling 4-point captive rigging system
- Function / configuration
- Rigging components High grade
- Function / configuration
- 2-way active WST enclosure amplified by LA4X / LA12X
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Modular line array, 2-way active, dual 8″ LF |
|---|---|
| Max SPL | 142 dB |
| Bandwidth (-5 dB) | 55 Hz – 20 kHz |
| LF | 2 × 8″ |
| HF | 1 × 3″ |
| Weight | 26 kg / 57 lb |
| Directivity | H: 70°/110° | V: 10° |
| Dimensions (H × W × D) | 700 × 250 × 445 mm |
| Nominal Impedance | 8 Ω |
| Power Handling | 450 W AES / 900 W Program / 1800 W Peak |
| Nominal directivity (-6 dB) Horizontal | 70° / 110° symmetric or 90° asymmetric |

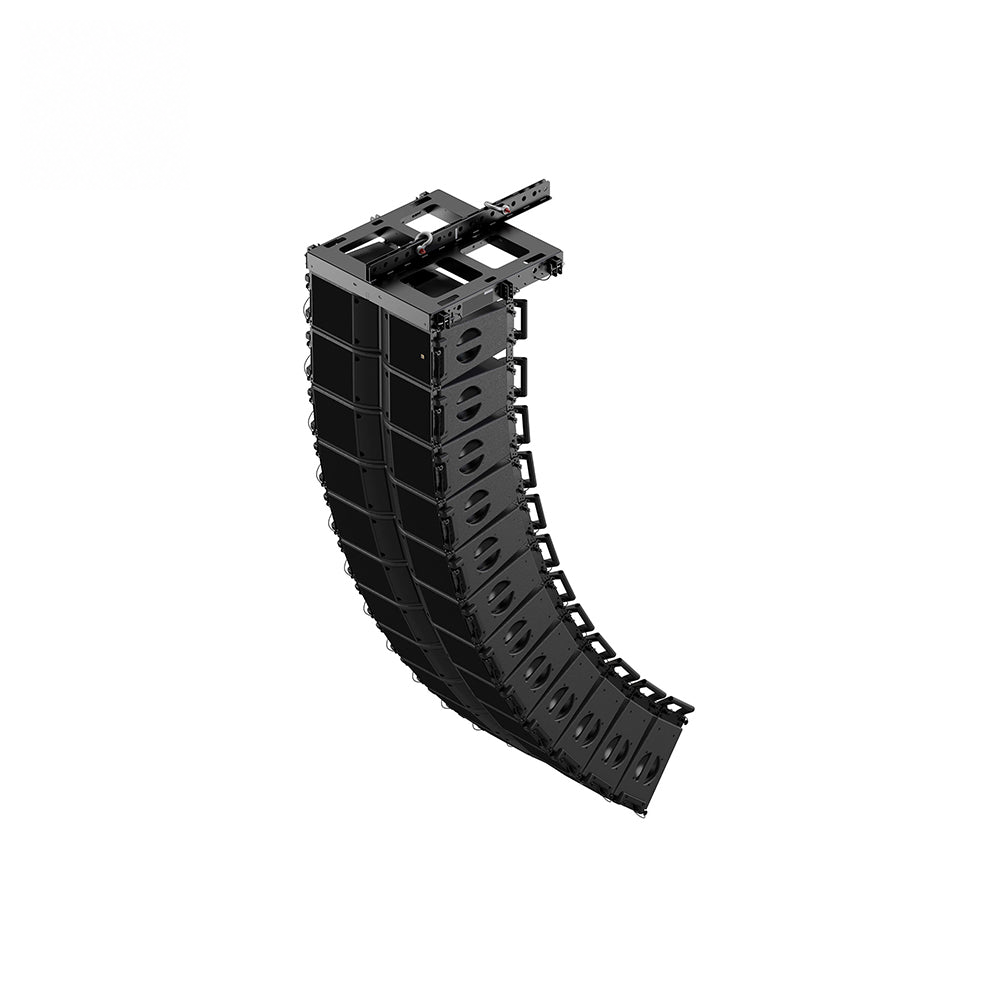

| vertical | dependent upon the number of elements and the line source curvature |
| Transducers LF | 2 × 8″ neodymium cone drivers |
| HF | 1 × 3″ neodymium diaphragm compression driver |
| Acoustical load LF | bass-reflex |
| HF | DOSC waveguide, Panflex |
| Nominal impedance LF | 8 Ω |
| HF | 8 Ω |
Downloads
| Title | File type | Download |
|---|---|---|
| YL K28II Product DetailsEnglish | PDF2.7 MB |

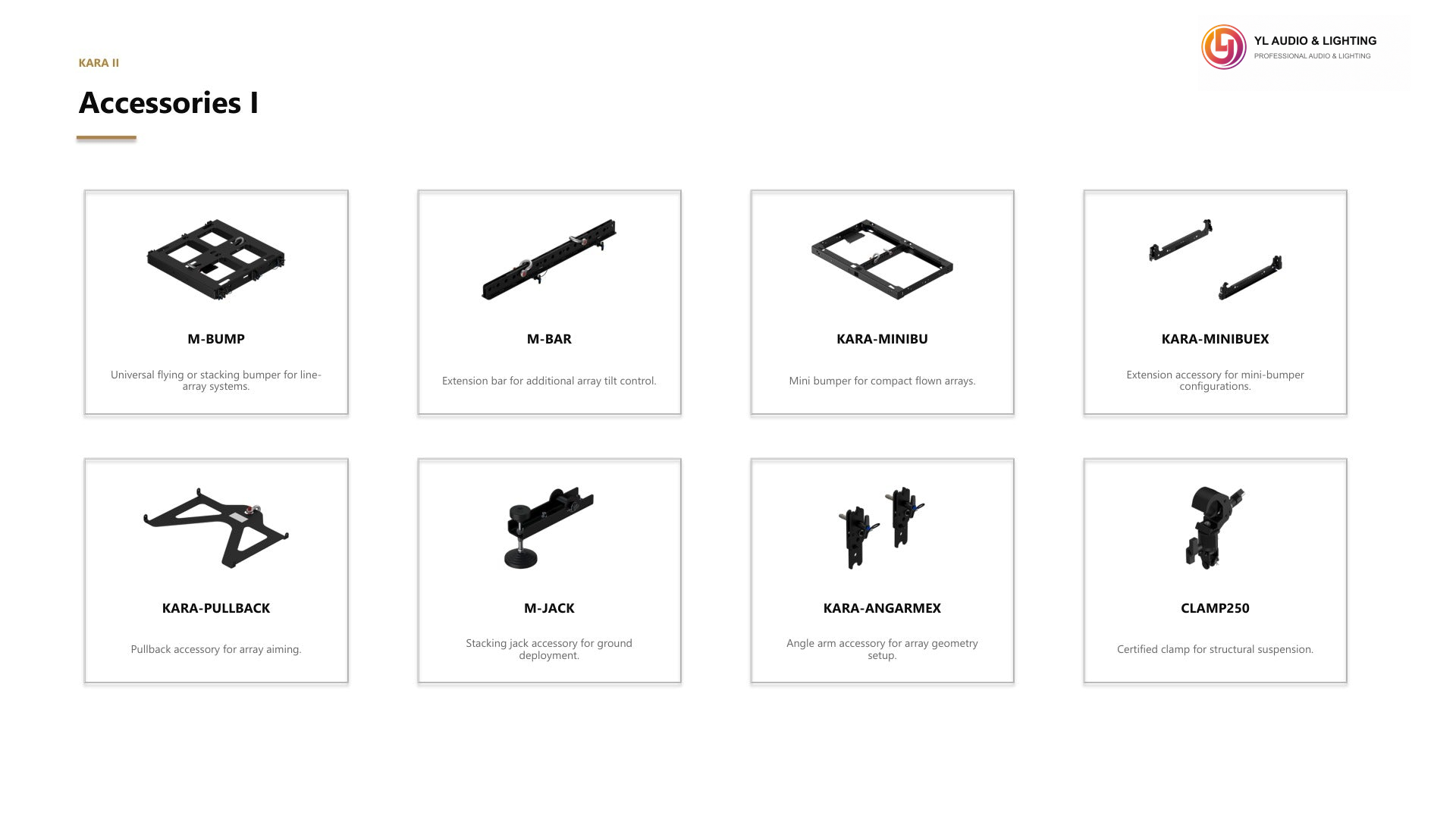

System accessories
