Product identification
- Model
- KARA II Active-K28II Active-Active compact line array, 2-way active, dual 8'' LF
- Product category
- Line Array Systems

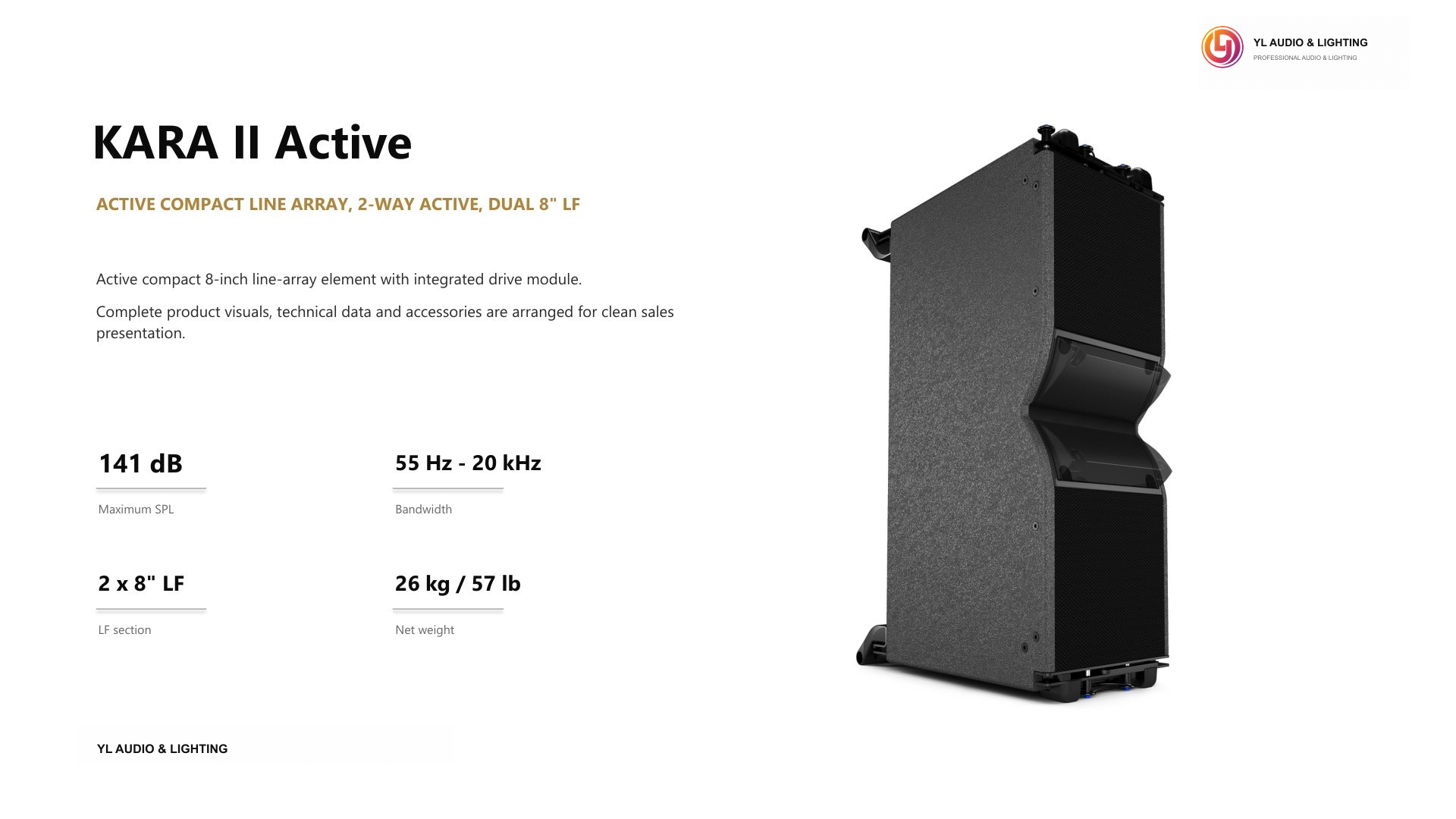

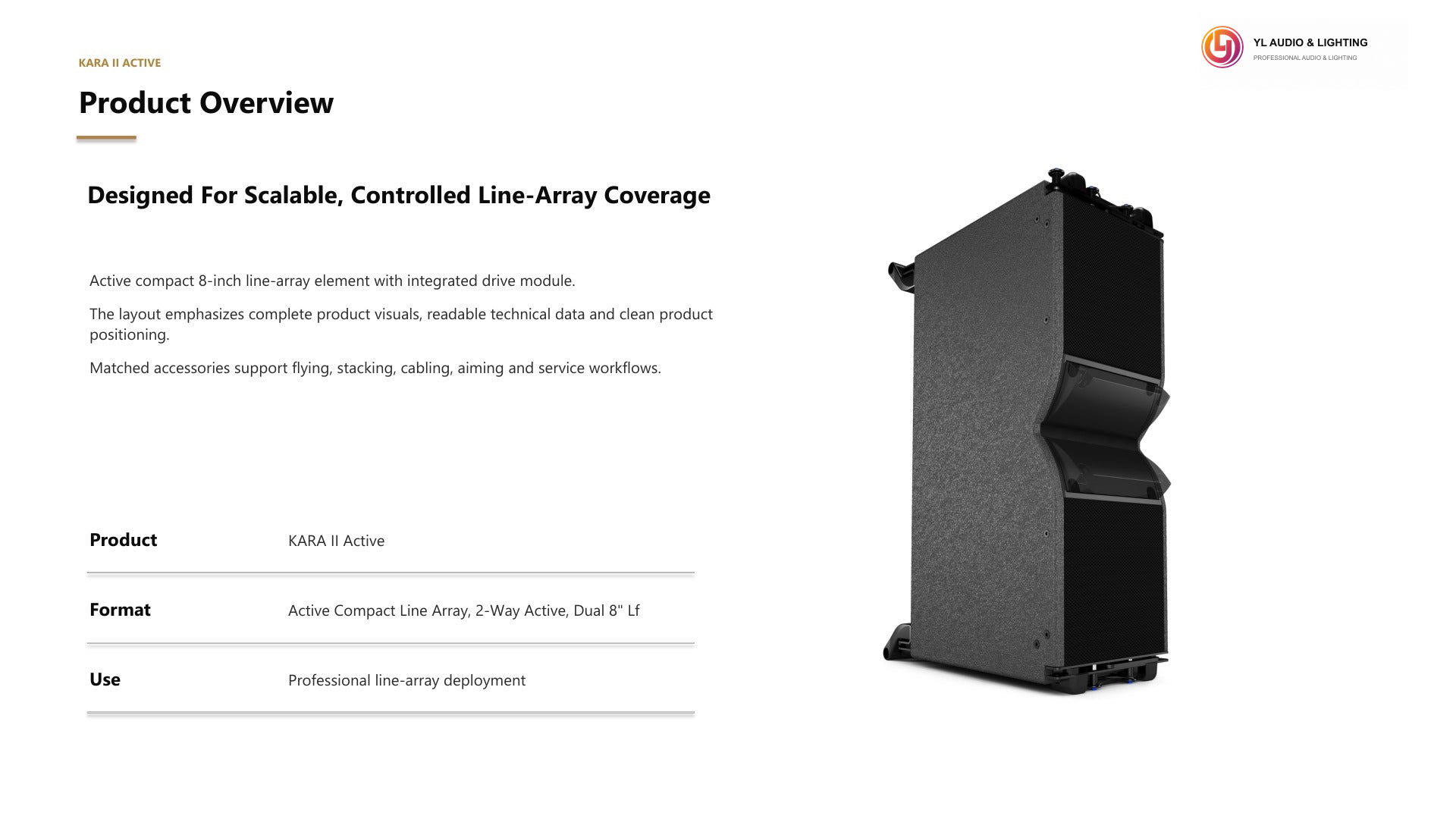

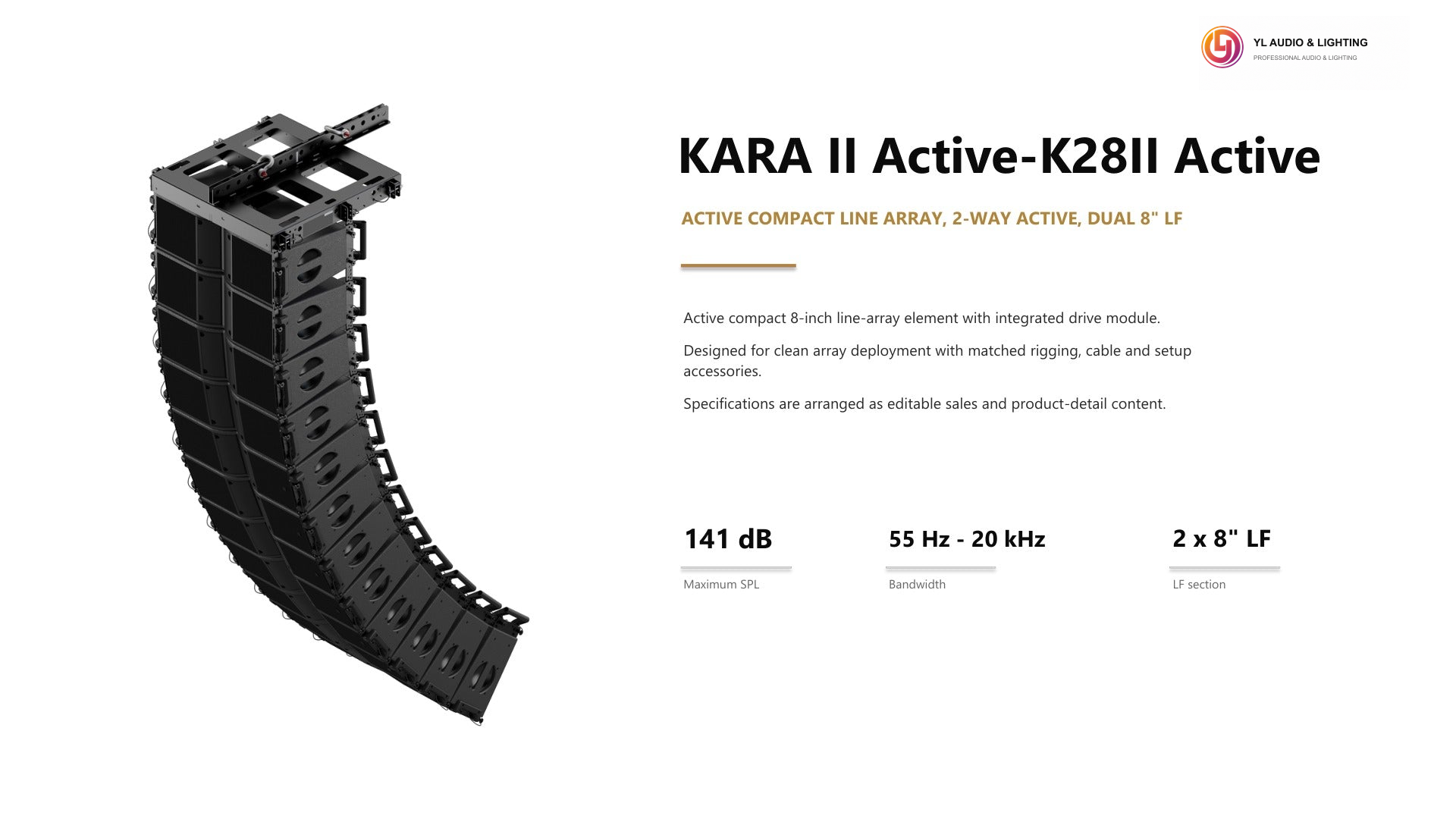

KARA II Active-K28II Active-Active compact line array, 2-way active, dual 8'' LF
KARA II Active-K28II Active-Active compact line array, 2-way active, dual 8'' LF is listed in the line array systems category as a line array system. The reference lists maximum spl: 141 dB; bandwidth: 55 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 141 dB
- Bandwidth
- 55 Hz – 20 kHz
- Weight
- ≈ 26 kg / 57 lb

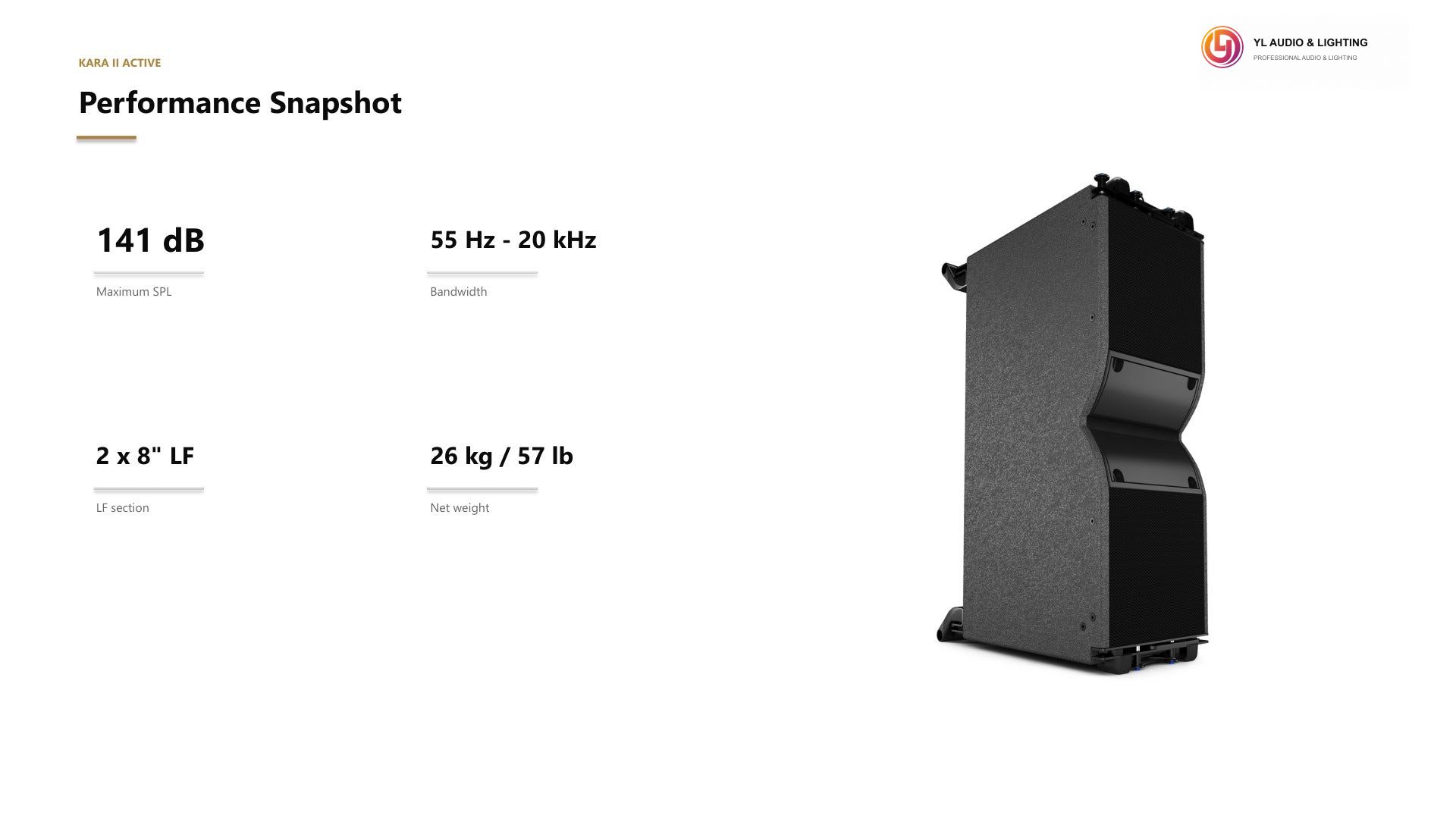

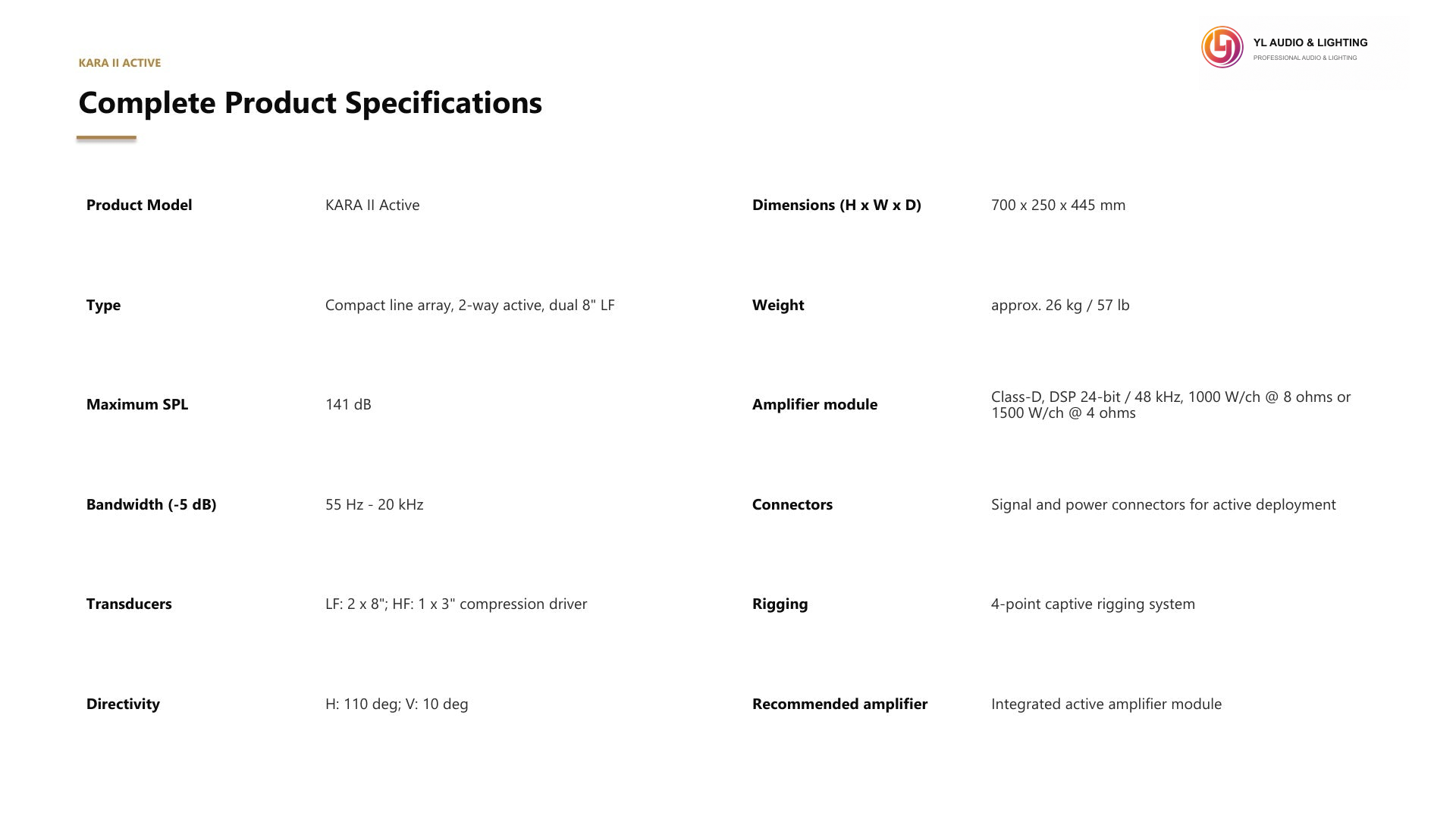

Technical specifications
- Maximum SPL
- 141 dB
- Bandwidth
- 55 Hz – 20 kHz
- Transducers
- LF: 2 × 8″ • HF: 1 × 3″ compression driver
- Frequency response
- Usable bandwidth (-10 dB): 55 Hz - 20 kHz ([KARA II 70]); Architect Specs also note 63 Hz - 20 kHz (-6 dB), 80 Hz - 19 kHz (-3 dB)
- Nominal directivity (-6 dB) Horizontal
- 70° / 110° symmetric or 90° asymmetric
- vertical
- dependent upon the number of elements and the line source curvature
- Transducers LF
- 2 × 8″ neodymium cone drivers
- HF transducers
- 1 × 3″ neodymium diaphragm compression driver
- Acoustical load LF
- bass-reflex
- HF
- DOSC waveguide, Panflex
- Nominal impedance LF
- 8 Ω
- HF impedance
- 8 Ω
- vertical
- dependent upon the number of
- Transducers LF
- 2 × 8″ neodymium cone
- HF transducers
- 1 × 3″ neodymium diaphragm compression

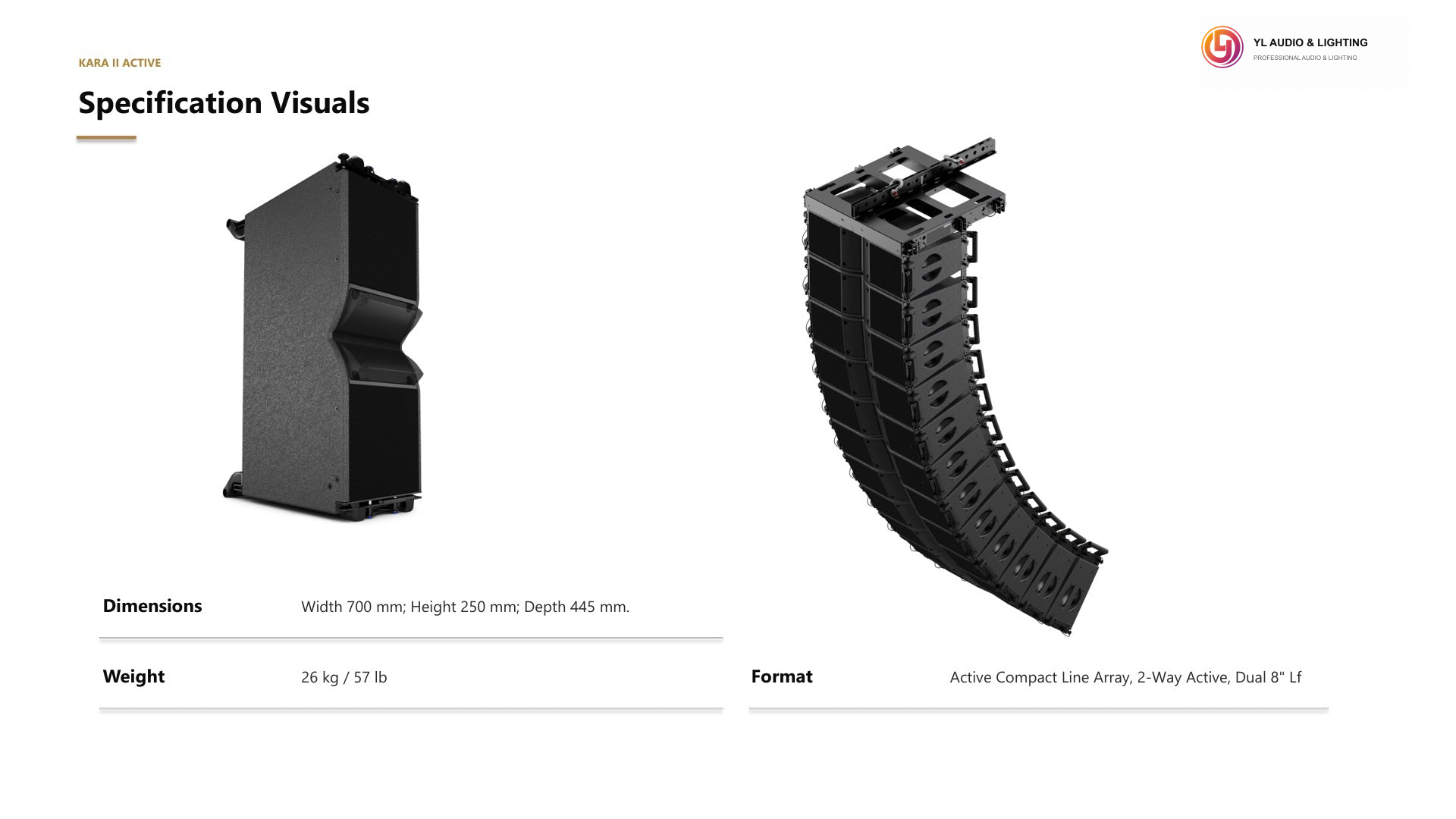

Physical specifications
- Dimensions
- 700 × 250 × 445 mm
- Weight
- ≈ 26 kg / 57 lb

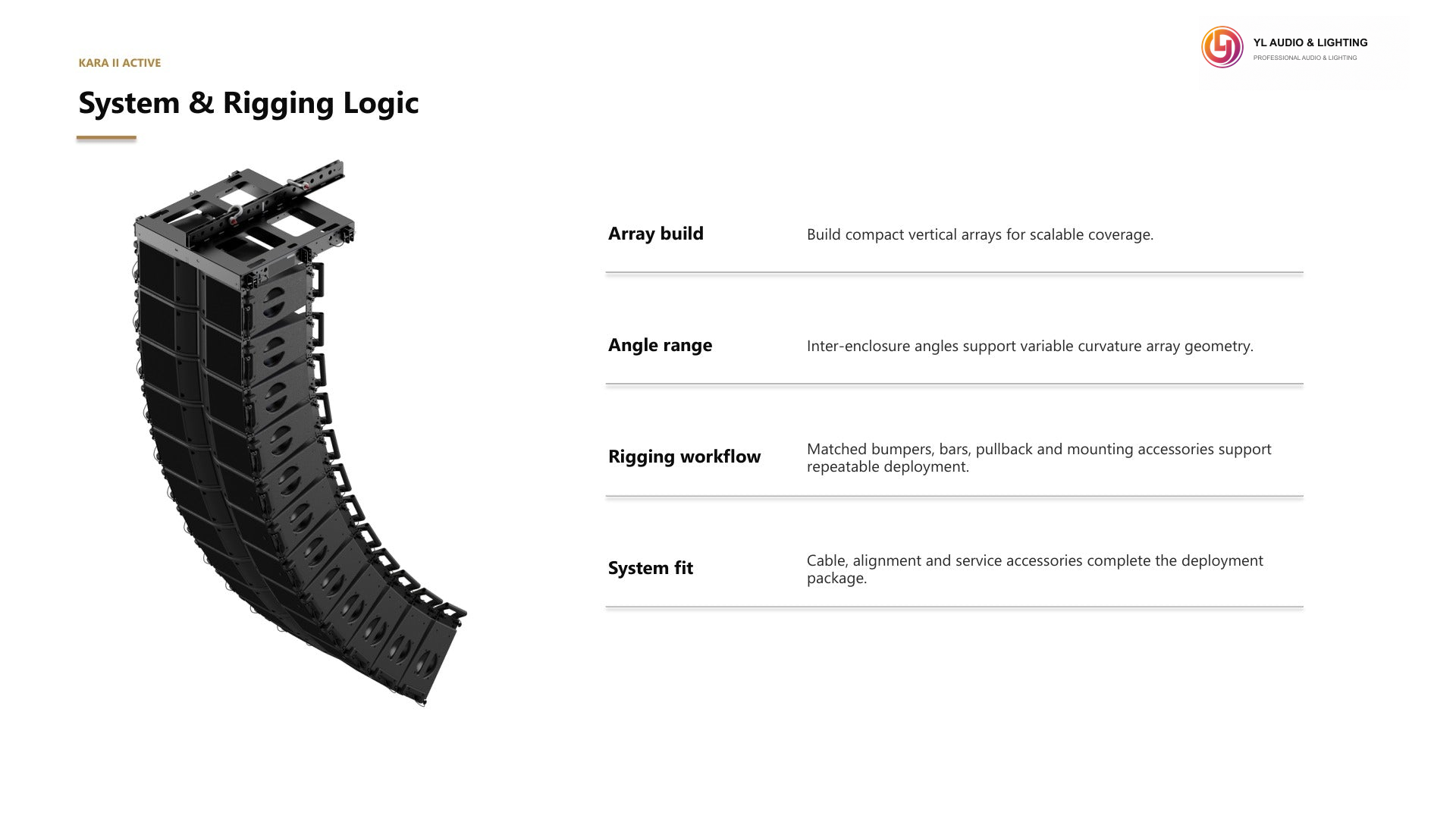

- inter-enclosure angles
- 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Compatibility and deployment
- Function / configuration
- 2-Way active WST enclosure (installation version)
- Function / configuration
- amplified by / LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz
- Function / configuration
- Maximum SPL1 142 dB ([KARA II 70]) with
- Function / configuration
- LA4X / LA12X
- Function / configuration
- 137 dB ([KARA II 70]) with LA2Xi
- Function / configuration
- / 110° symmetric or 90° asymmetric
- Function / configuration
- 1 Peak level measured at 1 m under
- Function / configuration
- free field conditions using pink noise with crest factor 4 (preset specified in
- Function / configuration
- brackets).
- Function / configuration
- Connectors 2 × 4-point terminal block with push-in
- Function / configuration
- Rigging and handling External rigging kits
- Function / configuration
- or 10°
- Function / configuration
- 2-Way active WST enclosure (installation version) amplified by / LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([KARA II 70])
- Function / configuration
- Maximum SPL1 142 dB ([KARA II 70]) with LA4X / LA12X
- Function / configuration
- 1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
- Function / configuration
- Connectors 2 × 4-point terminal block with push-in connection
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 141 dB |
|---|---|
| Bandwidth | 55 Hz – 20 kHz |
| Transducers | • LF: 2 × 8″ • HF: 1 × 3″ compression driver |
| Dimensions | 700 × 250 × 445 mm |
| Weight | ≈ 26 kg / 57 lb |
| Frequency response | Usable bandwidth (-10 dB): 55 Hz - 20 kHz ([KARA II 70]); Architect Specs also note 63 Hz - 20 kHz (-6 dB), 80 Hz - 19 kHz (-3 dB) |
| Nominal directivity (-6 dB) Horizontal | 70° / 110° symmetric or 90° asymmetric |
| vertical | dependent upon the number of elements and the line source curvature |
| Transducers LF | 2 × 8″ neodymium cone drivers |
| HF | 1 × 3″ neodymium diaphragm compression driver |
| Acoustical load LF | bass-reflex |
| HF | DOSC waveguide, Panflex |
| Nominal impedance LF | 8 Ω |
| HF | 8 Ω |
| inter-enclosure angles | 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
Downloads
| Title | File type | Download |
|---|---|---|
| YL K28II Active Product DetailsEnglish | PDF5.1 MB |

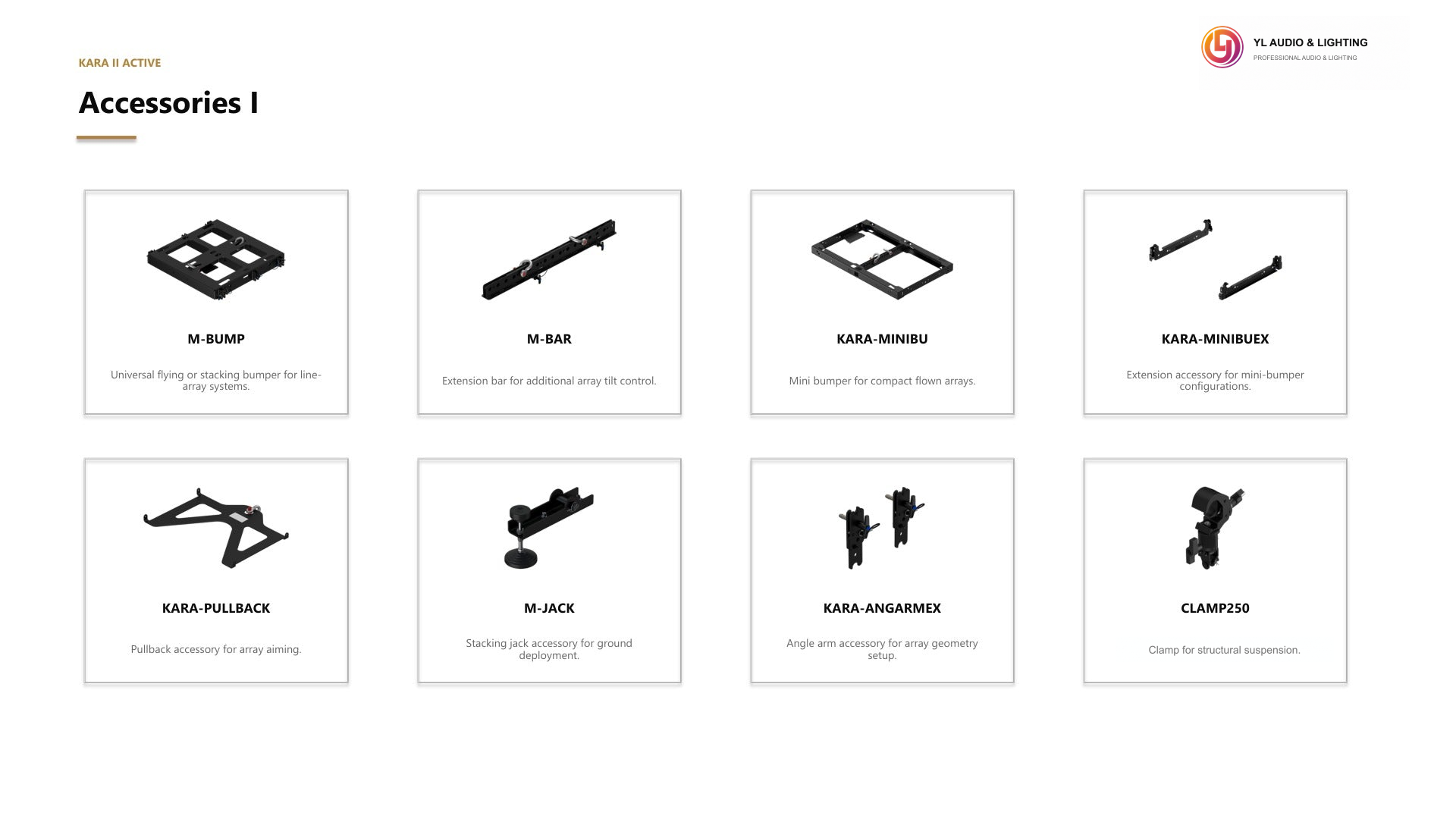

System accessories
